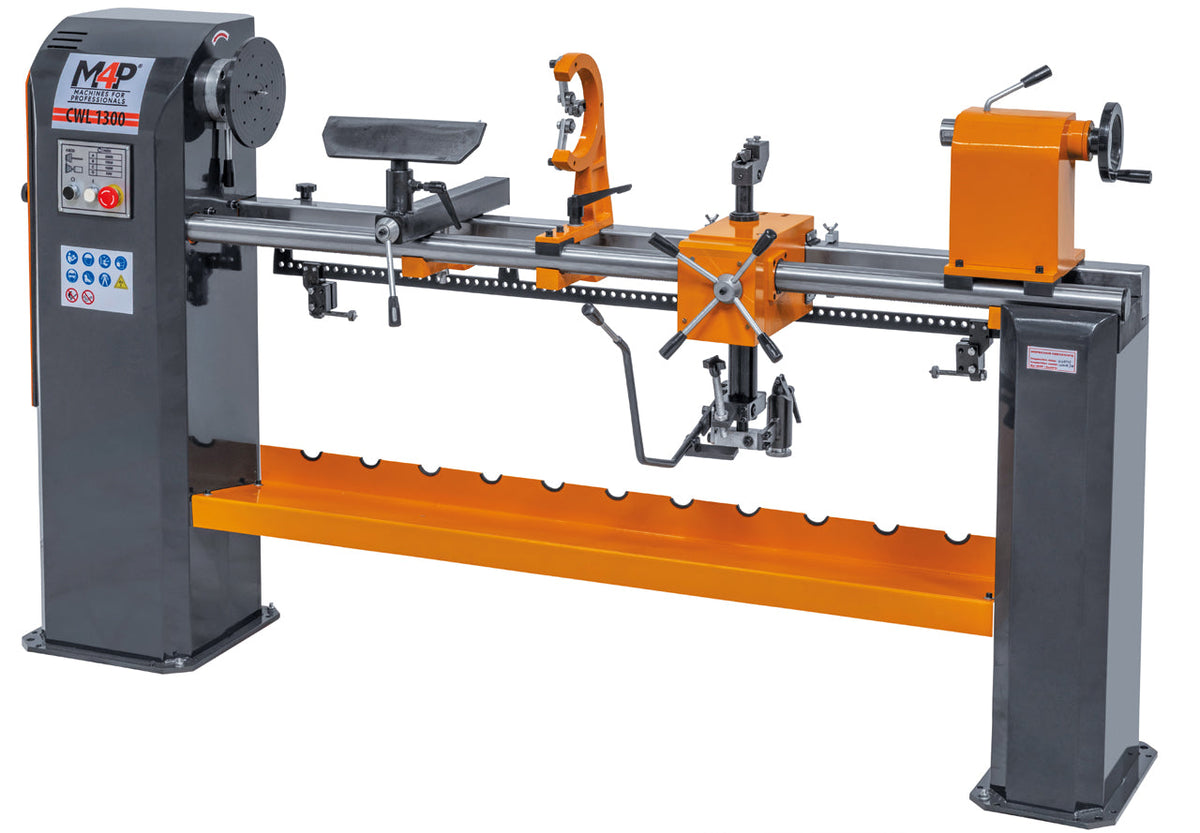

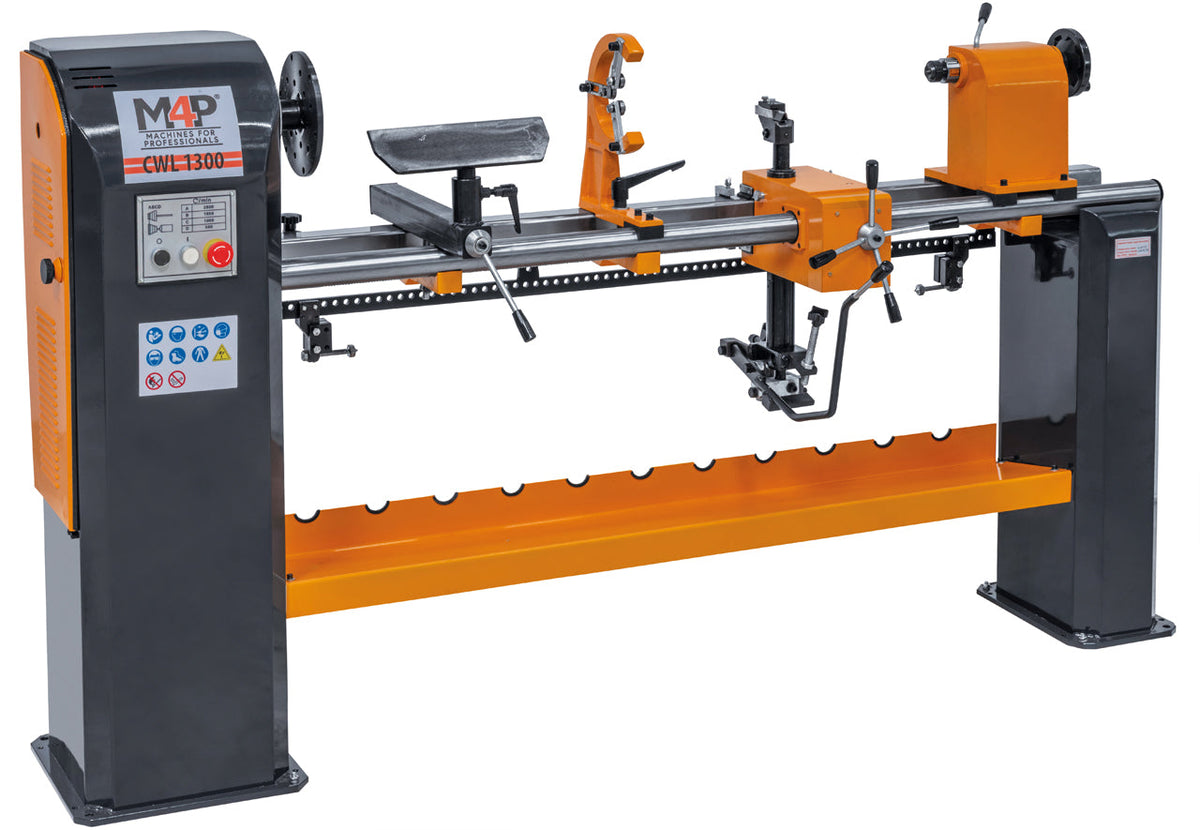

The high-performance copy lathes for the demanding professional woodturner combine optimal functionality, elegant design, safety, and precision. The solid, precision-bearing spindle with four coordinated speeds ensures optimal turning performance even with large workpieces.

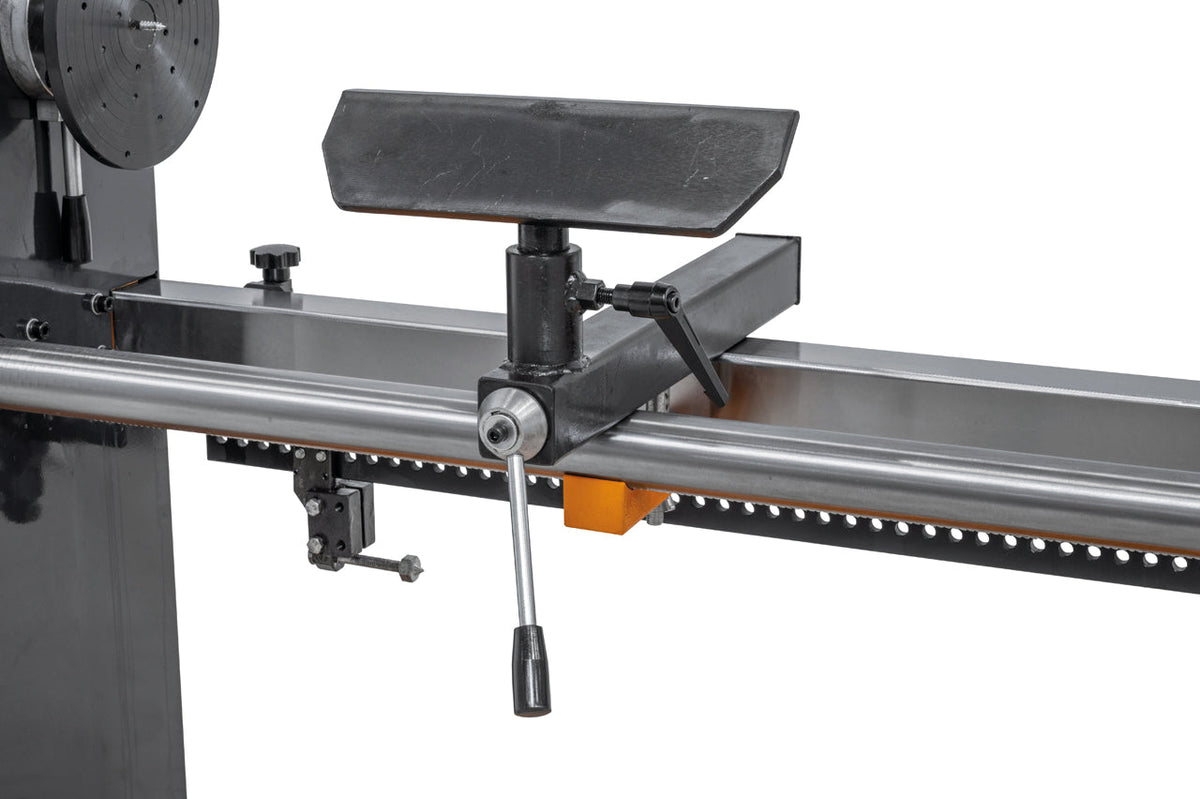

Included in the extensive standard scope of delivery: 290 mm tool rest,

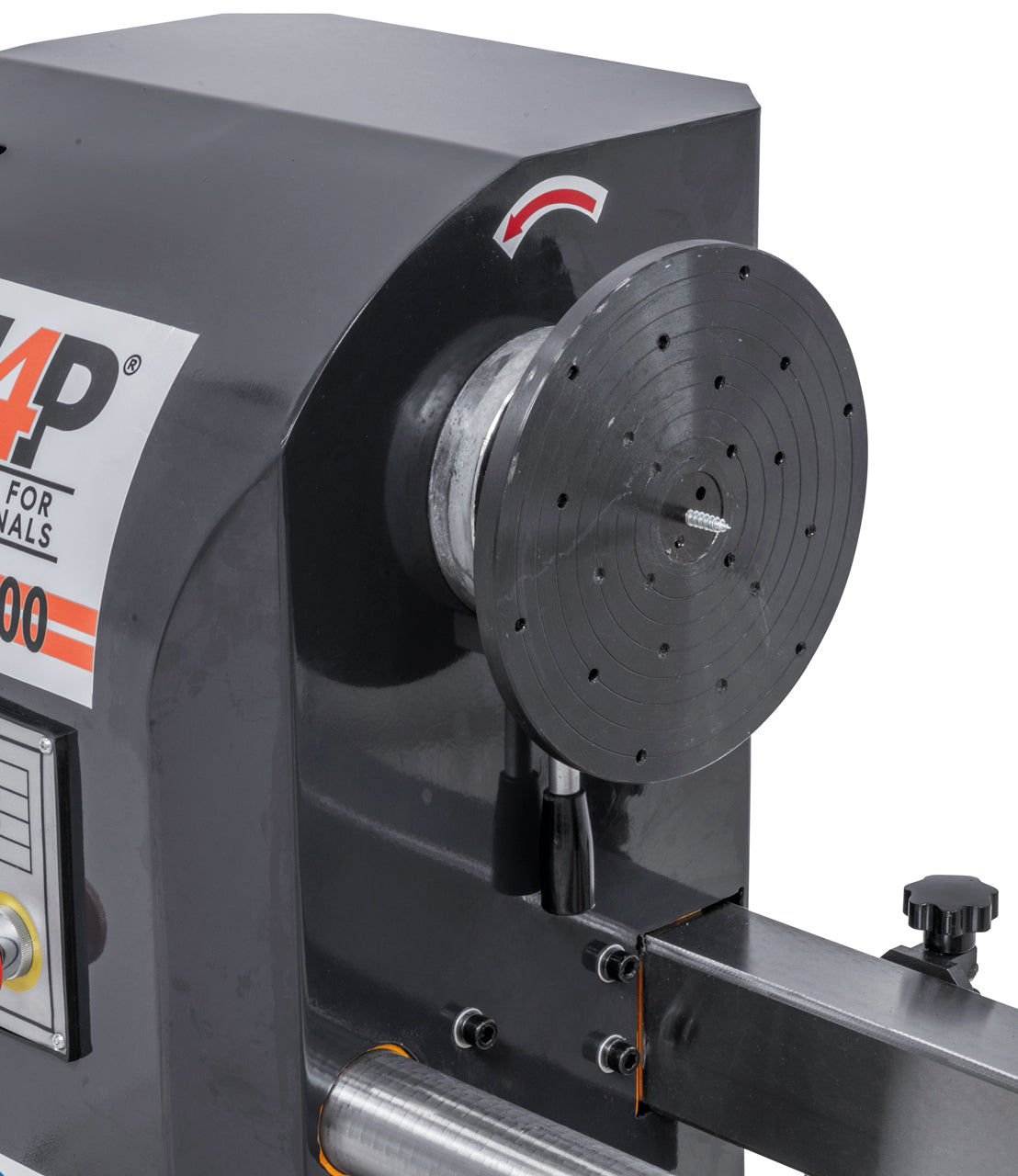

200 mm faceplate, live center, four-prong drive center

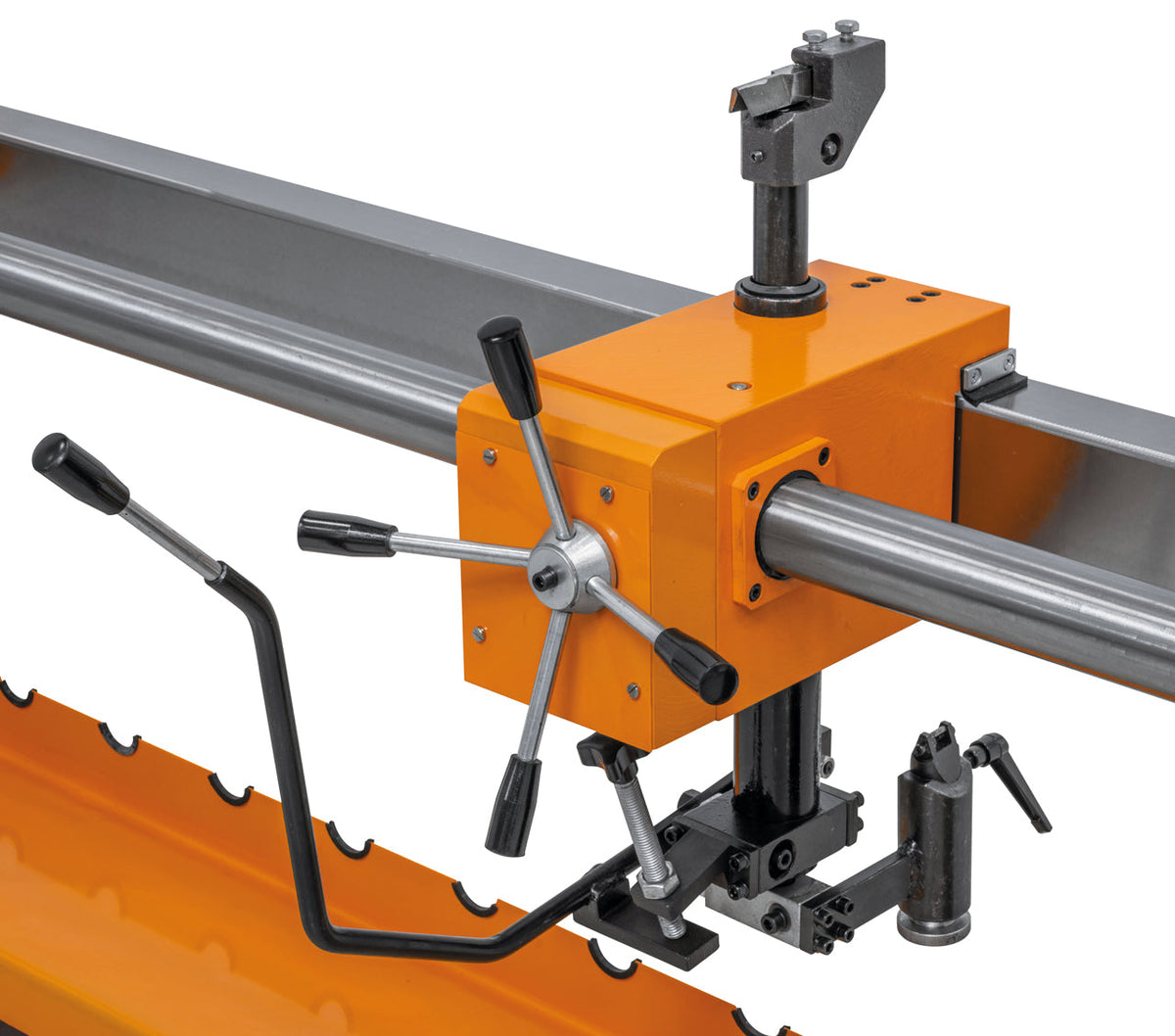

Copying device for copying original parts or templates

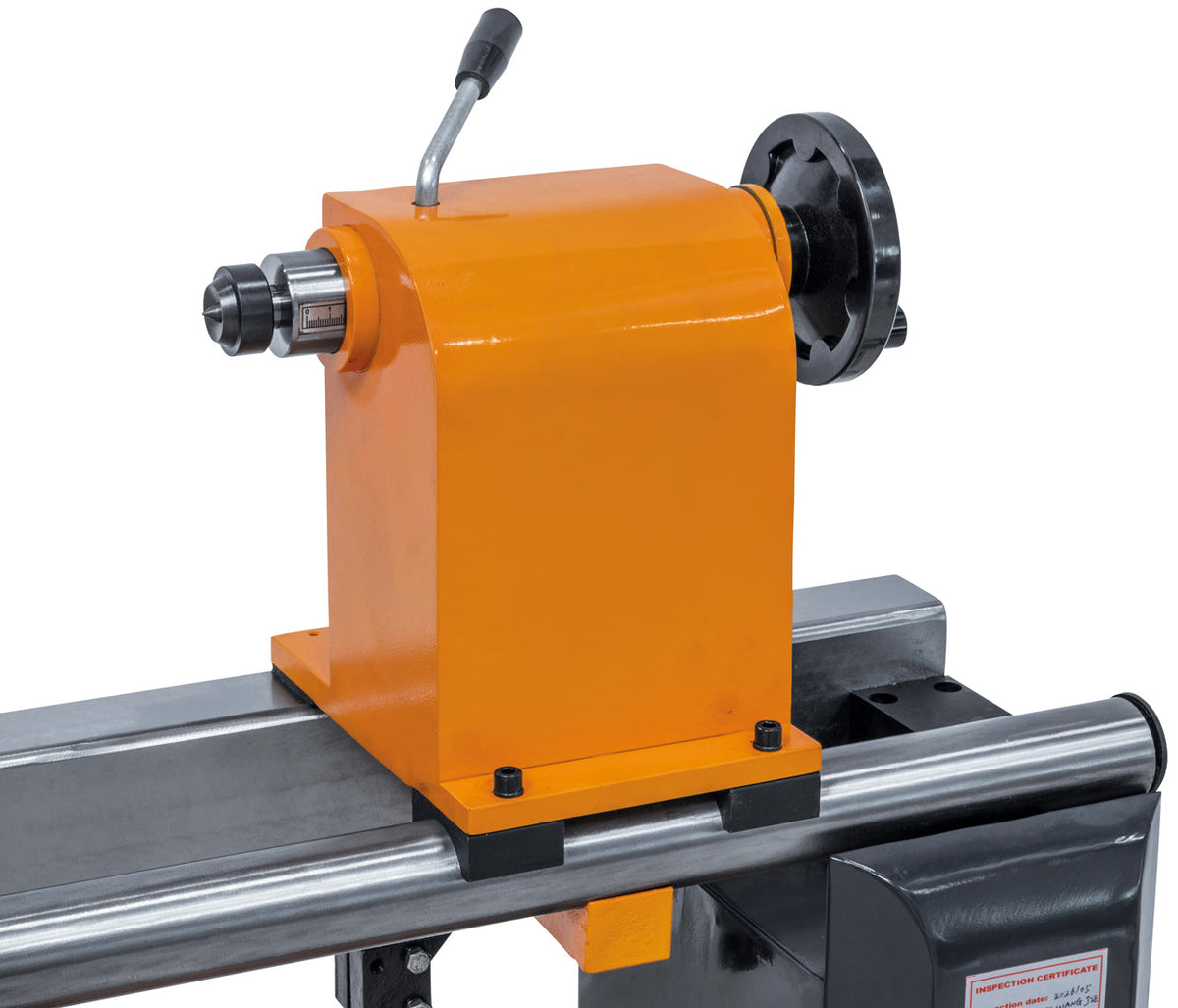

Tailstock quill with through-hole for machining long workpieces
Powerful drive motor for maximum load

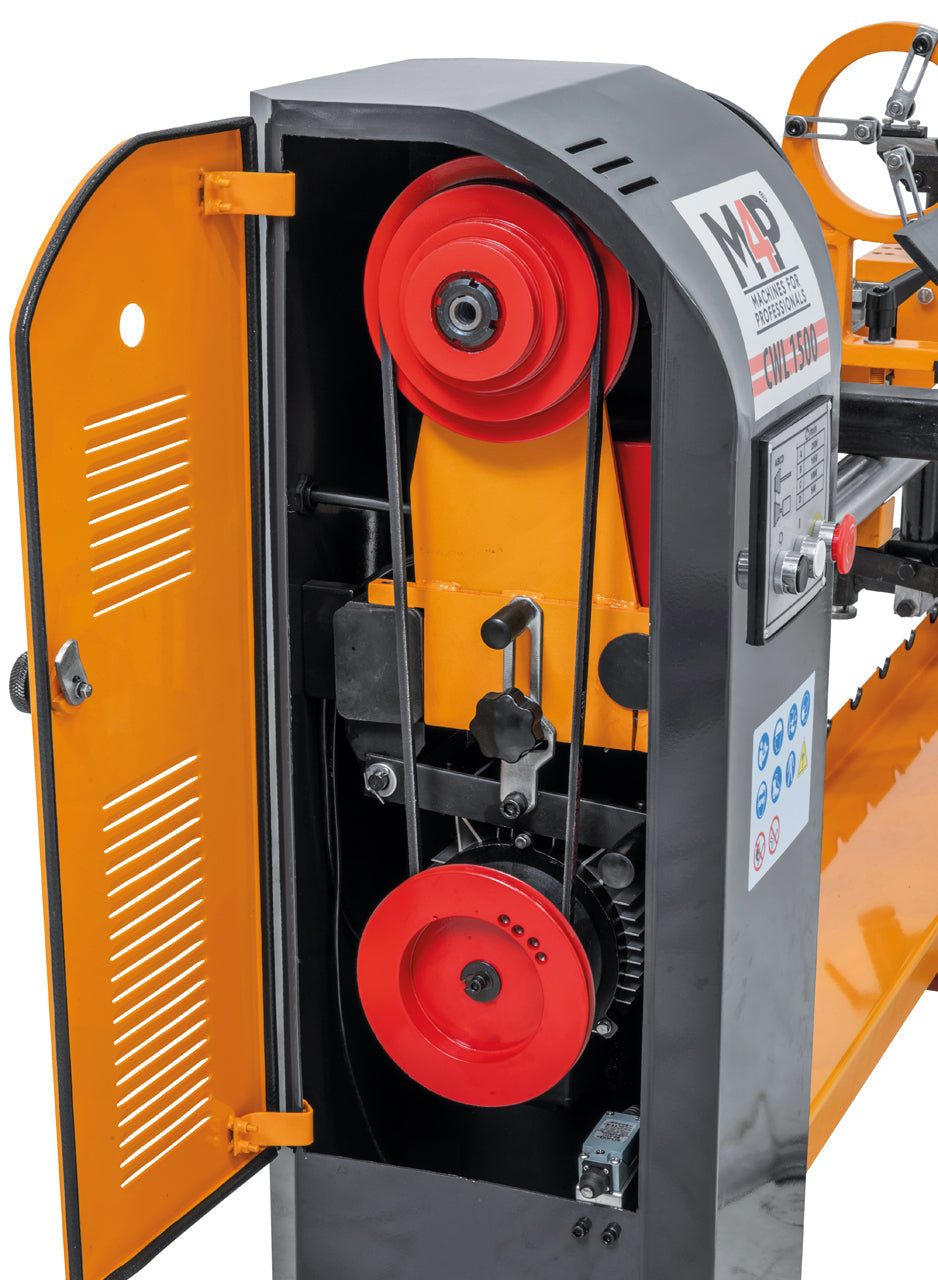

Optimal power transmission via high-quality 4-speed belt drive
Sturdy gray cast iron construction for vibration-free operation
Ergonomically positioned switches and controls on the front of the machine
Solid, precision-bearing spindle for high concentricity
Extensive standard accessories, resulting in an optimal price-performance ratio
| Spitzenweite | 1300 mm |
| Bearbeitungsdurchmesser | |
| - über Führungsbahn | 430 mm |
| - über Support | 160 mm |
| - beim Kopieren* | 160 mm |
| Spindeldrehzahlen | 500 / 1000 / 1950 / 2800 U/min |
| Spindelgewinde | M 33 x 3,5 mm |
| Reitstock | |
| Reitstockkonus | MK 2 |
| Pinolenverstellung | 100 mm |
| Kopiereinrichtung | |
| Kopierlänge | 1300 mm |
| Kopiertiefe max. | 45 mm |
| Motor-Abgabeleistung S₁ 100% | 1,1 kW (1,5 PS) |
| Motor-Aufnahmeleistung S₆ 40% | 1,5 kW (2,0 PS) |
| Spannung | 400 V |
| Maschinenabmessung (B x T x H) | 2100 x 700 x 1170 mm |
| Gewicht ca. | 192 kg |
| * nach Schablone | |
