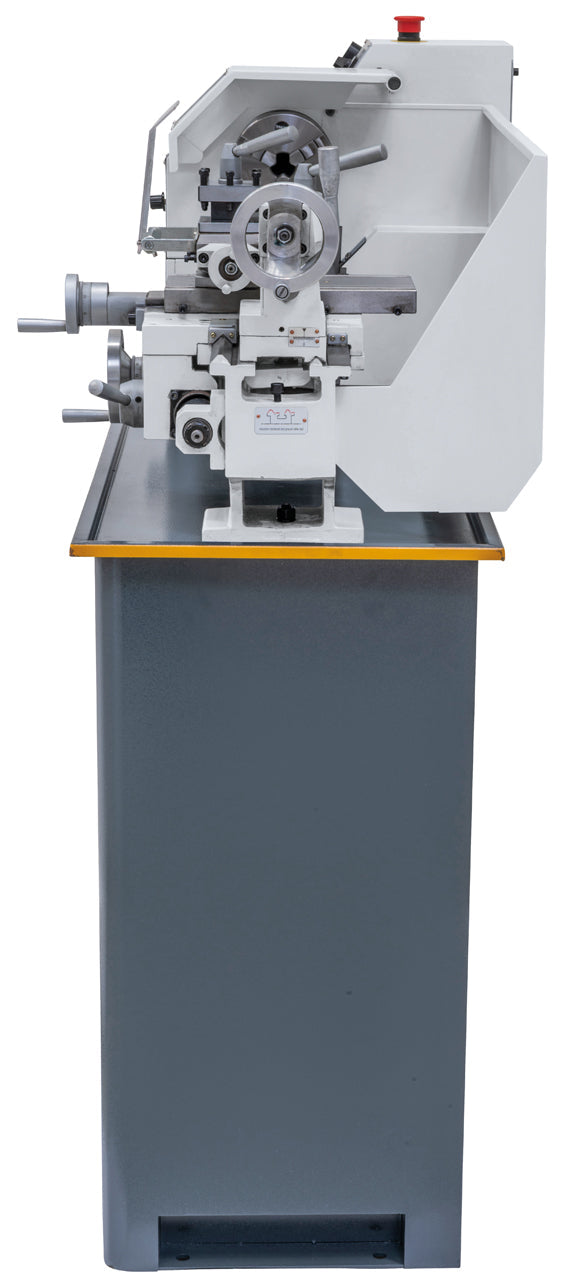

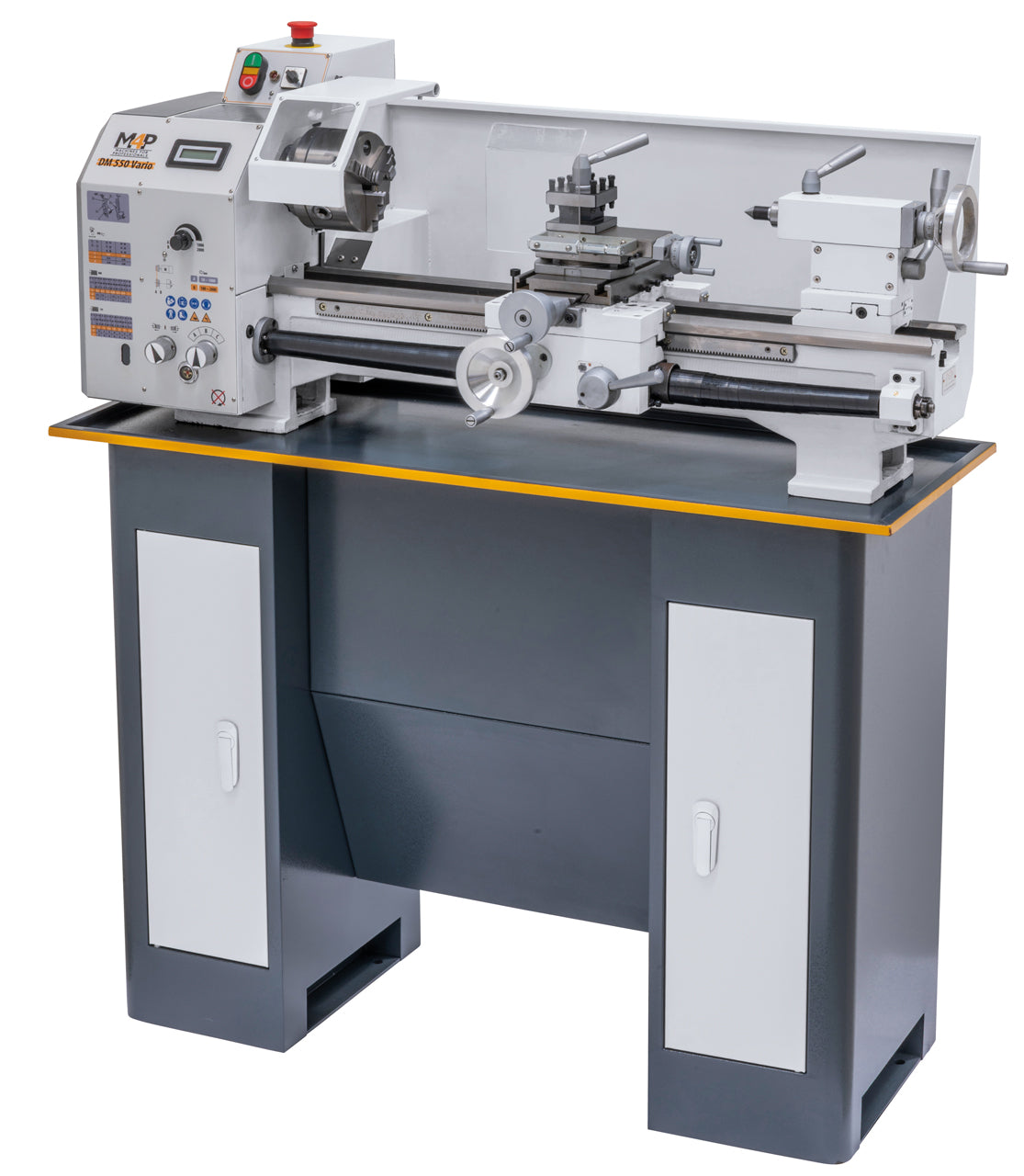

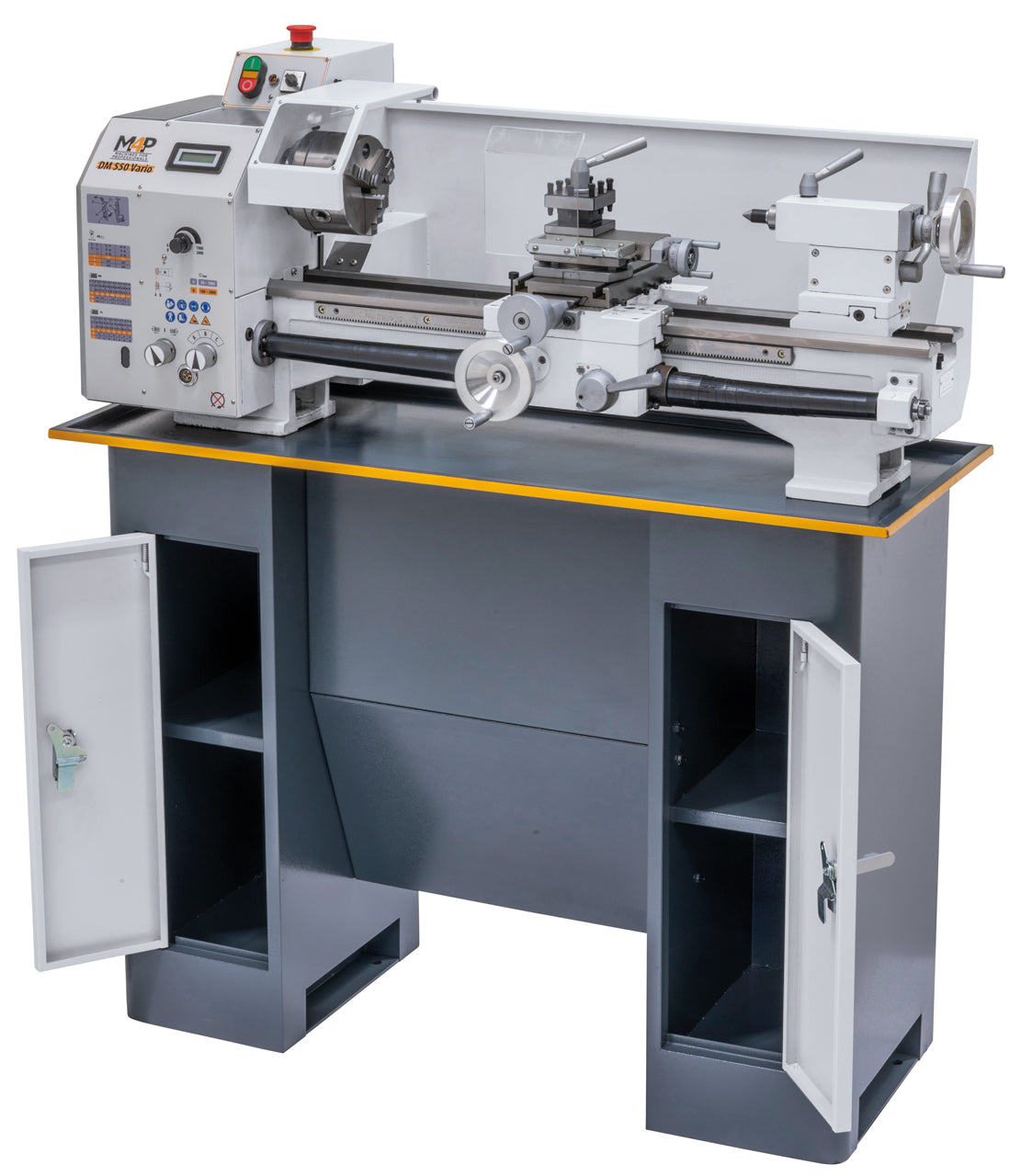

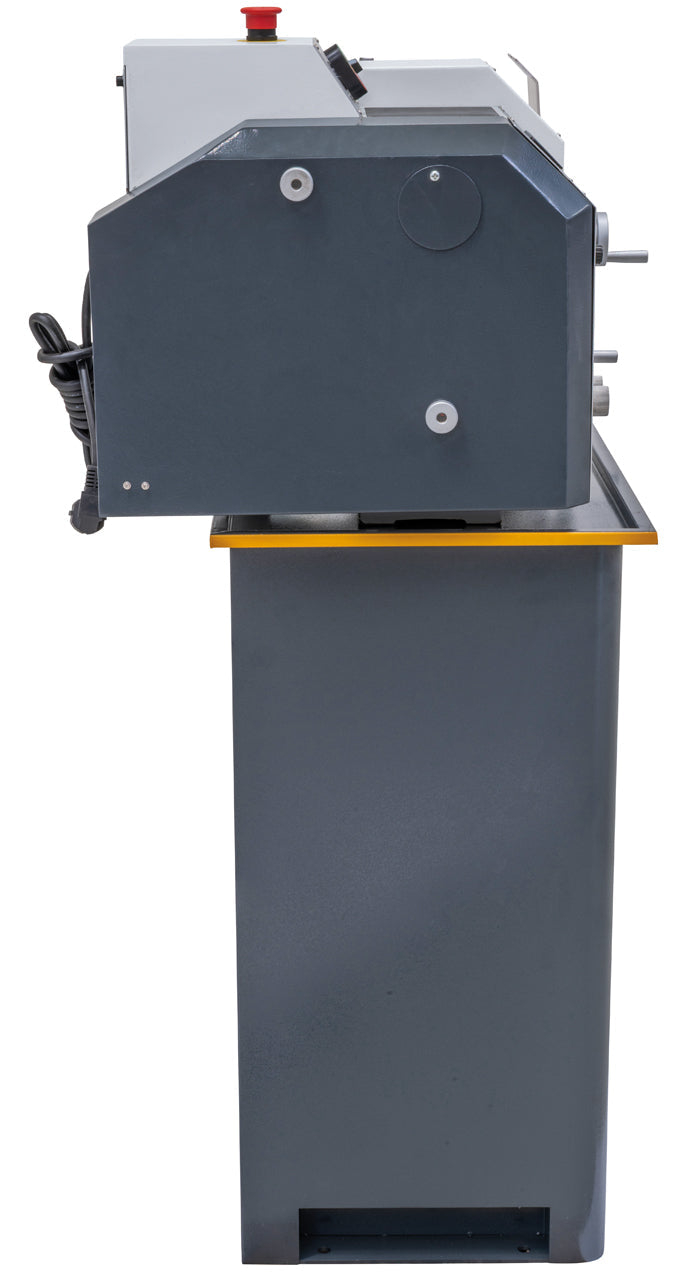

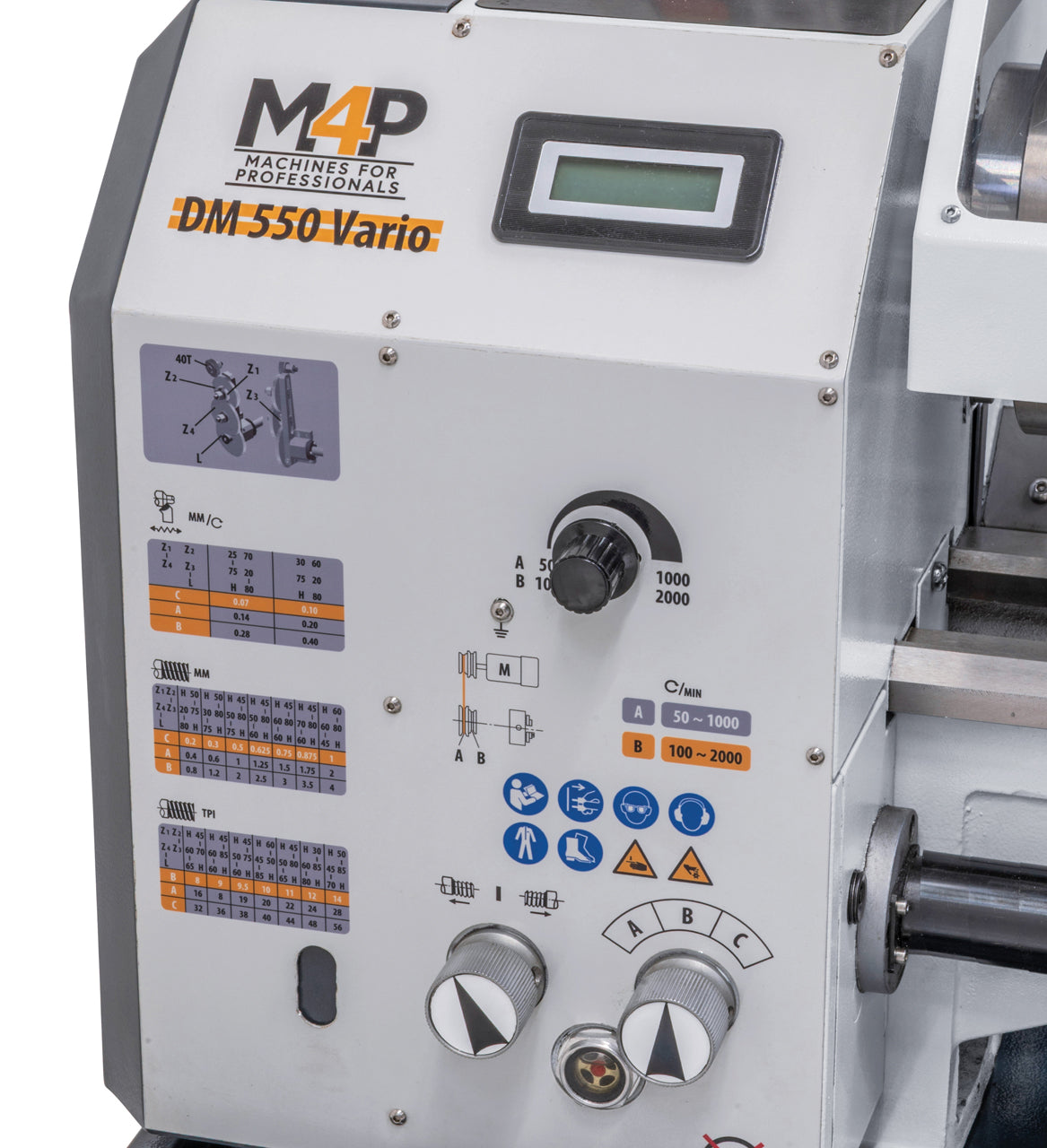

The lead screw lathe DM 550 Vario is equipped with stepless speed control as standard, the set speed is read from a digital display. Thanks to its optimal price-performance ratio, this model is ideal for demanding users.
Electronic, stepless speed control, allowing optimal adaptation of
cutting speed to the workpiece
Versatile applications: precision mechanics, training workshops and apprenticeships

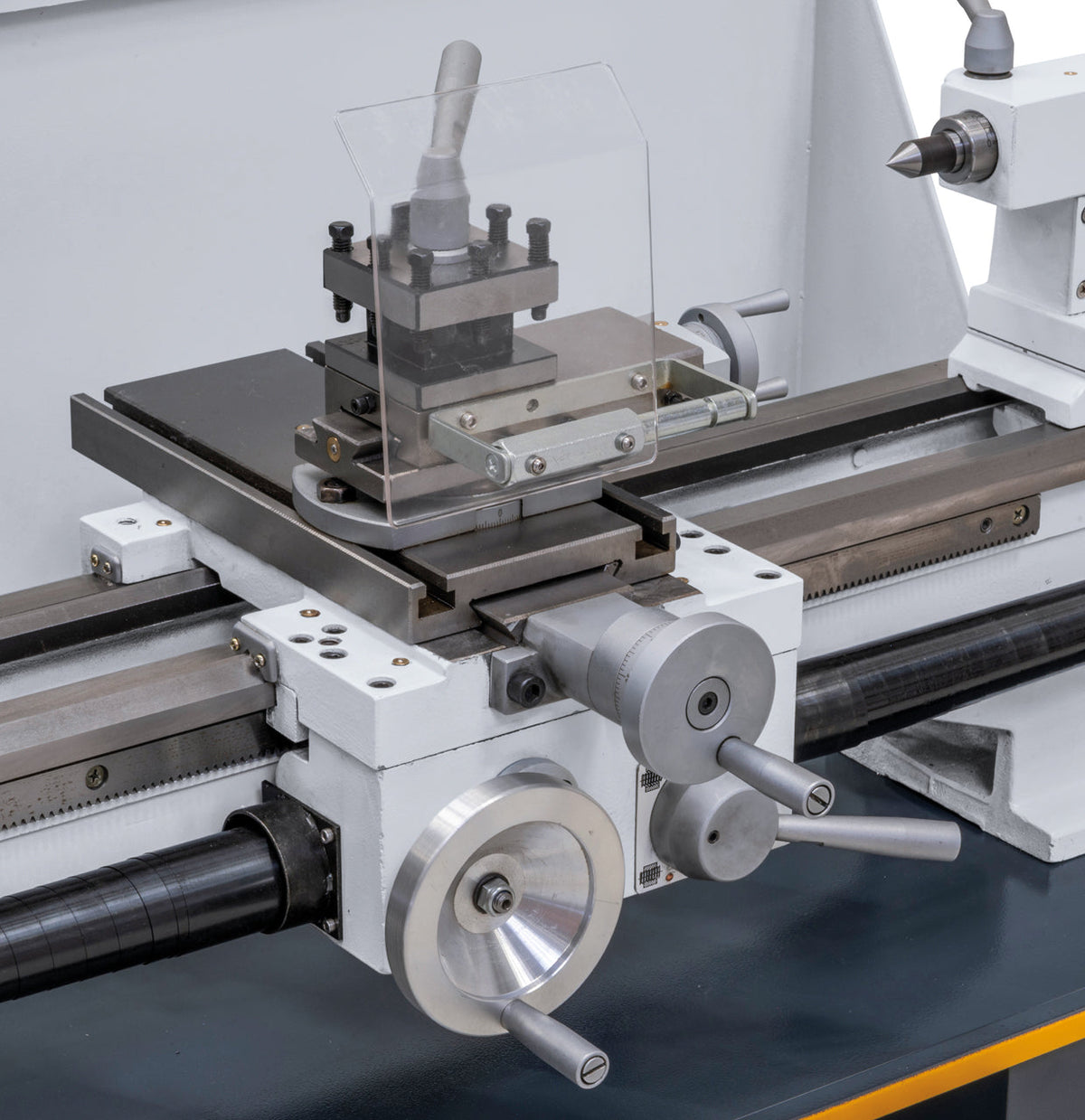

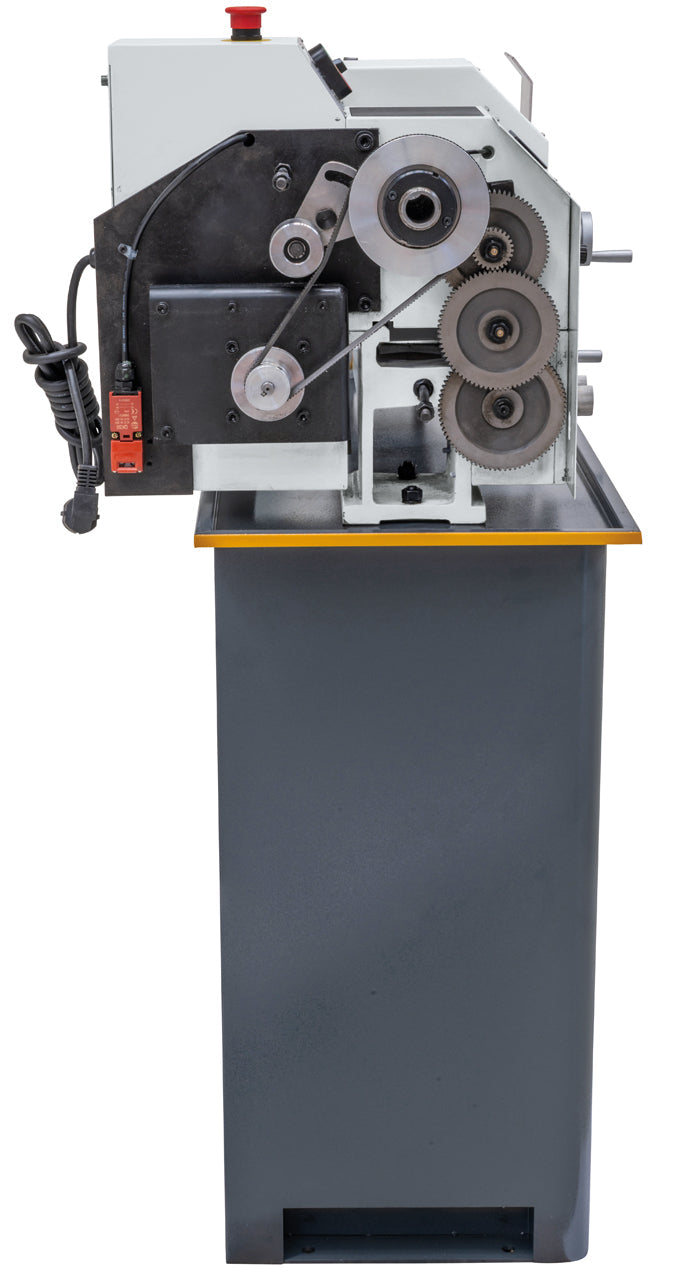

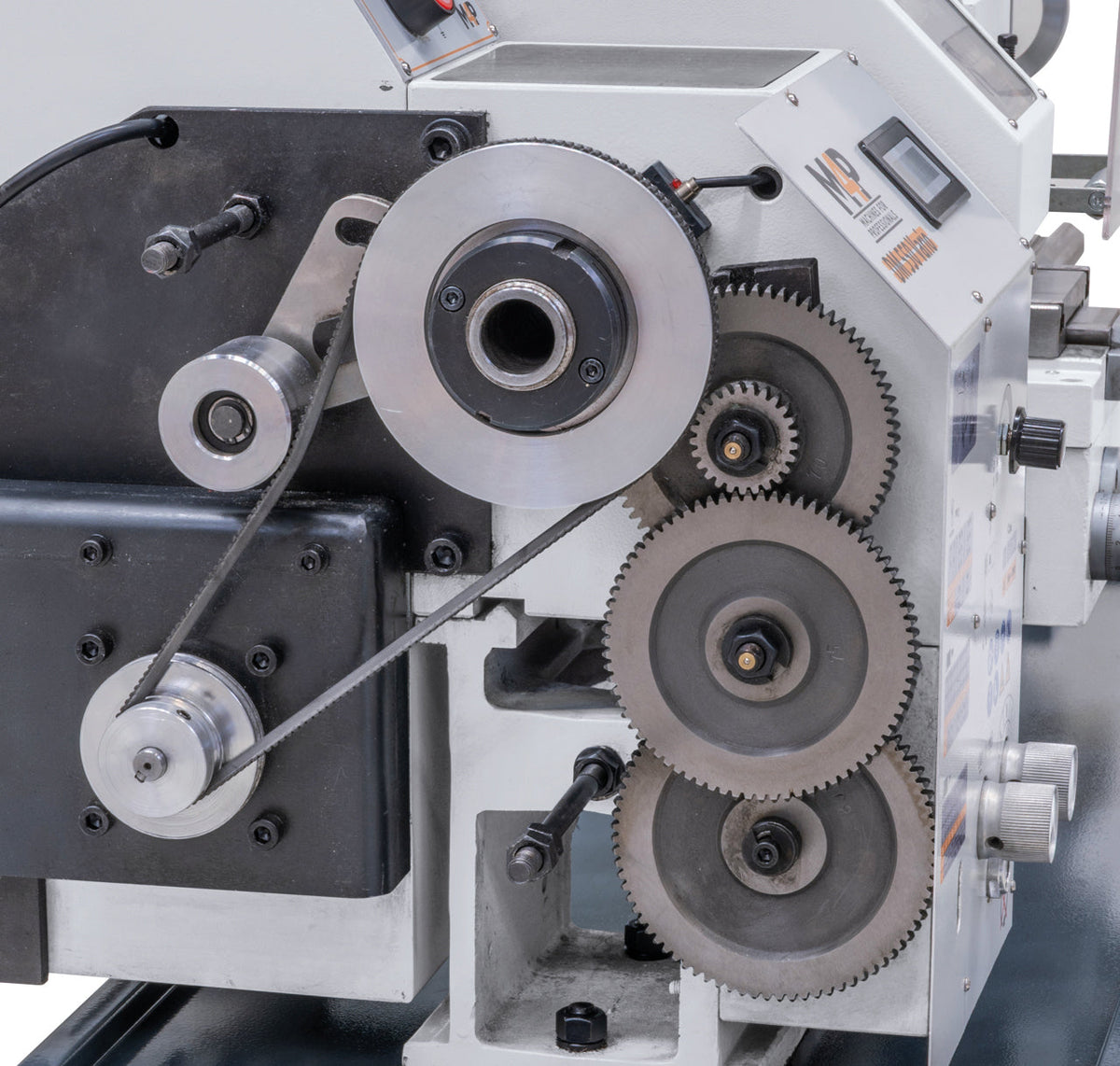

Equipped with a lead screw as standard for thread cutting or automatic longitudinal feed
The feed setting is simple, smooth and precise to switch
Optimally suited for processing steel, non-ferrous materials and plastics

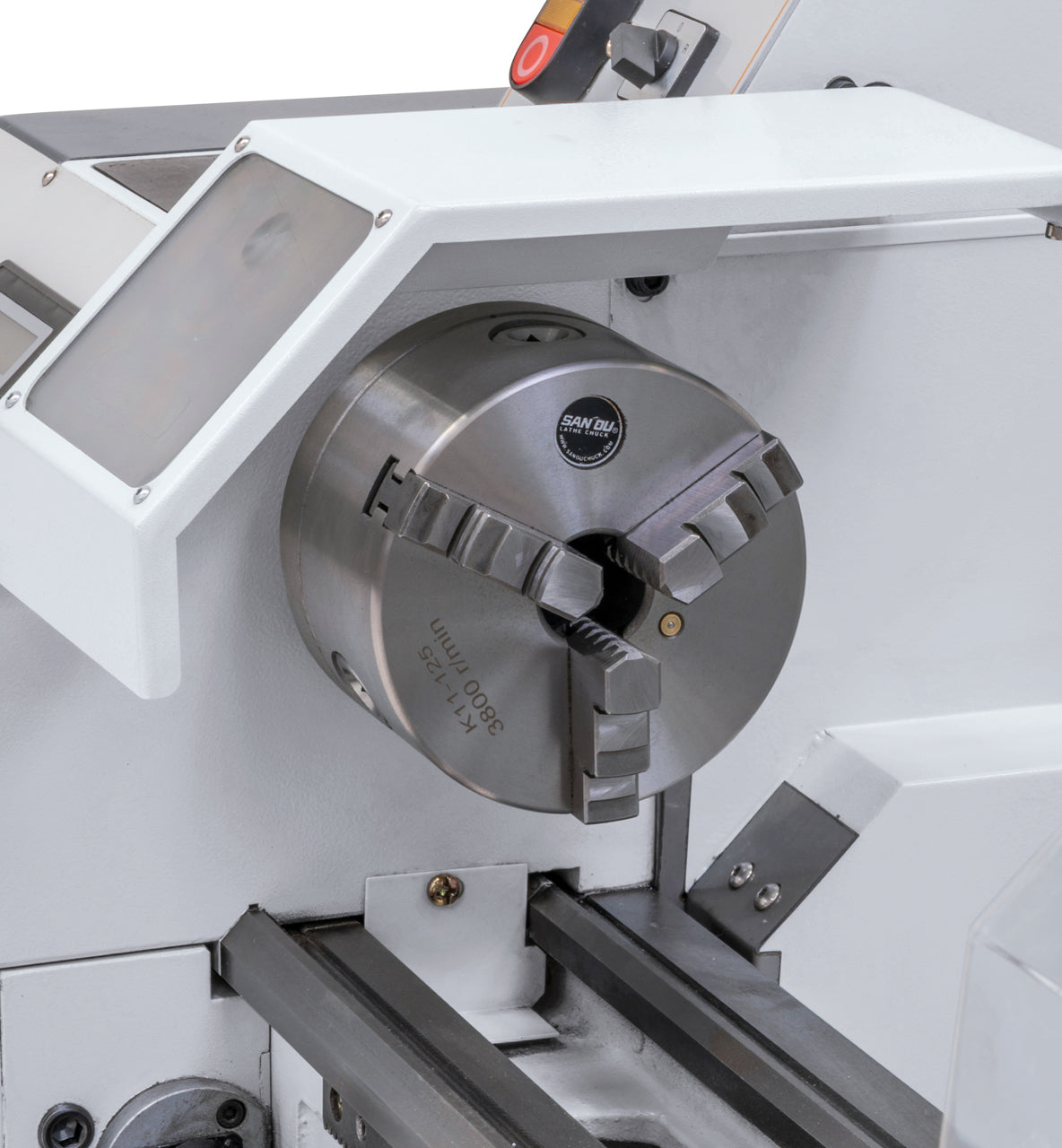

Precise spindle bearing with two adjustable precision tapered roller bearings
High concentricity of the spindle nose - better than 0.015 mm
User-friendly arrangement of the control elements
| Spitzenweite | 550 mm |
| Spitzenhöhe | 125 mm |
| Umlaufdurchmesser über Bett | 250 mm |
| Bettbreite | 135 mm |
| Spindelbohrung | 26 mm |
| Aufnahme in der Spindelbohrung | MK 4 |
| Drehzahlbereich, stufenlos | 50 - 1000 / 100 - 2000 U/min |
| Bereich Längsvorschübe | (6) 0,07 - 0,4 mm/U |
| Metrische Gewinde | (21) 0,2 - 4 mm |
| Zollgewinde | (21) 8 - 56 Gg/1" |

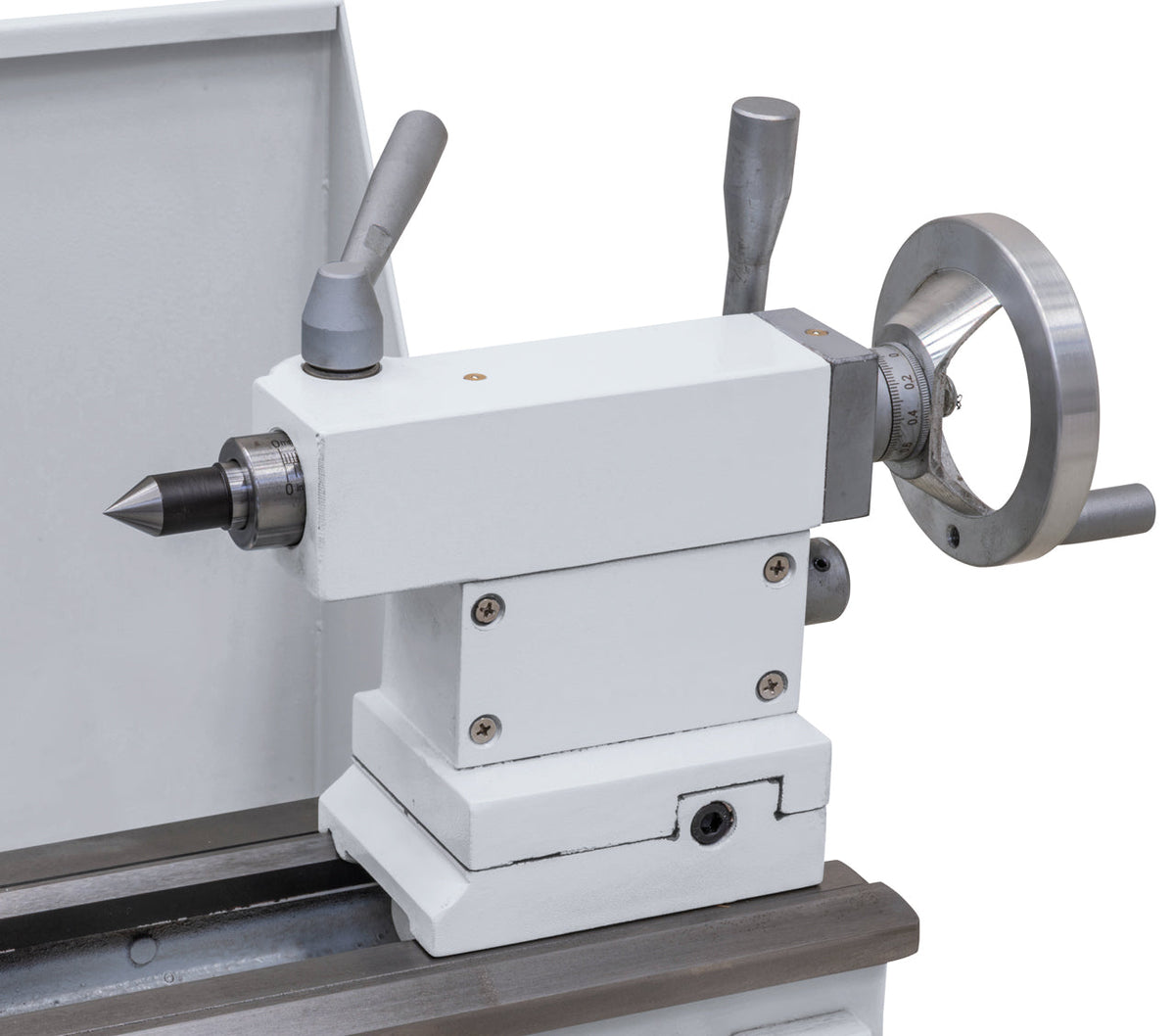

| Pinolenweg | 60 mm |
| Pinolenaufnahme | MK 2 |
| Motor-Abgabeleistung S1 100% | 1,1 kW / 230 V |
| Motor-Aufnahmeleistung S6 40% | 1,5 kW / 230 V |
| Maschinenabmessung (B x T x H)* | 1120 x 580 x 480 mm |
| Gewicht ca. | 130 kg |
| * ohne Untergestell | |
