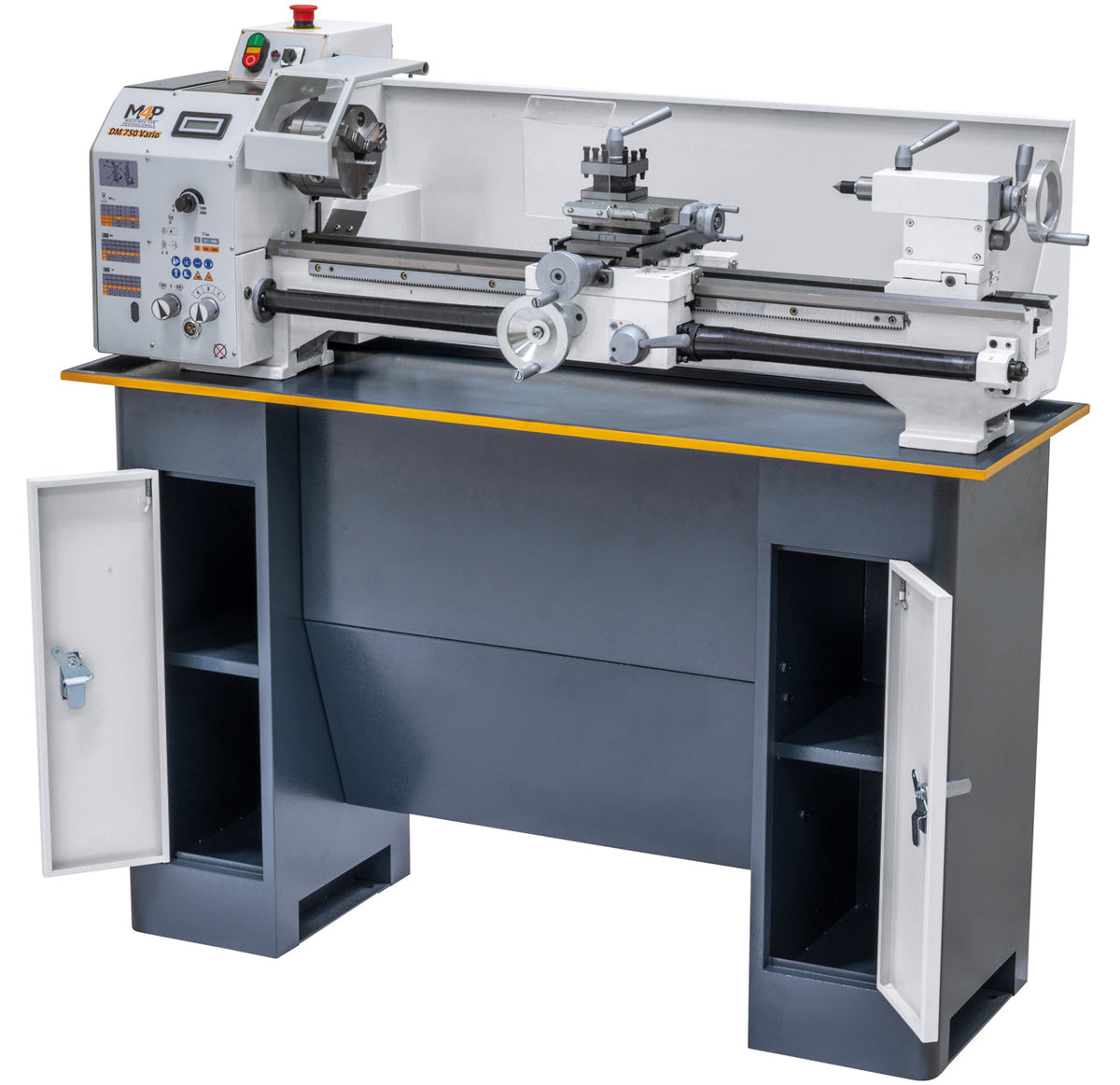

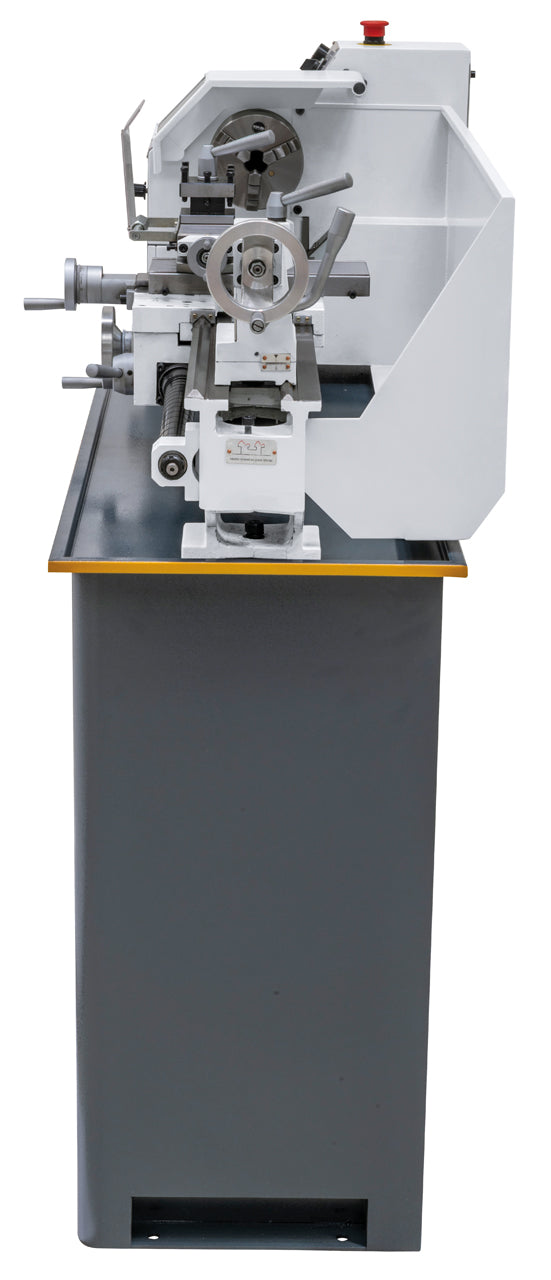

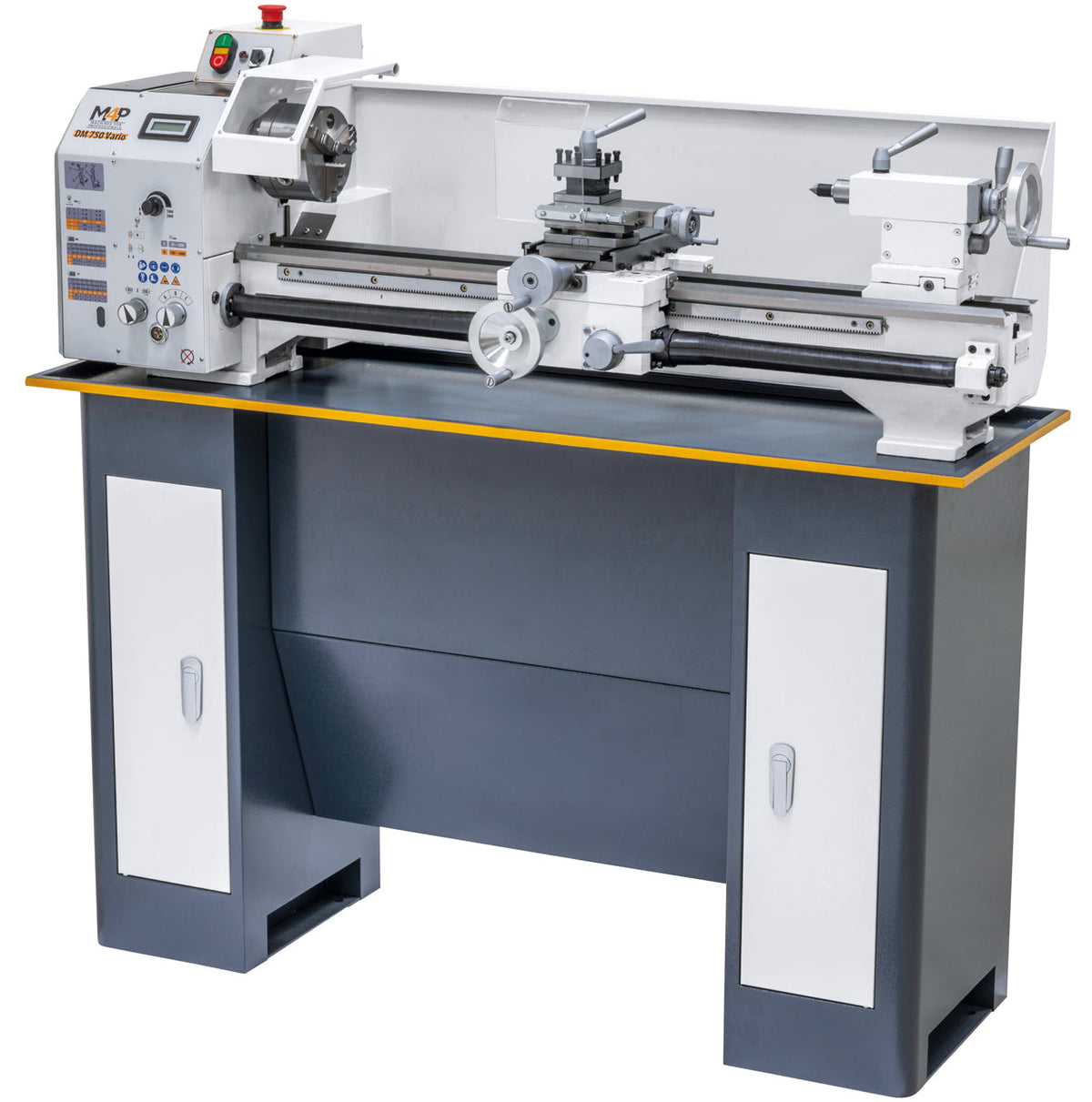

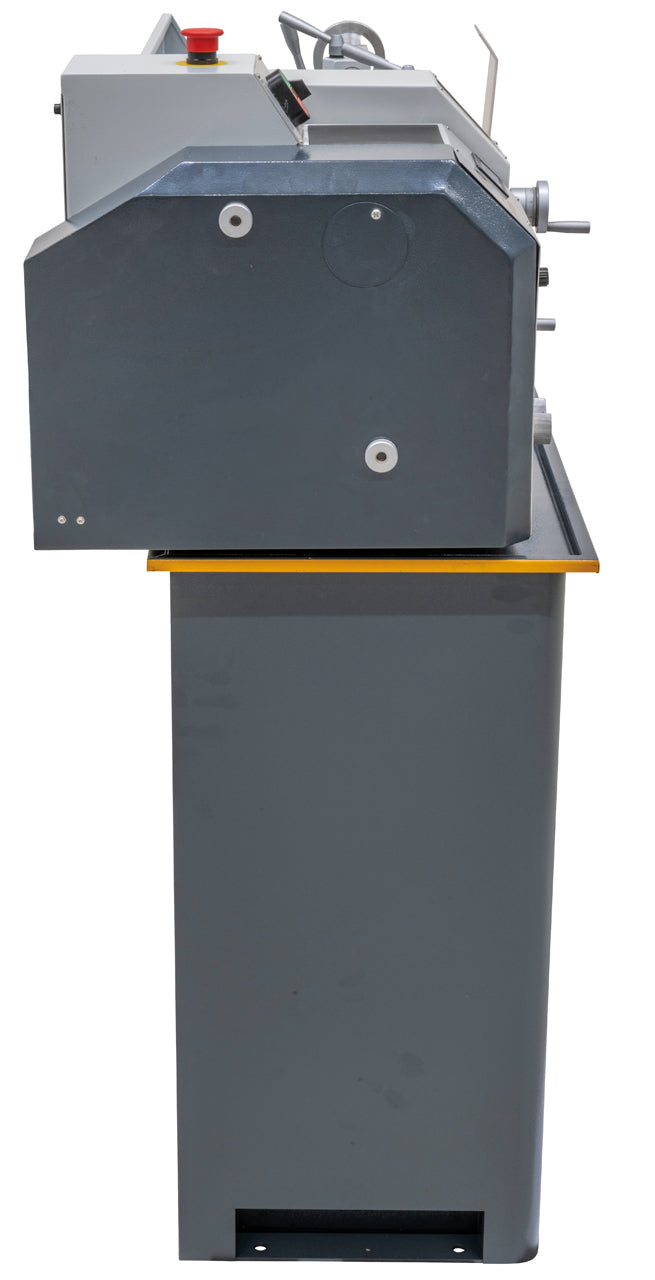

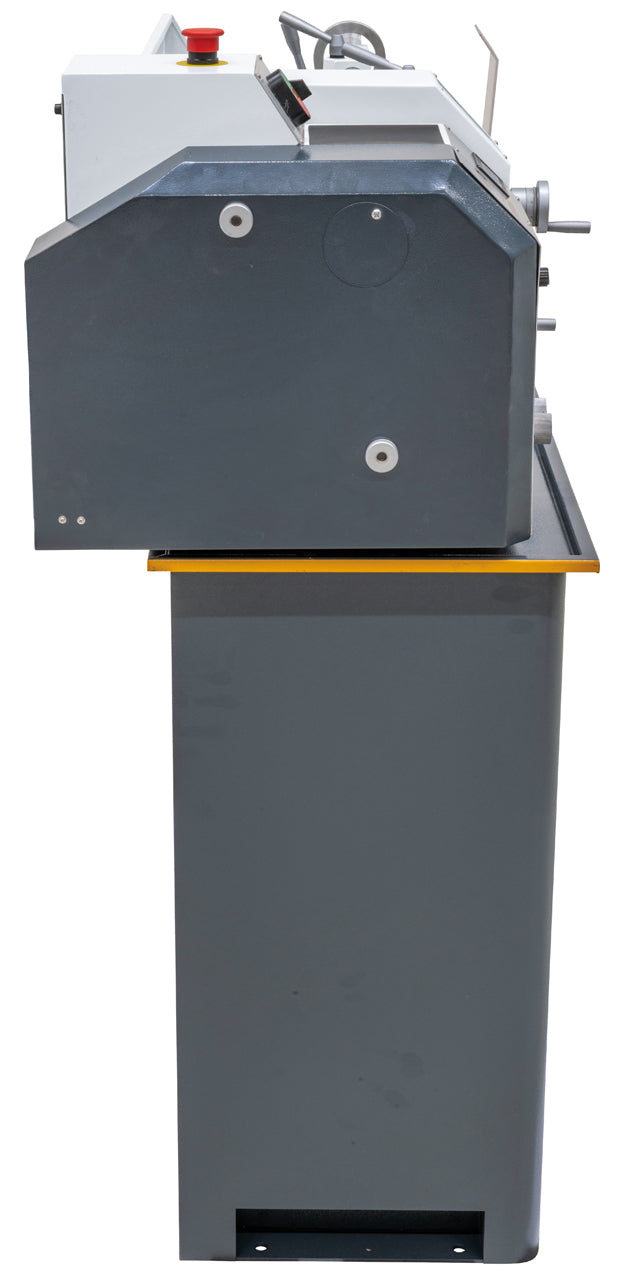

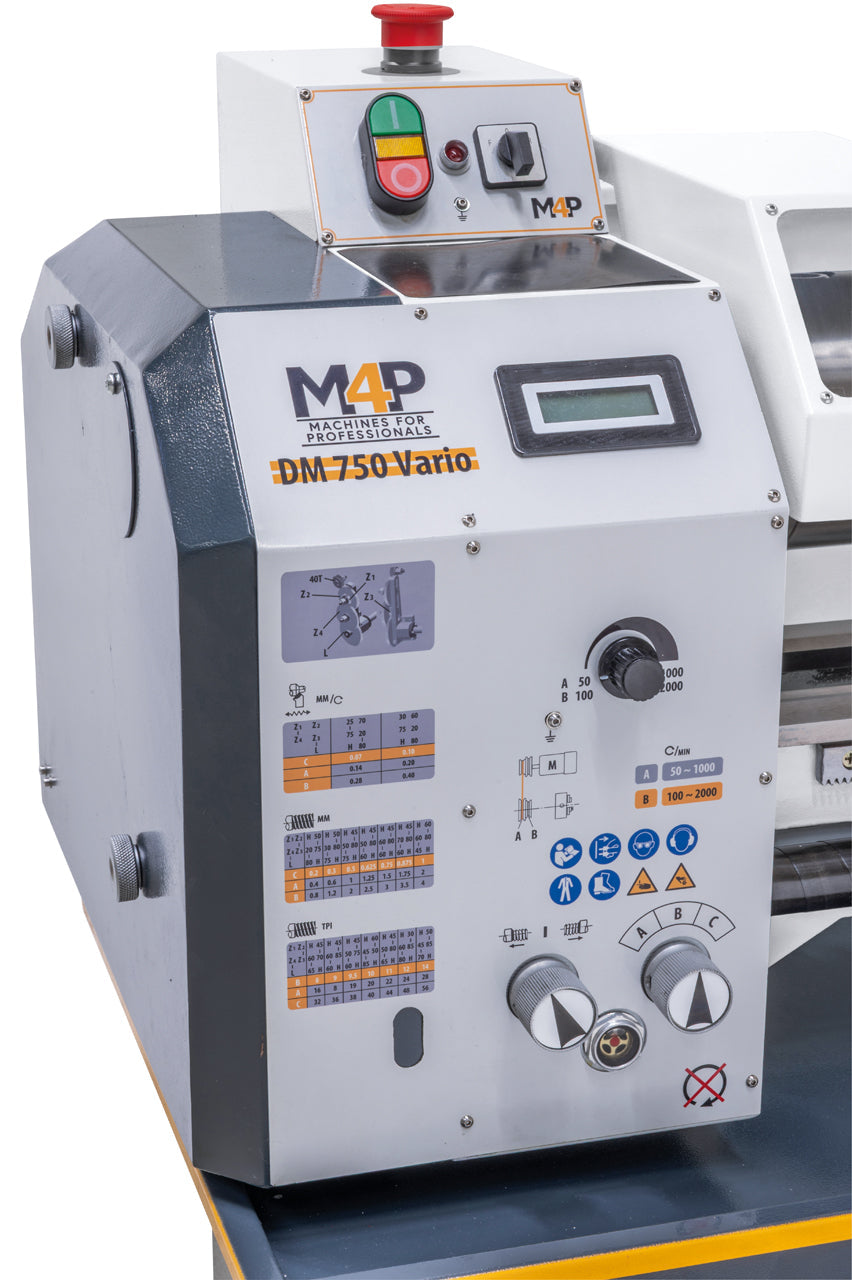

The lead screw lathe DM 750 Vario is equipped as standard with a stepless speed control, the set speed is read via a digital display. Due to the optimal price-performance ratio, this model is ideal for demanding users.
Electronic, infinitely variable speed control, allowing optimal adjustment of the
cutting speed to the workpiece
Versatile applications: precision mechanics, training and apprenticeship workshops

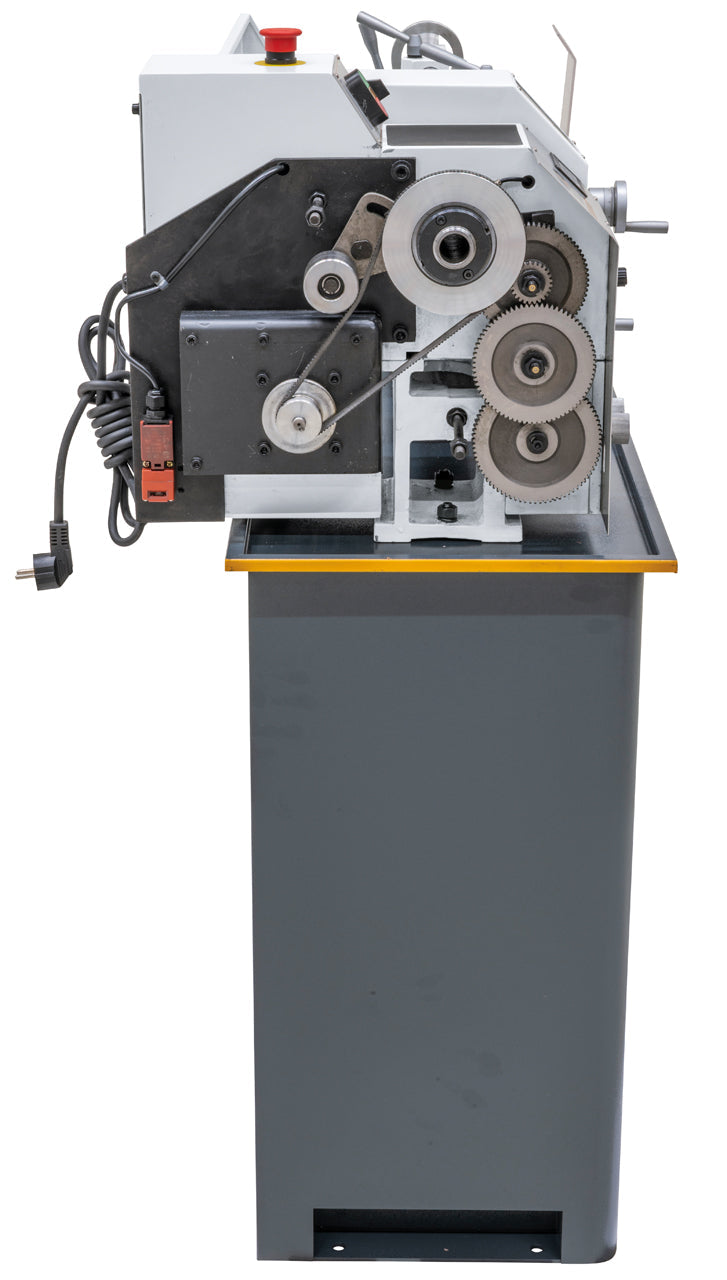

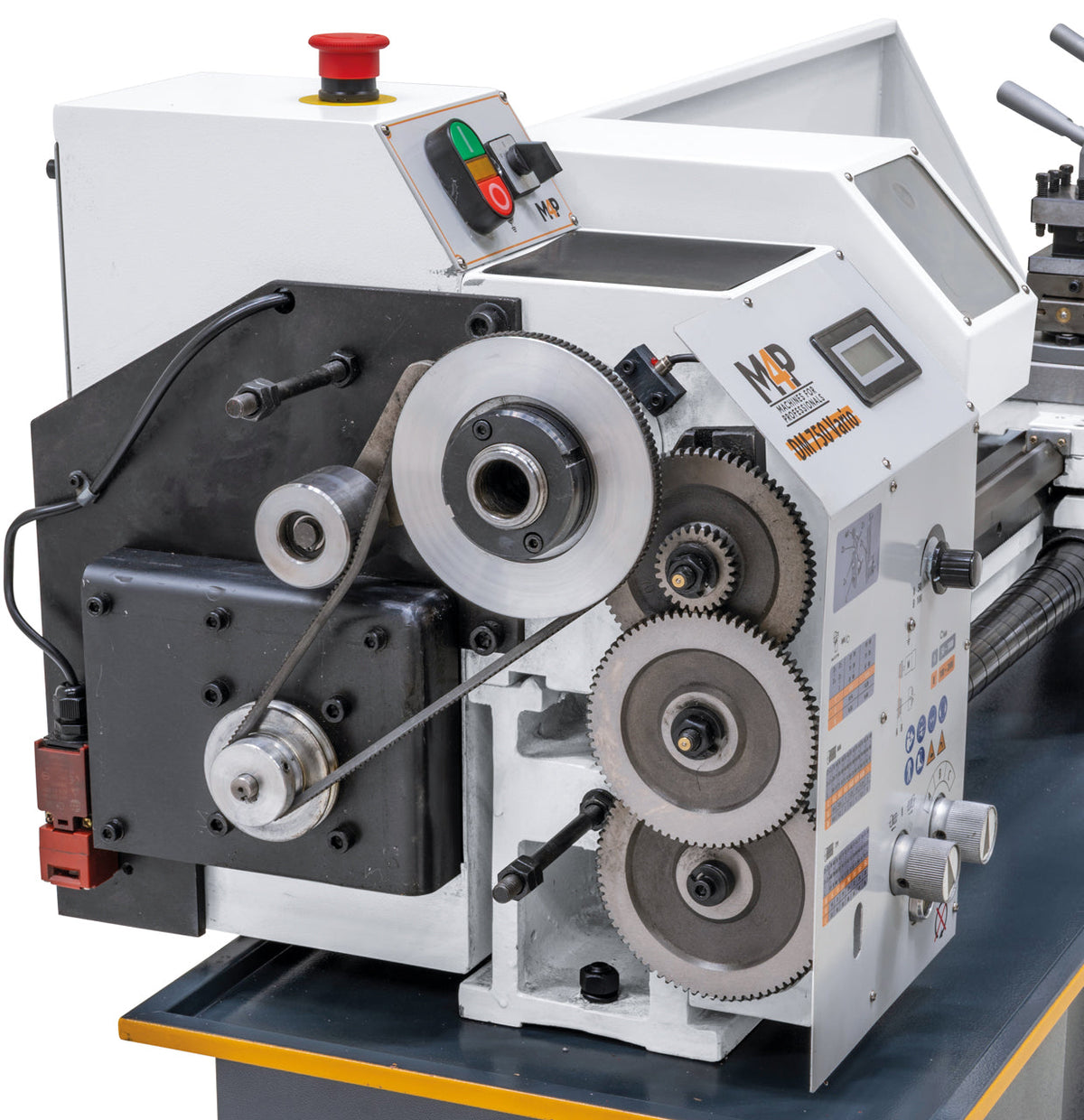

Standard with lead screw for thread cutting or for automatic longitudinal feed

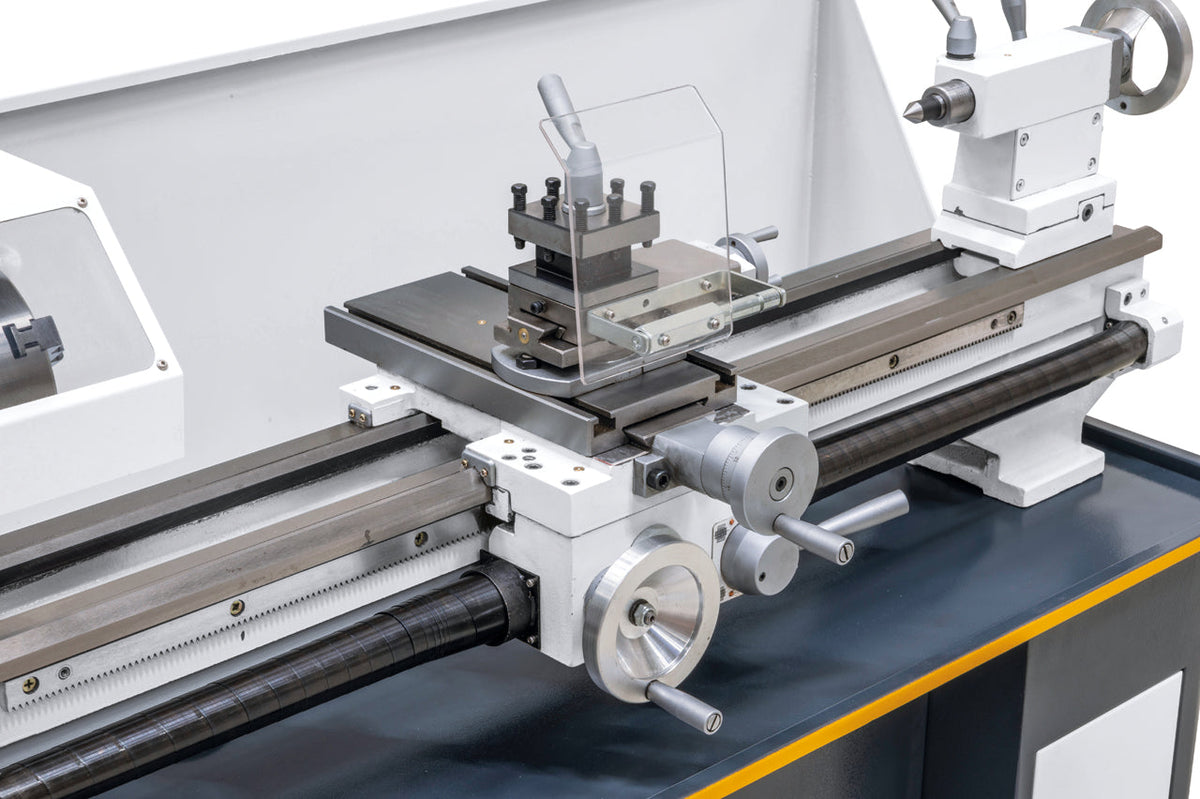

The feed setting is simply constructed, smooth-running and precisely switchable
Ideally suited for machining steel, non-ferrous materials and plastics

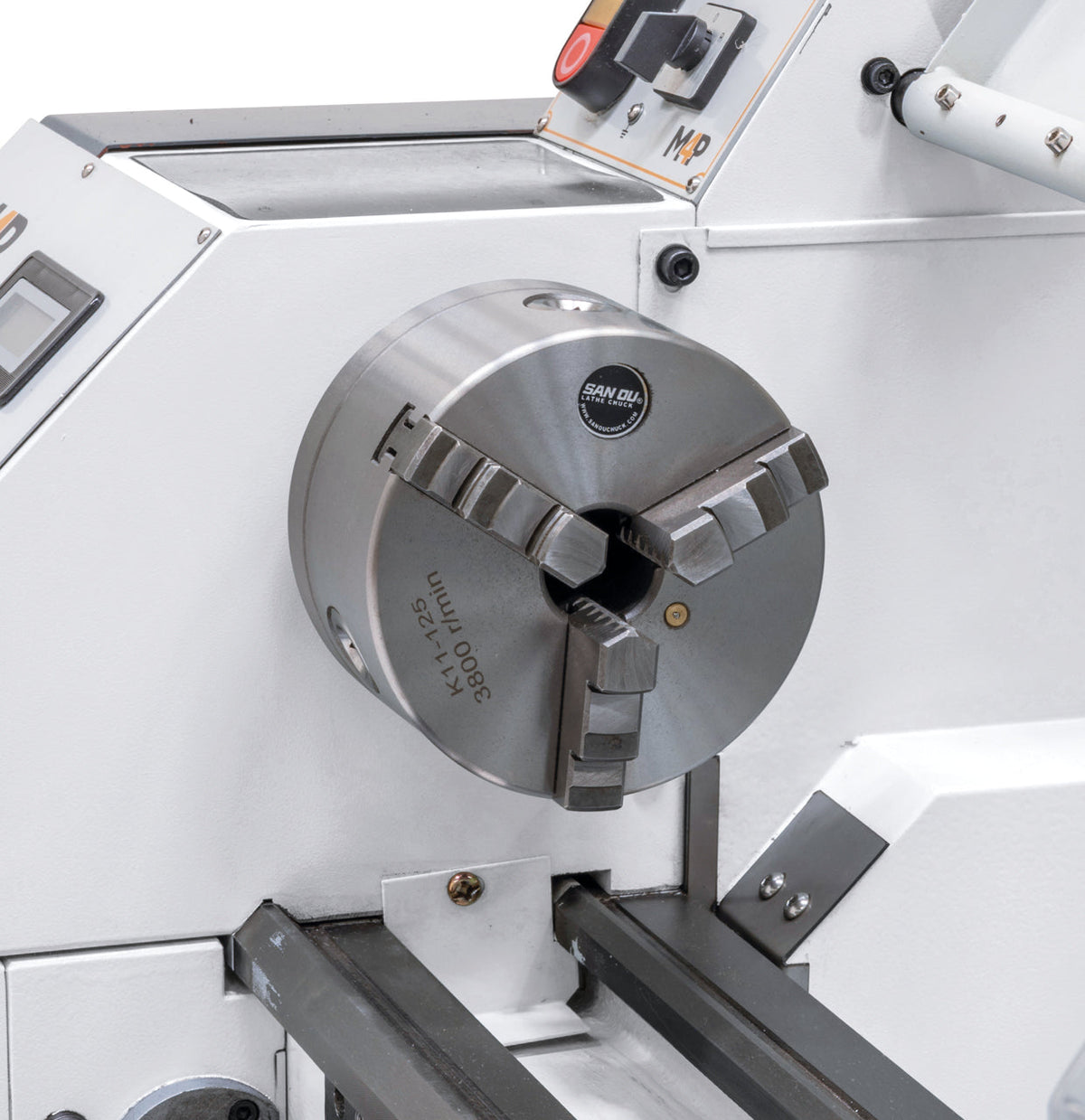

Precise spindle bearing with two adjustable precision tapered roller bearings
High concentricity of the spindle nose - better than 0.015 mm
User-friendly arrangement of the control elements
| Spitzenweite | 750 mm |
| Spitzenhöhe | 125 mm |
| Umlaufdurchmesser über Bett | 250 mm |
| Bettbreite | 135 mm |
| Spindelbohrung | 26 mm |
| Aufnahme in der Spindelbohrung | MK 4 |
| Drehzahlbereich, stufenlos | 50 - 1000 / 100 - 2000 U/min |
| Bereich Längsvorschübe | (6) 0,07 - 0,4 mm/U |
| Metrische Gewinde | (21) 0,2 - 4 mm |
| Zollgewinde | (21) 8 - 56 Gg/1" |
| Pinolenweg | 60 mm |
| Pinolenaufnahme | MK 2 |
| Motor-Abgabeleistung S1 100% | 1,1 kW / 230 V |
| Motor-Aufnahmeleistung S6 40% | 1,5 kW / 230 V |
| Maschinenabmessung (B x T x H)* | 1325 x 580 x 480 mm |
| Gewicht ca. | 138 kg |
| * ohne Untergestell | |
