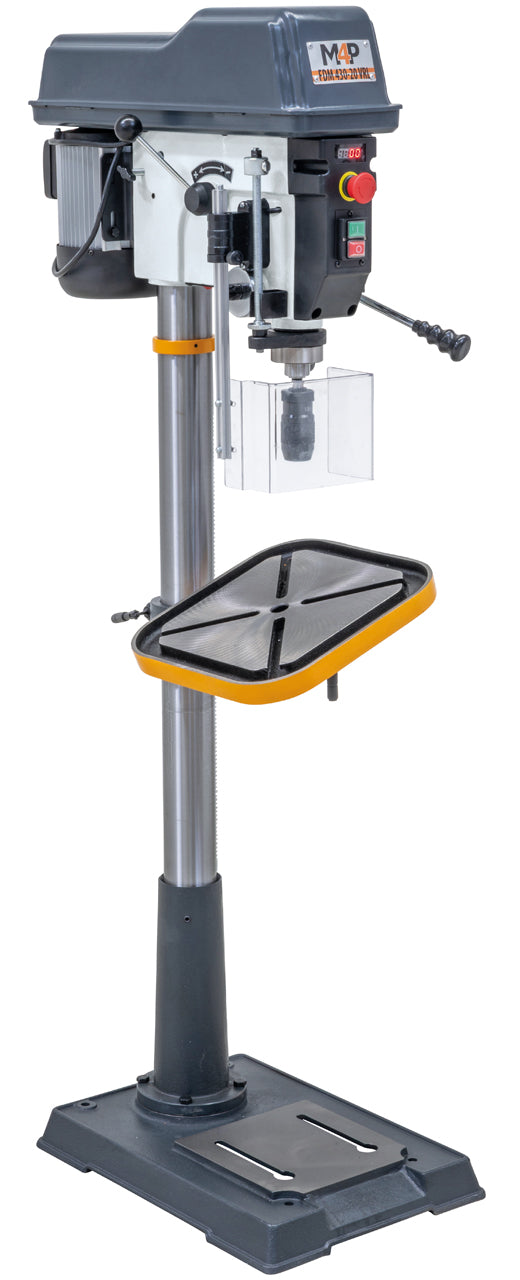

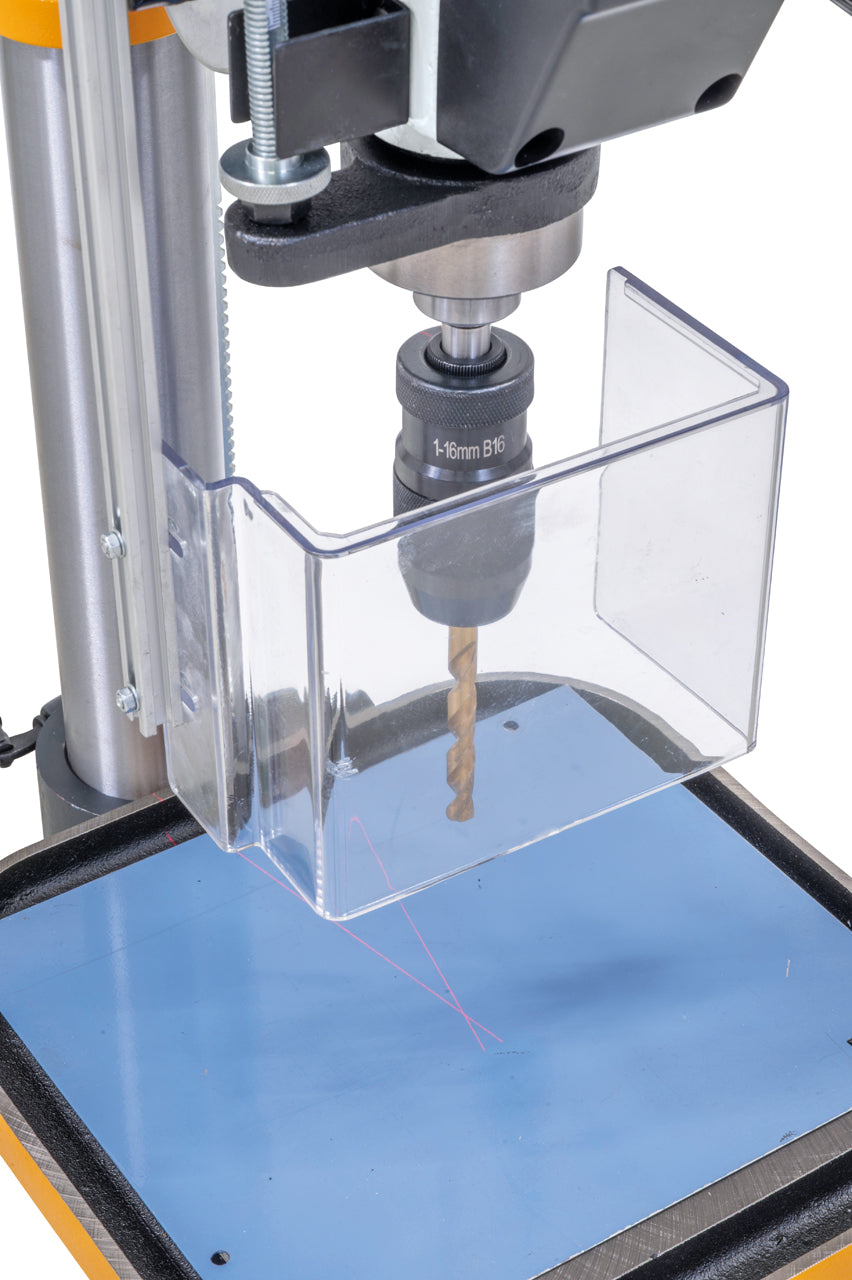

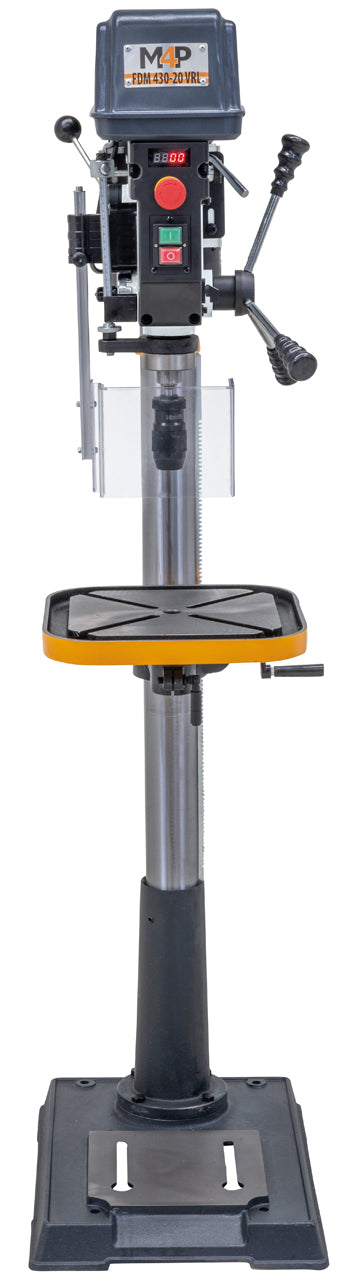

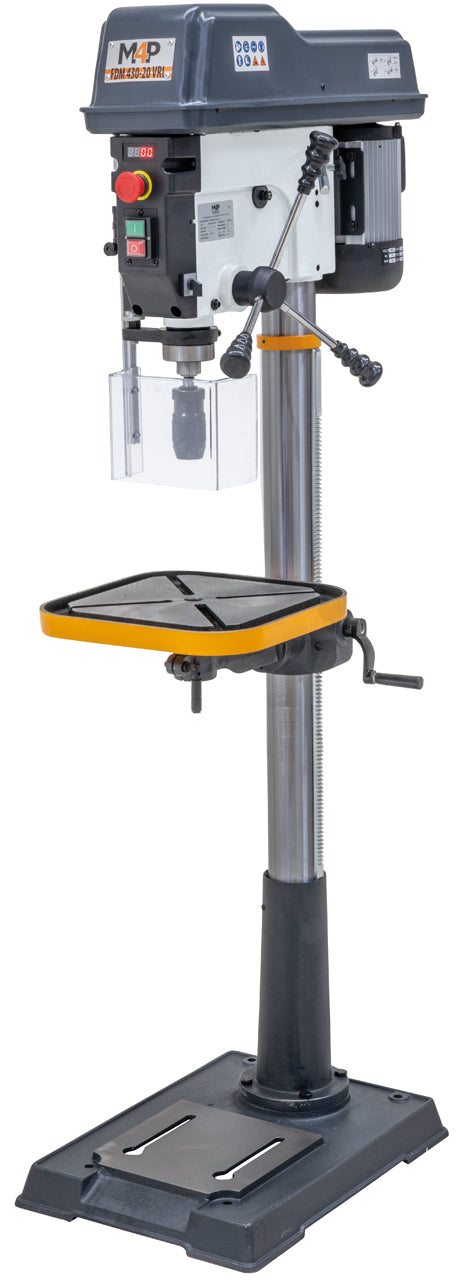

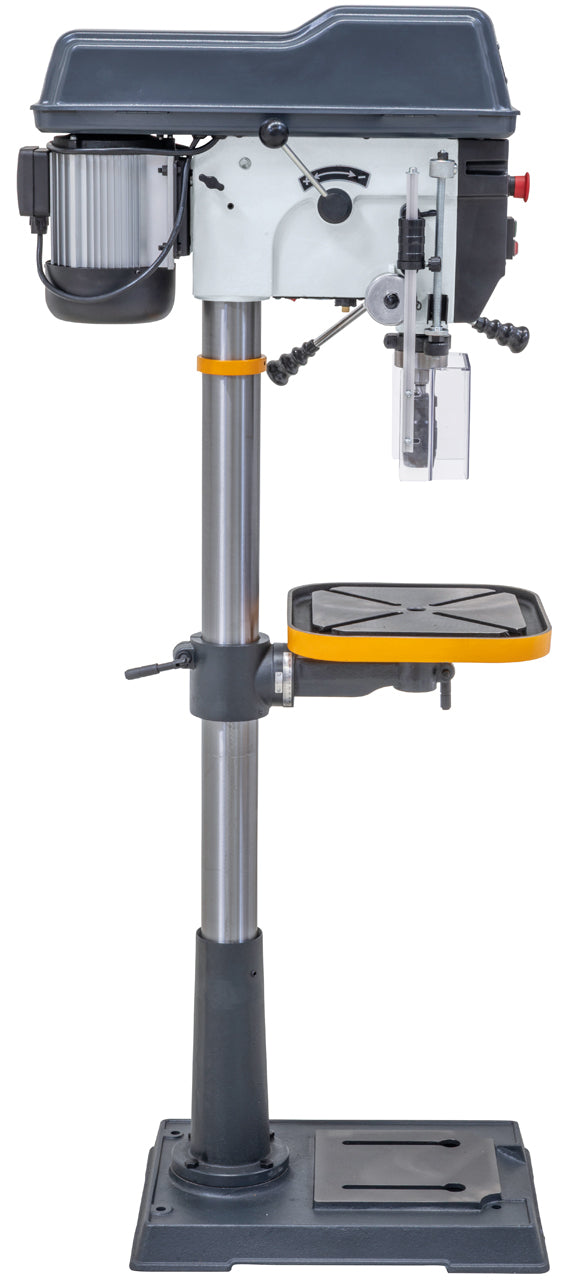

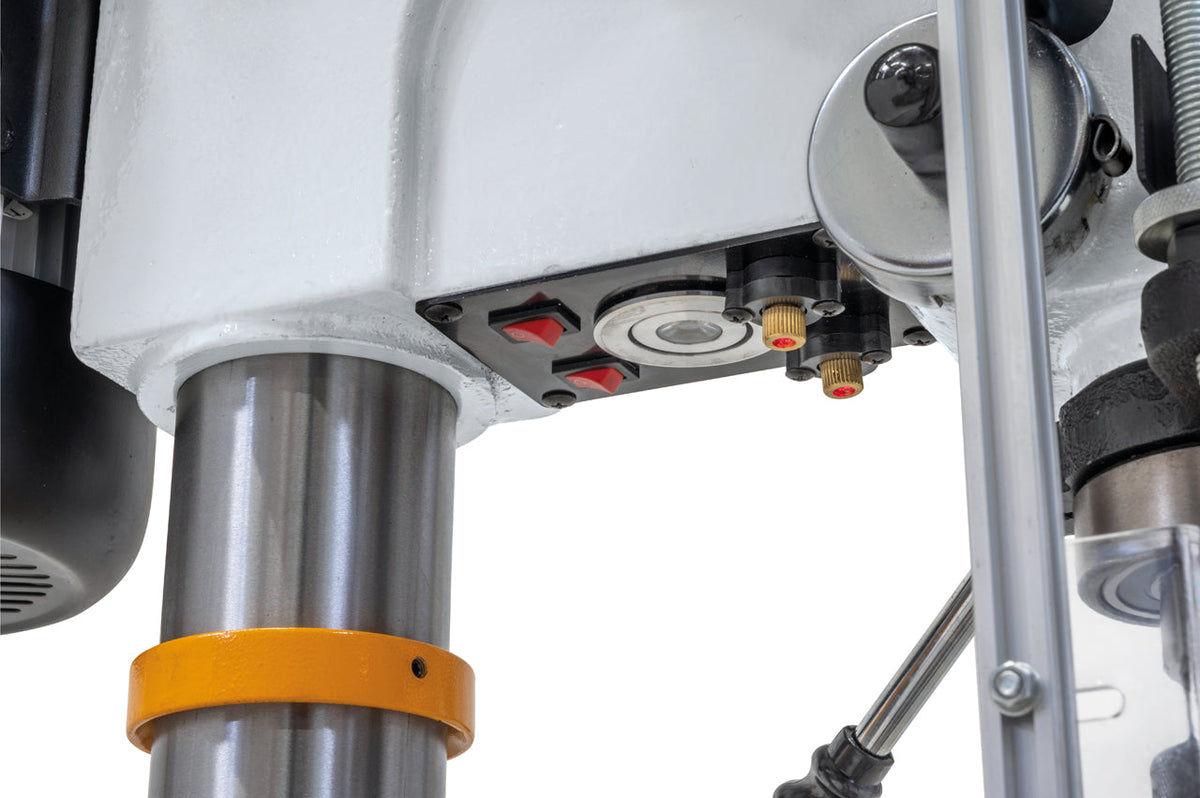

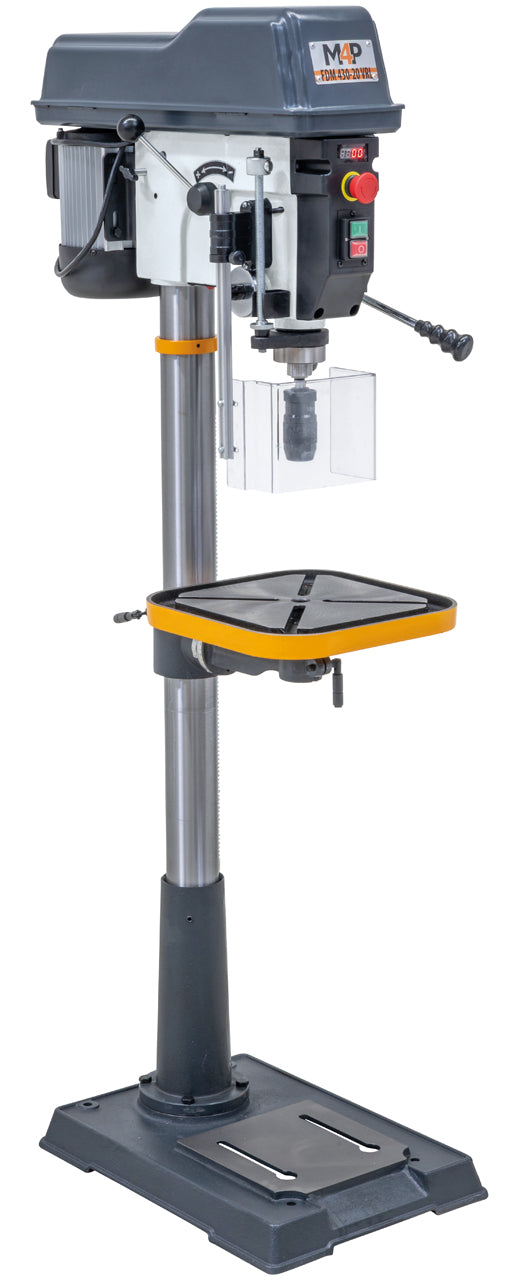

The high-performance FDM 430 - 20 VRL pillar drilling machine with its modern design comes standard with a cross-line laser, a digital speed display, and a clockwise/counter-clockwise rotation feature. This model is designed for home hobbyists and training workshops.

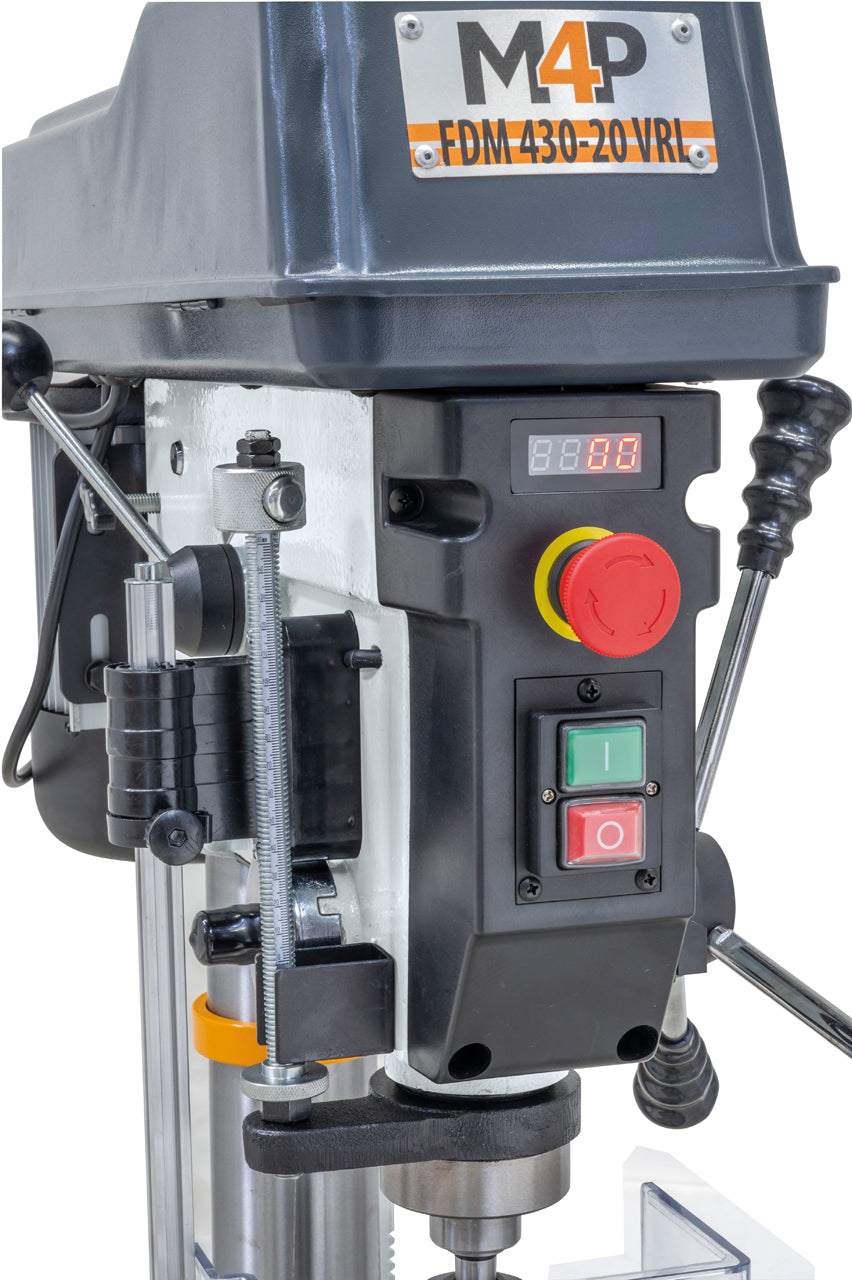

Digital display for easy reading of the set speed

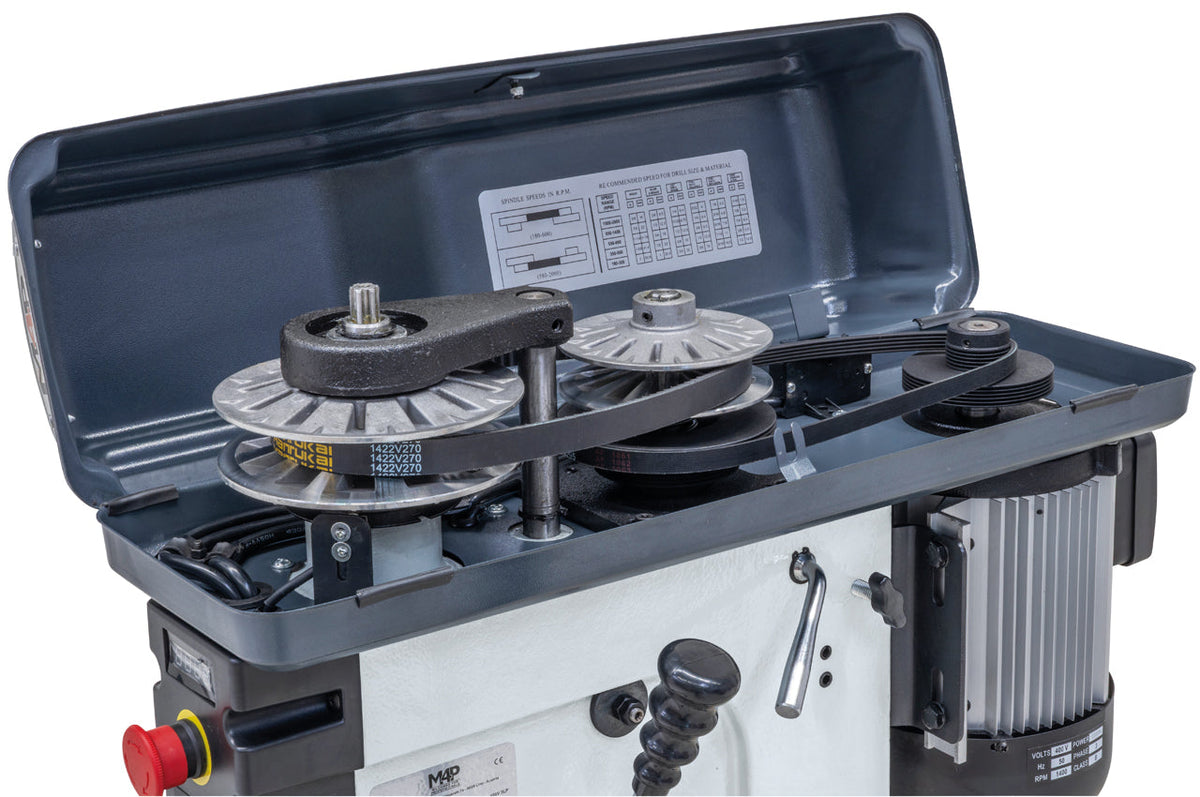

Smooth operation due to cast-iron pulleys
Quality ball bearings ensure high concentricity
Large-dimensioned drill table with diagonal T-slots

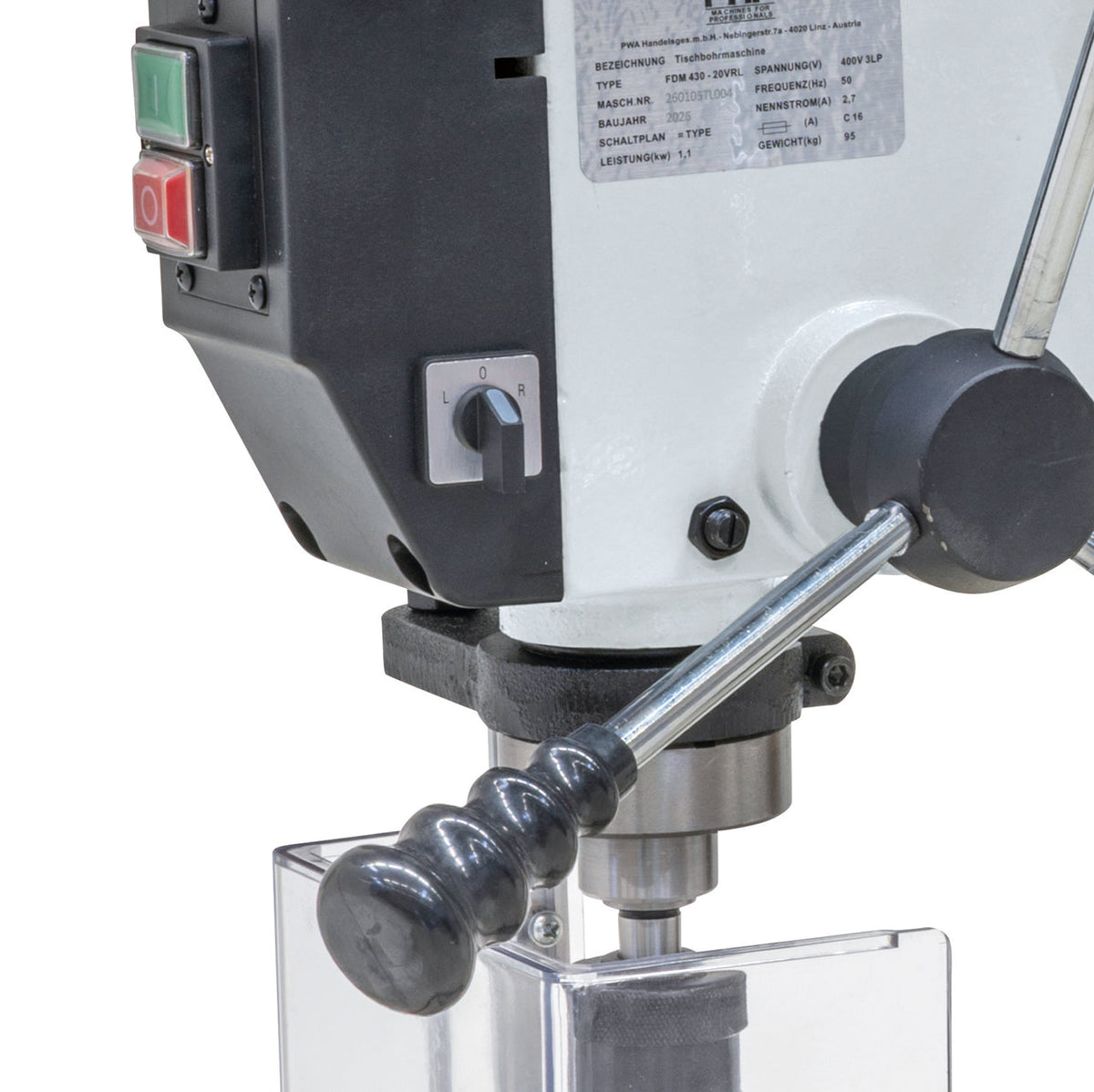

Rotation direction switch for clockwise and counter-clockwise operation

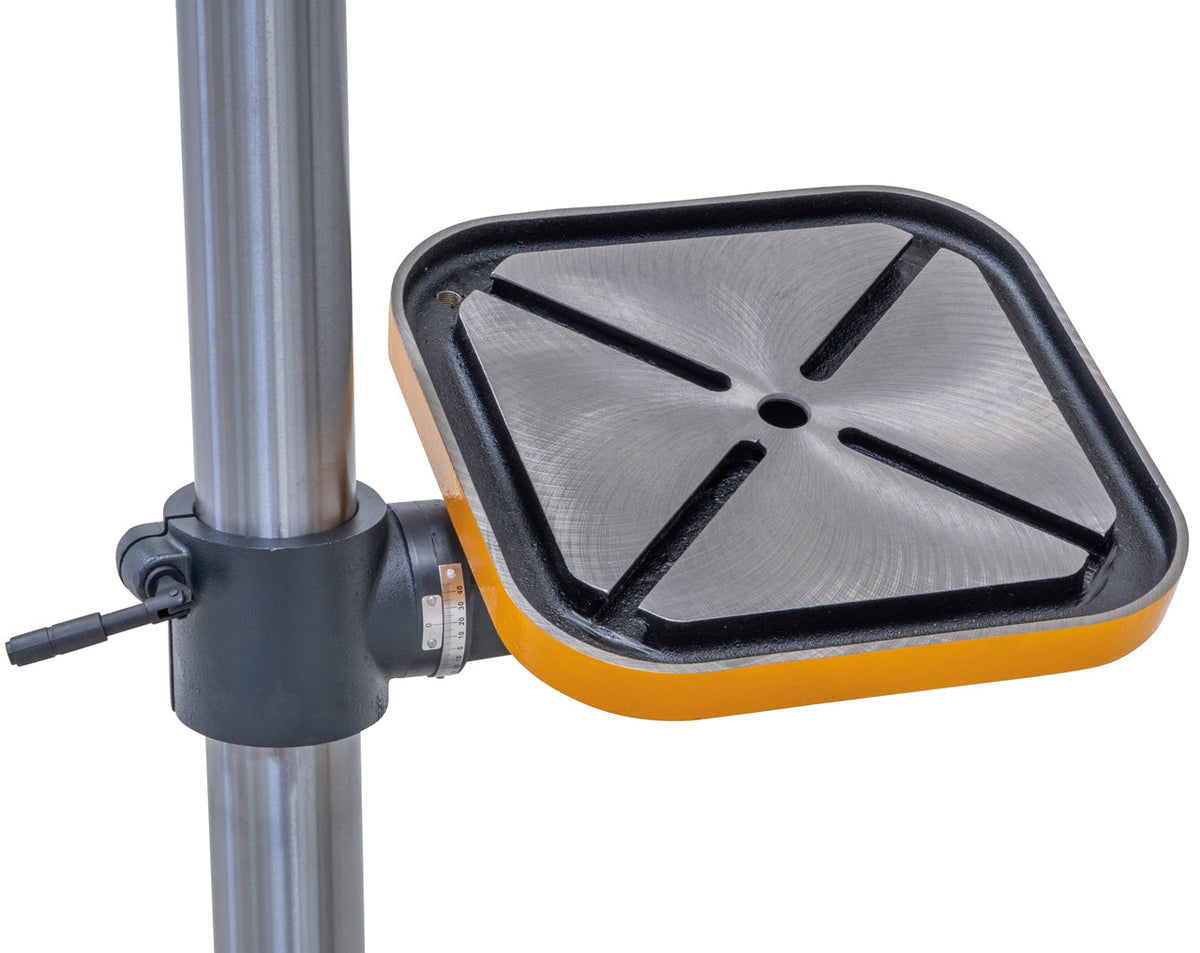

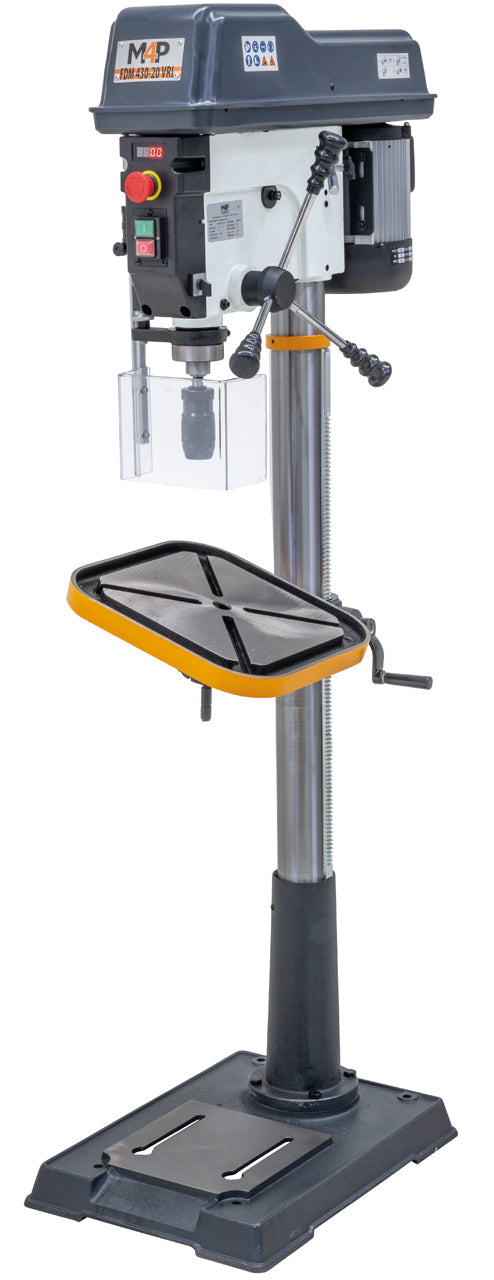

Drill table tiltable (±45°), height adjustment via rack

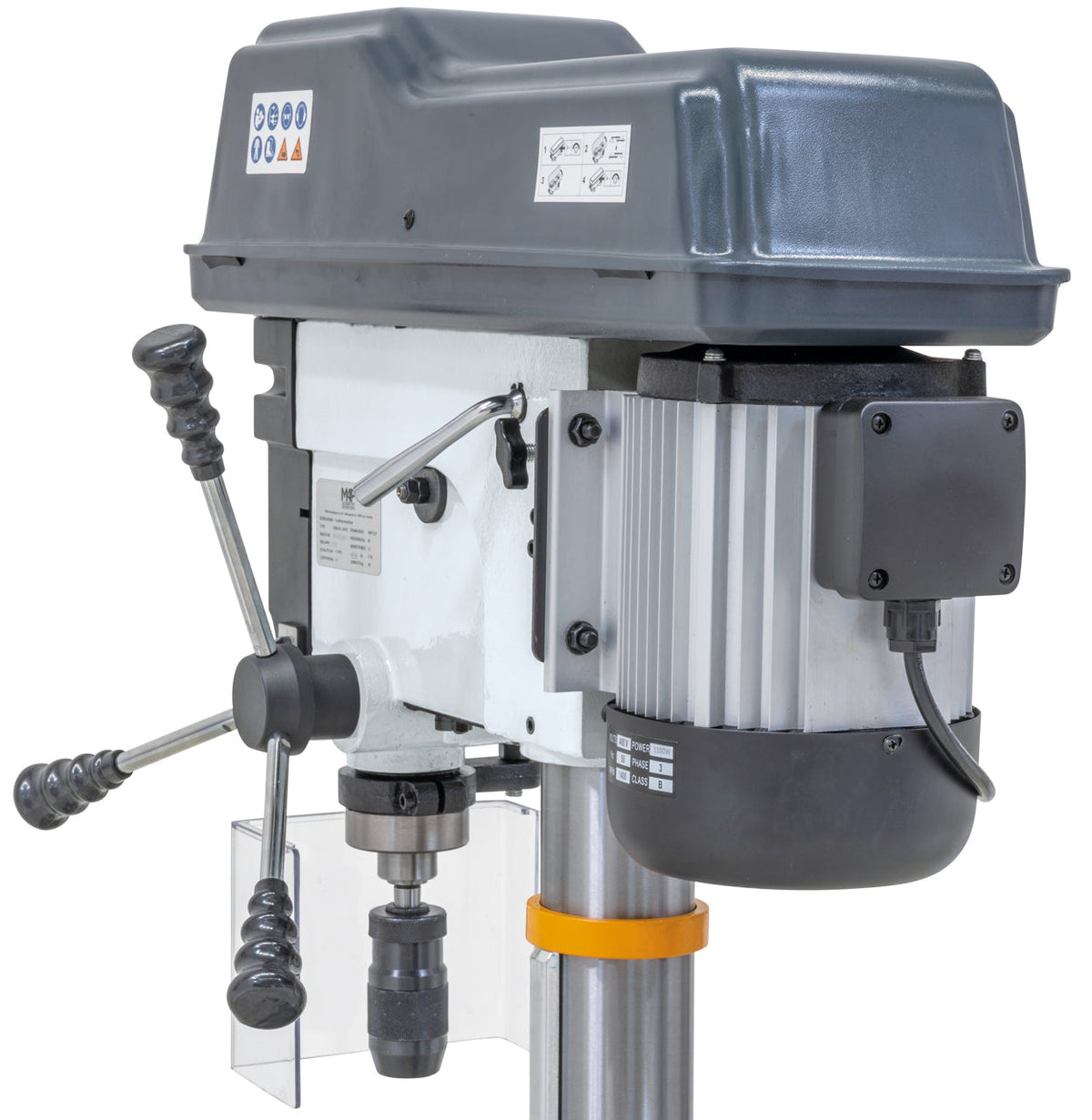

Powerful, high-torque aluminum motor according to IP 54
Precision keyless drill chuck included in delivery

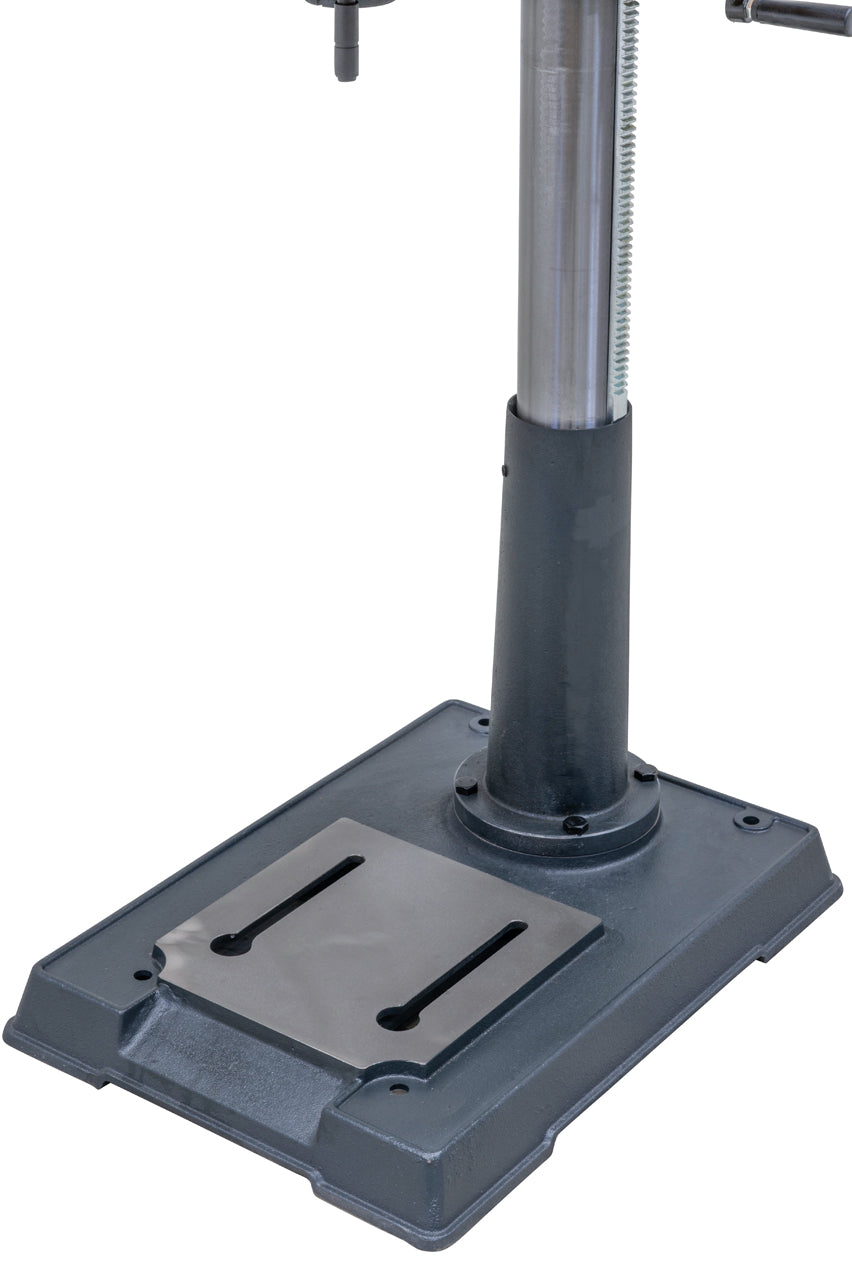

Standard features include T-slots in the ground base plate

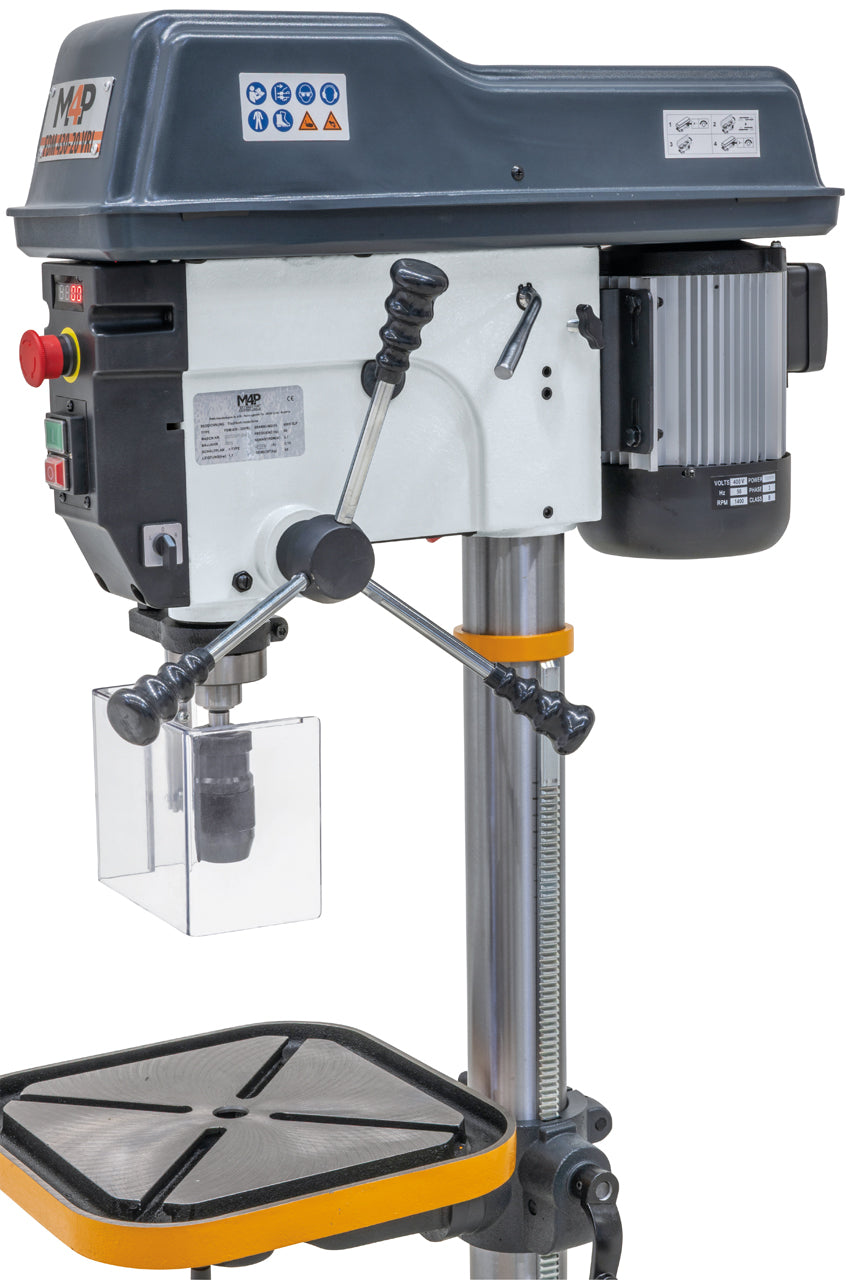

Ergonomic handles for comfortable operation
| Bohrleistung max. | 25 mm |
| Bohrfutter | 1 - 16 mm / B 16 |
| Morsekonus | MK 3 |

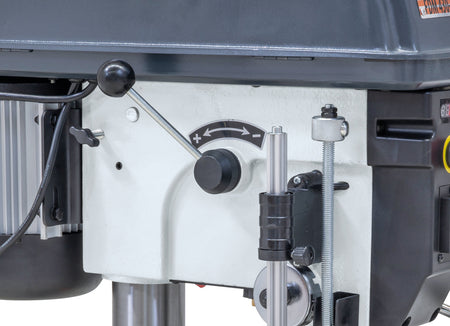

| Spindeldrehzahl, stufenlos | 180 - 600 / 580 - 2000 U/min |
| Ausladung | 215 mm |
| Bohrtisch schwenkbar | -45° bis +45° |
| Abstand Spindel / Tisch max. | 635 mm |
| Abstand Spindel / Bodenplatte | 1135 mm |
| Pinolenhub | 155 mm |
| Säulendurchmesser | 80 mm |
| Tischgröße / T-Nutengröße | 355 x 355 mm / 16 mm |
| Arbeitsfläche Bodenplatte | 255 x 265 mm |
| Motor-Abgabeleistung S1 100% | 1,1 kW / 400 V |
| Motor-Aufnahmeleistung S6 40% | 1,6 kW / 400 V |
| Maschinenabmessung (B x T x H) | 400 x 700 x 1700 mm |
| Gewicht ca. | 91 kg |
