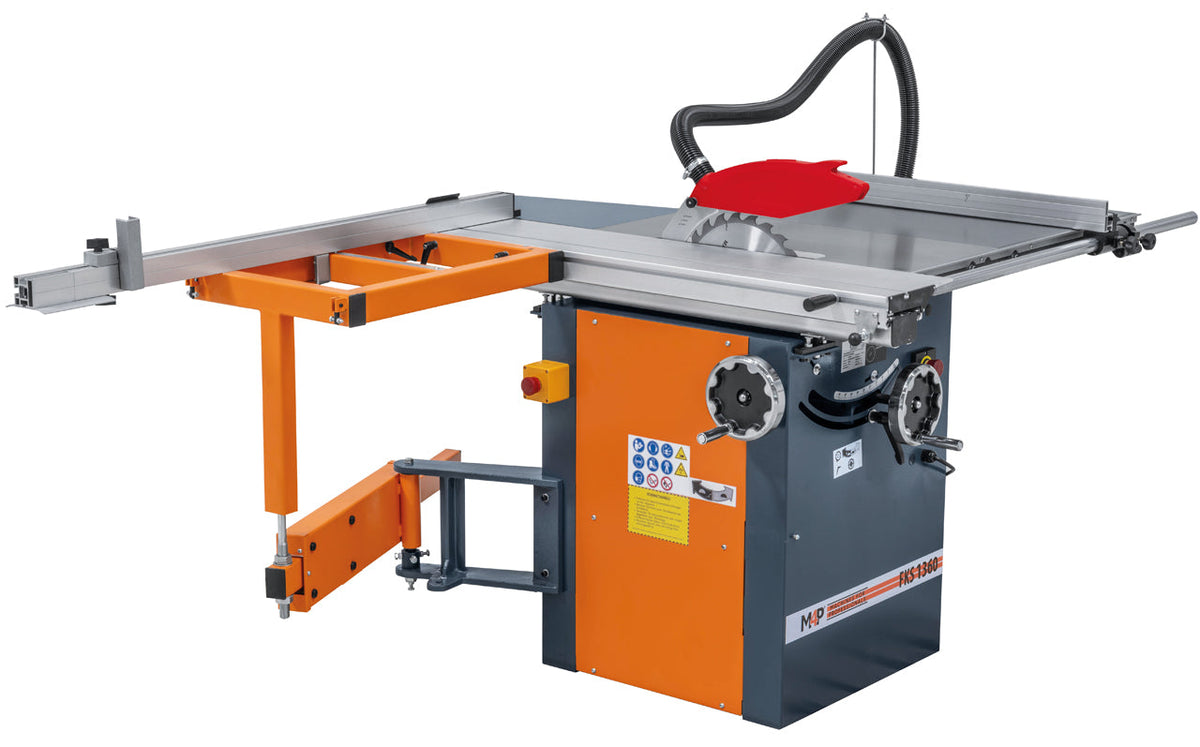

The FKS 1360 model is the ideal sliding table saw for the cost-conscious professional DIY enthusiast. Sophisticated technical solutions, such as compact dimensions, high performance, and extremely simple operation, distinguish this machine. Thanks to the standard aluminum sliding table and the sturdy outrigger table, even large-format boards can be processed.
Comes standard with an aluminum sliding table with a support surface of 1360 x 240 mm or 1600 x 240 mm
Powerful drive motor ensures optimal cutting performance even during prolonged operation

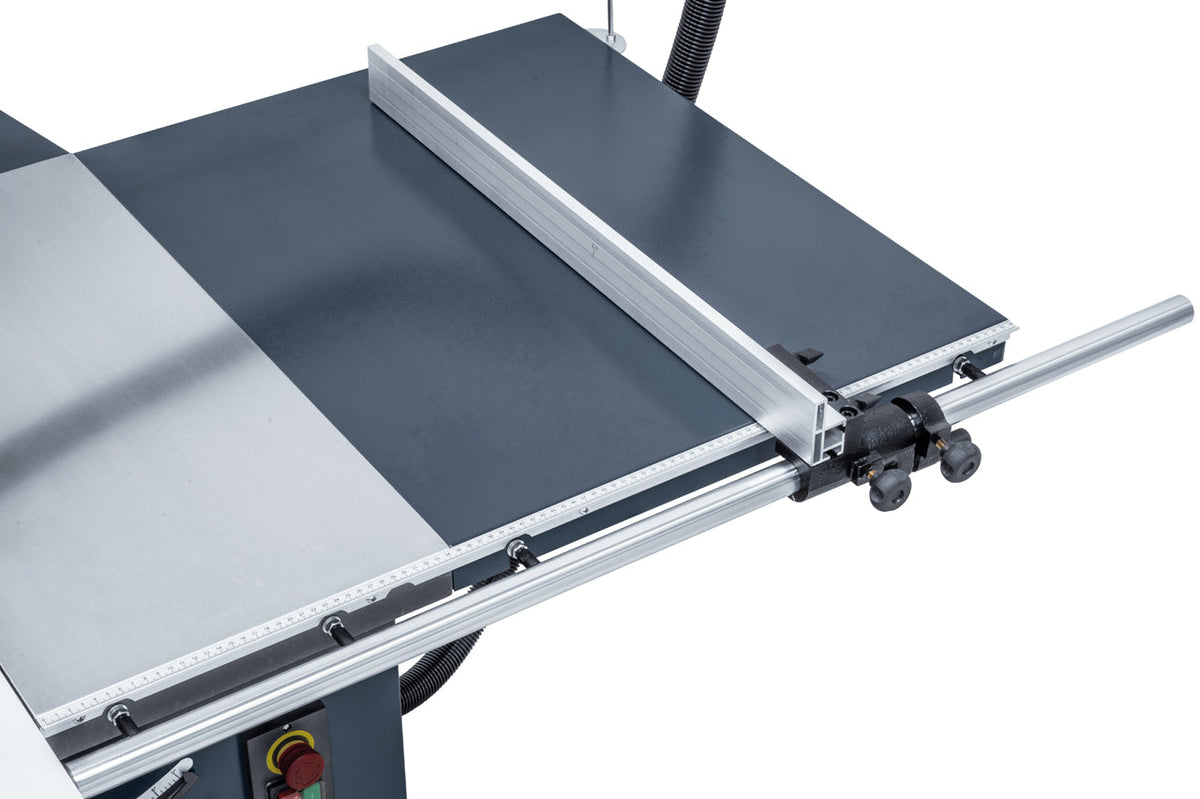

Equipped as standard with a table width extension and table extension for supporting larger boards

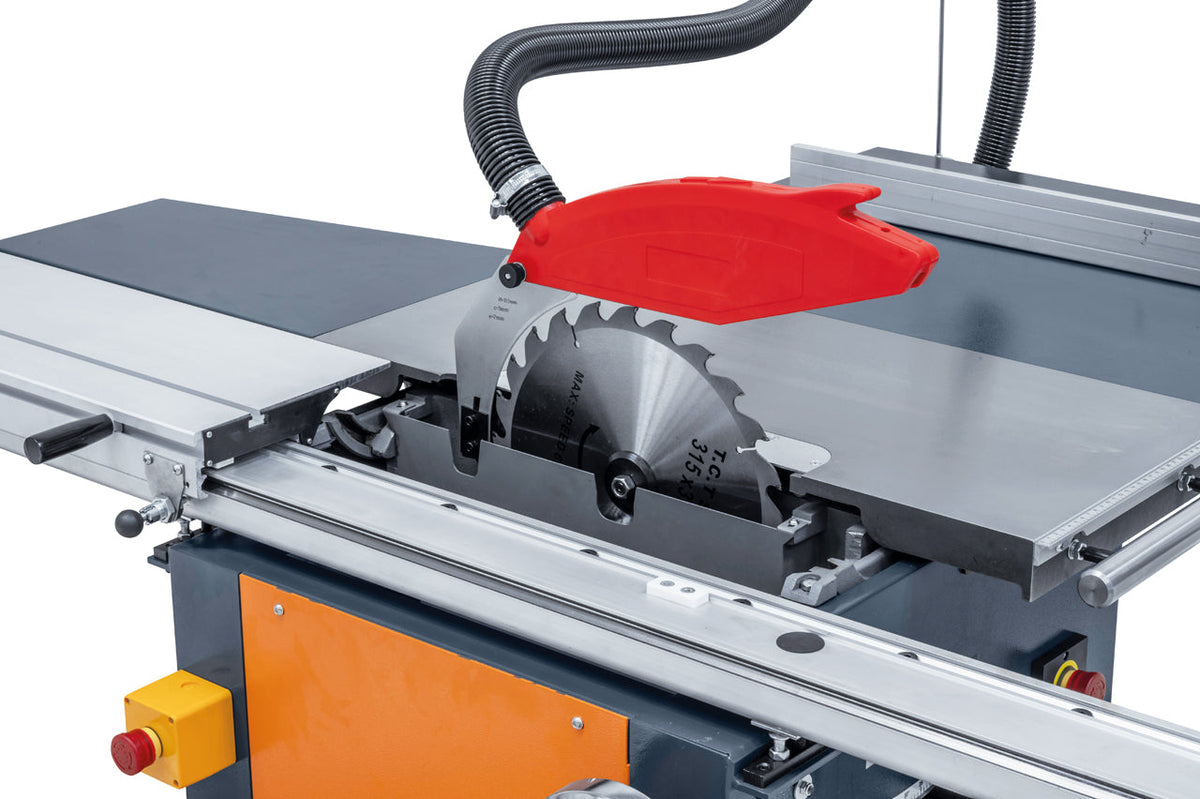

Saw blade can be tilted from 90° - 45° for precise angle cuts
A dust extraction system can be connected to the 100 mm hose connection for optimal working conditions

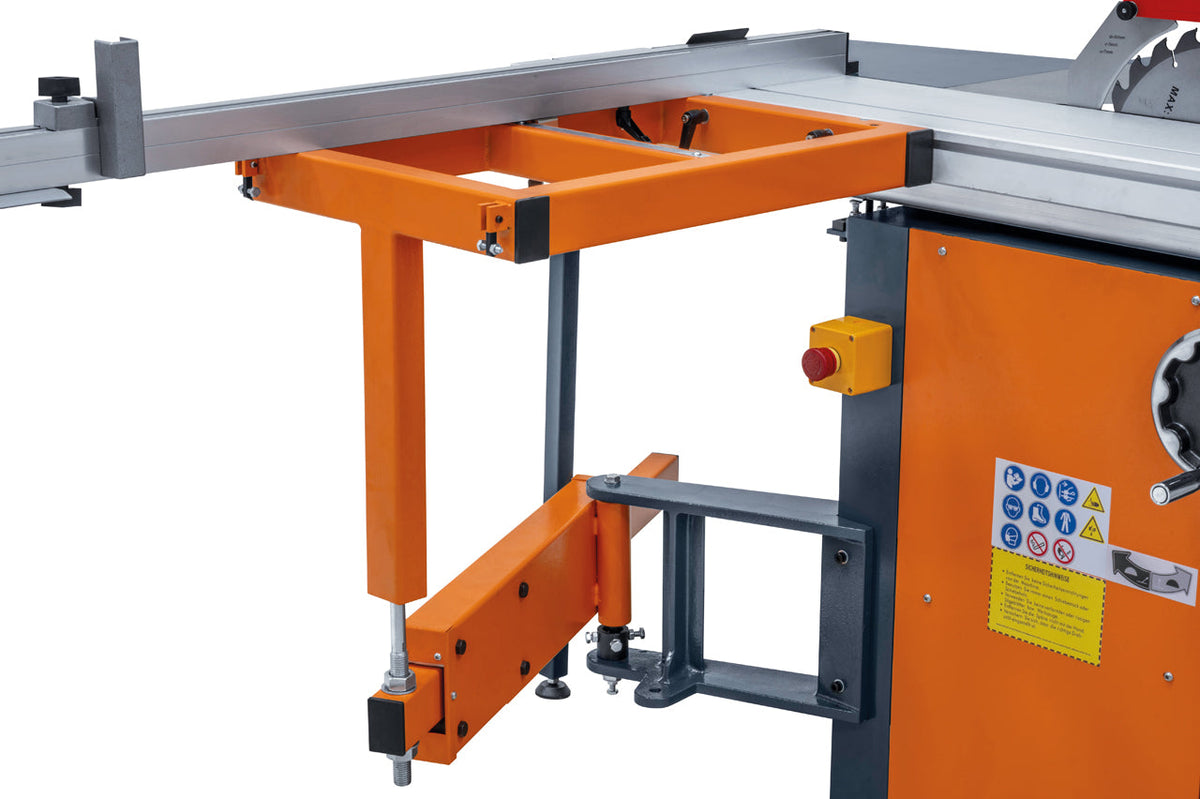

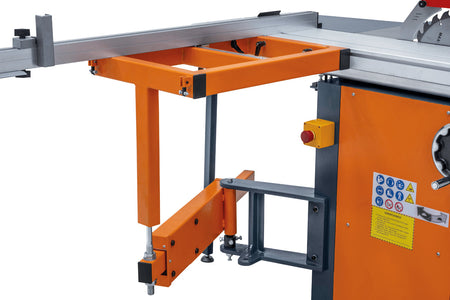

Includes telescopic arm and longitudinally adjustable outrigger table

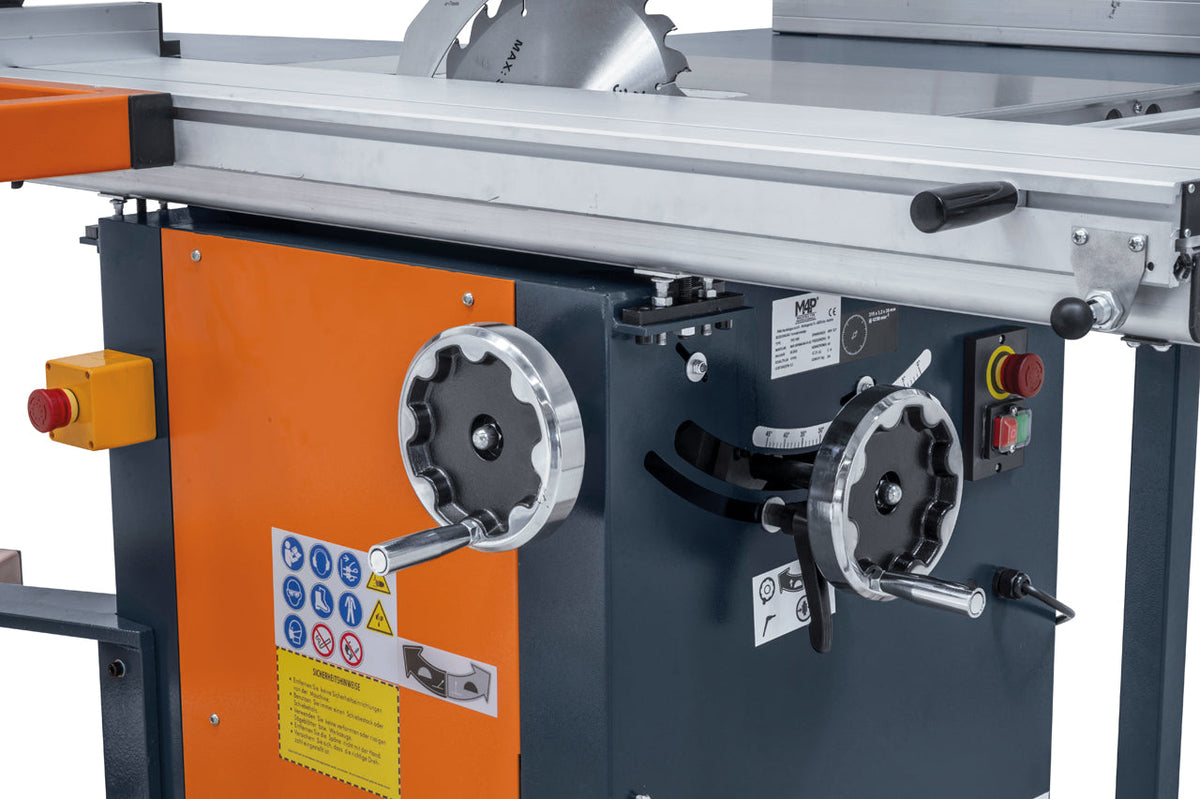

Bevel adjustment of the saw blade up to 45° according to scale via handwheel
Solid cast iron table with T-slot guide for the miter fence

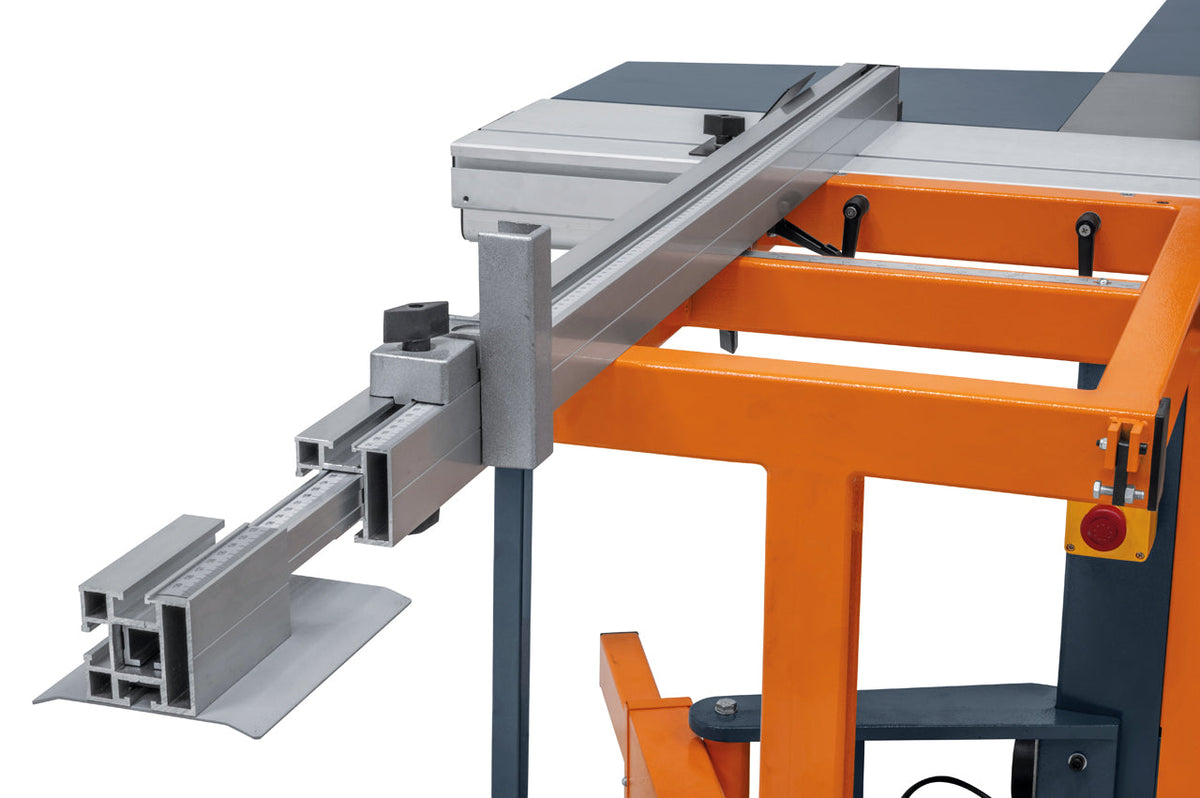

Extendable telescopic fence, continuously adjustable from 90° - 45°

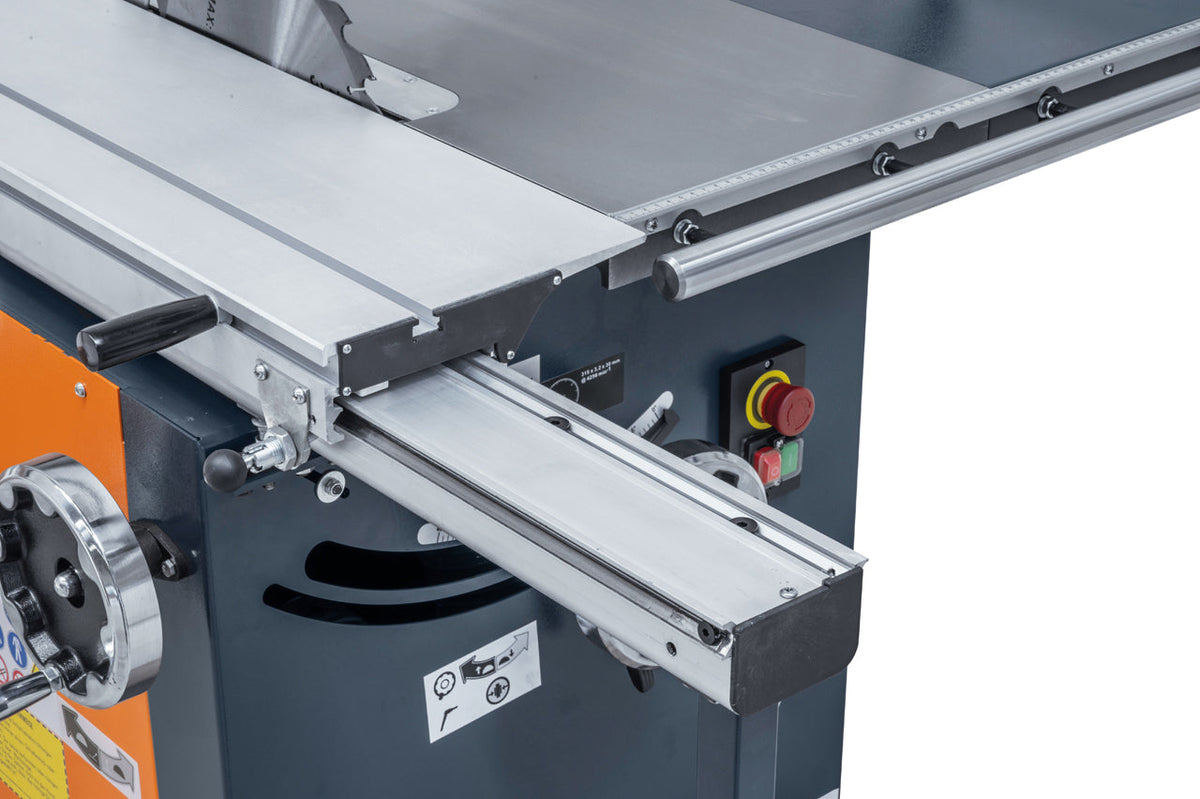

Hardened prismatic guides ensure the smooth running of the sliding table

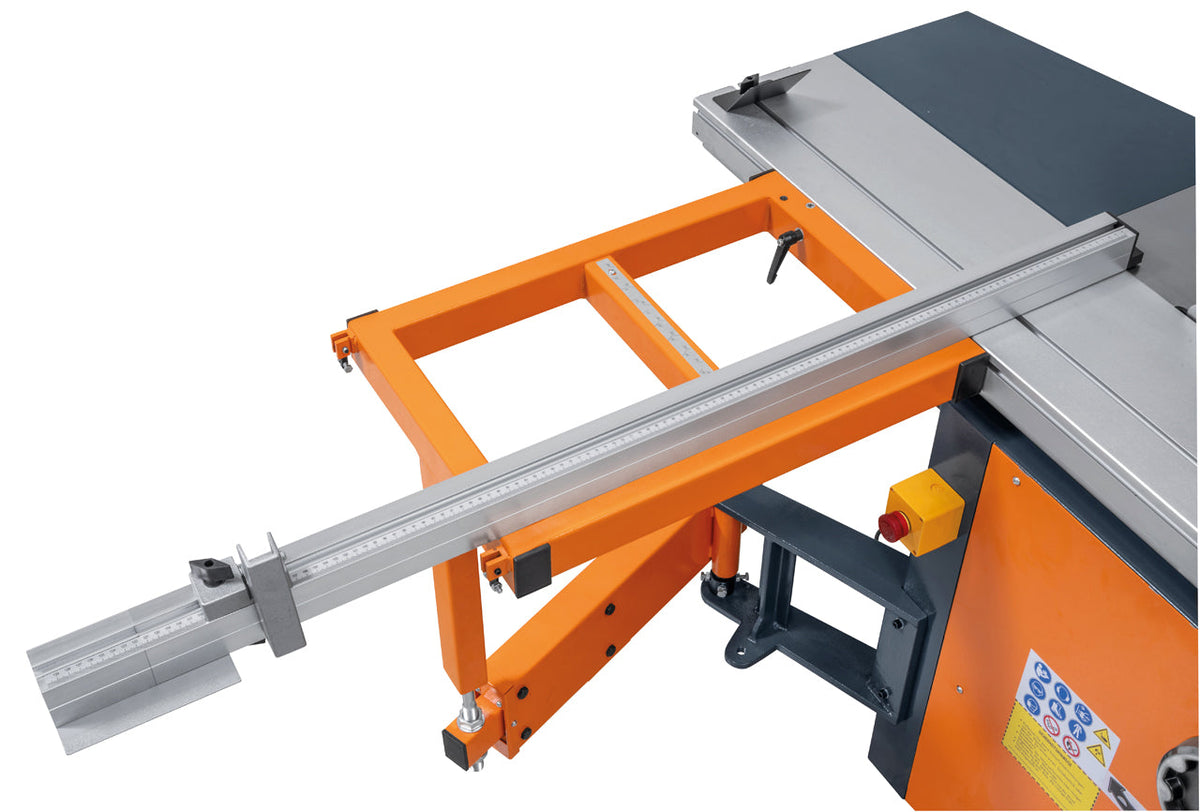

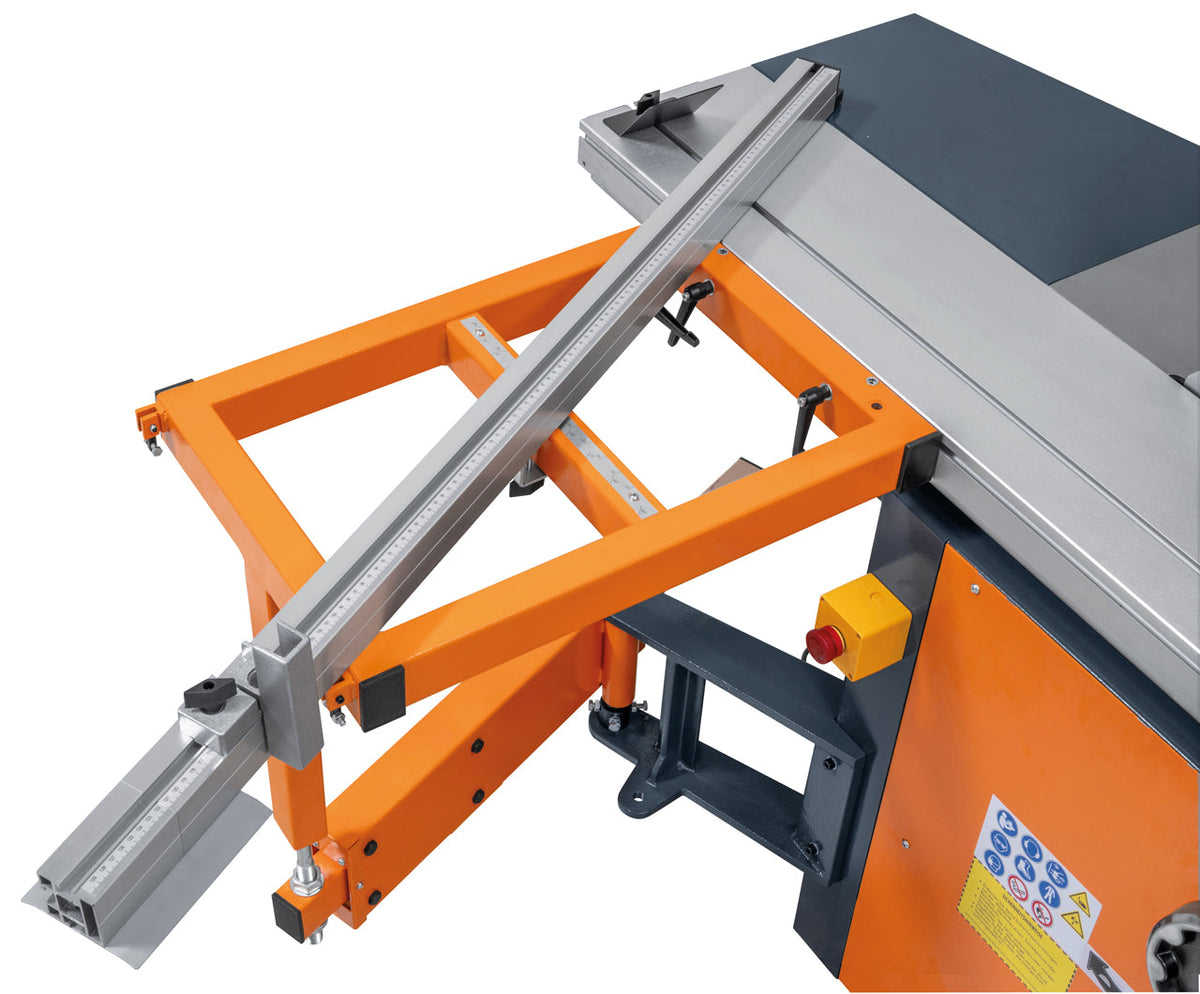

Large-dimensioned outrigger table for simplified handling of larger boards
| Tischabmessung | 760 x 350 mm |
| Formattisch | 1360 x 240 mm |
| Besäumlänge | 1360 mm |
| Max. Sägeblattdurchmesser | 315 x 30 mm |
| Max. Schnitthöhe 90° / 45° | 100 / 75 mm |

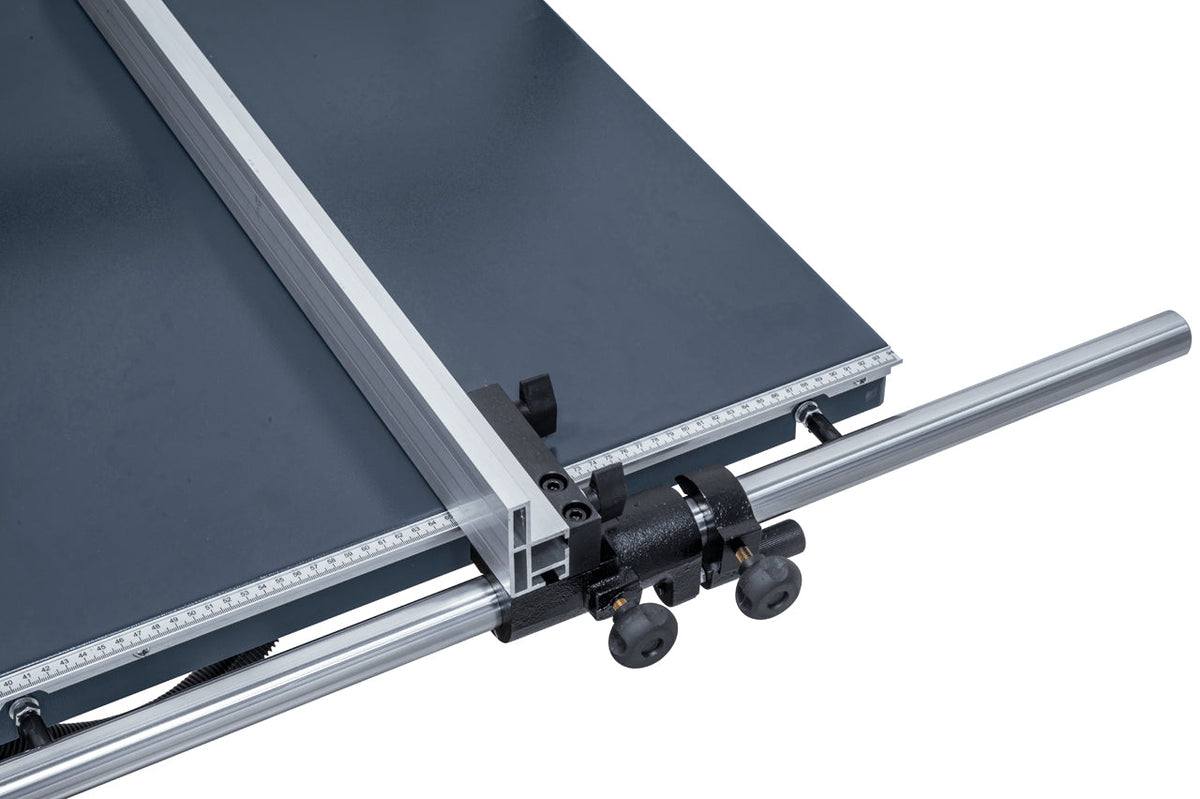

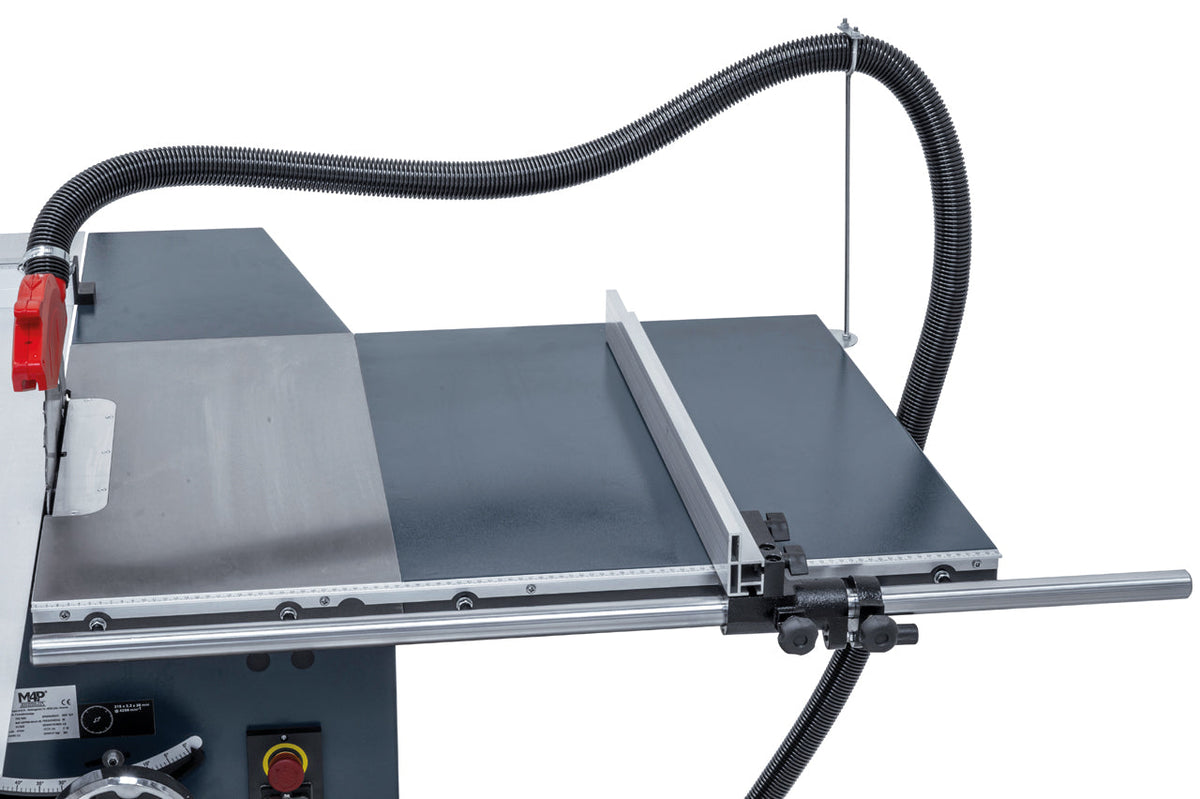

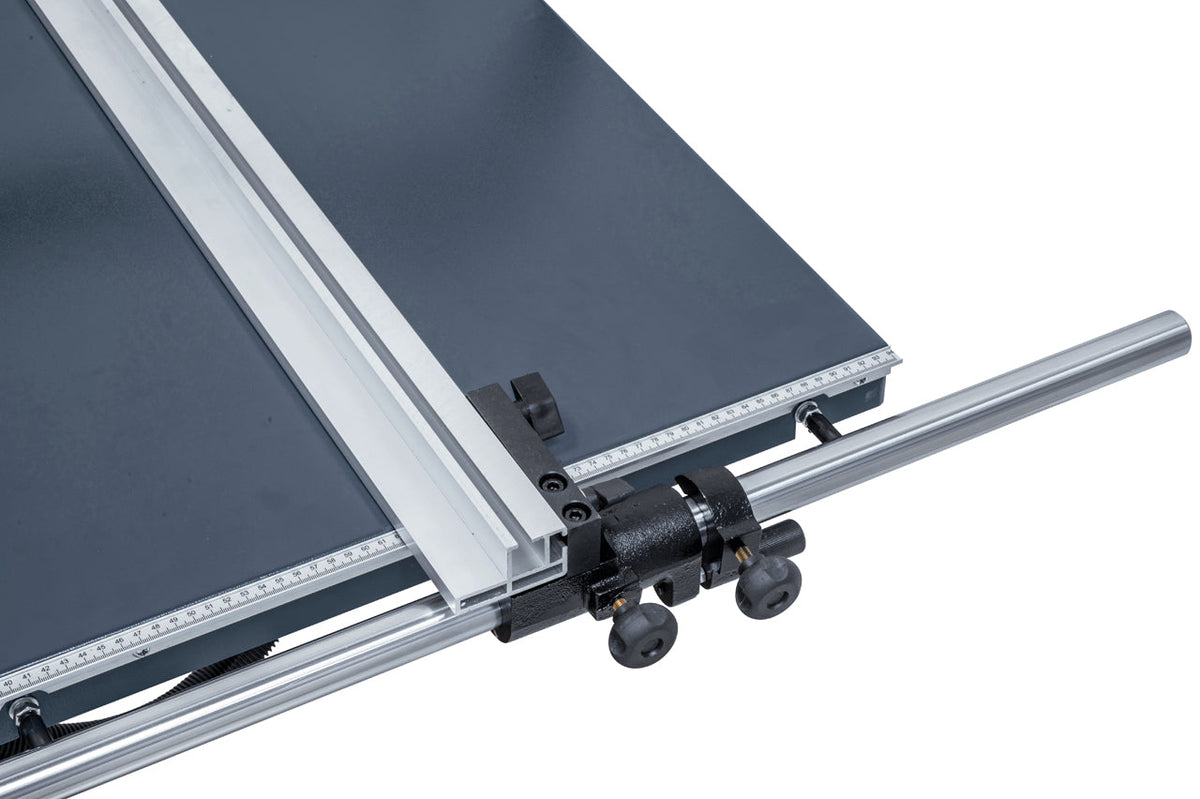

| Schnittbreite am Parallelanschlag | 900 mm |
| Tischhöhe | 870 mm |
| Tischverlängerung | 500 x 350 mm |
| Tischverbreiterung | 760 x 600 mm |
| Auslegertisch | 600 x 410 mm |
| Drehzahl Hauptsägeblatt | 4250 U/min |
| Absauganschluss Ø | 100 mm |
| Motor-Abgabeleistung S₁ 100% | 2,2 kW (3,0 PS) |
| Motor-Aufnahmeleistung S₆ 40% | 3,0 kW (4,0 PS) |
| Spannung | 400 V |
| Maschinenabmessung (B x T x H) | 1700 x 2500 x 1270 mm |
| Gewicht ca. | 206 kg |
