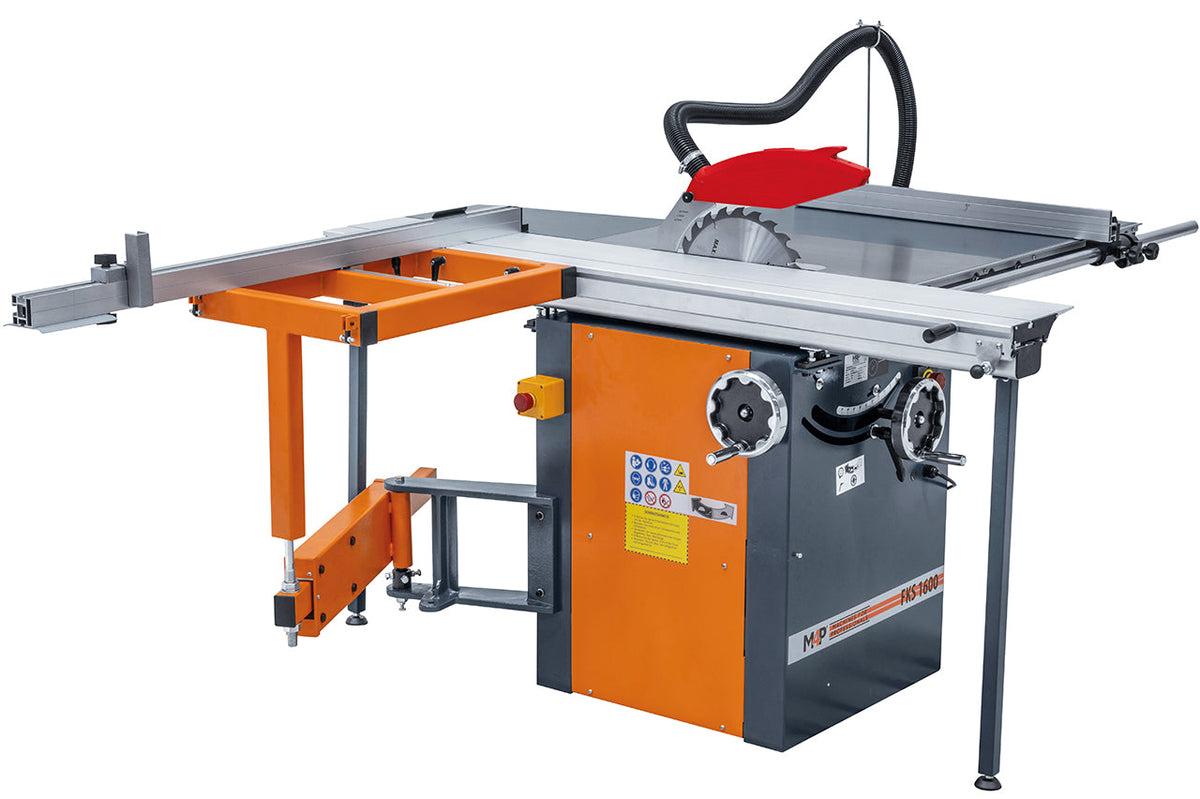

The FKS 1360 model is the ideal sliding table saw for the cost-conscious professional DIY enthusiast. Sophisticated technical solutions, such as compact dimensions, high performance, and extremely simple operation, distinguish this machine. Thanks to the standard aluminum sliding table and the sturdy outrigger table, large-format panels can also be processed.
Standard with aluminum sliding table with a contact surface of 1360 x 240 mm or 1600 x 240 mm
Powerful drive motor ensures optimal cutting performance even during prolonged operation

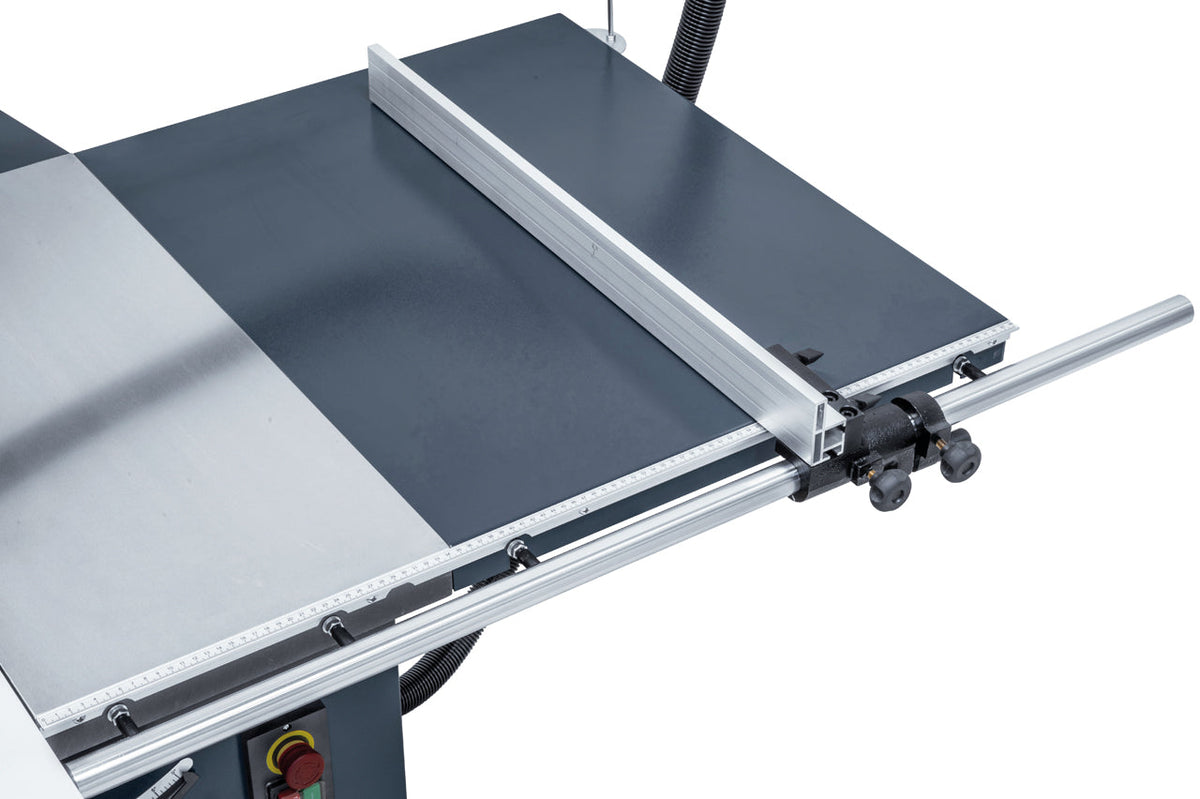

Equipped as standard with table width and length extensions for placing larger panels

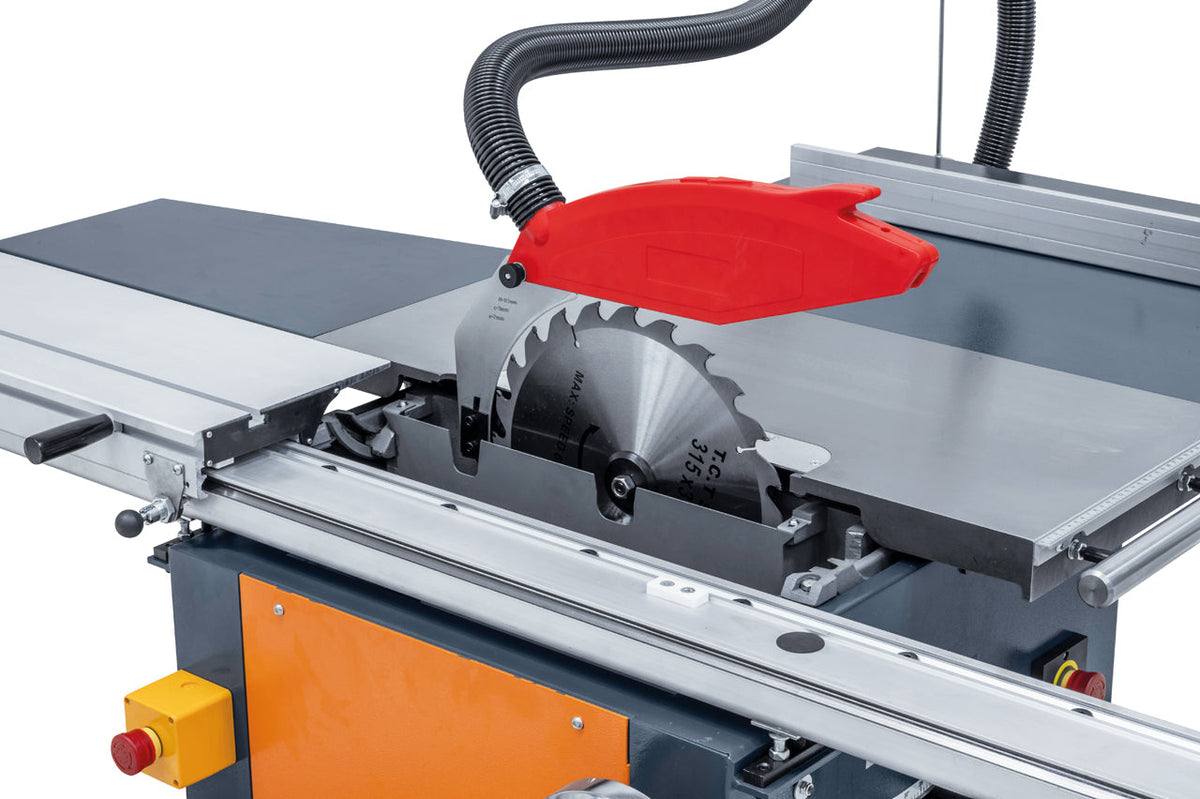

Saw blade can be tilted from 90° - 45° for precise angle cuts
For optimal working conditions, a dust extraction system can be connected to the 100 mm hose connection

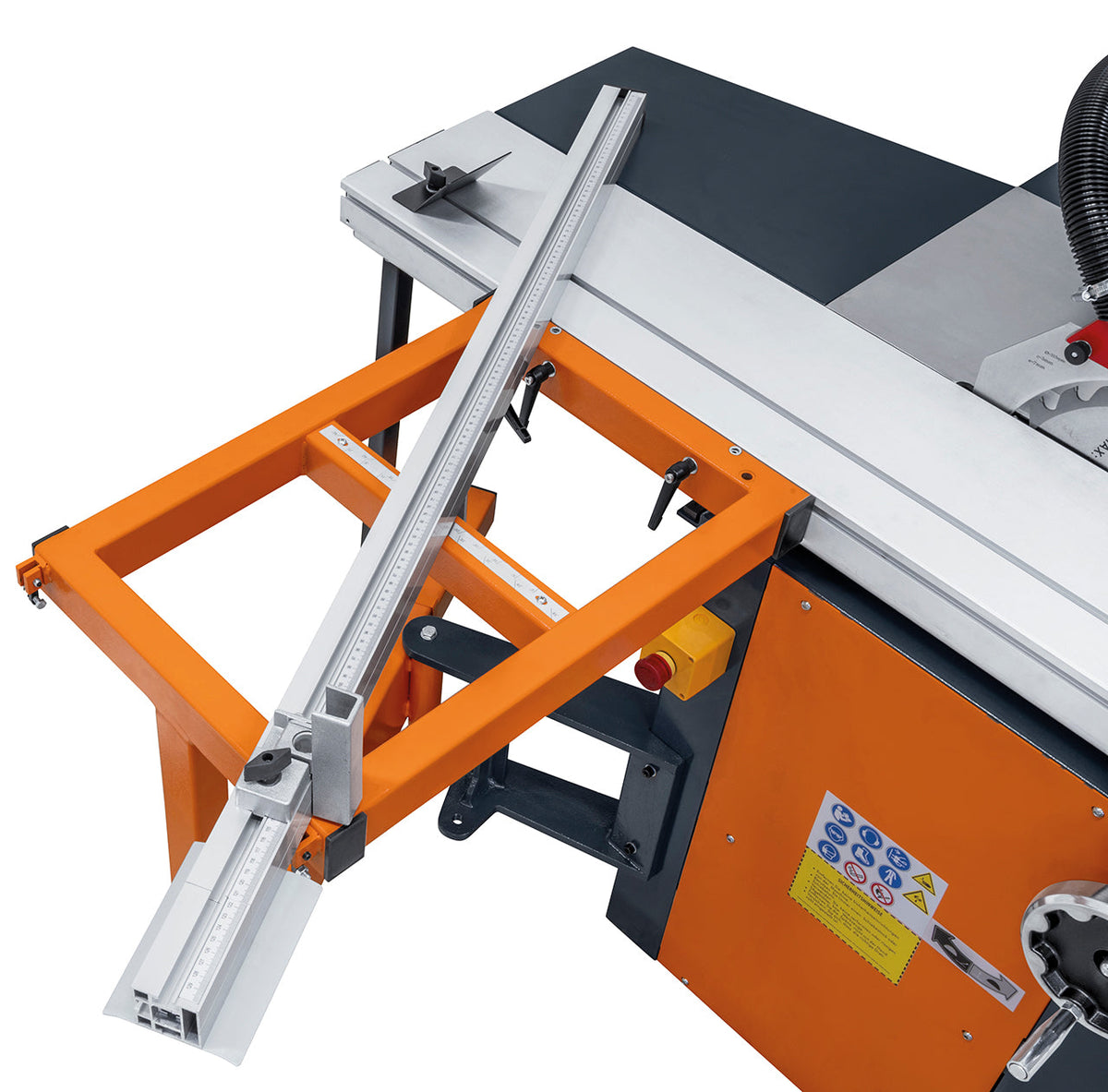

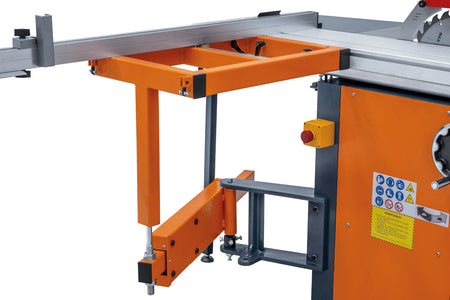

Includes telescopic arm and longitudinally adjustable outrigger table

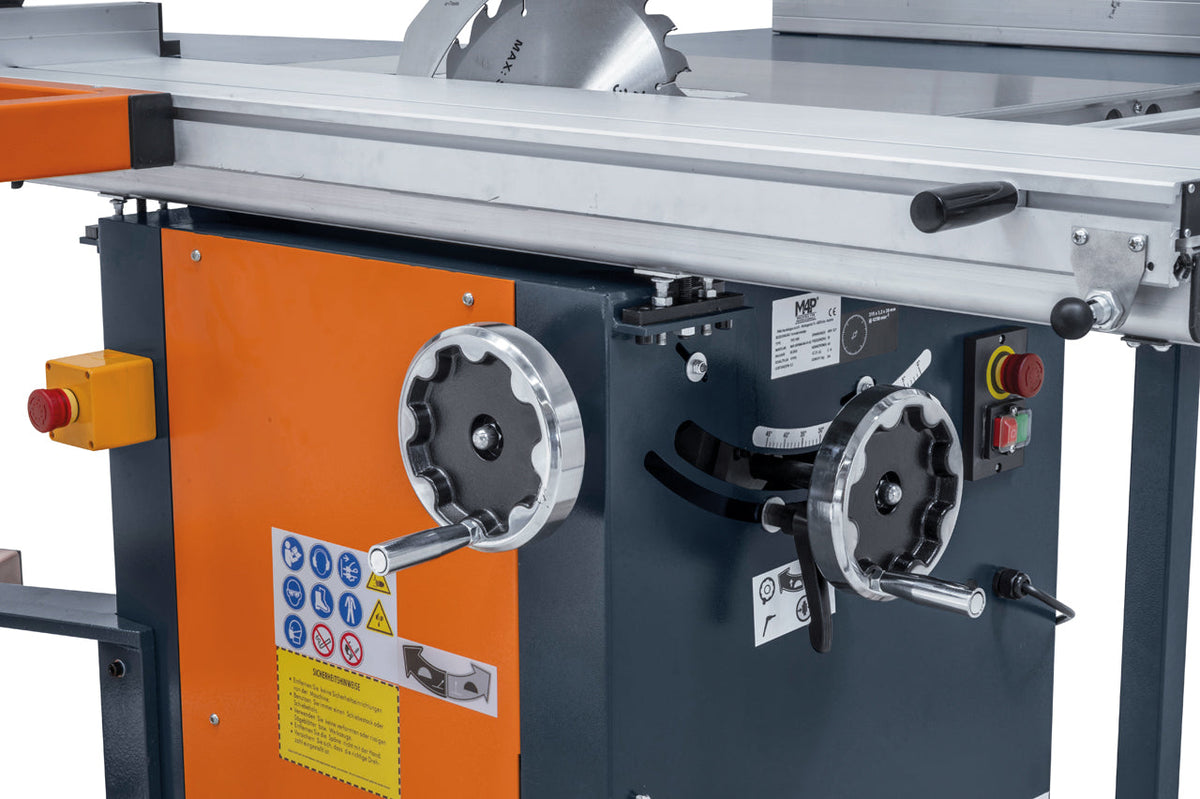

Bevel adjustment of the saw blade up to 45° via scale using a handwheel
Solid cast-iron table with T-slot guide for the miter gauge

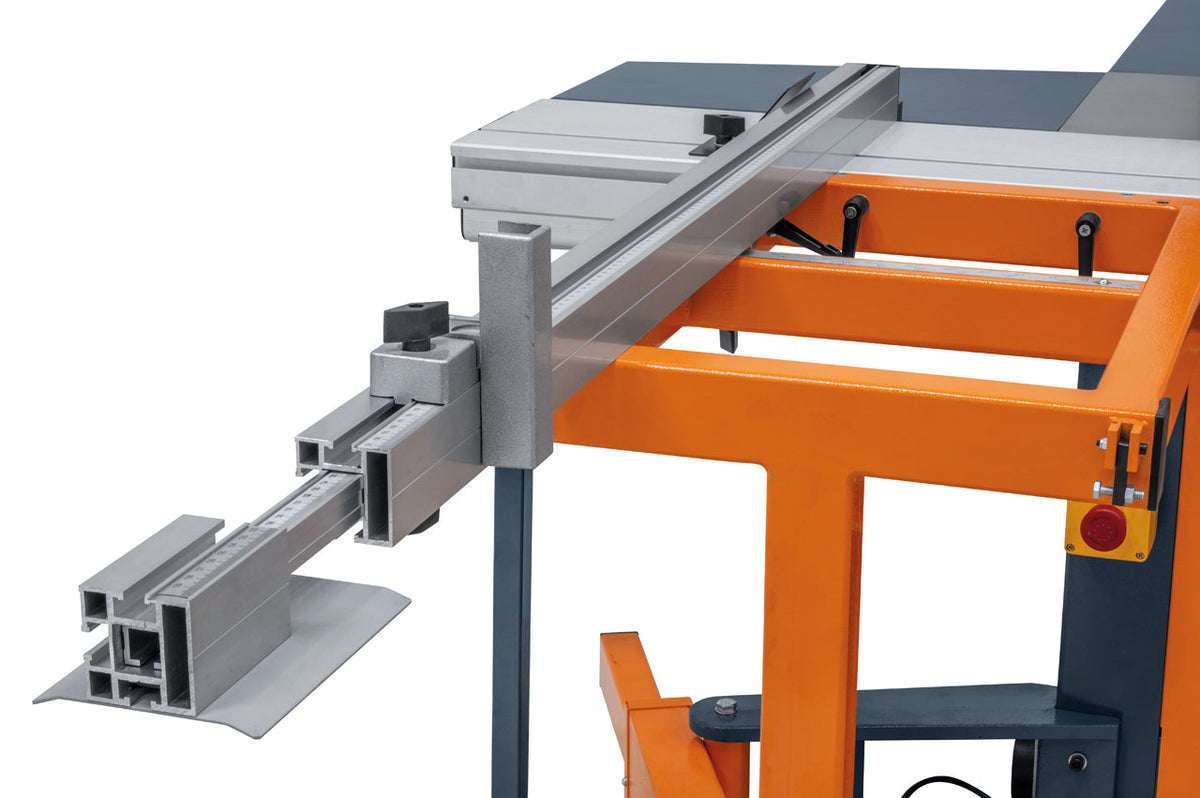

Extendable telescopic fence, continuously swiveling from 90° - 45°

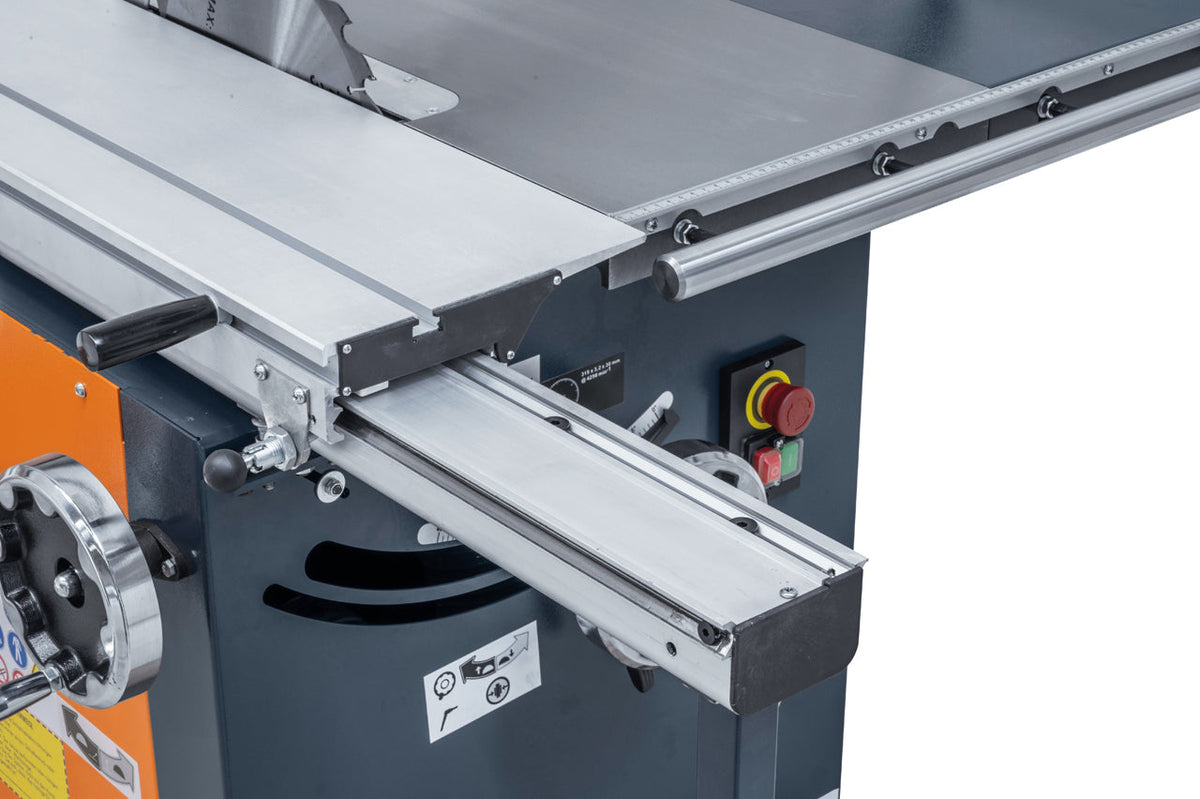

Hardened prism guide for smooth movement of the sliding table

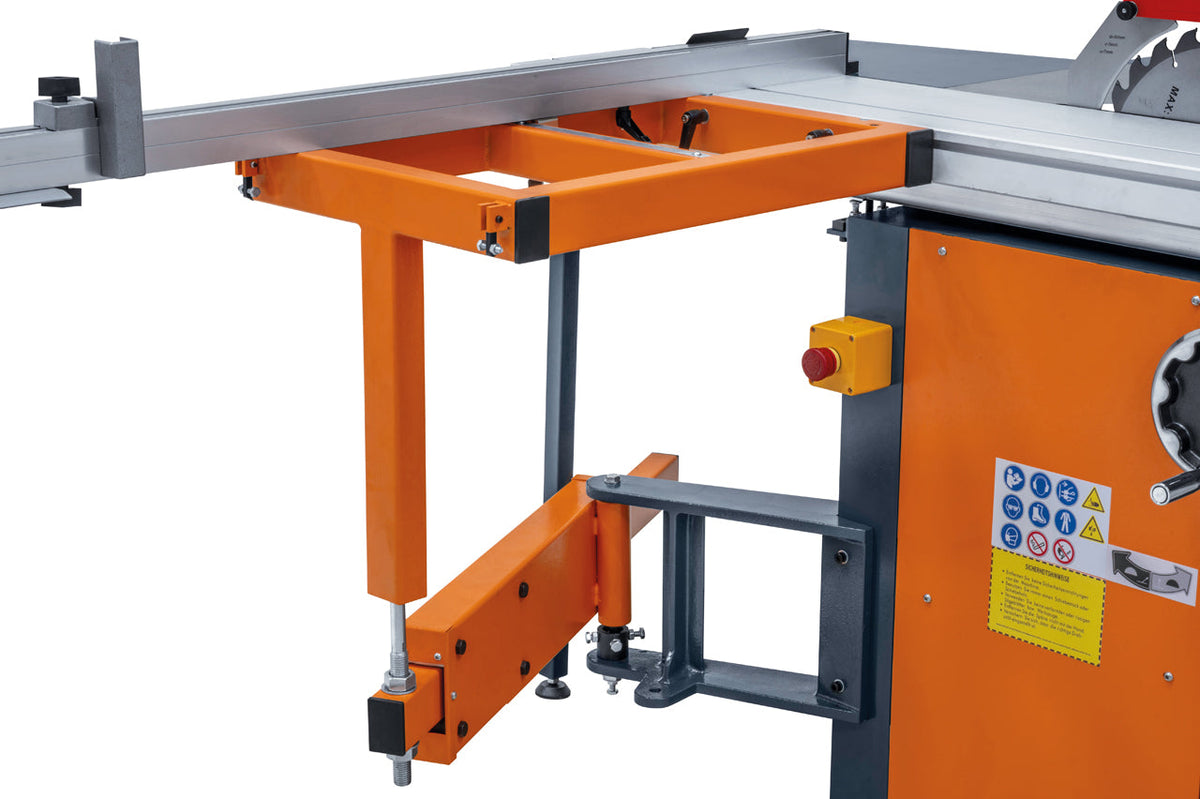

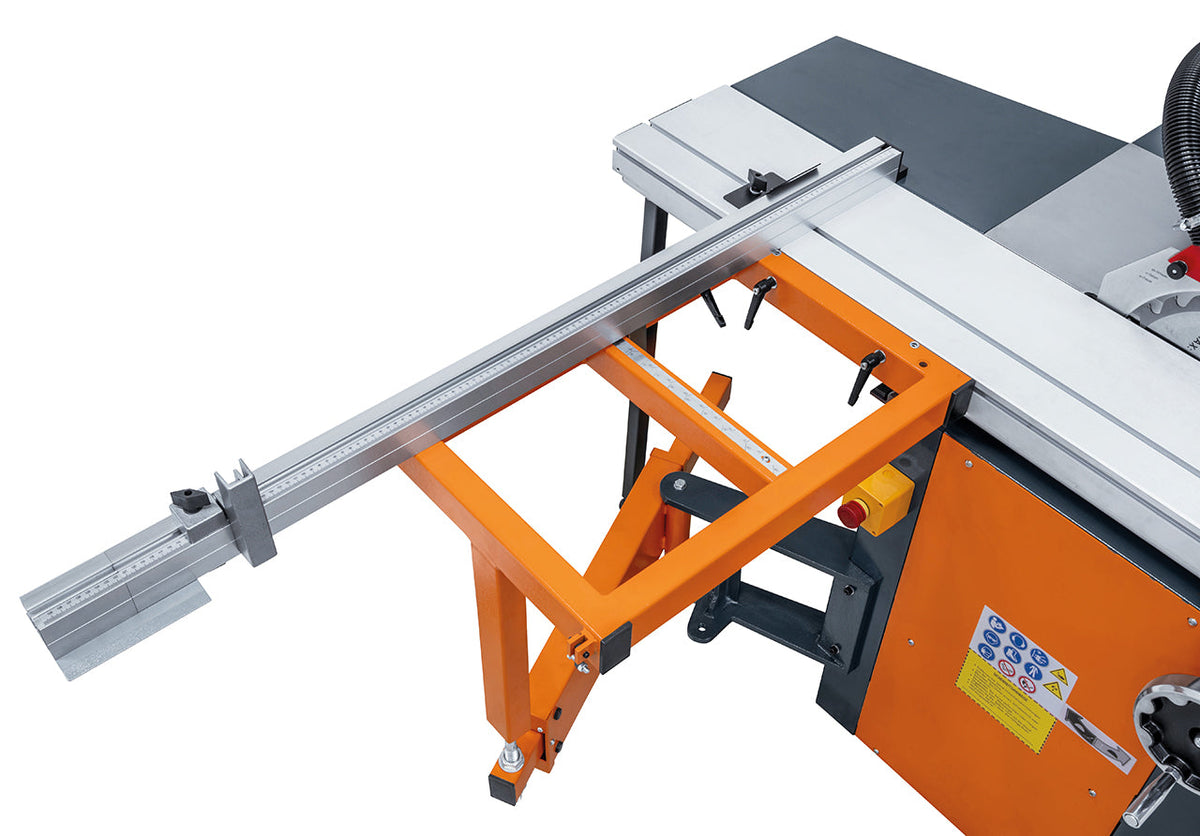

Large-dimensioned outrigger table for simplified handling of larger panels
| Tischabmessung | 760 x 350 mm |
| Formattisch | 1600 x 240 mm |
| Besäumlänge | 1600 mm |
| Max. Sägeblattdurchmesser | 315 x 30 mm |
| Max. Schnitthöhe 90° / 45° | 100 / 75 mm |

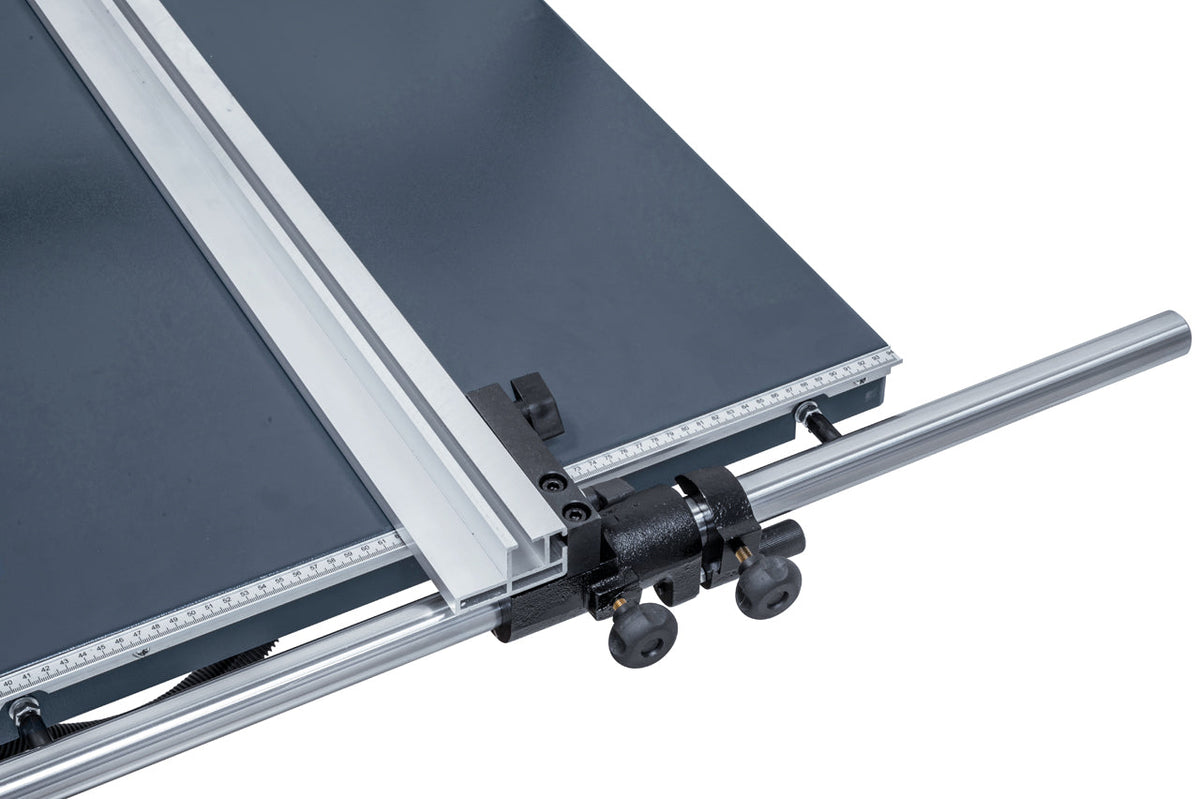

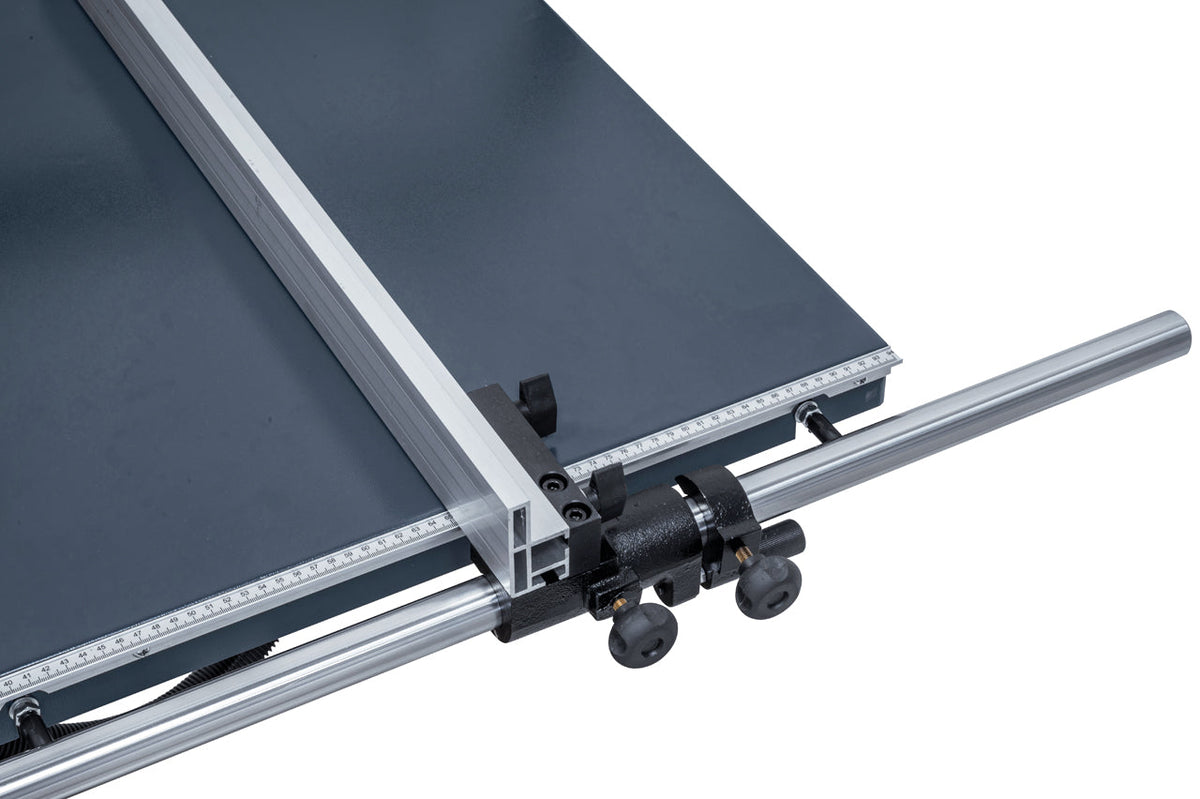

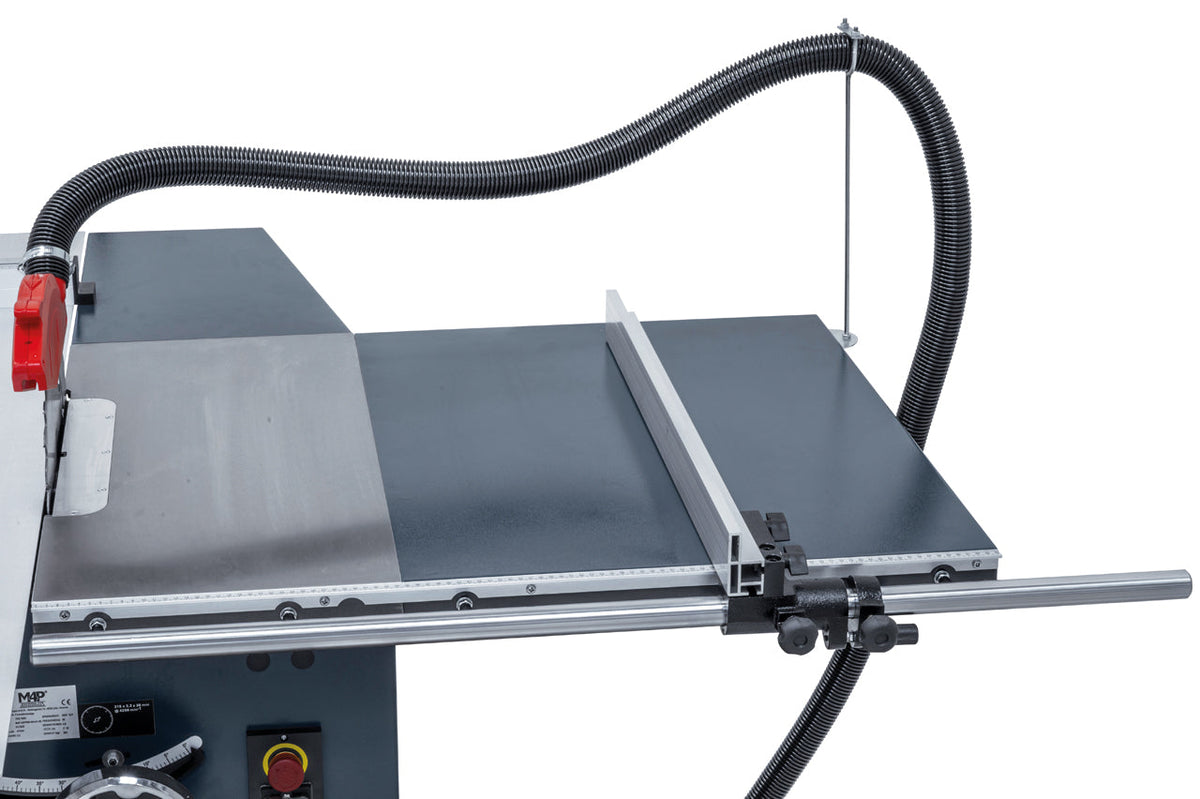

| Schnittbreite am Parallelanschlag | 900 mm |
| Tischhöhe | 870 mm |
| Tischverlängerung | 500 x 350 mm |
| Tischverbreiterung | 760 x 600 mm |
| Auslegertisch | 600 x 410 mm |
| Drehzahl Hauptsägeblatt | 4250 U/min |
| Absauganschluss Ø | 100 mm |
| Motor-Abgabeleistung S₁ 100% | 2,2 kW (3,0 PS) |
| Motor-Aufnahmeleistung S₆ 40% | 3,0 kW (4,0 PS) |
| Spannung | 230 V |
| Maschinenabmessung (B x T x H) | 2000 x 2500 x 1270 mm |
| Gewicht ca. | 210 kg |
