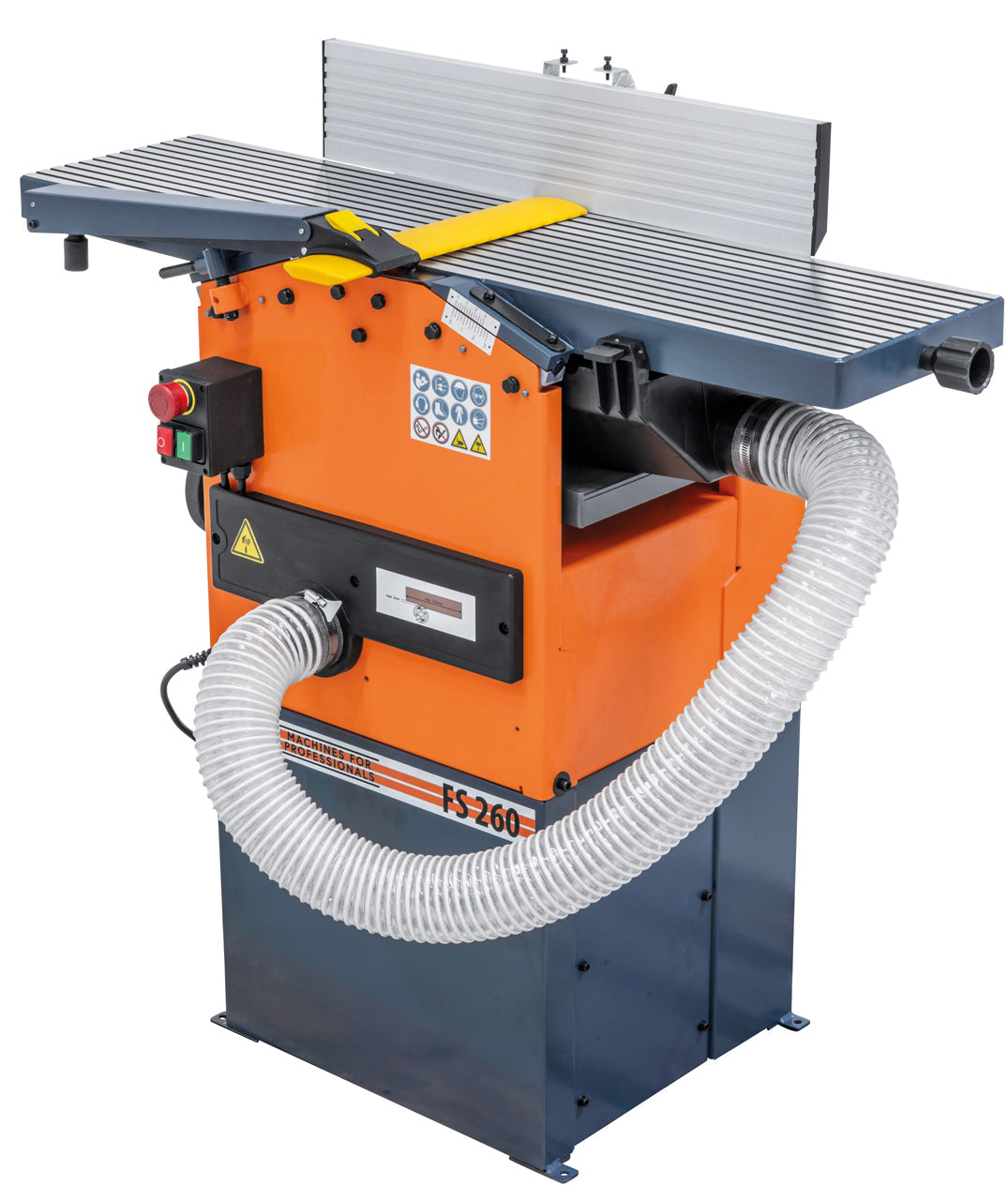

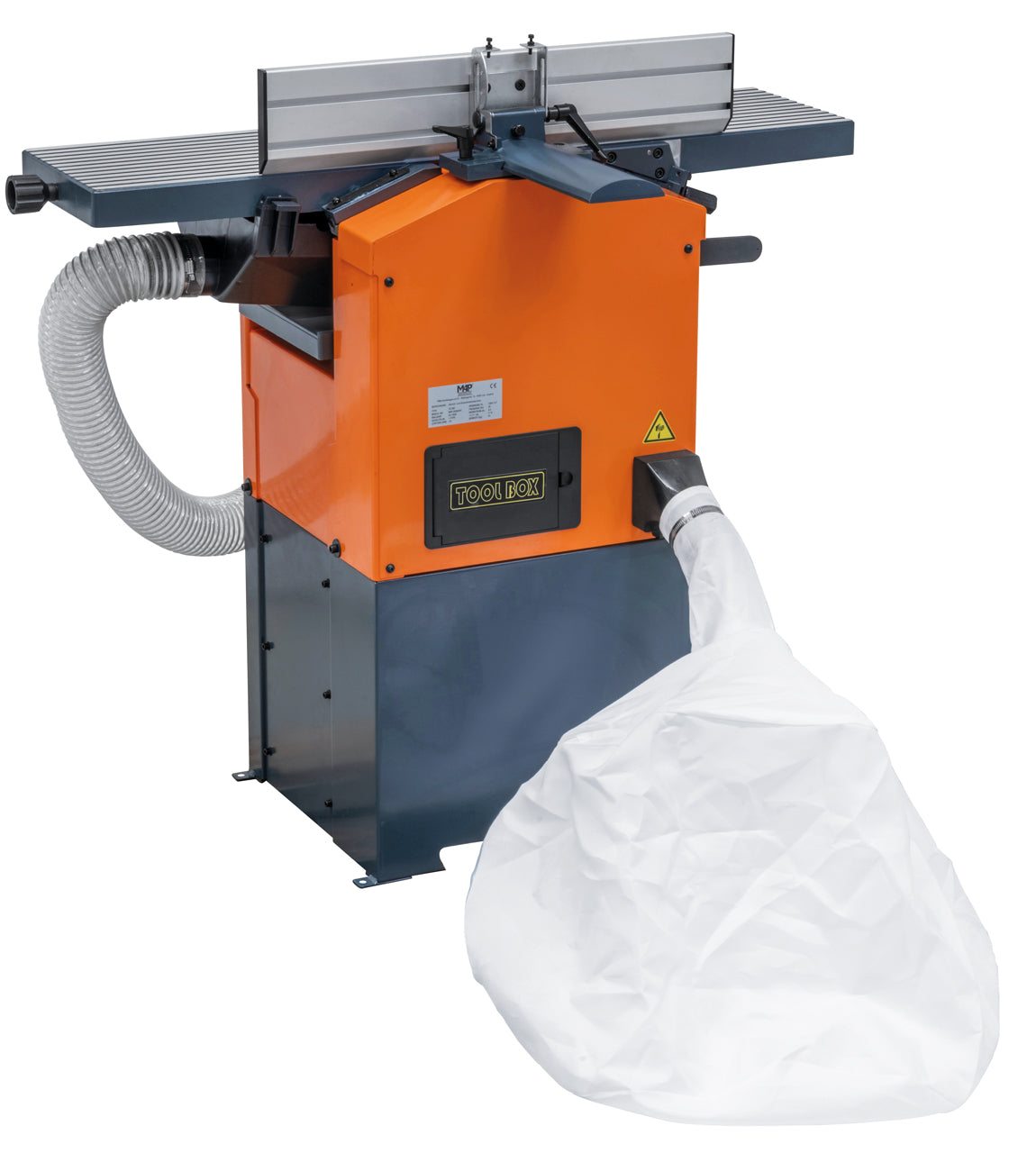

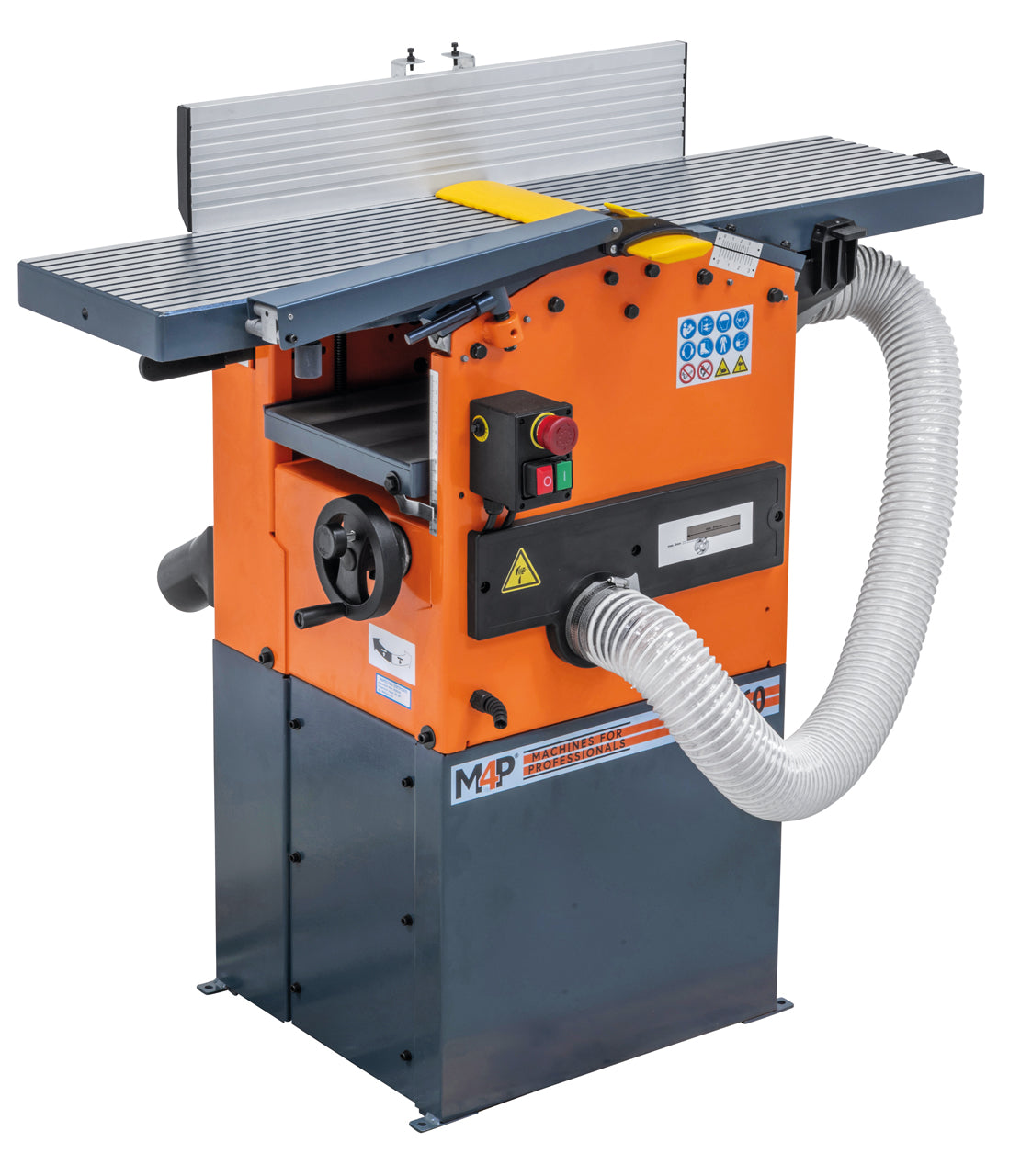

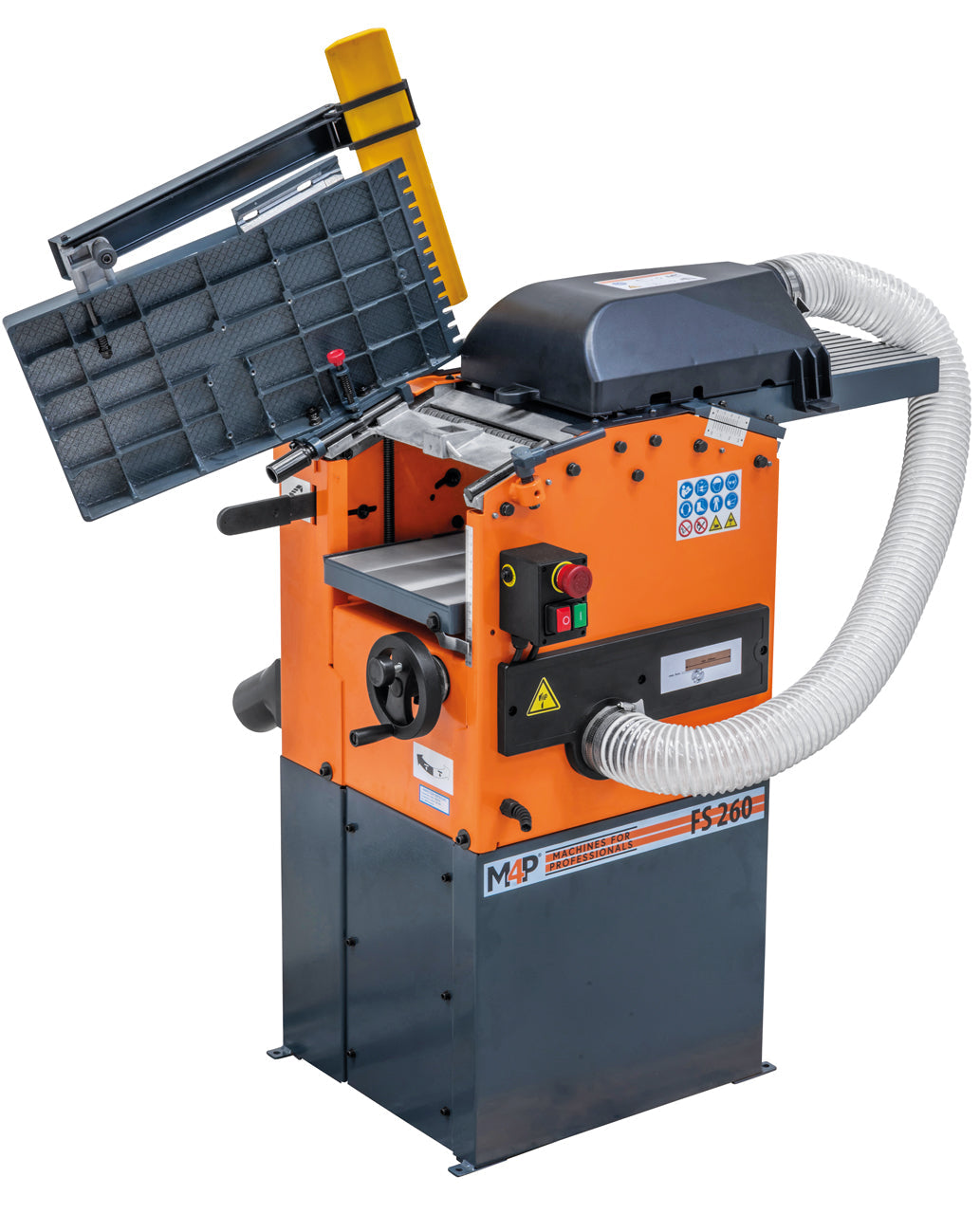

The FS 260 surface planer and thicknesser offers an optimal price-performance ratio for the cost-conscious DIY enthusiast, thanks to its extensive range of standard accessories (integrated dust extraction, chip bag, planer blade setting gauge, ...)

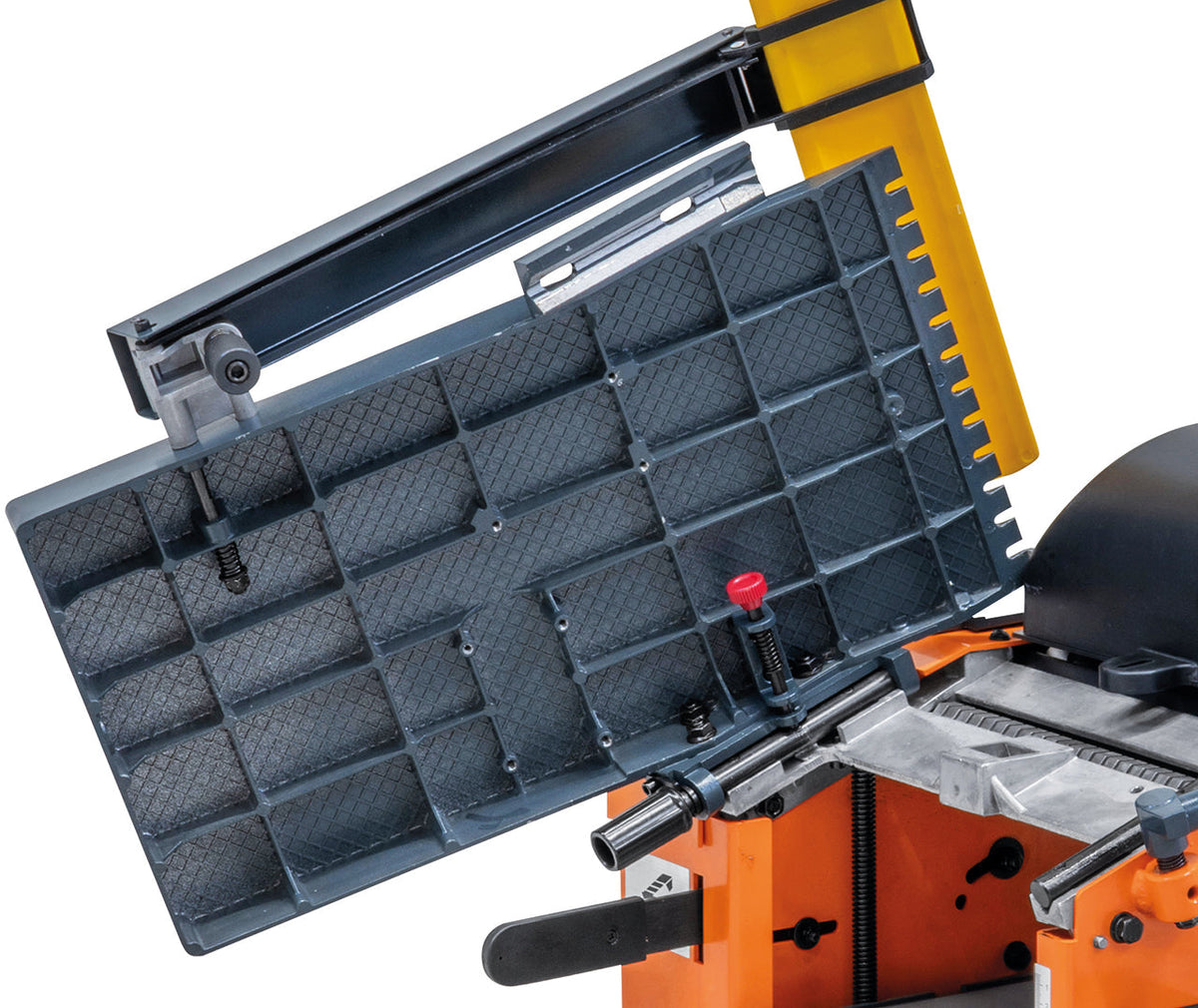

Both surface tables with fine adjustment and noise-dampening table lips

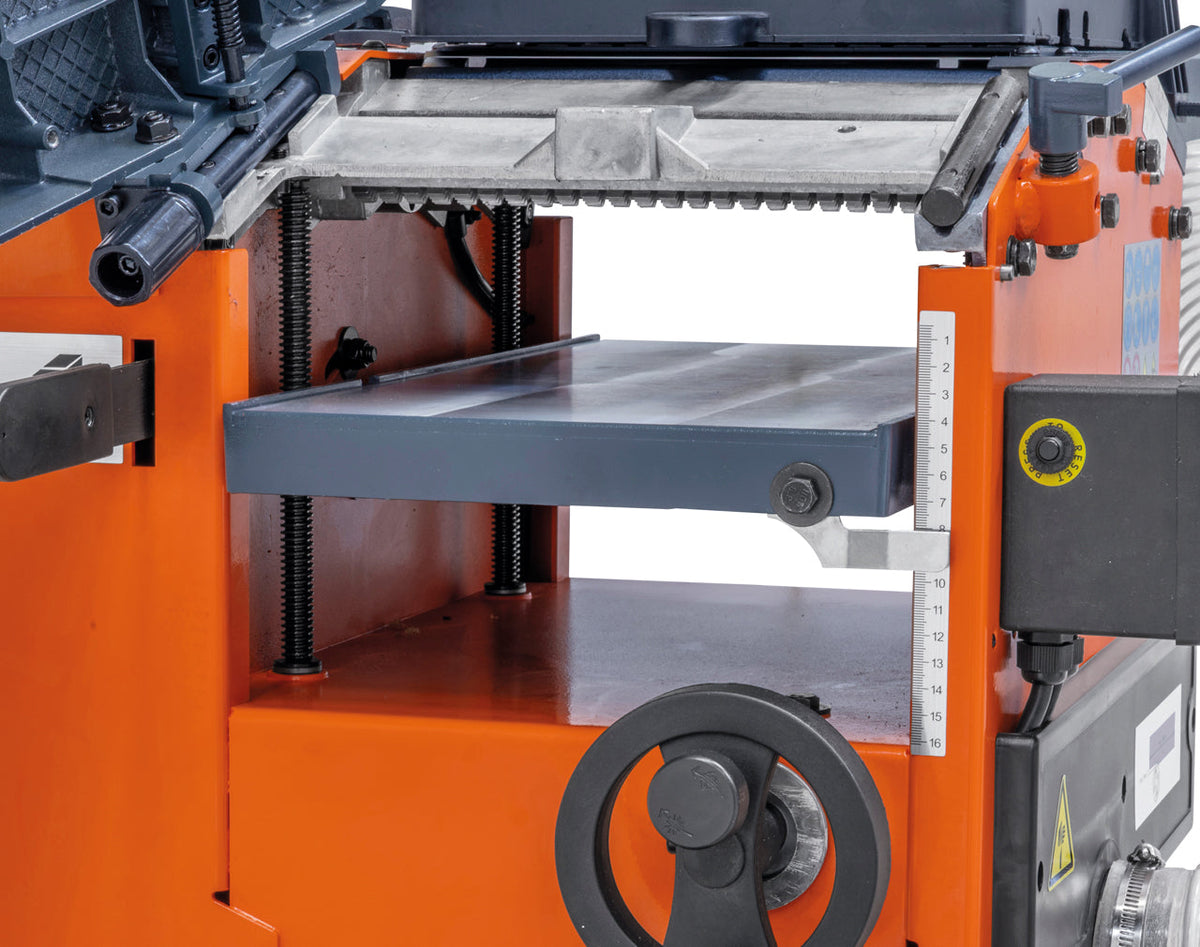

Thicknessing table with 4-way guidance for precise planing of boards, strips, planks, ...

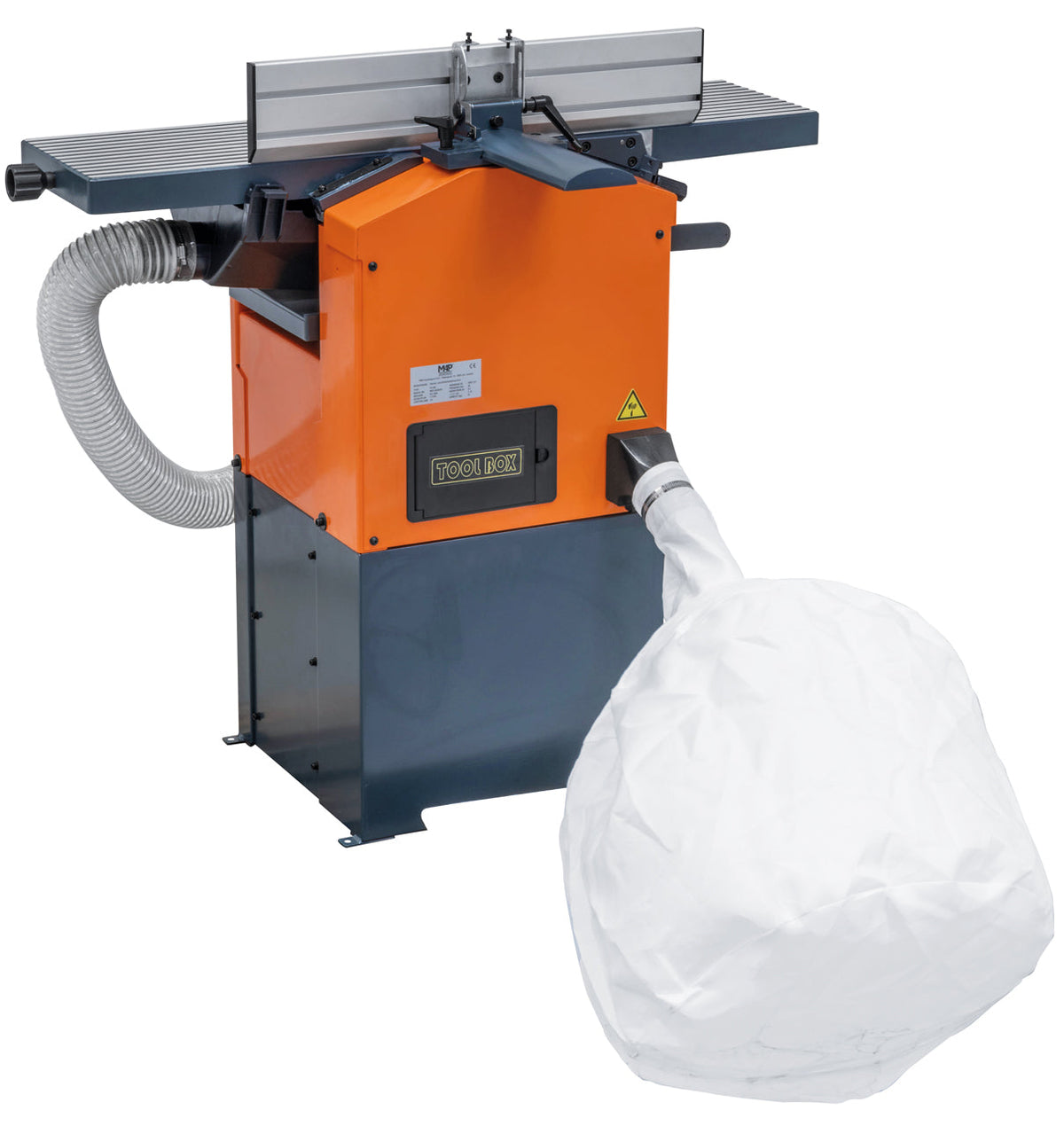

Optimal price-performance ratio due to integrated chip extraction

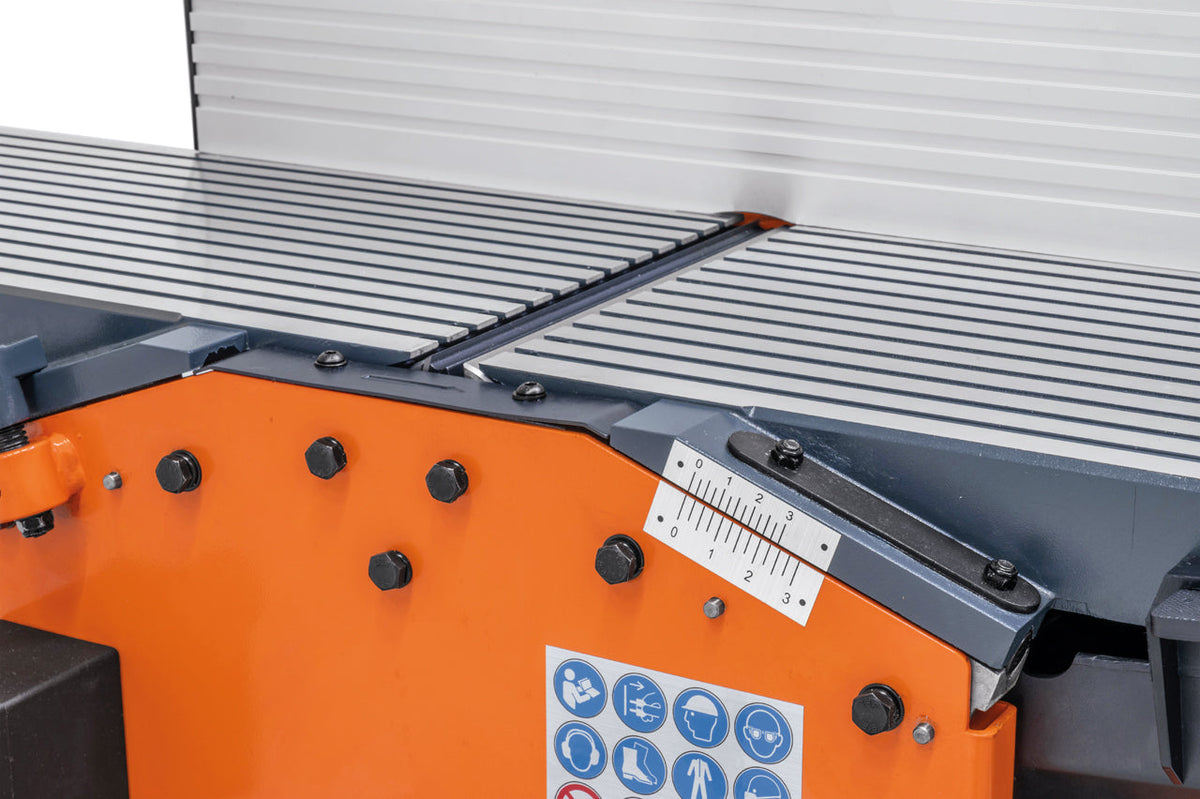

Quick and easy adjustment of the desired chip removal
Precision-planed aluminum surface tables for accurate work results

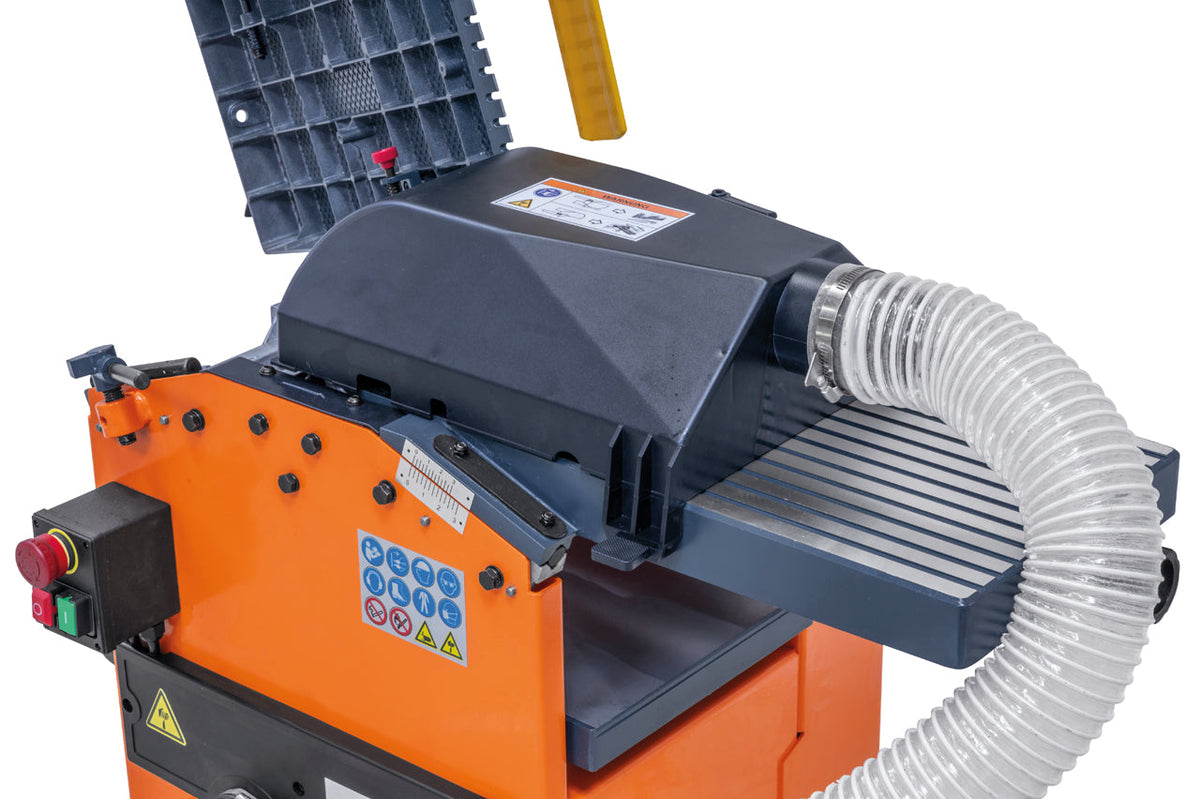

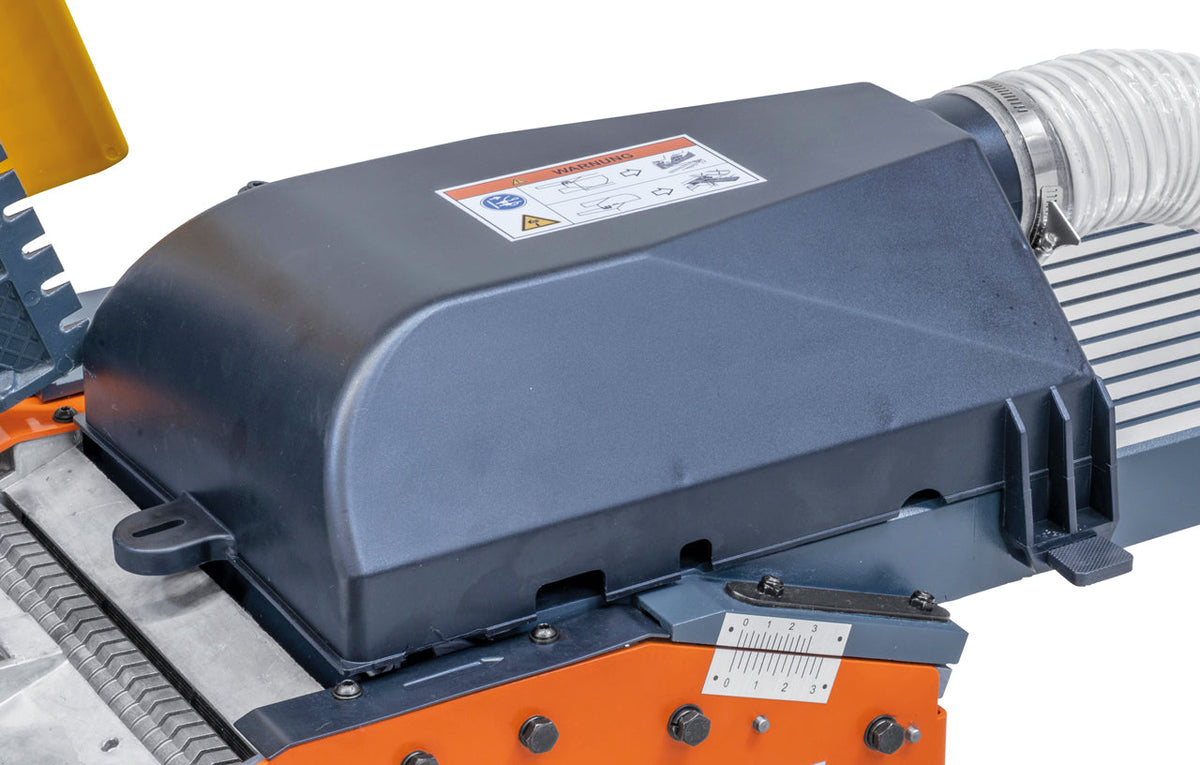

Extraction hood (ø 80 mm) can be used for either surface planing or thicknessing

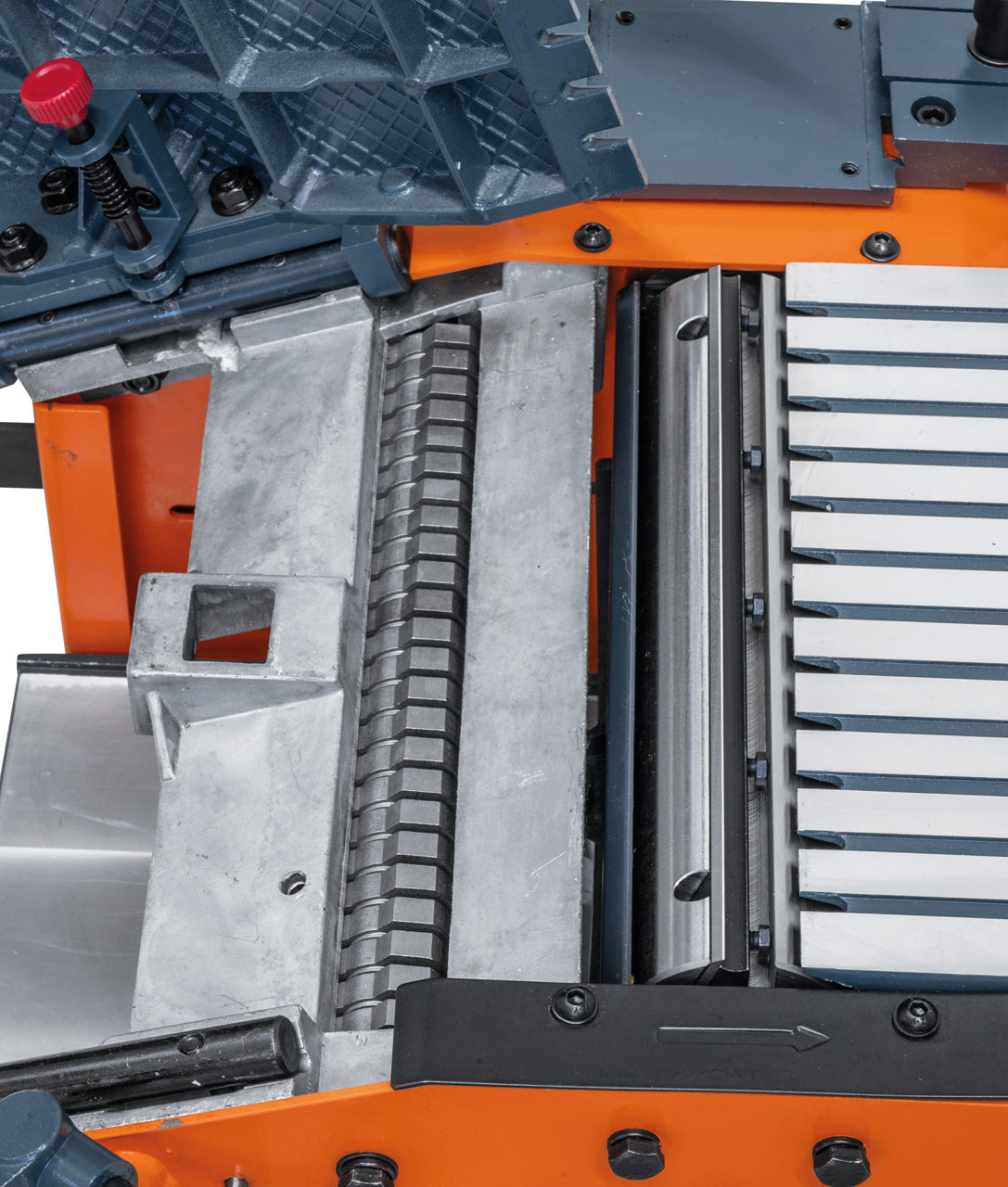

Cutterblock with HSS quality planer blades
Corrugated infeed roller for safe and uniform workpiece feed

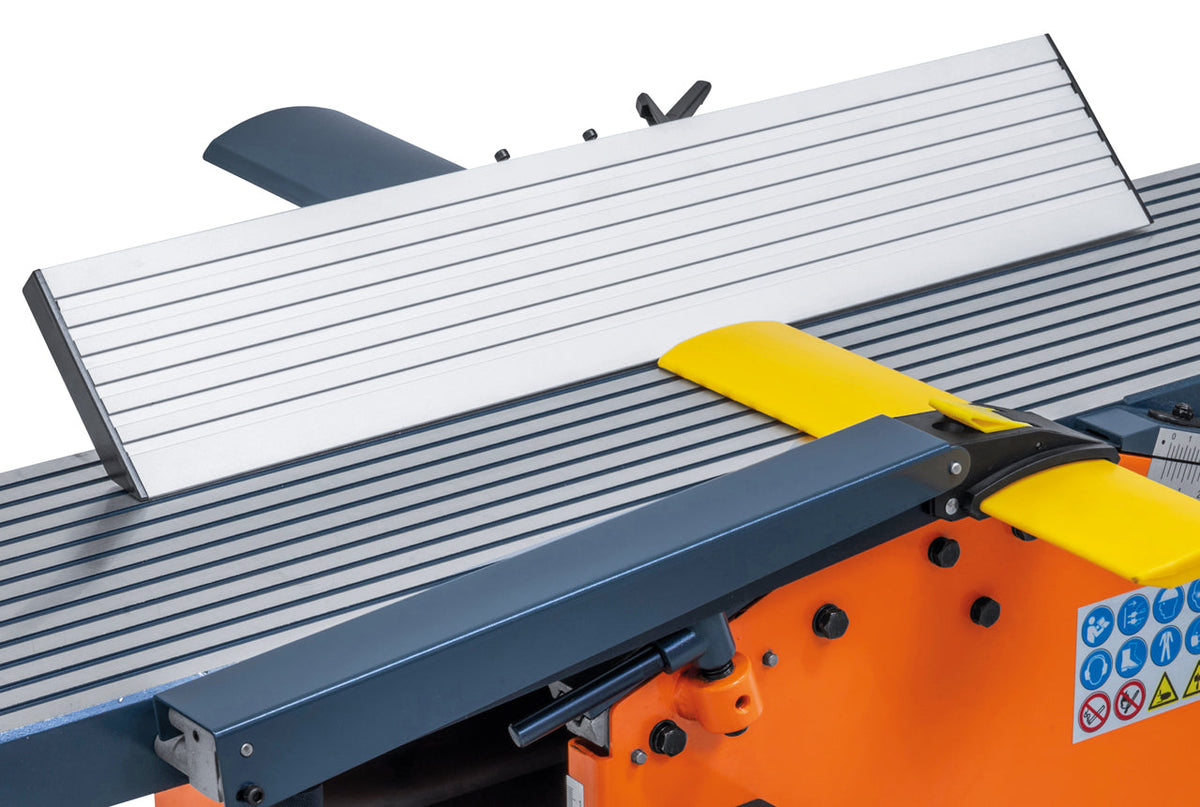

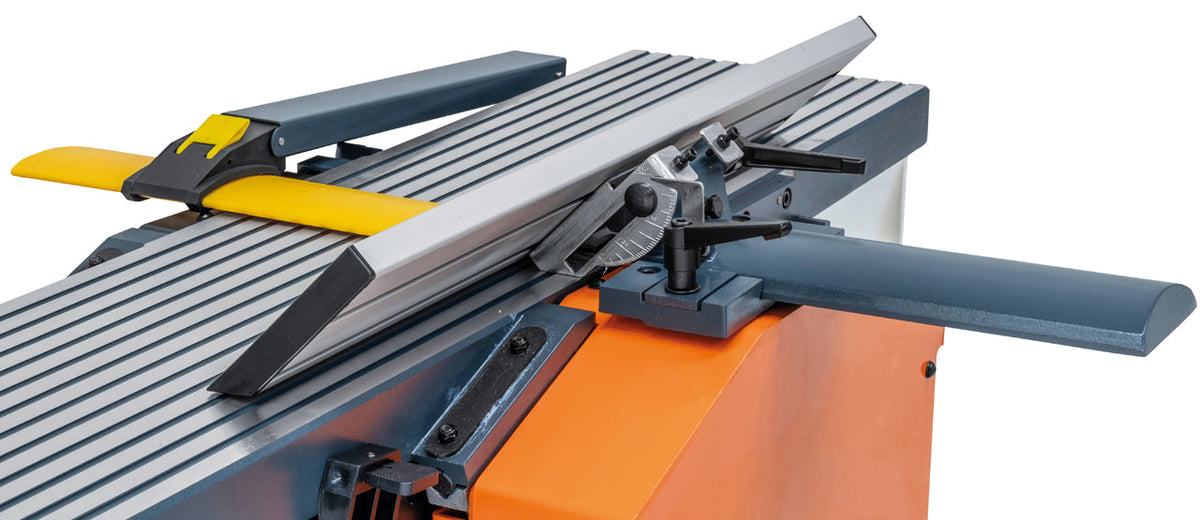

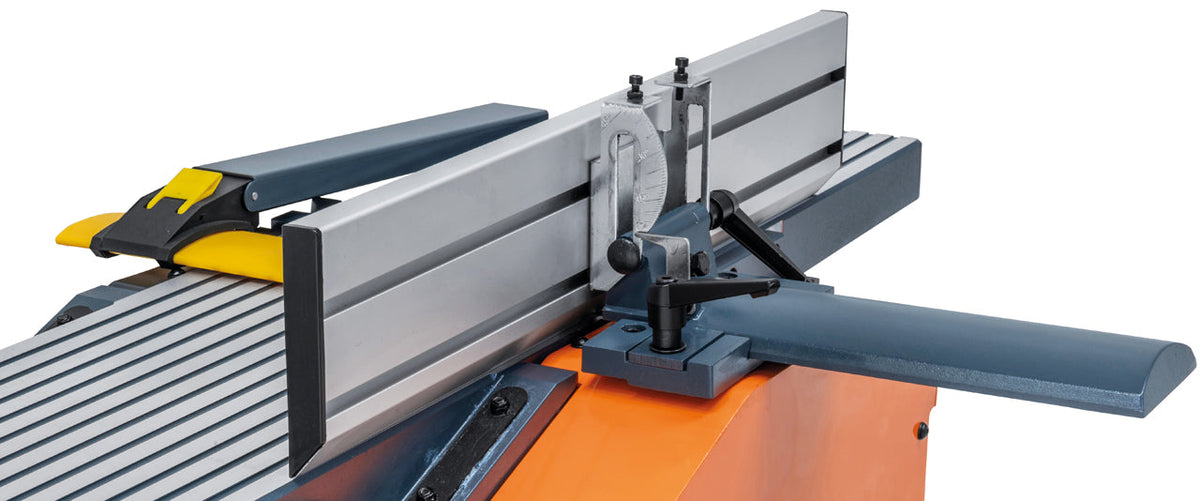

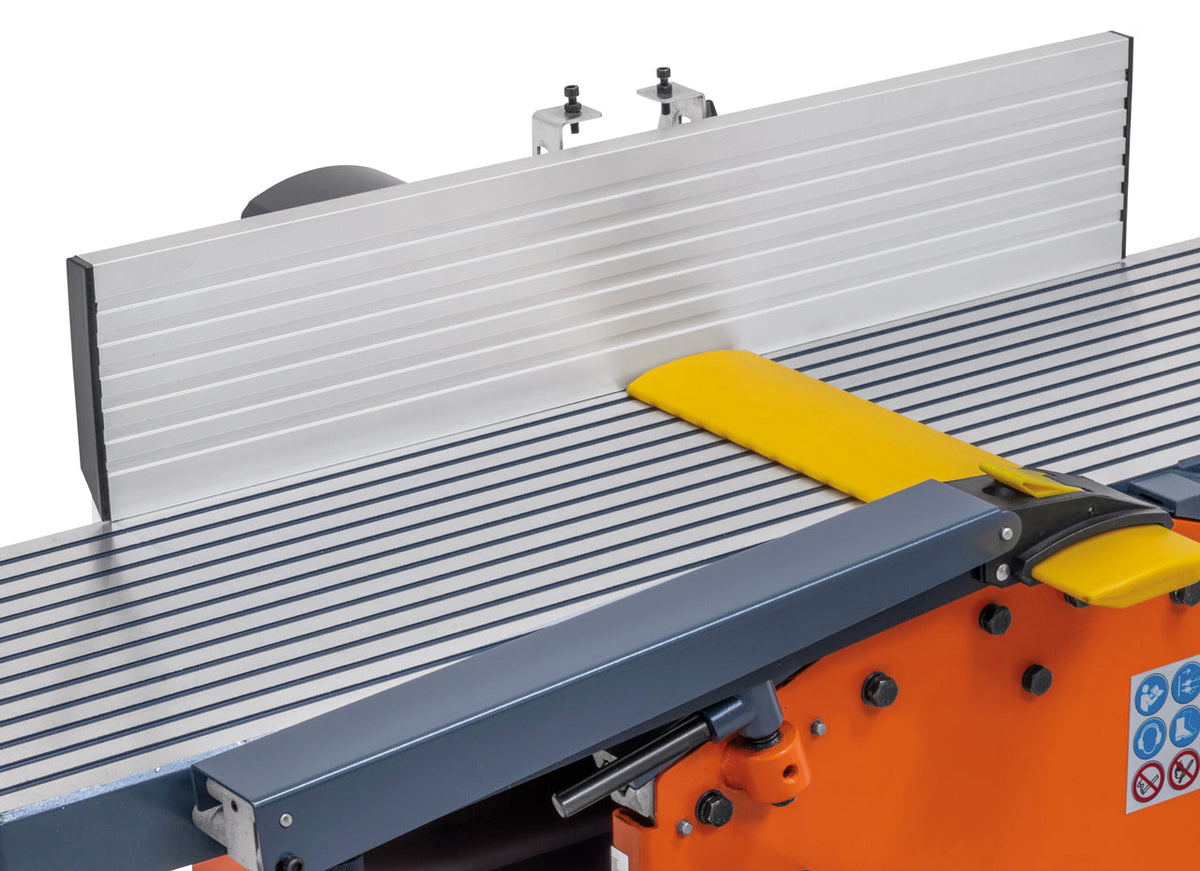

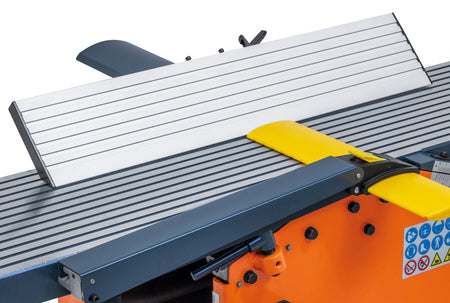

Stable surface fence with prismatic guide, swiveling from 90° to 45°
Includes planer blade setting gauge as standard for optimal planer blade adjustment
Feed can be switched off during surface planing
| Abrichthobel | |
| Abrichtbreite | 260 mm |
| Tischlänge | 1050 mm |
| Tischhöhe | 885 mm |
| Hobelwellendrehzahl | 6700 U/min |
| Hobelmesser | 2 Stk. |
| Hobelwellendurchmesser | 55 mm |
| Abrichtanschlag | 610 x 110 mm |
| Abrichtanschlag schwenkbar | 90° bis 45° |
| Max. Spanabnahme | 3 mm |
| Dickenhobel | |
| Tischlänge | 480 mm |
| Hobelbreite | 250 mm |
| Dickendurchlass, min./max. | 5 - 150 mm |
| Max. Spanabnahme | 2 mm |
| Vorschubgeschwindigkeit | 8 m/min |
| Absauganschluss Ø | 80 mm |
| Motor-Abgabeleistung S1 100% | 1,6 kW (2,1 PS) |
| Motor-Aufnahmeleistung S6 40% | 2,2 kW (3,0 PS) |
| Spannung | 230 V |
| Maschinenabmessung (L x B x H) | 1050 x 650 x 1050 mm |
| Gewicht ca. | 81 kg |
