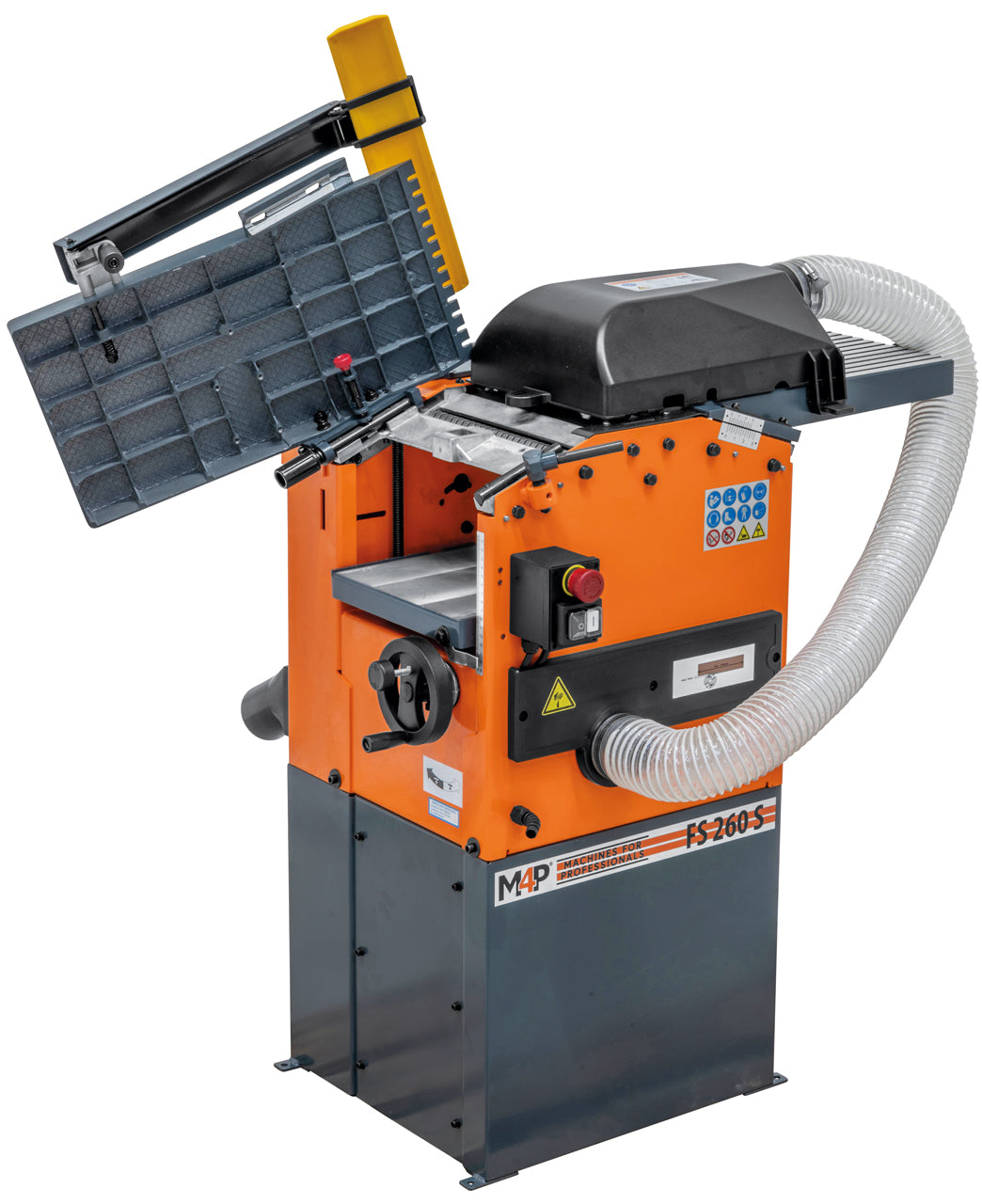

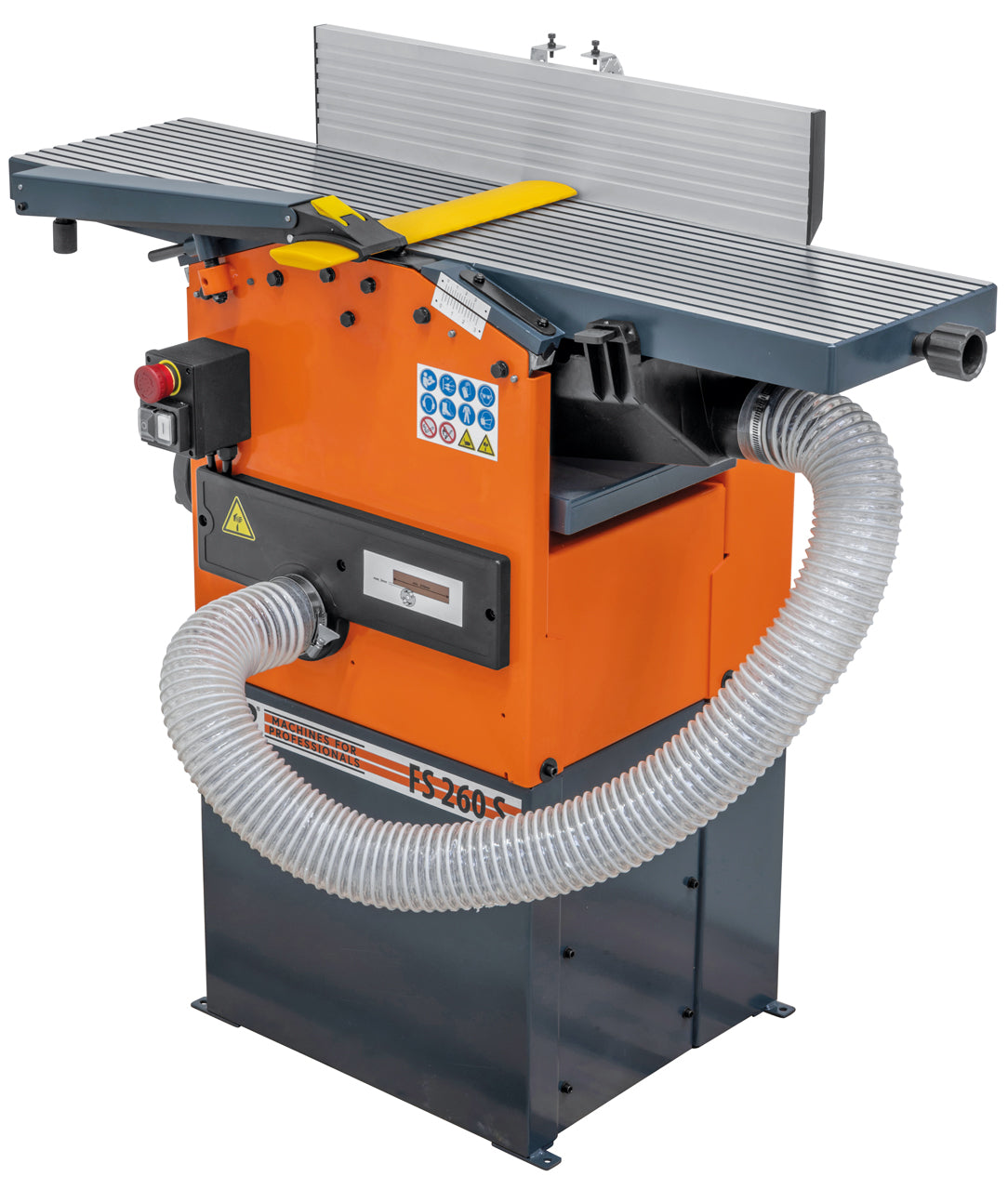

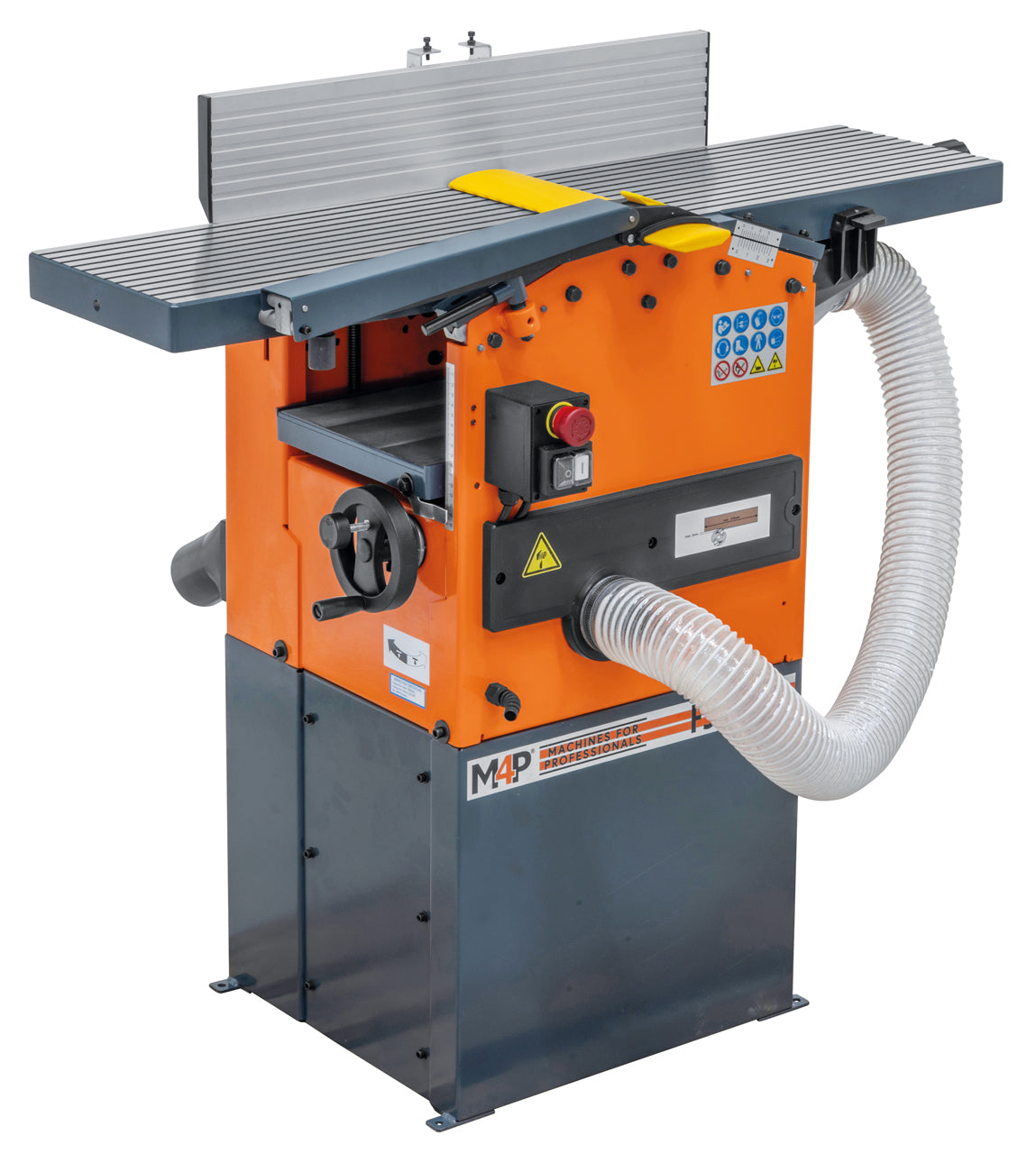

The FS 260 S surface and thickness planer offers an optimal price-performance ratio for the cost-conscious DIY enthusiast, thanks to its extensive standard accessories (integrated dust extraction, chip bag, planer blade setting gauge, ...). The spiral cutterblock for reduced noise levels and optimal planing results is another benefit of this machine.

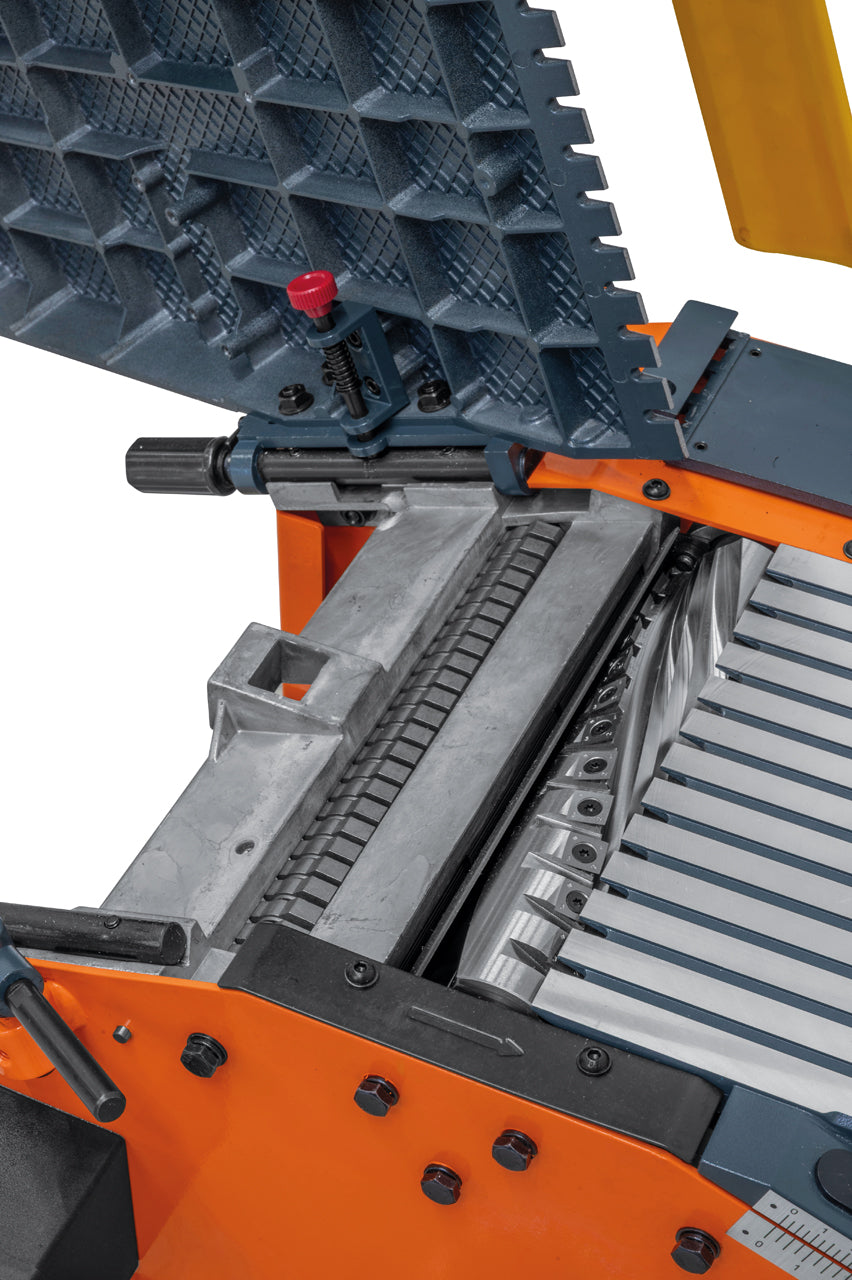

Reduced noise level (approx. 50%) due to the standard spiral cutterblock and
up to 20 times longer blade life (resulting from four-sided reversible carbide inserts)
Advantage of the carbide inserts: If damaged, individual blades can be replaced or rotated
The carbide blades ensure tear-free planing results and optimal surfaces for every type of wood

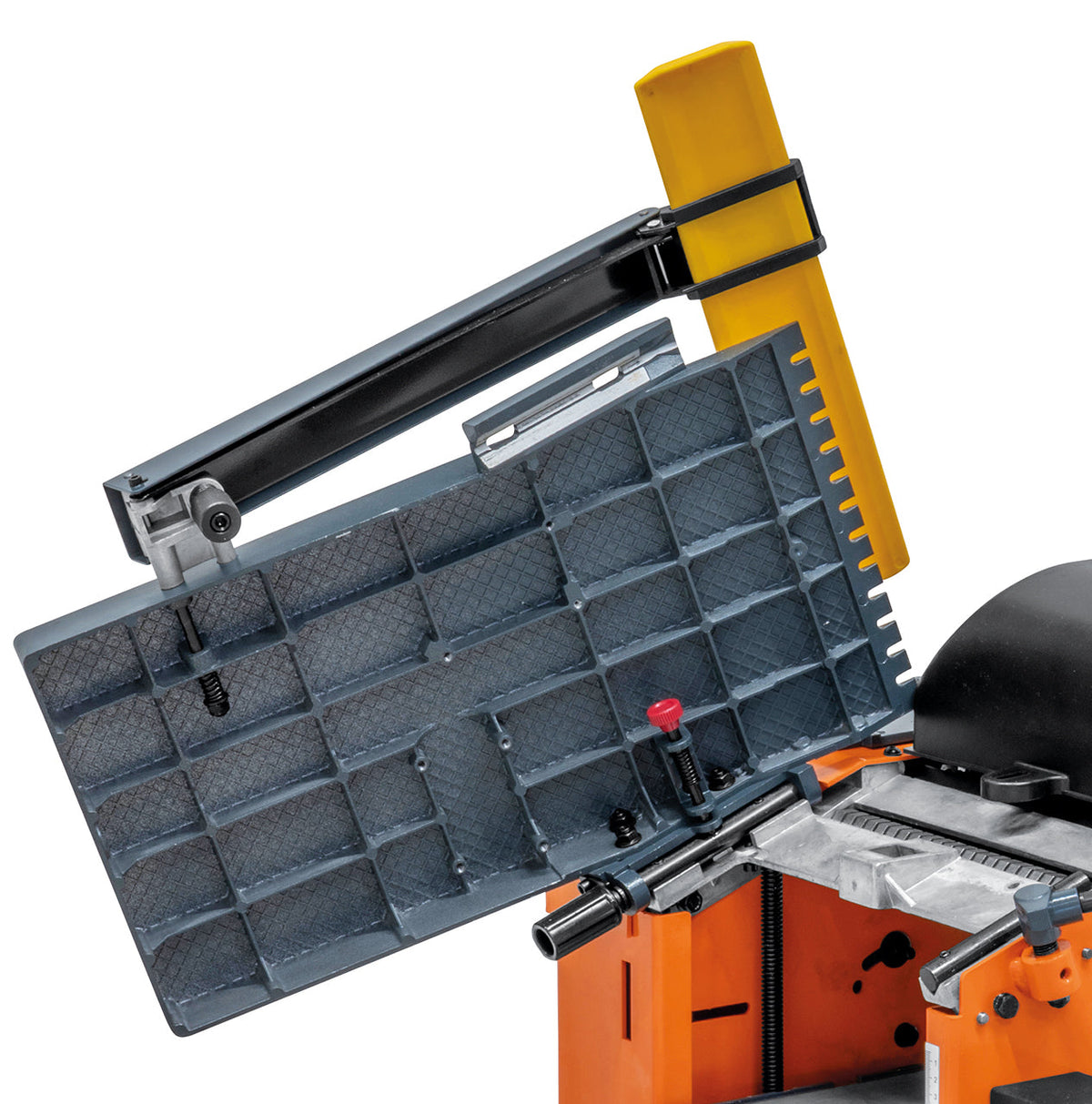

Both surfacing tables with fine adjustment and noise-dampening table lips

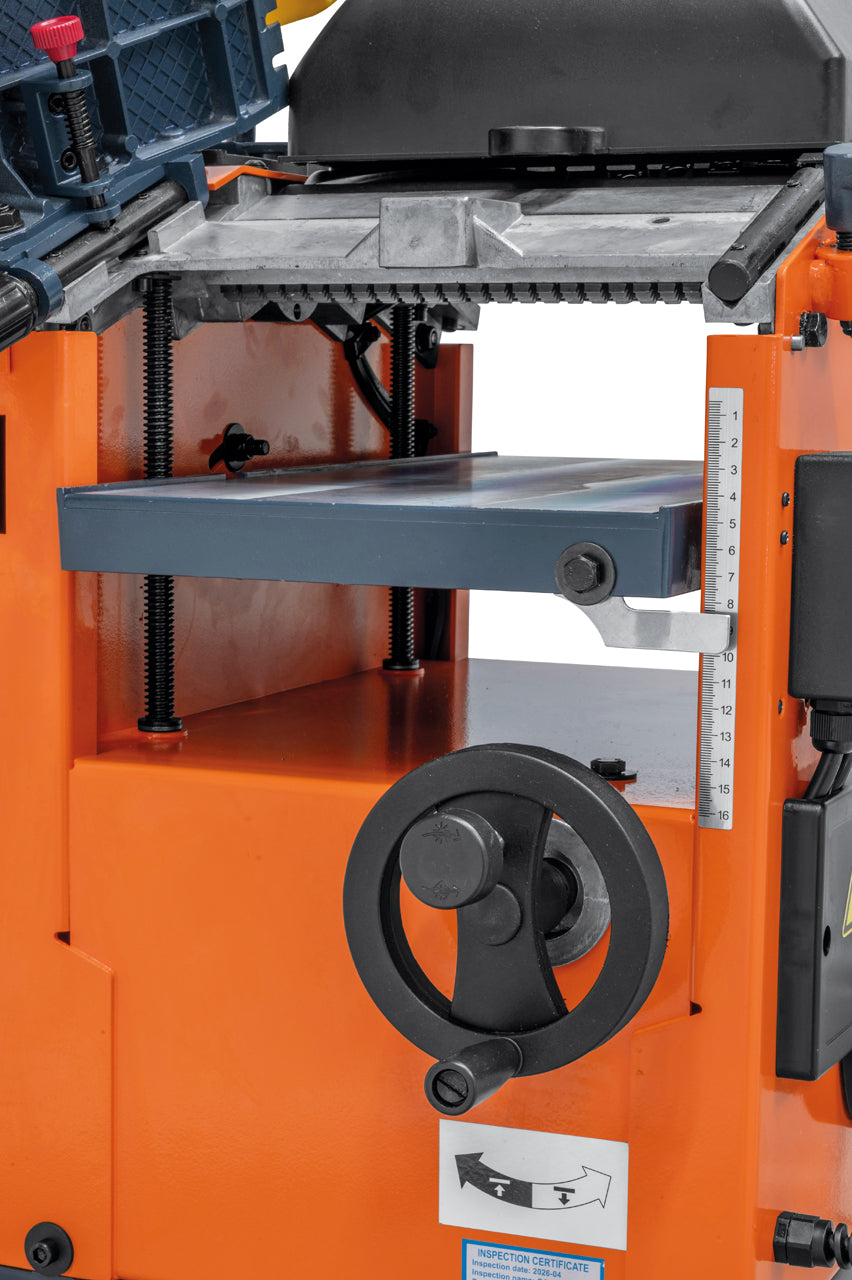

Thicknessing table with 4-point guidance for precise planing of boards, strips, planks, …

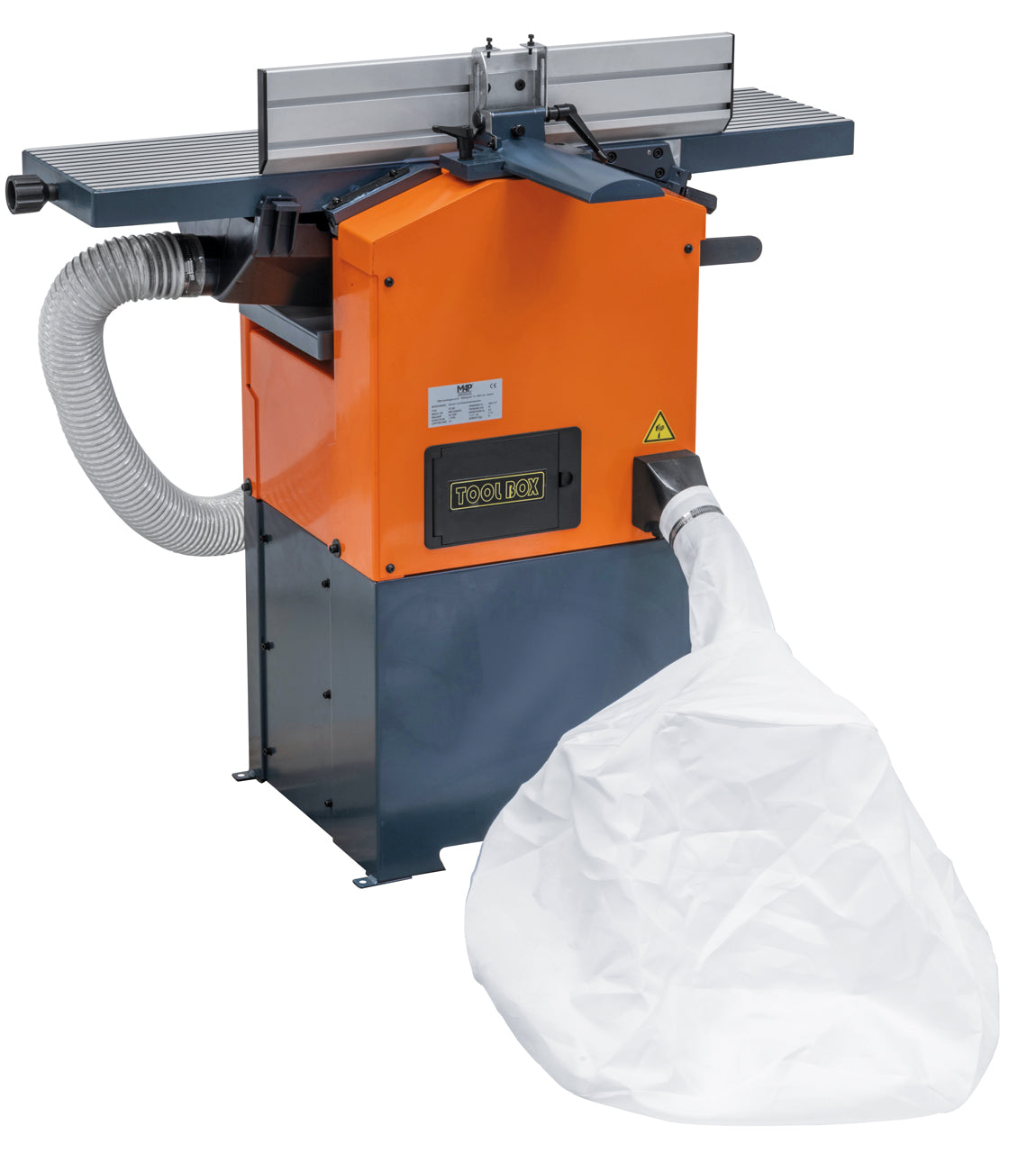

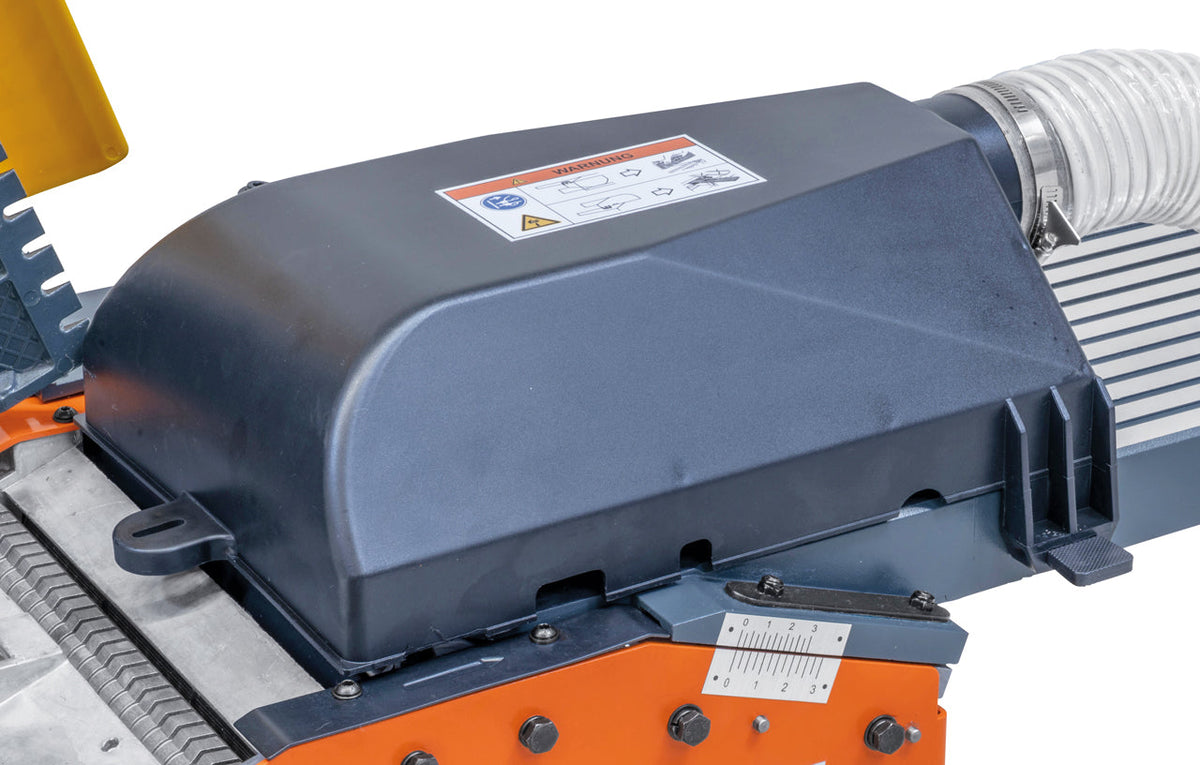

Optimal price-performance ratio thanks to the integrated chip extraction system

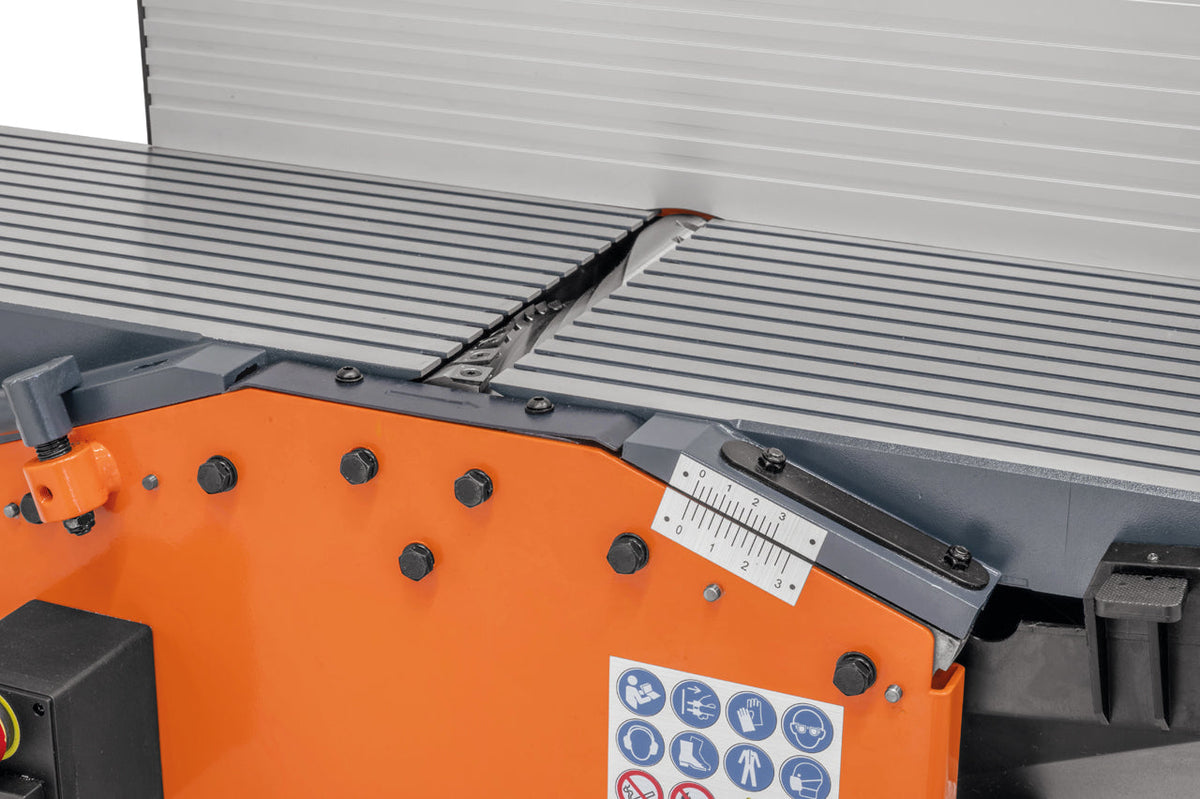

Quick and easy setting of the desired chip removal
Precision-planed aluminum surfacing tables for exact work results
Corrugated infeed roller for safe and uniform workpiece feed

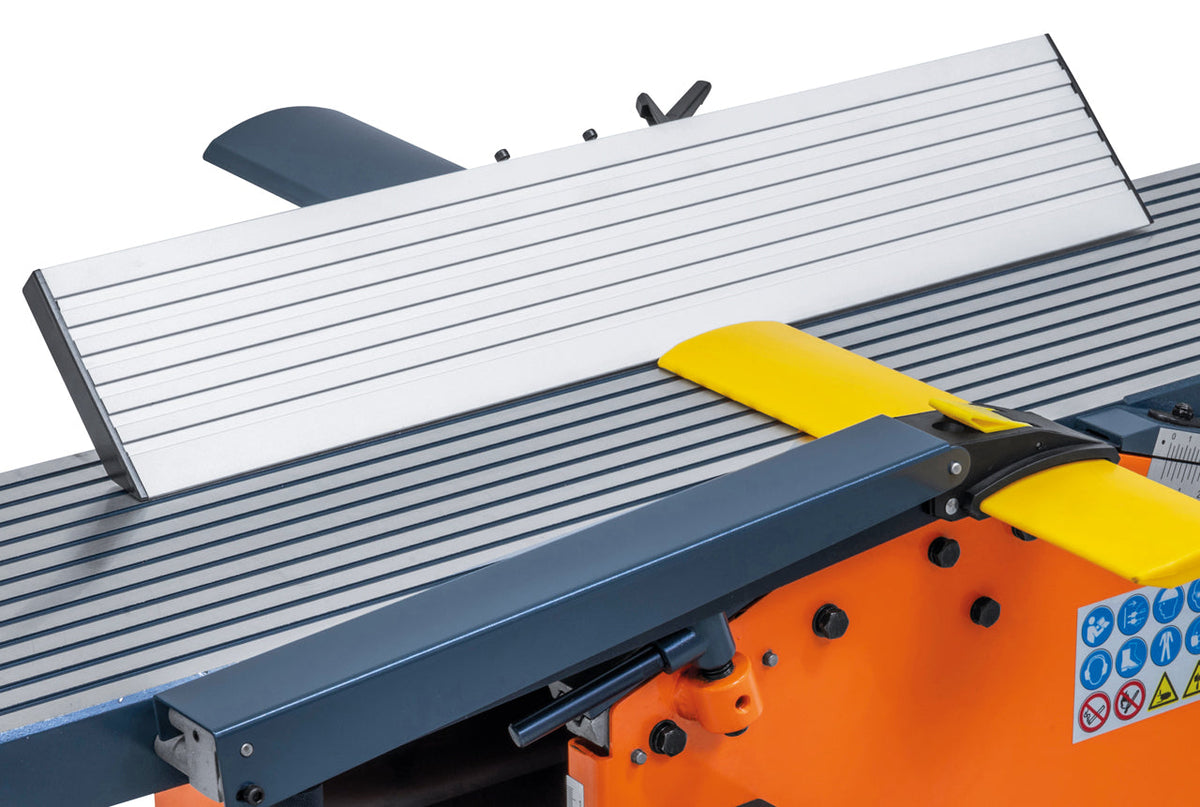

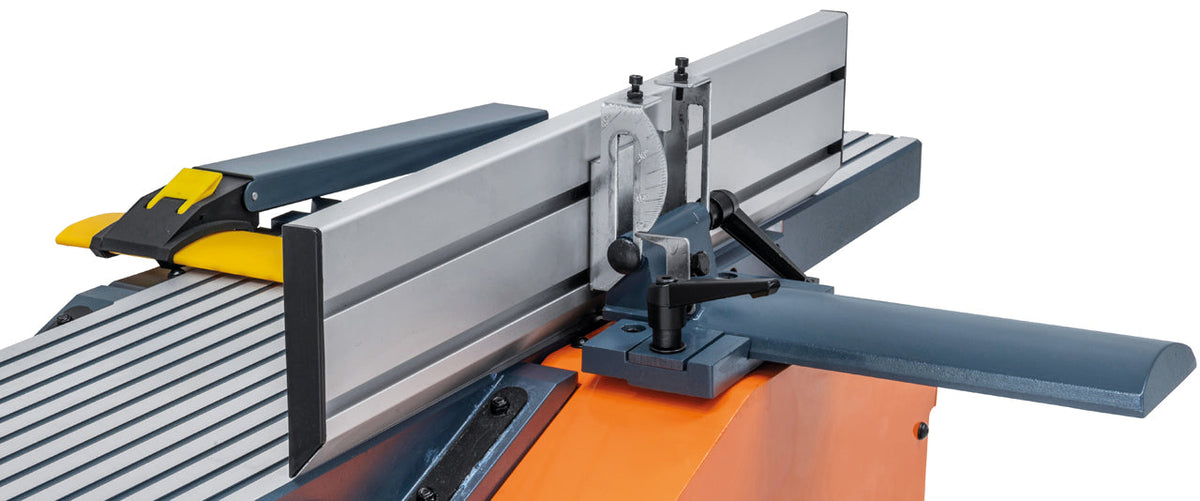

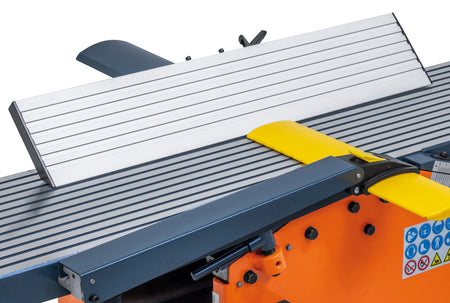

Sturdy surface fence with prism guide, tiltable from 90° to 45°
| Abrichthobel | |
| Abrichtbreite | 260 mm |
| Tischlänge | 1050 mm |
| Tischhöhe | 885 mm |
| Hobelwellendrehzahl | 6700 U/min |
| HM-Wendeplatten | 24 Stk. |
| Hobelwellendurchmesser | 55 mm |
| Abrichtanschlag | 640 x 125 mm |
| Abrichtanschlag schwenkbar | 90° bis 45° |
| Max. Spanabnahme | 3 mm |
| Dickenhobel | |
| Tischlänge | 480 mm |
| Hobelbreite | 250 mm |
| Dickendurchlass, min./max. | 5 - 150 mm |
| Max. Spanabnahme | 2 mm |
| Vorschubgeschwindigkeit | 6 m/min |
| Absauganschluss Ø | 75 mm |
| Motor-Abgabeleistung S1 100% | 1,8 kW (2,4 PS) |
| Motor-Aufnahmeleistung S6 40% | 2,5 kW (3,4 PS) |
| Spannung | 230 V |
| Maschinenabmessung (L x B x H) | 1110 x 720 x 1030 mm |
| Gewicht ca. | 80 kg |
