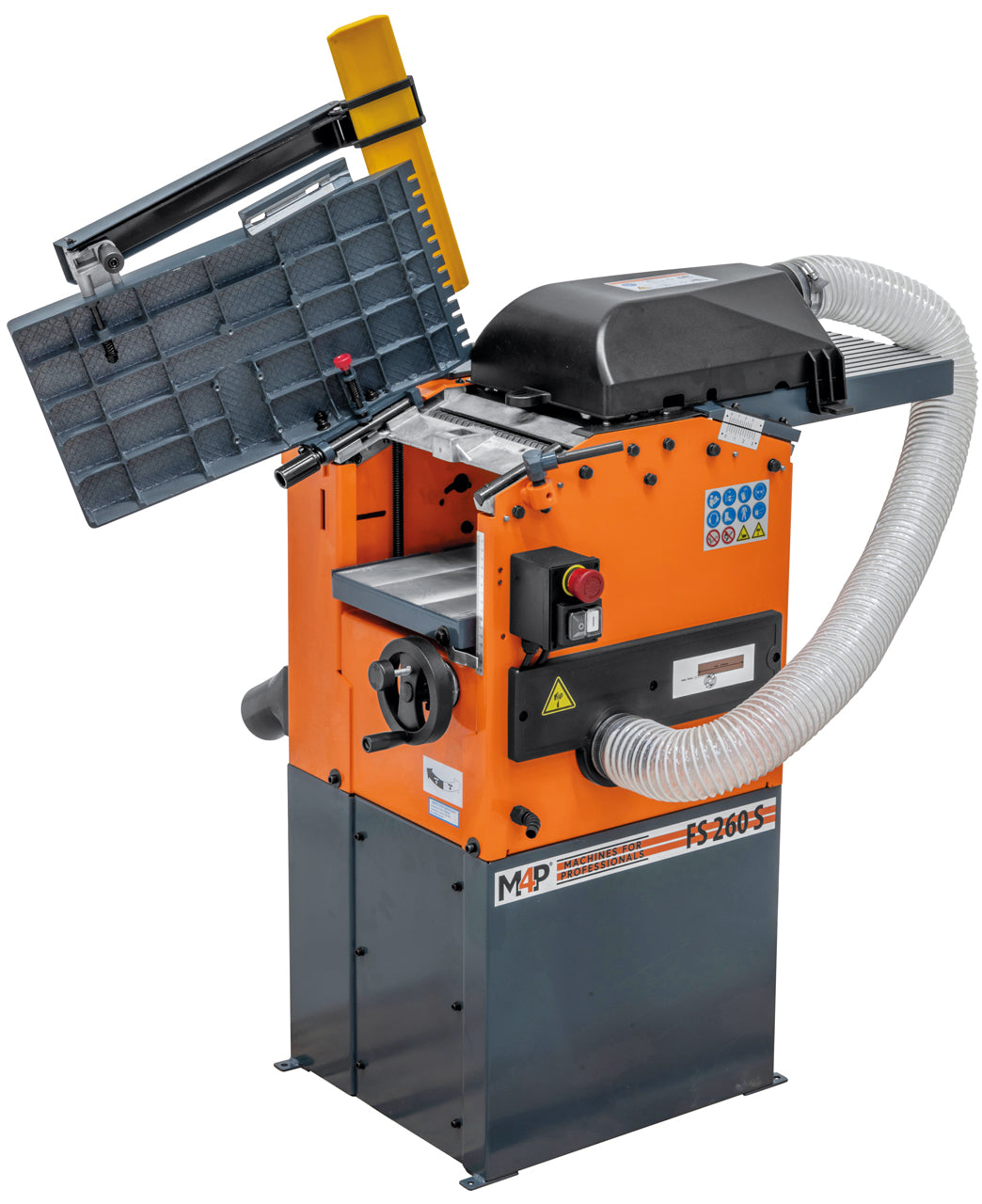

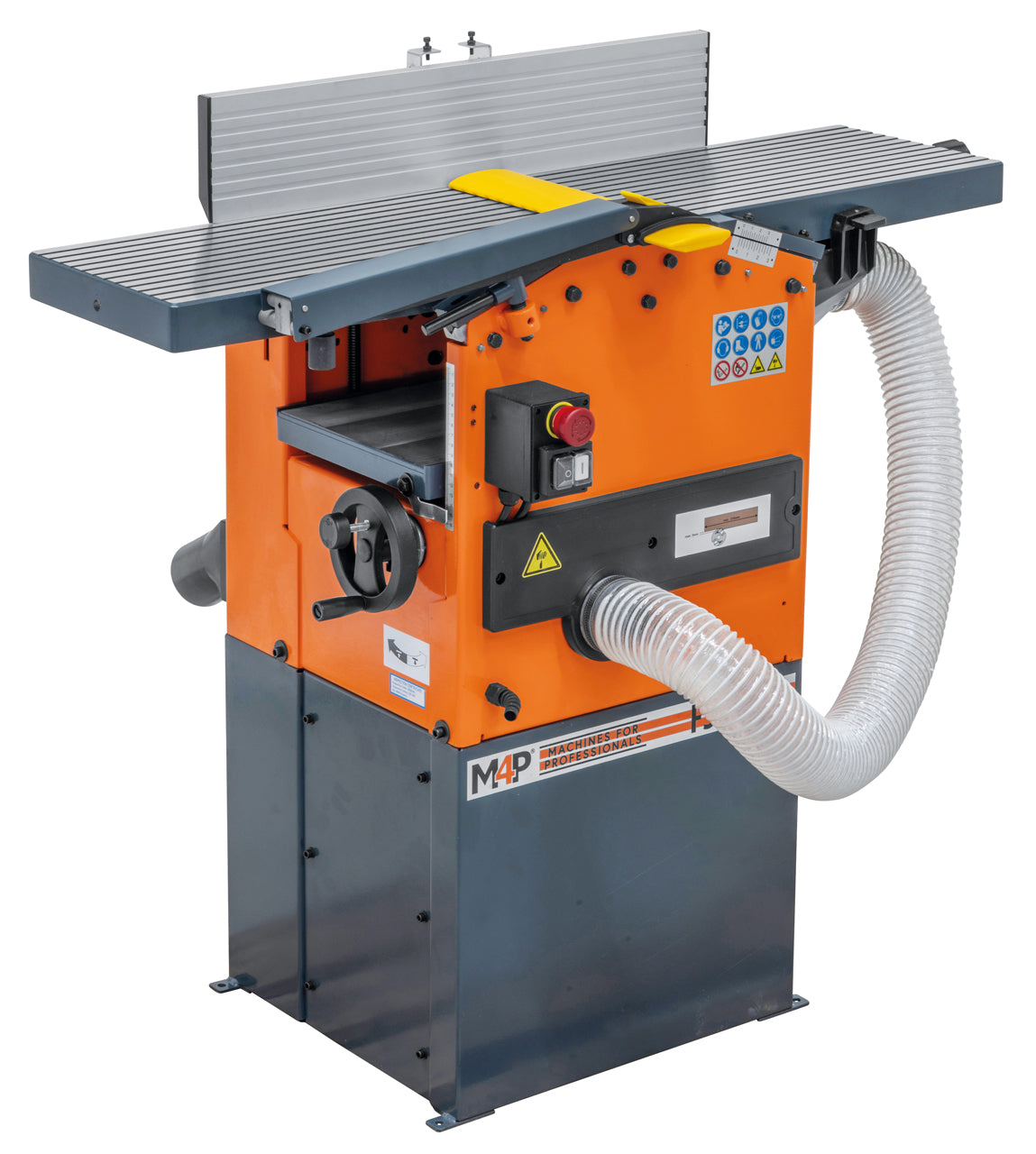

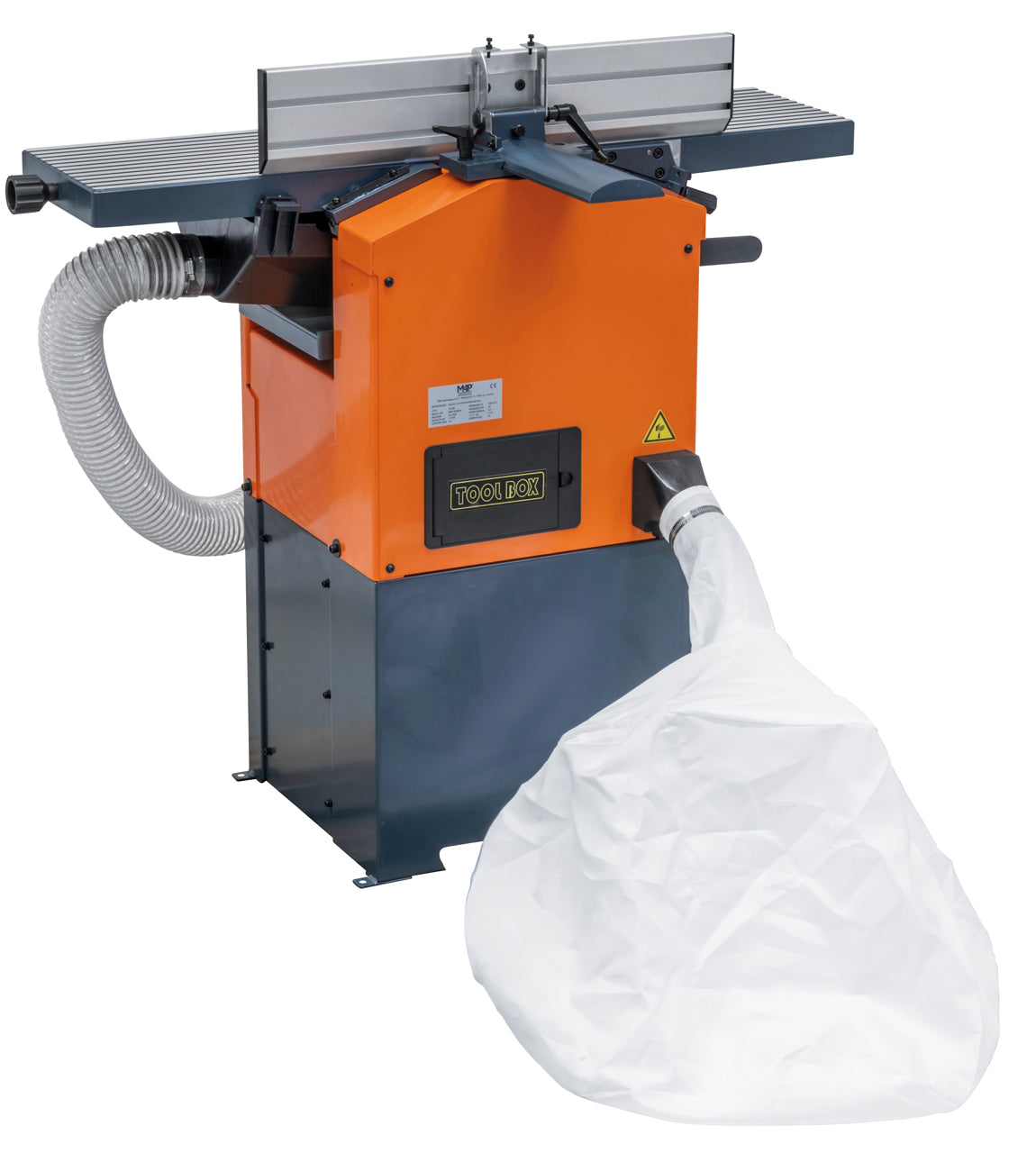

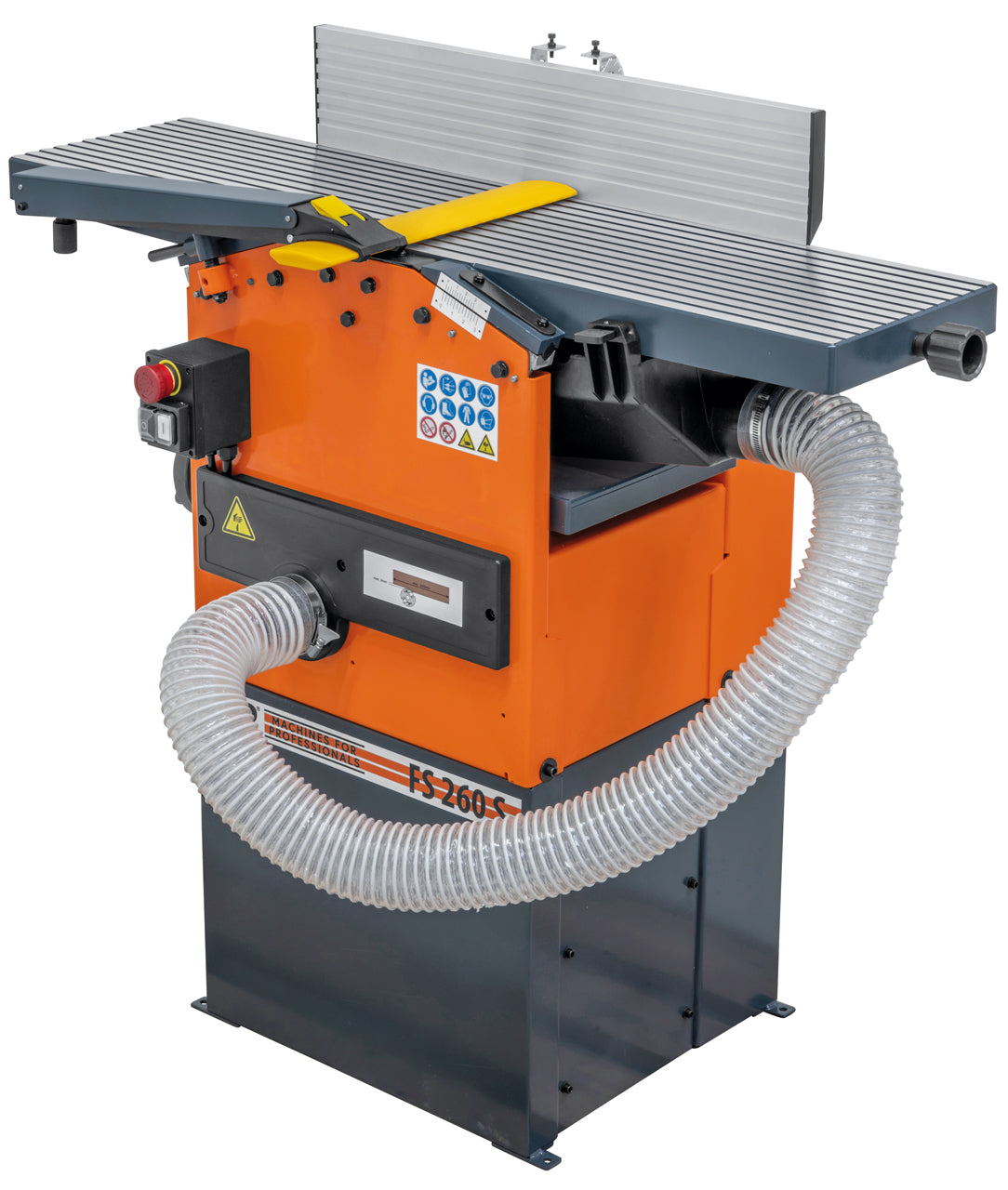

The FS 260 S surface and thickness planer offers an optimal price-performance ratio for the cost-conscious home user thanks to its extensive standard accessories (integrated dust extraction, chip bag, planer blade setting gauge, ...). The spiral cutterblock for reduced noise levels and optimal planing results is another plus of this machine.

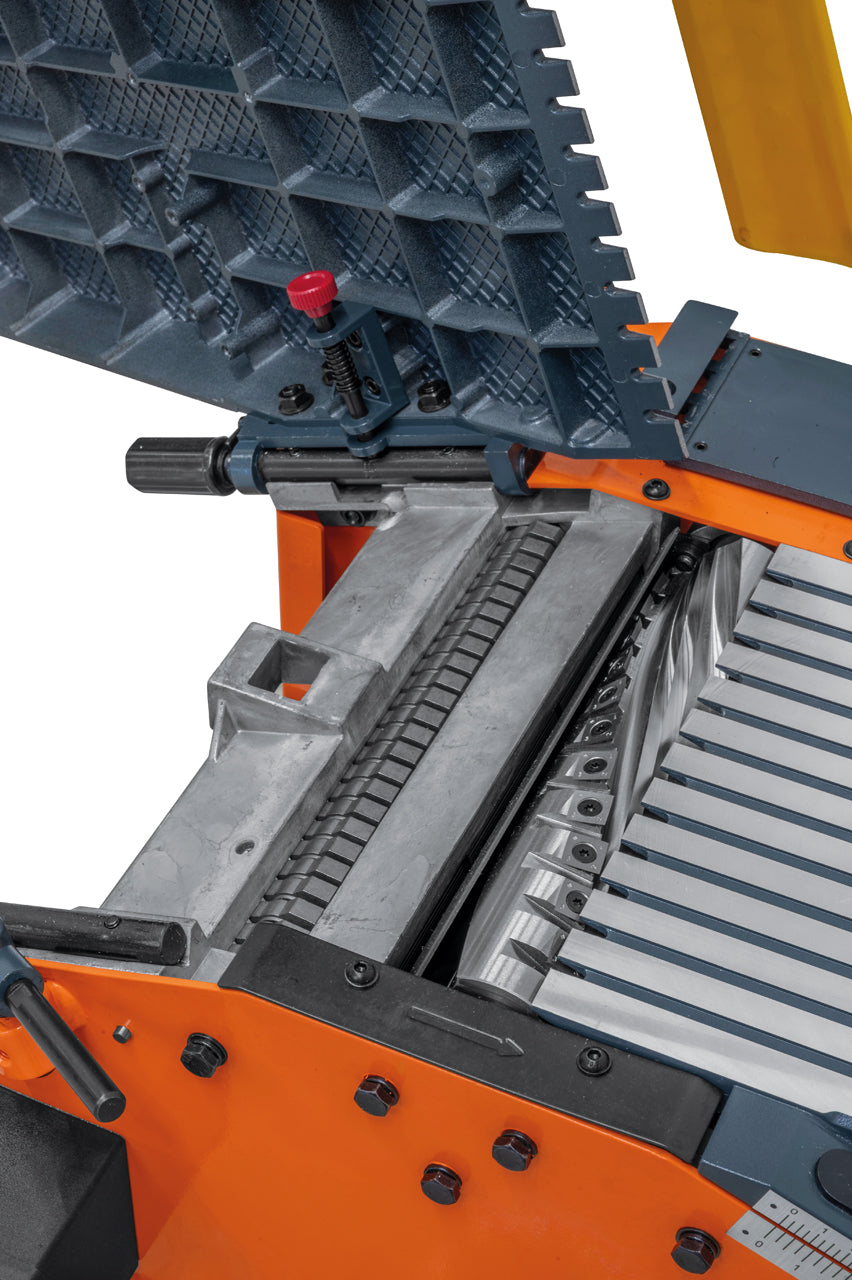

Reduction of noise levels (approx. 50%) due to the standard spiral cutterblock and
up to 20 times longer blade life (resulting from four-sided carbide reversible blades)
Advantage of carbide reversible blades: In case of damage, individual blades can be replaced or turned
The carbide blades ensure tear-free planing results and optimal surfaces for every type of wood

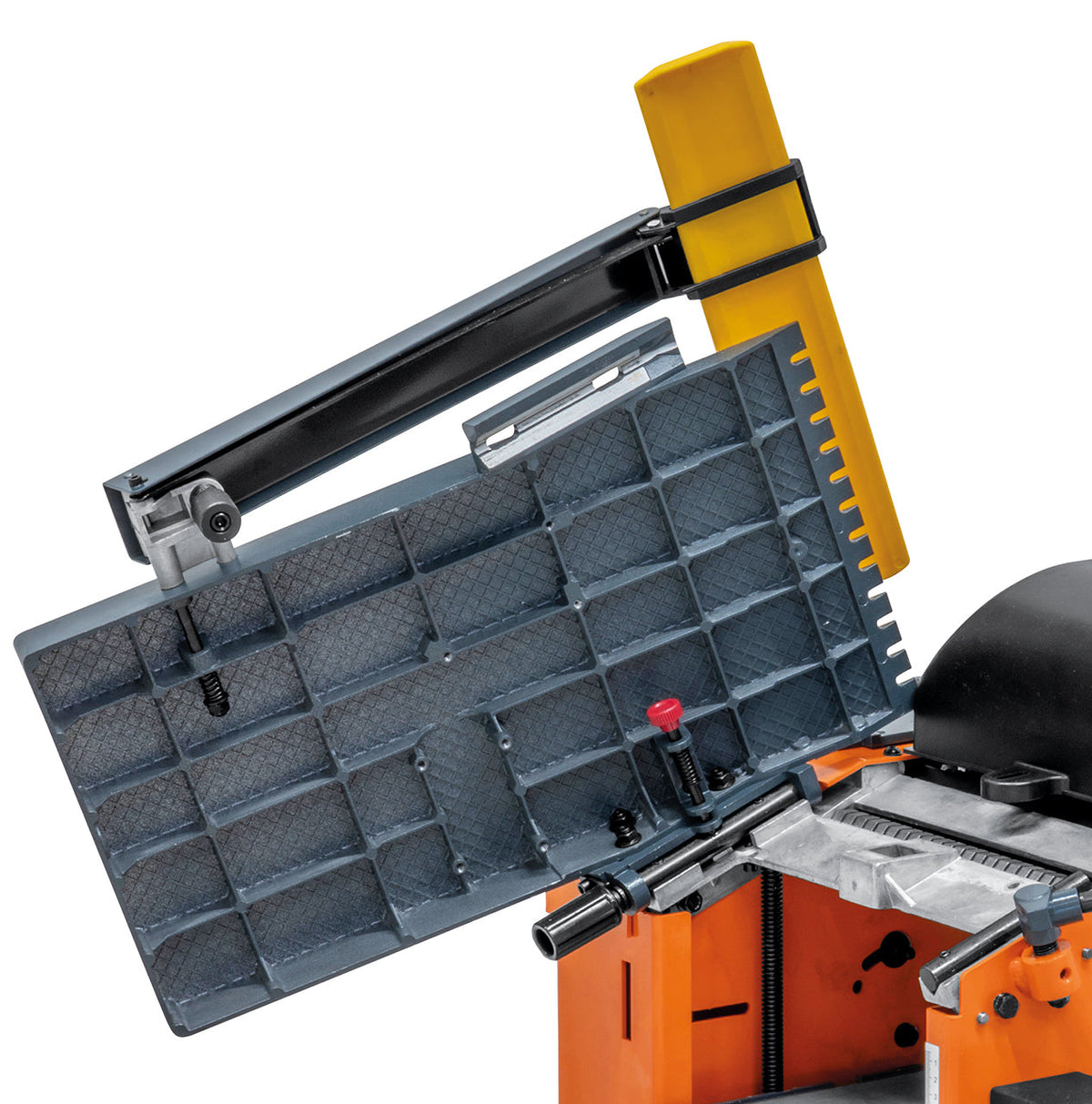

Both surface planer tables with fine adjustment and noise-dampening table lips

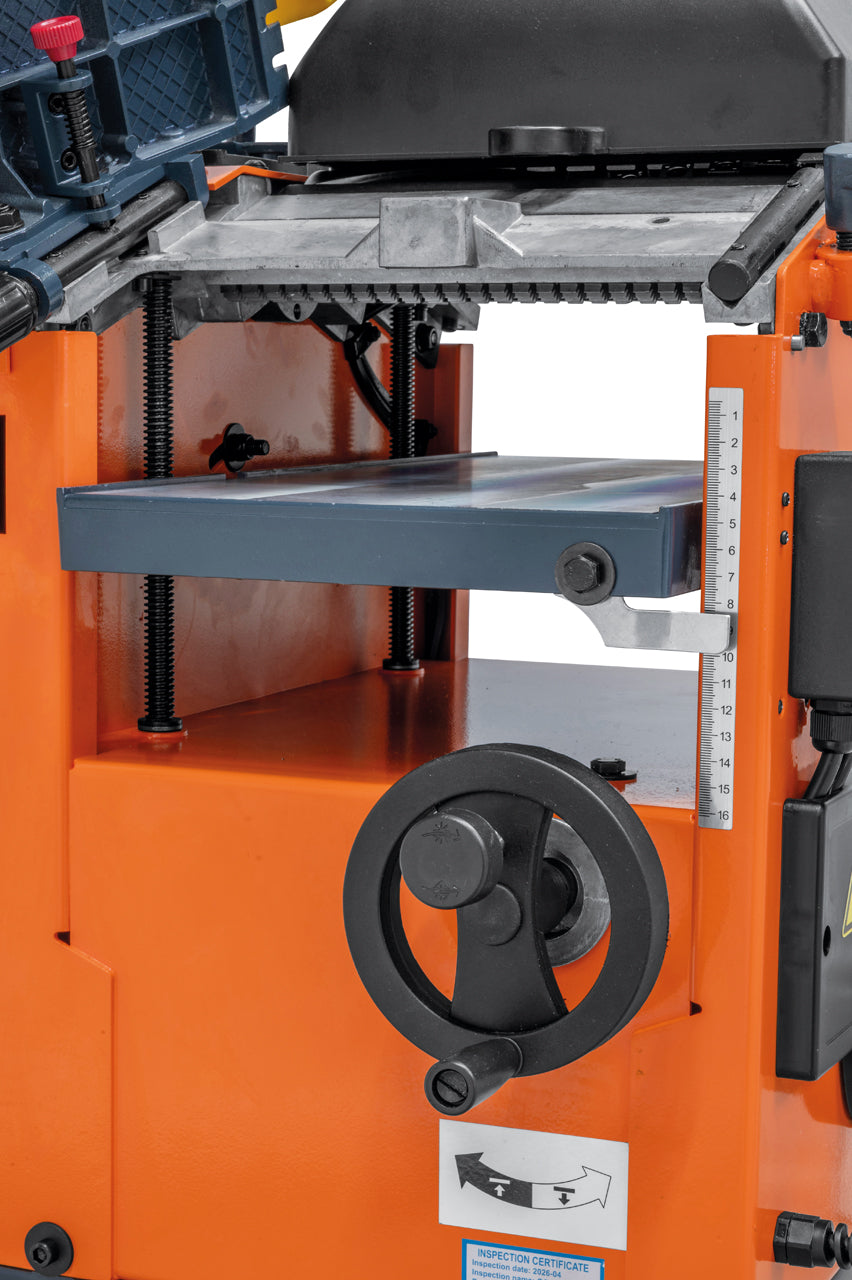

Thicknesser table guided on 4 columns for precise planing of boards, strips, planks, …

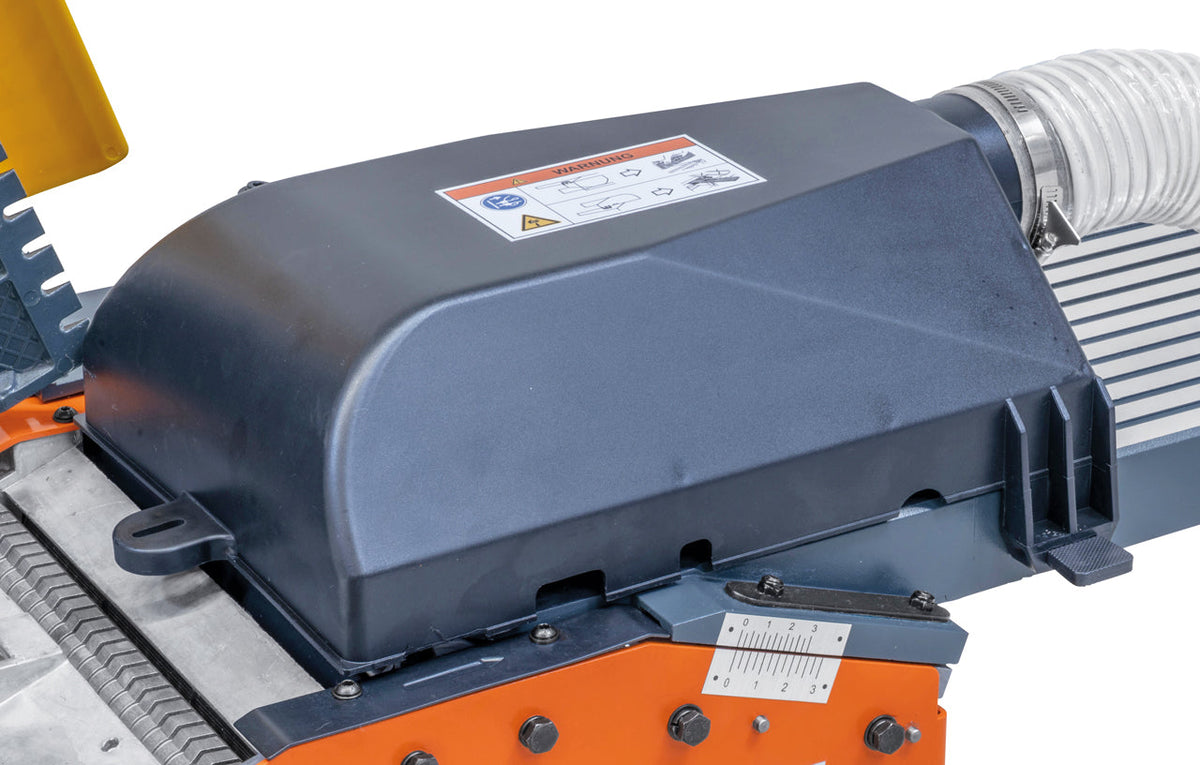

Optimal price-performance ratio due to the integrated chip extraction

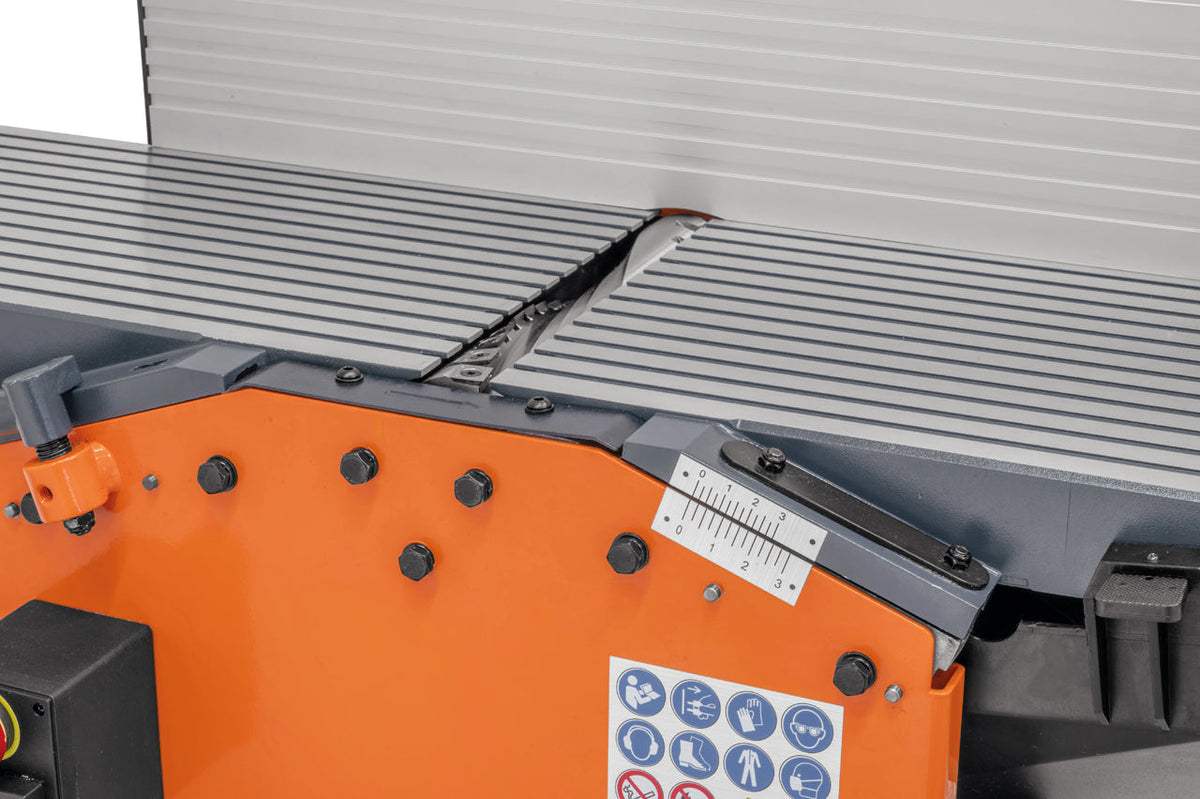

Quick and easy adjustment of the desired chip removal
Precision-planed aluminum surface planer tables for exact work results
Corrugated infeed roller for safe and even workpiece feed

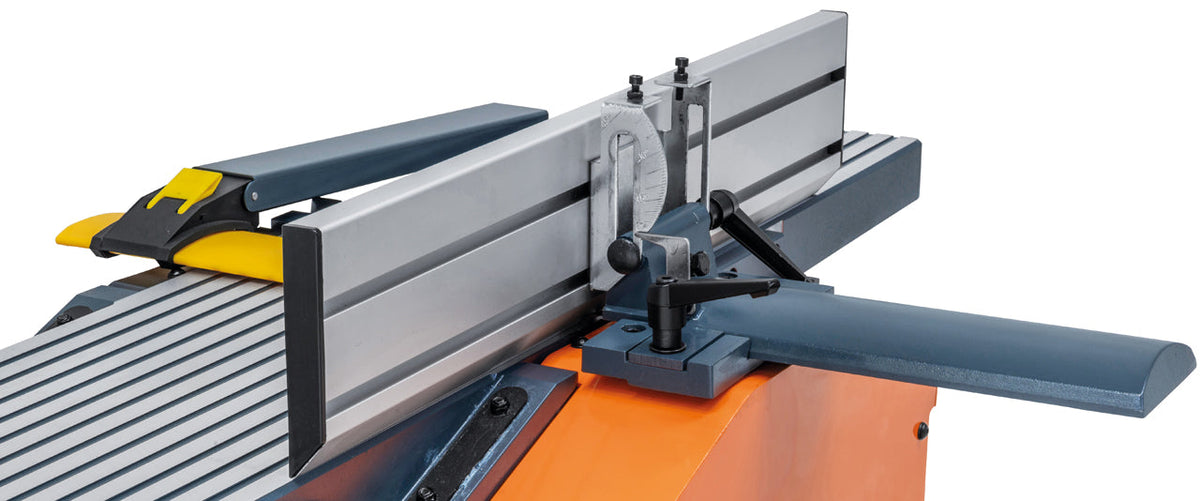

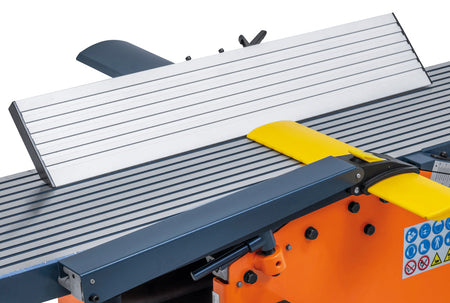

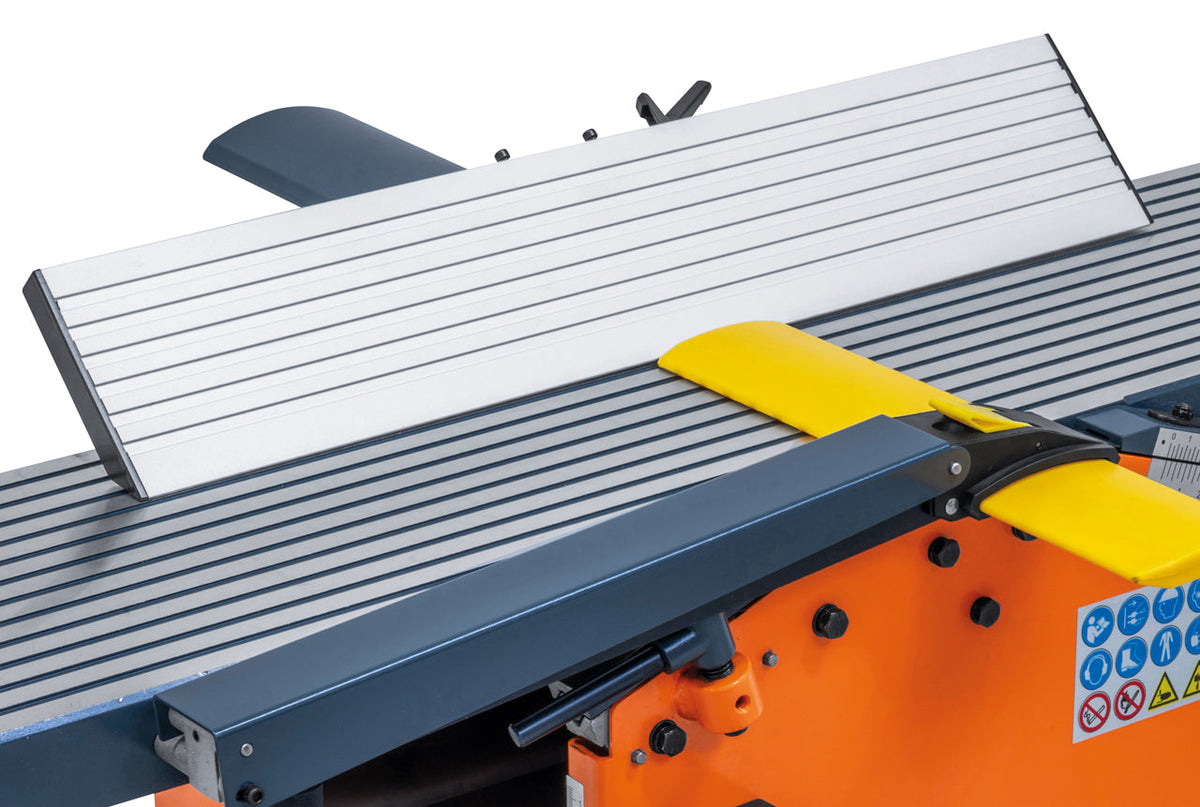

Sturdy surface fence with prism guide, tiltable from 90° to 45°
| Abrichthobel | |
| Abrichtbreite | 260 mm |
| Tischlänge | 1050 mm |
| Tischhöhe | 885 mm |
| Hobelwellendrehzahl | 6700 U/min |
| HM-Wendeplatten | 24 Stk. |
| Hobelwellendurchmesser | 55 mm |
| Abrichtanschlag | 640 x 125 mm |
| Abrichtanschlag schwenkbar | 90° bis 45° |
| Max. Spanabnahme | 3 mm |
| Dickenhobel | |
| Tischlänge | 480 mm |
| Hobelbreite | 250 mm |
| Dickendurchlass, min./max. | 5 - 150 mm |
| Max. Spanabnahme | 2 mm |
| Vorschubgeschwindigkeit | 6 m/min |
| Absauganschluss Ø | 75 mm |
| Motor-Abgabeleistung S1 100% | 1,8 kW (2,4 PS) |
| Motor-Aufnahmeleistung S6 40% | 2,5 kW (3,4 PS) |
| Spannung | 400 V |
| Maschinenabmessung (L x B x H) | 1110 x 720 x 1030 mm |
| Gewicht ca. | 80 kg |
