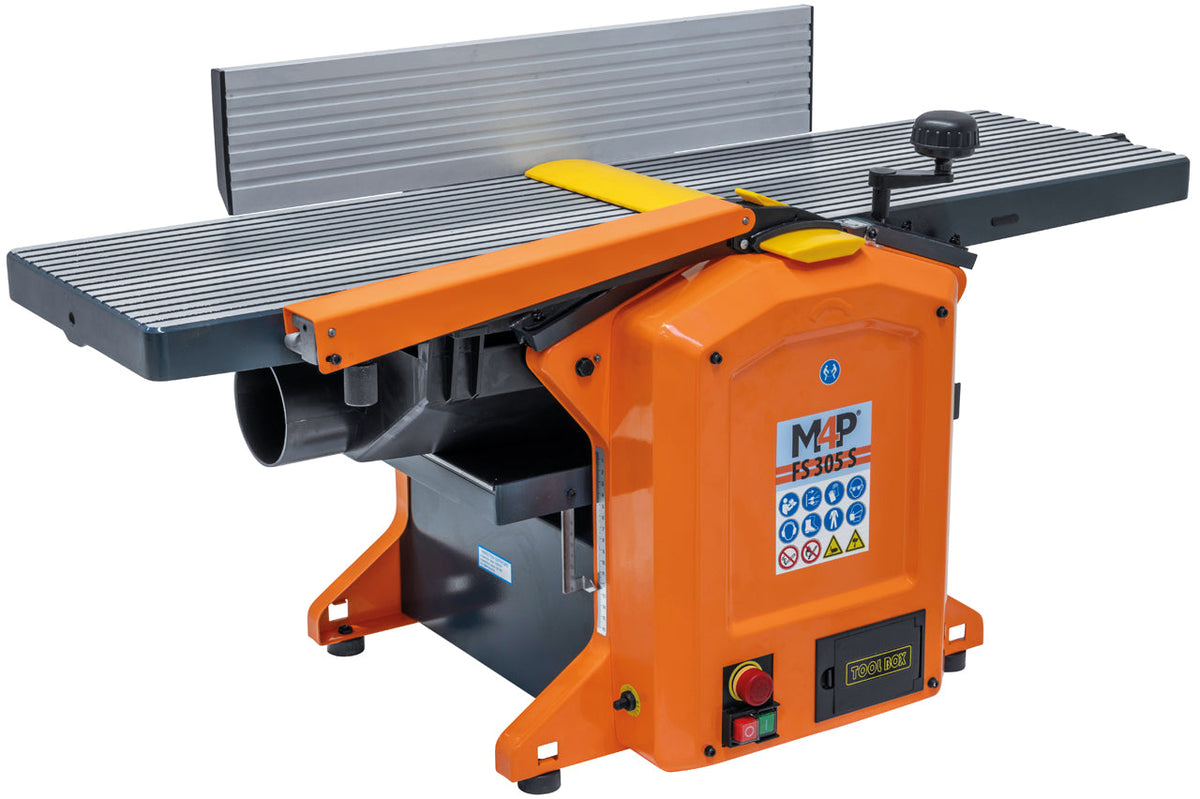

M4P Planer and Thicknesser FS 305 S / 230 V

SKU: 3001021 EAN: 9009468083939
(0)
€828,00 inkl. MwSt
In stock
On backorder
Fast shipping
100% Secure Payment
Certified quality
Personalized advice from a professional

Do you have any questions about the machine, equipment, or the right model? Our team will be happy to advise you personally.

Tel. 037298-177170

Email: info@lgh24.de

The compact planer and thicknesser FS 305 S - with a thicknessing capacity of 150 mm - is ideal for precise planing of boards, strips, and beams. The spiral cutterhead for reduced noise and optimal planing results is another plus of this machine.

Reduced noise (approx. 50%) thanks to the standard spiral cutterhead and
up to 20 times longer tool life (achieved by four-sided carbide inserts)
Advantage of carbide inserts: In case of damage, individual knives can be replaced or rotated
The carbide cutting edges ensure tear-free planing results and optimal surfaces on any type of wood
Minimized noise due to table lips on both sides

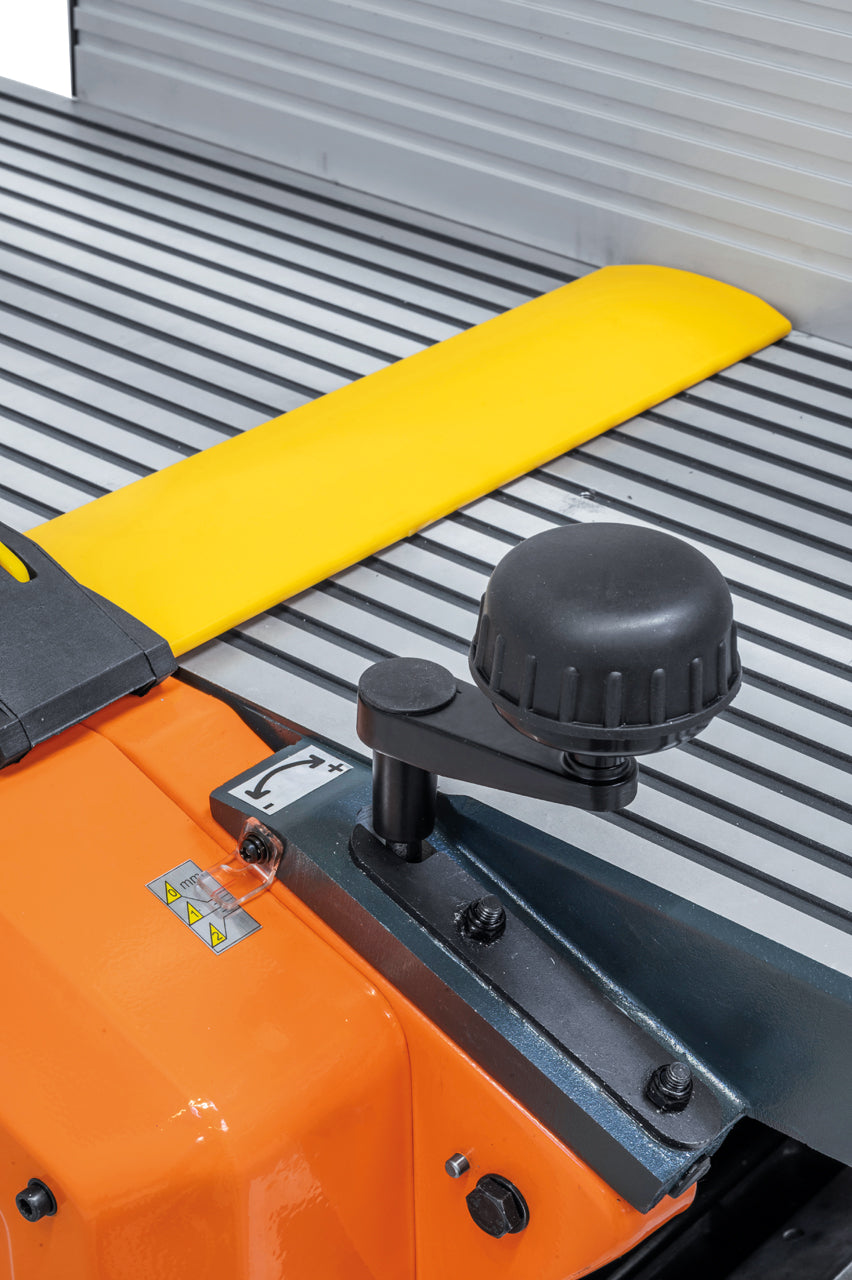

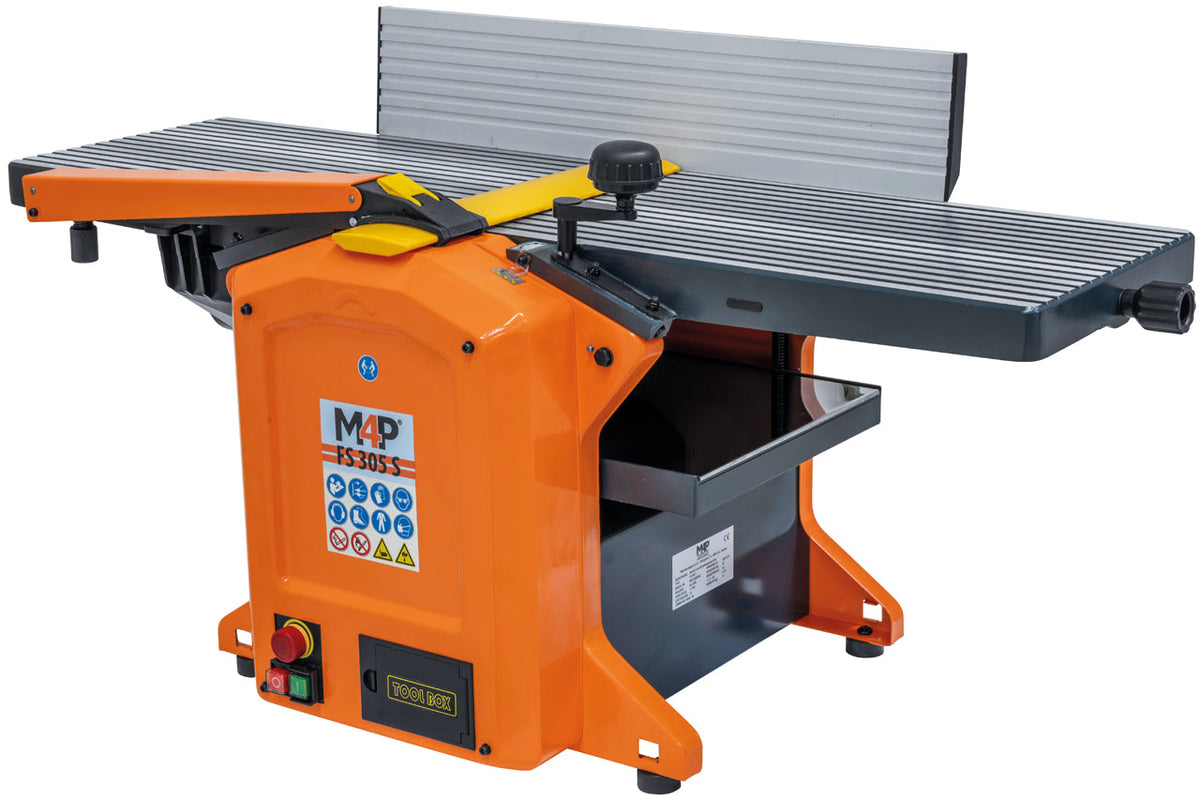

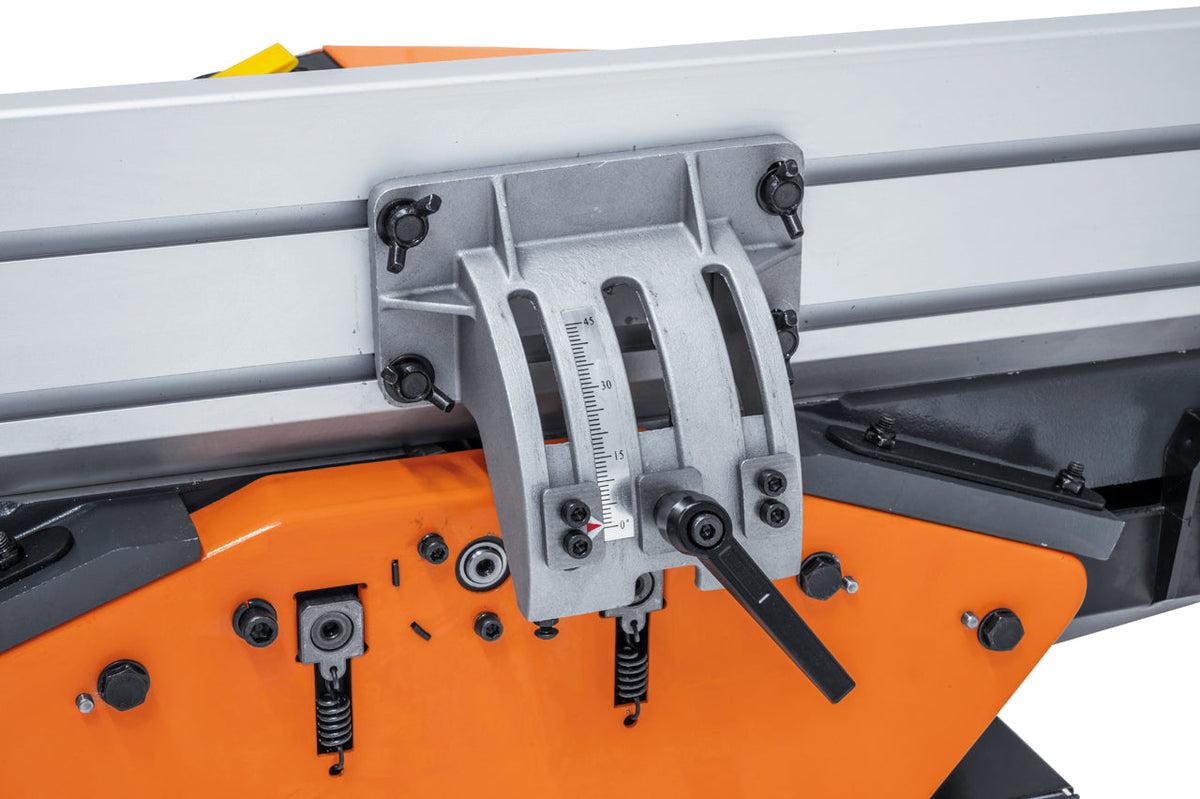

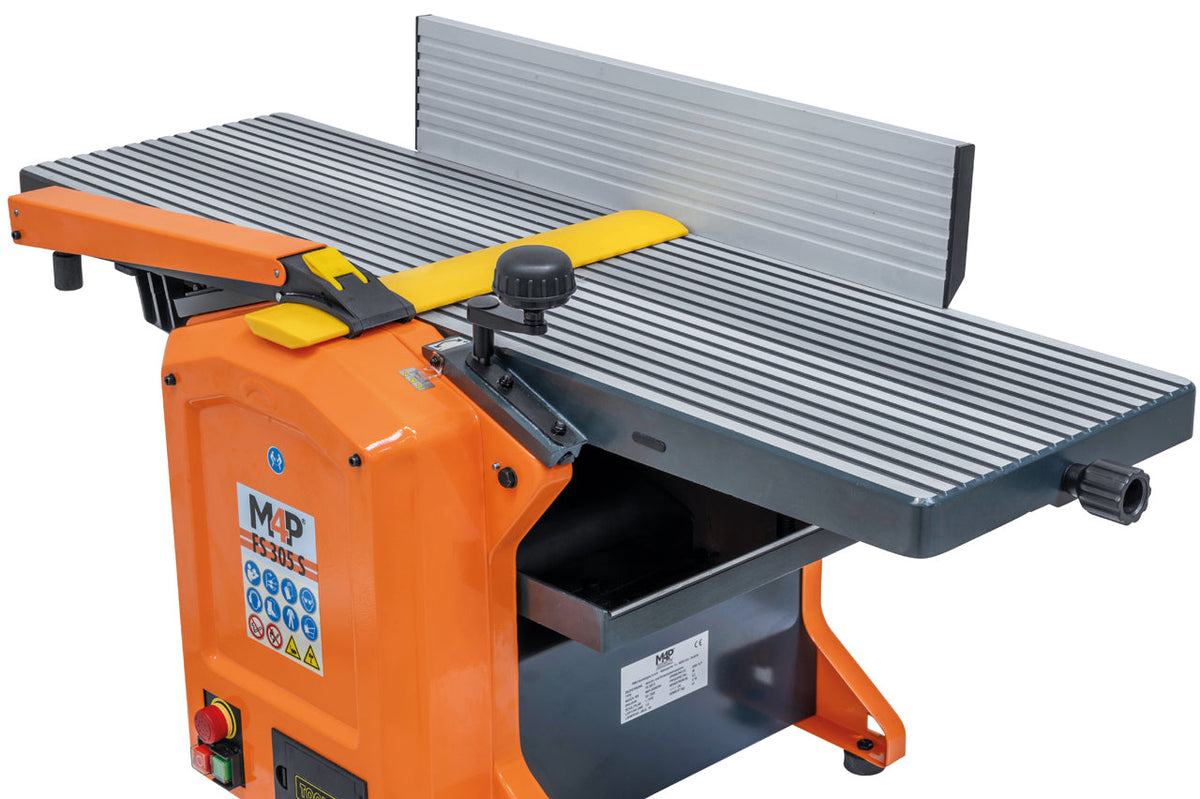

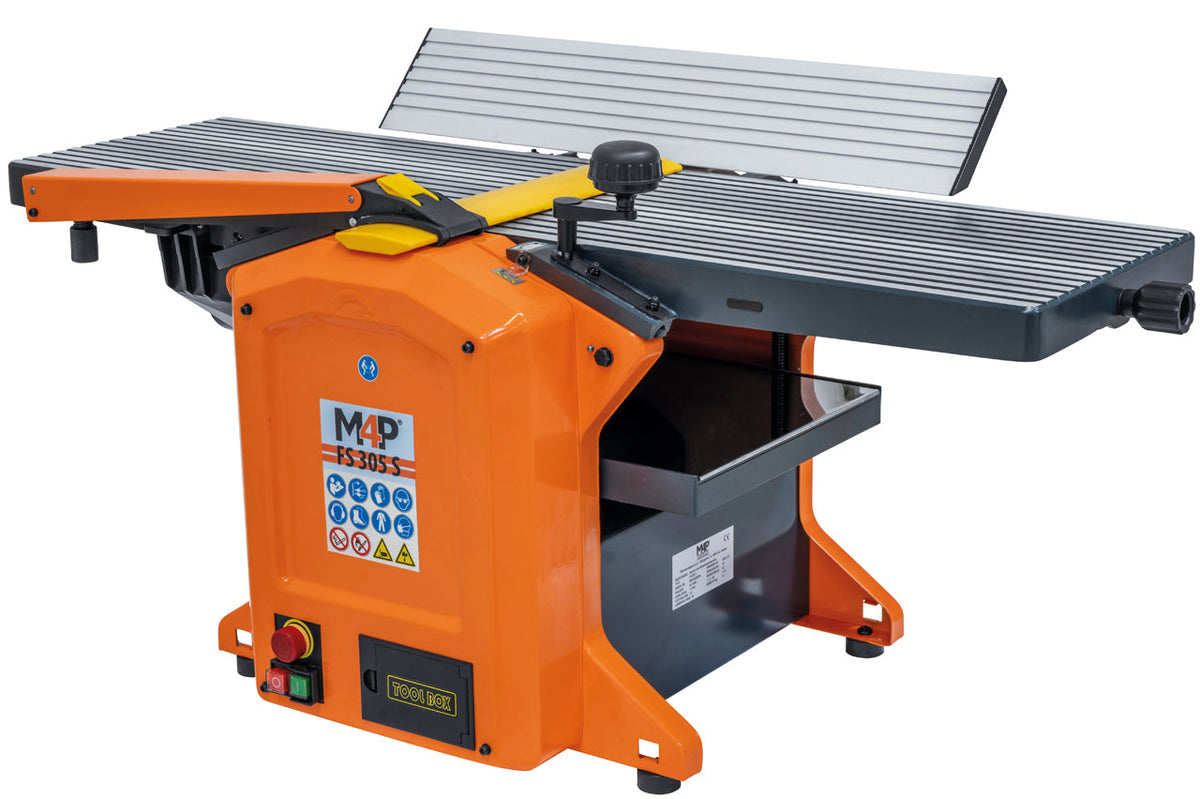

Stable fence, pivotable from 90° to 45°
Cutter block guard according to CE standard provides maximum safety during operation
Powerful drive motor for optimal planing results

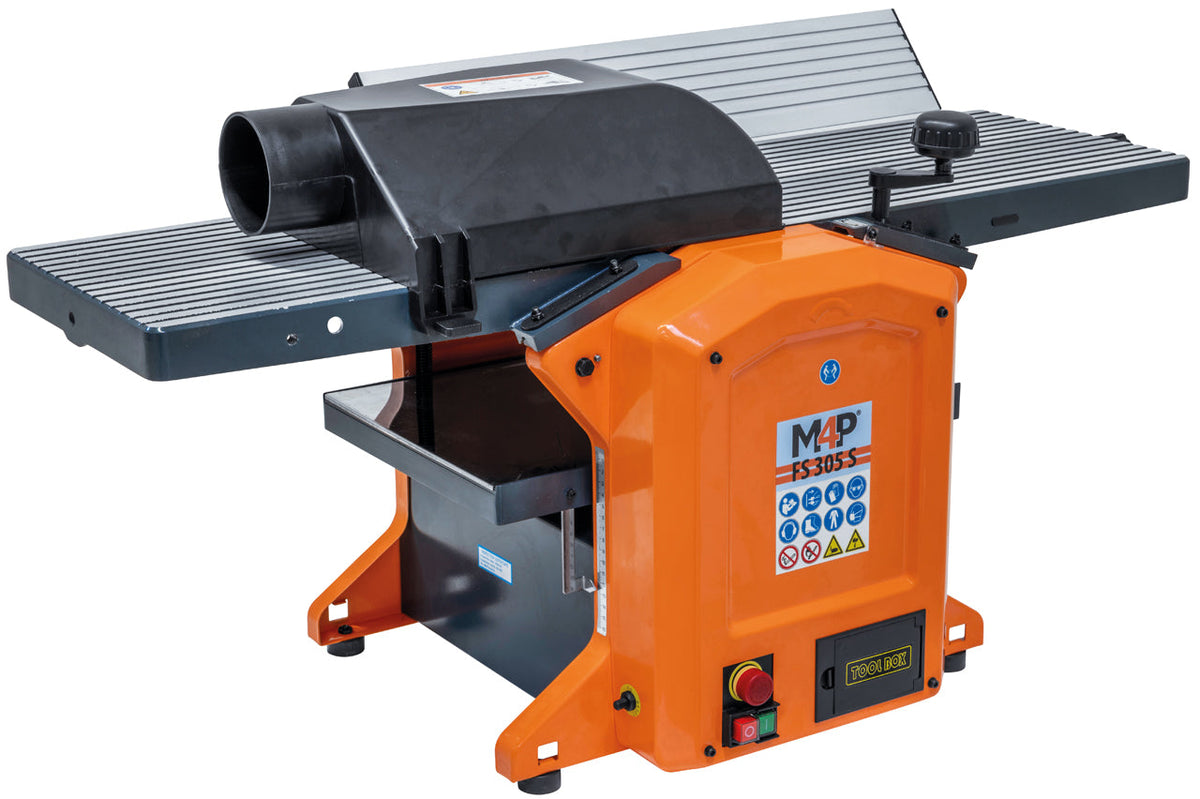

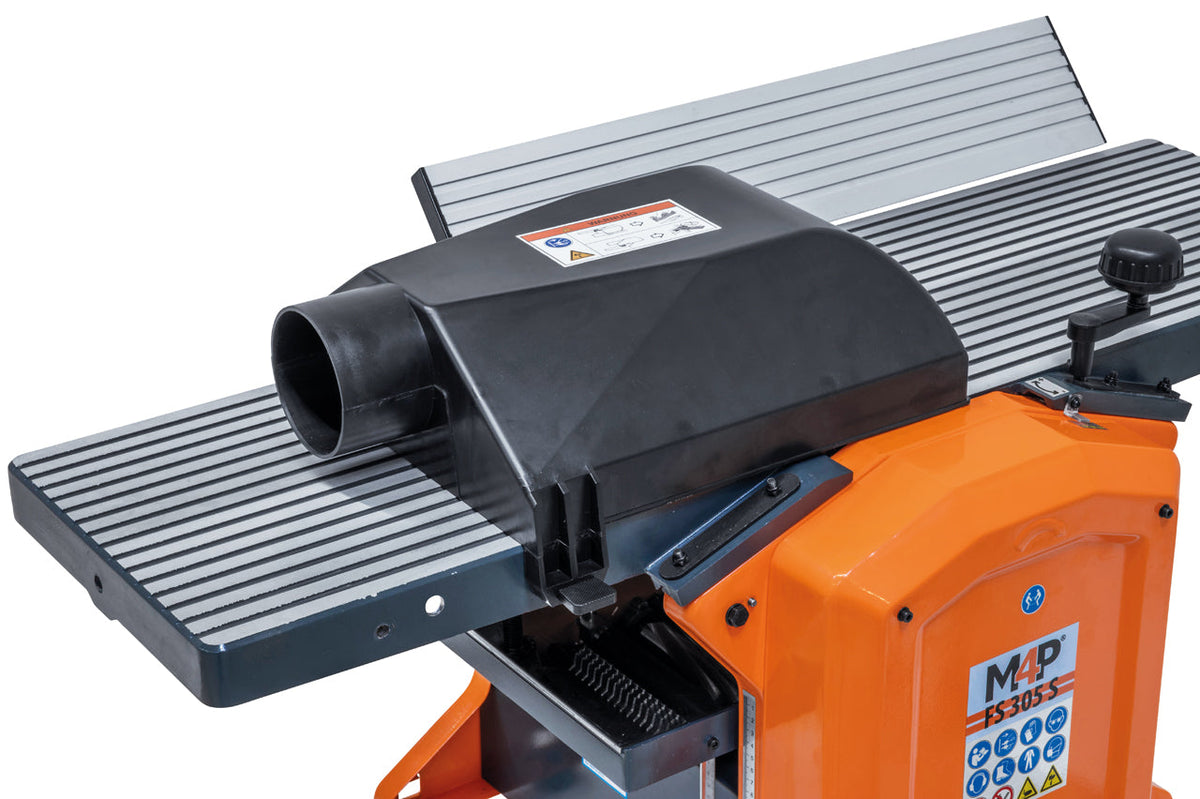

Combined dust extraction hood, optionally usable for planing or thicknessing

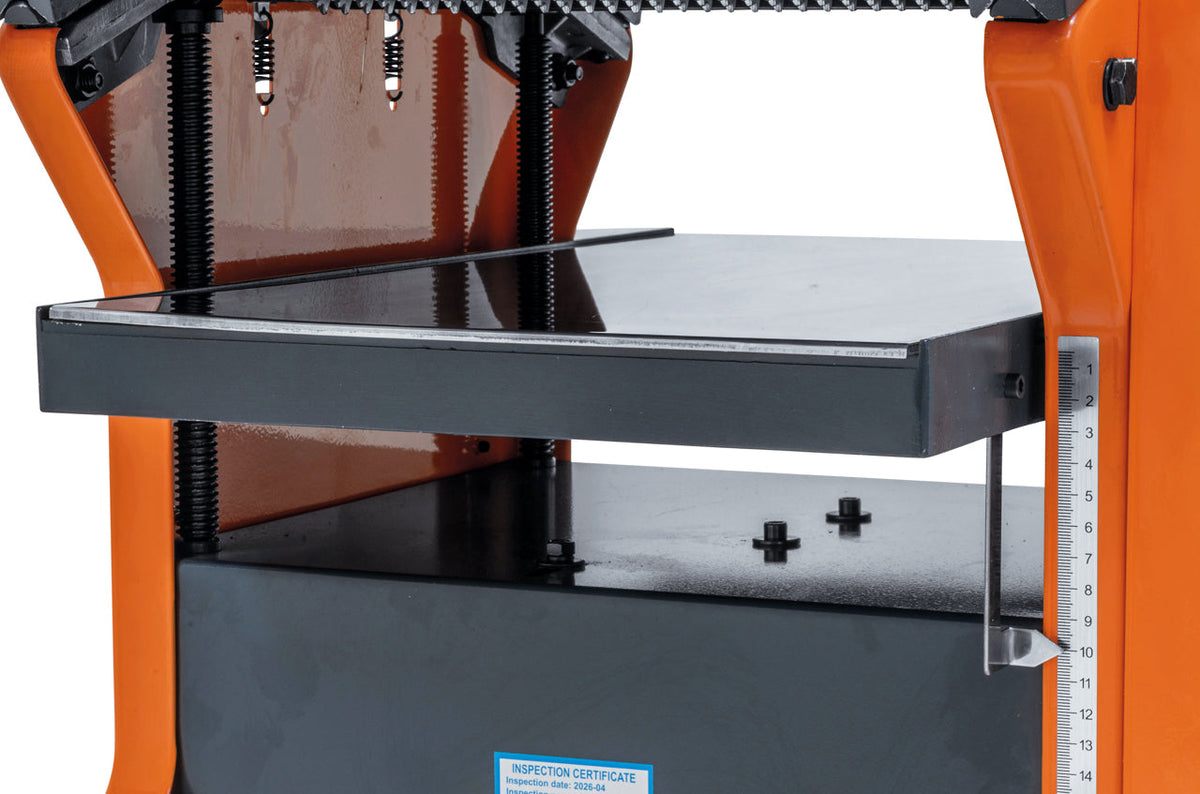

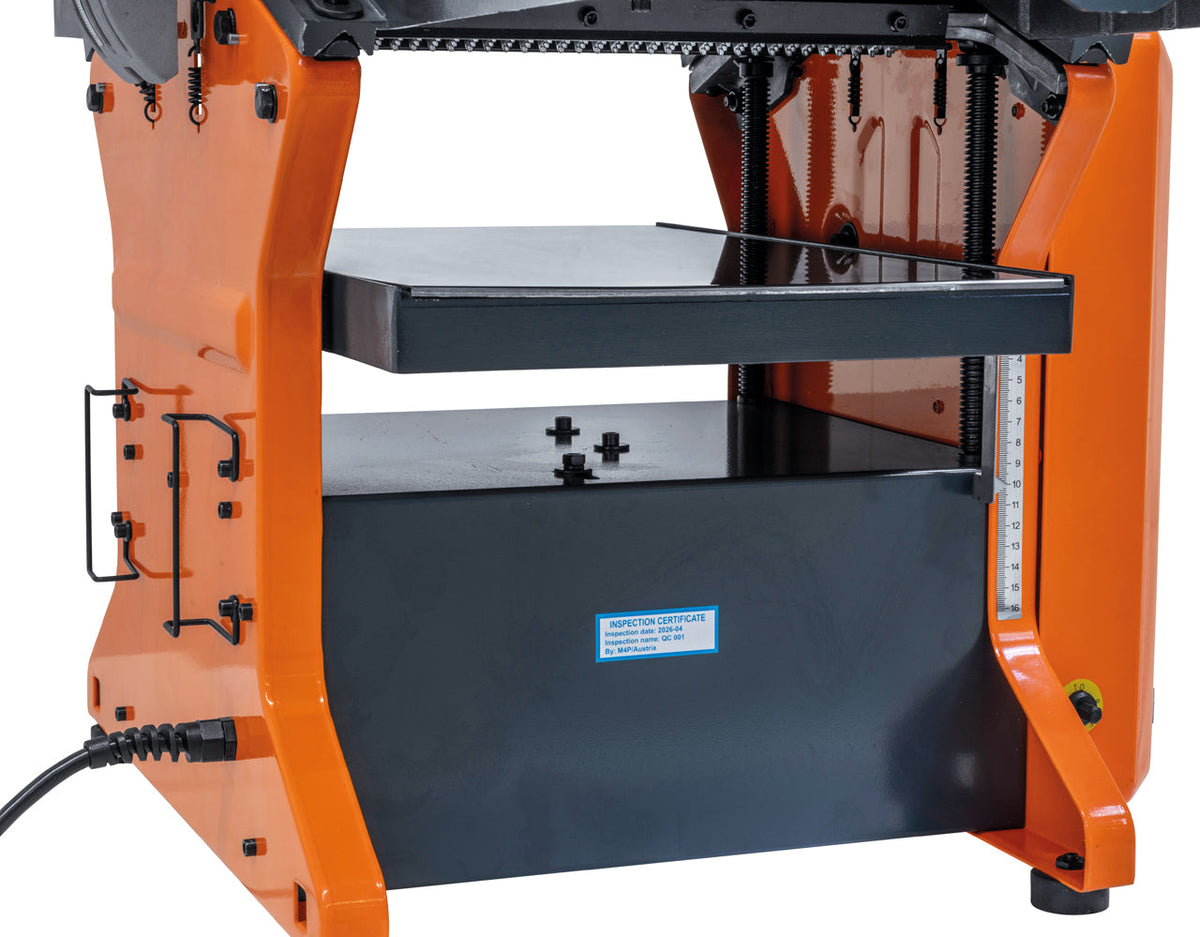

Thicknessing table with 4-point guidance for precise planing of boards, strips, planks, etc.

Technische Daten

Abrichthobel
Abrichtbreite 305 mm
Tischlänge 1080 mm
Hobelwellendrehzahl 9500 U/min
HM-Wendeplatten 28 Stk.
Hobelwellendurchmesser 50 mm
Abrichtanschlag 640 x 125 mm
Abrichtanschlag schwenkbar 90° bis 45°
Max. Spanabnahme 2 mm
Dickenhobel
Tischlänge 500 mm
Hobelbreite 305 mm
Dickendurchlass, min./max. 5 - 150 mm
Max. Spanabnahme 2 mm
Vorschubgeschwindigkeit 7,5 m/min
Absauganschluss Ø 100 mm
Motor-Abgabeleistung S1 100% 1,8 kW (2,4 PS)
Motor-Aufnahmeleistung S6 40% 2,5 kW (3,4 PS)
Spannung 230 V
Maschinenabmessung (L x B x H) 1125 x 560 x 575 mm
Gewicht ca. 41 kg

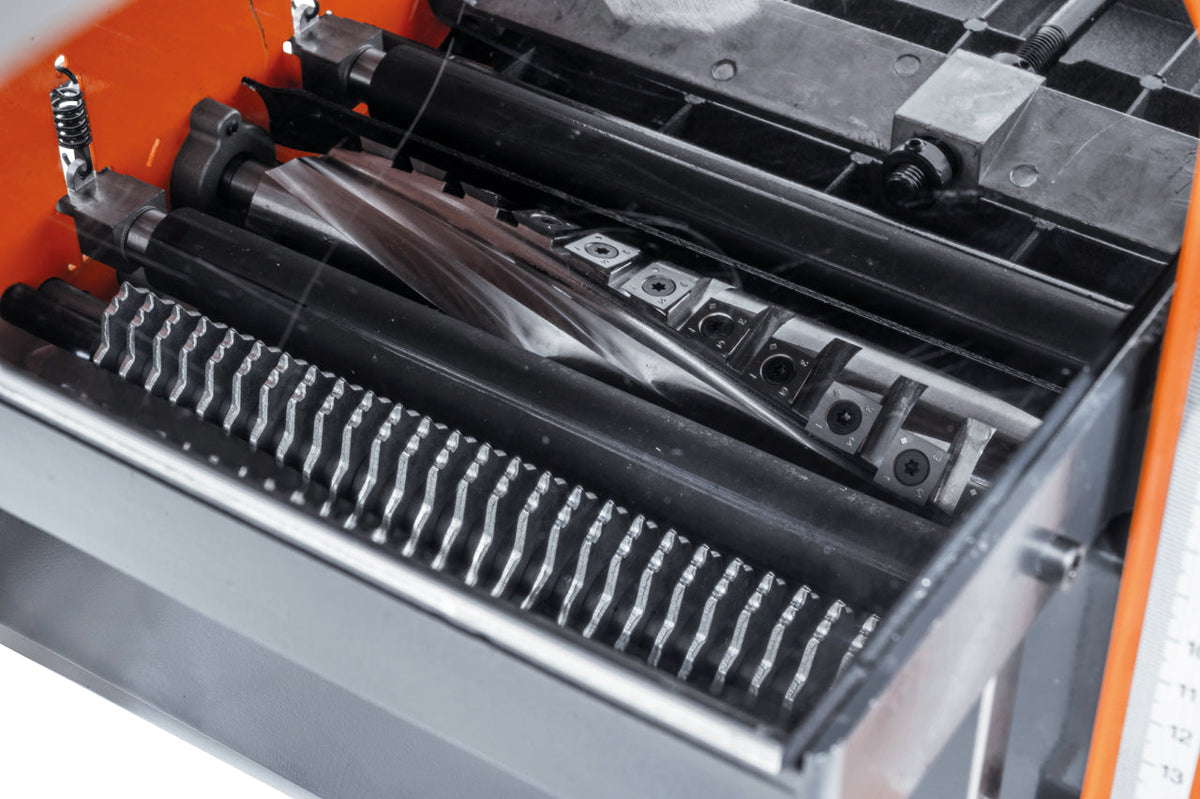

  • Spiralmesser-Hobelwelle mit 28 Stk. HM-Wendeplatten
  • Ersatz-HM-Wendeplatten (5 Stk.)
  • Absaughaube
  • Schiebestock
