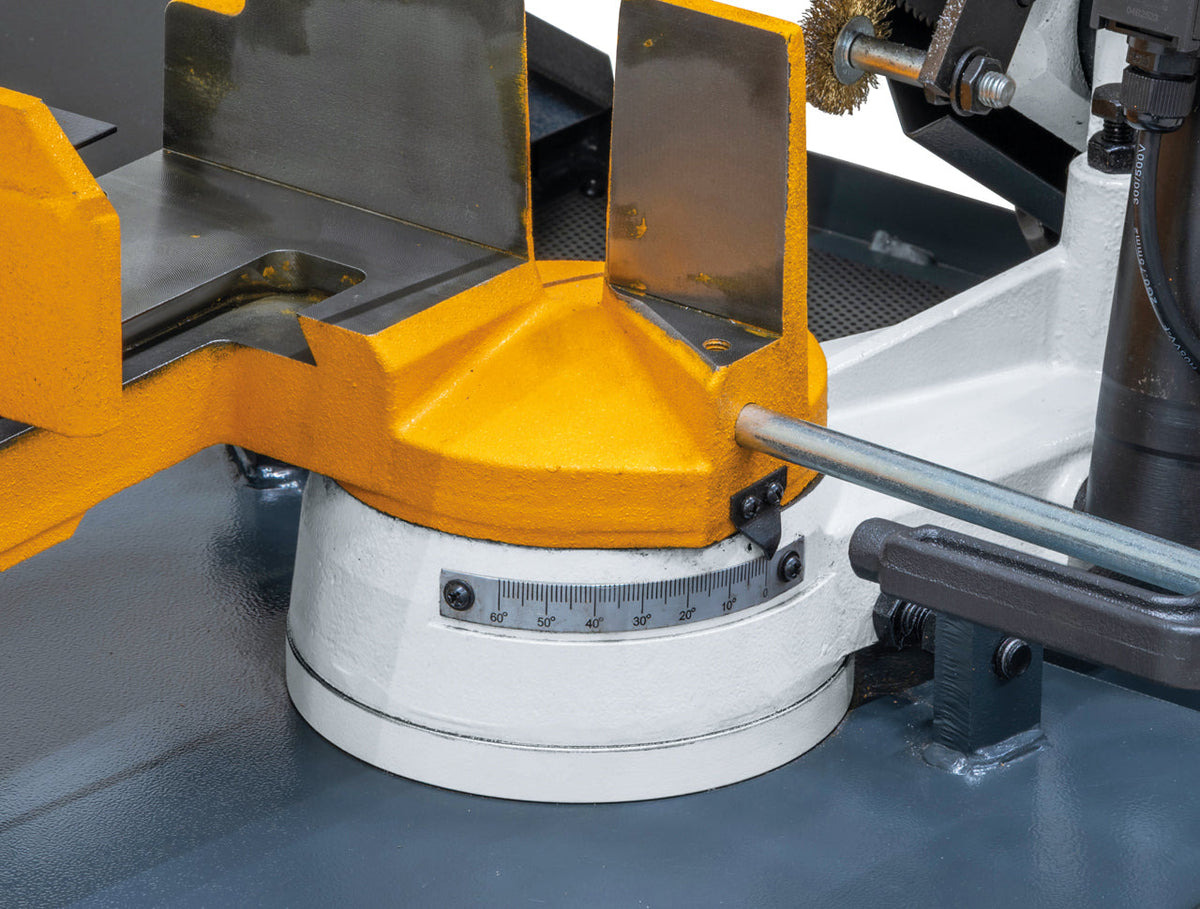

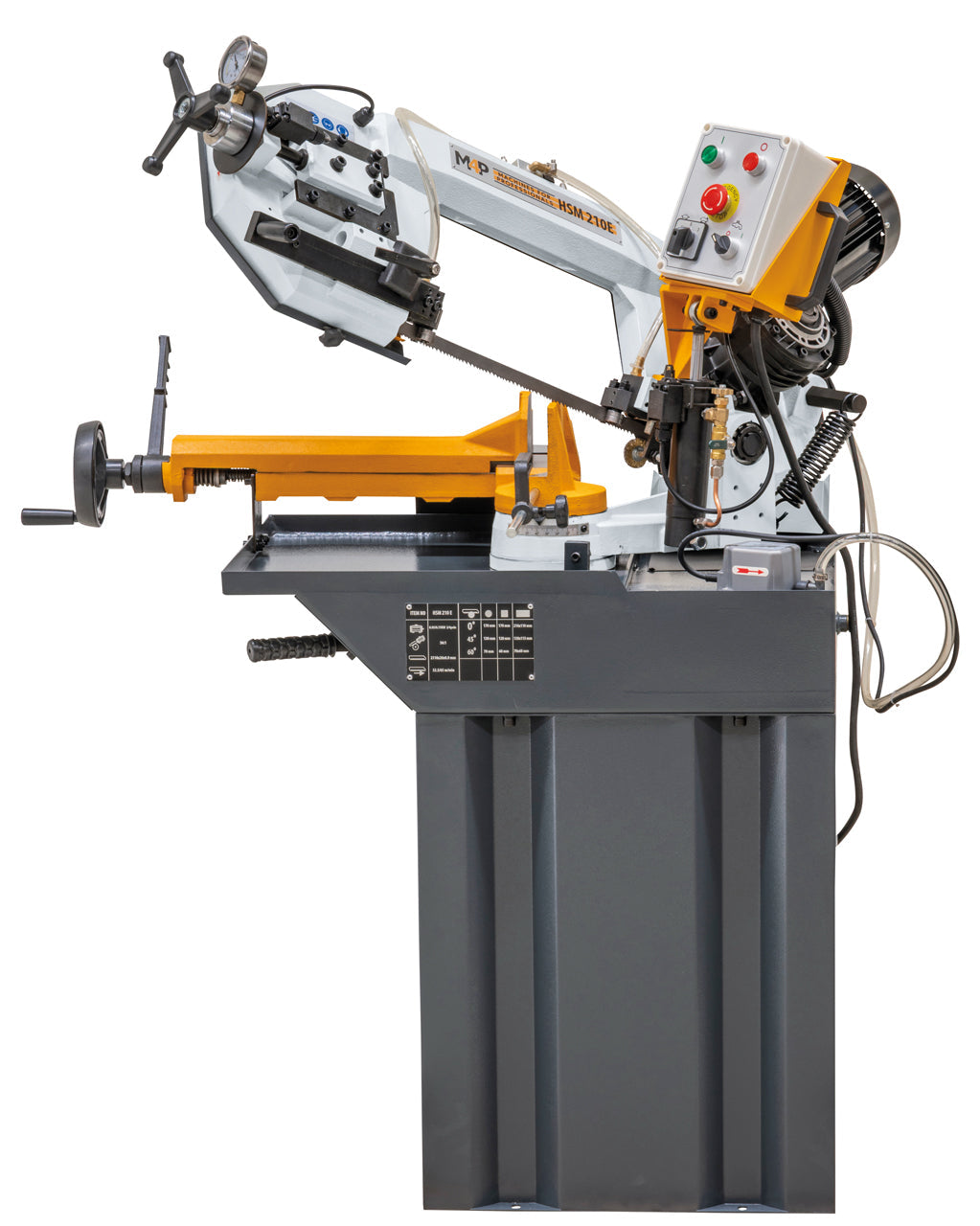

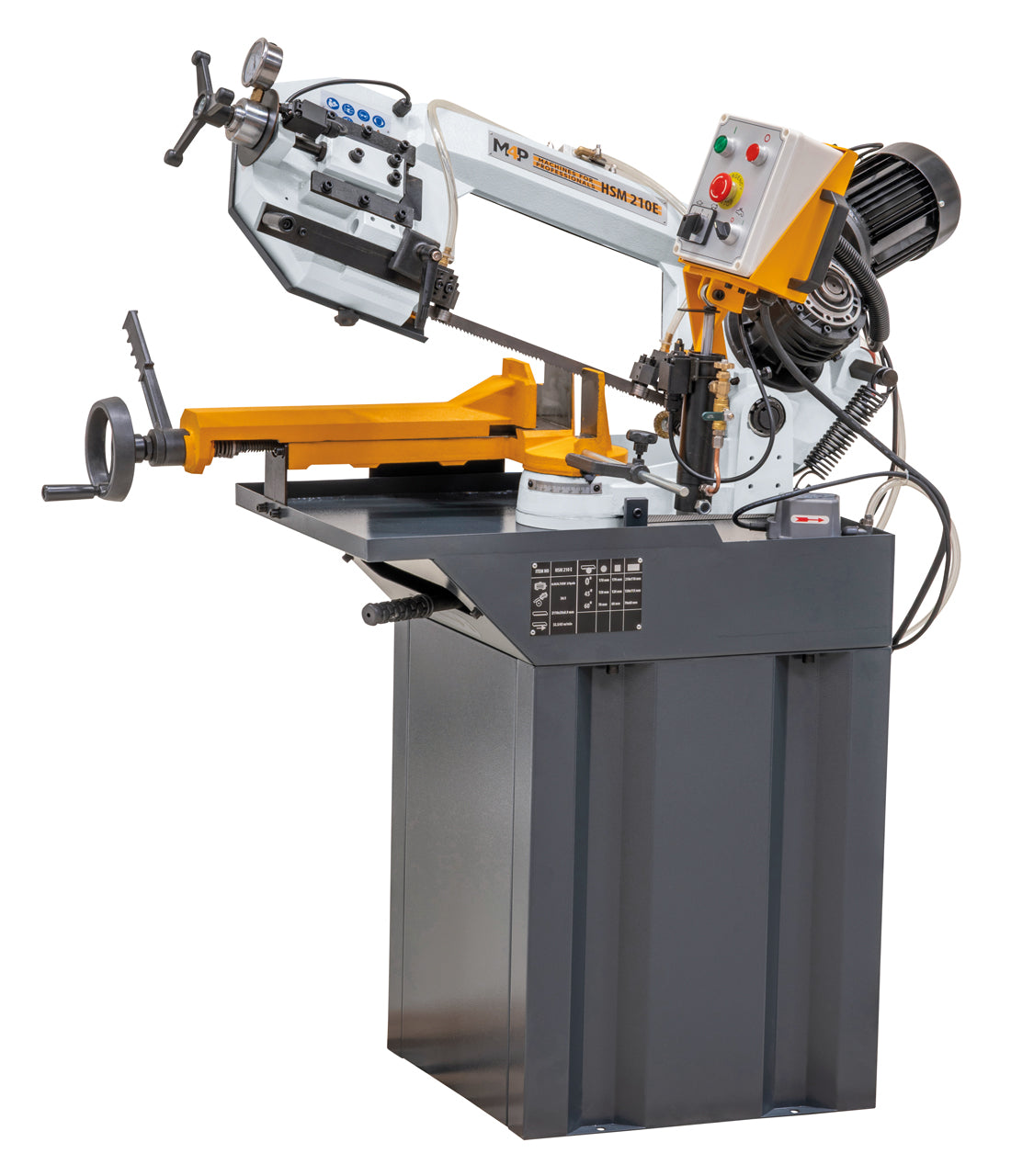

The cost-effective horizontal bandsaw HSM 210 E with extensive standard equipment (base frame, coolant system, saw blade, ...) is the ideal machine for the cost-conscious user. The saw frame can be swiveled up to 60°, allowing this model to work in a space-saving manner with long workpieces.
For cutting profiles, pipes, solid materials made of iron, non-ferrous materials, plastics
Torsion-resistant cast iron saw frame guarantees high cutting accuracy

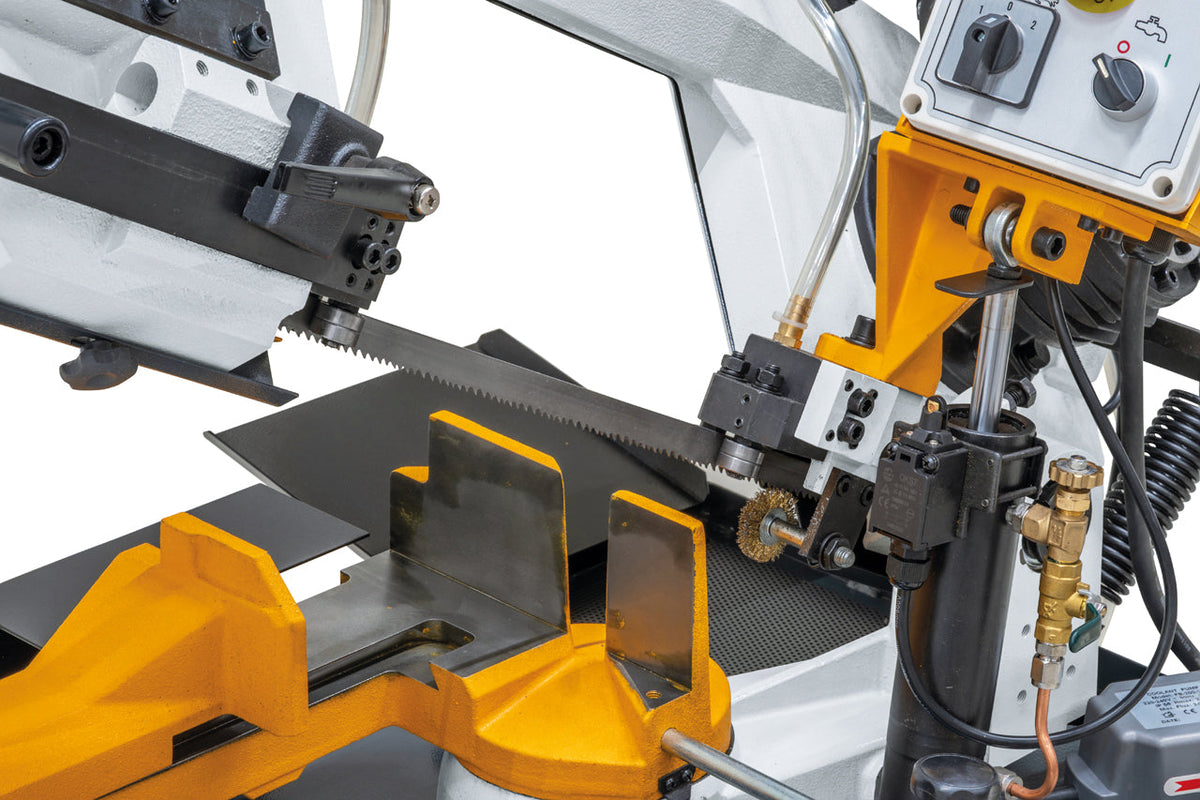

Optimal cutting results due to ball-bearing saw blade guide
Optimal price-performance ratio, ideal for the demanding DIY enthusiast
Includes workpiece stop for efficient working

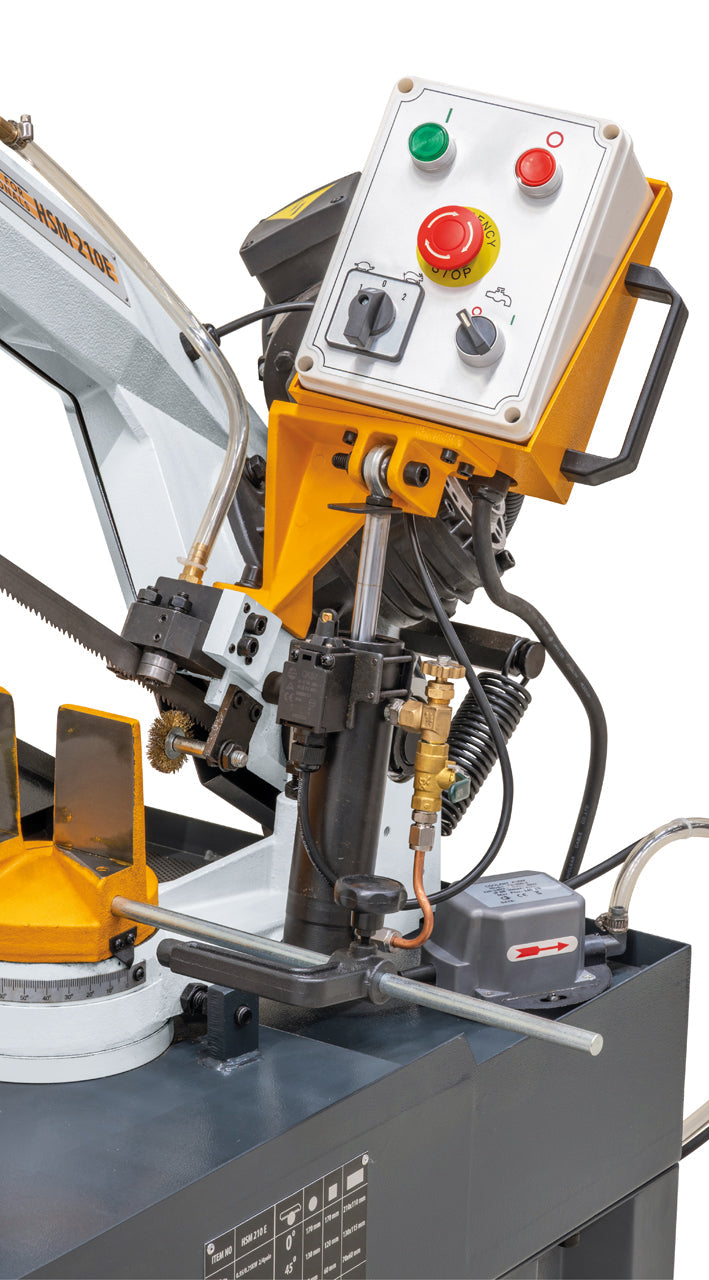

Automatic limit switch after material cut-through
Equipped with base frame and coolant system as standard
| Schnittbereich rund 90° | 170 mm |
| Schnittbereich flach 90° | 210 x 110 mm |
| Schnittbereich rund 45° | 130 mm |
| Schnittbereich flach 45° | 130 x 115 mm |
| Schnittleistung flach 60° | 70 60 mm |
| Arbeitshöhe | 890 mm |
| Sägebandabmessung | 2110 x 20 x 0,9 mm |
| Schnittgeschwindigkeiten | 32,5 / 60 m/min |

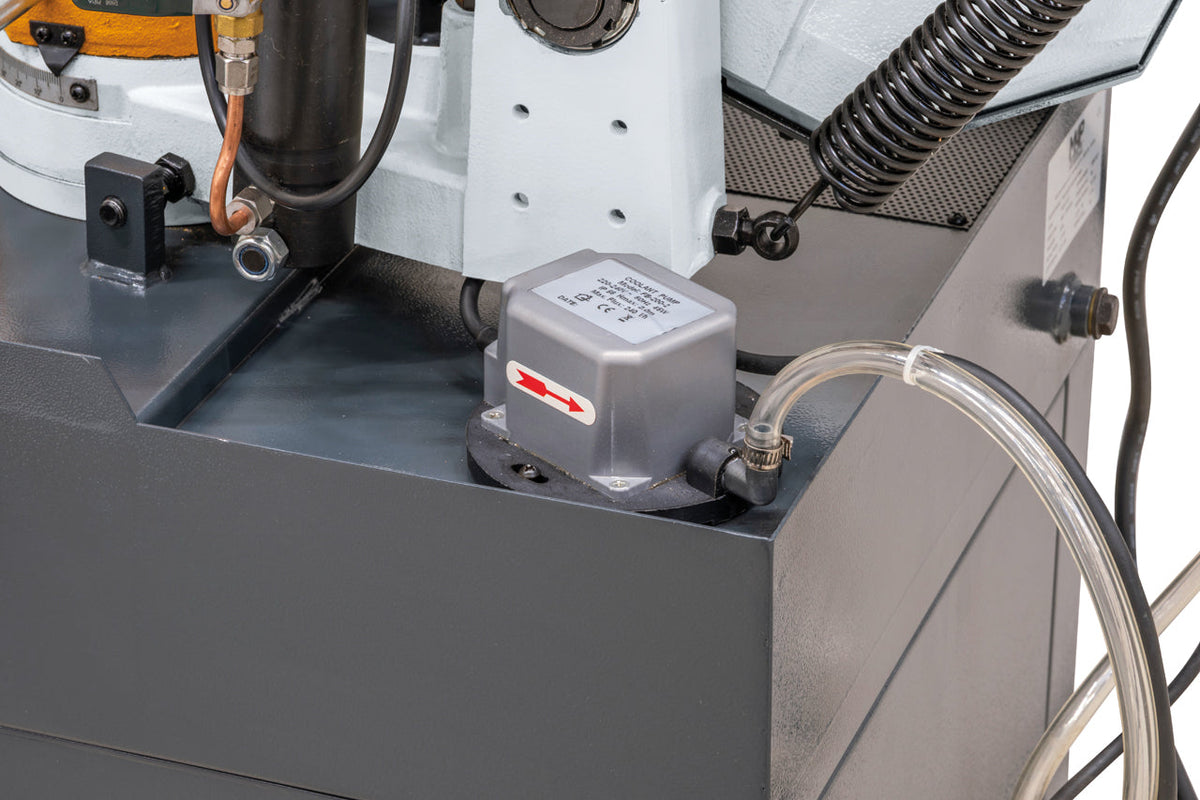

| Kühlmittelpumpe | 45 W |

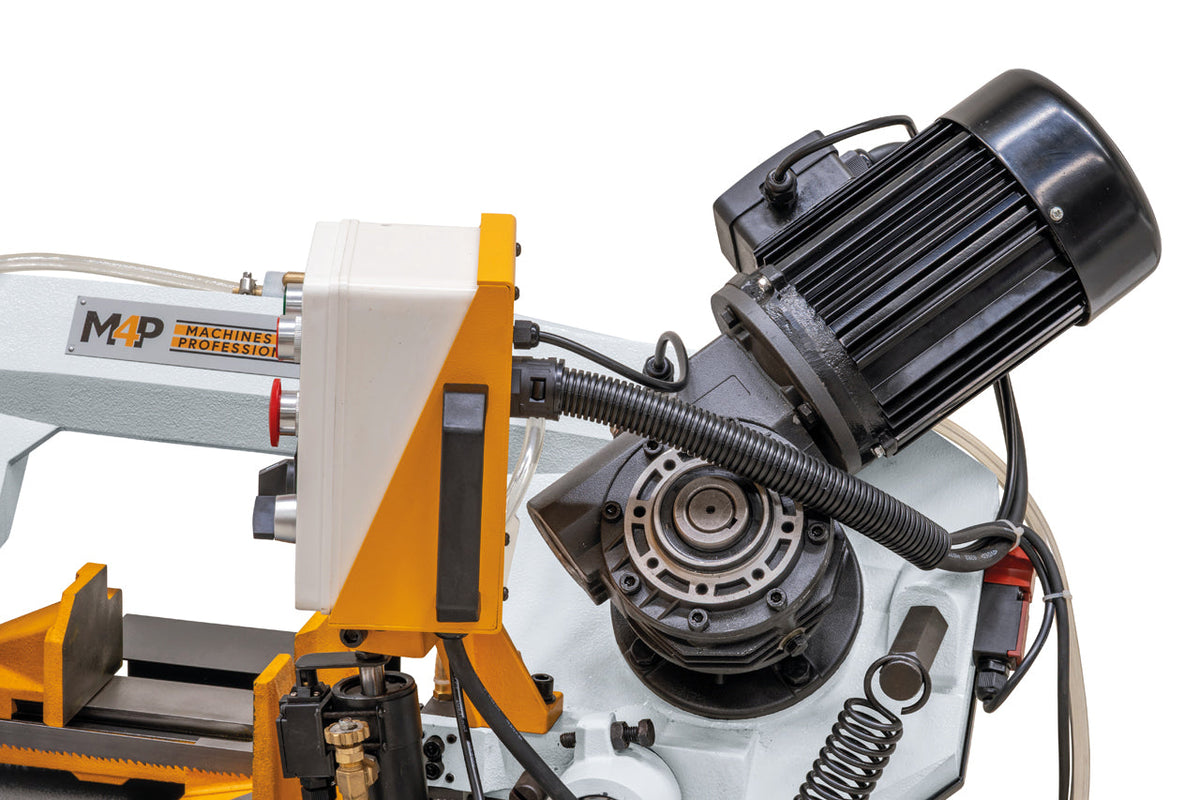

| Motor-Abgabeleistung S1 100% | 0,75 / 0,95 kW |
| Motor-Aufnahmeleistung S6 40% | 1,1 / 1,4 kW |
| Spannung | 400 V |
| Maschinenabmessung (L x T x H) | 1200 x 820 x 1340 mm |
| Gewicht ca. | 140 kg |
