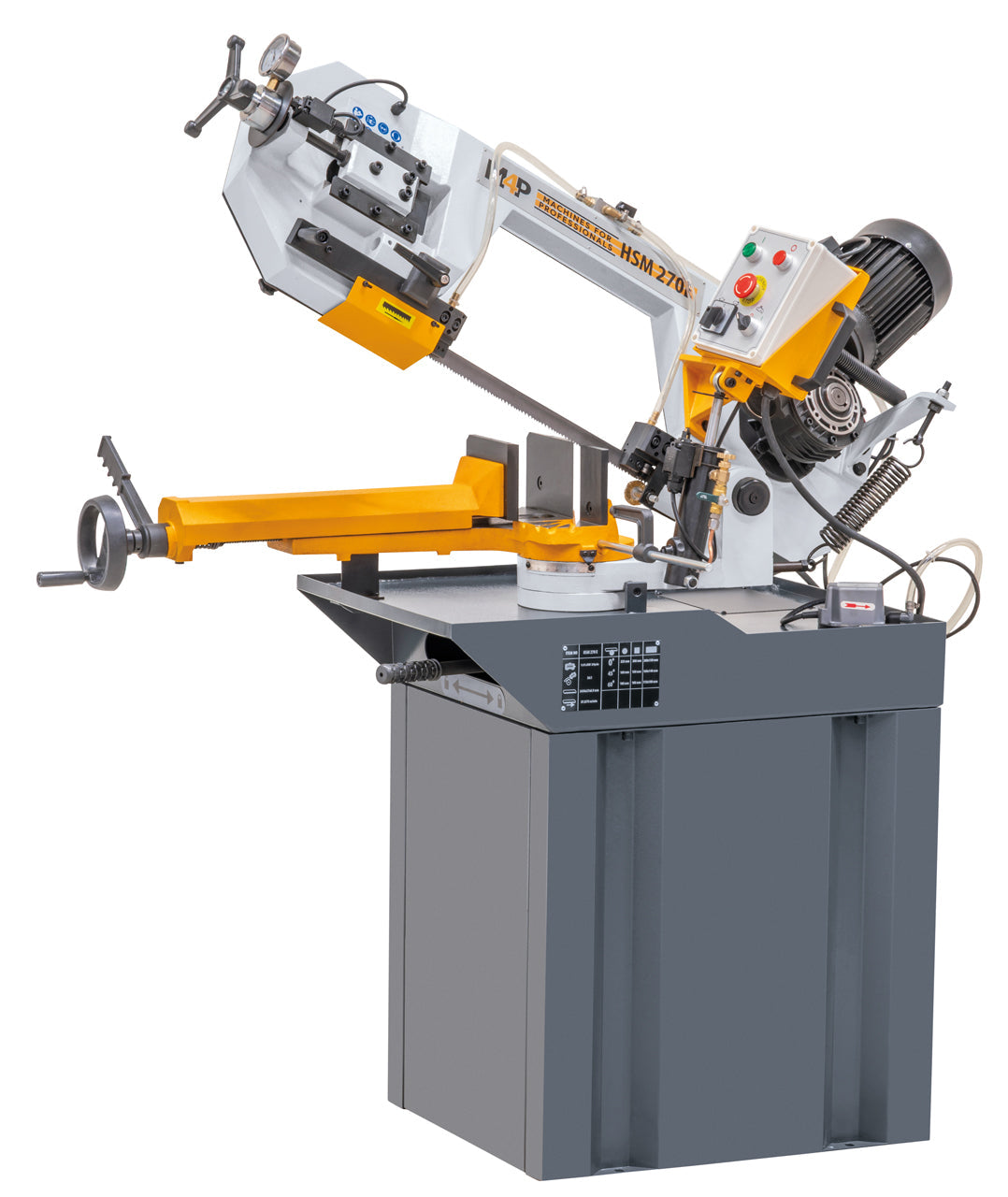

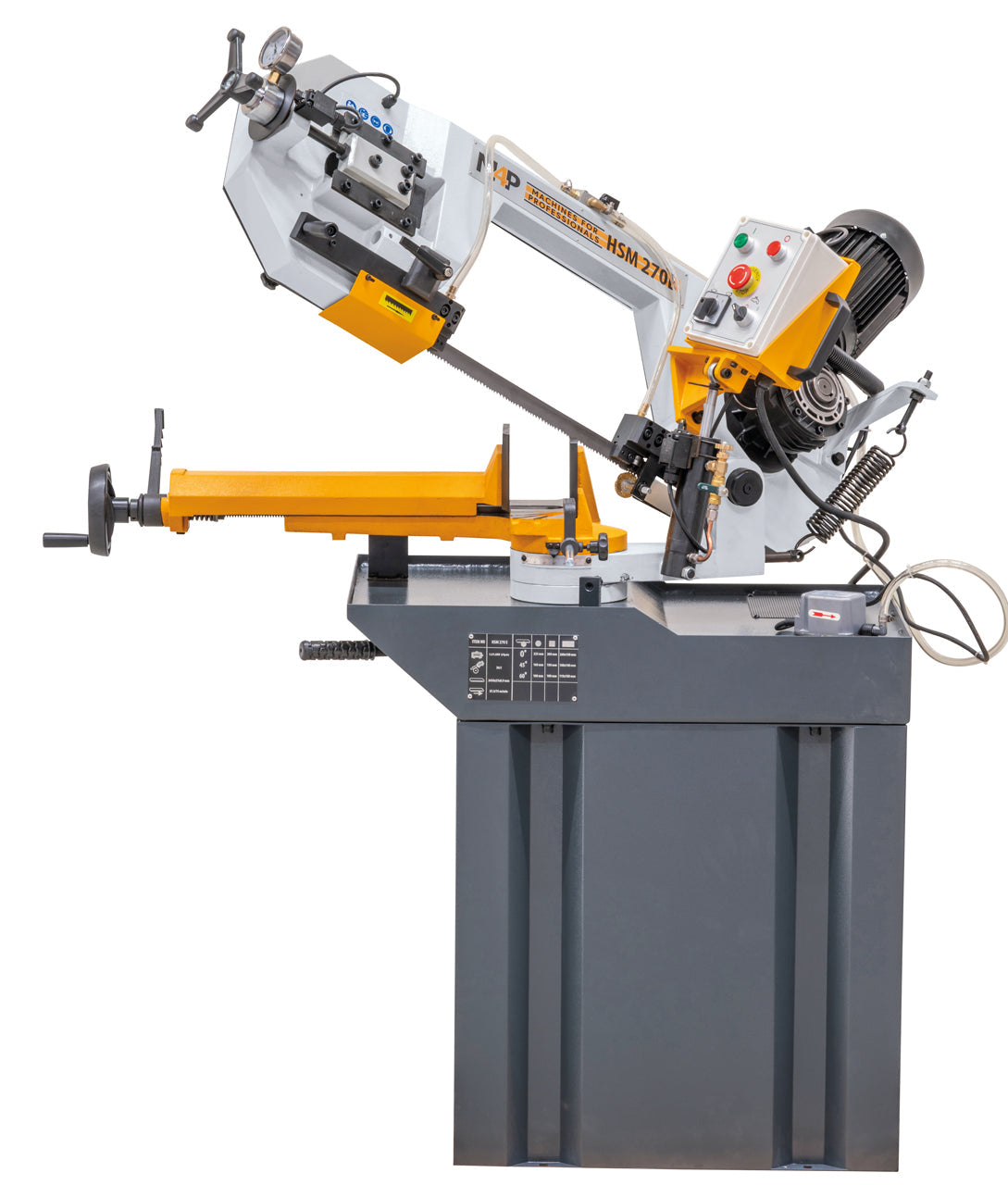

The HSM 270 E is a precise horizontal band saw for universal use. Features of this machine include the hydraulic cylinder for finely adjustable lowering of the saw frame and the integrated coolant system.

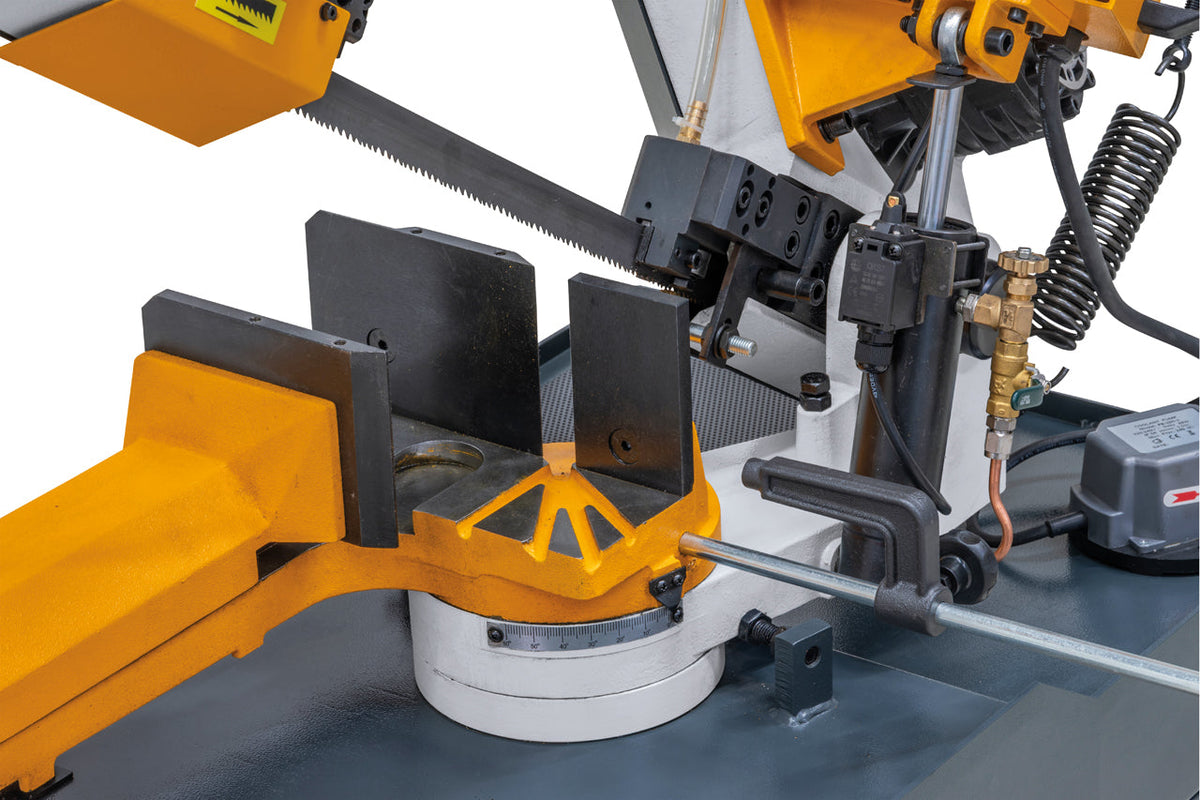

The saw frame can be swiveled up to 60° for miter cuts
Torsion-free, heavily dimensioned saw arm made of cast iron
2 saw blade speeds for optimal cutting results

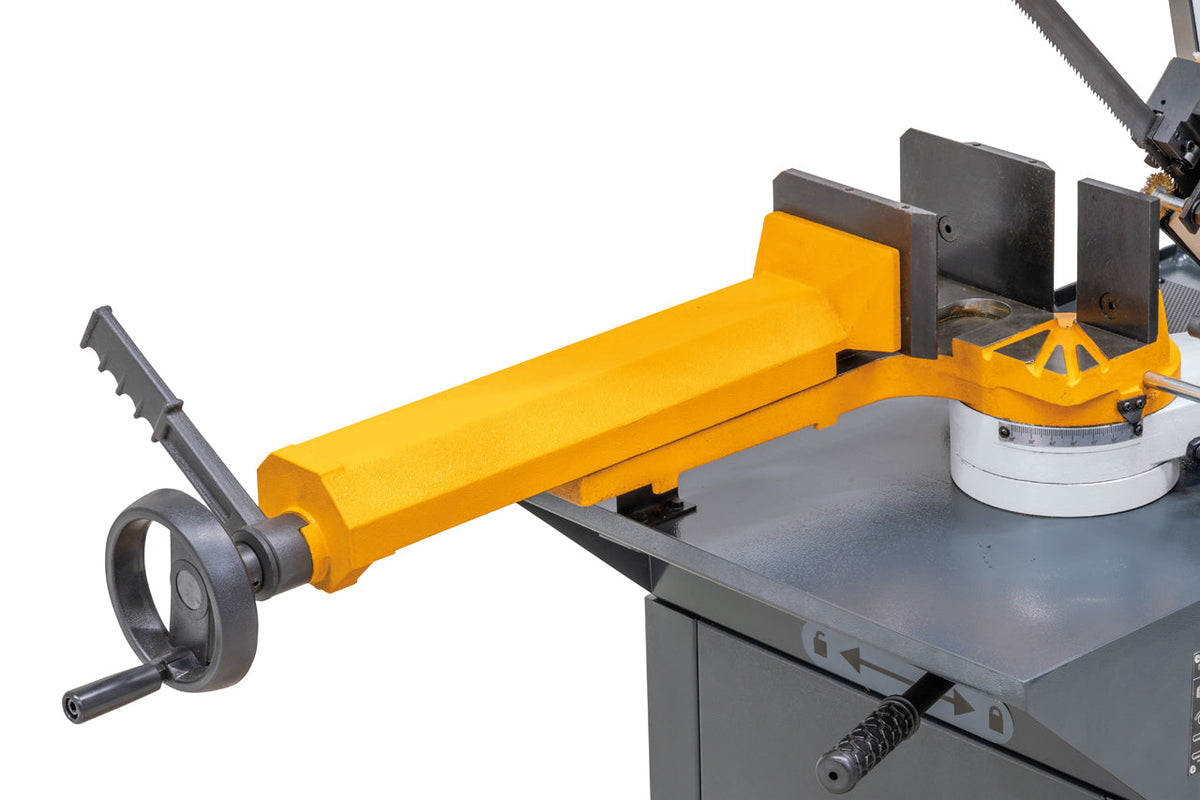

Robust cast iron vise with quick release
Automatic shut-off after material cut
Robust construction, ensuring smooth and vibration-free operation

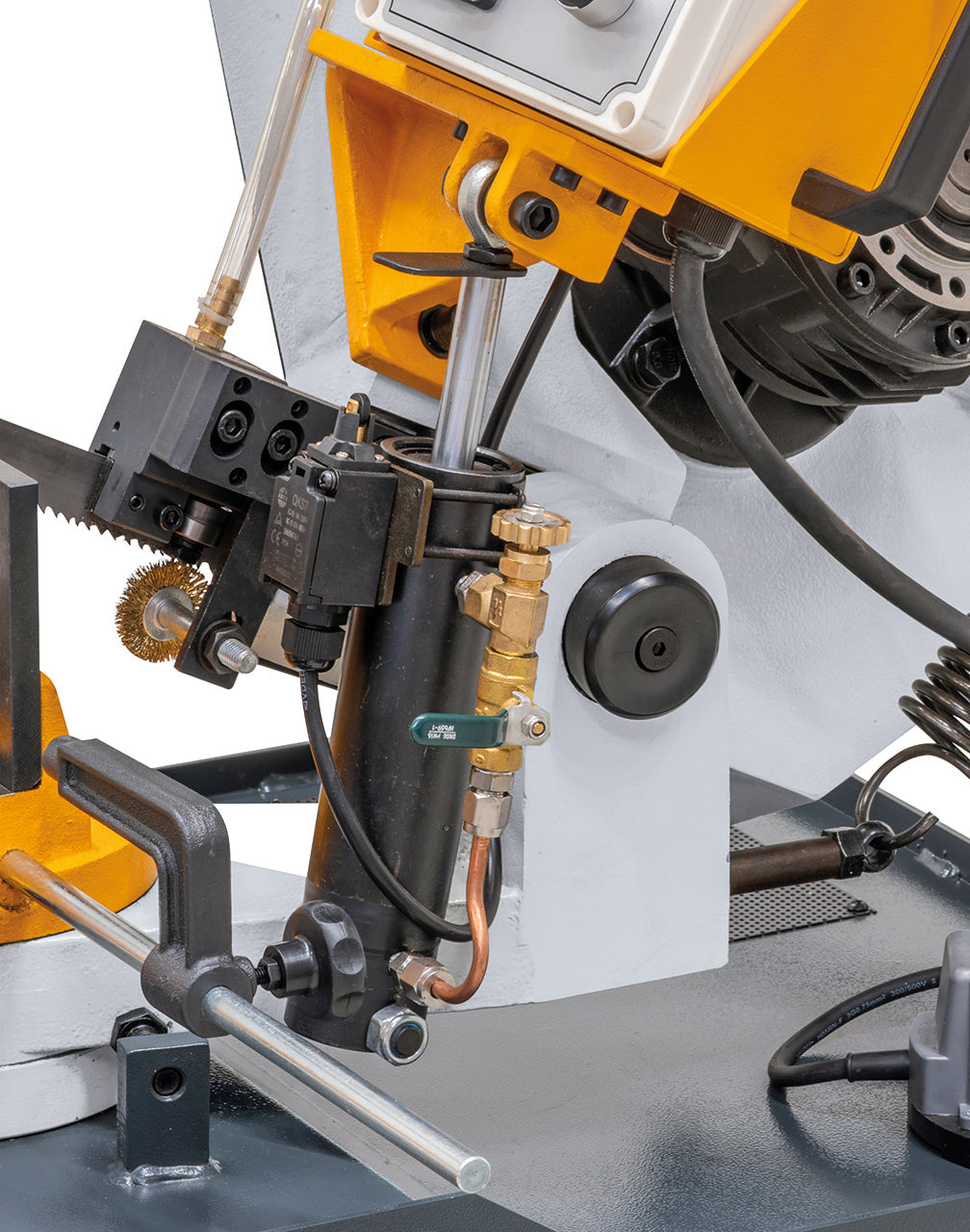

Continuously adjustable lowering via hydraulic lowering cylinder
| Schnittbereich rund 90° | 225 mm |
| Schnittbereich quadrat 90° | 200 x 200 mm |
| Schnittbereich flach 90° | 260 x 150 mm |
| Schnittbereich rund 45° | 160 mm |
| Schnittbereich quadrat 45° | 150 x 150 mm |
| Schnittbereich rund 60° | 100 mm |
| Schnittbereich quadrat 60° | 100 x 100 mm |
| Arbeitshöhe | 920 mm |
| Sägebandabmessung | 2450 x 27 x 0,9 mm |
| Schnittgeschwindigkeitenen | 37,5 / 75 m/min |

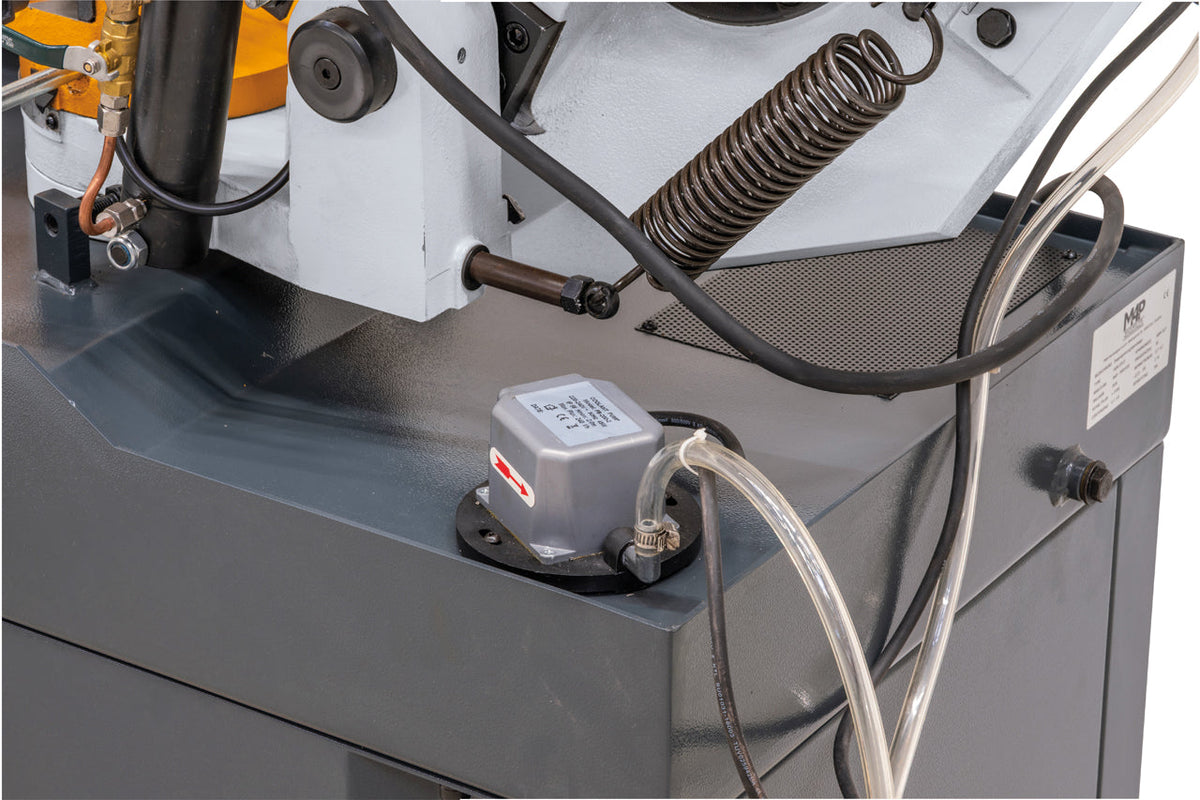

| Kühlmittelpumpe | 45 W |

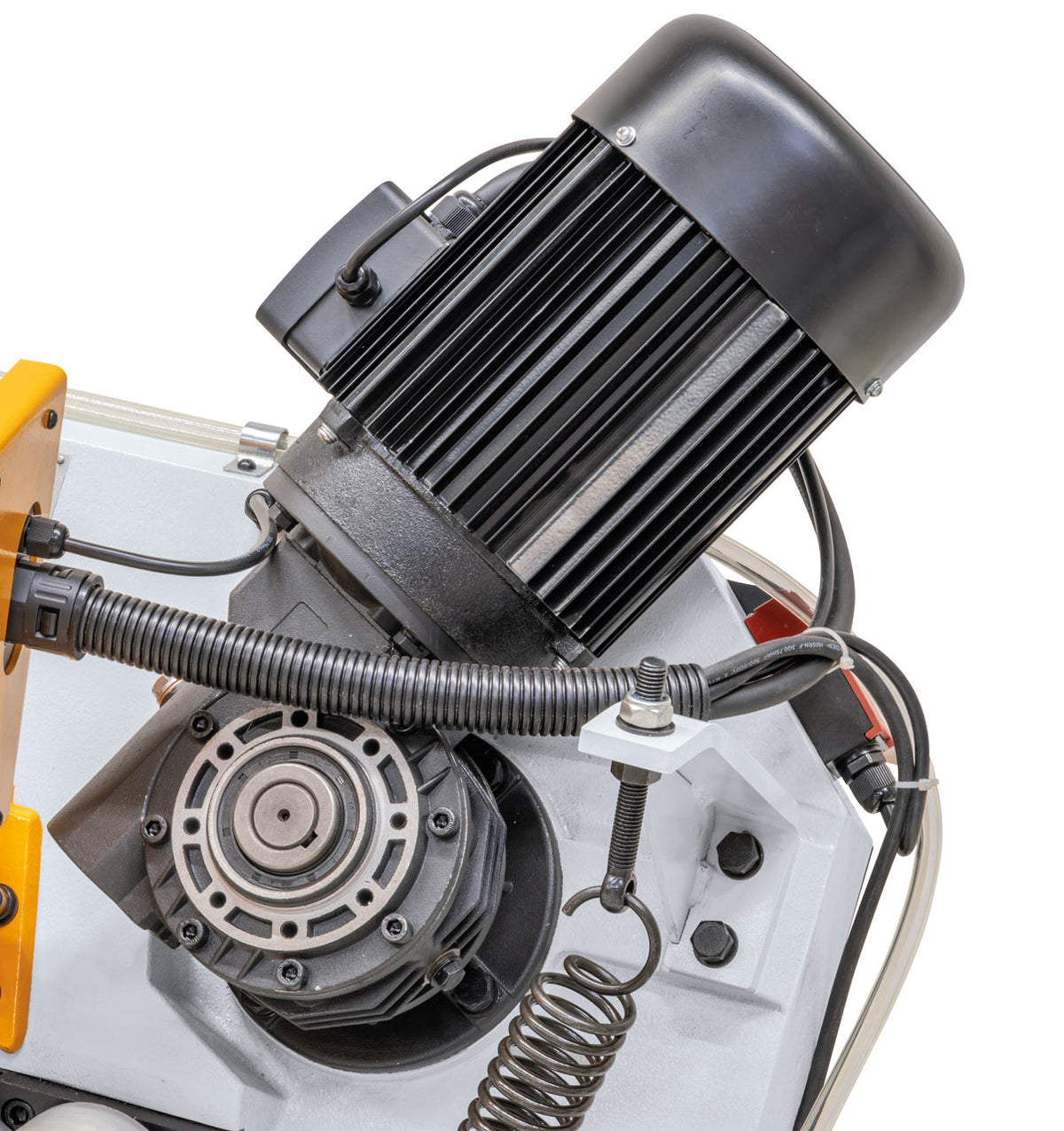

| Motor-Abgabeleistung S1 100% | 1,1 / 1,5 kW |
| Motor-Aufnahmeleistung S6 40% | 1,5 / 2,2 kW |
| Spannung | 400 V |
| Maschinenabmessung (L x T x H) | 1250 x 720 x 1490 mm |
| Gewicht ca. | 188 kg |
