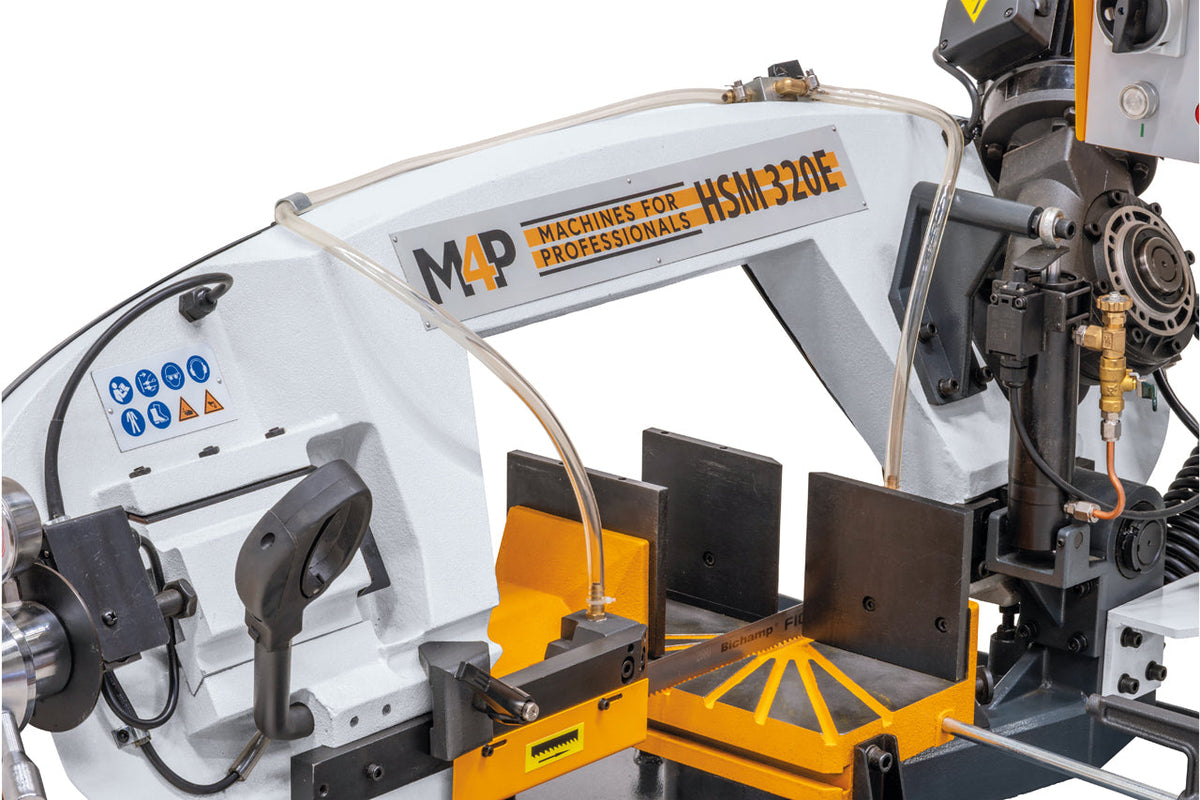

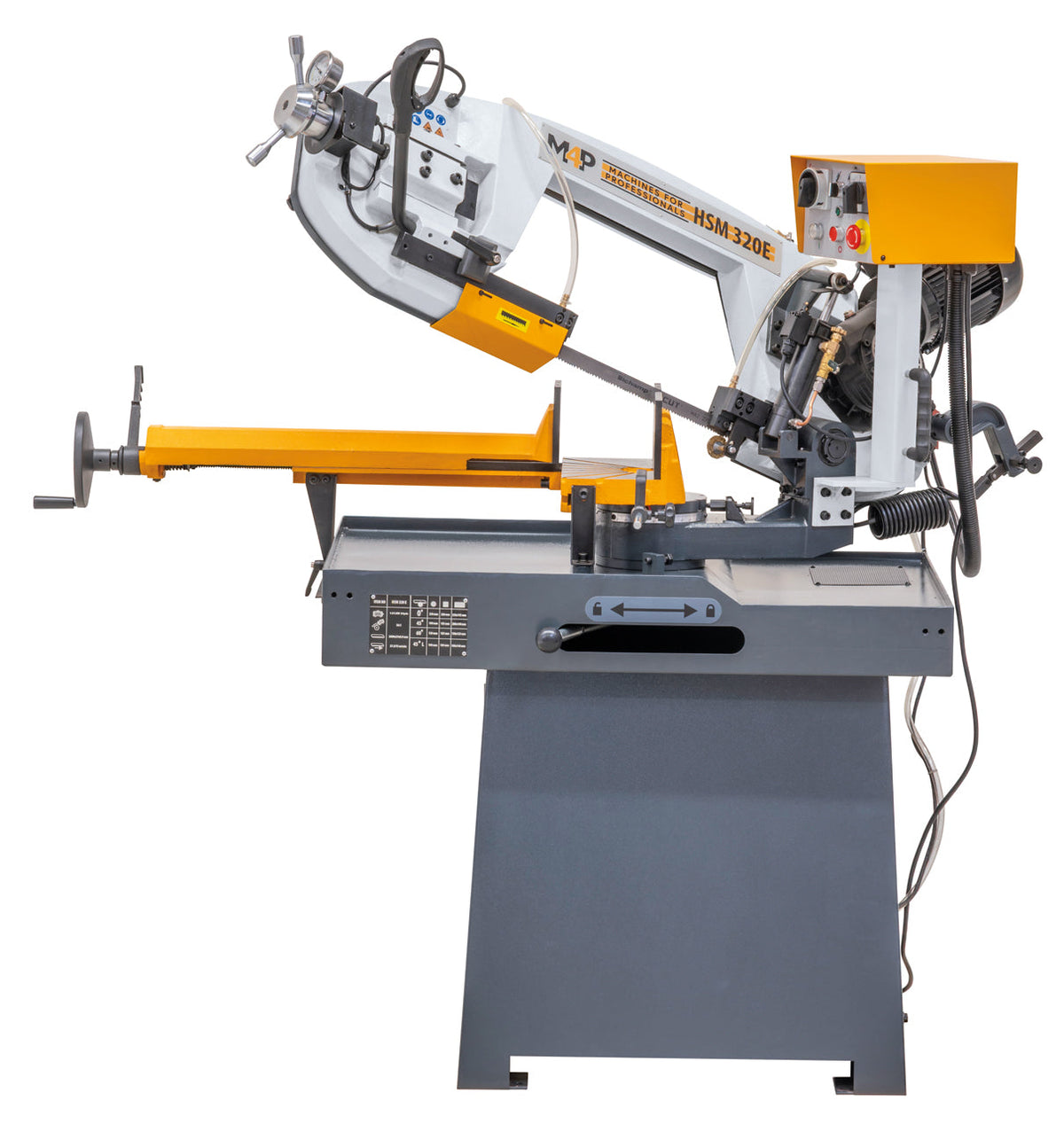

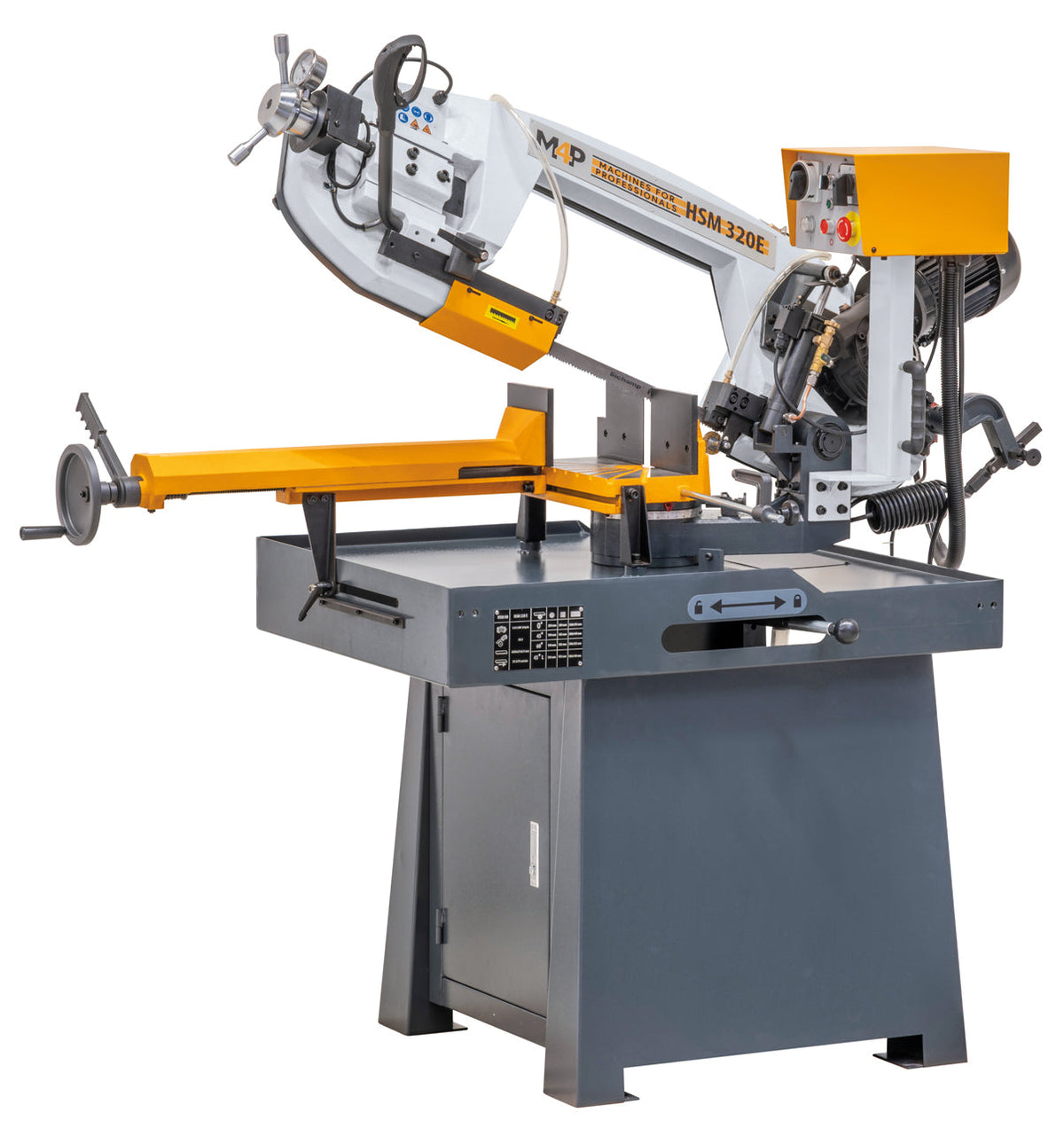

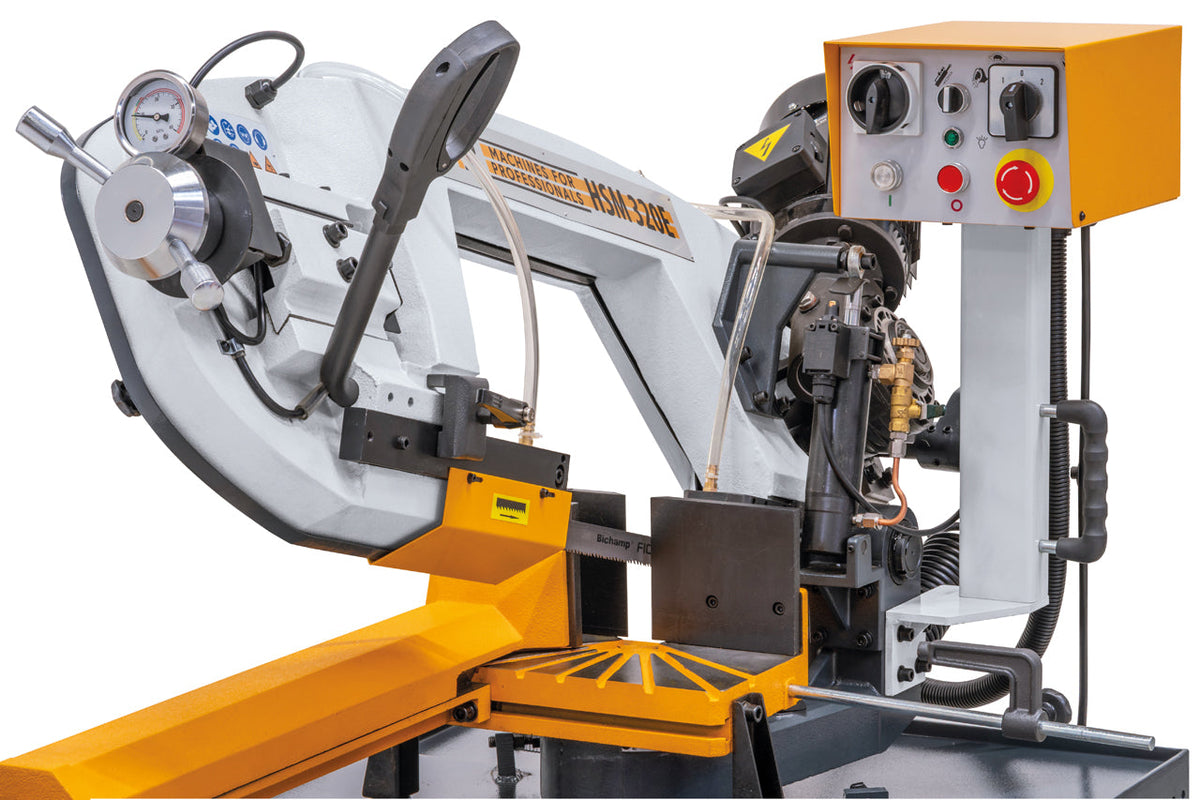

The compact double miter bandsaw HSM 320 E with its swiveling saw frame allows for space-saving operation, as the material position does not need to be changed for miter cuts. Features of this machine include the device for switching to manual operation, the movable vice with quick-release lock, and the automatic blade break control.
For cutting hollow sections and solid materials, stainless steel, tool steel, ...
Torsion-free, heavily dimensioned saw frame made of cast iron
2 saw blade speeds (35 / 70 m/min) for optimal cutting results

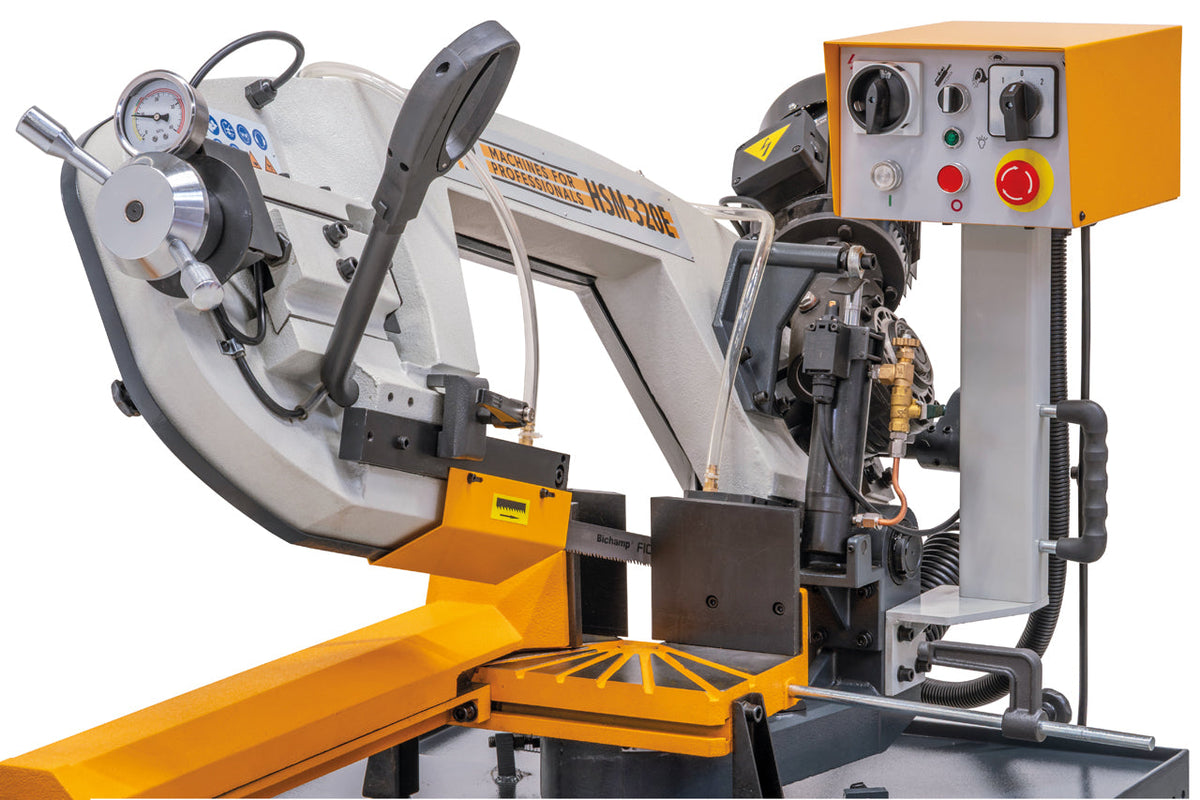

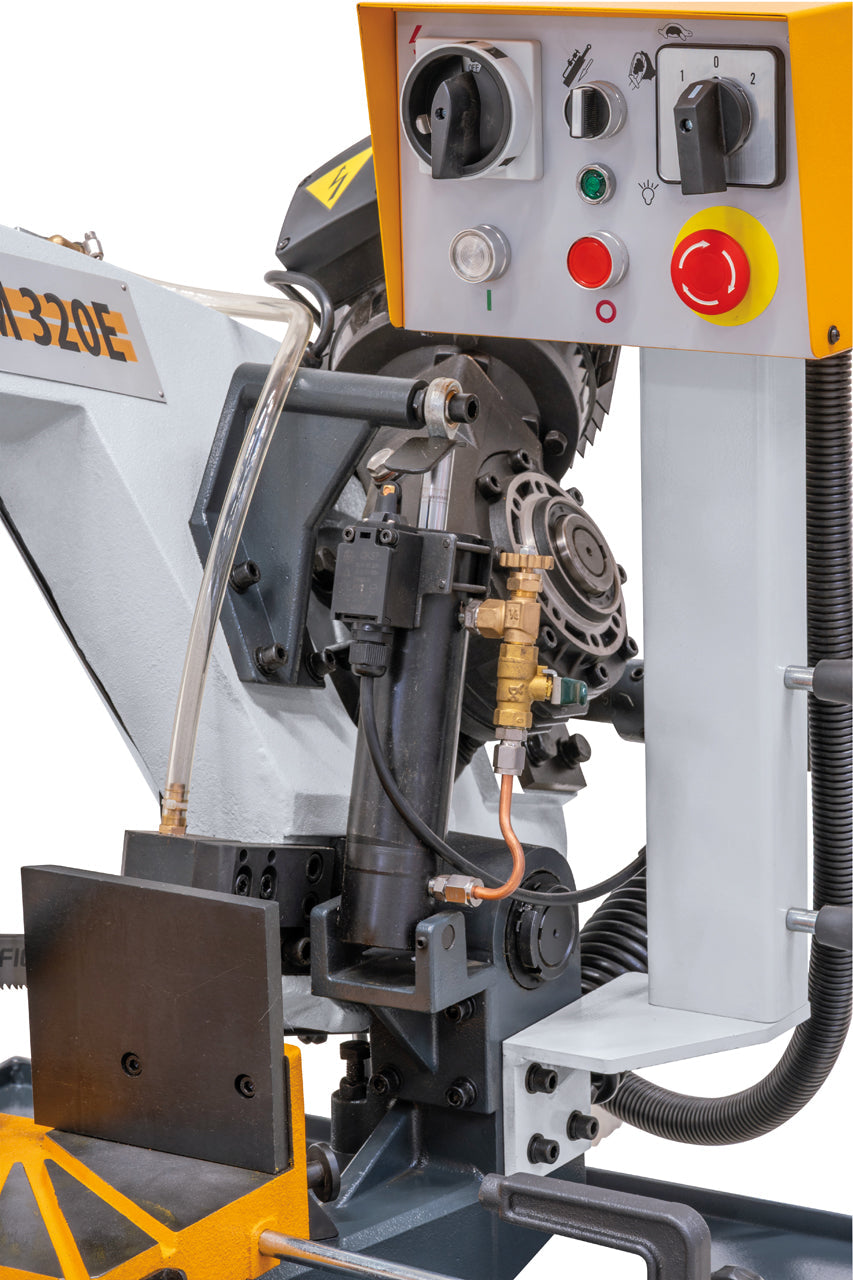

Adjustable hydraulic cylinder for regulating the contact pressure of the saw frame

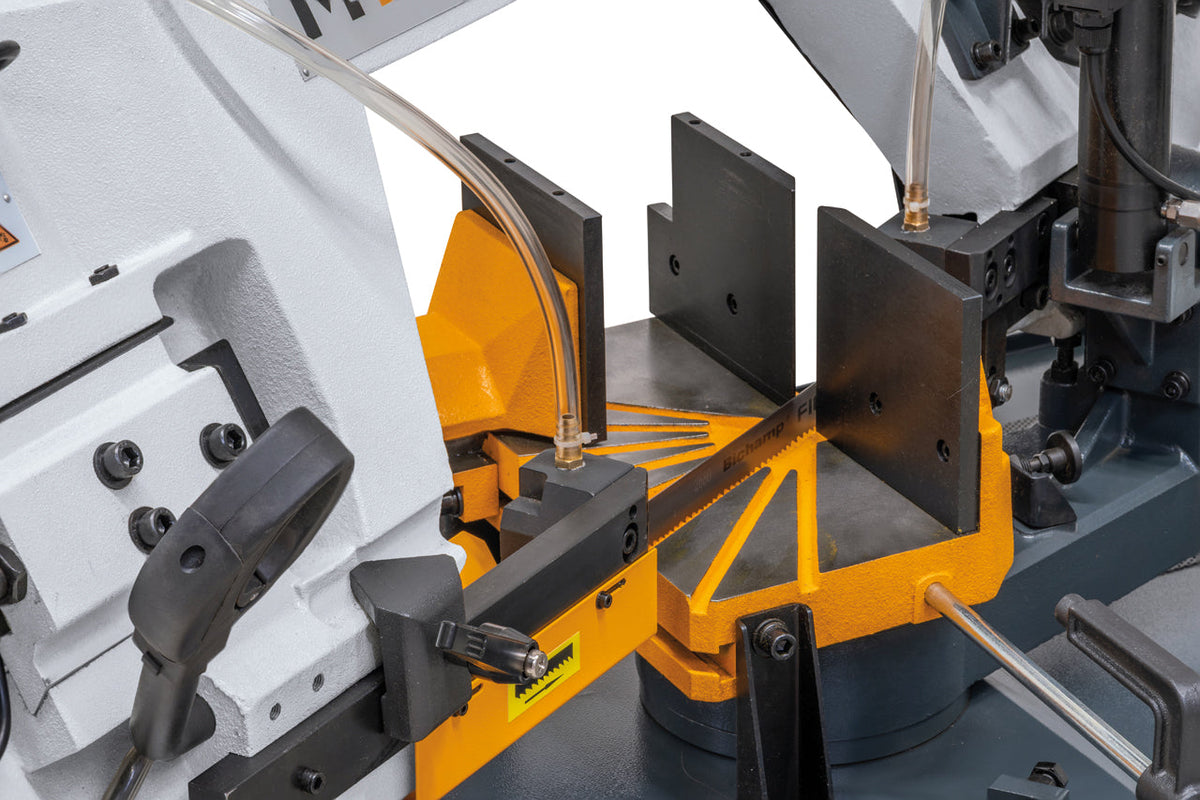

Swiveling saw frame for double miter cutting to the left (-45°) and right (+60°)
Smooth, low-vibration operation due to the use of high-quality materials

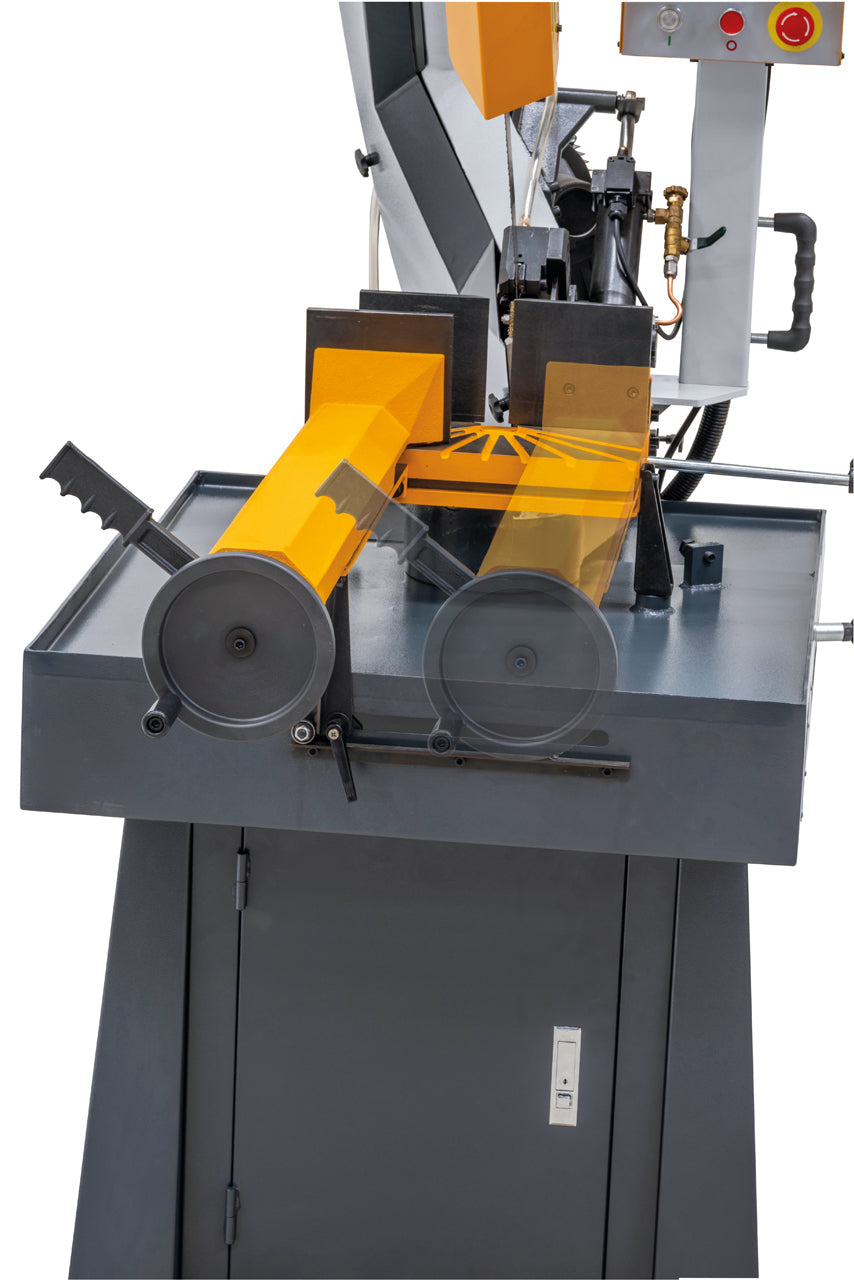

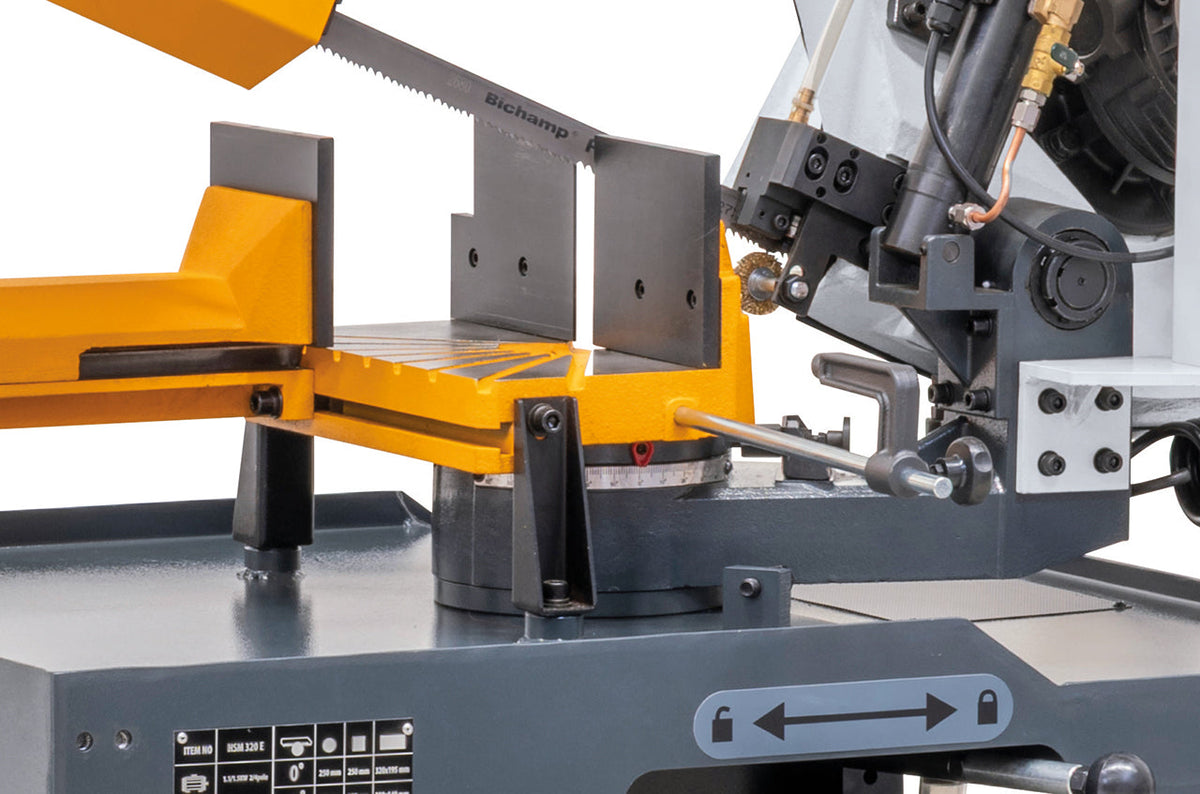

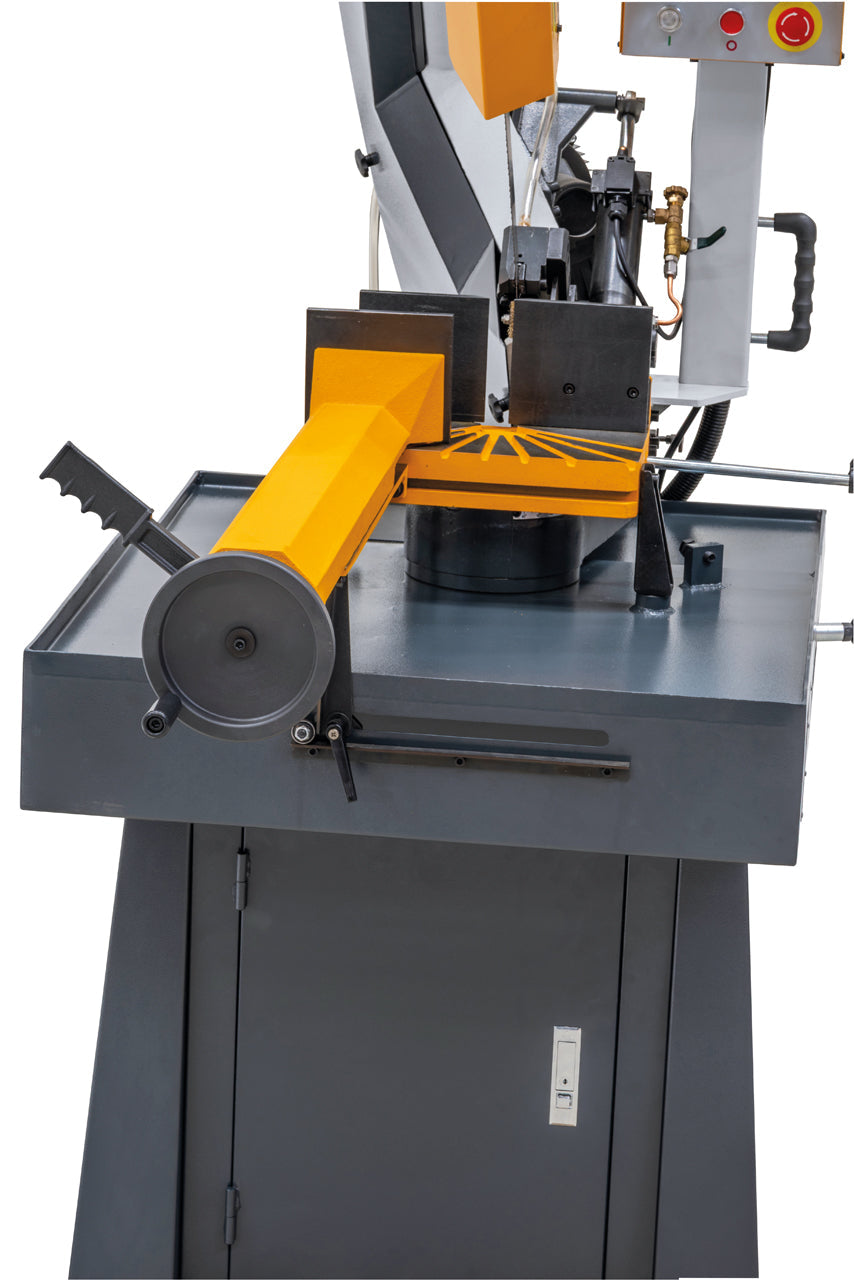

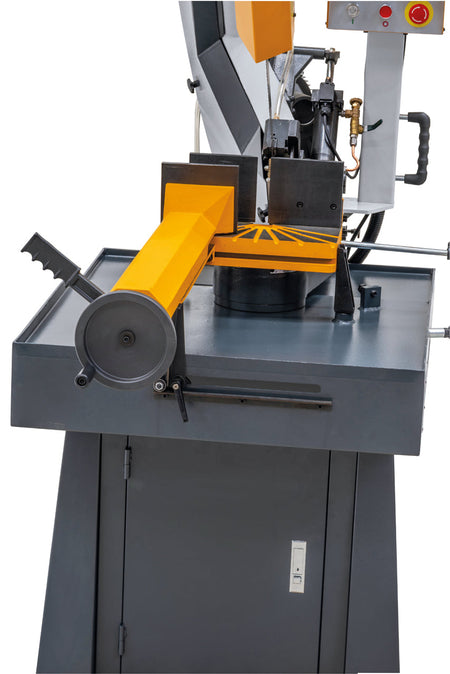

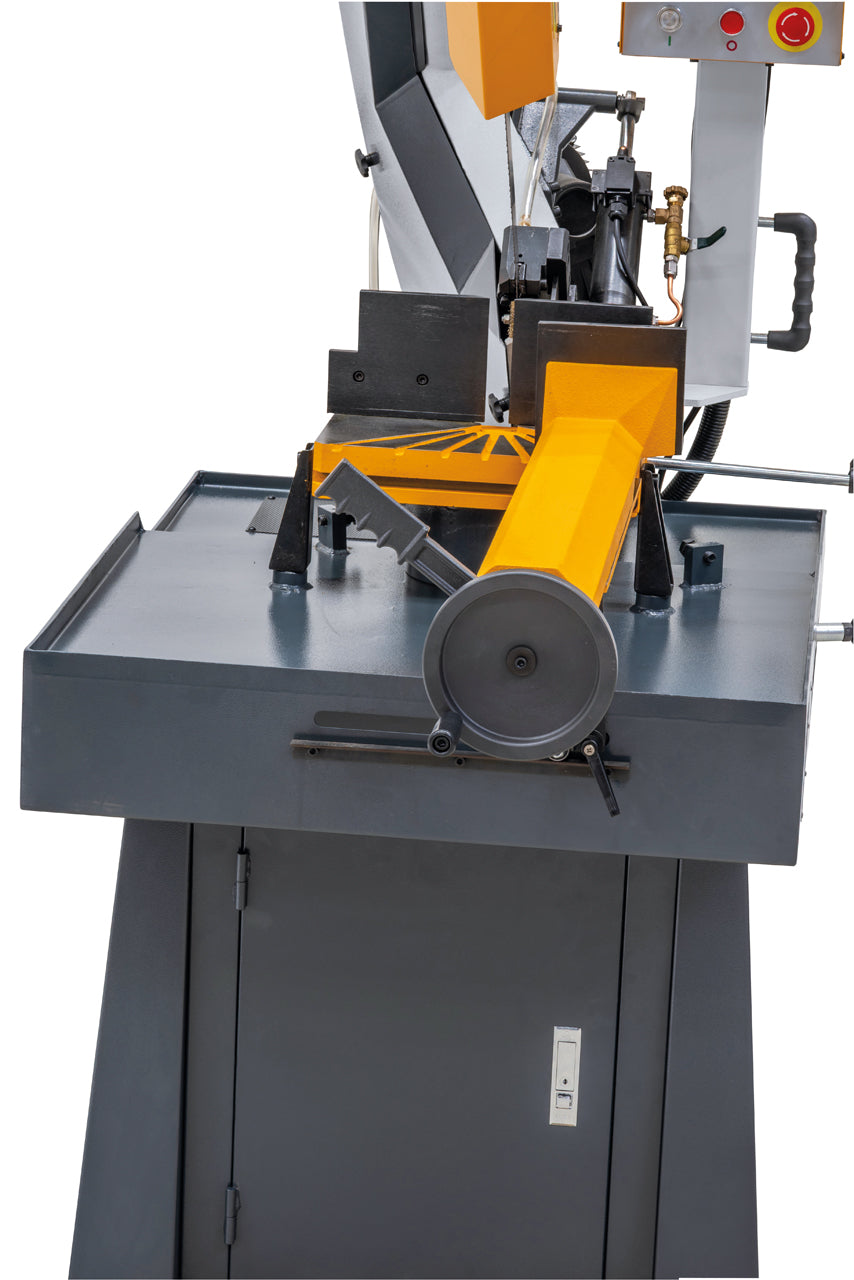

Robust cast iron vice with workpiece stop, ideal for series cuts

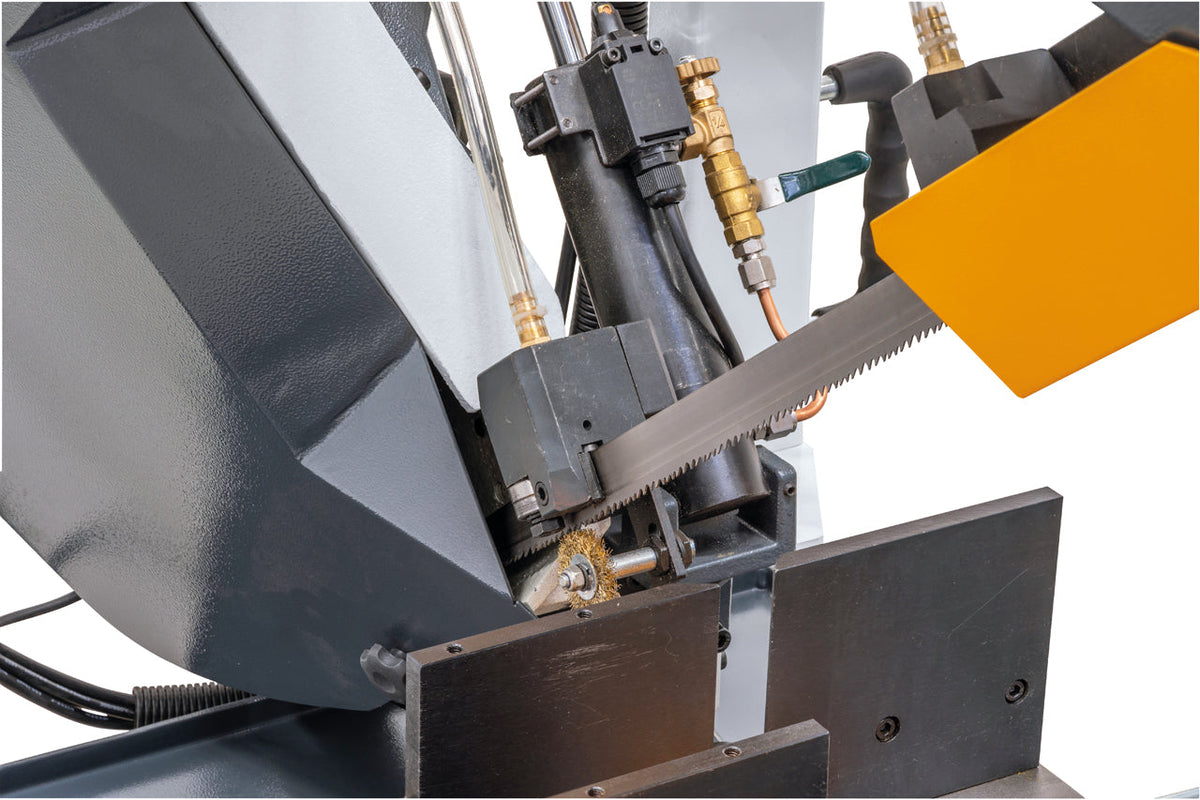

Saw blade guide with quick adjustment to adapt to workpiece width
guarantees optimal working results
Robust construction, therefore smooth and vibration-free running
| Schnittbereich rund 90° | 250 mm |
| Schnittbereich quadrat 90° | 250 x 250 mm |
| Schnittbereich flach 90° | 320 x 195 mm |
| Schnittbereich rund 45° | 190 mm |
| Schnittbereich quadrat 45° | 155 x 155 mm |
| Schnittbereich rund 60° | 130 mm |
| Schnittbereich quadrat 60° | 125 x 125 mm |
| Arbeitshöhe | 970 mm |
| Sägebandabmessung | 2680 x 27 x 0,9 mm |
| Schnittgeschwindigkeiten | 37,5 / 75 m/min |

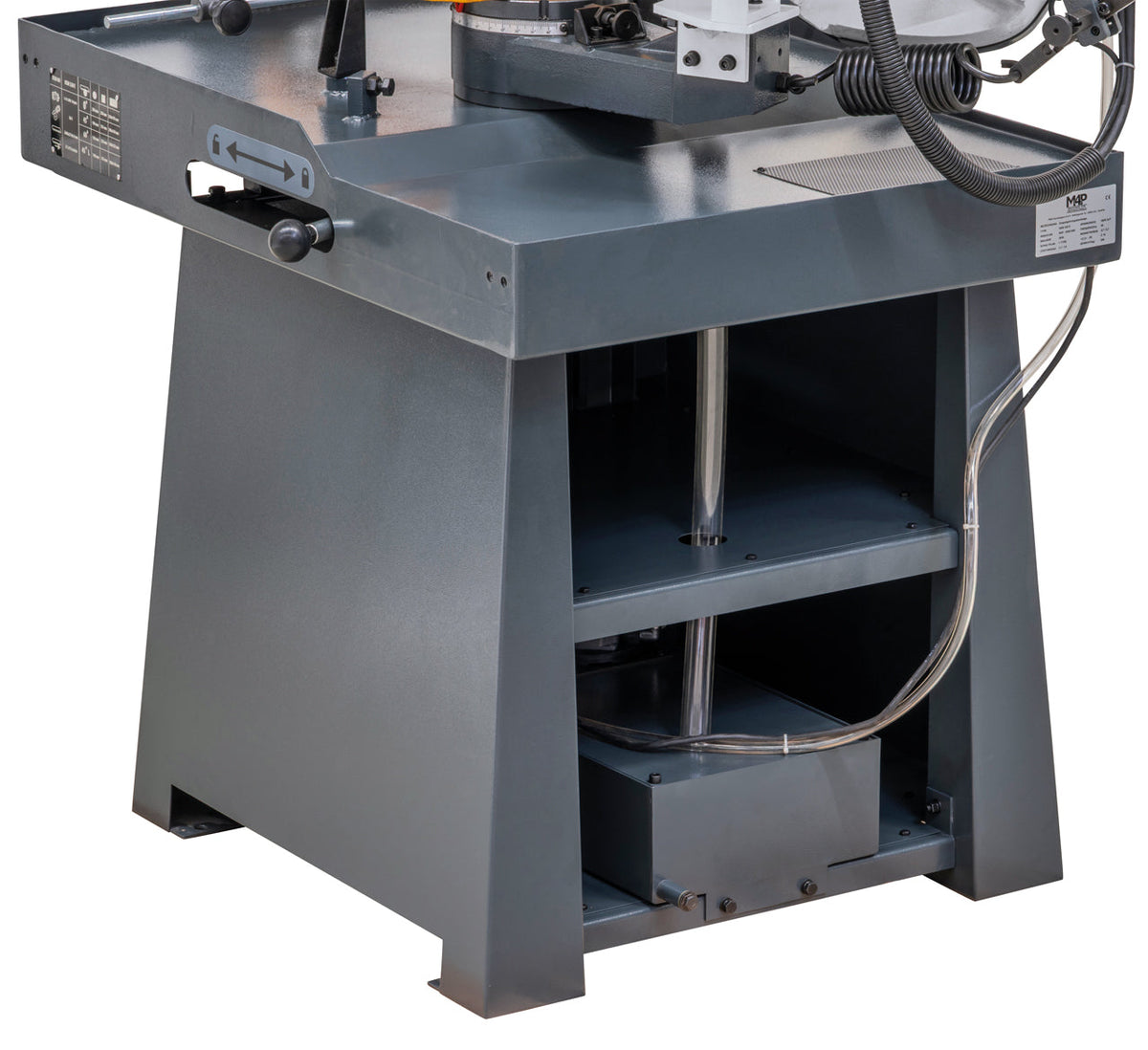

| Kühlmittelpumpe | 45 W |
| Motor-Abgabeleistung S1 100% | 1,1 / 1,5 kW |
| Motor-Aufnahmeleistung S6 40% | 1,5 / 2,2 kW |
| Spannung | 400 V |
| Maschinenabmessung (L x T x H) | 1550 x 570 x 1490 mm |
| Gewicht ca. | 268 kg |
