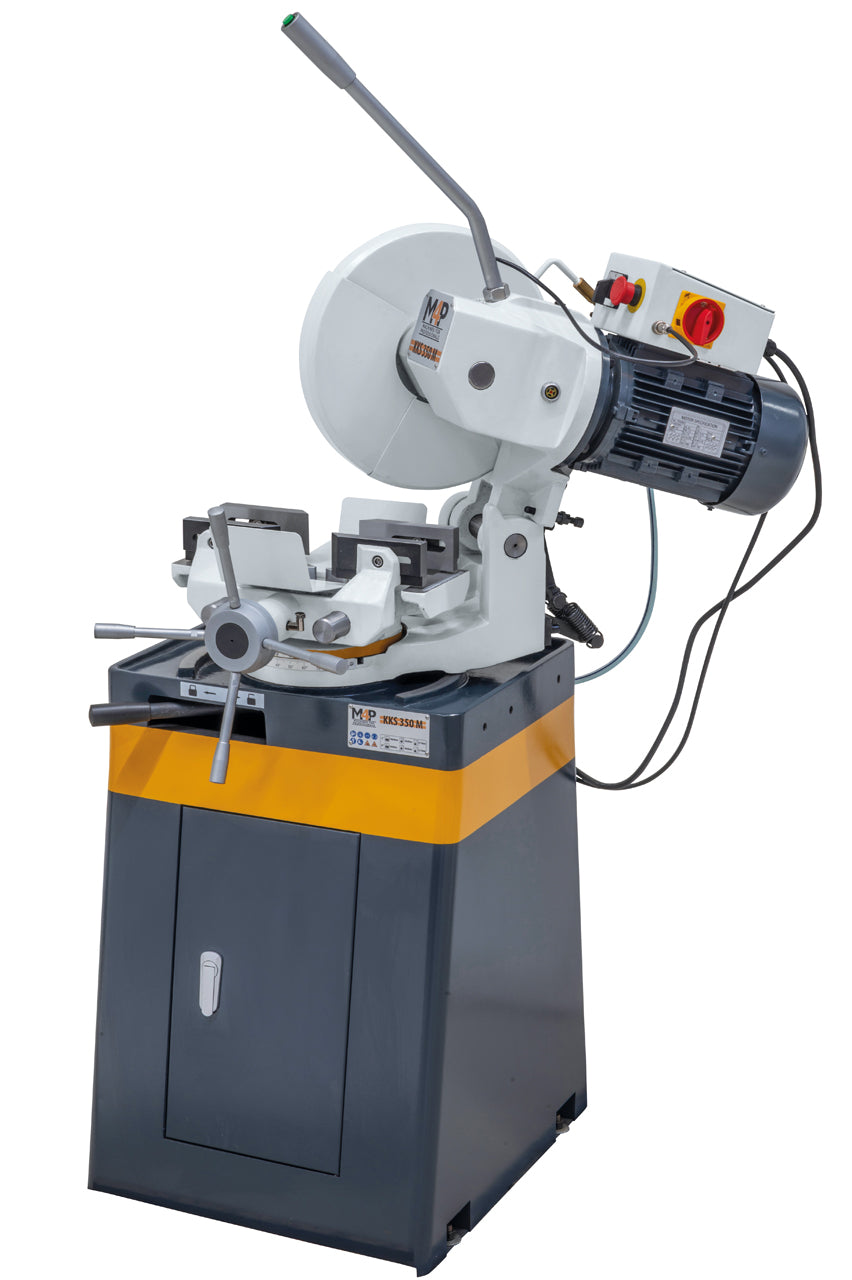

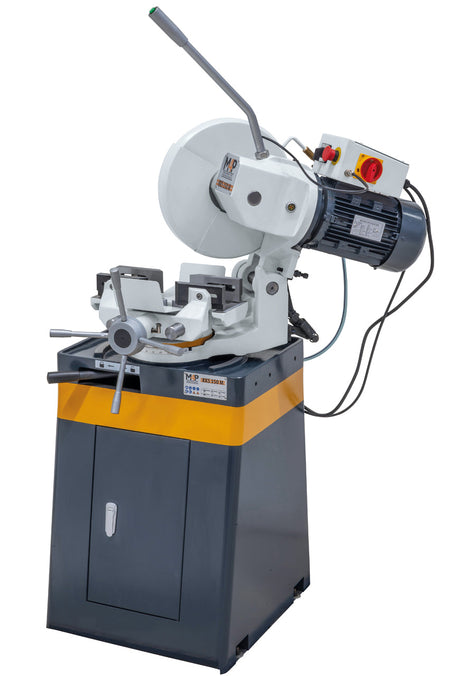

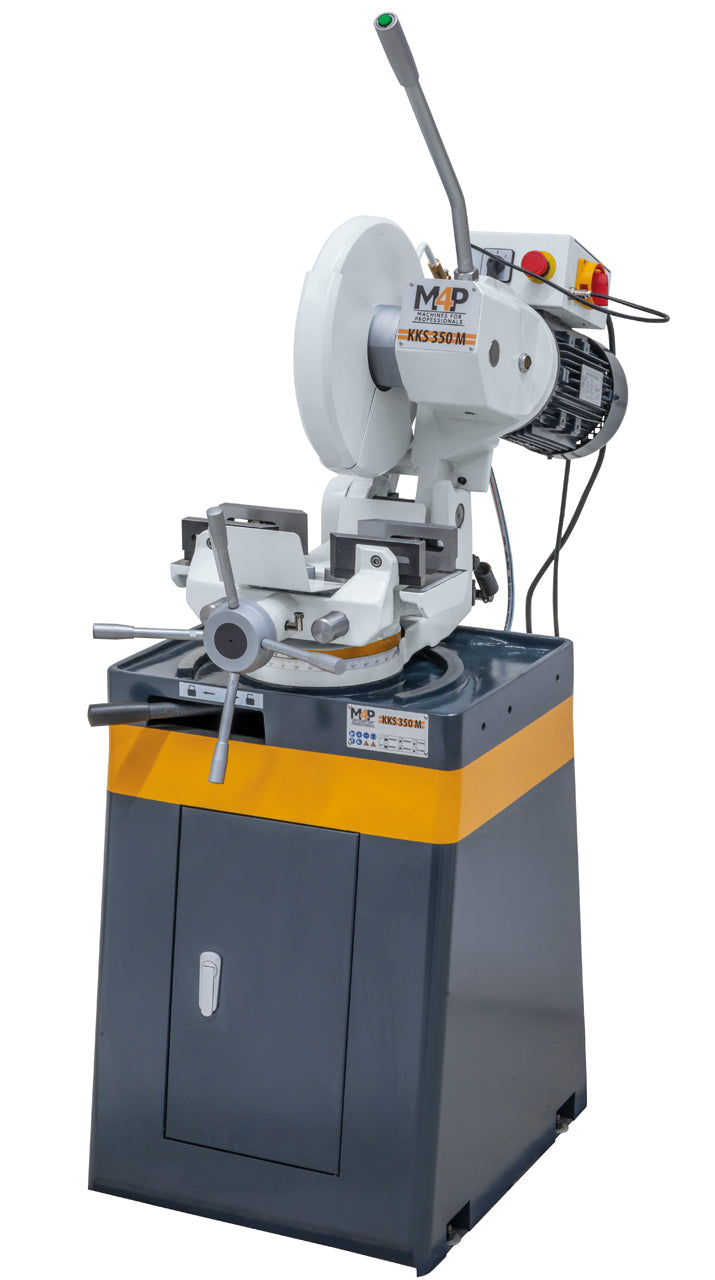

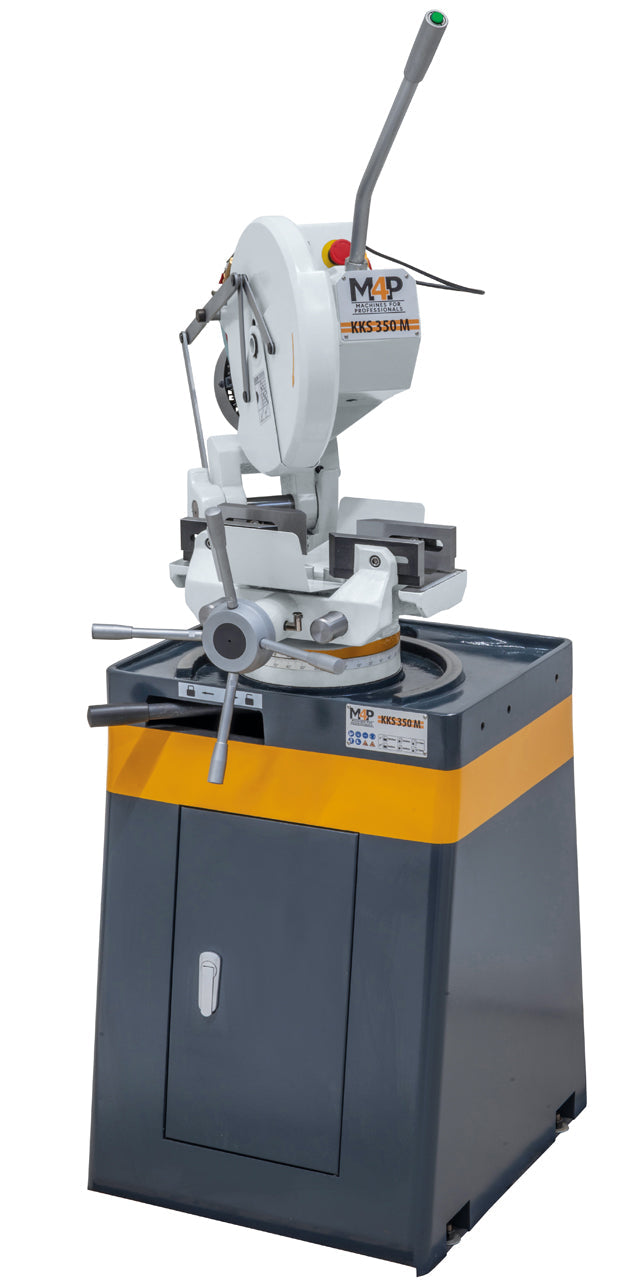

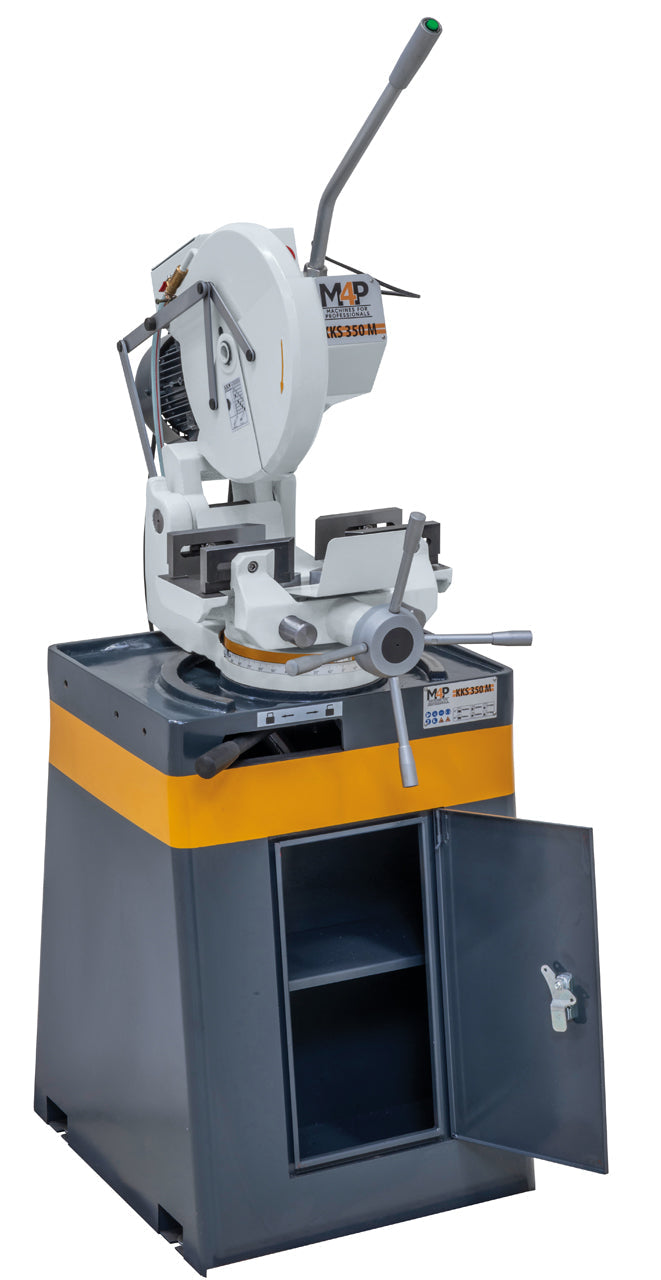

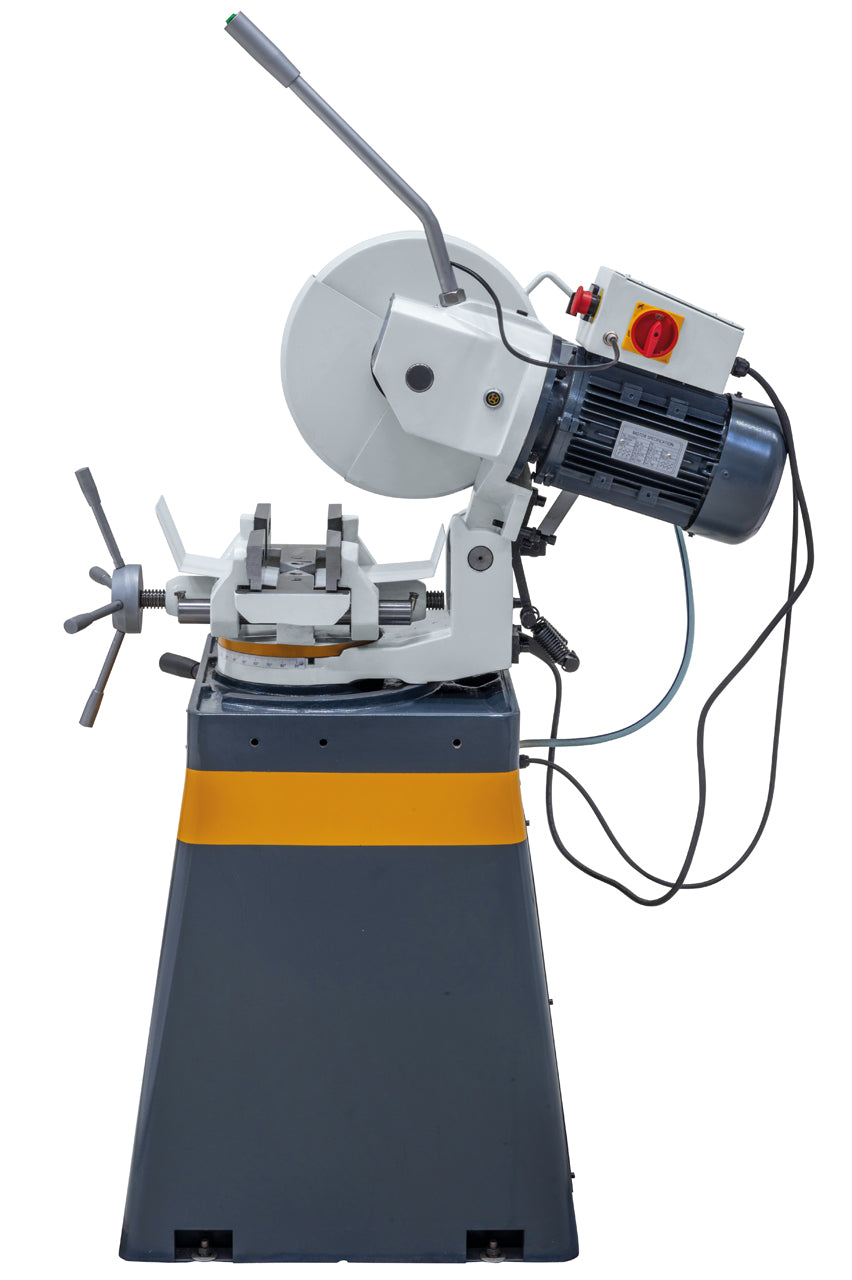

Thanks to its 2 cutting speeds, the KKS 350 M manual circular metal saw is ideally suited for sawing profiles, pipes, and solid materials made of iron, stainless steel, and non-ferrous metals. Its robust design, precise cutting results, and simple operation make this machine indispensable in metalworking shops.

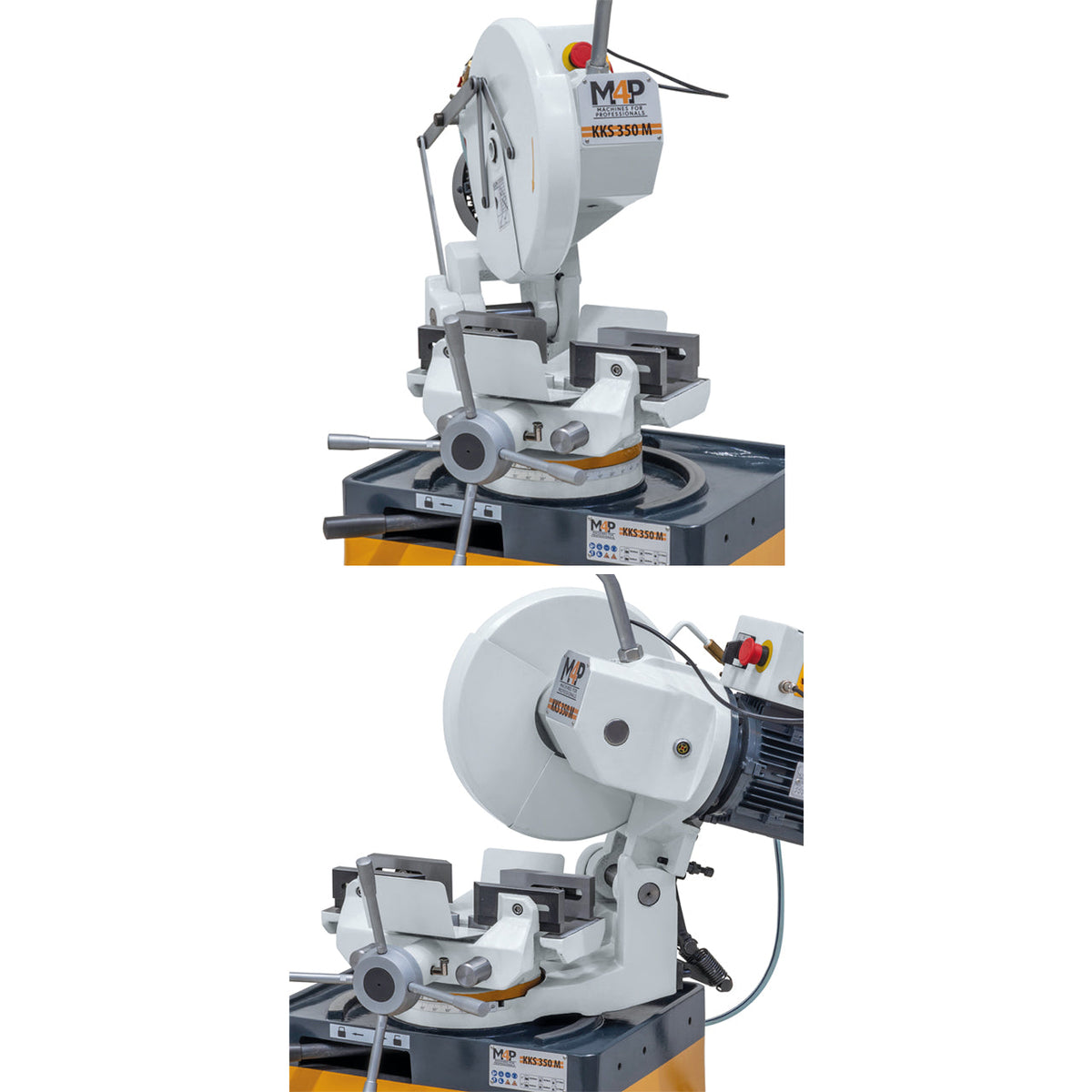

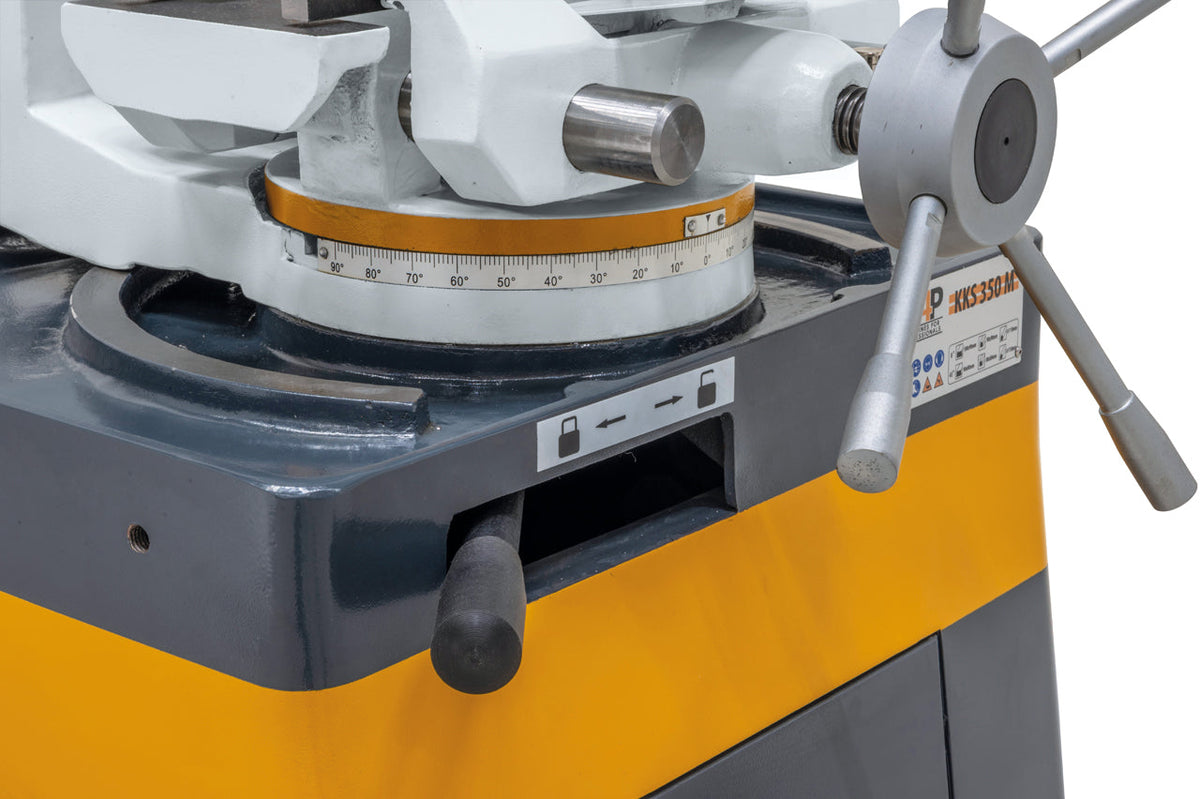

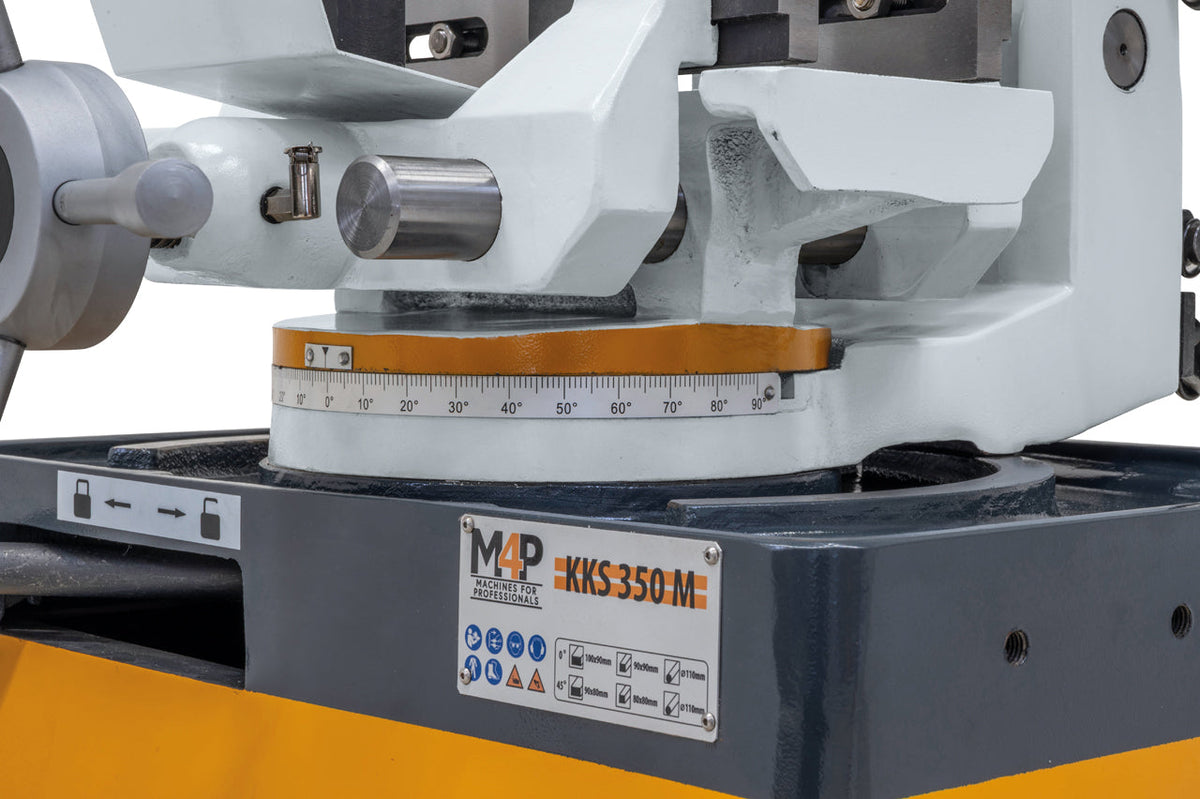

Gear head can be swiveled 90° to the right and left for slotting work

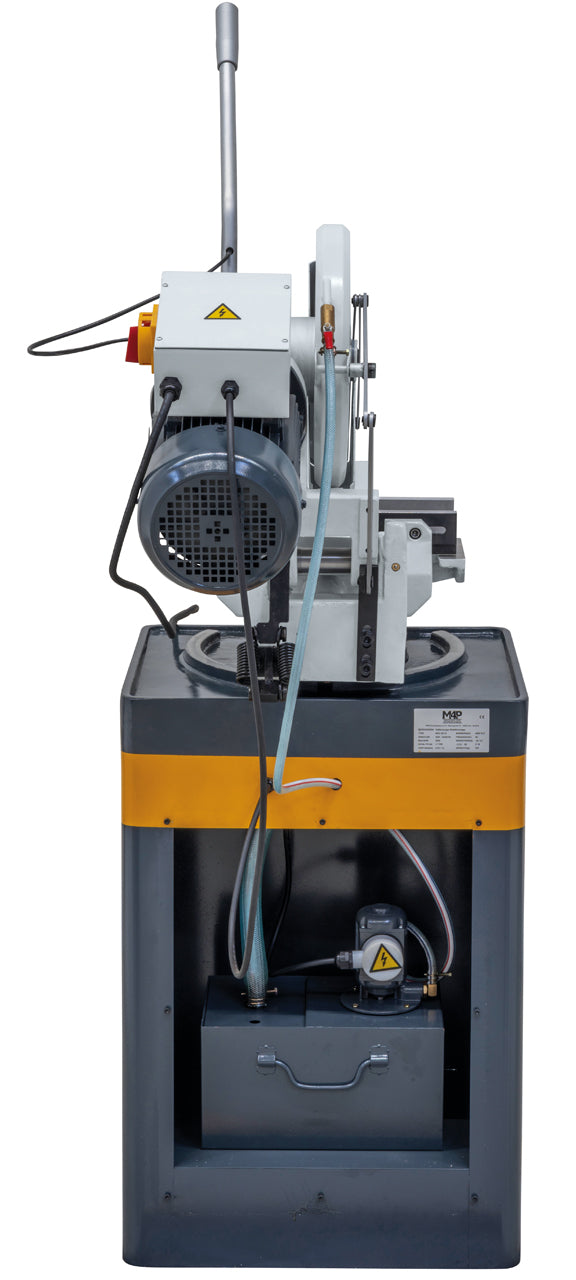

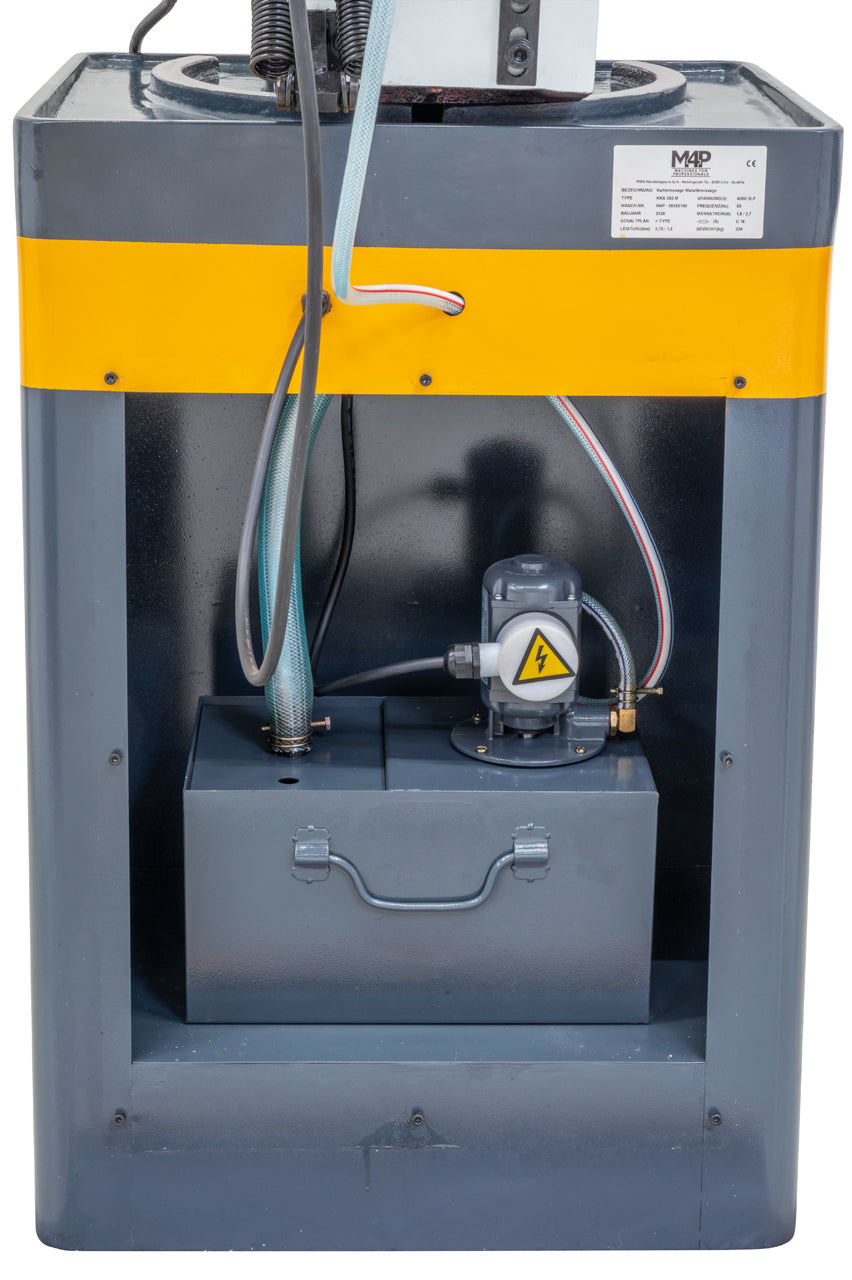

Removable coolant tank integrated into the robust base frame
Gearbox with hardened and ground worm shaft and bronze worm gear
Safety guard opens automatically during cutting

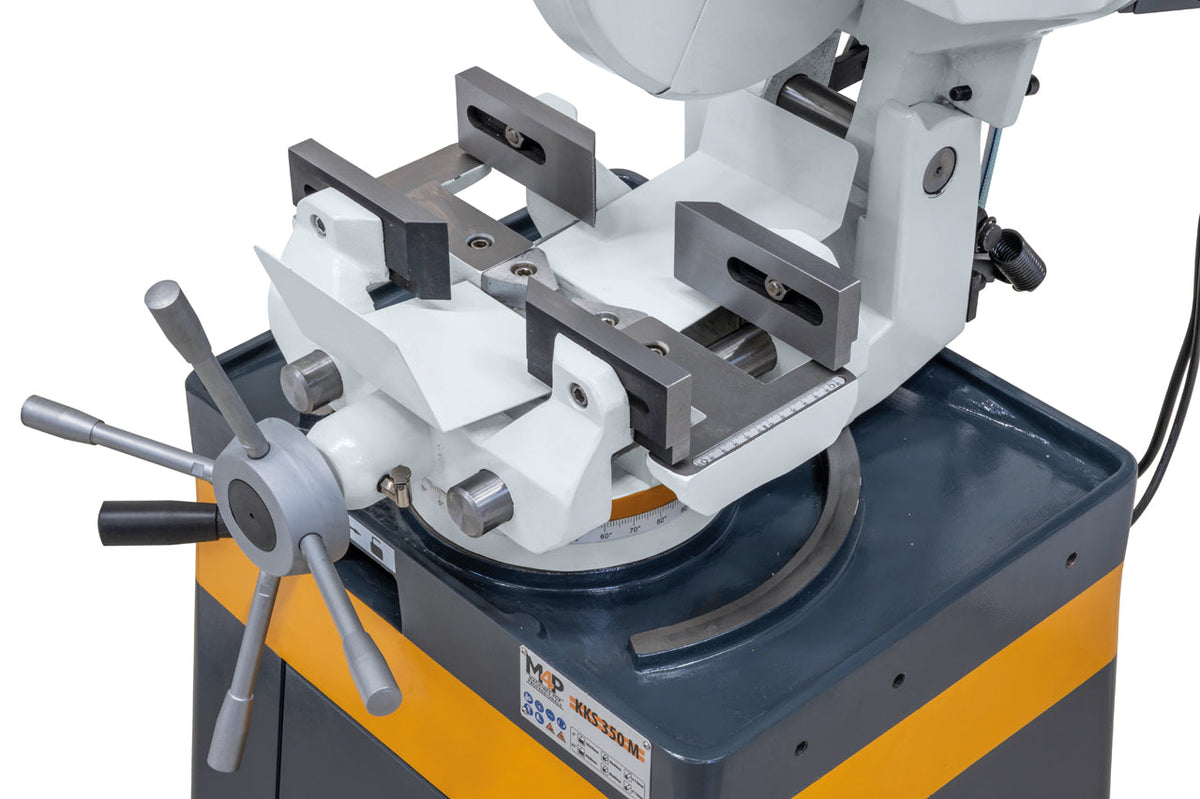

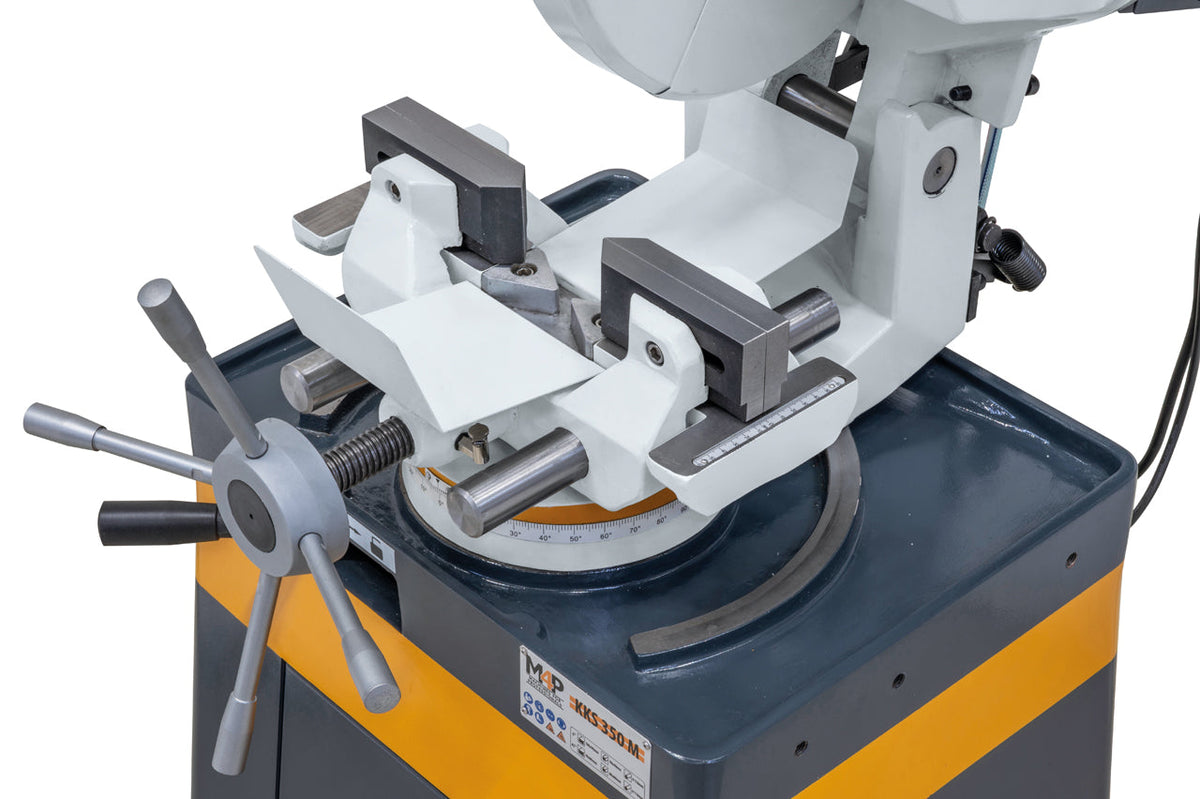

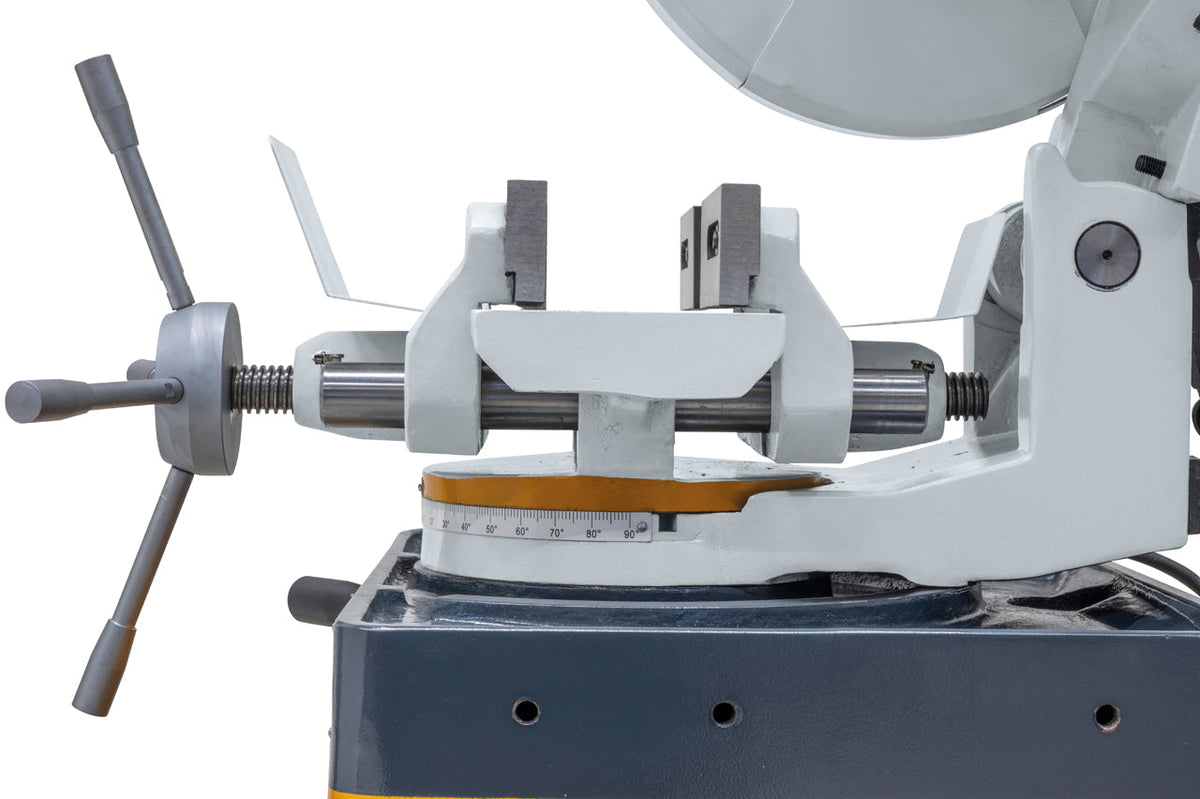

Precise, 4-way guided, self-centering double clamping vice

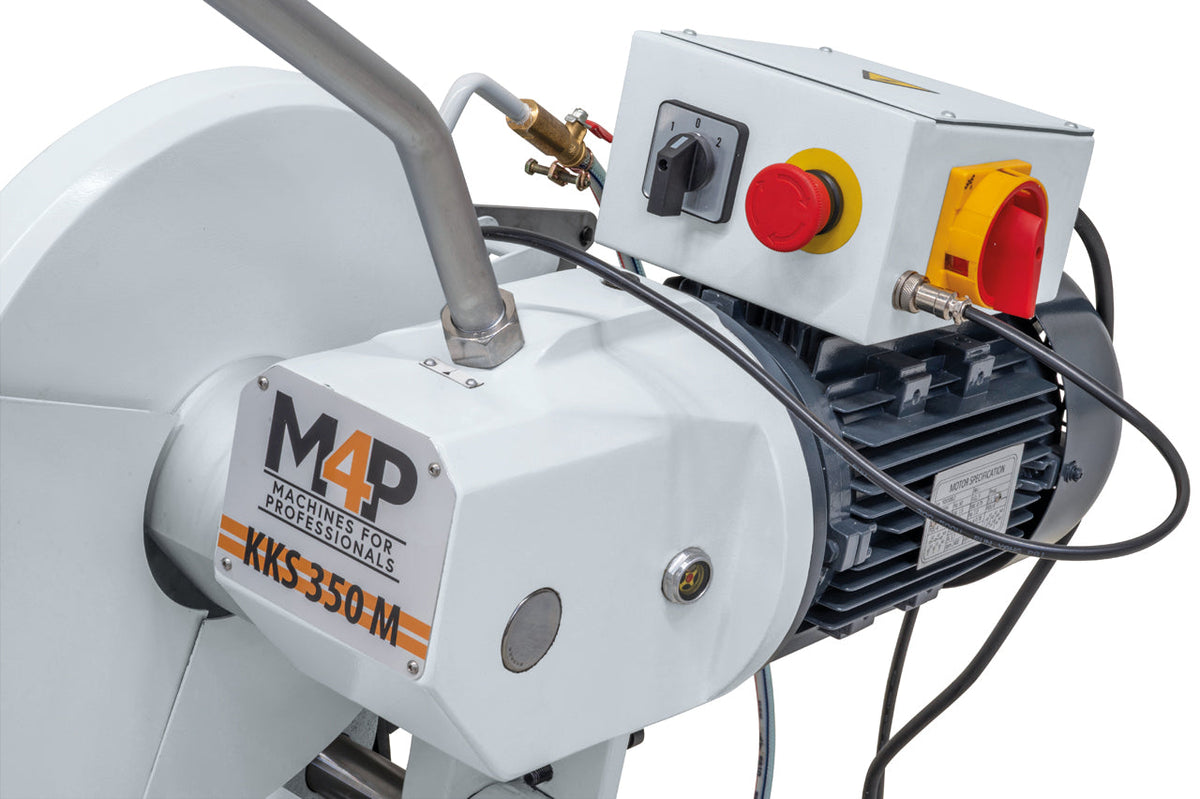

Ergonomically shaped handle with push-button for fatigue-free sawing
Low saw blade speed (19 / 38 rpm) optimal for cutting solid materials
Reduction gear runs quietly in an oil bath
| Sägeblattabmessung | 350 x 40 mm |
| Drehzahl | 19 / 38 U/min |
| Spannstock geöffnet max. | 155 mm |
| Arbeitshöhe | 920 mm |

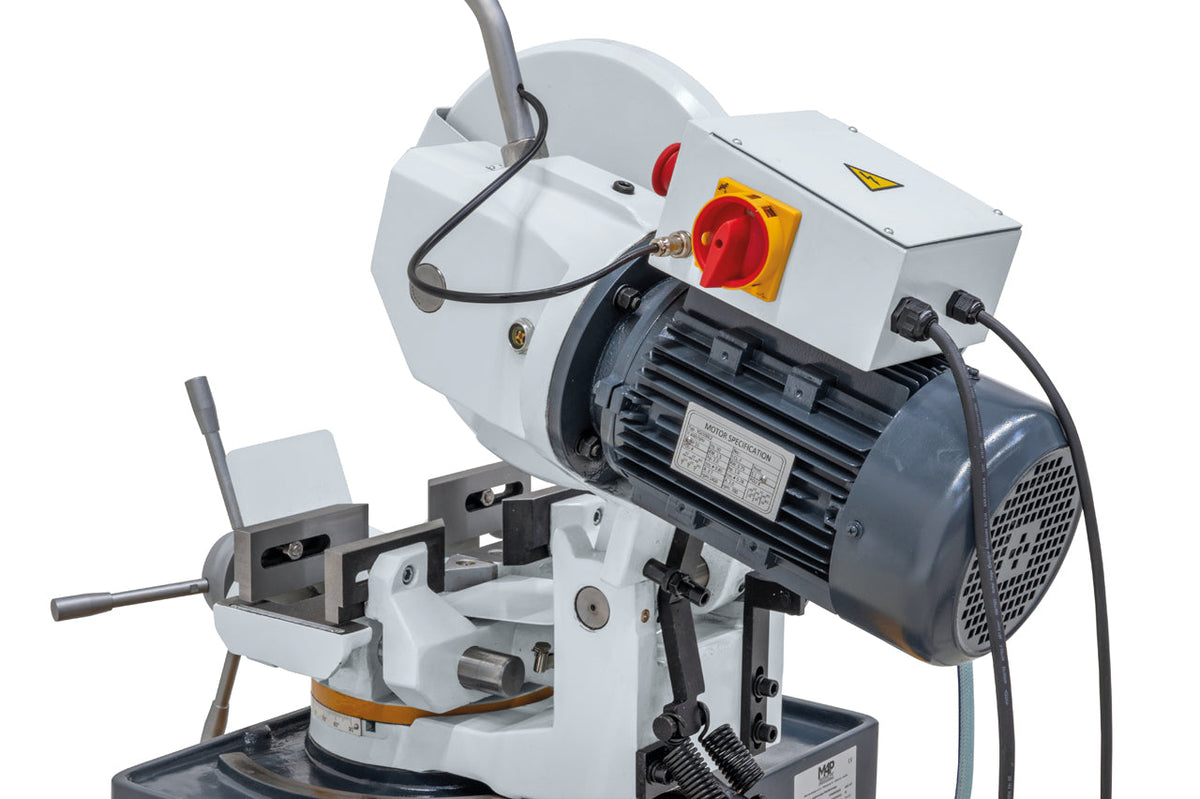

| Motor-Abgabeleistung S1 100% | 0,75 / 1,5 kW |
| Motor-Aufnahmeleistung S6 40% | 1,0 / 2,1 kW |
| Spannung | 400 V |
| Maschinenabmessung (B x T x H) | 550 x 1000 x 1680 mm |
| Gewicht ca. | 218 kg |
| Vollmaterial – rund | Rohr – rund | Formrohr – quadratisch | Vollmaterial – quadratisch | Formrohr – rechteckig | Vollmaterial – rechteckig | |
|---|---|---|---|---|---|---|
| 90° | 110 mm | 110 mm | 90 x 90 mm | 90 x 90 mm | 100 x 90 mm | 100 x 90 mm |
| 45° | 110 mm | 110 mm | 80 x 80 mm | 80 x 80 mm | 90 x 80 mm | 90 x 80 mm |
