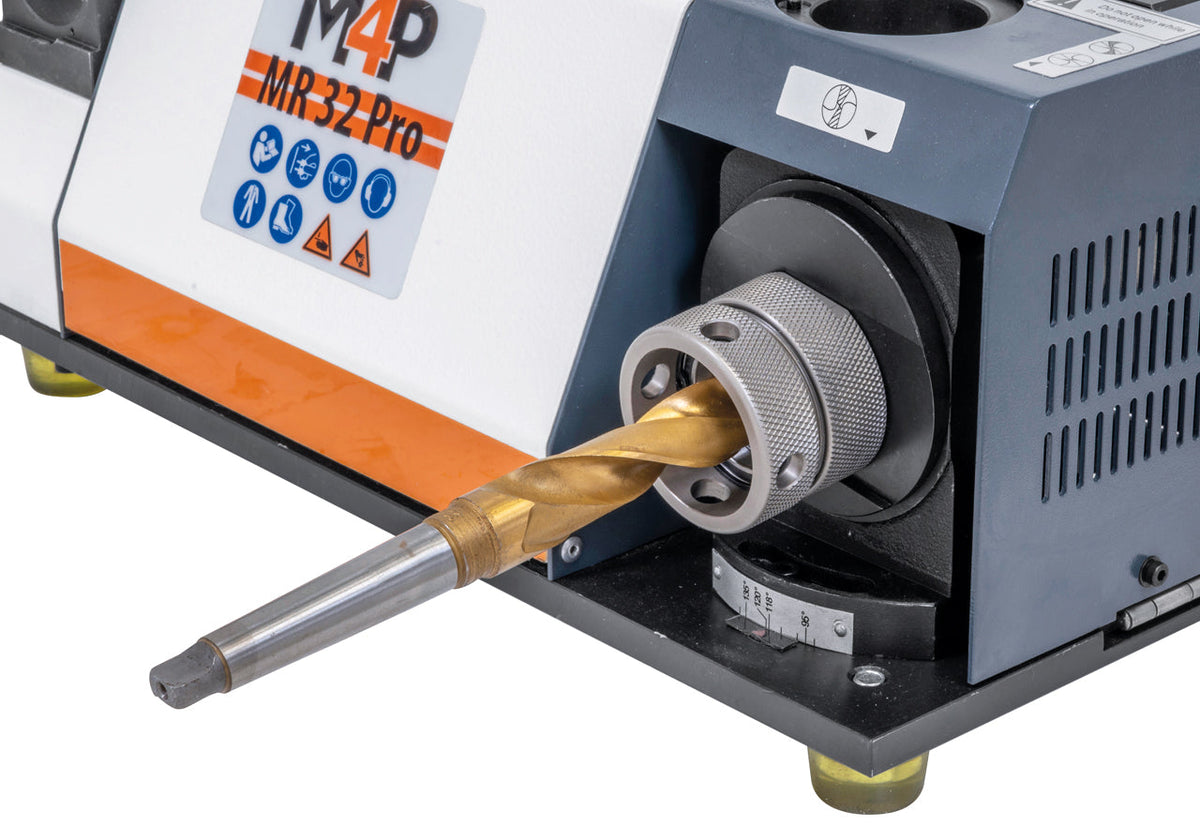

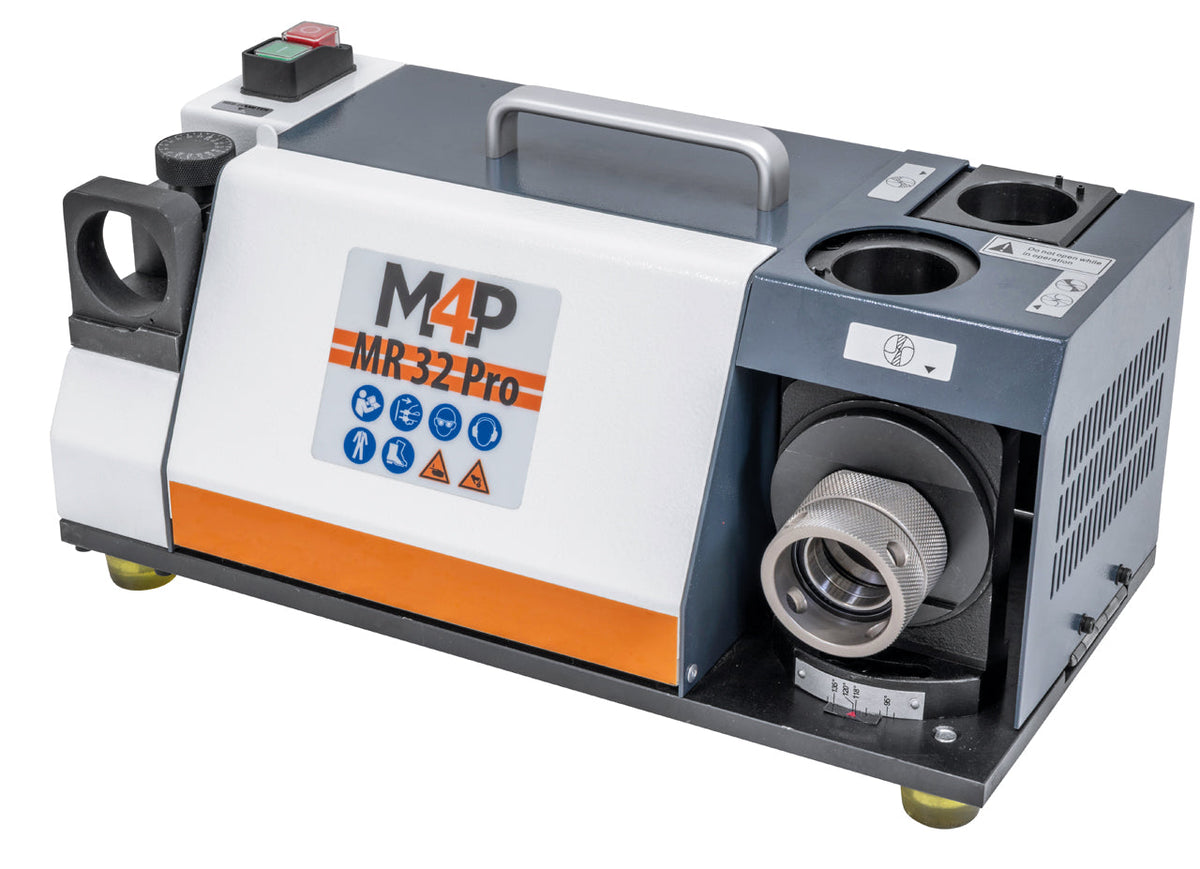

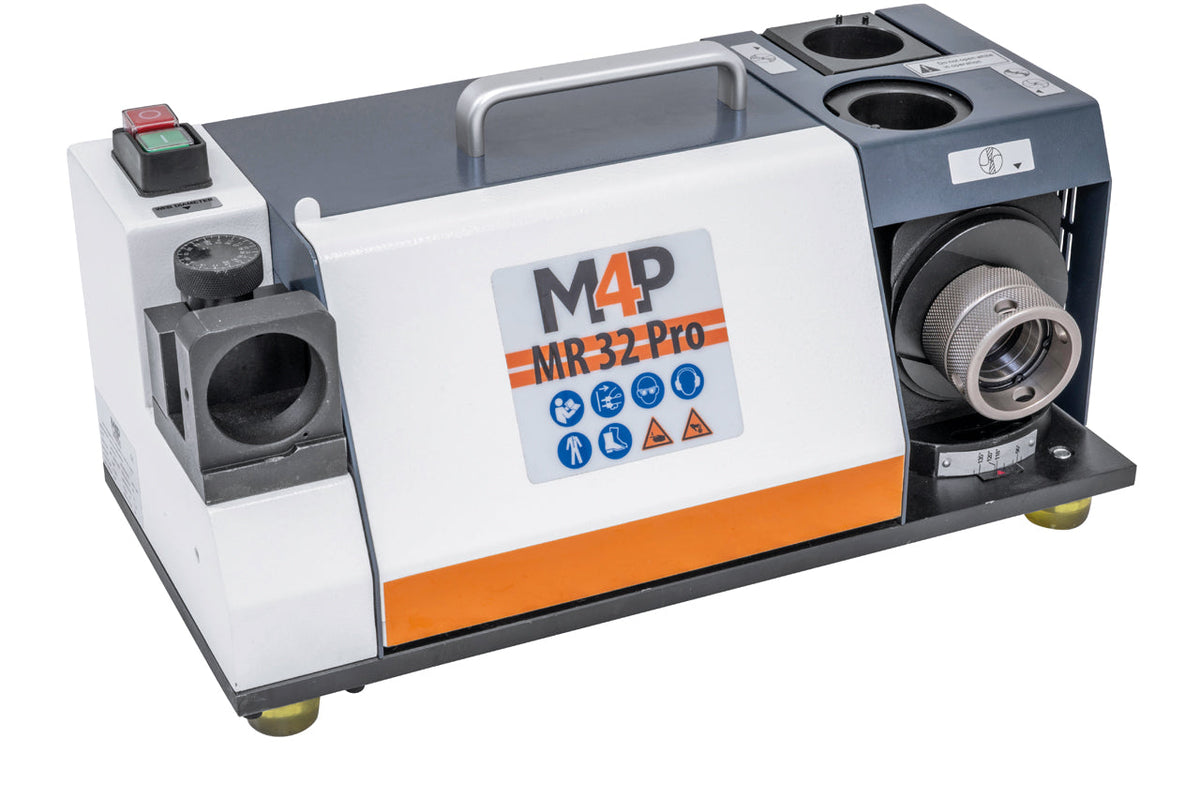

The MR 32 Pro drill bit grinder is suitable for all common 2-flute twist drills made of HSS, cobalt, or carbide and the like from 8 – 32 mm. The advantage of this model is the possibility of back grinding the cutting edges, which ensures a perfect drilling result.

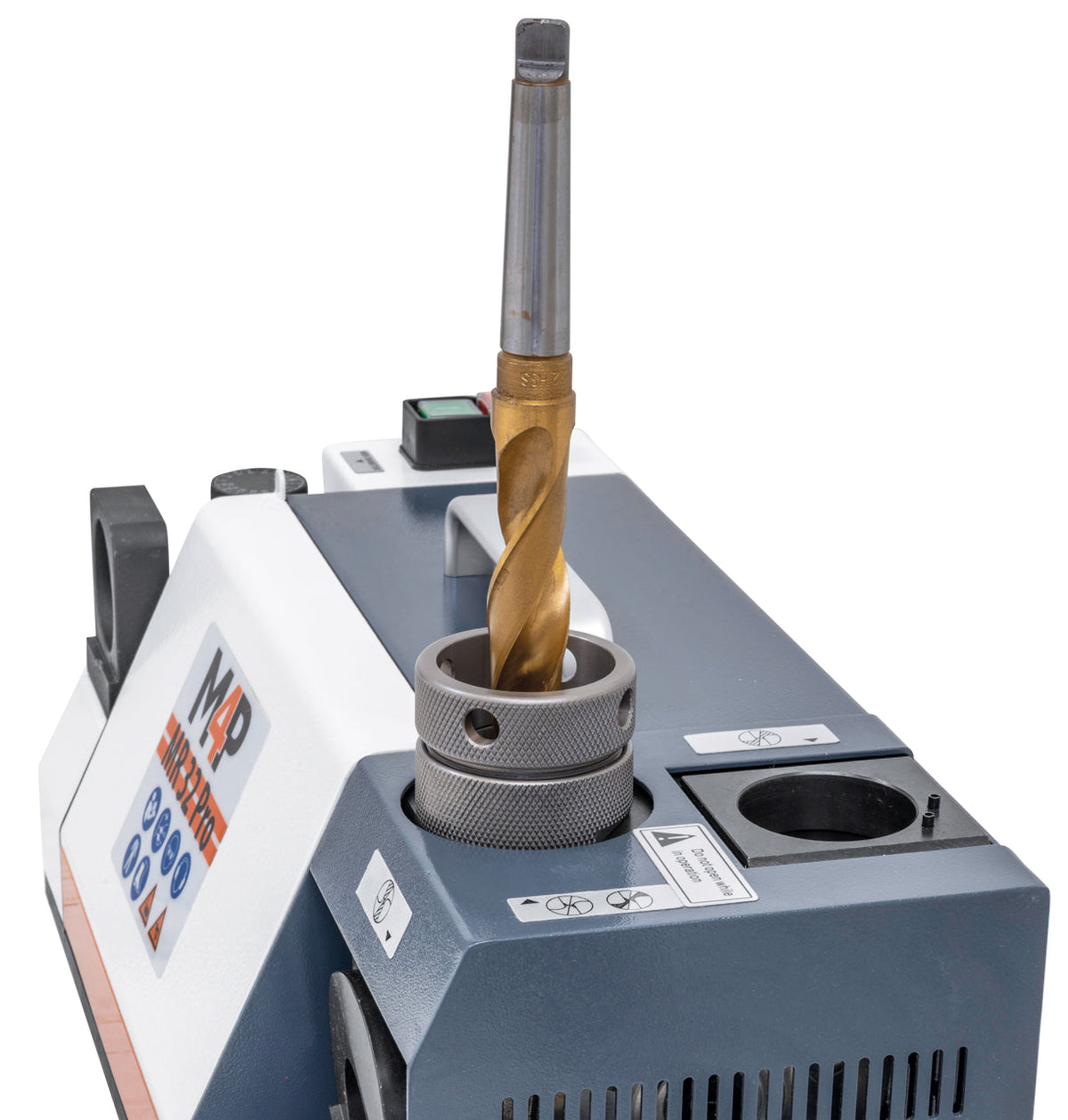

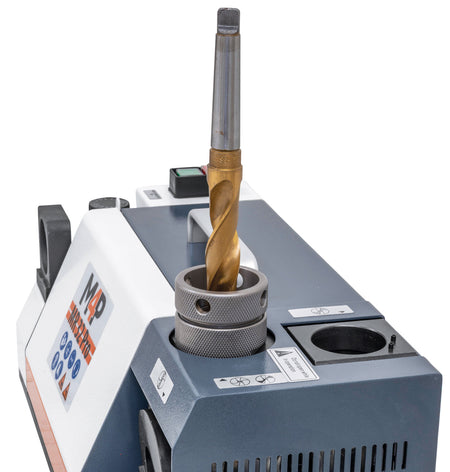

Includes a point splitting device, which allows for better centering of the drill bit tip on the workpiece
and reduces the necessary feed force

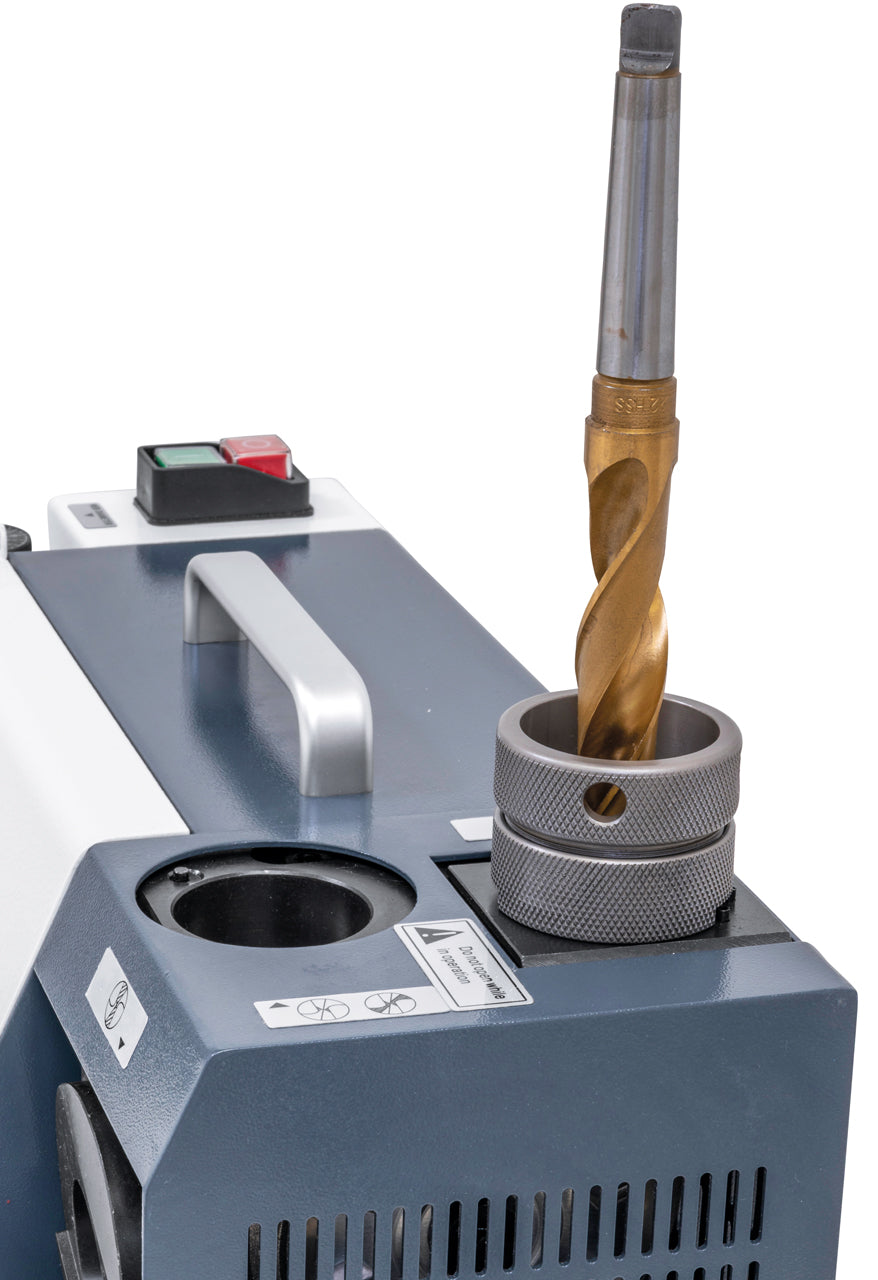

Additional station for back grinding the drill bit cutting edges (clearance angle)

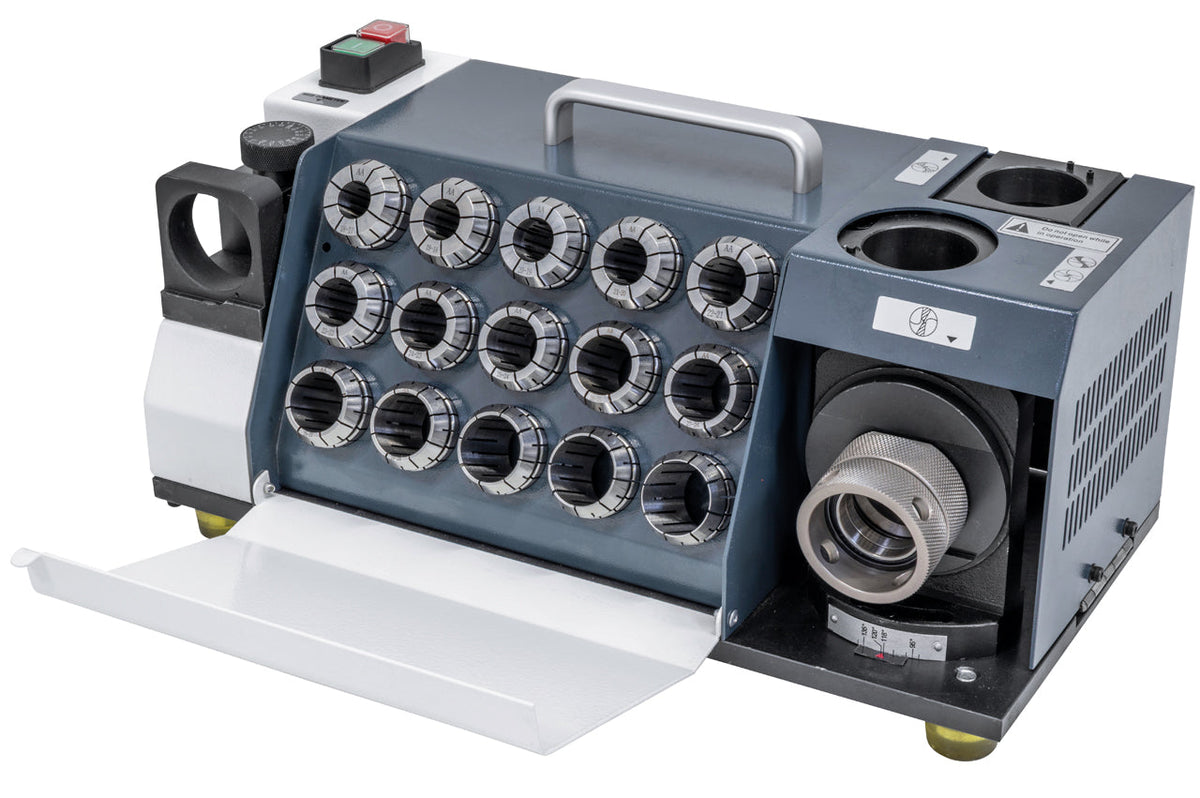

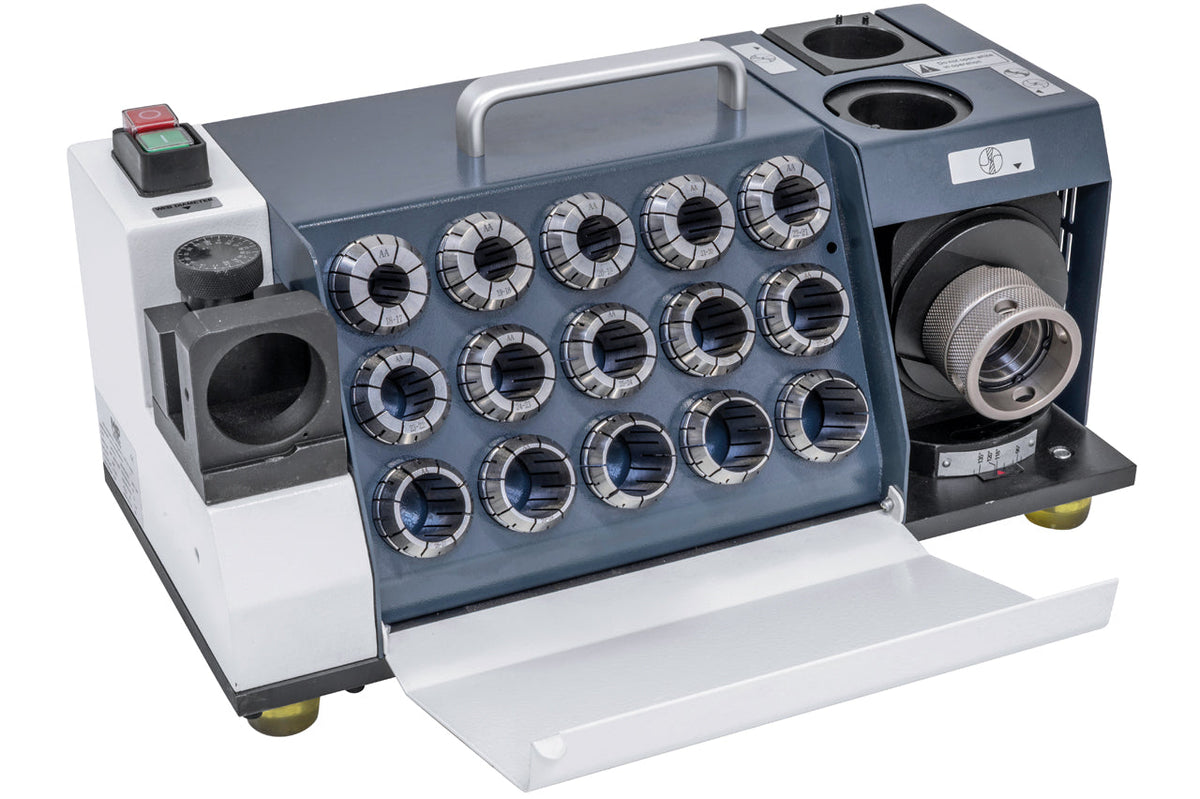

20 pcs. ER 40 collets included, which are also suitable for clamping intermediate sizes
For grinding HSS, carbide, or TiN-coated twist drills from 8 – 32 mm

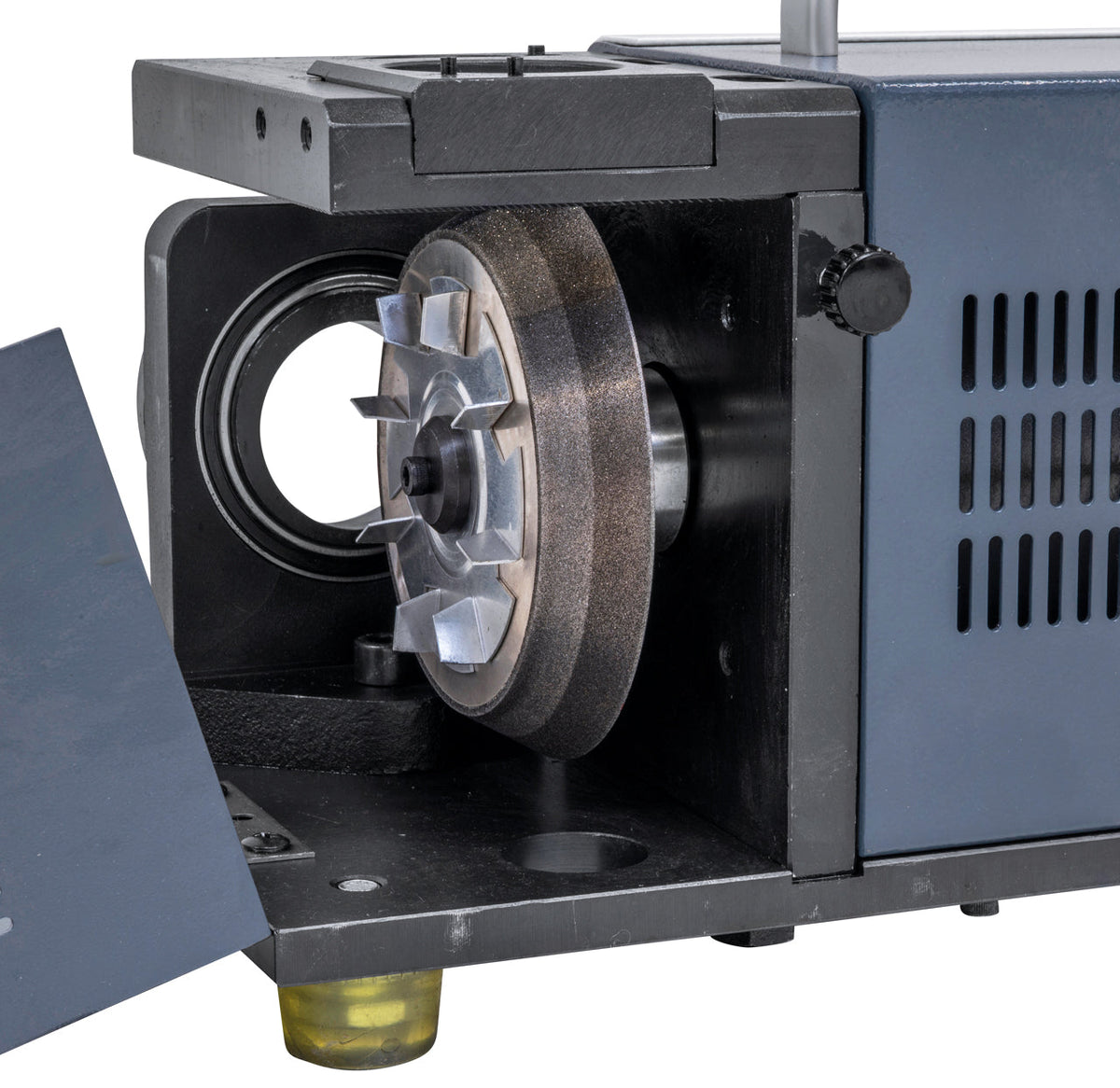

Rotor with precision ball bearing ensures high running smoothness
Vibration-free operation due to high dead weight and rubber feet
Point angle adjustable for all common twist drills
| Bohrerdurchmesser | 12 - 32 mm |
| Spitzenwinkel | 90° - 135° |
| Drehzahl | 4800 /min |
| Motorleistung | 0,25 kW |
| Spannung | 230 V |
| Länge | 440 mm |
| Breite | 220 mm |
| Höhe | 235 mm |
| Gewicht ca. | 25,5 kg |
