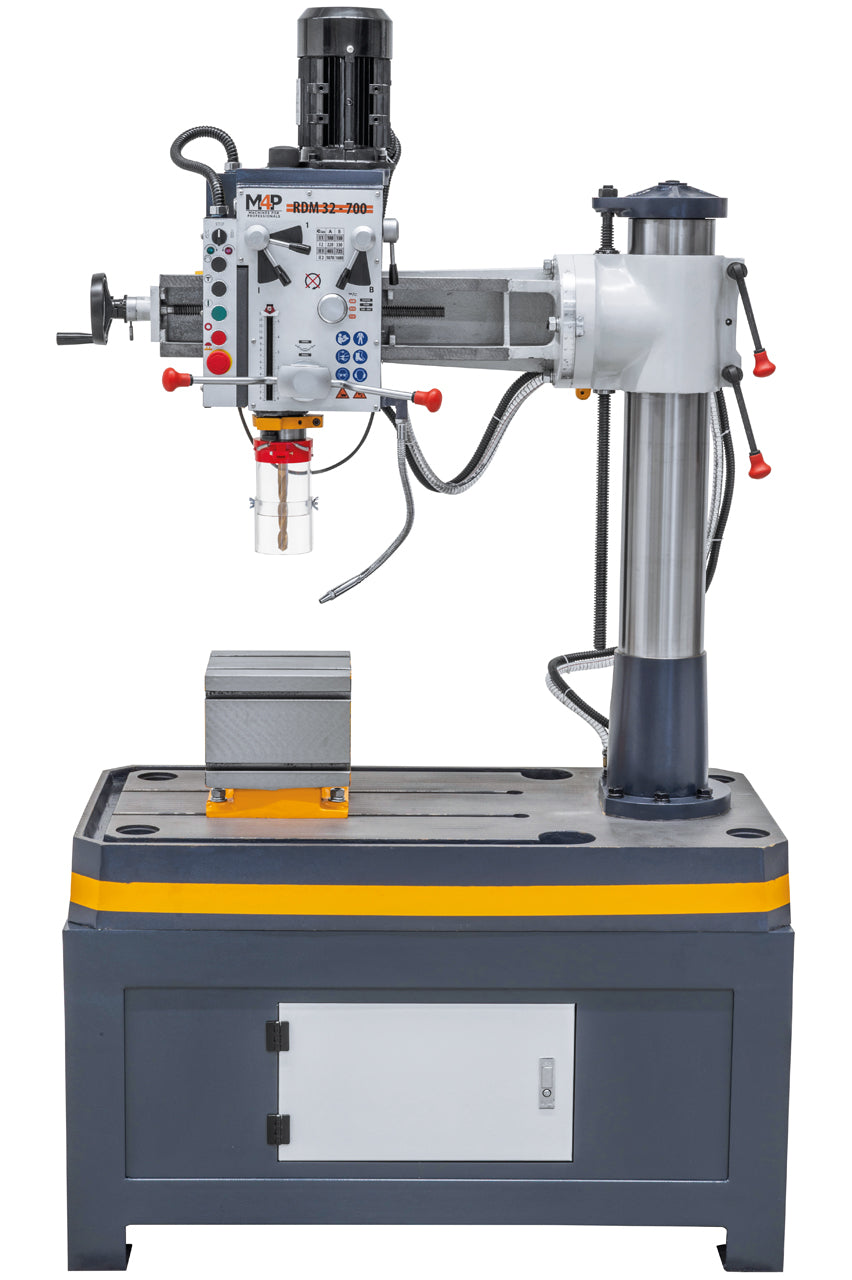

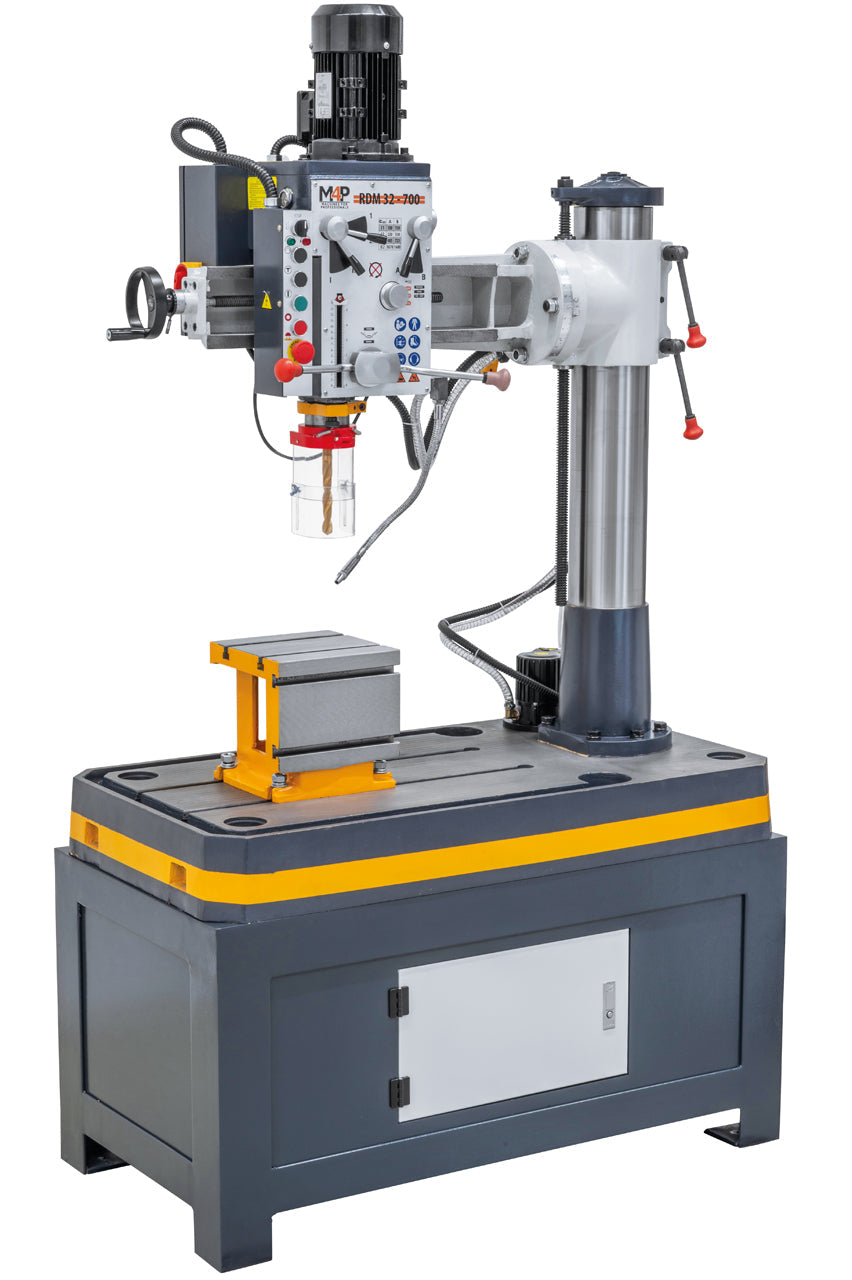

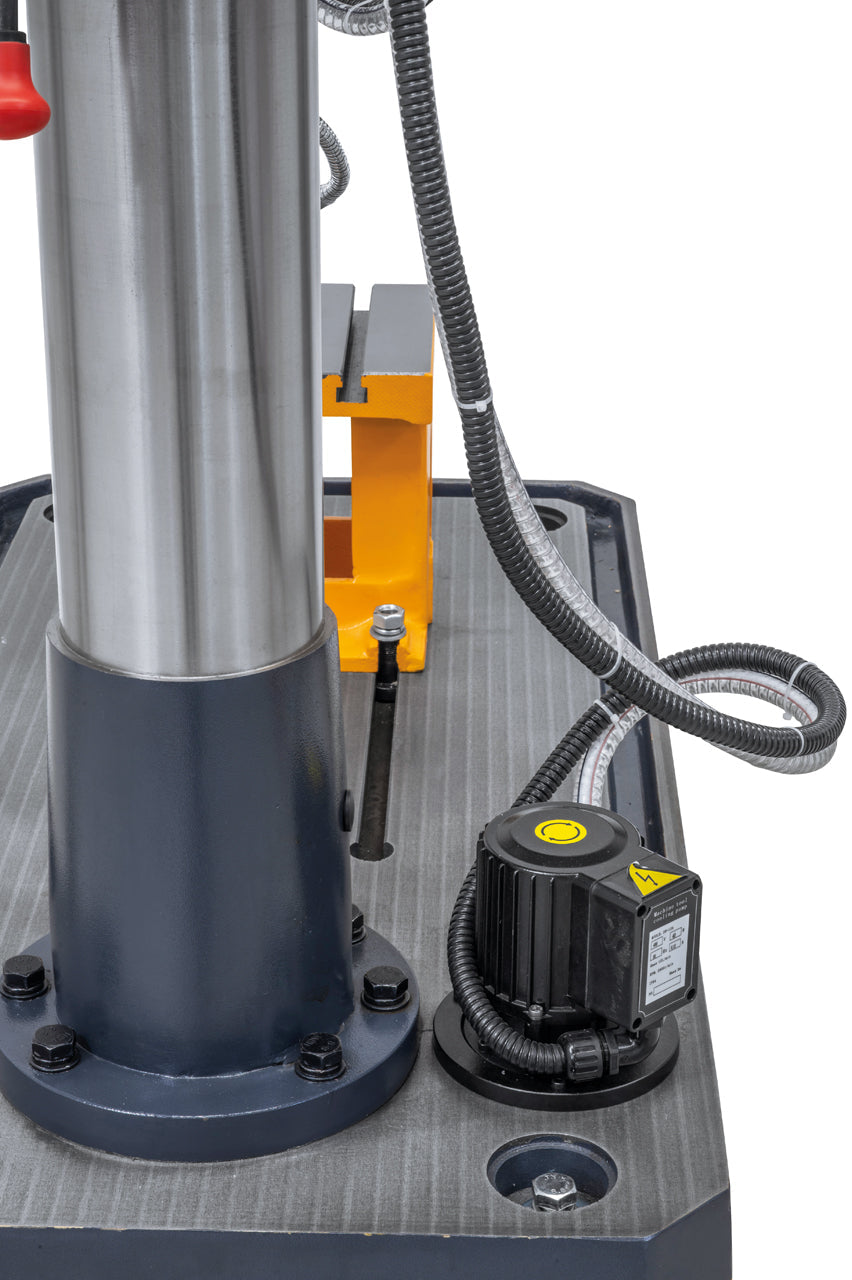

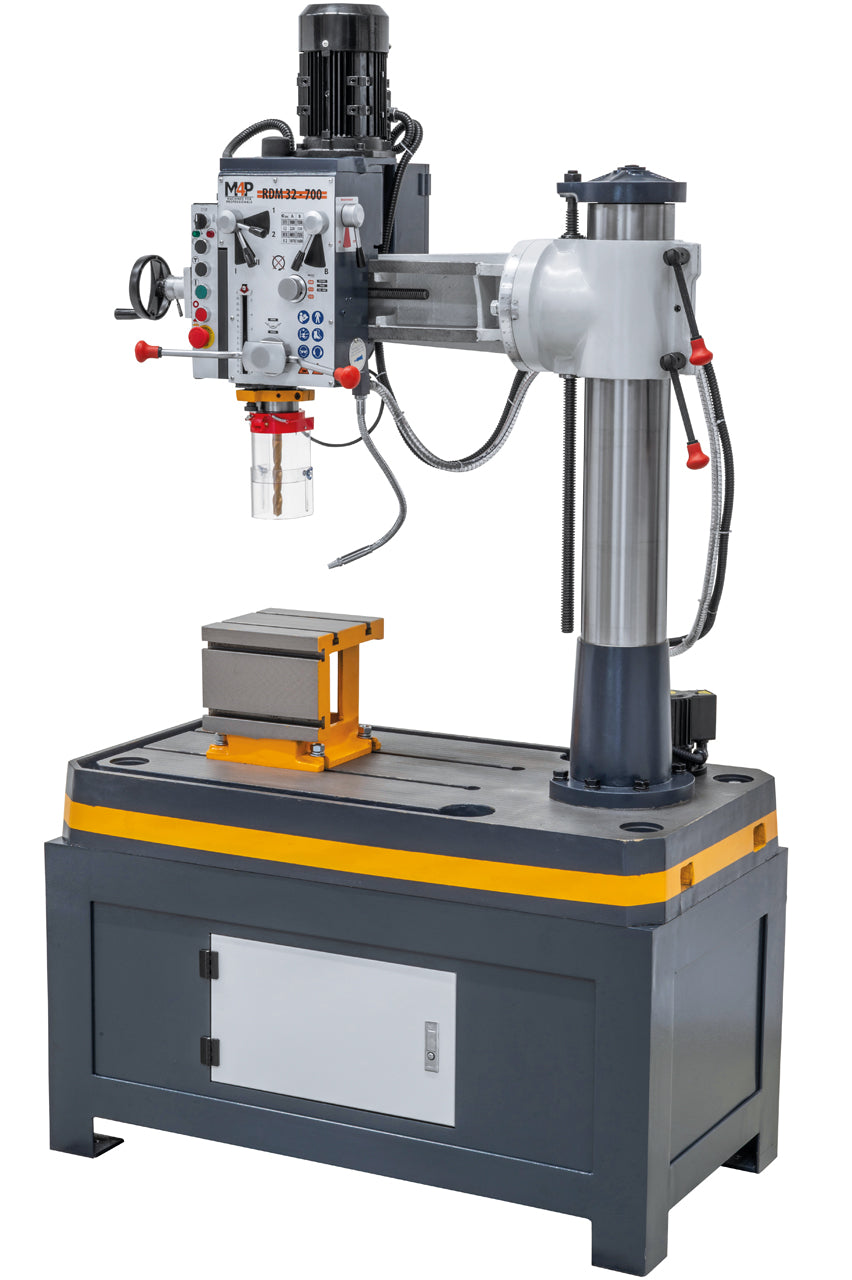

The top-equipped RDM 32 - 700 radial drilling machine already includes extensive accessories in its basic configuration, such as a thread-cutting device, 3 automatic drilling feeds, a cube table, a swiveling boom arm, and a coolant system, thus offering an optimal performance package for a low investment.
Ground base plate with T-slots for clamping tall workpieces

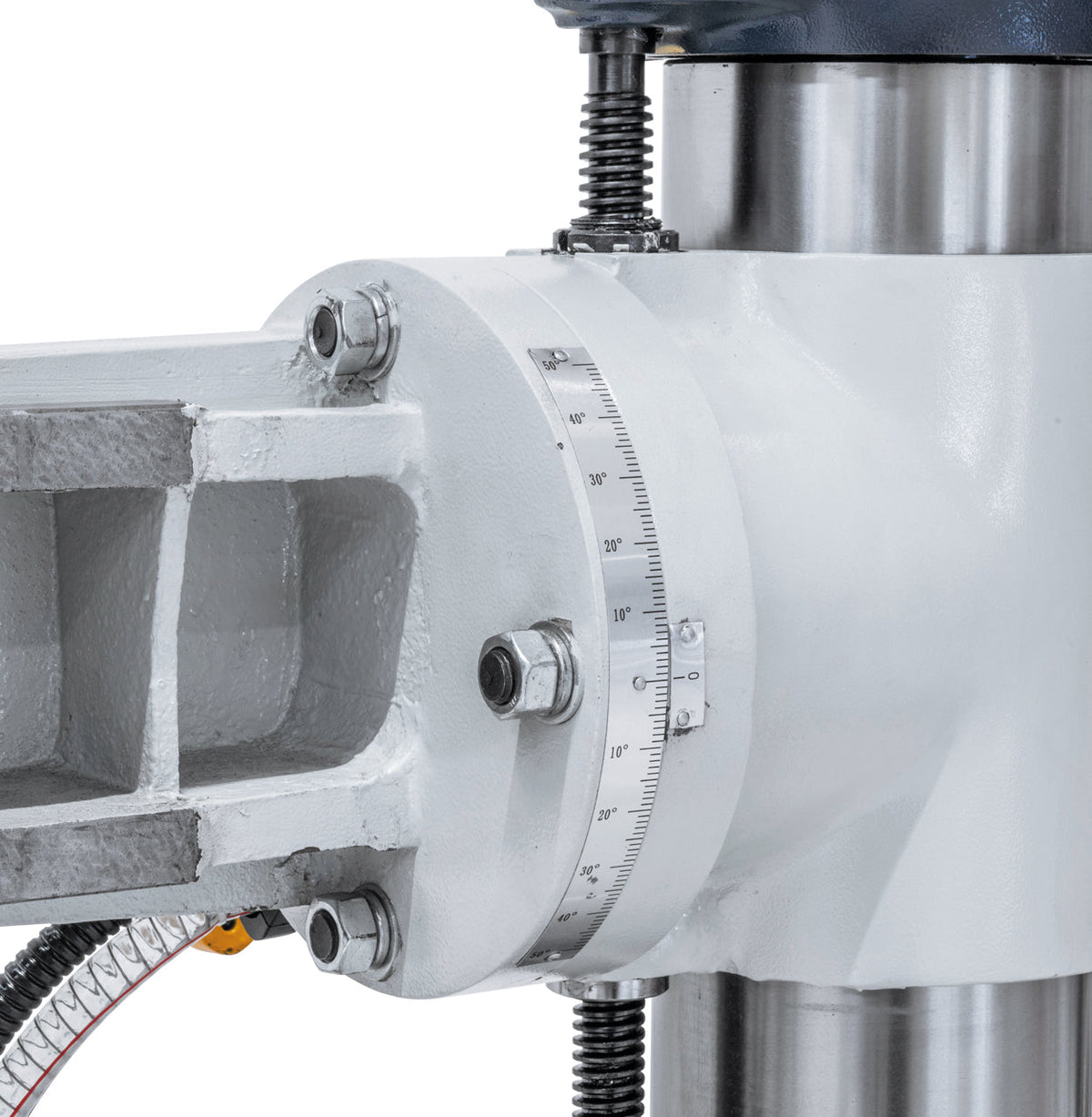

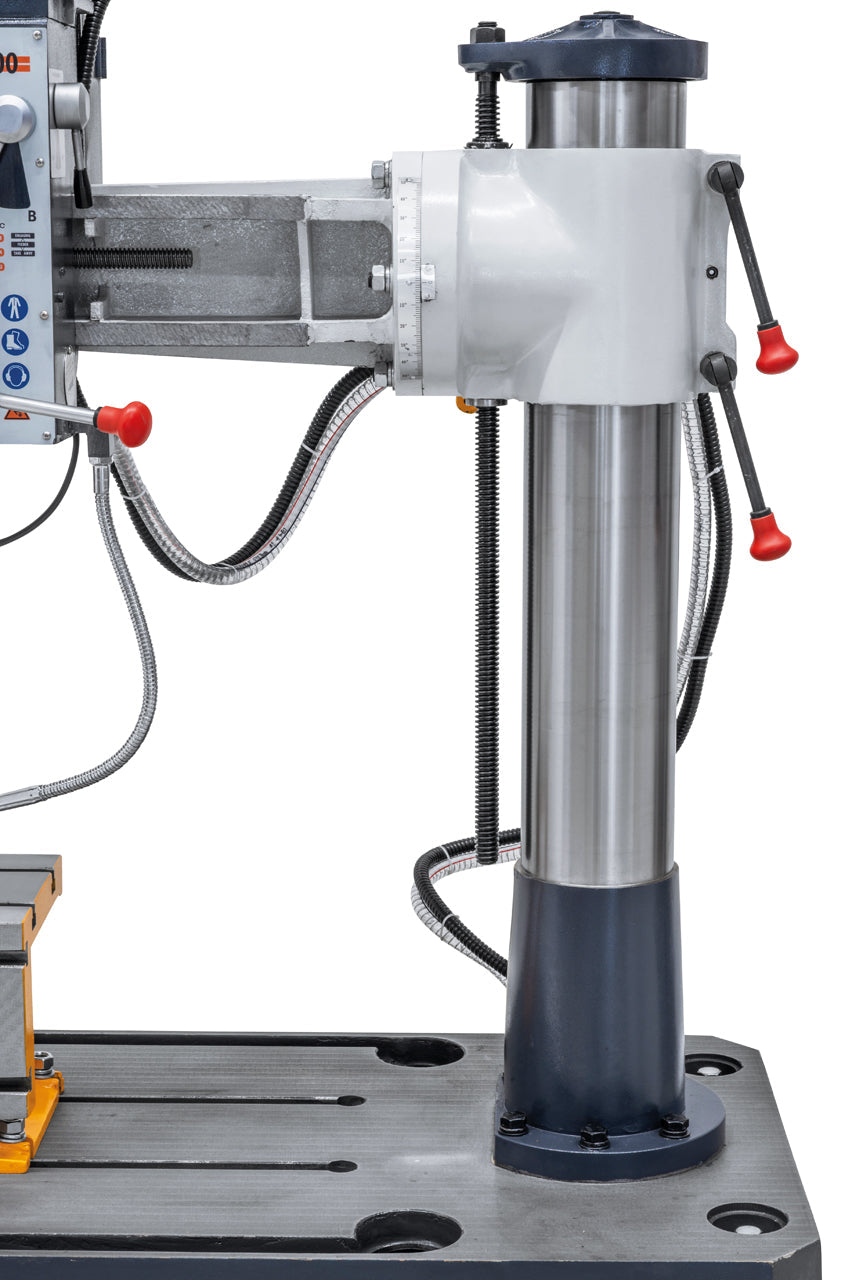

Smooth movement of the boom arm due to the ground surface of the outer column
High running smoothness thanks to balanced drive pulleys and quality belts
Easy adjustability to the fixed workpiece

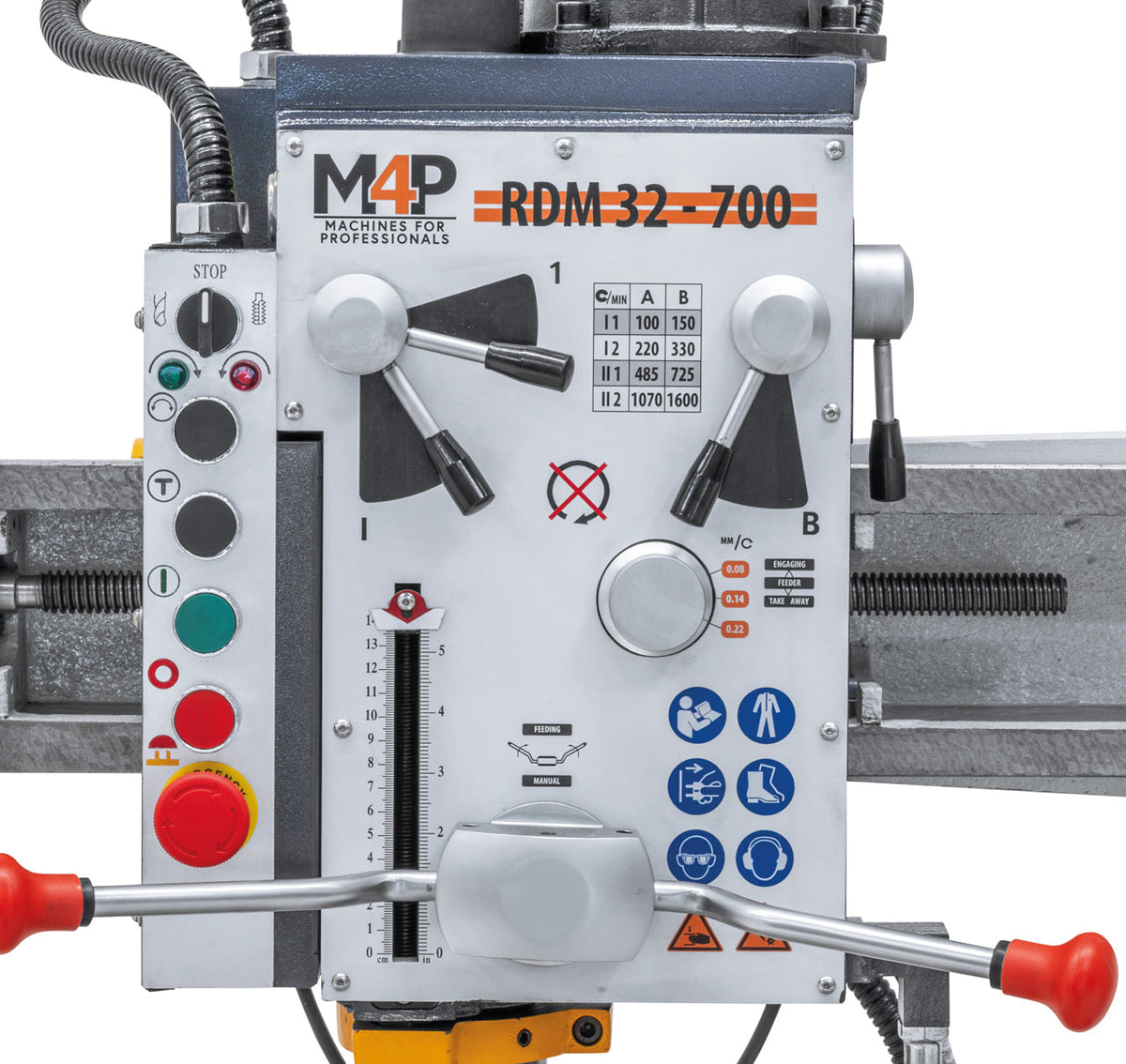

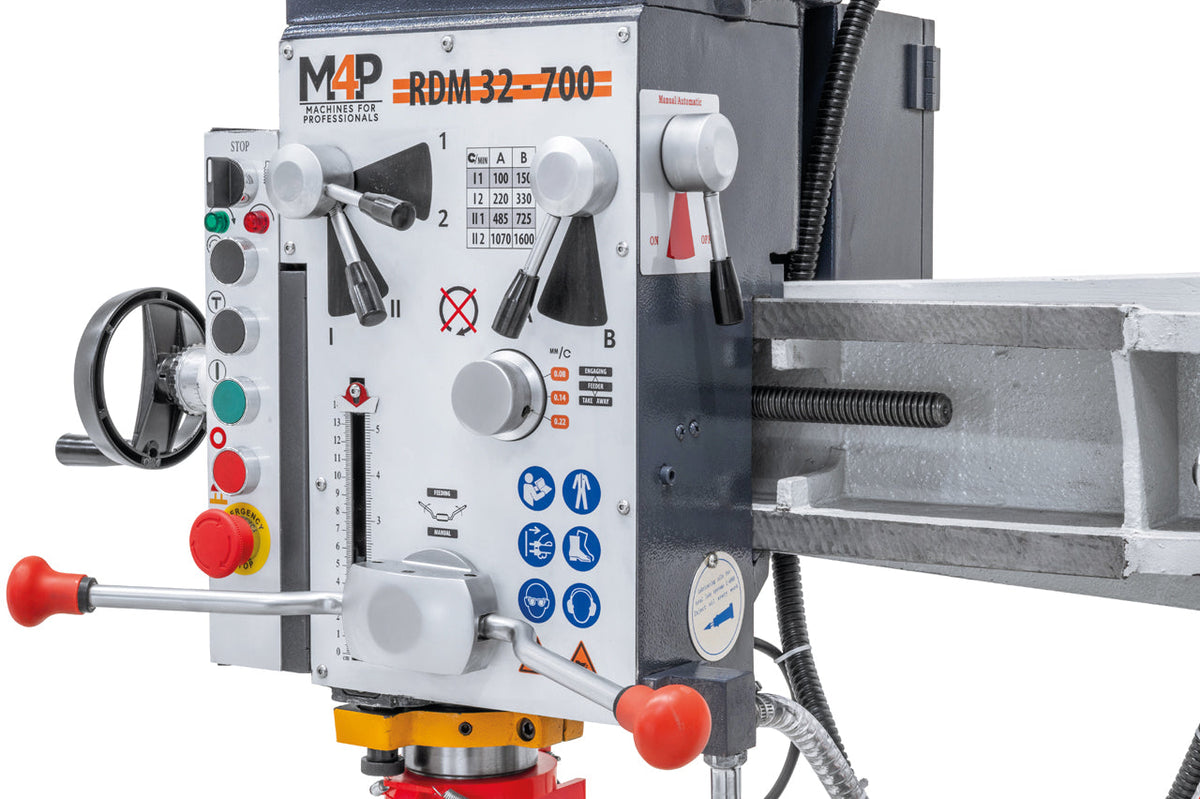

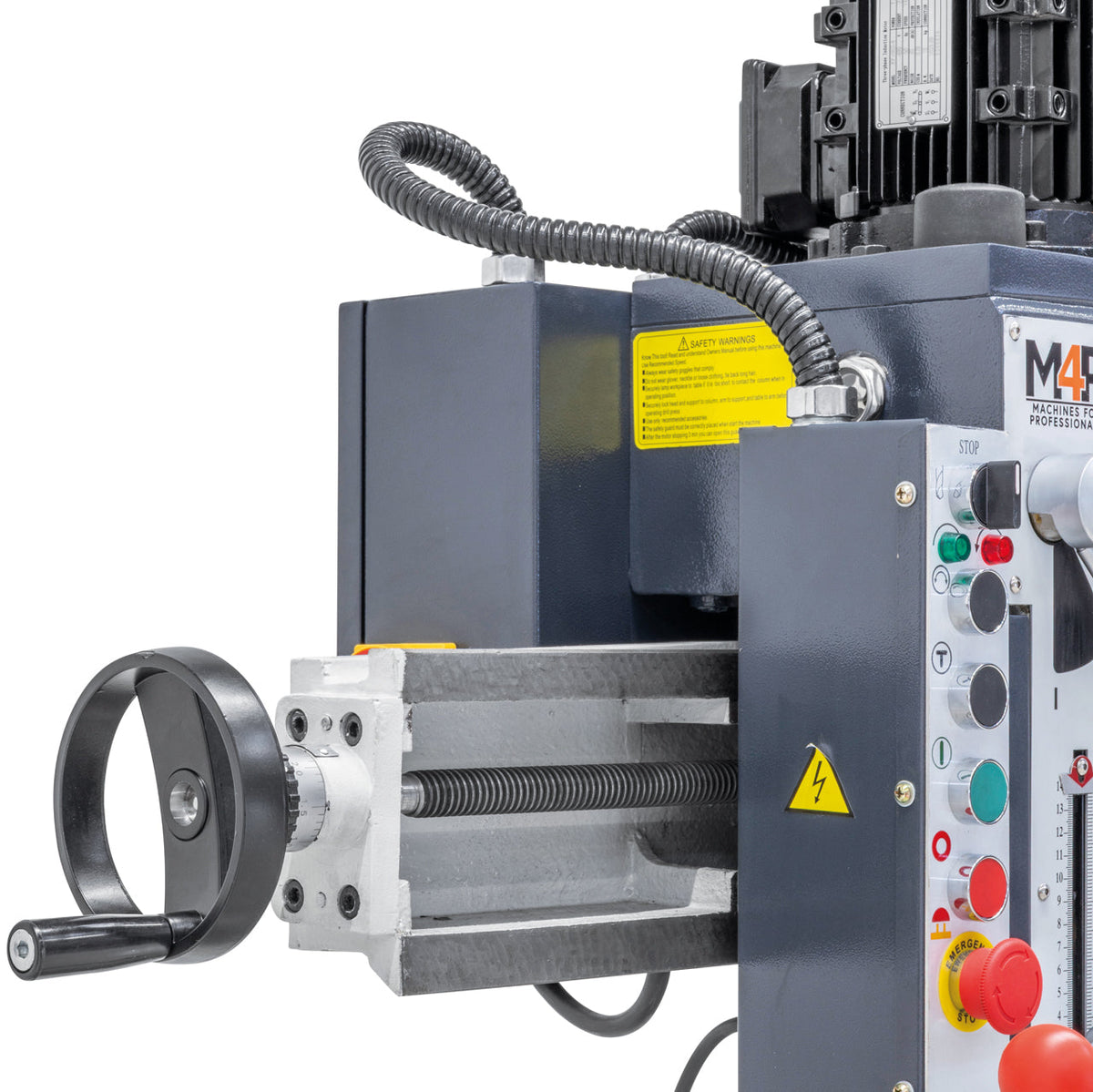

Simple, central operation at the front of the machine
Optimal cutting speed due to a wide speed range
Mechanical clamping of the drill head, column, and boom arm
Standard features include 3 automatic drilling feeds (0.08 / 0.14 / 0.22 mm/rev)
| Bohrleistung max. | 32 mm |
| Gewindeschneiden max. | M22 |
| Ausladung min./max. | 270 - 700 mm |

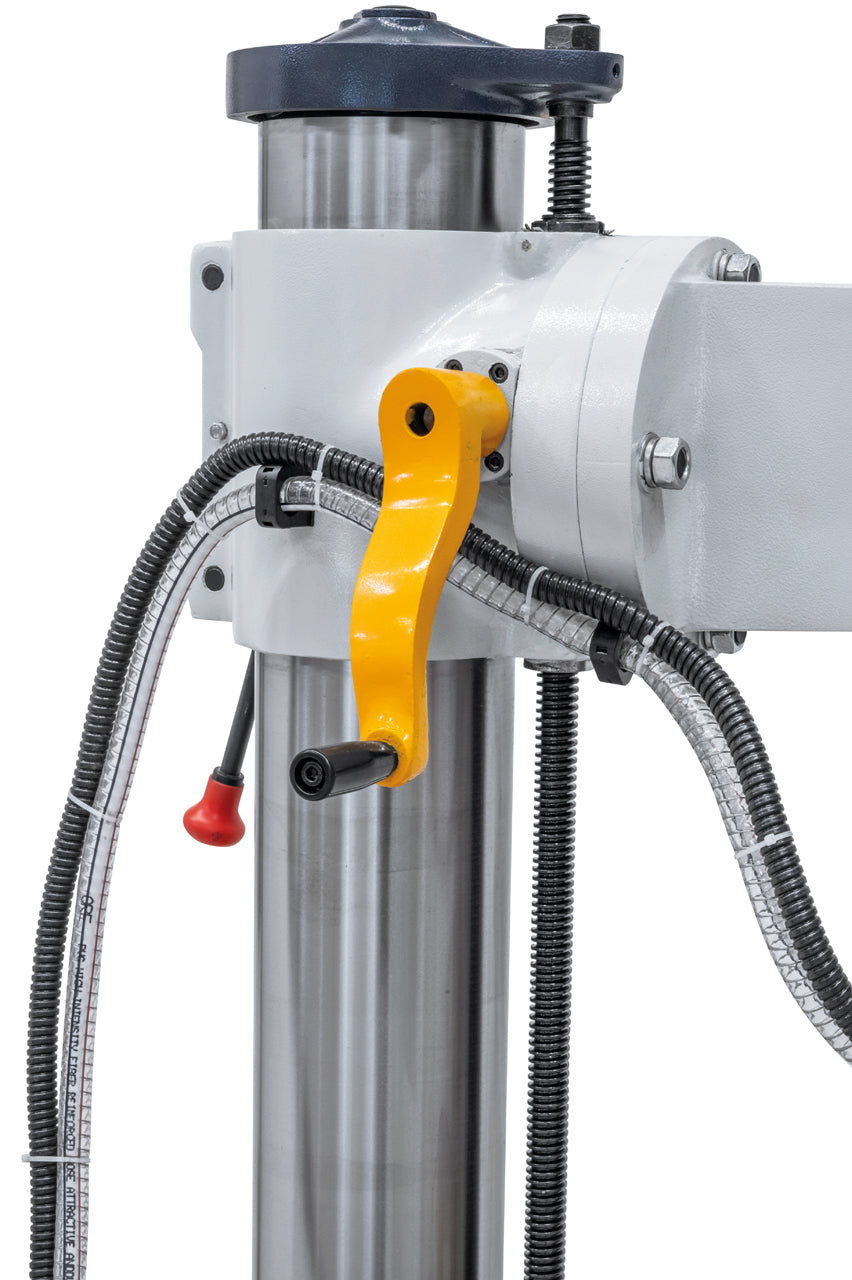

| Vertikalbewegung des Auslegers | 430 mm |
| Verfahrweg Bohrkopf (horizontal) | 510 mm |

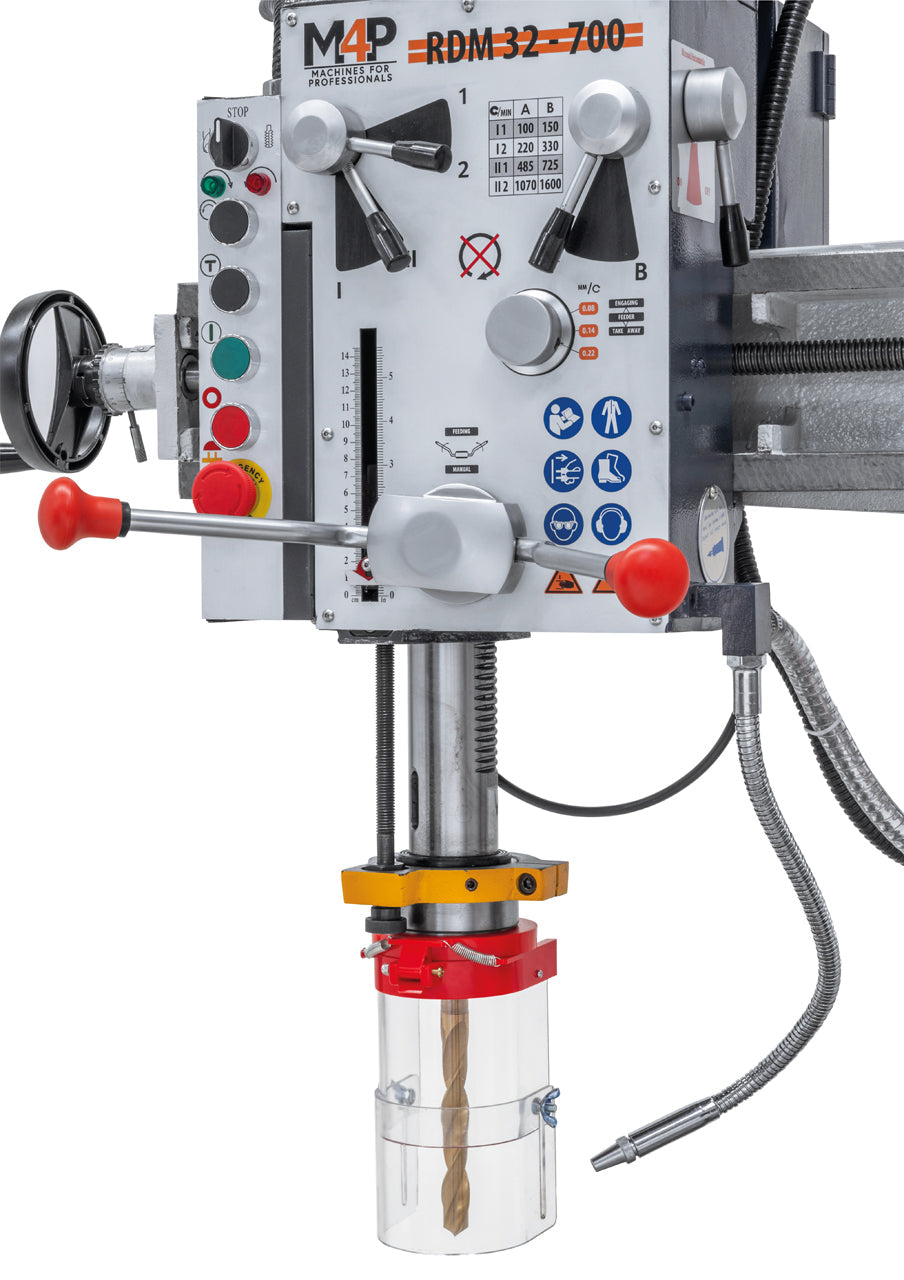

| Pinolenhub | 130 mm |
| Spindeldrehzahlen | (8) 100 - 1600 U/min |
| Spindelaufnahme | MK 3 |
| Vorschubbereich | 0,08 / 0,14 / 0,22 mm/U |
| Abstand Spindel - Würfeltisch | 0 - 435 mm |
| Abstand Spindel - Grundplatte | 175 - 685 mm |

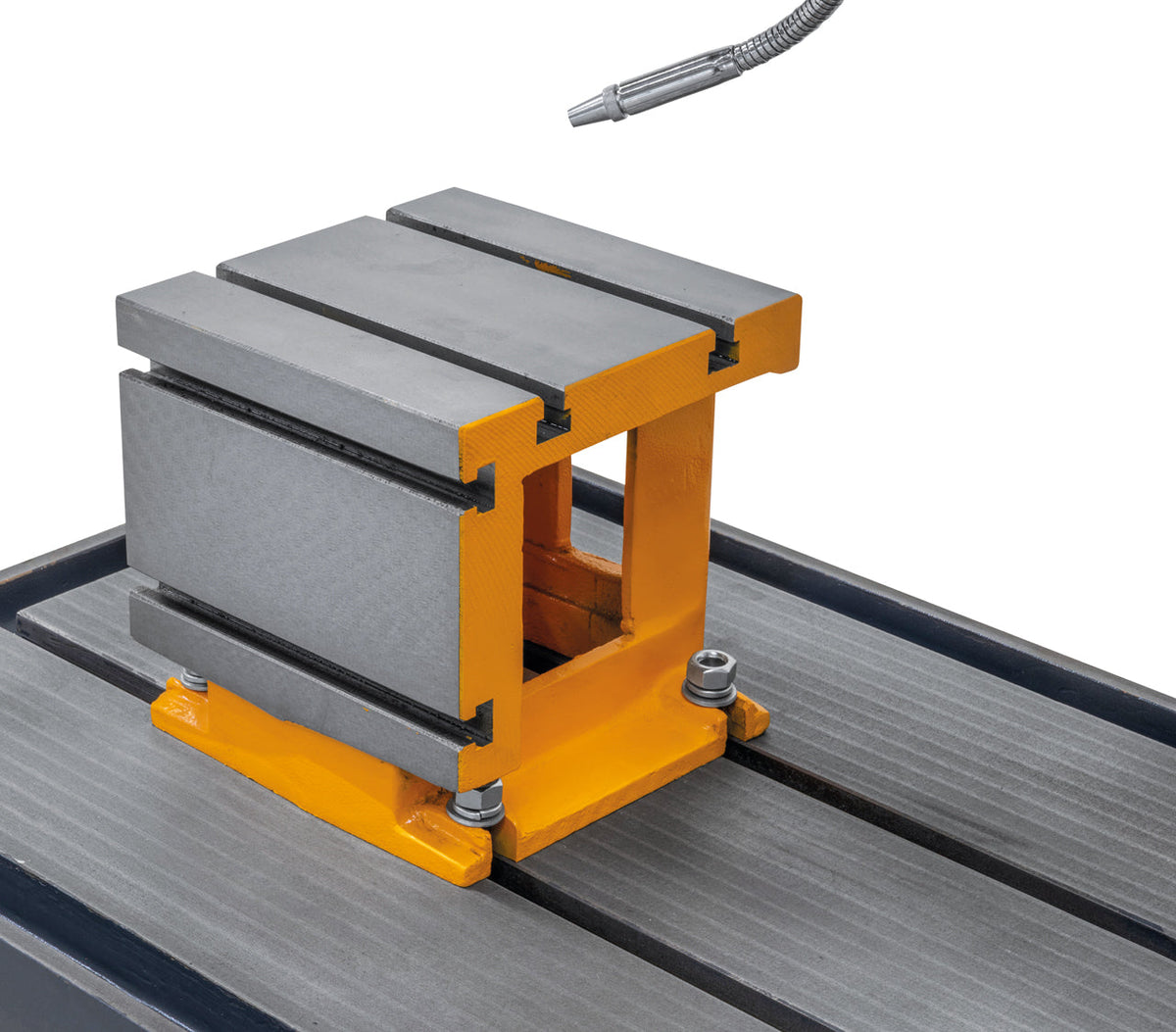

| Würfeltisch (L x B x H) | 250 x 250 x 250 mm |
| Aufspannfläche Grundplatte | 900 x 620 mm |
| Säulendurchmesser | 150 mm |

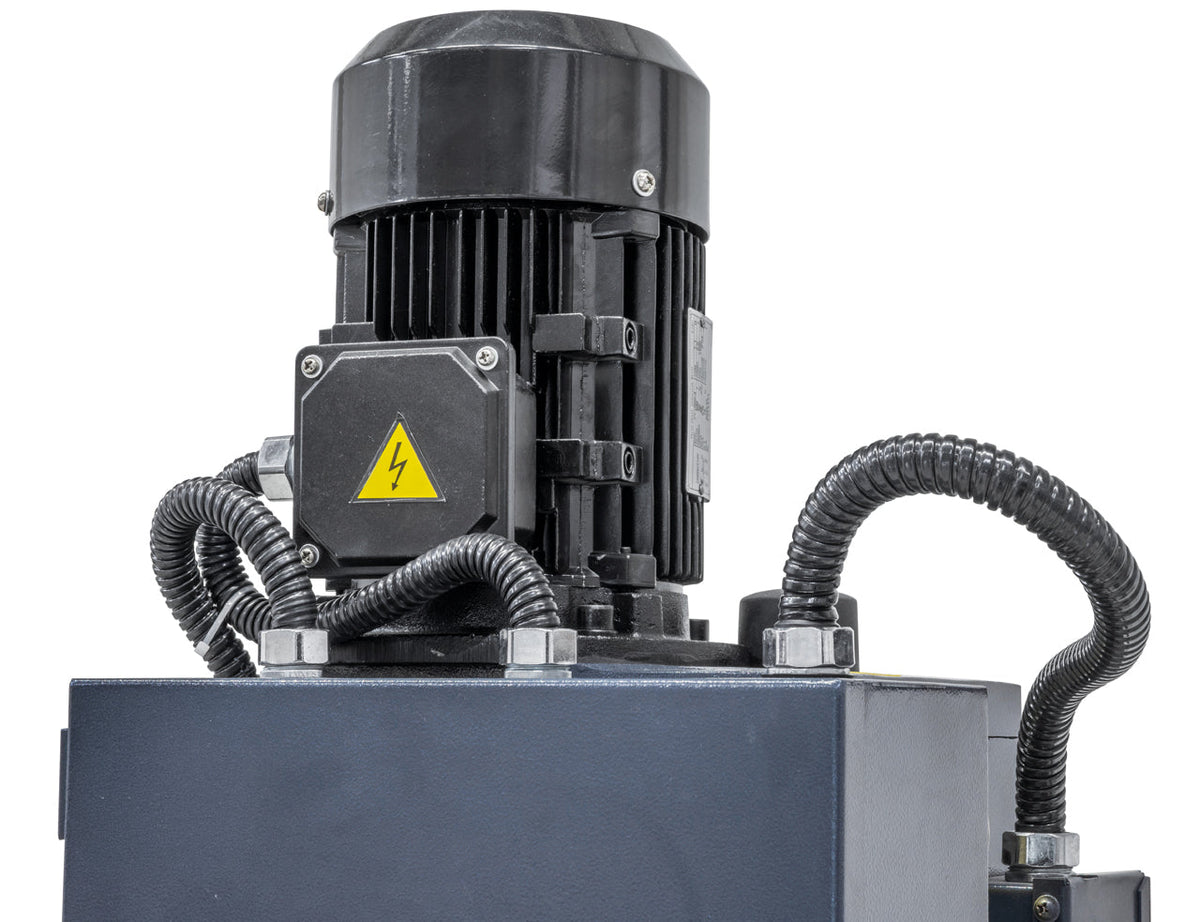

| Motorleistung | 1,1 kW |
| Maschinenabmessung (B x T x H) | 1250 x 640 x 1660 mm |
| Gewicht ca. | 465 kg |
