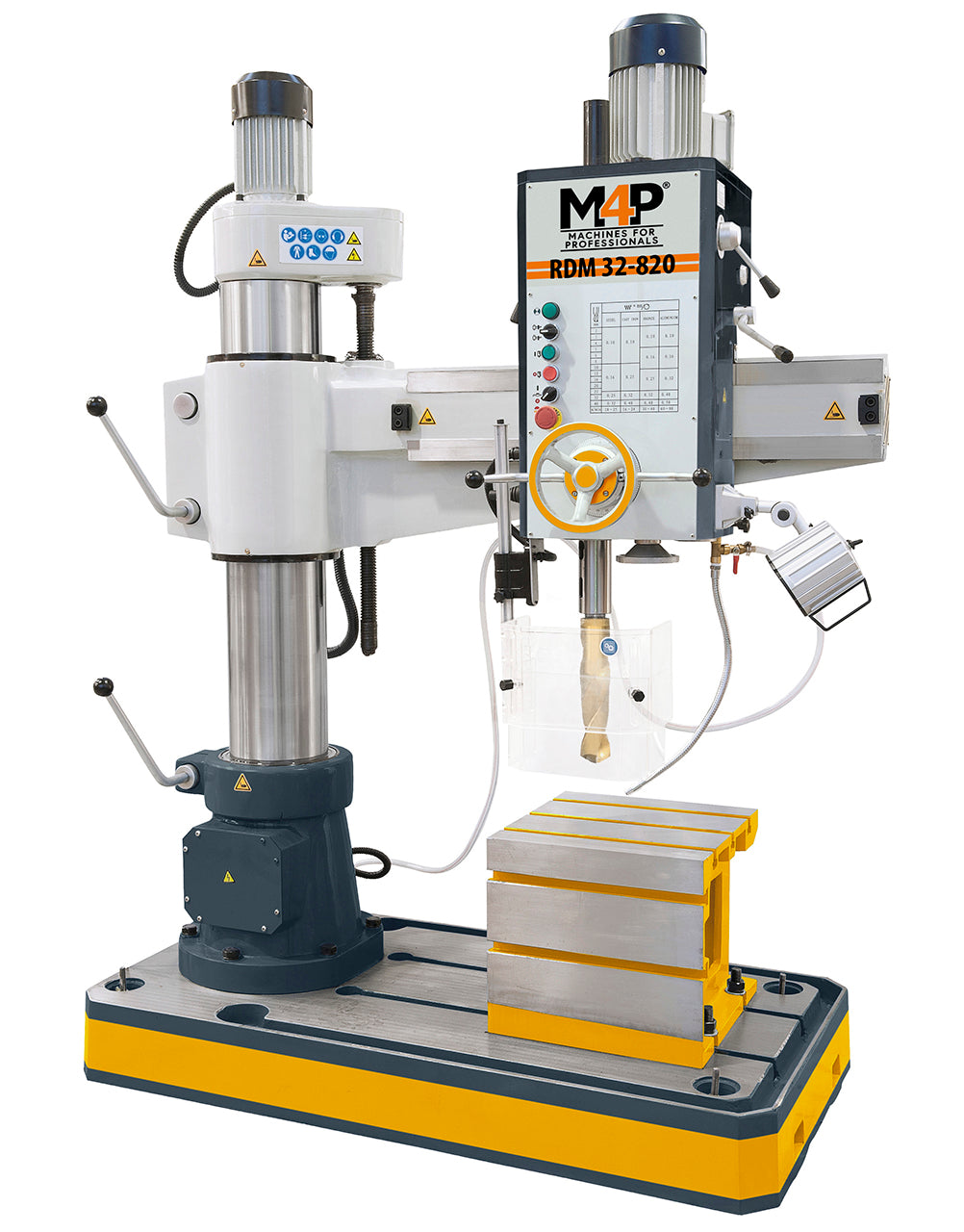

The RDM 32 - 820 radial drill is a clearly laid out machine with high performance and simple operation, which can be used to carry out even the most difficult machining tasks such as drilling, countersinking, reaming, and thread cutting.
Good sliding properties of the arm due to the ground surface of the outer column
Mechanical locking of the arm's swivel movement and the spindle head adjustment
Easy positioning over the stationary workpiece

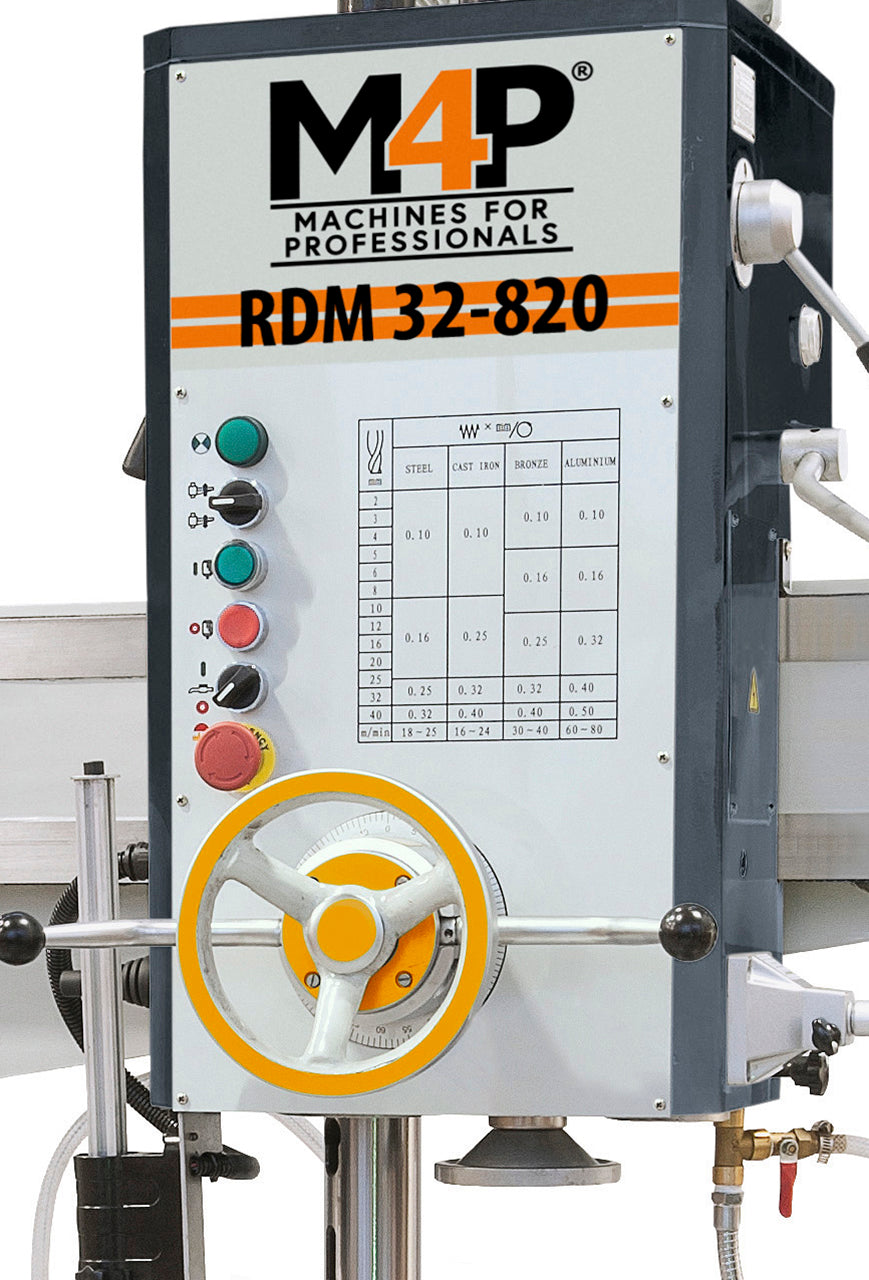

Simple, central operation at the front of the machine
Electric height adjustment of the swivel arm
Optimal cutting speed due to a wide speed range
Thread cutting via spindle reversal
Smooth operation due to sturdy construction
| Bohrleistung max. | 32 mm |
| Gewindeschneiden max. | M24 |
| Ausladung min./max. | 310 - 820 mm |
| Vertikalbewegung des Auslegers | 500 mm |
| Verfahrweg Bohrkopf (horizontal) | 510 mm |
| Pinolenhub | 250 mm |
| Spindeldrehzahl | (6) 75 - 1220 U/min |
| Spindelaufnahme | MK 4 |
| Vorschubbereich | 0,1 / 0,16 / 0,25 mm/U |
| Abstand Spindel - Würfeltisch | 16 - 515 mm |
| Abstand Spindel - Grundplatte | 370 - 870 mm |

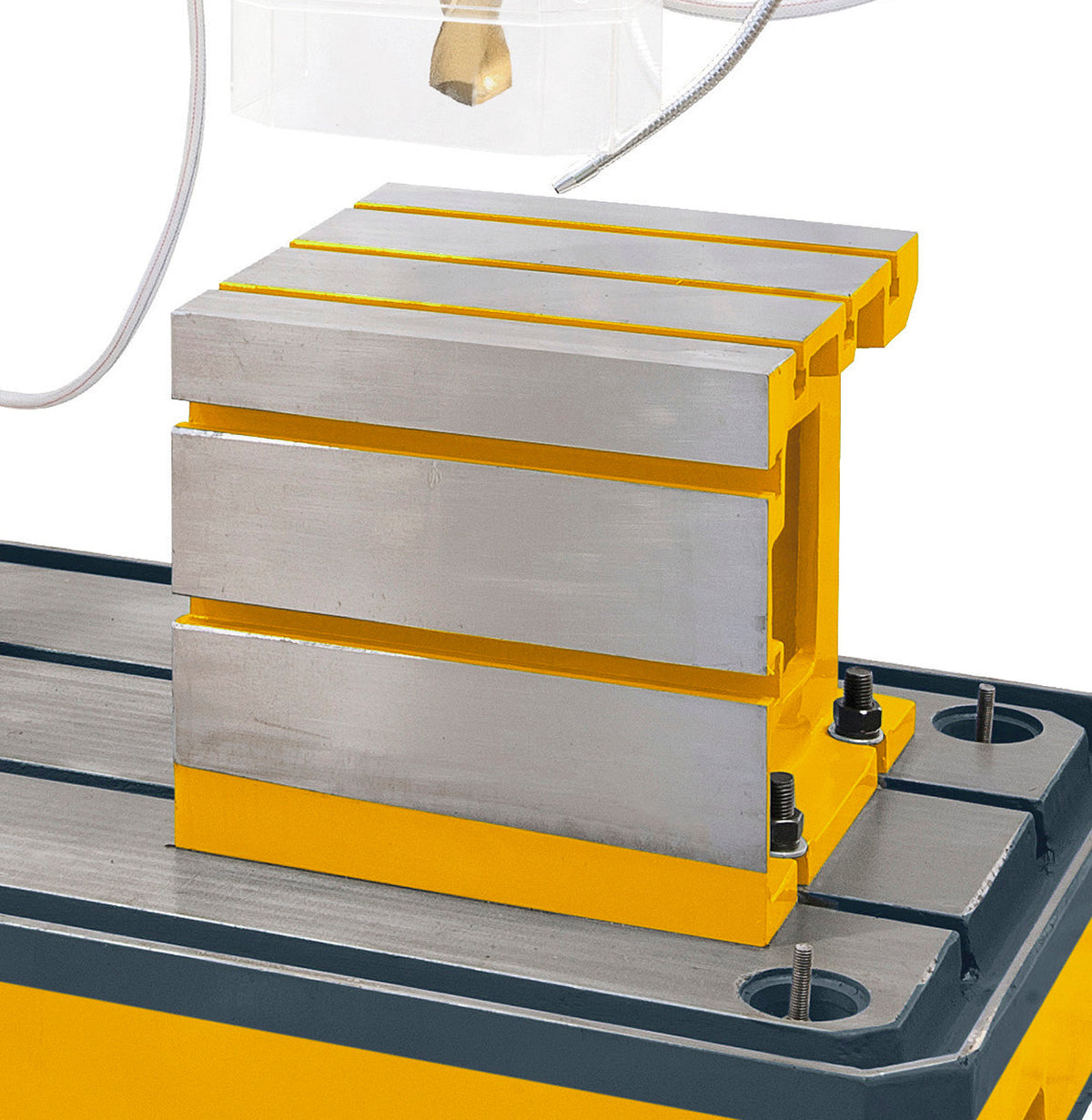

| Würfeltisch (L x B x H) | 400 x 400 x 350 mm |
| Aufspannfläche Grundplatte | 825 x 690 mm |
| Säulendurchmesser | 200 mm |
| Hubmotor | 0,75 kW |
| Motorleistung | 1,5 kW |
| Maschinenabmessung (B x T x H) | 1470 x 750 x 2100 mm |
| Gewicht ca. | 1200 kg |
