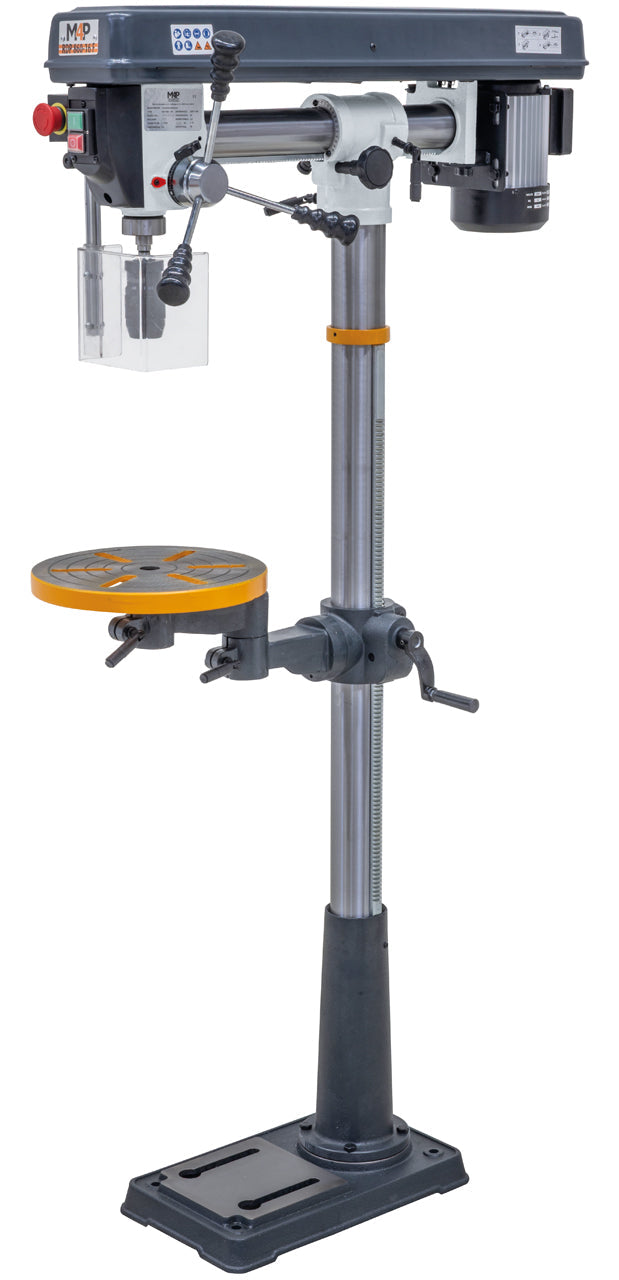

The RDP 860 - 16 F radial drill is extremely versatile thanks to its extendable, rotatable, and swiveling drill head. Due to its optimal price-performance ratio, this machine is ideal for the hobbyist. The column guide also allows for the processing of larger workpieces without difficulty.
High concentricity, spindle runs in precision ball bearings

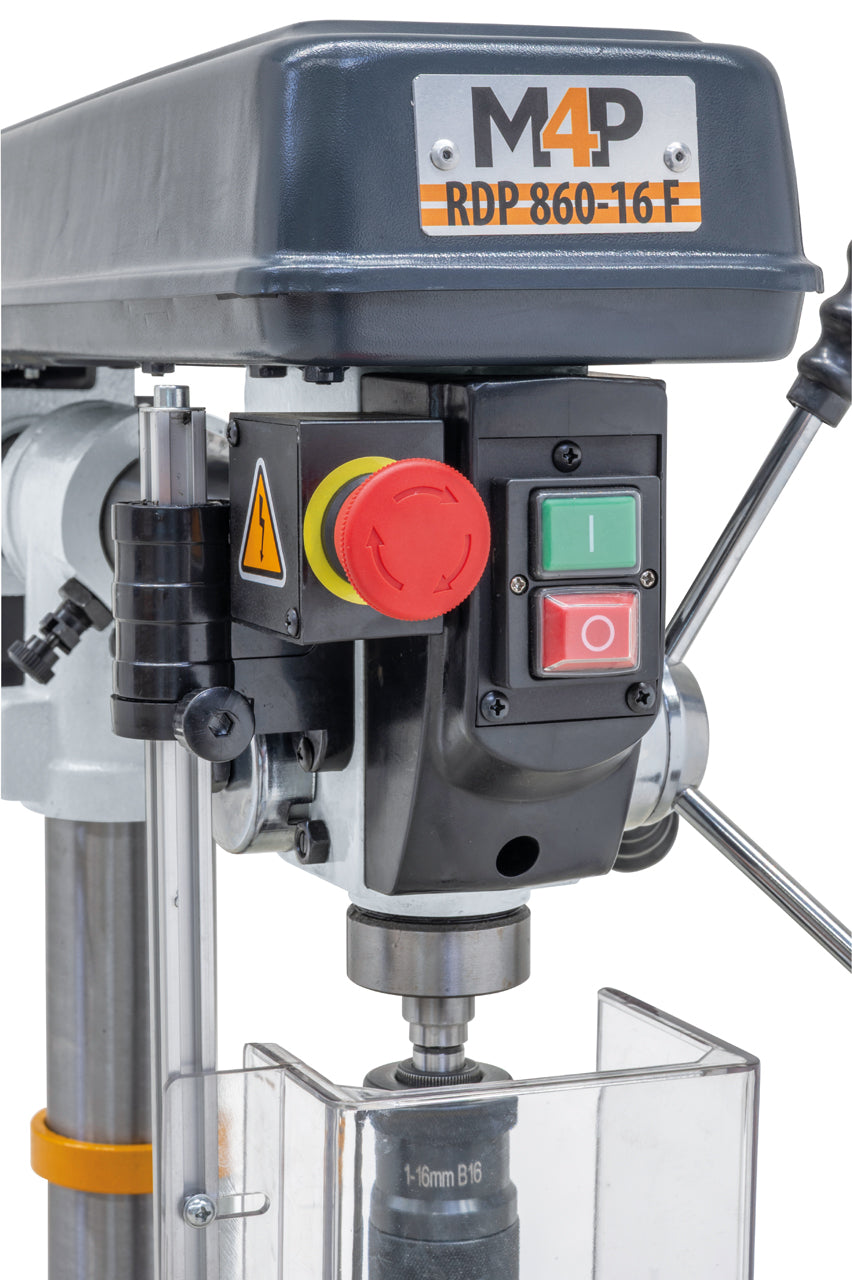

Safety switch according to IP 54 with undervoltage release
Sturdy, ground steel column with rack for table height adjustment

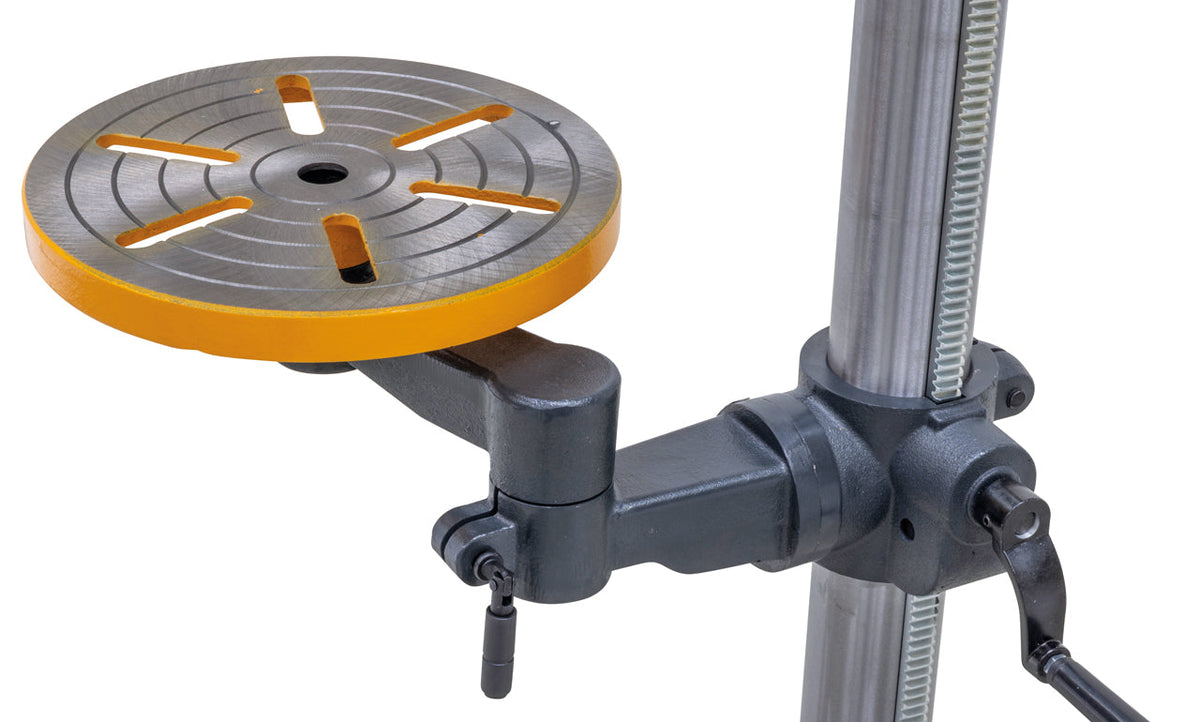

Work table swivels from -45° to +45° and rotates 360°
High concentricity in the quill
Large-dimensioned base plate for high stability

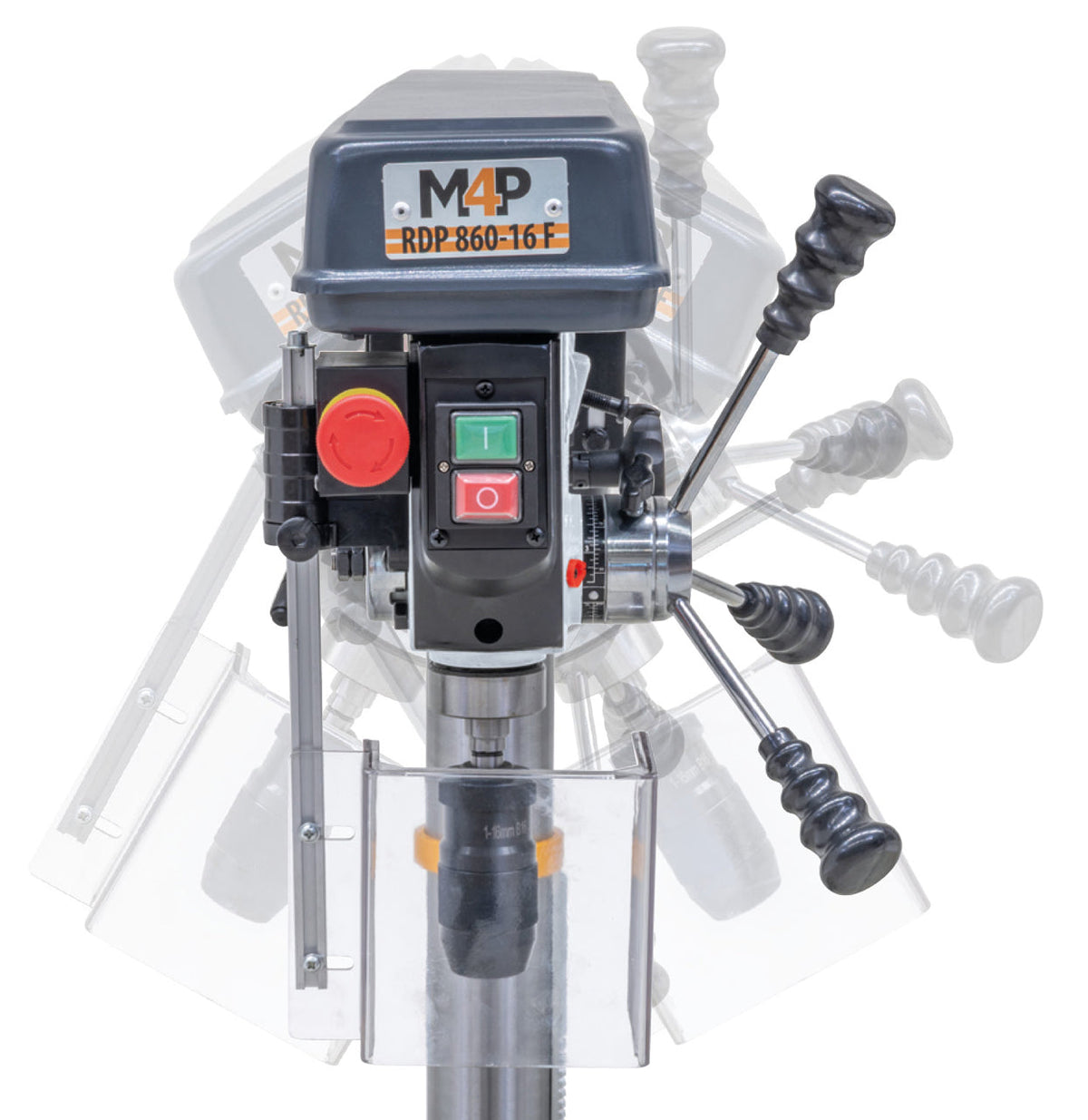

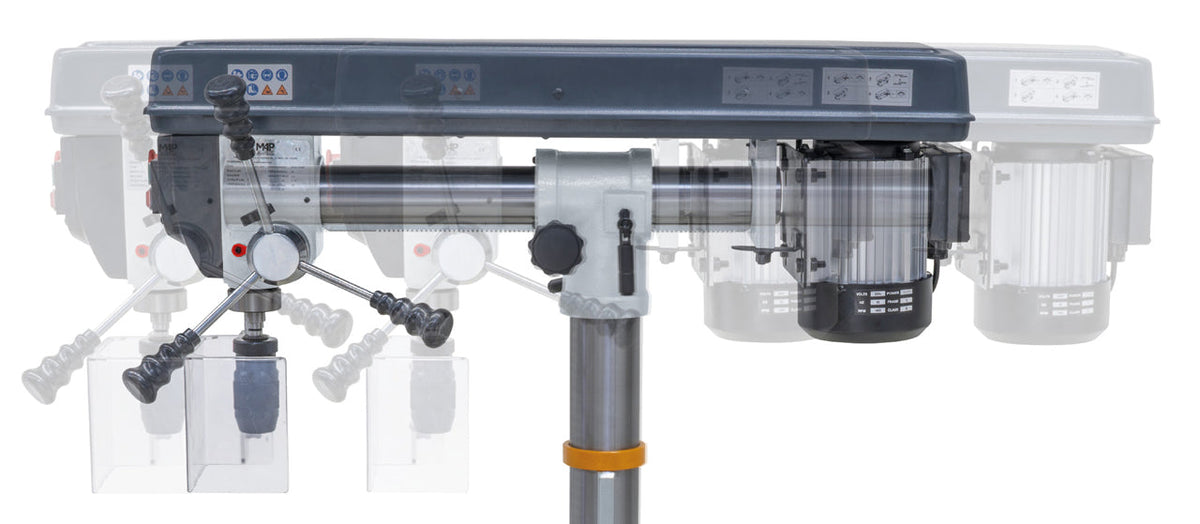

Extendable, rotatable, and swiveling drill head for efficient working

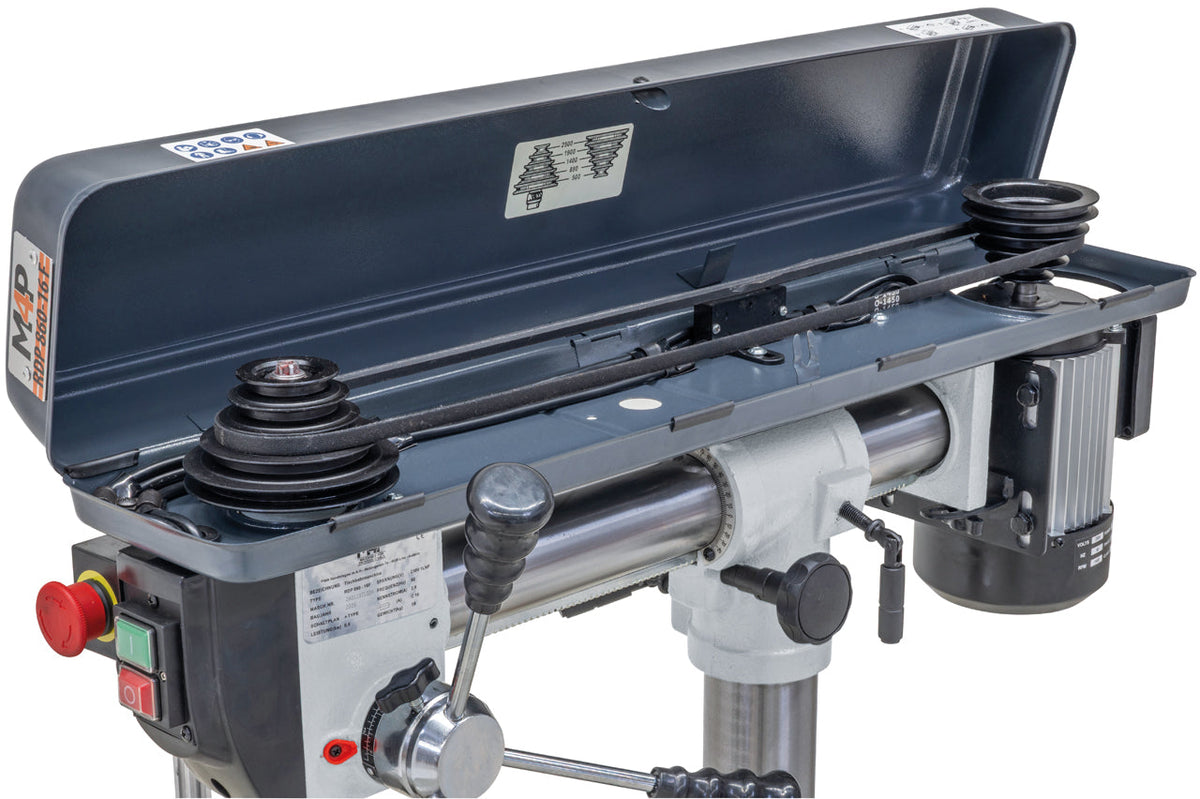

Smooth operation due to cast-iron belt pulleys
Ergonomic handles for comfortable working
| Bohrleistung max. | 16 mm |
| Bohrfutter | 1 - 16 mm / B 16 |
| Morsekonus | MK 2 |
| Ausladung min./max. | 145 - 430 mm |
| Spindeldrehzahl | (5) 500 - 2500 U/min |
| Bohrkopf schwenkbar | -90° bis +45° |
| Pinolenhub | 75 mm |
| Säulendurchmesser | 73 mm |
| Tischgröße | Ø 300 mm |
| Arbeitsfläche Bodenplatte | 200 x 200 mm |
| Motor-Abgabeleistung S1 100% | 0,60 kW |
| Motor-Aufnahmeleistung S6 40% | 0,85 kW |
| Spannung | 230 V |
| Maschinenabmessung (B x T x H) | 330 x 850 x 1640 mm |
| Gewicht ca. | 54 kg |
