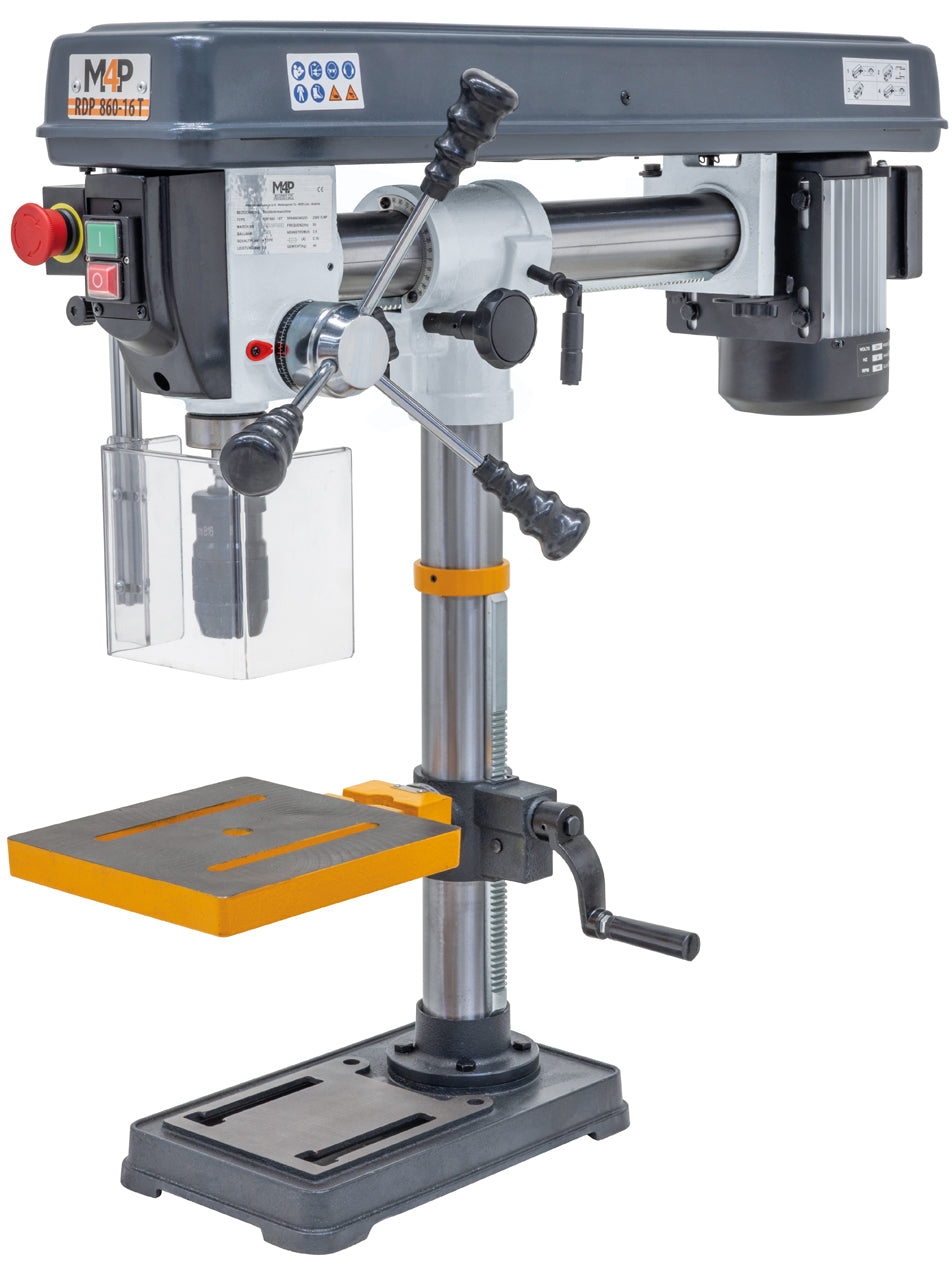

The RDP 860 - 16 T radial drill is highly versatile due to its extendable, rotatable, and tiltable drill head. Thanks to its optimal price-performance ratio, this machine is ideal for the hobbyist.

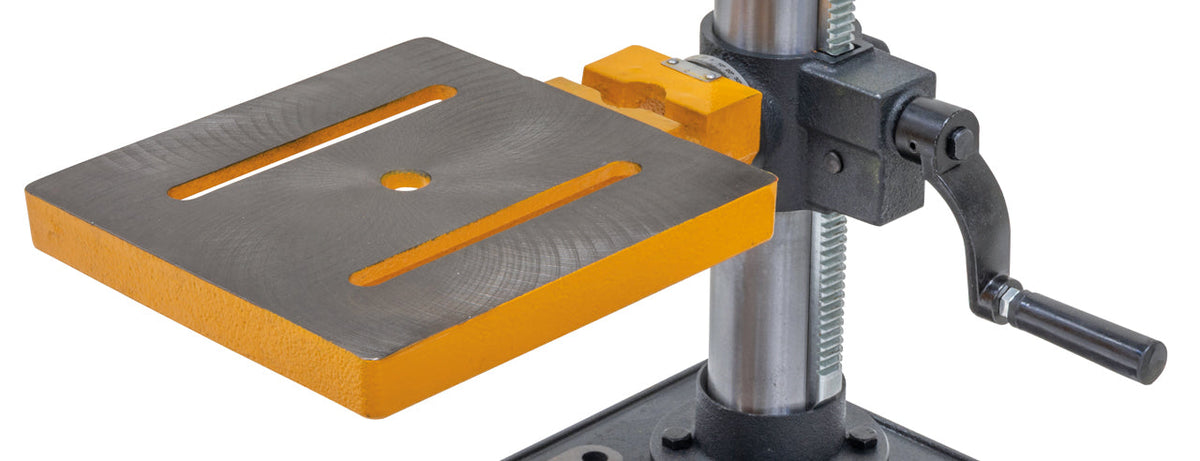

Precisely machined work table tiltable from -45° to +45°

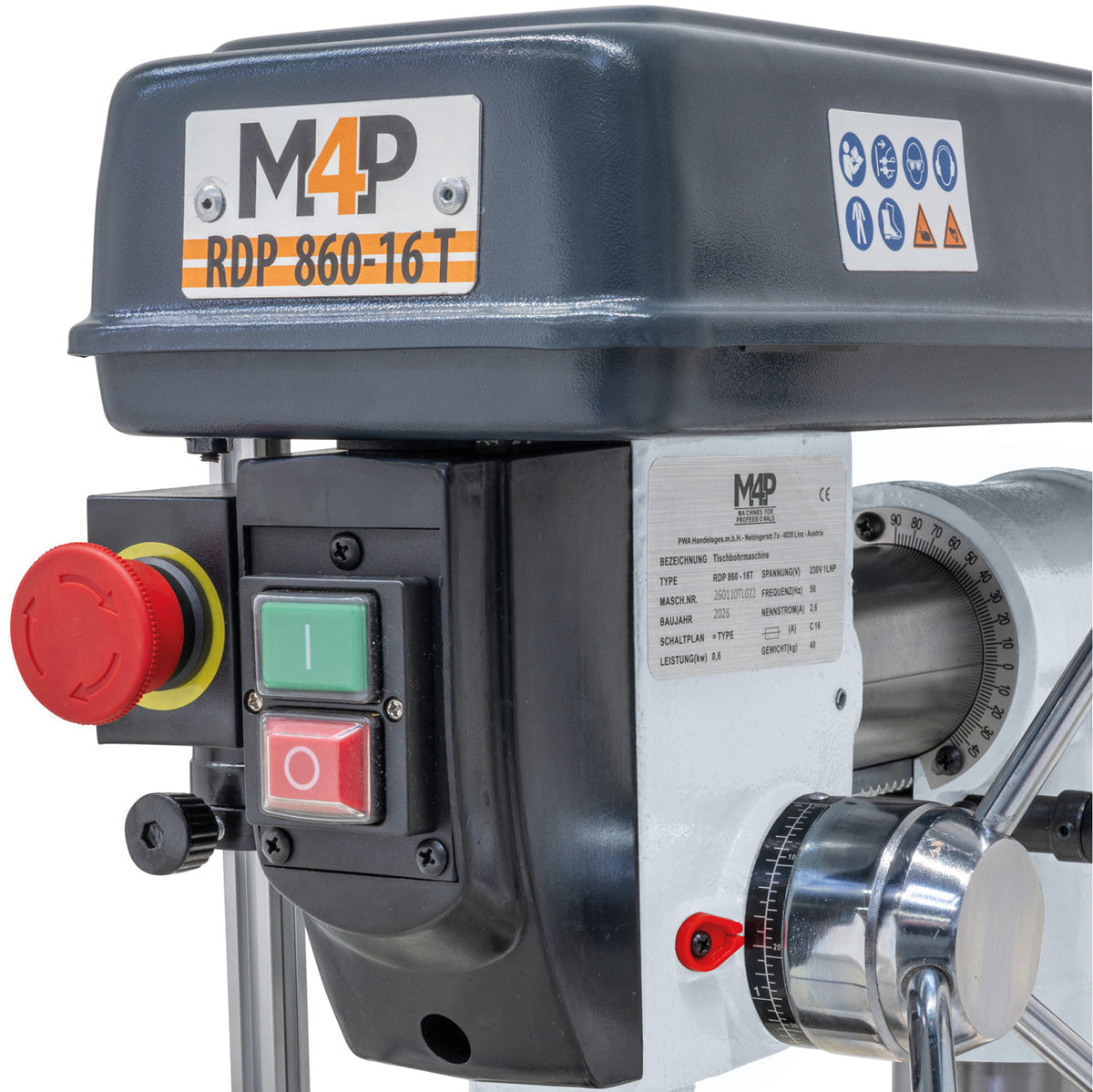

Safety switch according to IP 54 with undervoltage release
High concentricity, spindle runs in precision ball bearings

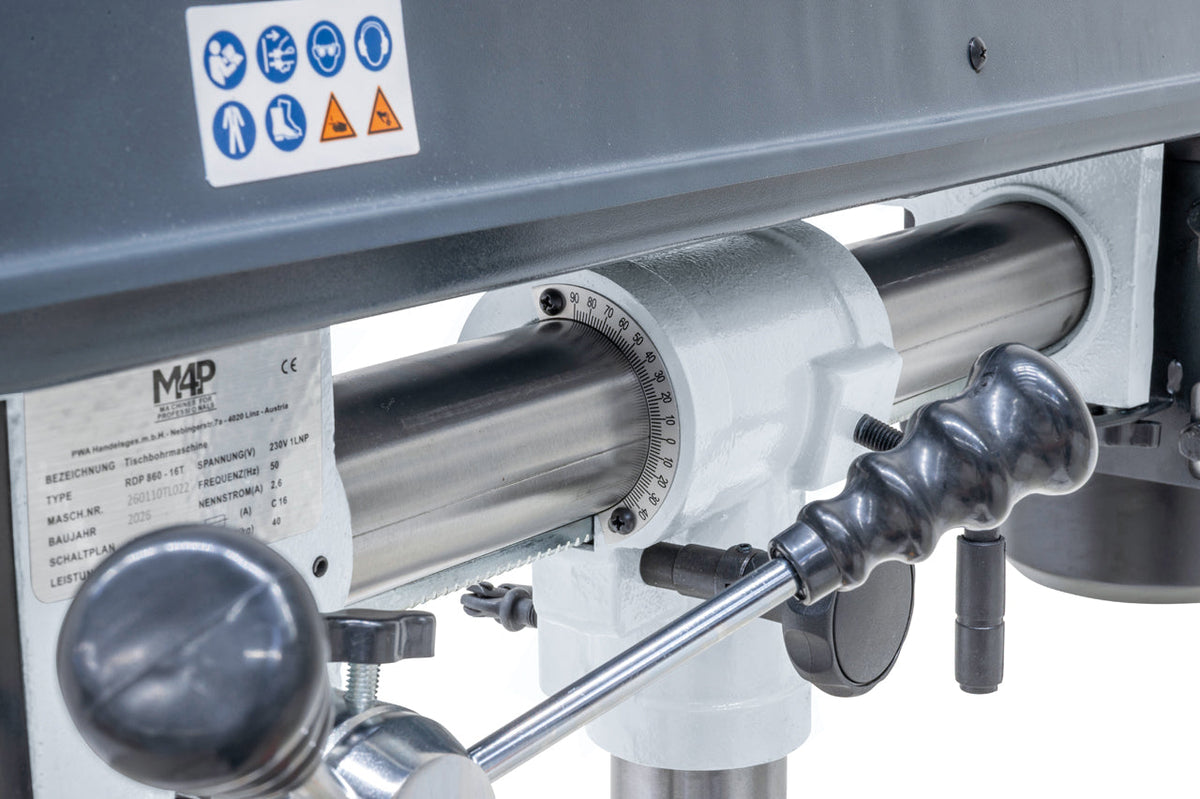

Extendable, rotatable, and tiltable drill head for efficient work
Stable, ground steel column with rack for table height adjustment

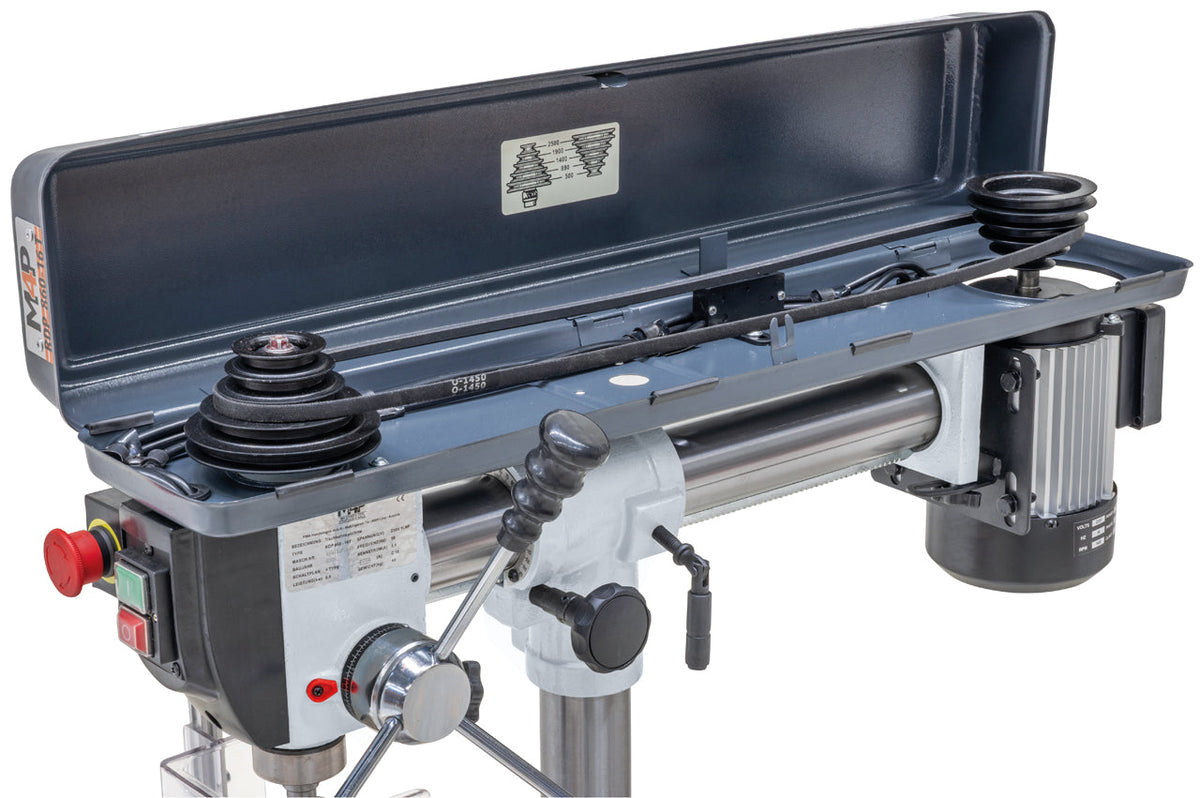

Smooth operation due to grey cast iron pulleys
Ergonomic handles for comfortable operation
High concentricity in the quill
Large-dimensioned base plate for high stability
| Bohrleistung max. | 16 mm |
| Bohrfutter | 1 - 16 mm / B 16 |
| Morsekonus | MK 2 |

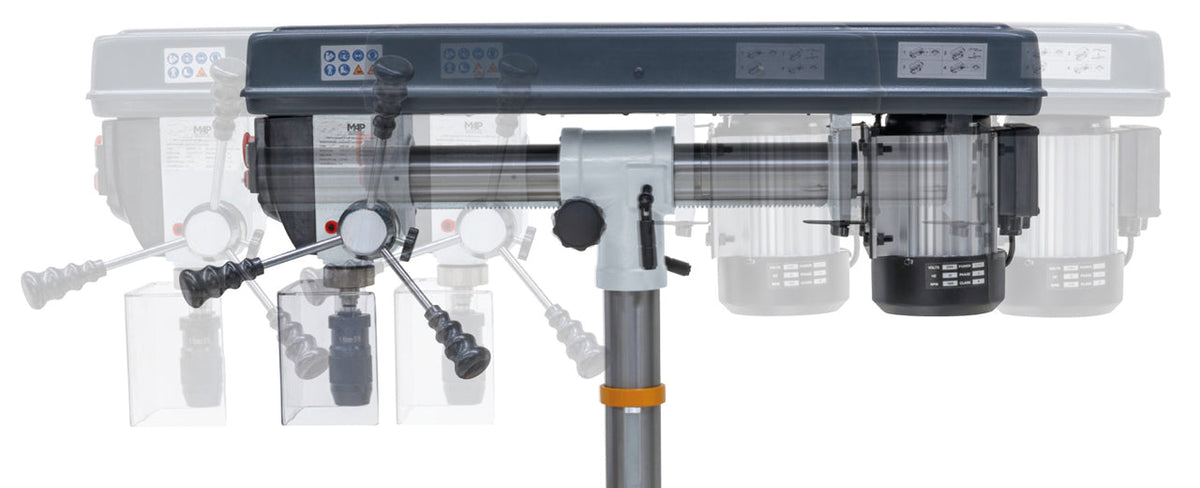

| Ausladung min./max. | 150 - 430 mm |
| Spindeldrehzahl | (5) 500 - 2500 U/min |

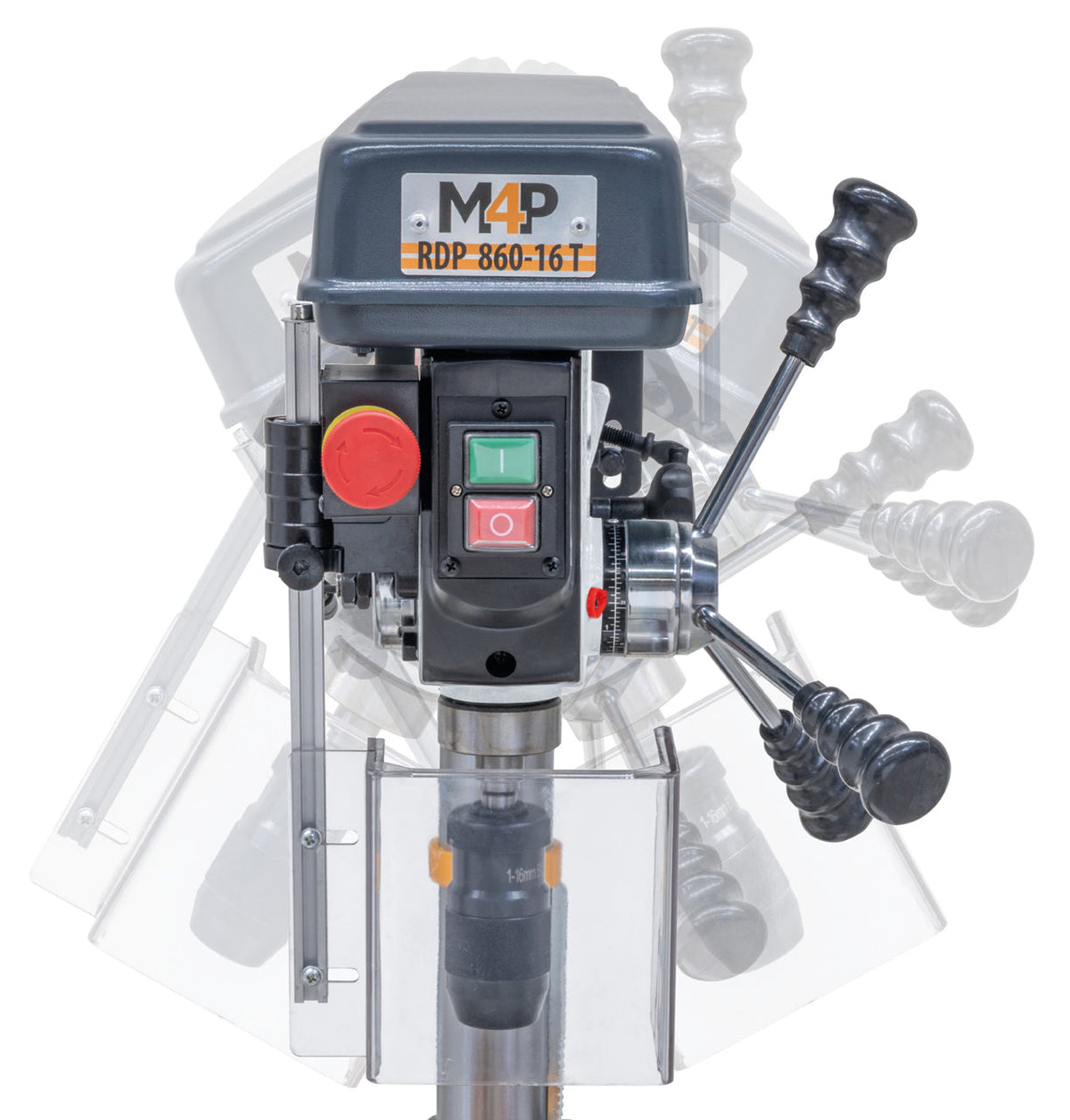

| Borkopf schwenkbar | -90° bis +45° |
| Pinolenhub | 75 mm |
| Säulendurchmesser | 60 mm |
| Tischgröße / T-Nutengröße | 220 x 220 mm / 14 mm |
| Arbeitsfläche Bodenplatte | 155 x 160 mm |

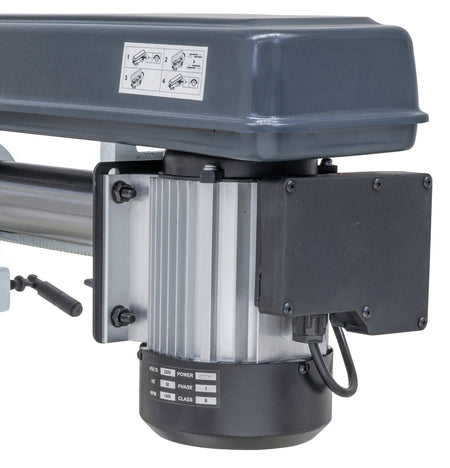

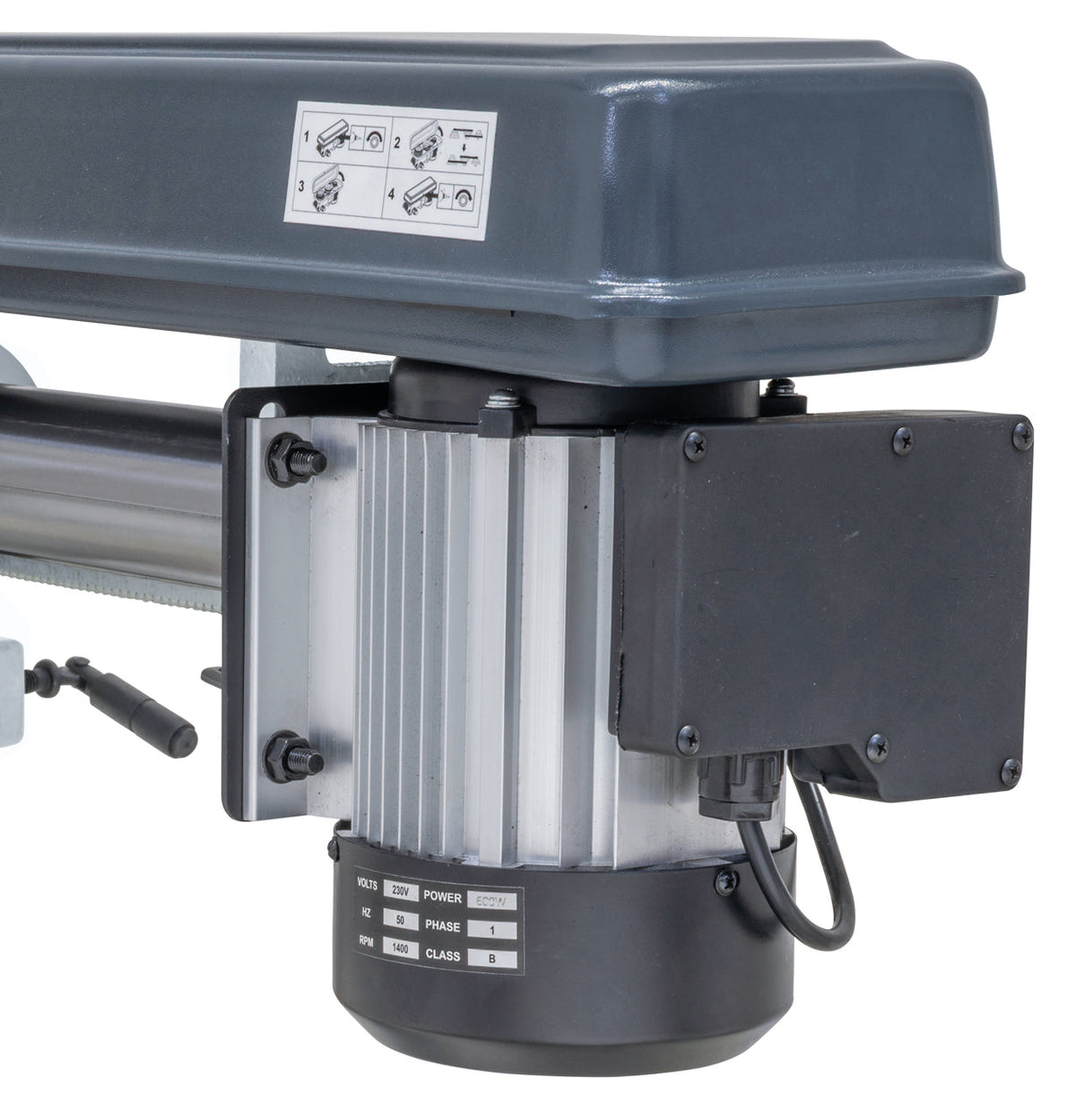

| Motor-Abgabeleistung S1 100% | 0,60 kW |
| Motor-Aufnahmeleistung S6 40% | 0,85 kW |
| Spannung | 230 V |
| Maschinenabmessung (B x T x H) | 330 x 870 x 805 mm |
| Gewicht ca. | 37 kg |
