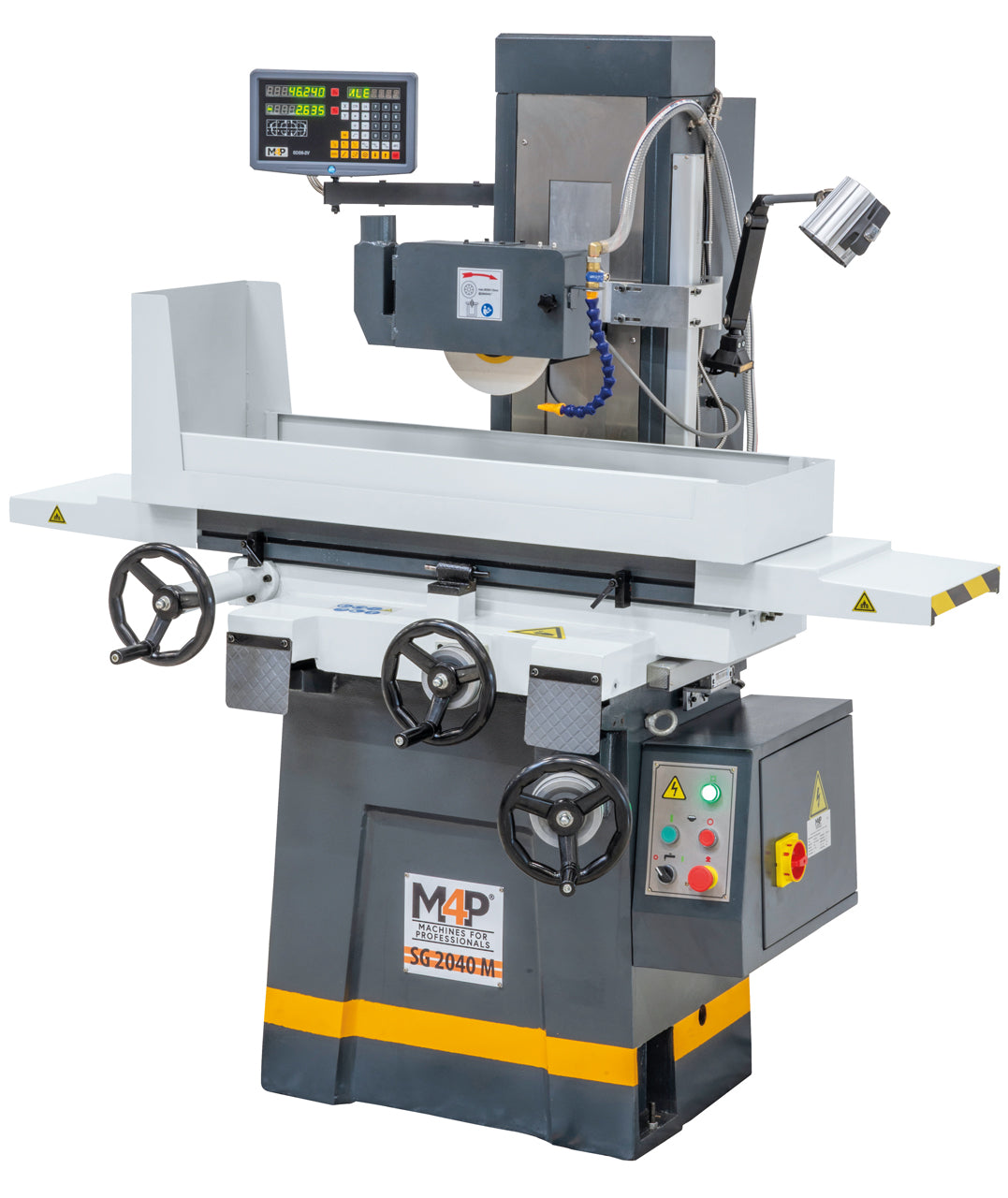

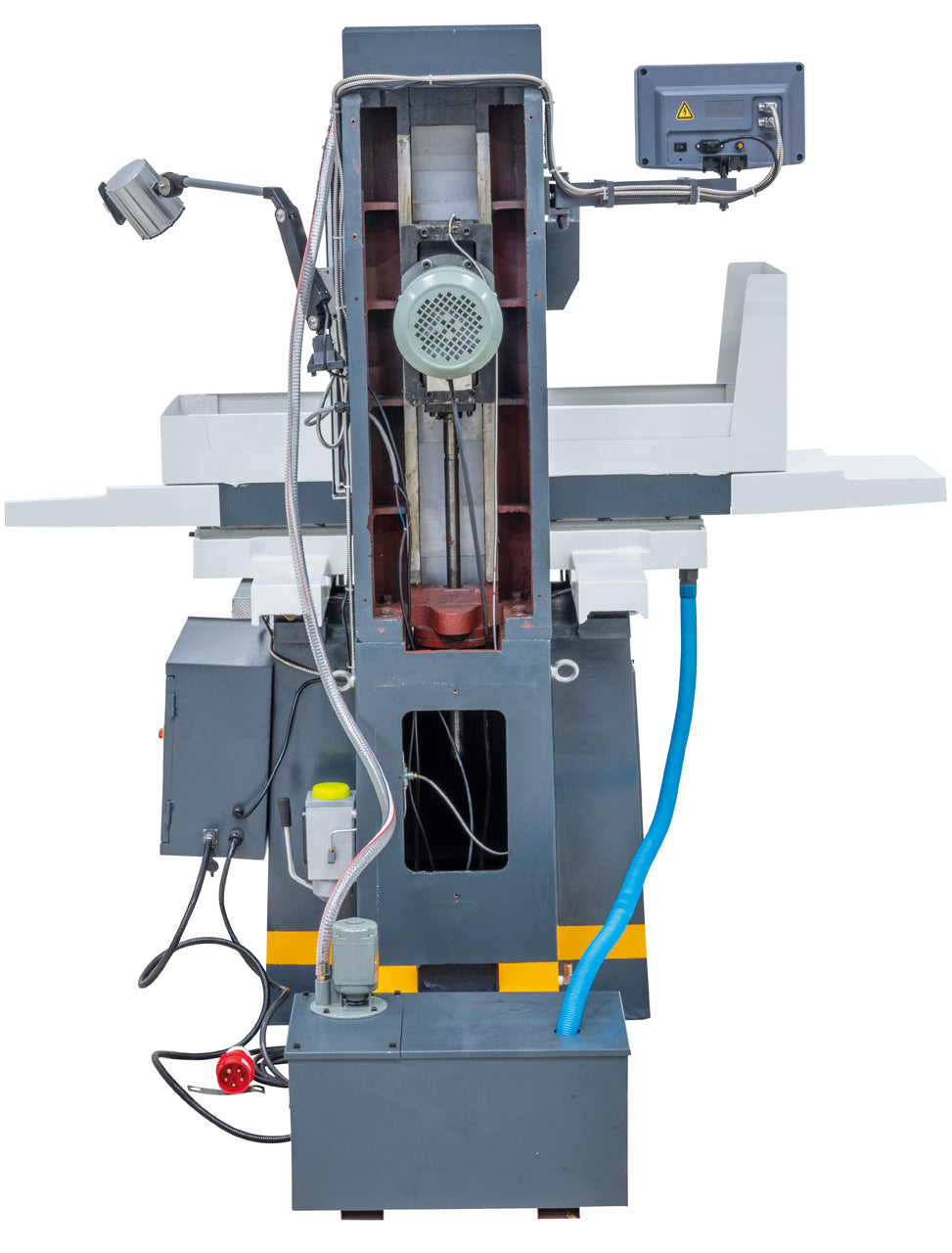

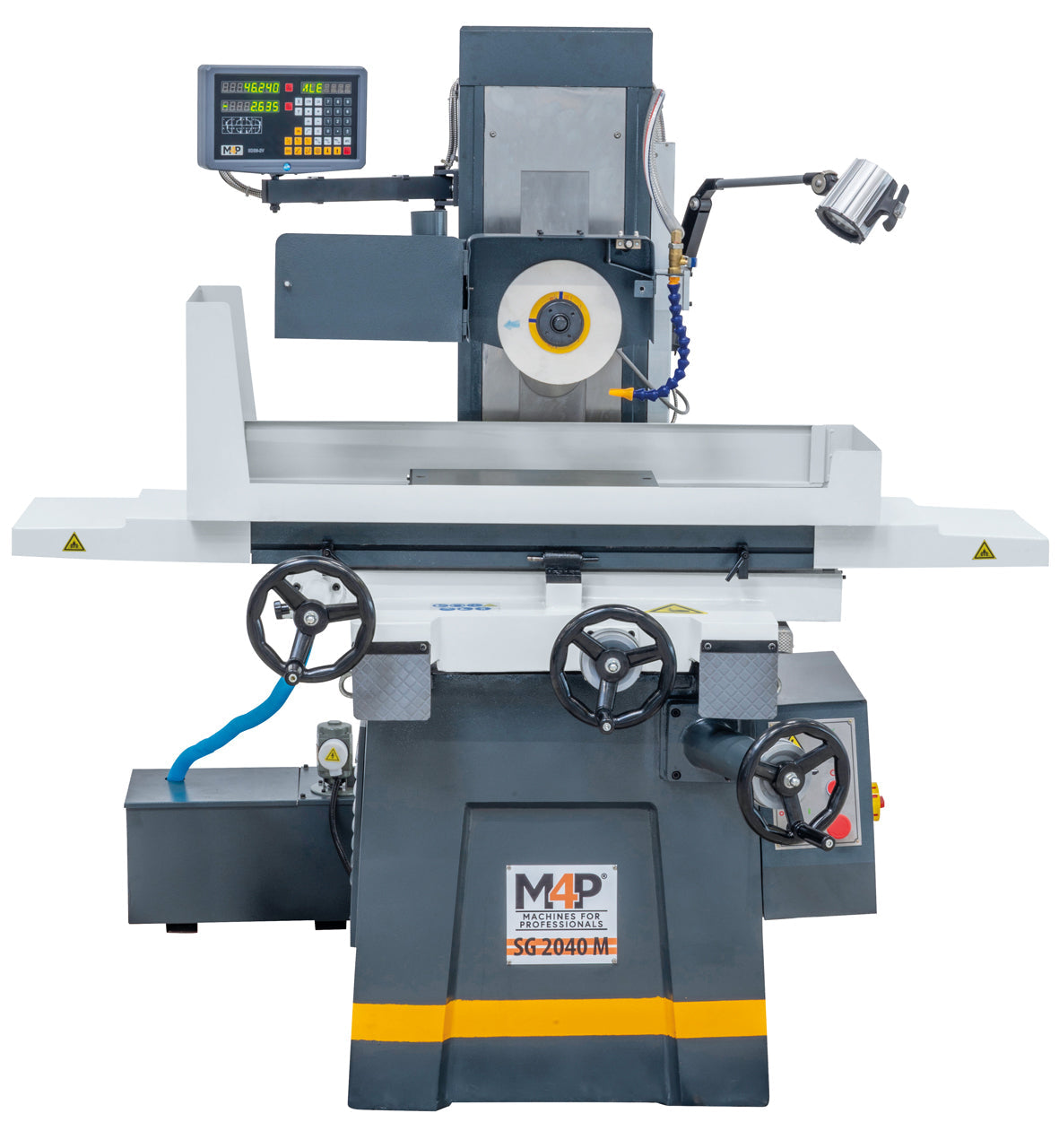

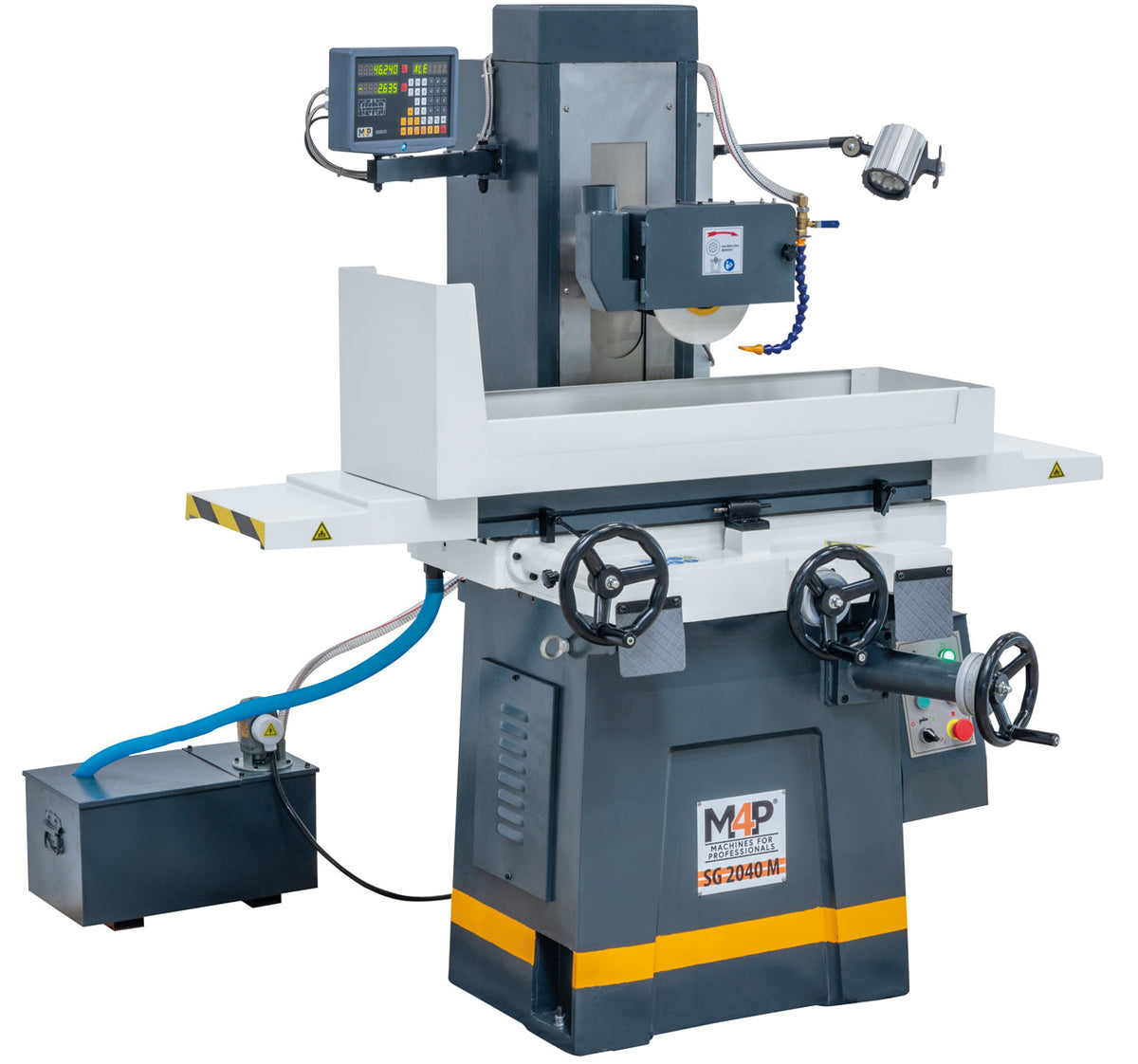

The SG 2040 M is a very robustly built surface grinding machine with compact dimensions. Due to its easy handling, this machine is ideal for schools and training workshops, as well as for tool and mold making.
Low-vibration spindle running thanks to high-quality special bearings
Hardened and ground precision linear guide for longitudinal table movement
Crosswise table movement via precise double V-guide
All main assemblies such as column, base, and carriage made of high-quality cast iron

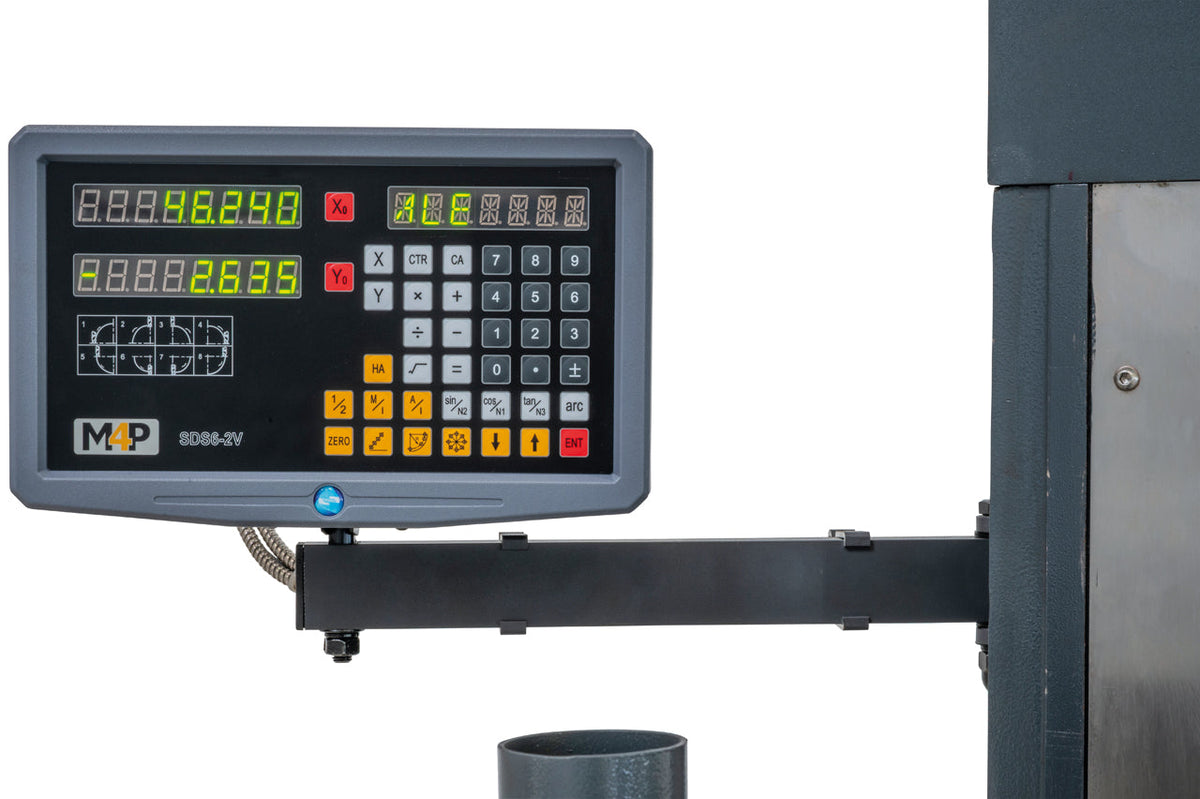

Complete equipment: 2-axis digital readout, permanent magnetic clamping plate, and much more.

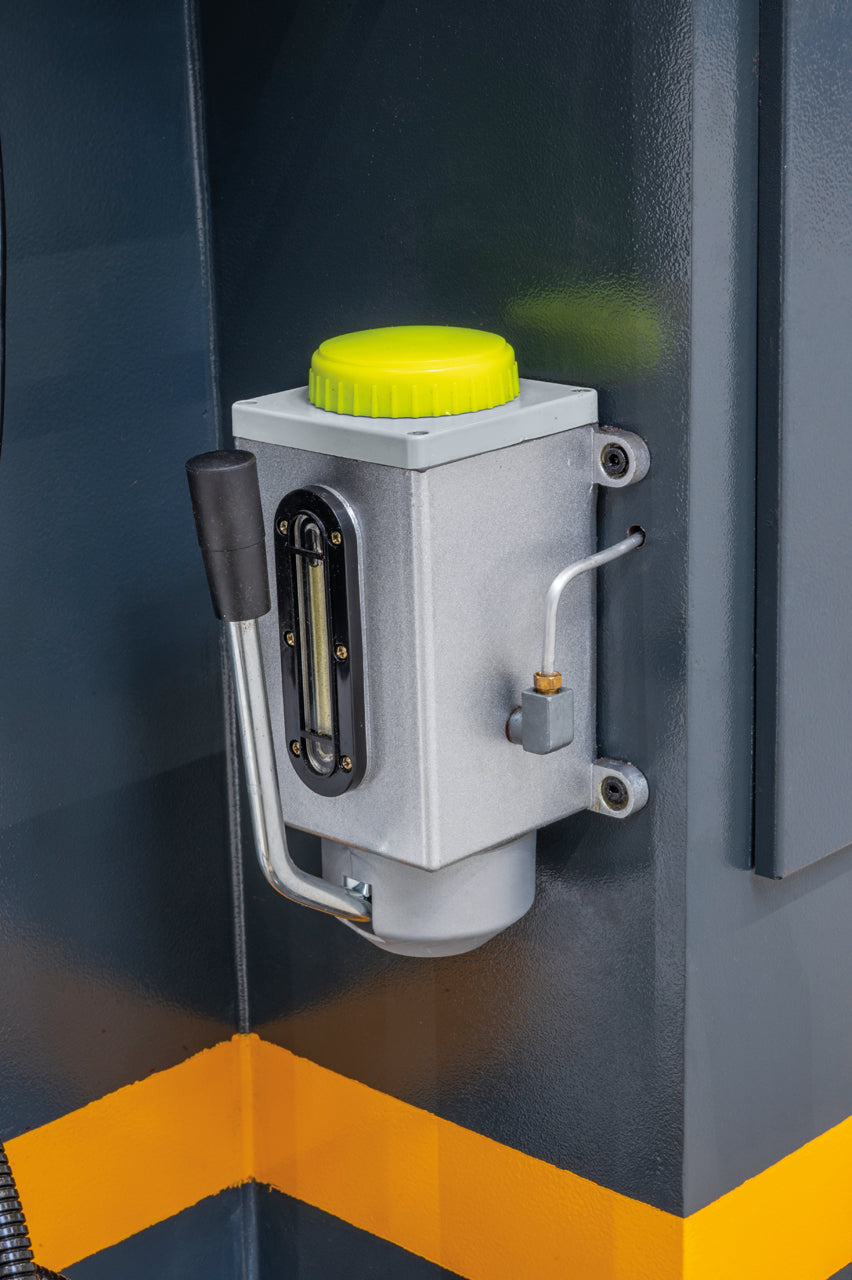

Central lubrication for all guideways
Indispensable for smaller parts and quick grinding processes
| Tischaufspannfläche | 500 x 240 mm |
| T-Nuten Anzahl / Breite | 1 / 14 mm |

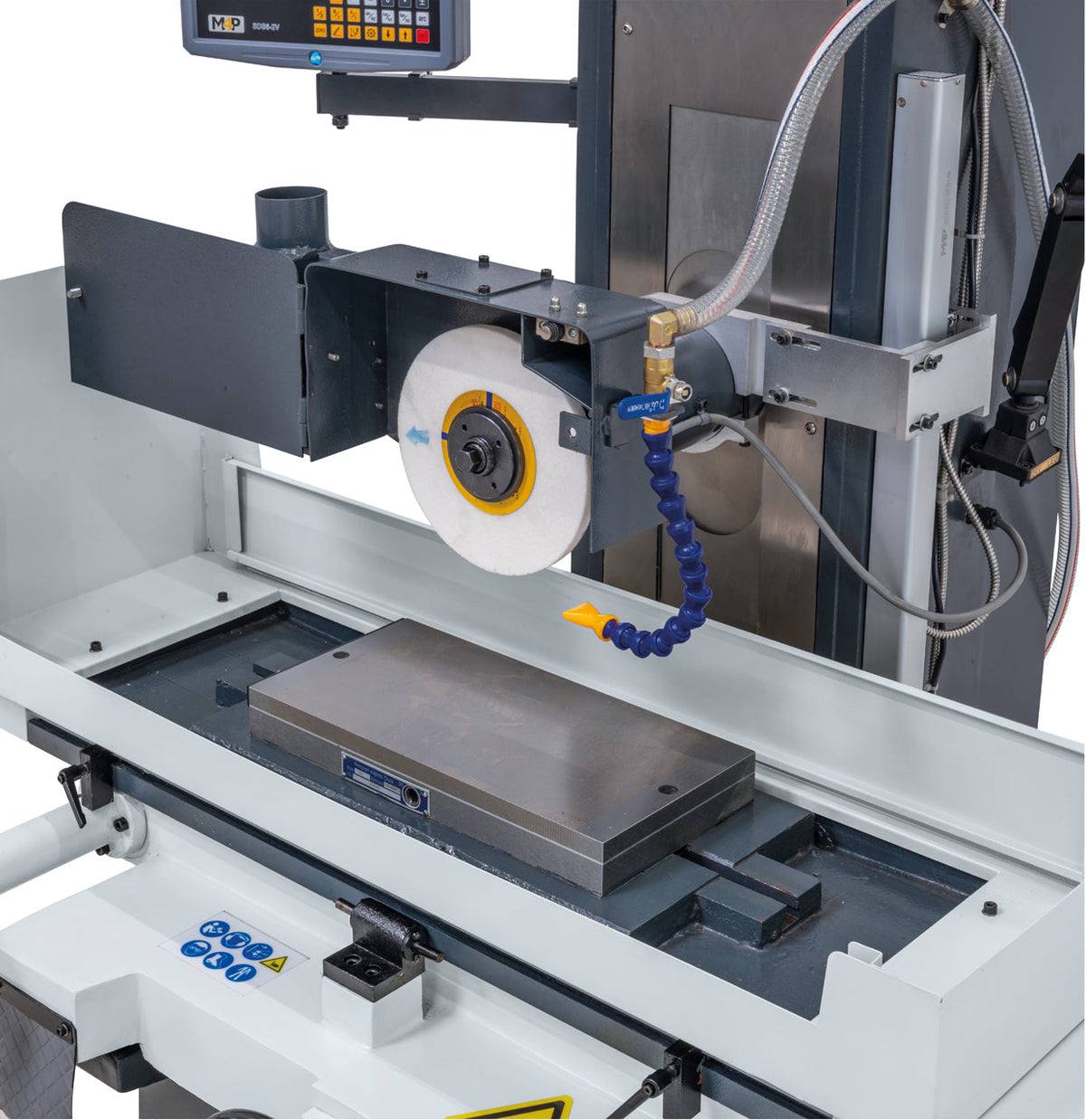

| Permanent-Magnetspannplatte | 200 x 400 mm |
| Max. Verfahrweg längs | 650 mm |
| Max. Verfahrweg quer | 285 mm |
| Abstand Spindelmitte / Tisch max. | 410 mm |

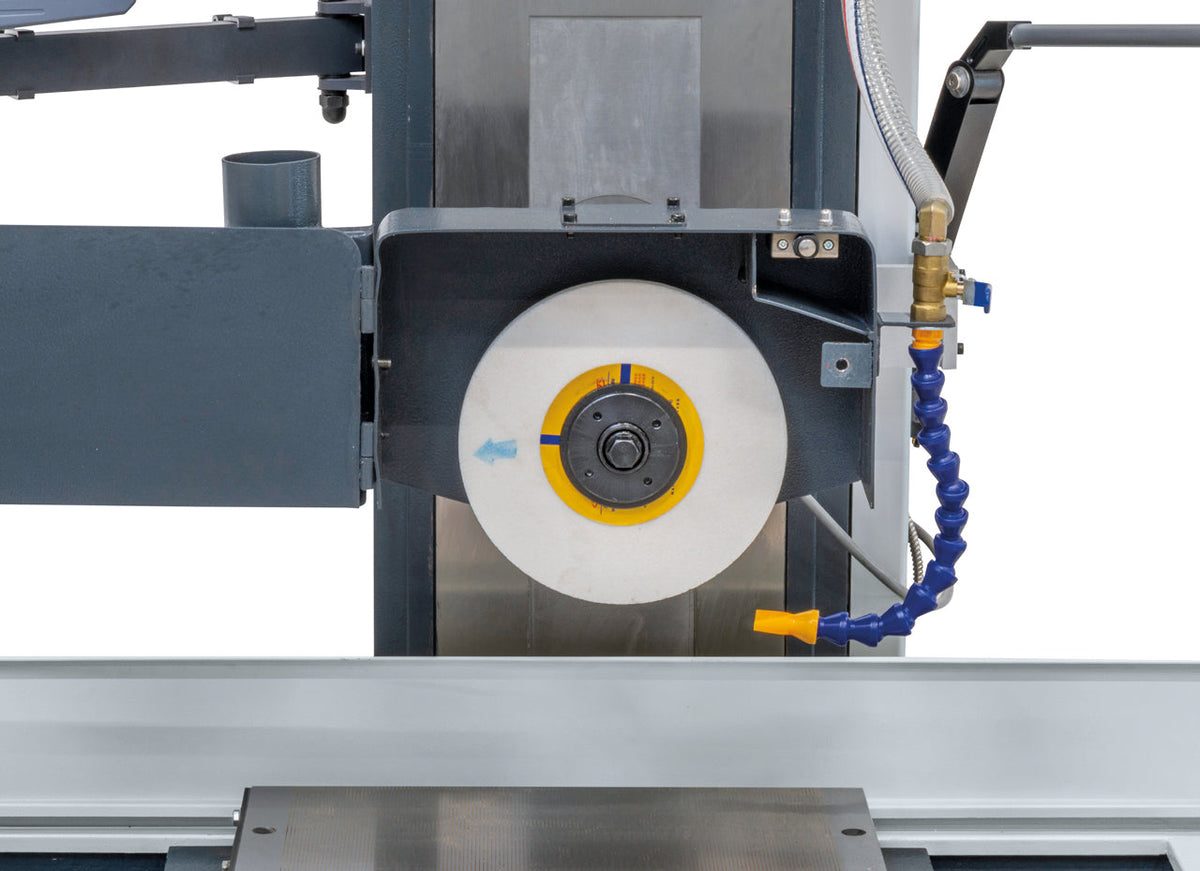

| Schleifscheibe | 200 x 13 x 31,75 mm |
| Querverstellung | |

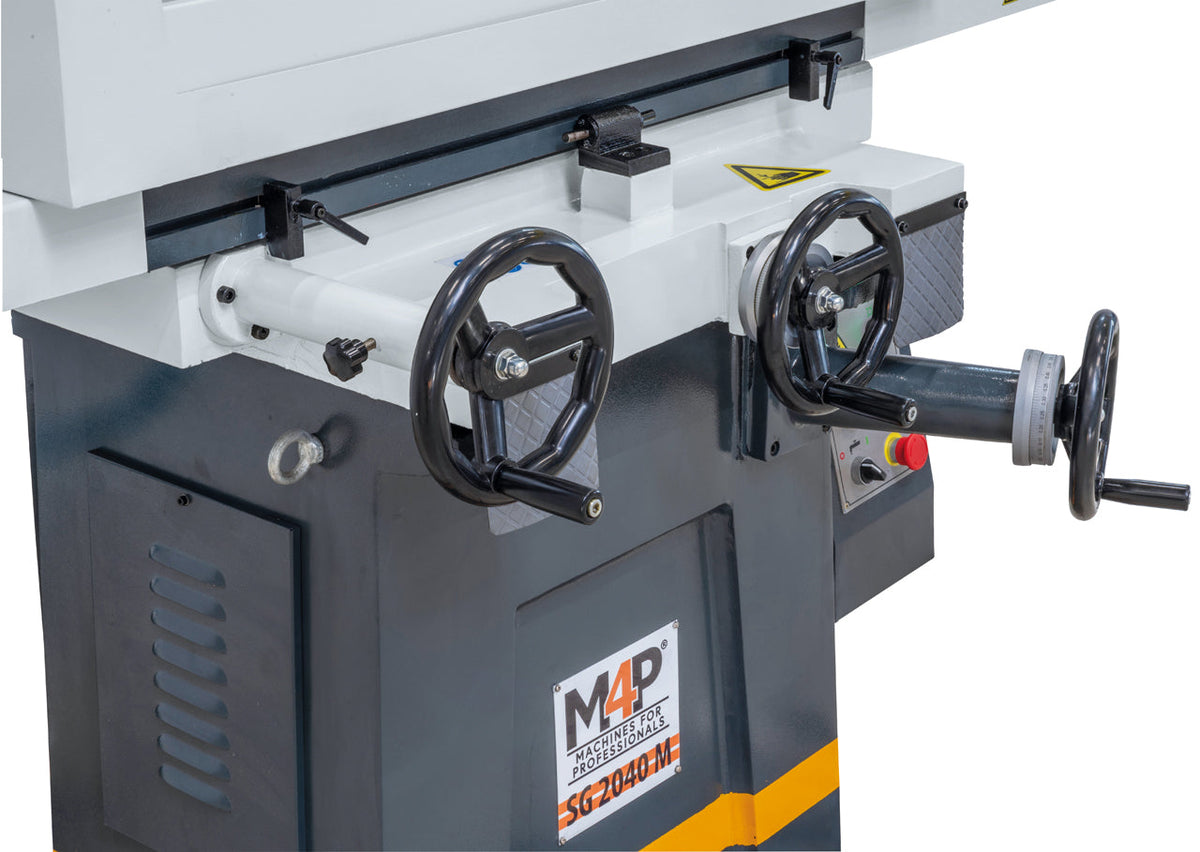

| Zustellung quer pro Handradumdrehung | 2,5 mm |
| Skalenteilung am Handrad | 0,02 mm |
| Vertikalzustellung | |
| Zustellung vertikal pro Handradumdrehung | 1,25 mm |
| Skalenteilung am Handrad | 0,01 mm |
| Schleifspindelmotor | 1,5 kW / 400 V |
| Spindeldrehzahl | 2800 U/min |
| Länge | 1680 mm |
| Tiefe | 1300 mm |
| Höhe | 1750 mm |
| Gewicht ca. | 780 kg |
