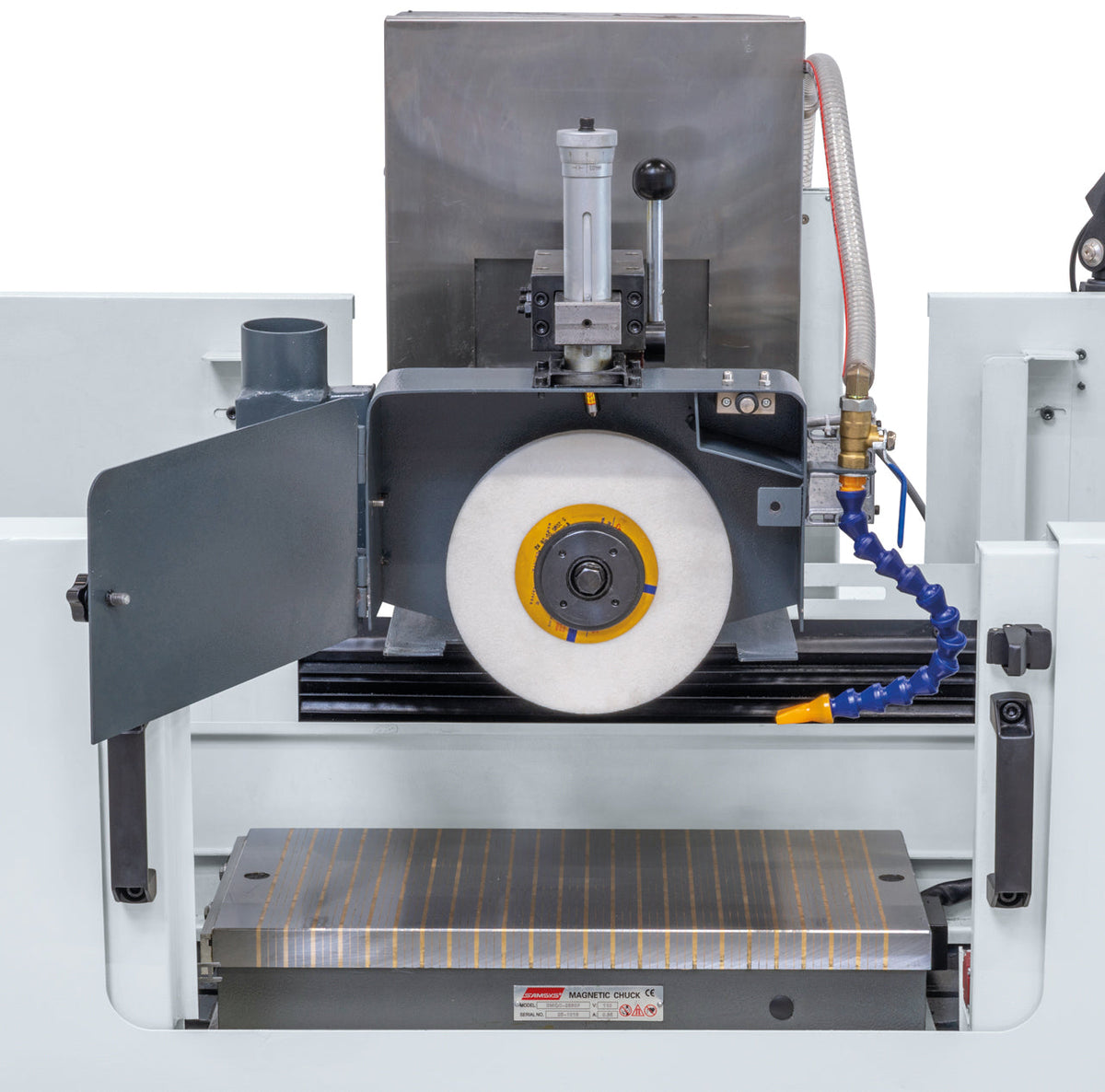

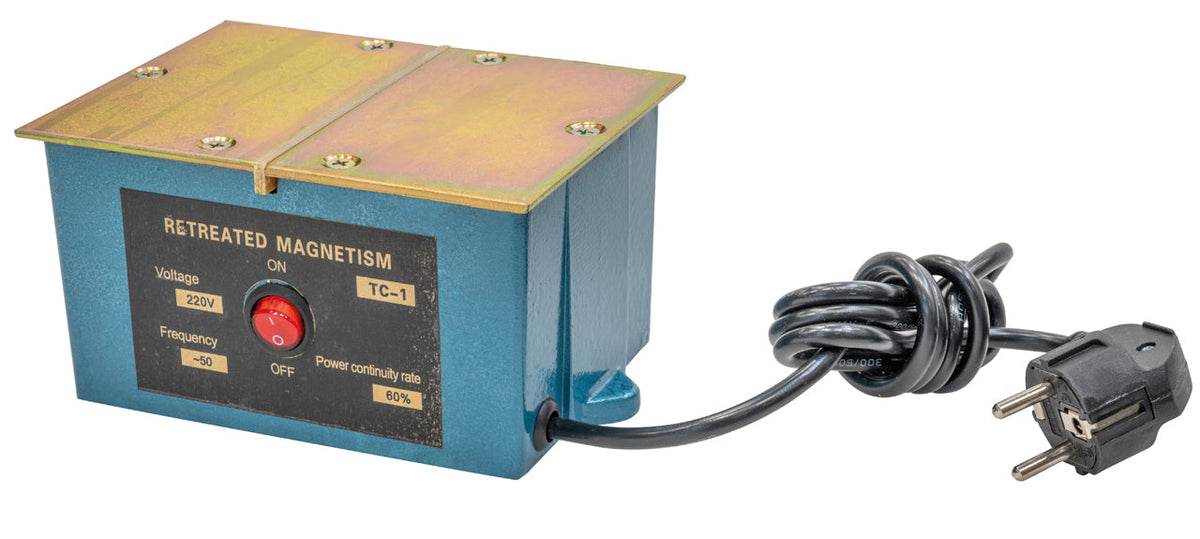

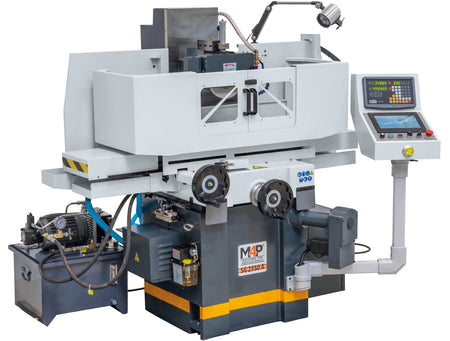

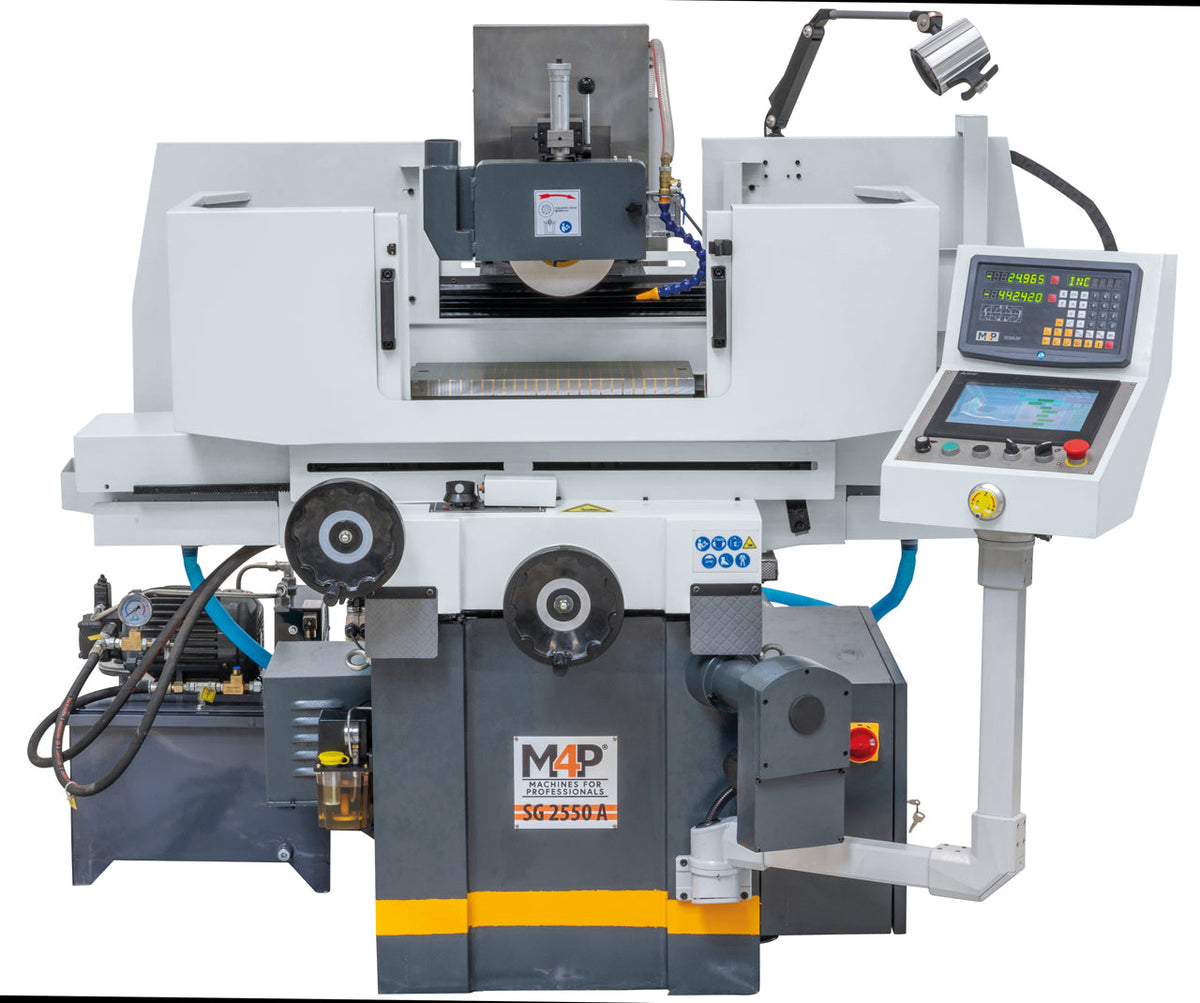

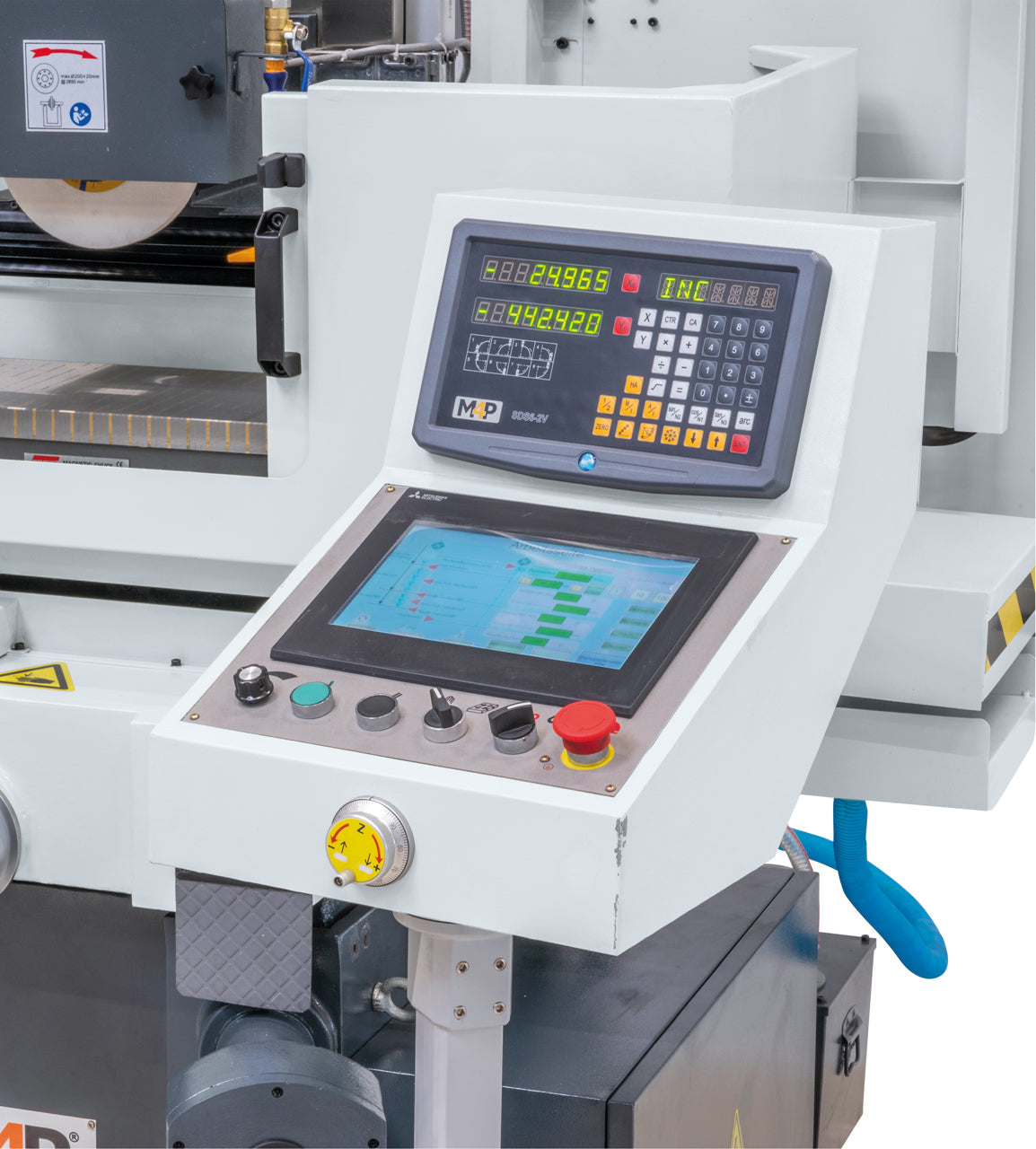

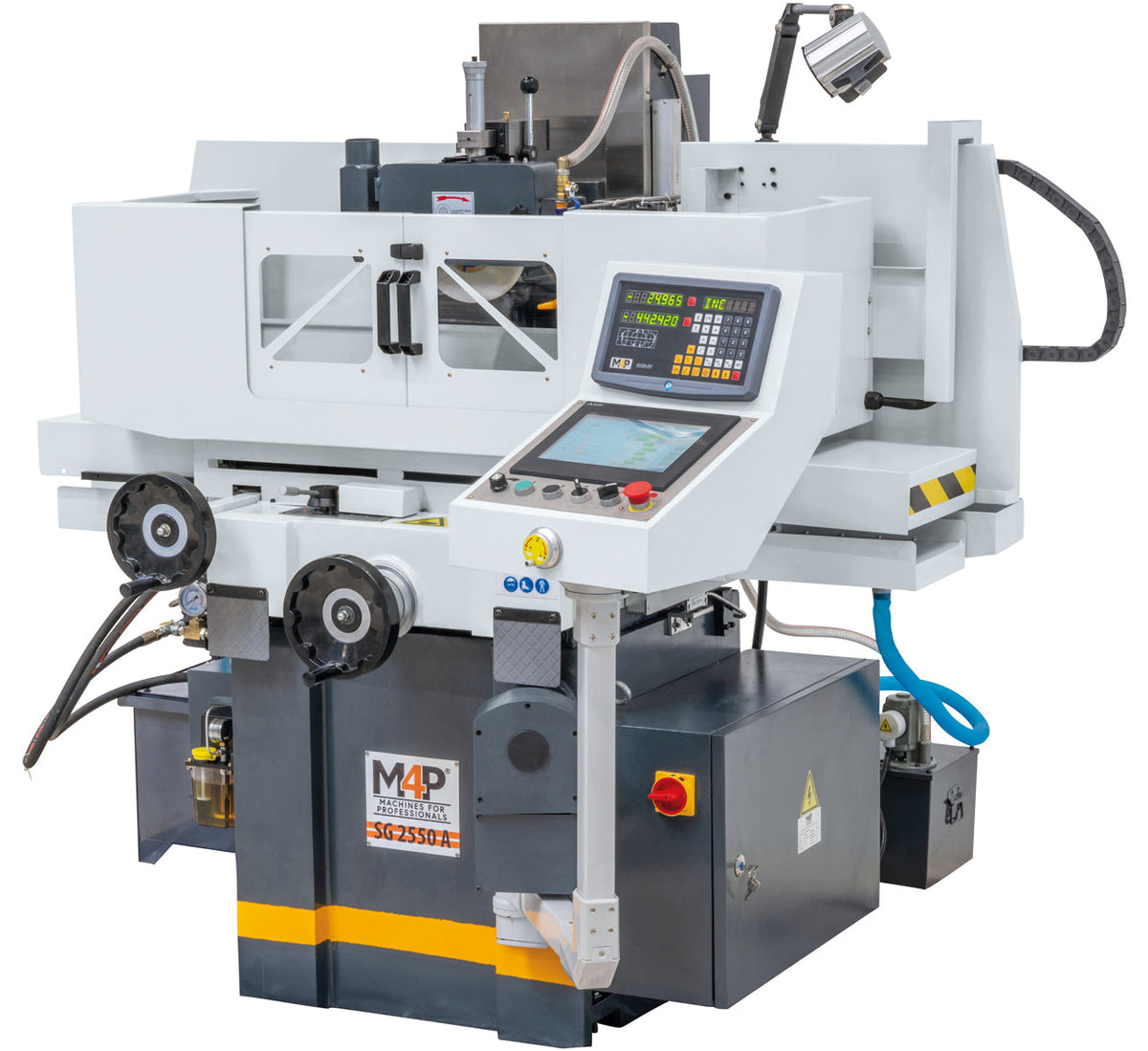

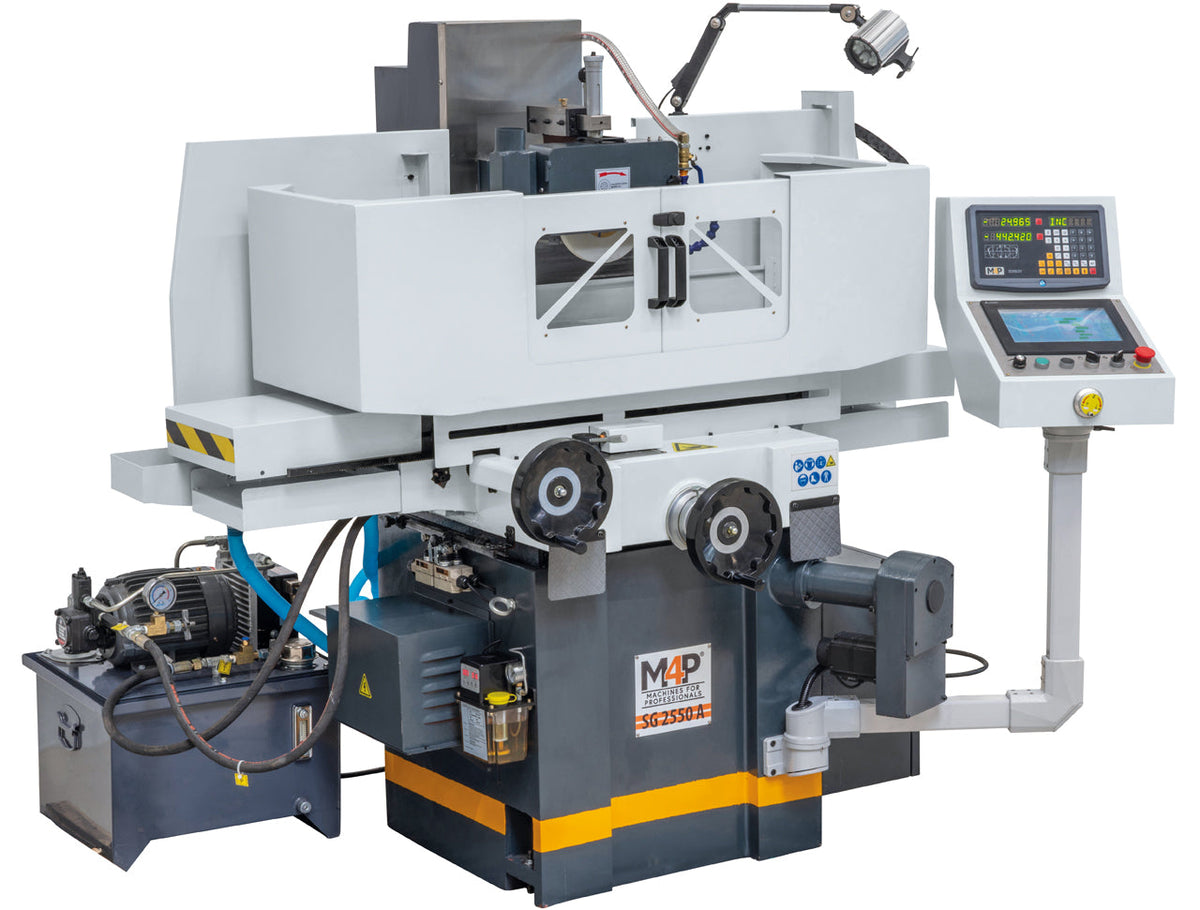

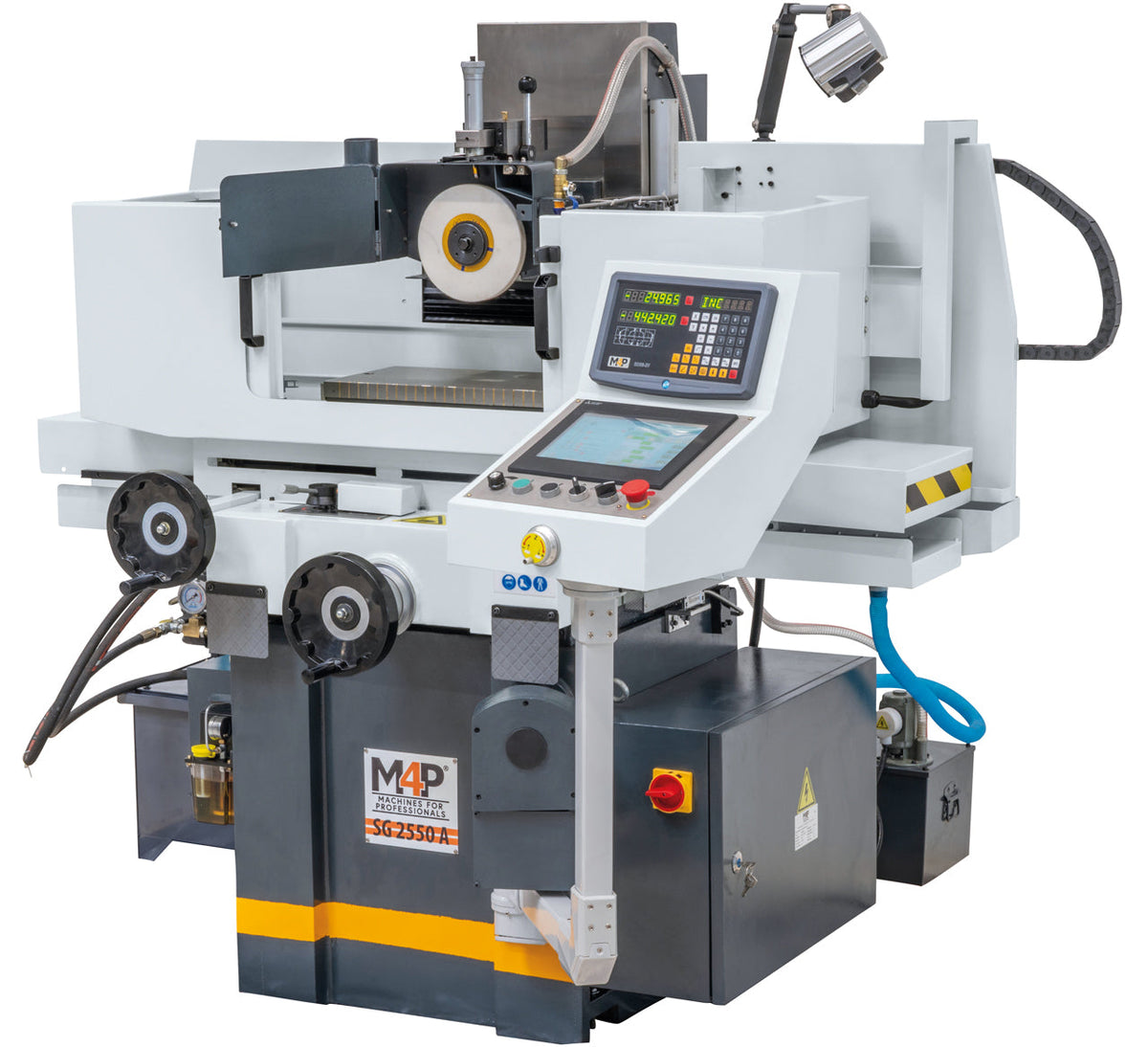

The robustly built surface grinding machine SG 2550 A is equipped with automatic vertical infeeds as standard. Thanks to its extensive standard features, such as computer-controlled vertical infeed, magnetic chuck with demagnetization device, touchscreen control, and an electronic handwheel, this model offers an optimal performance package for the user.
Low stick-slip effect due to plastic-coated counter guides in x and y axes
Longitudinal table guide V-flat, cross table guide double V

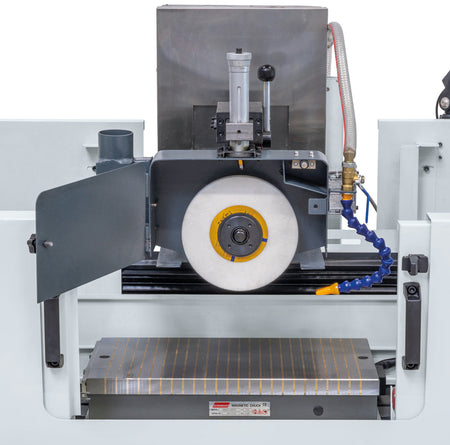

Special bearings in the grinding spindle, preloaded axially and radially without play
High stability due to strong ribbing and generously dimensioned walls

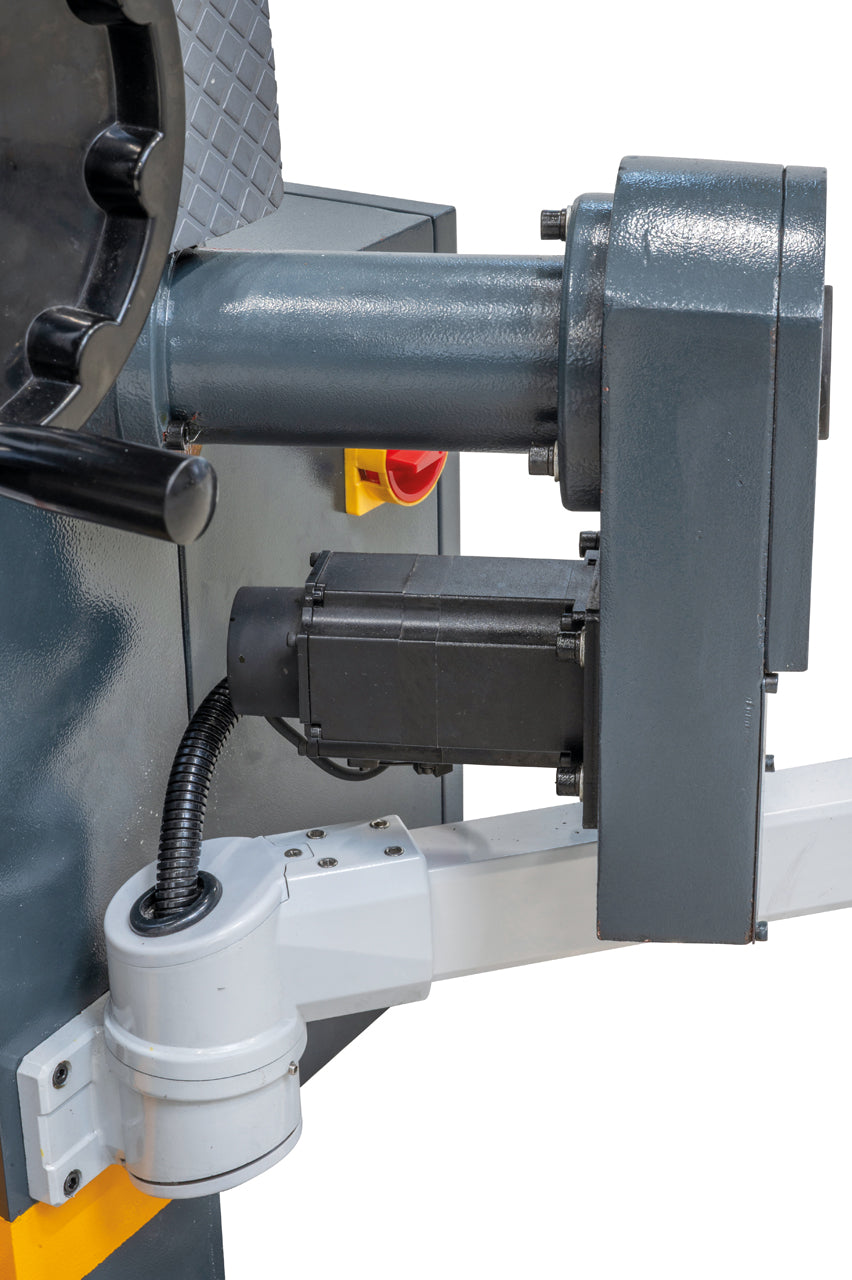

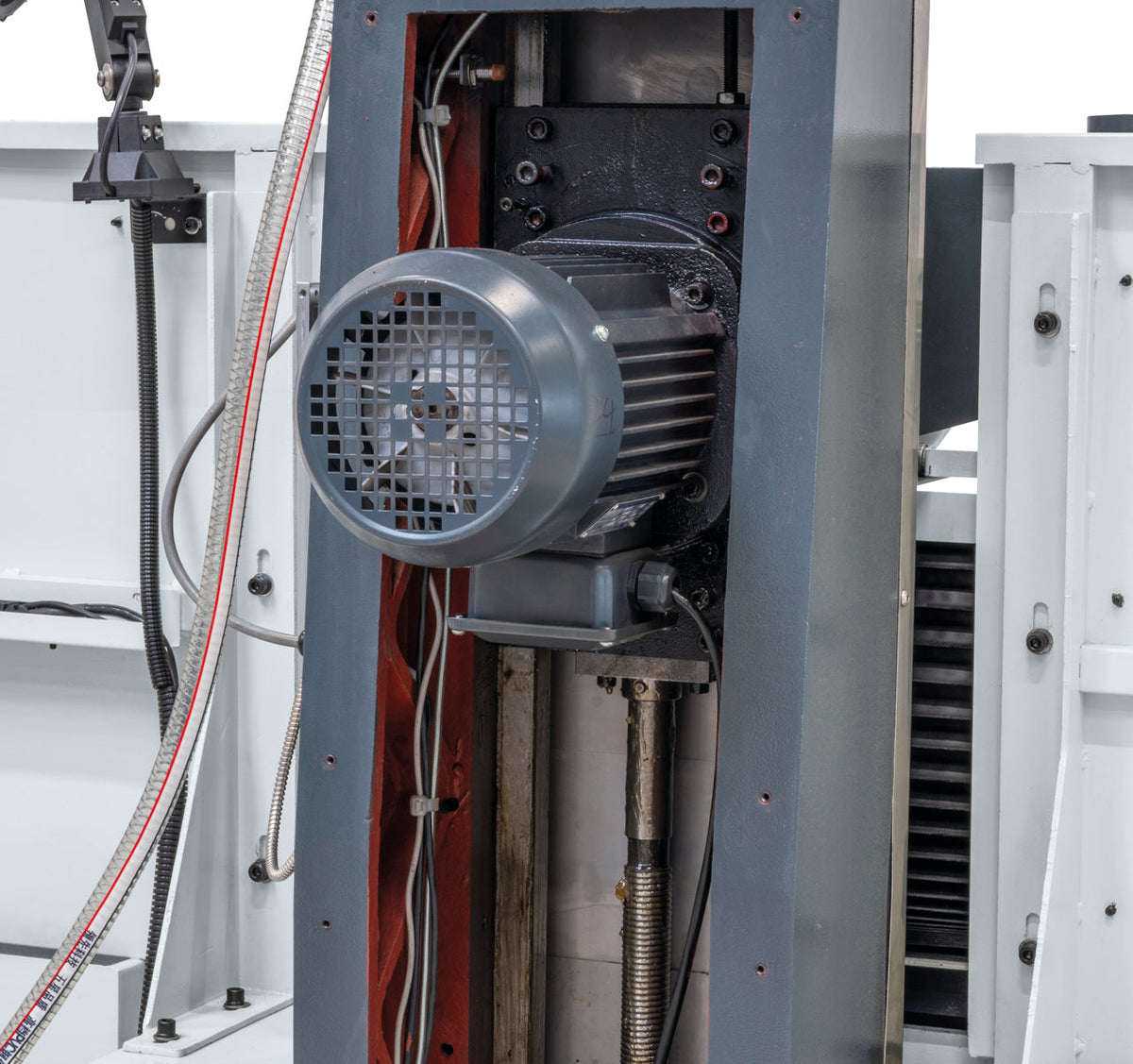

Digitally controlled automatic vertical feed with servo motor

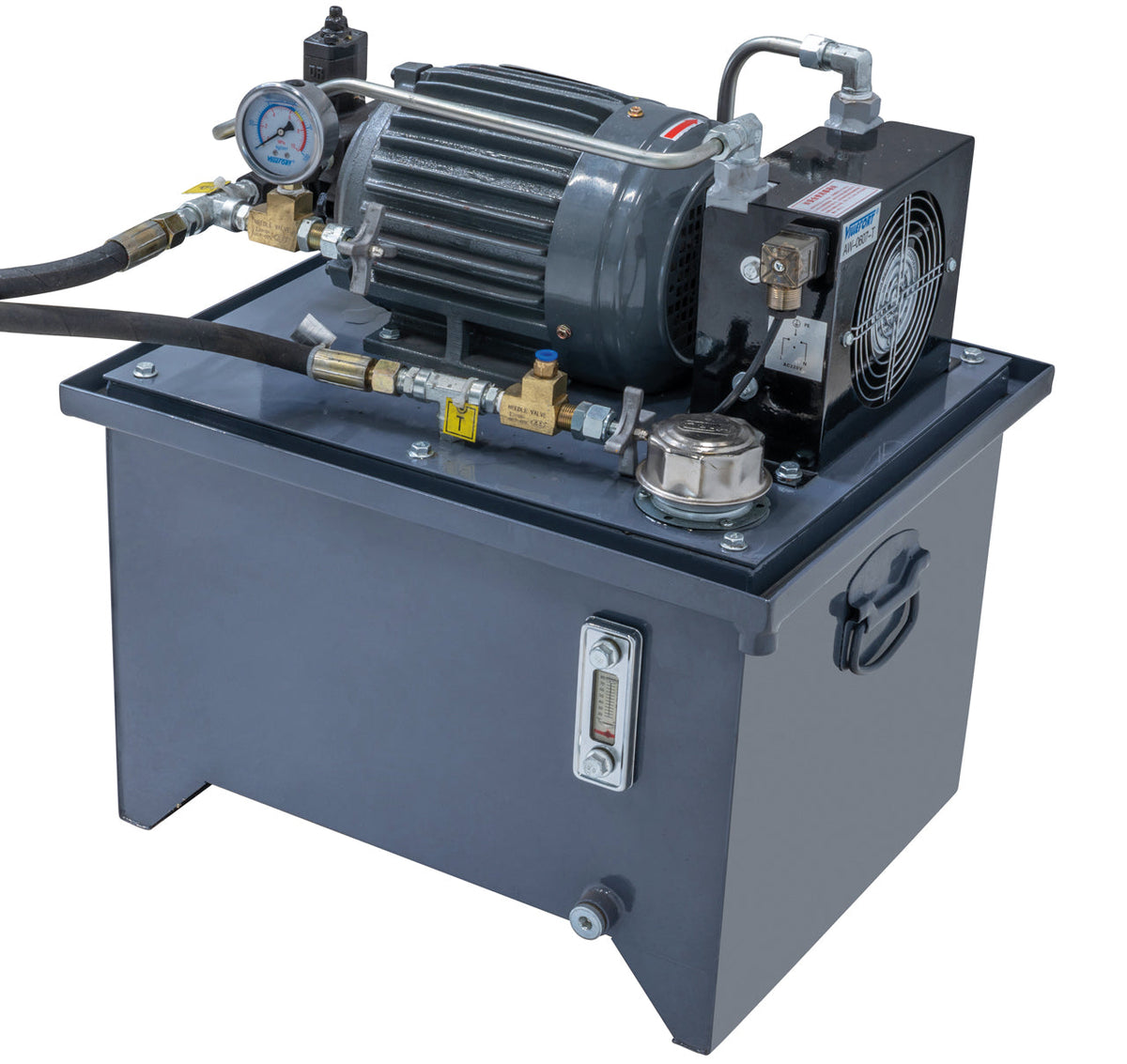

Sophisticated hydraulic system ensures smooth table reversal even with high table loads

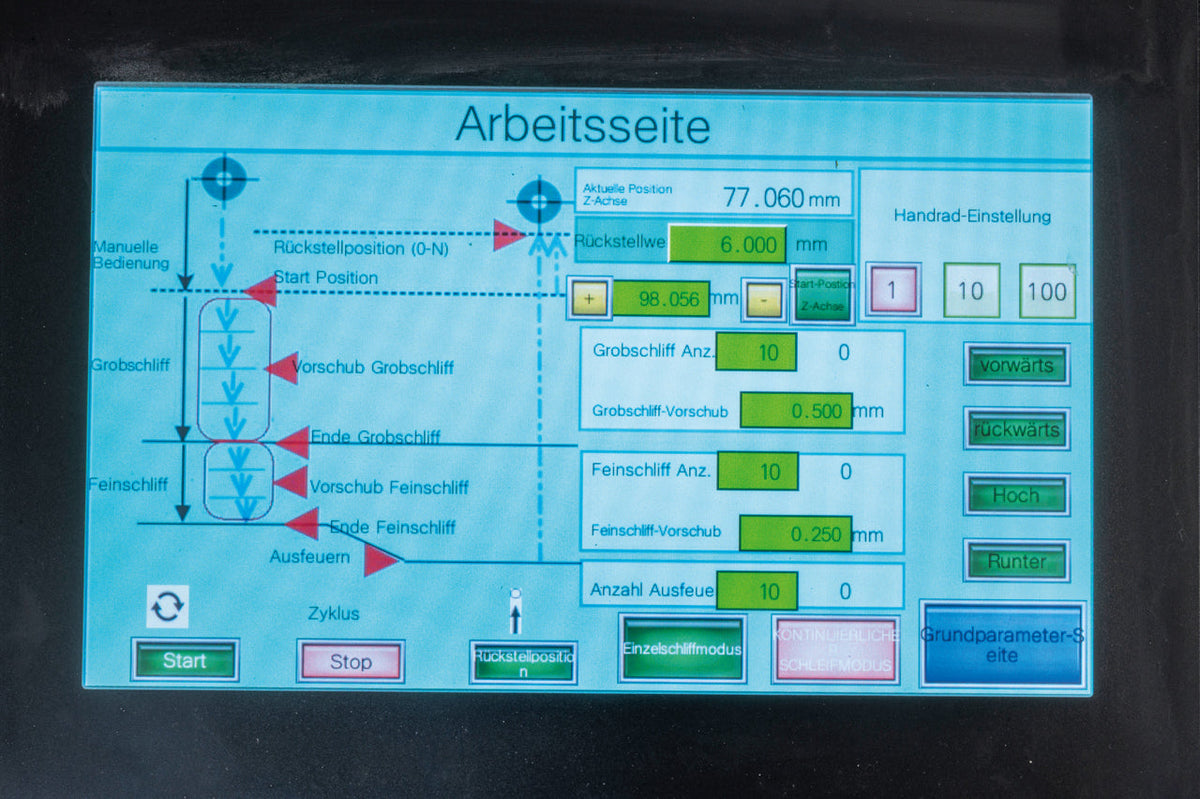

Infeed via rapid traverse to workpiece height, adjustable finishing and
spark-out strokes, automatic lift-off after program end

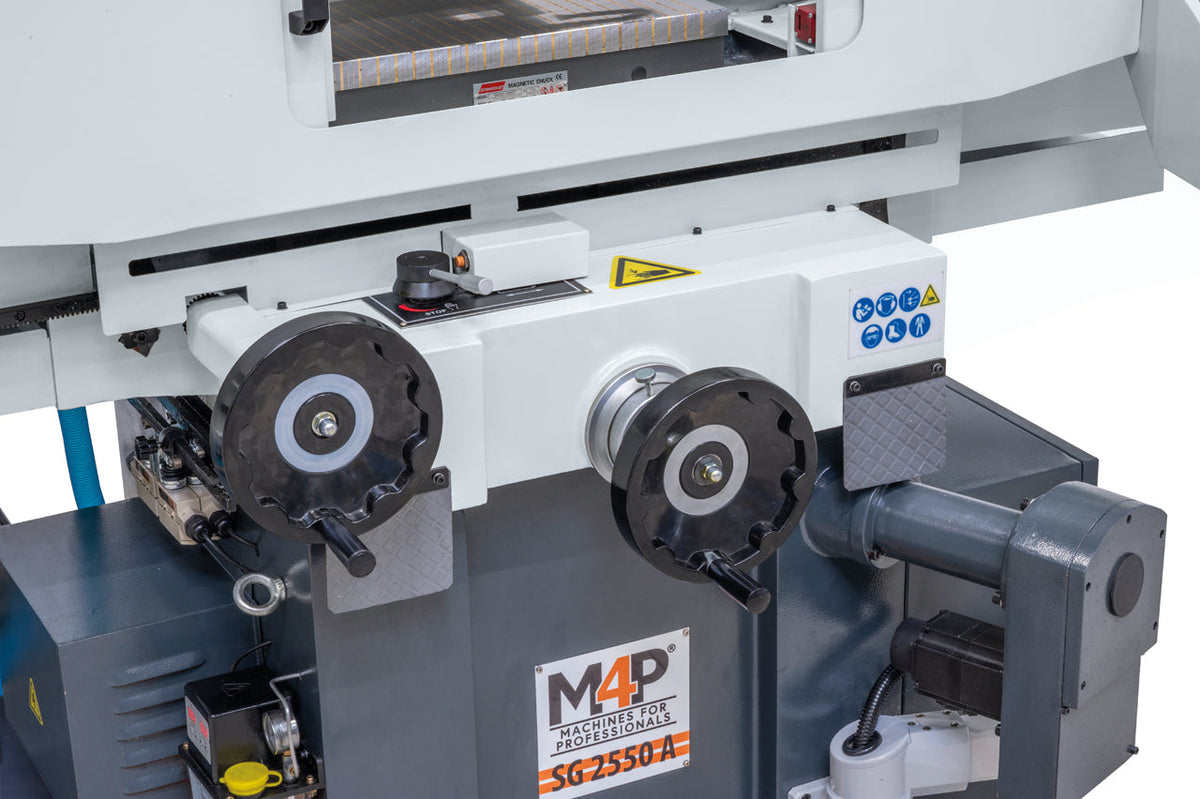

Adjustable longitudinal and cross table movement via end stops
| Tischaufspannfläche | 250 x 520 mm |
| T-Nuten Anzahl / Breite | 1 / 14 mm |
| Elektro-Magnetspannplatte | 250 x 500 mm |
| Max. Verfahrweg, längs | 615 mm |
| Max. Verfahrweg, quer | 295 mm |
| Abstand Spindelmitte / Tisch max. | 330 mm |
| Max. Werkstückgewicht* | 150 kg |
| Schleifscheibe | 200 x 20 x 31,75 mm |
| Tischgeschwindigkeit, hydraulisch | 2 - 18 m/min |
| Querverstellung | |
| Automatische Zustellung, quer | 0,5 – 10 mm/Hub |
| Eilgang, quer | 990 mm/min |
| Zustellung quer pro Handradumdrehung | 4 mm/U |
| Skalenteilung am Handrad | 0,02 mm |
| Vertikalzustellung | |
| Automatische Zustellung, vertikal | 0,01 / 0,1 mm |
| Eilgang, vertikal | 360 mm/min |
| Schleifspindelmotor | 2,2 kW |
| Spindeldrehzahl | 2850 U/min |
| Hydraulikpumpenmotor | 1,5 kW |
| Vertikalvorschubmotor | 0,75 kW |
| Länge | 2000 mm |
| Tiefe | 1520 mm |
| Höhe | 1680 mm |
| Gewicht ca. | 1100 kg |
| * mit Magnetspannplatte | |
