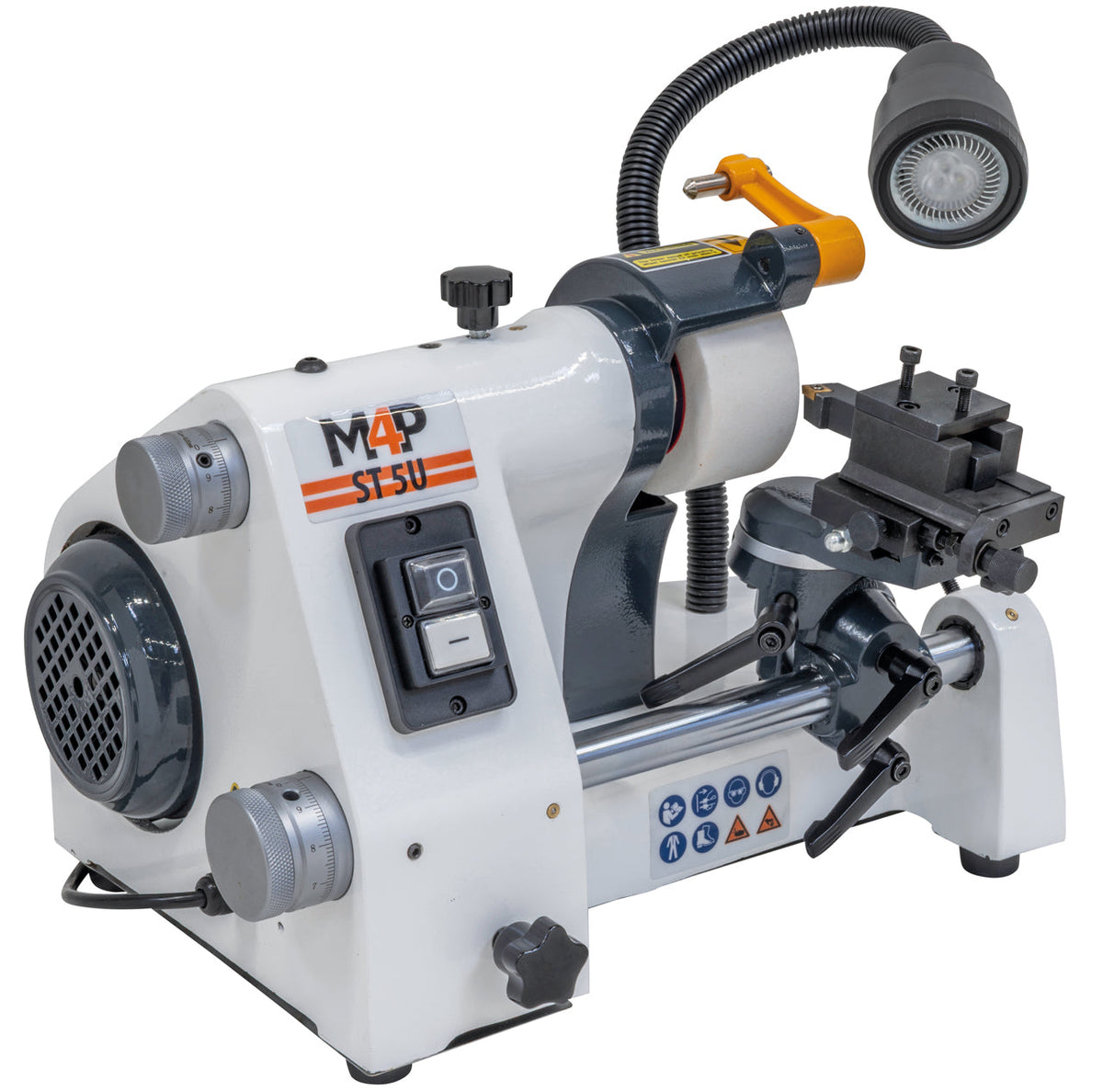

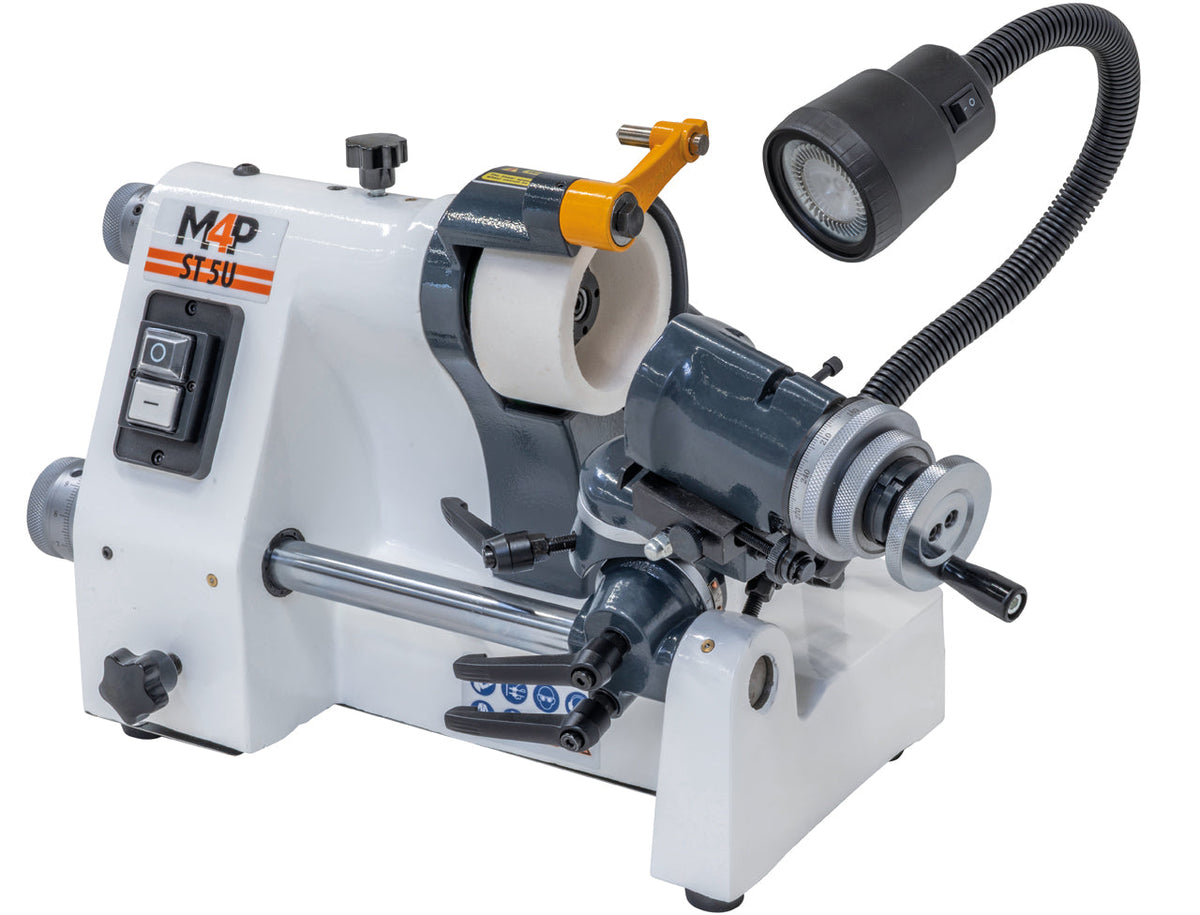

The ST 5U tool grinding machine is universally applicable thanks to its versatile pivoting and adjustment options. With its extensive range of standard accessories, this model offers an optimal performance package for a low investment.
For grinding, e.g., punches, twist drills, electrodes, engraving cutters, centering tips, etc.
Simple operation and handling
Solid base body ensures long-lasting precision
Indexing head with 24 locking positions for grinding polygons on punches or electrodes
Optimally suited for grinding engraving cutters (single-lip cutters)

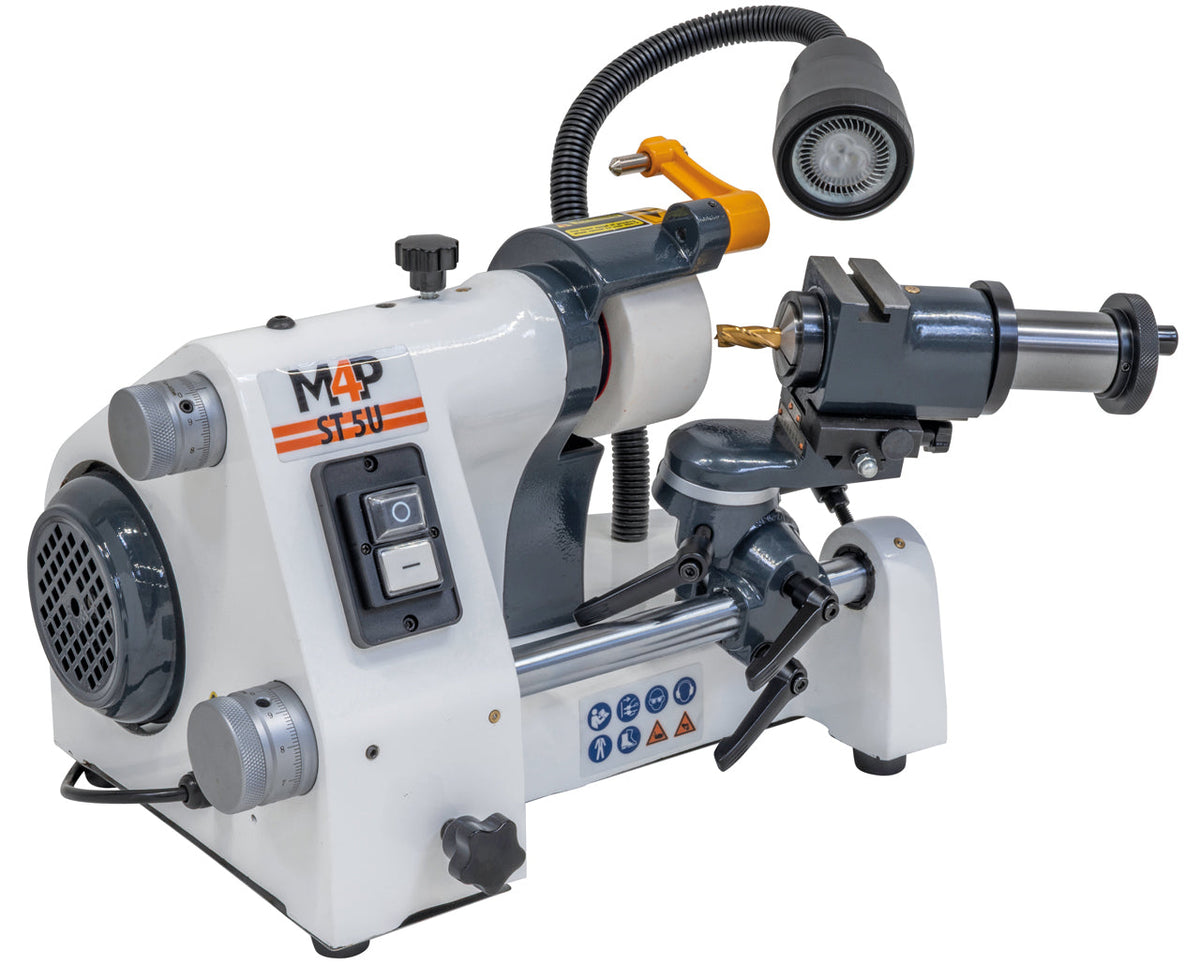

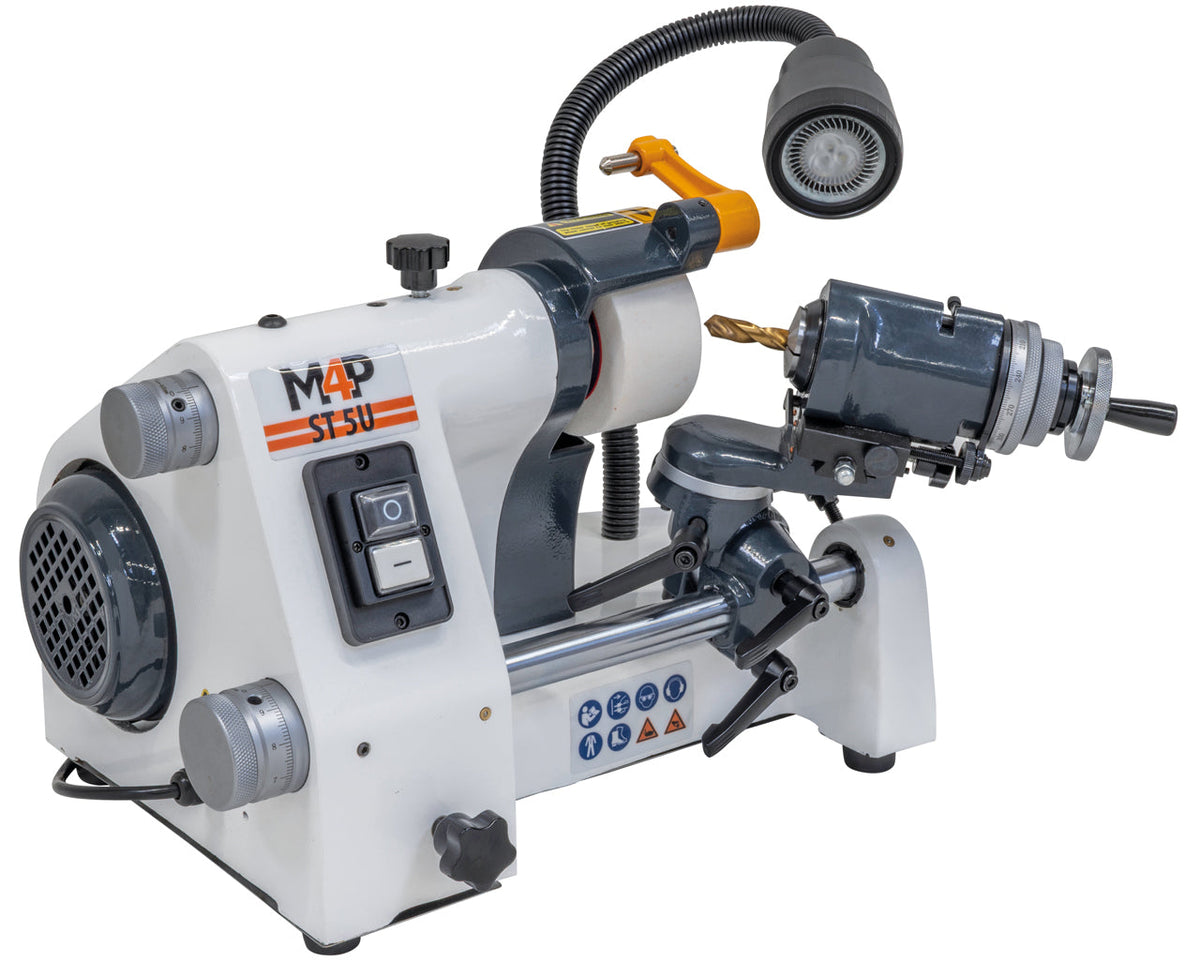

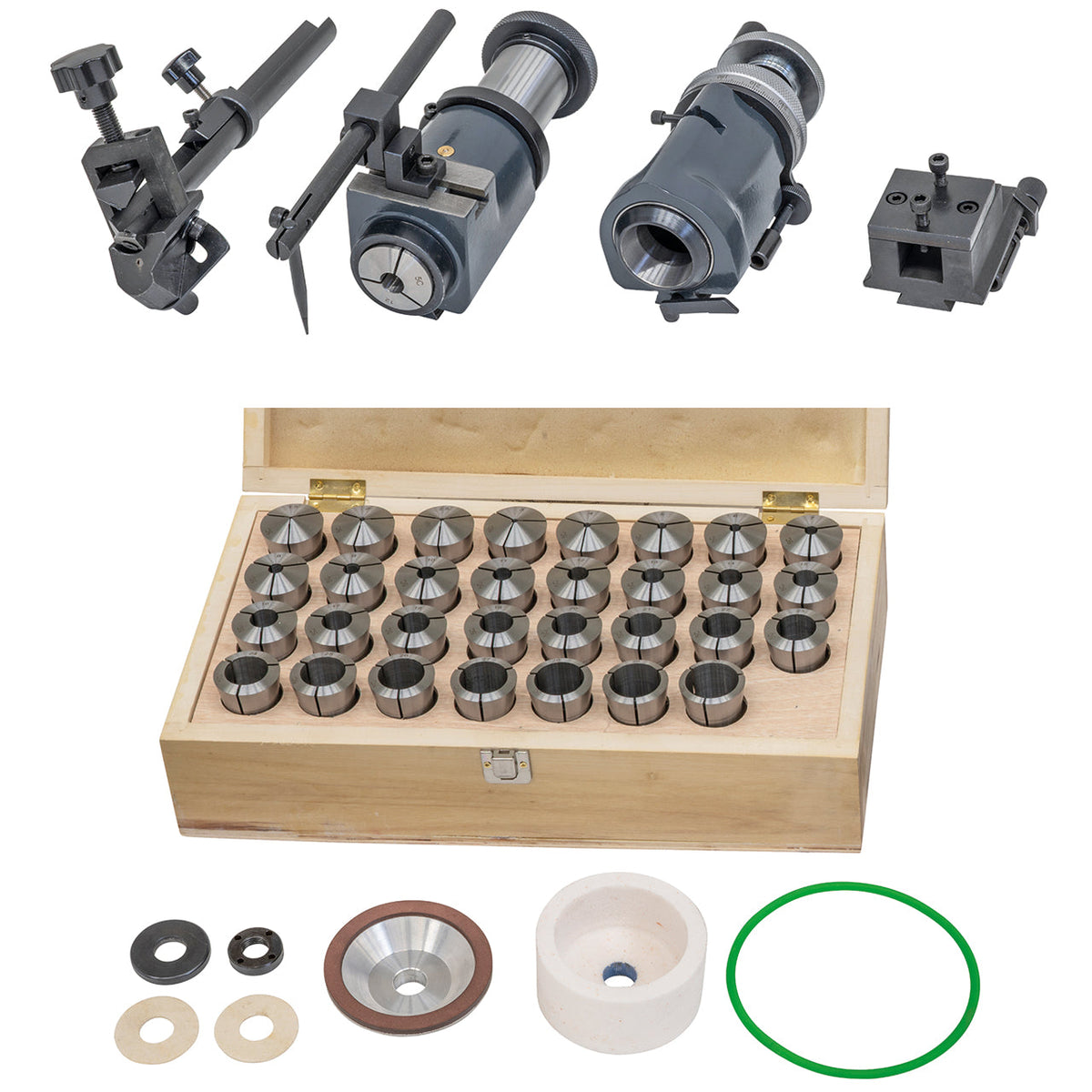

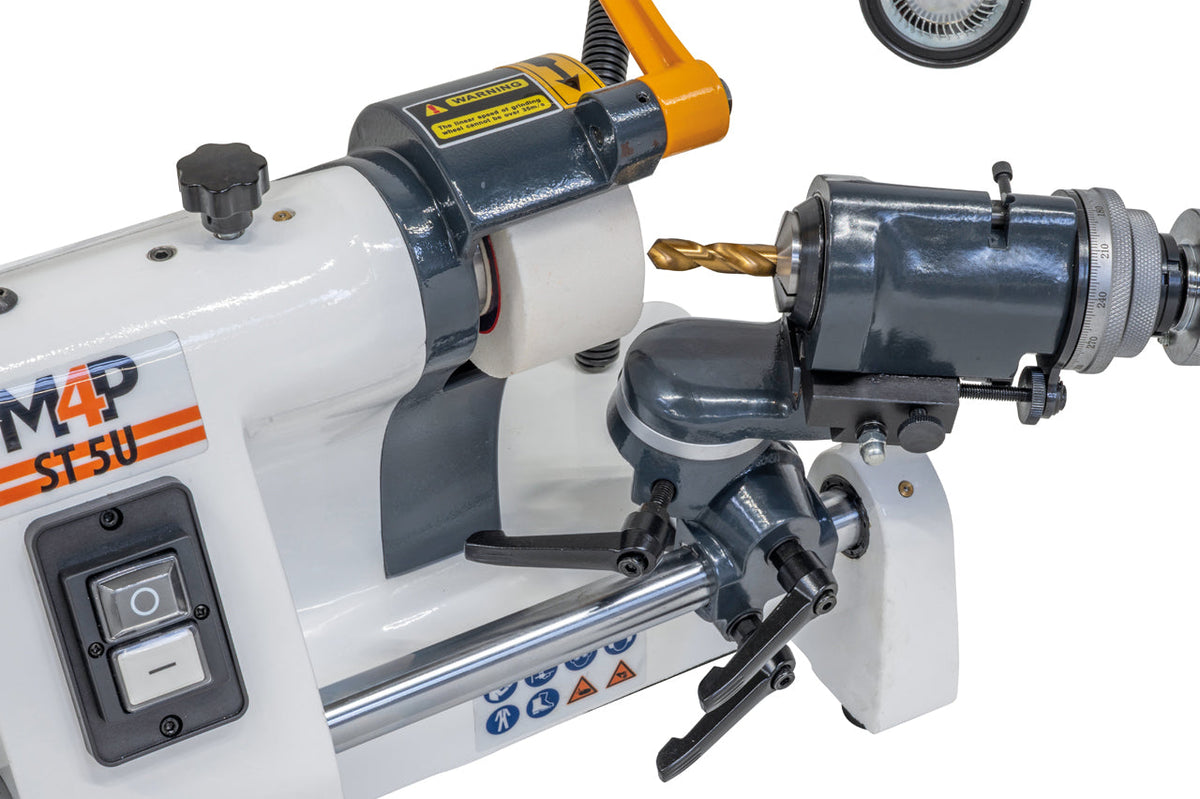

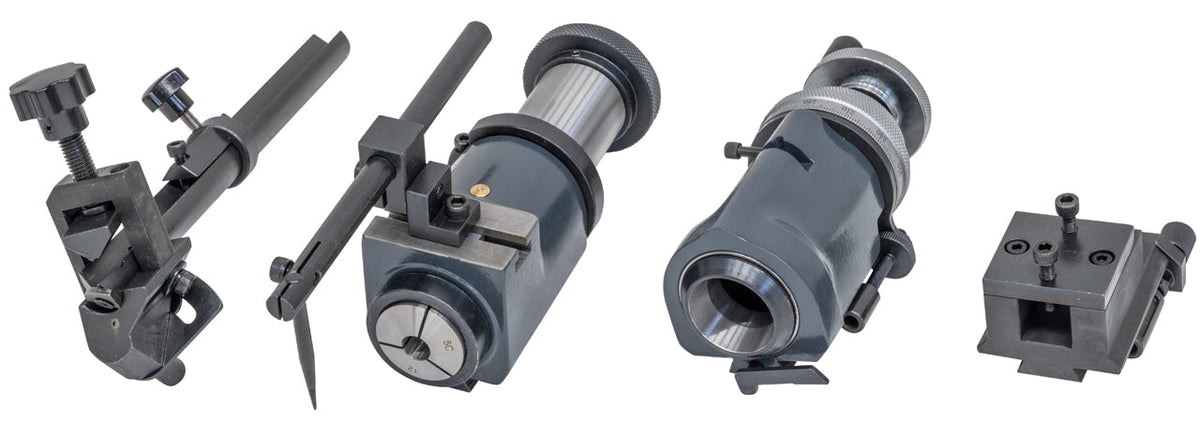

Extensive standard accessories: mount for twist drills, end mills and

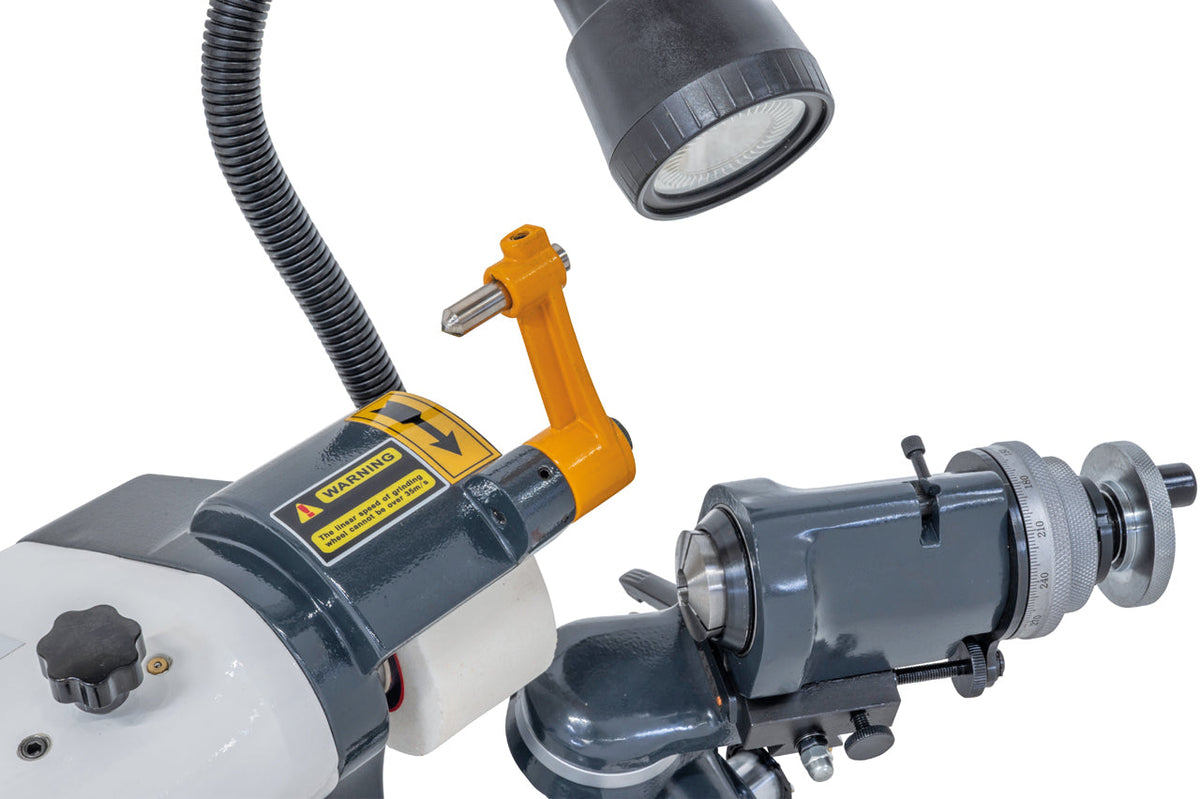

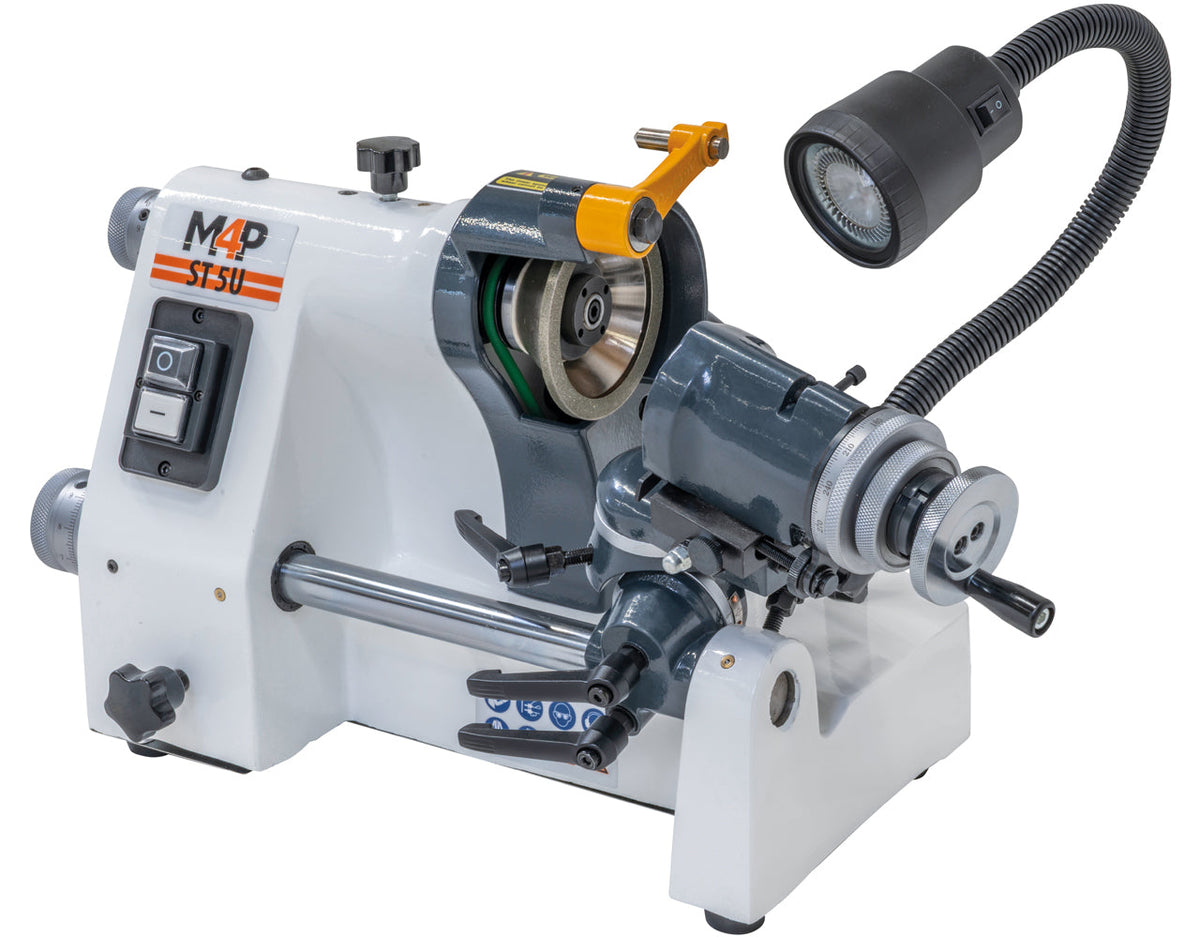

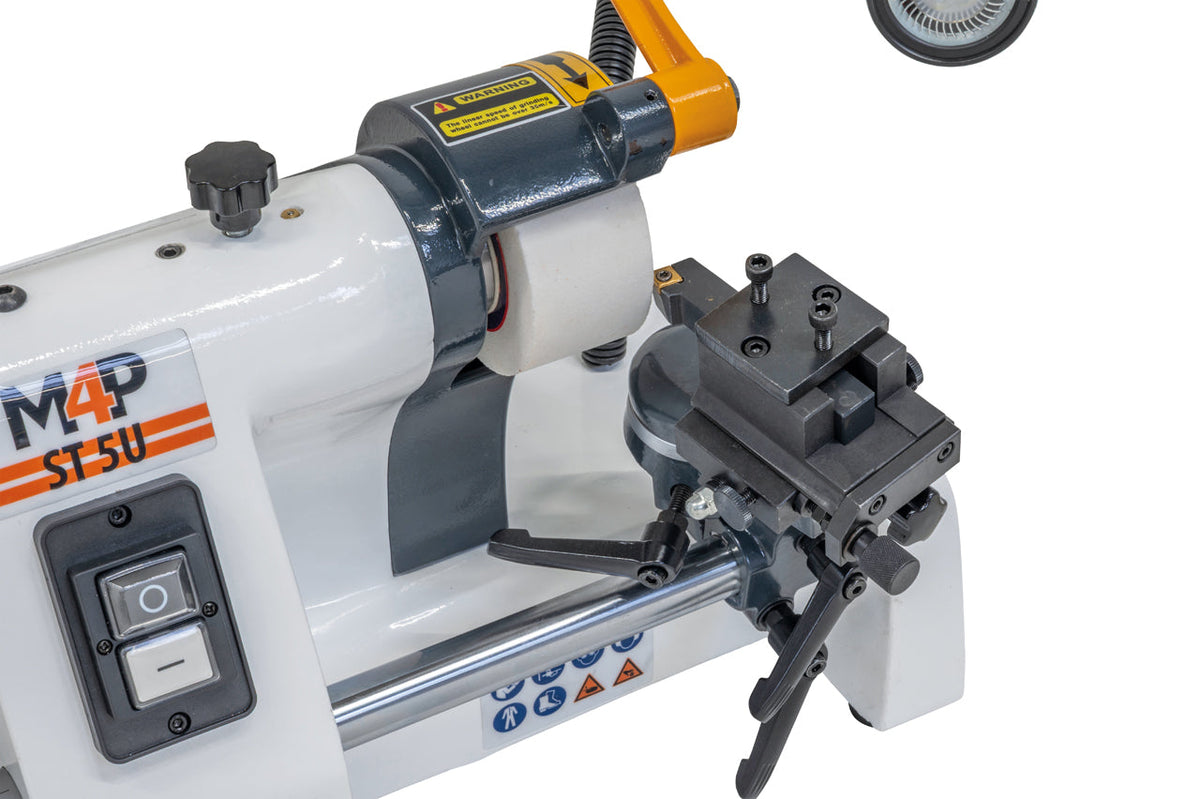

turning tools, diamond wheel, collets, ...

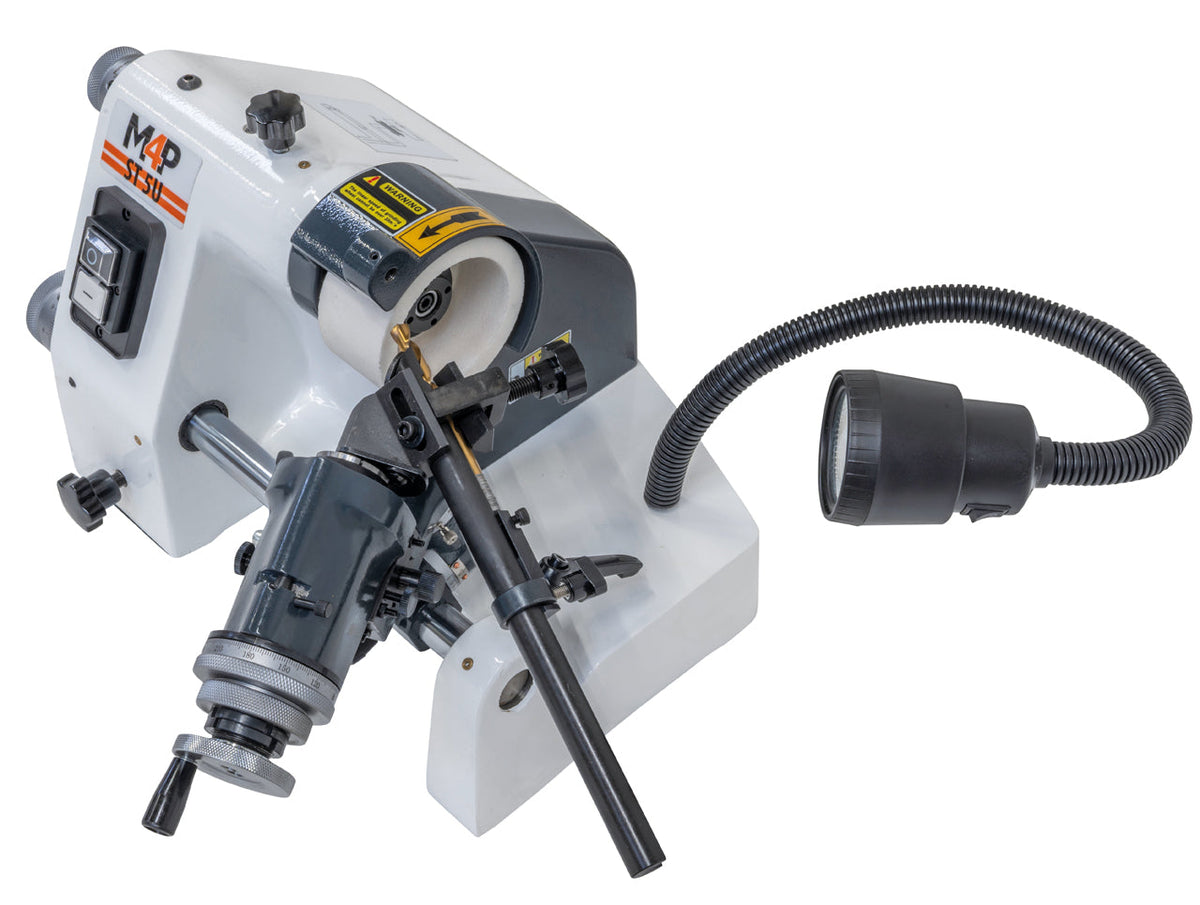

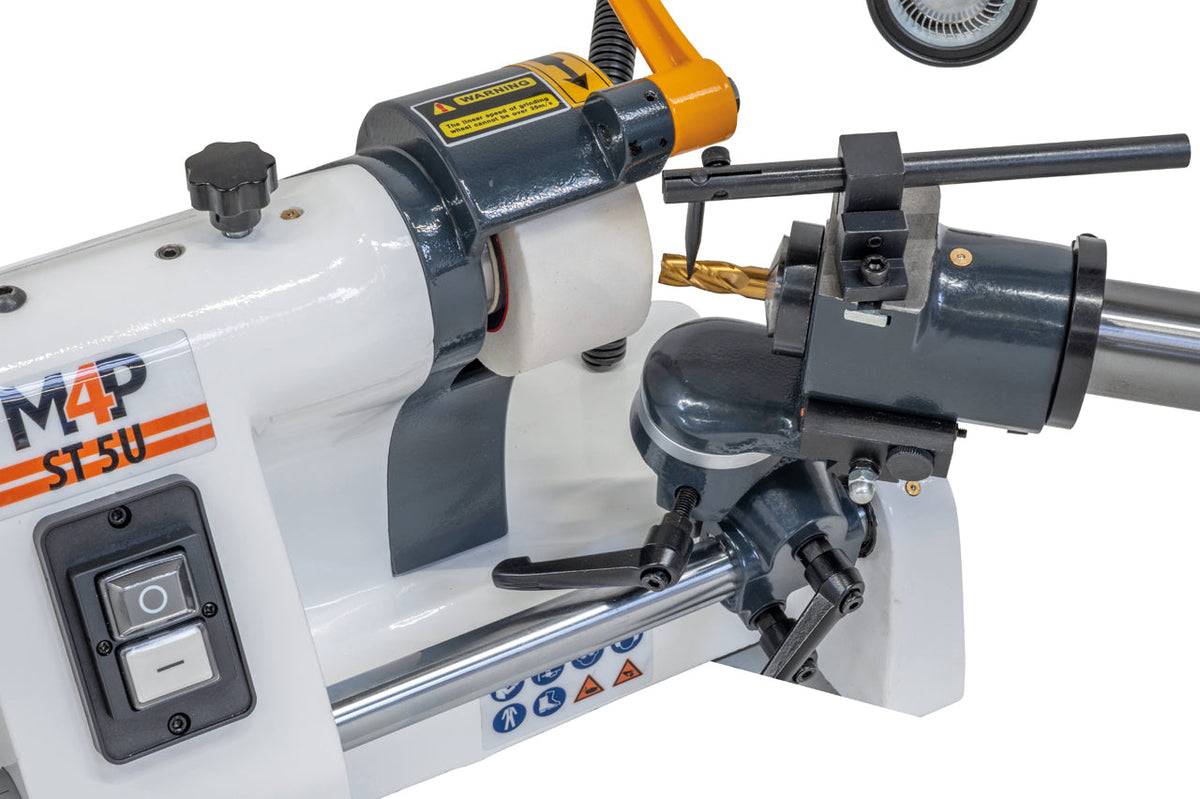

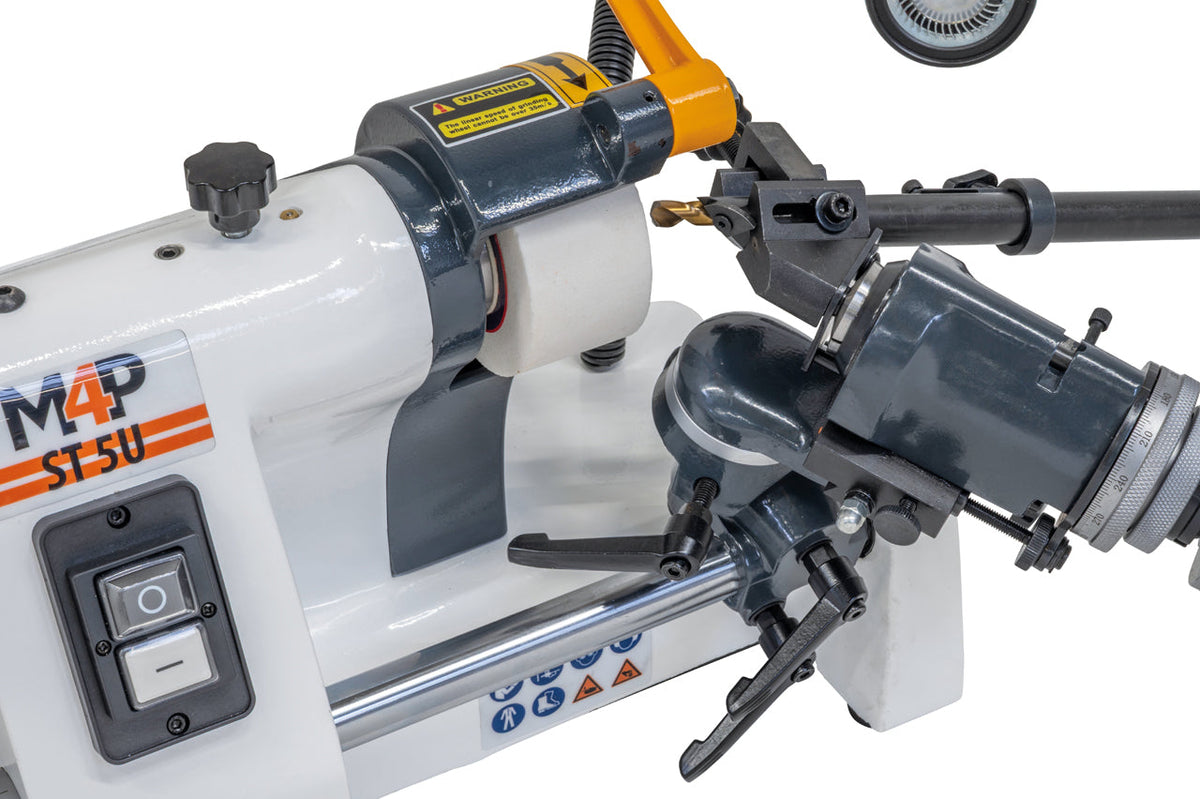

Numerous pivoting and adjustment options for producing engraving cutters (cylindrical, centric, conical, ...)
Vibration-free driven precision grinding spindle for optimal grinding results
| Spannzangendurchmesser min. / max. | 1,5 - 30 mm |
| Schleifdurchmesser max. | 30 mm |
| Kegelschleifen | 0 - 180° |
| Hinterschliffwinkel | 0 - 45° |
| Negativer Winkel | 0 - 25° |
| Geschwindigkeit | 5000 U/min |
| Topfscheibe | 100 x 50 x 20 mm |
| Rastpositionen Teilkopf | 24 (alle 15°) |
| Motorleistung | 0,37 kW |
| Länge | 550 mm |
| Breite | 340 mm |
| Höhe | 400 mm |
| Gewicht ca. | 42,4 kg |
