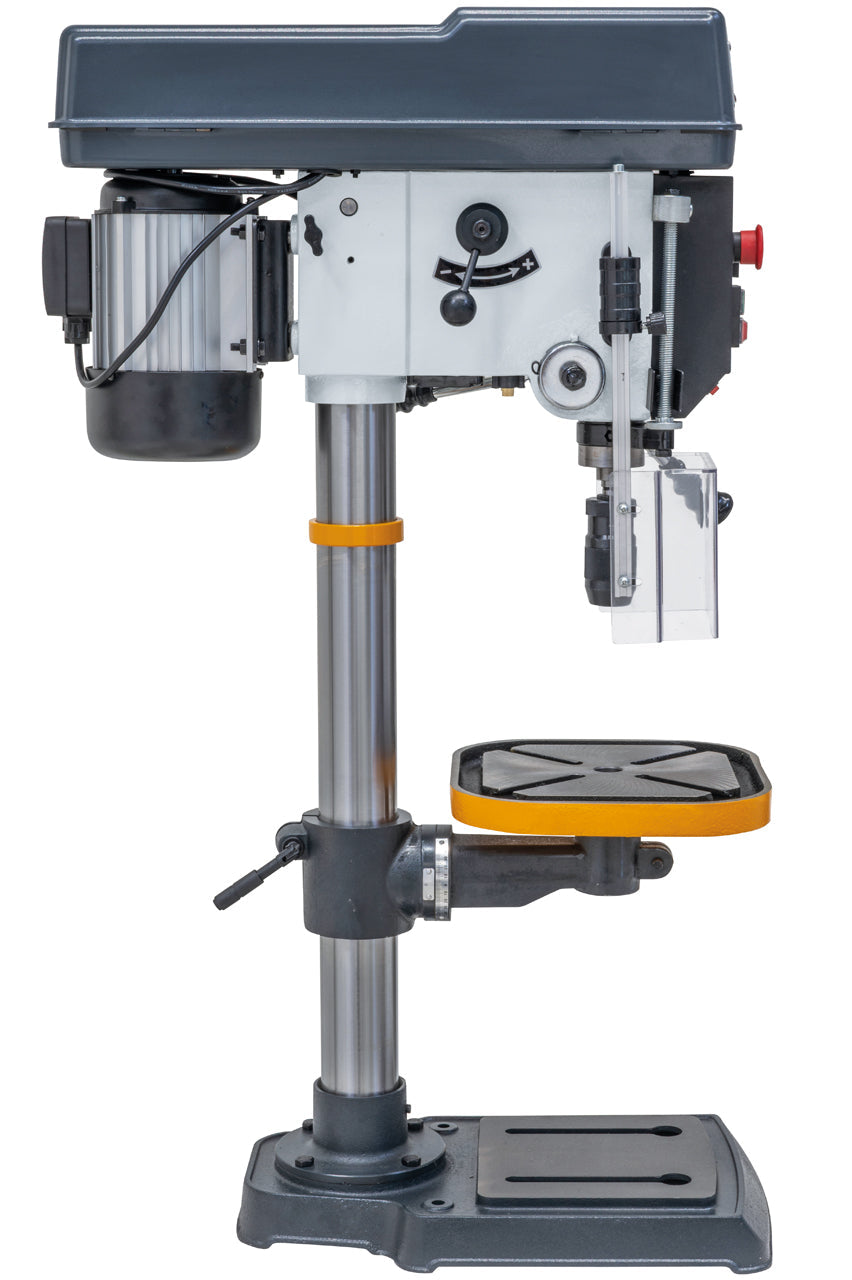

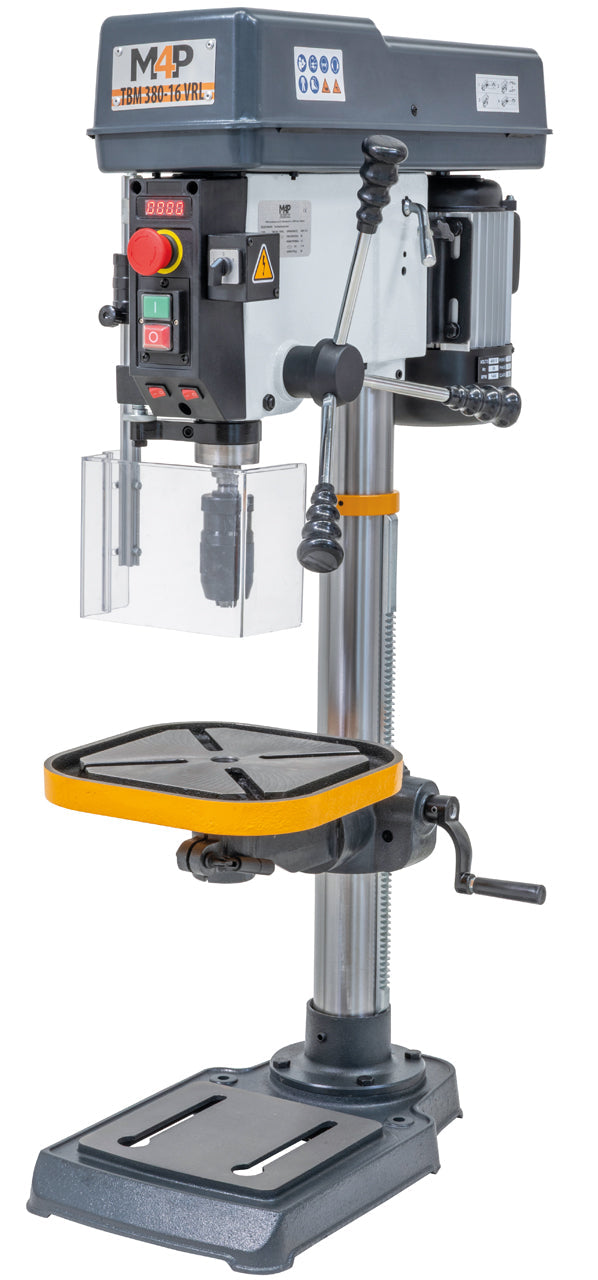

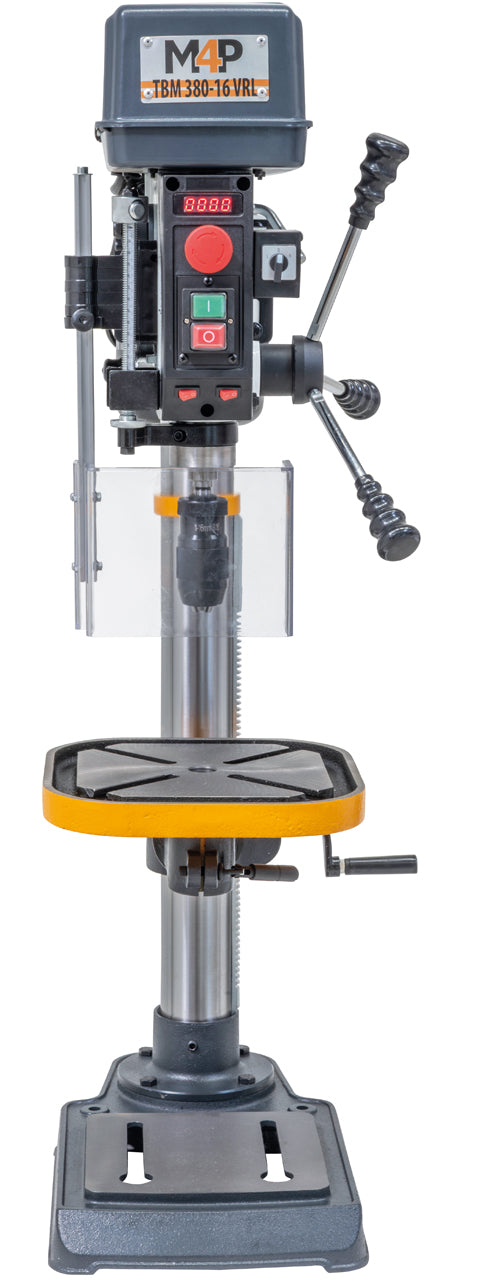

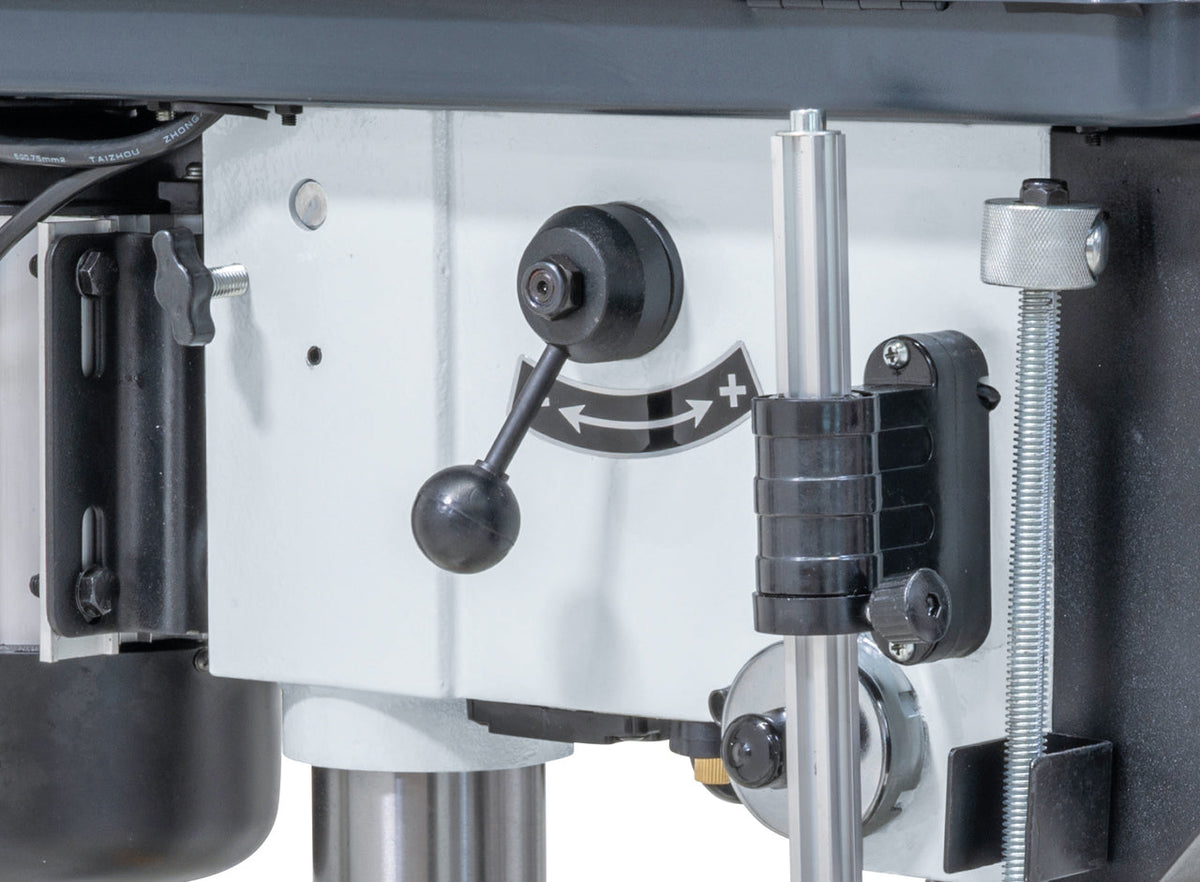

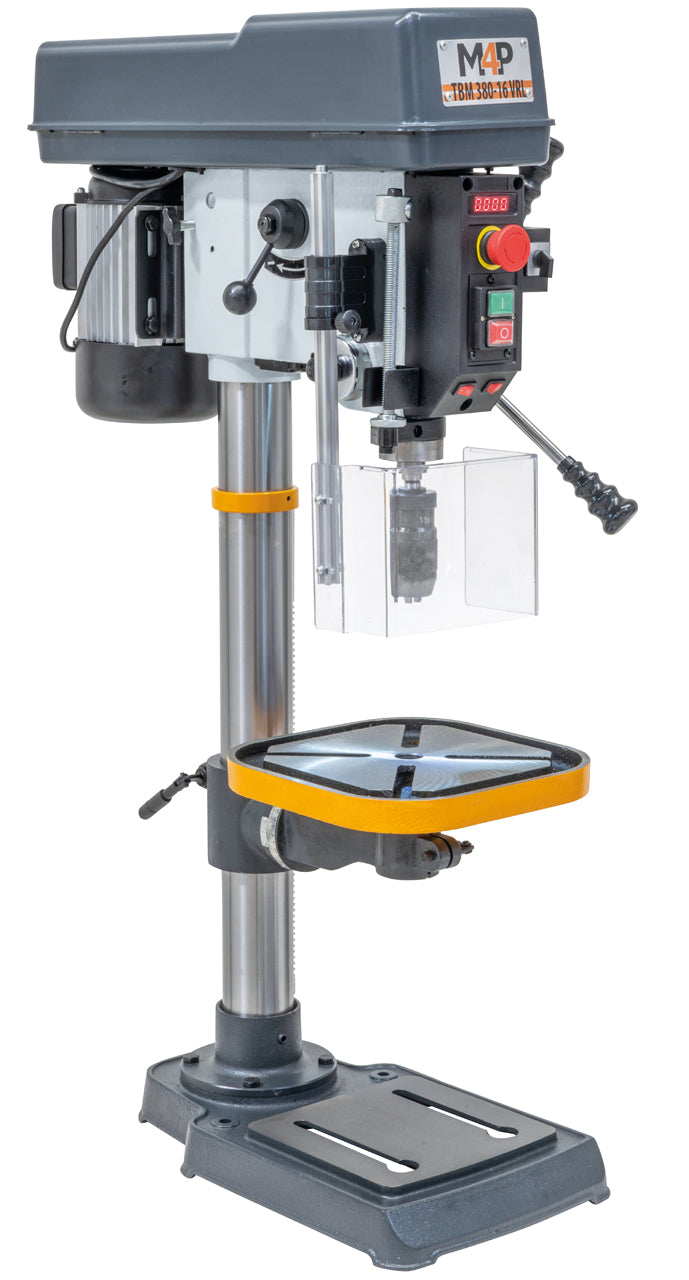

The solid drilling machines with Vario drive are characterized by their high torque, even at low speeds. These models are used by DIY enthusiasts and in training workshops.
Direction switch for clockwise and counter-clockwise rotation (TBM 380 - 16 VRL)

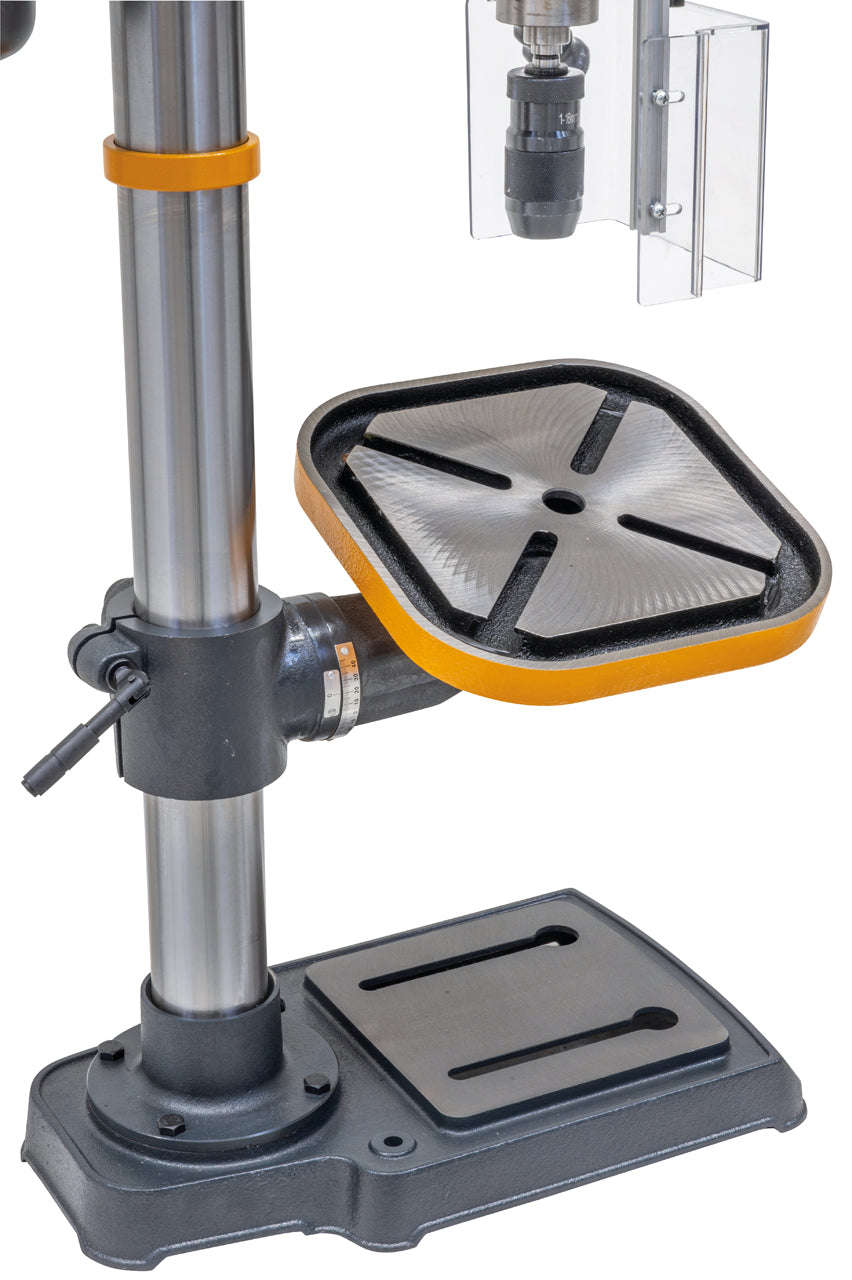

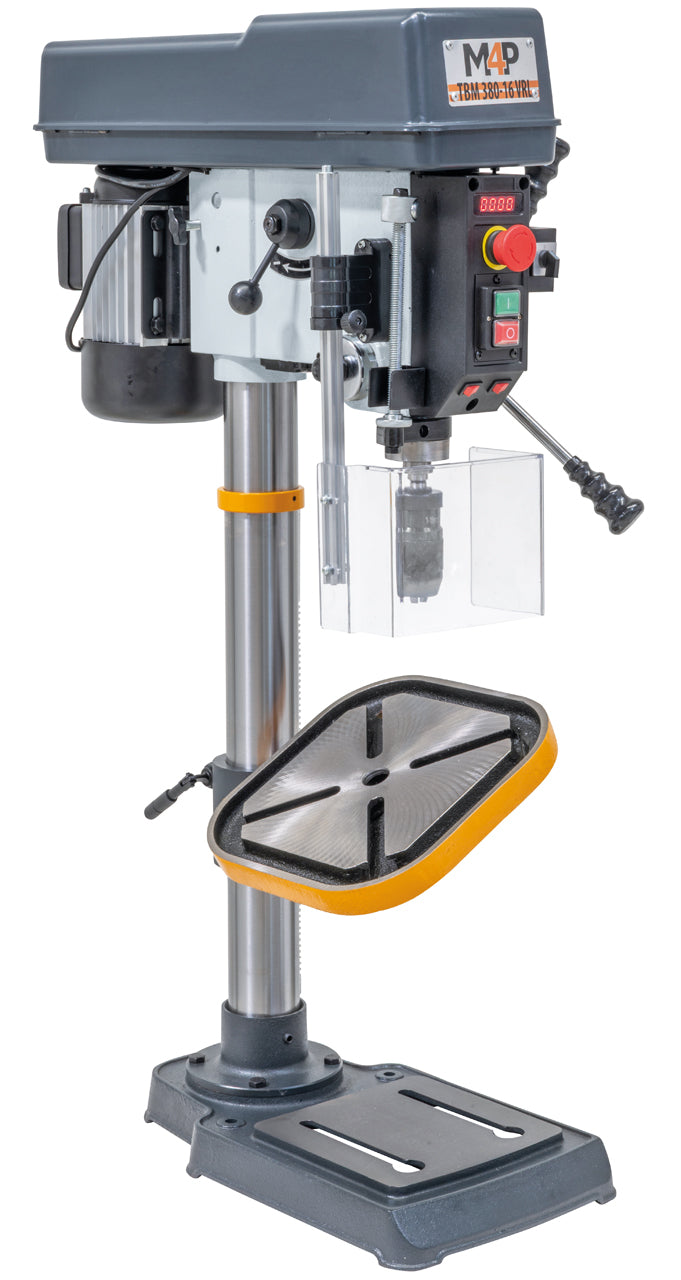

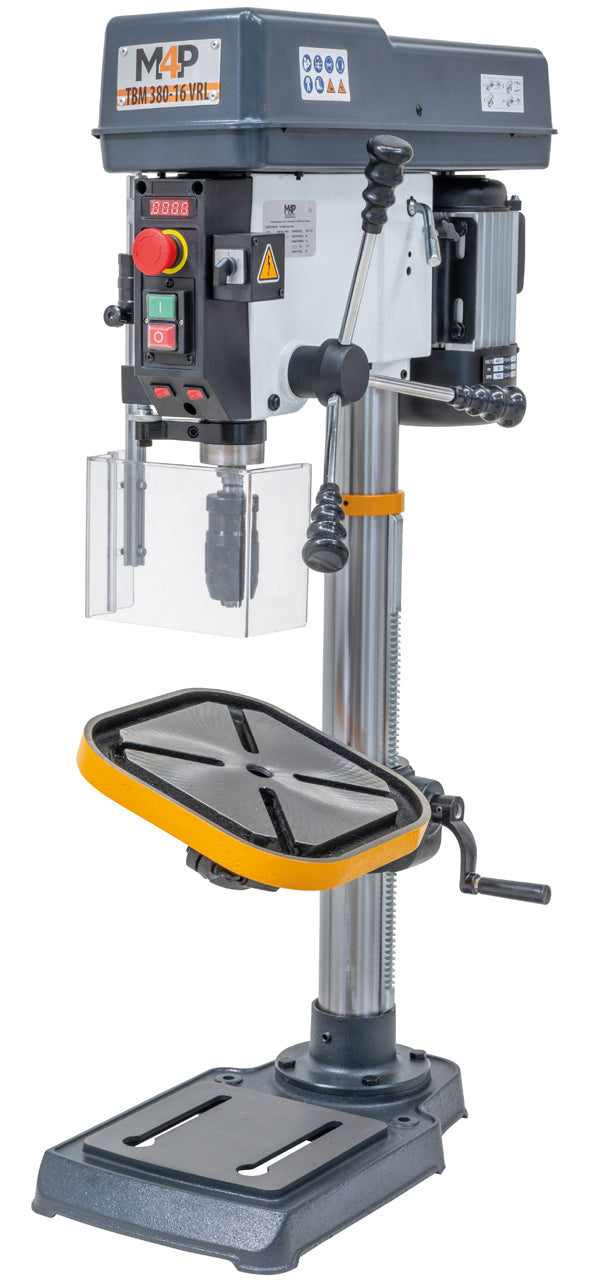

Drill table swivels (±45°), height adjustment via rack and pinion

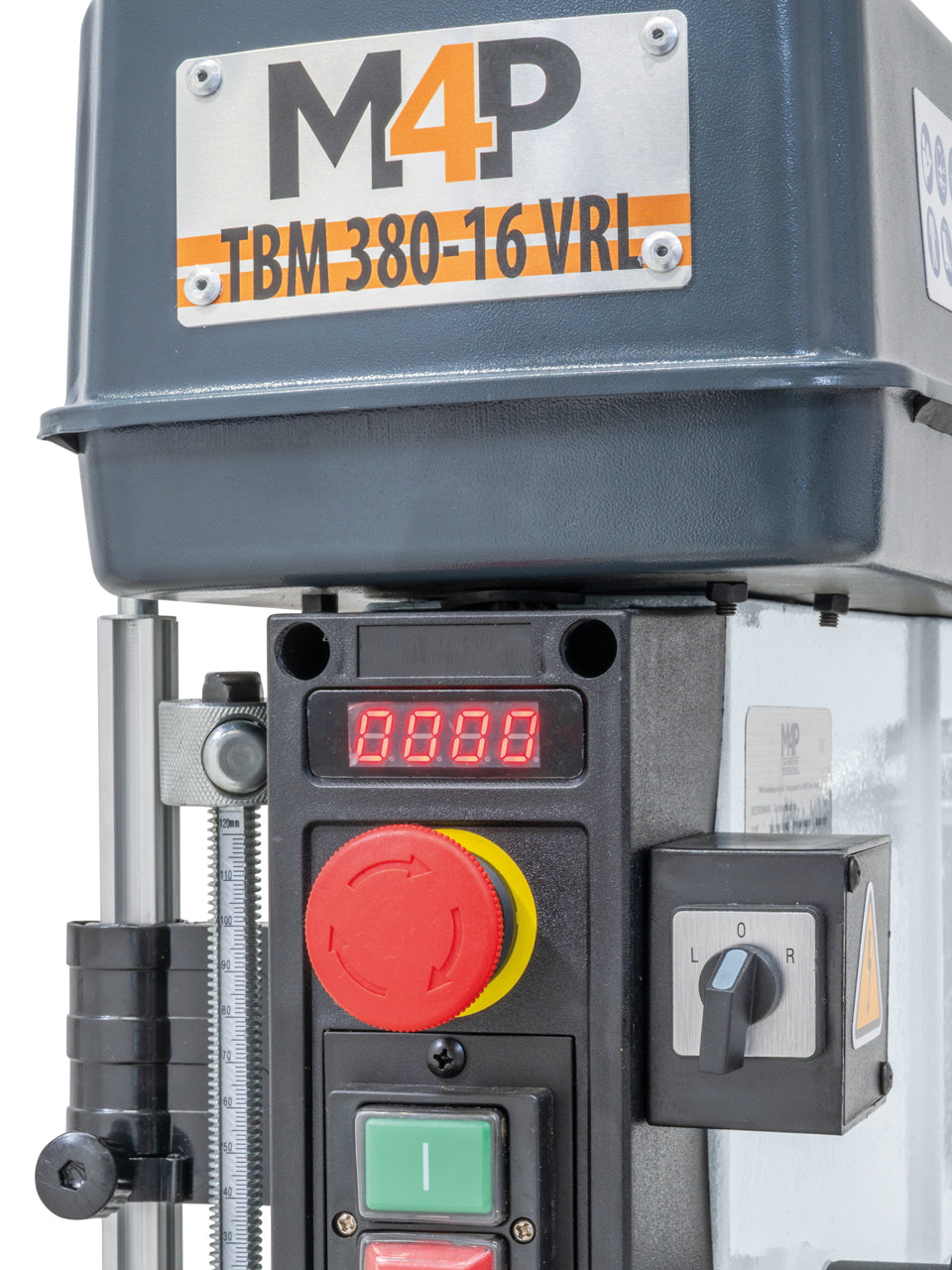

Digital display for easy reading of the set speed
Standard features include T-slots in the ground base plate

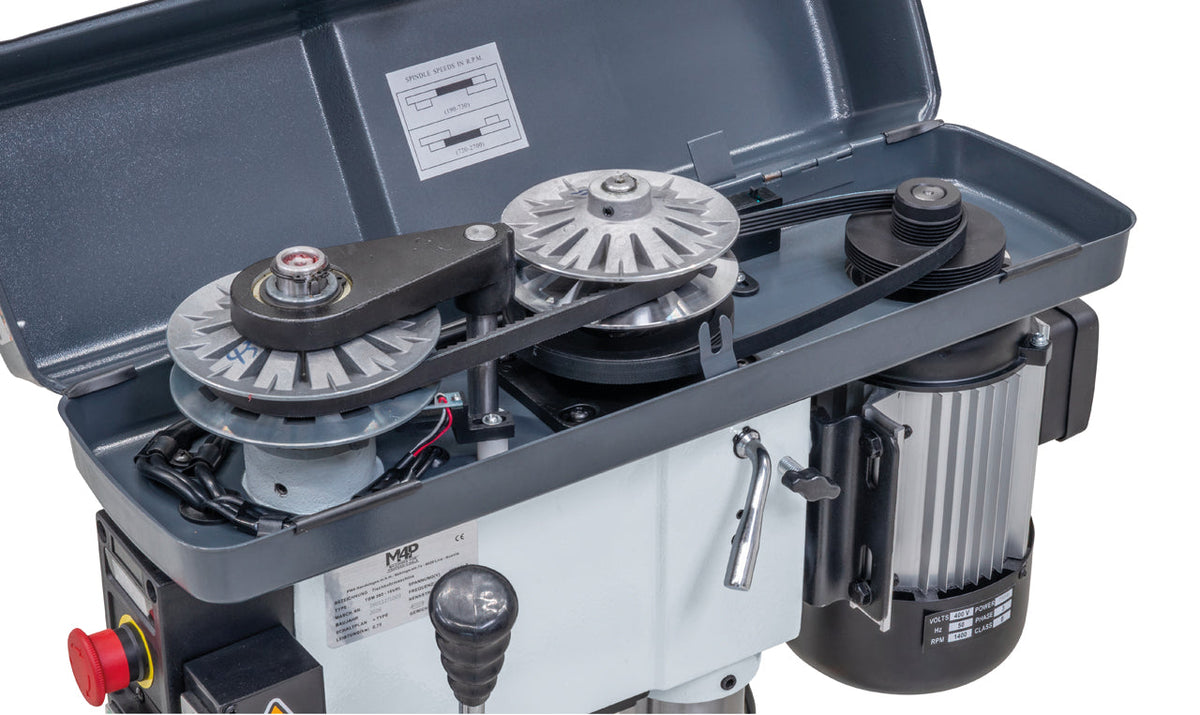

High smooth running due to cast iron pulleys
Quality ball bearings ensure high concentricity
Large-dimensioned drill table with diagonal T-slots

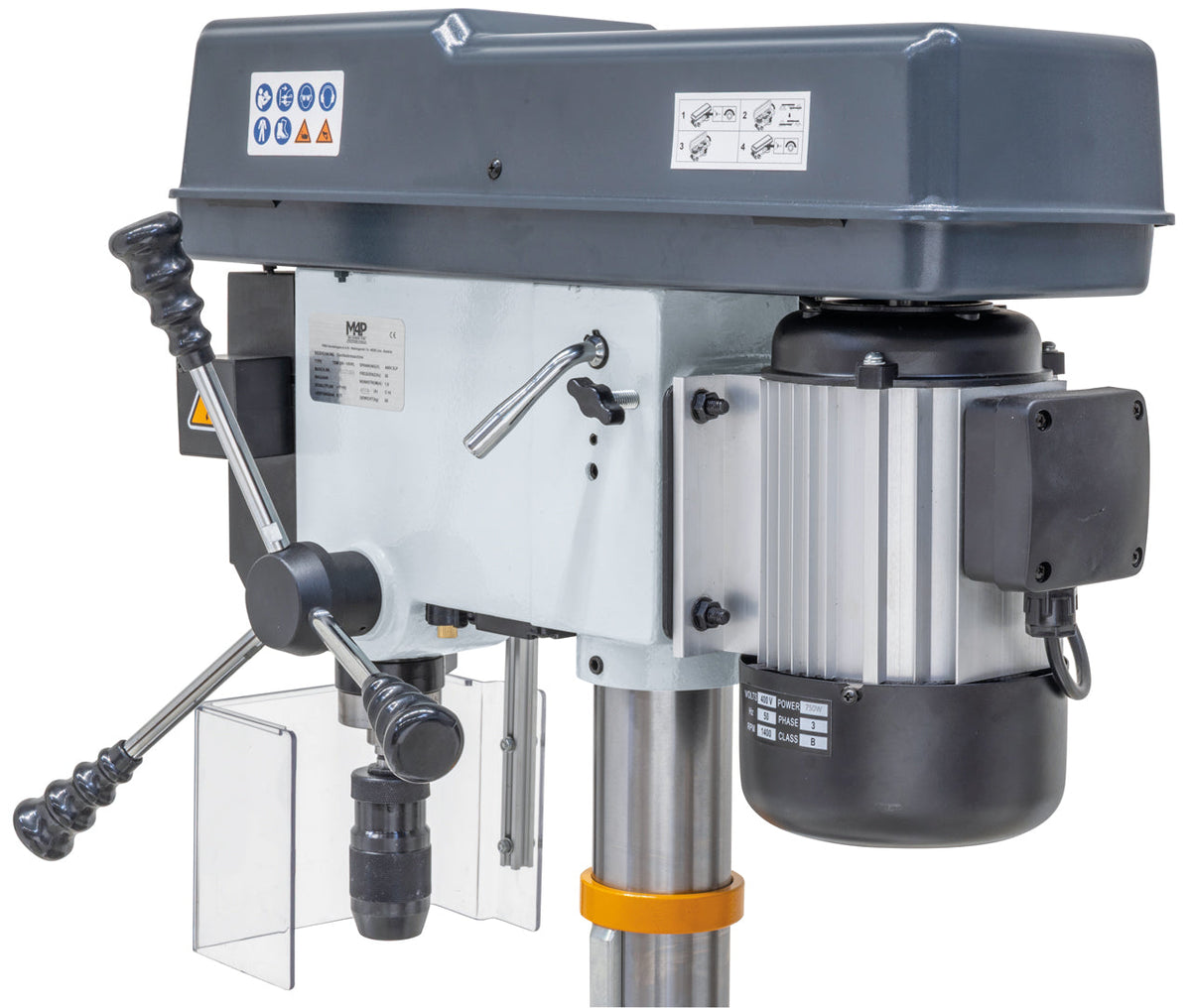

Powerful and high-torque aluminum motor according to IP 54

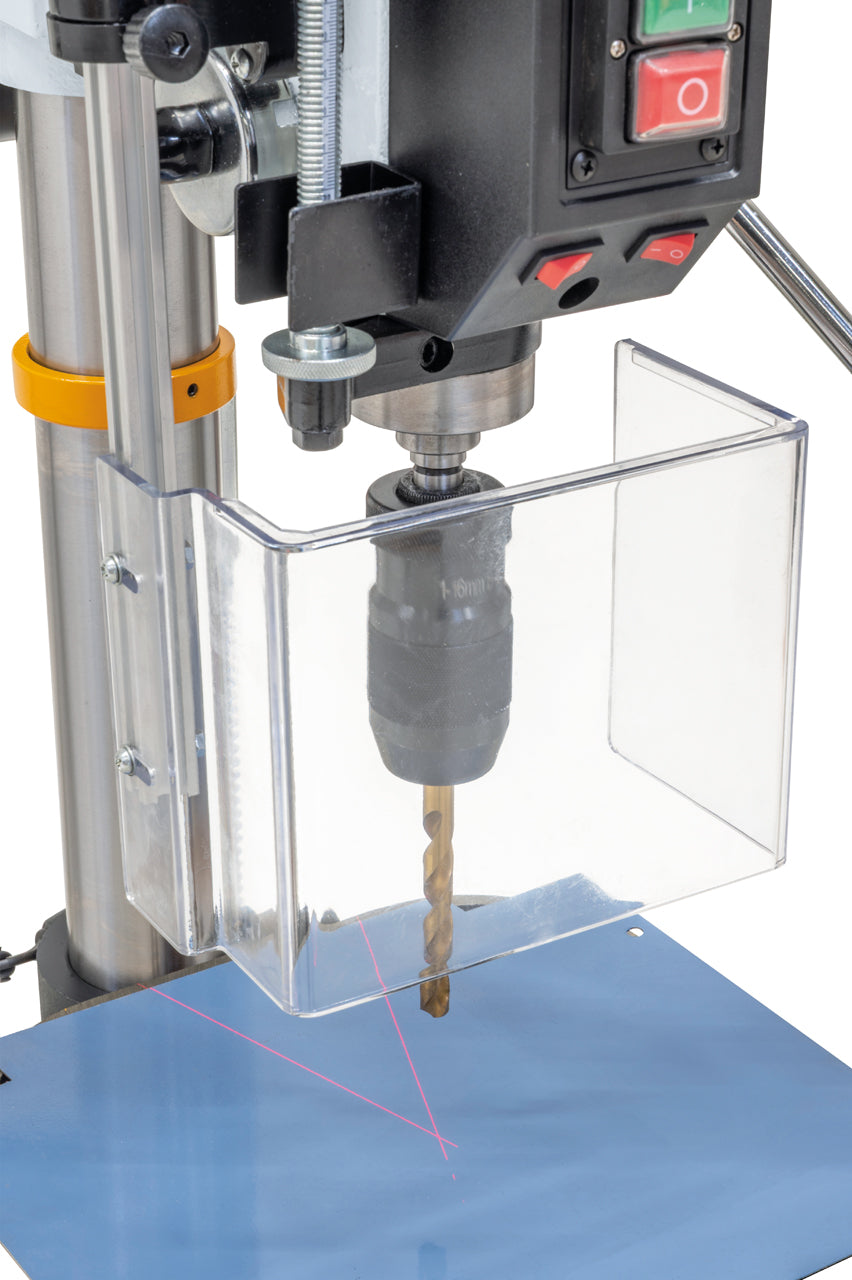

Precision keyless chuck included in delivery

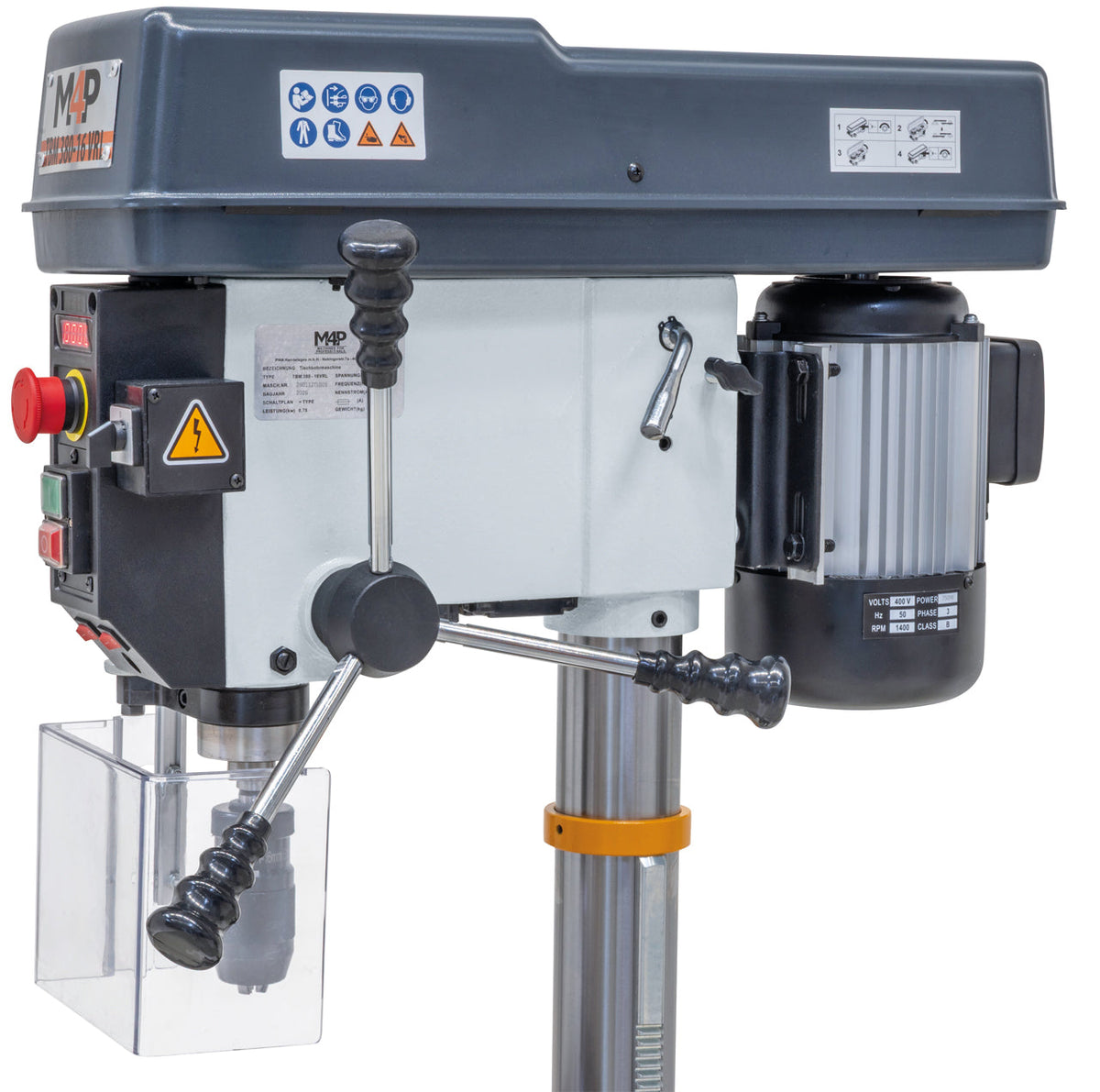

Ergonomic handles for comfortable working
| Bohrleistung in Stahl | 20 mm |
| Bohrfutter | 1 - 16 mm / B 16 |
| Morsekonus | MK 2 |
| Spindeldrehzahl, stufenlos | 190 - 730 / 720 - 2700 U/min |
| Ausladung | 190 mm |
| Bohrtisch schwenkbar | -45° bis +45° |
| Abstand Spindel / Tisch max. | 415 mm |
| Abstand Spindel / Bodenplatte | 635 mm |
| Pinolenhub | 120 mm |
| Säulendurchmesser | 73 mm |
| Tischgröße / T-Nutengröße | 290 x 290 mm / 16 mm |
| Arbeitsfläche Bodenplatte | 220 x 220 mm |
| Motor-Abgabeleistung S1 100% | 0,75 kW / 400 V |
| Motor-Aufnahmeleistung S6 40% | 1,1 kW / 400 V |
| Maschinenabmessung (B x T x H) | 370 x 680 x 1120 mm |
| Gewicht ca. | 60 kg |
