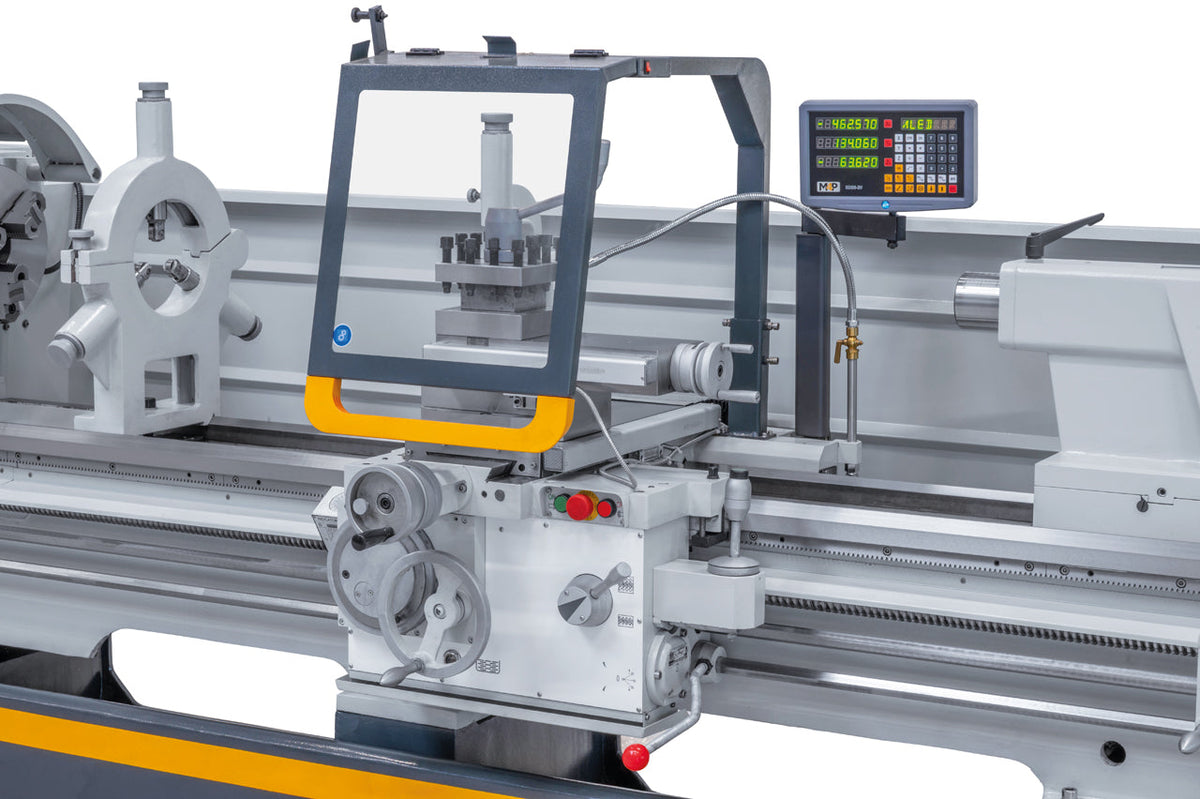

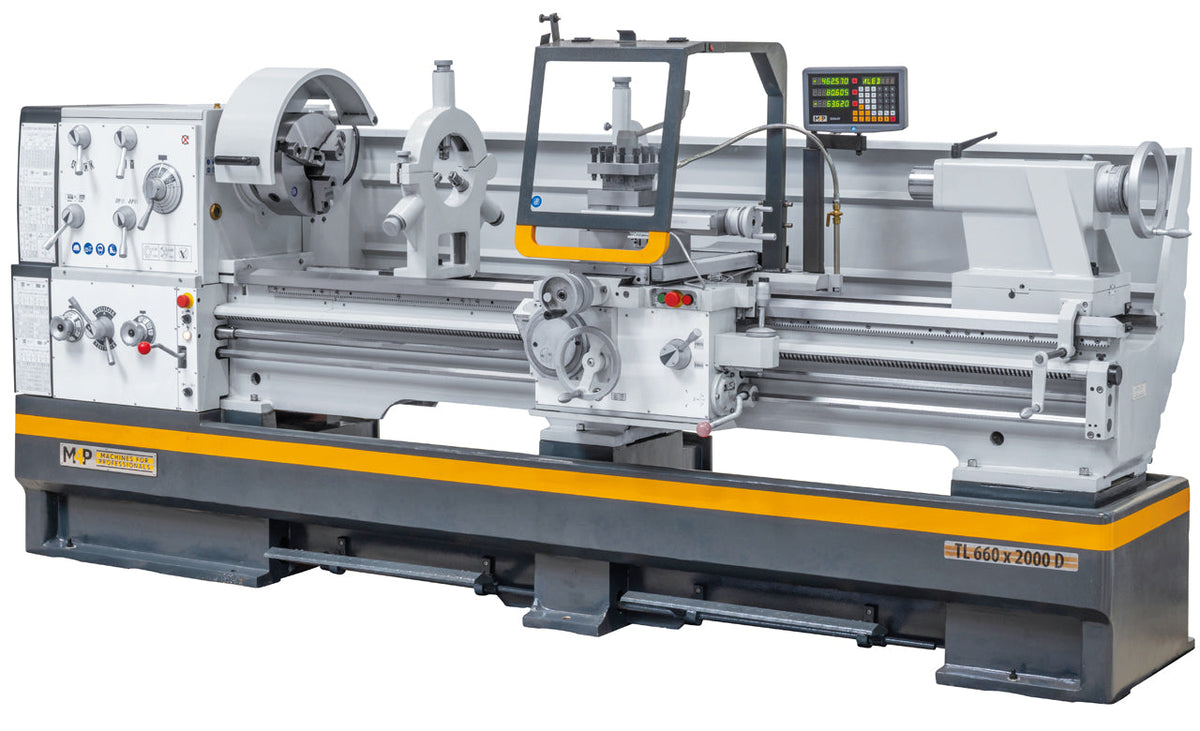

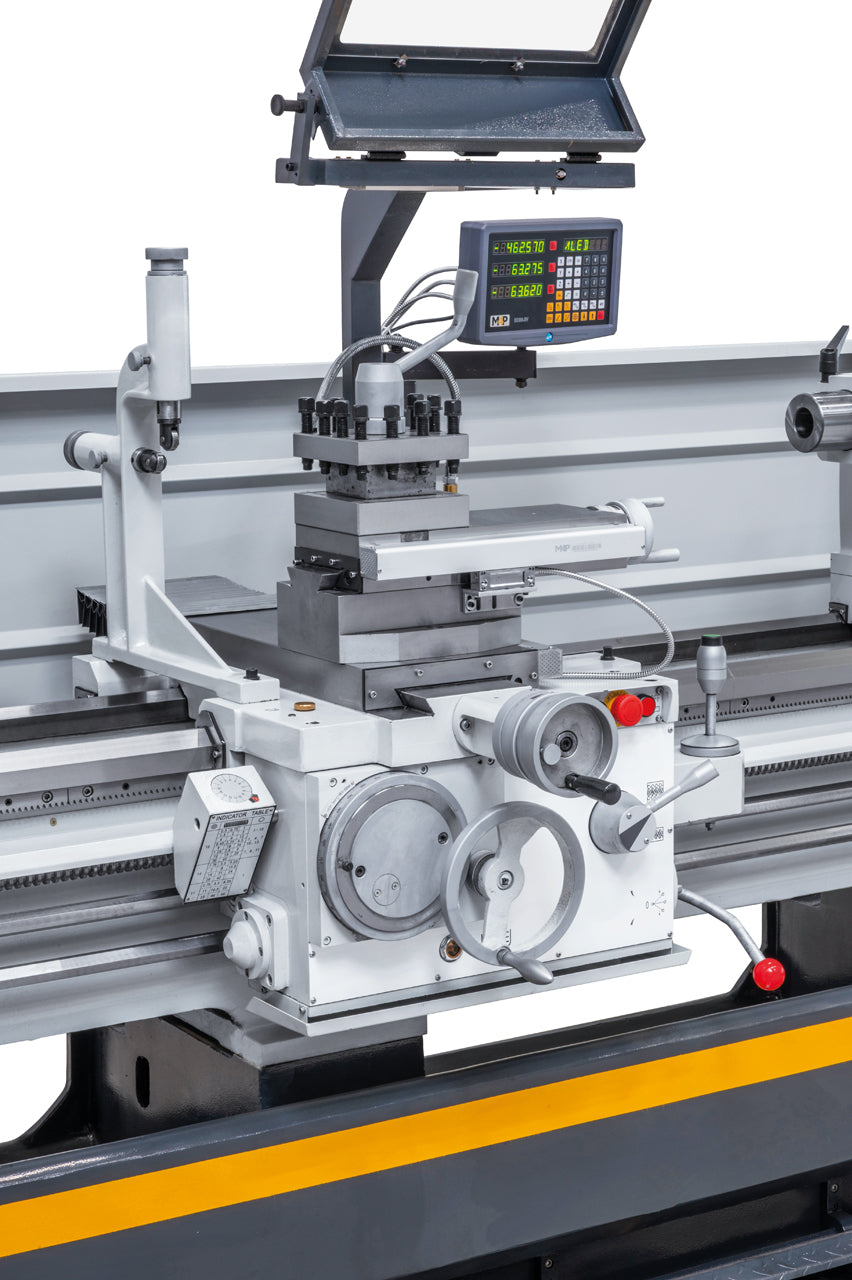

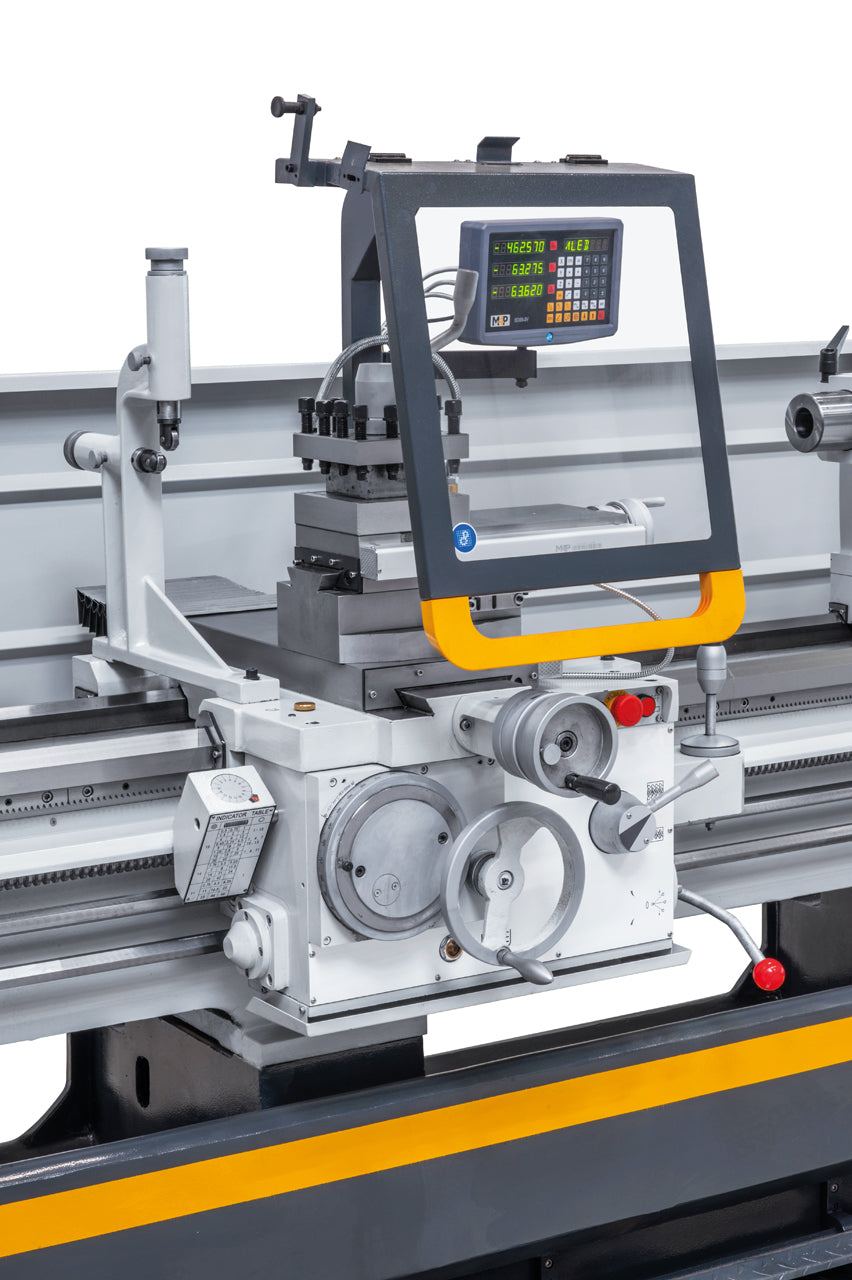

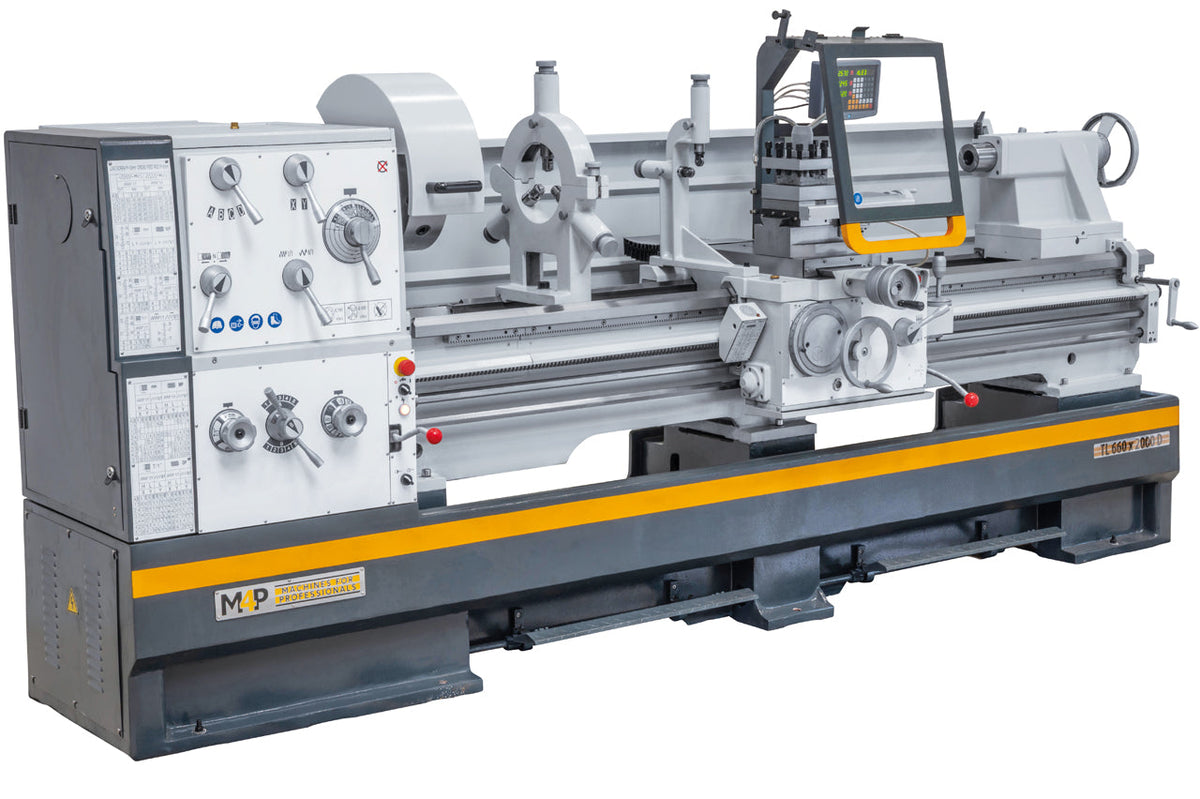

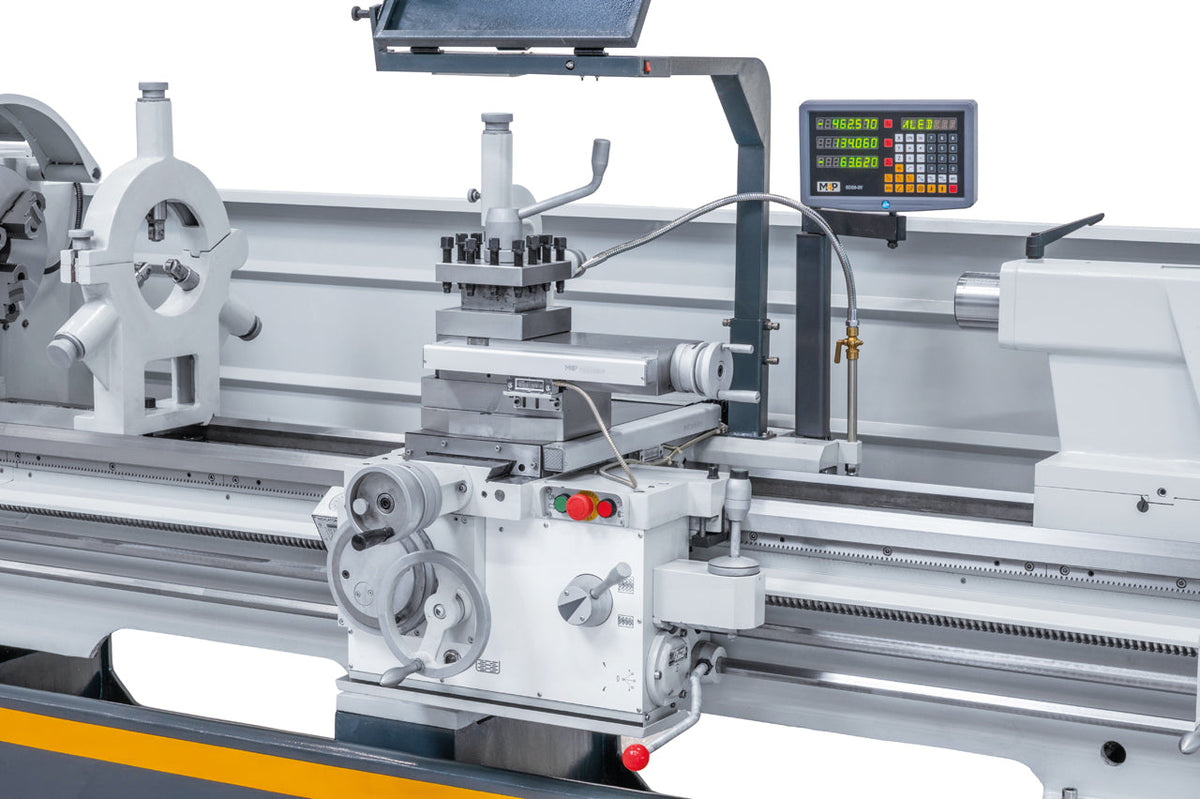

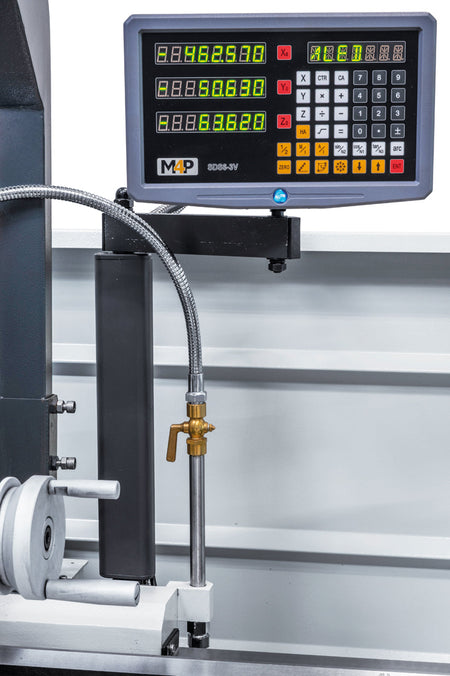

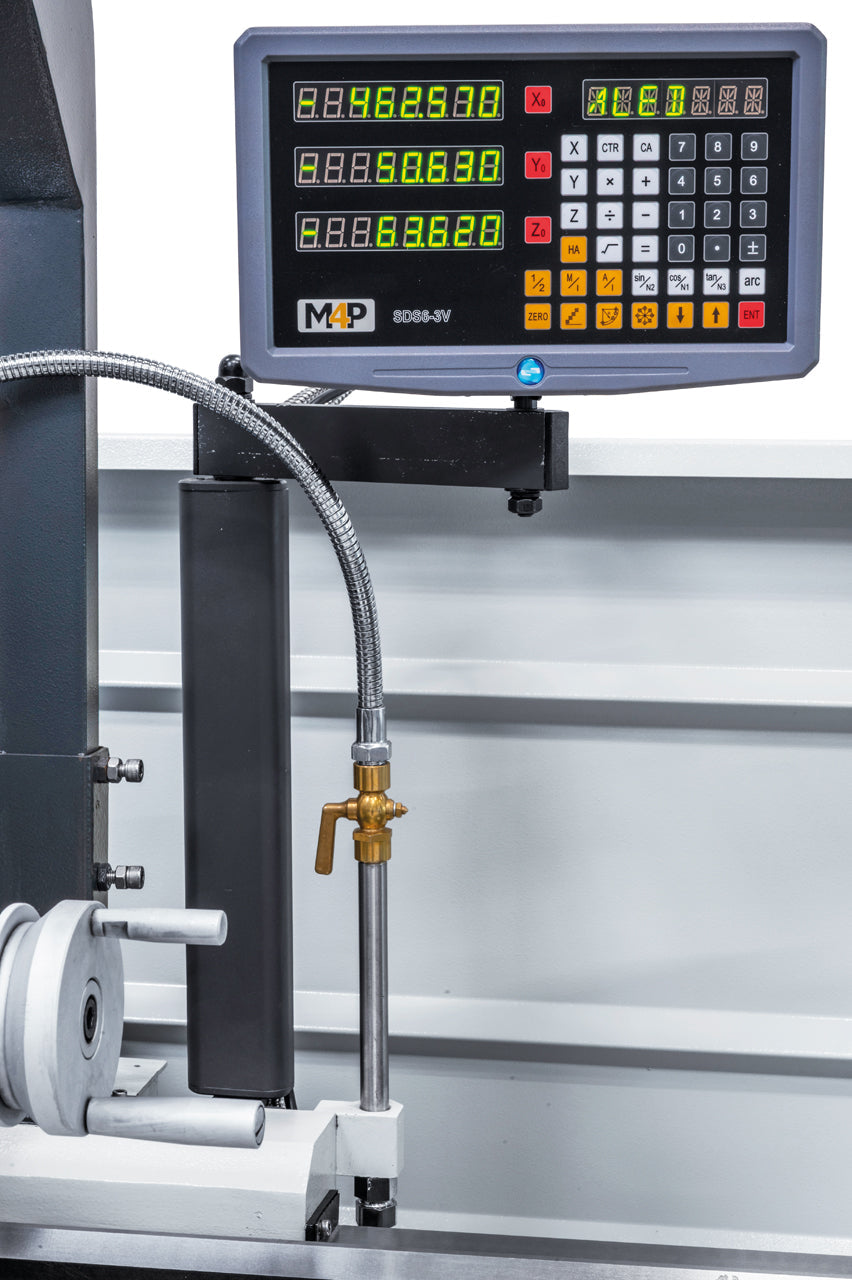

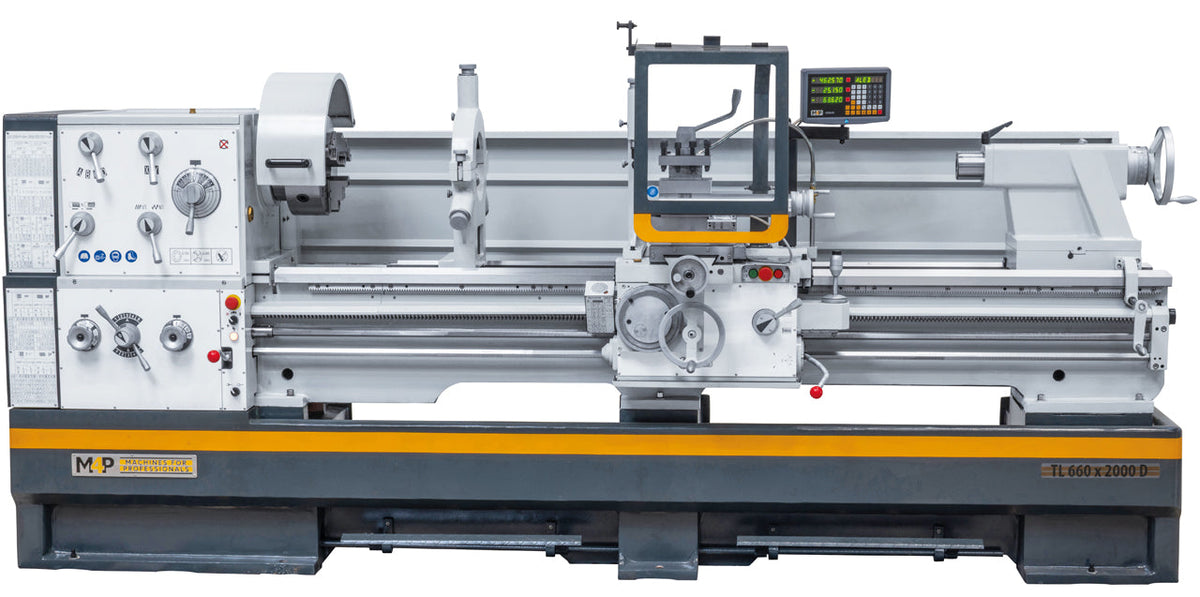

The TL 660 production lathe impresses with its modern technology and high level of operating comfort. Equipped with rapid traverse, a quick-change tool holder, digital position display, mechanical multi-disc clutch, and a wide performance range, it is ideally suited for mechanical and plant engineering, production, and single-part manufacturing.
Reinforced machine bed with heavy ribbing for vibration damping
Versatile use in mechanical engineering, manufacturing, and single-part production

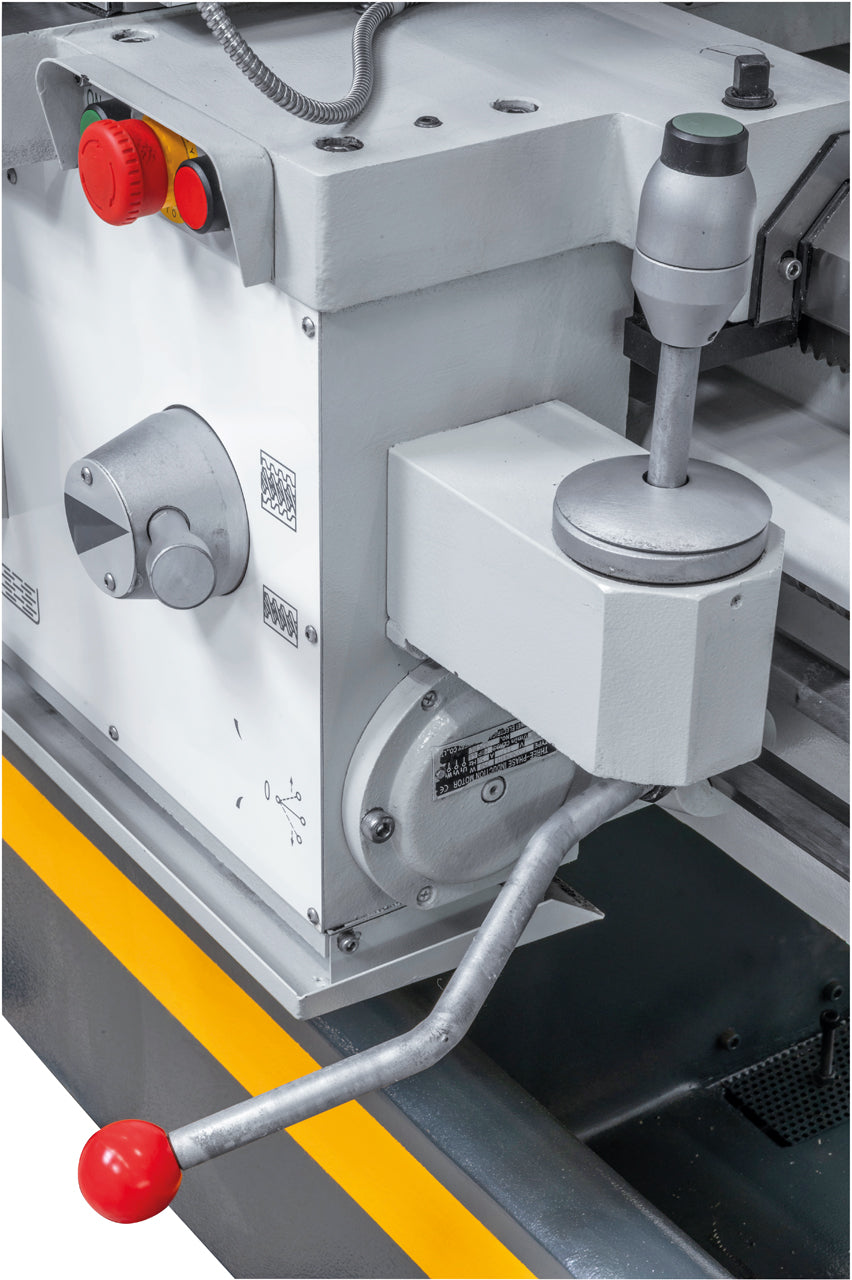

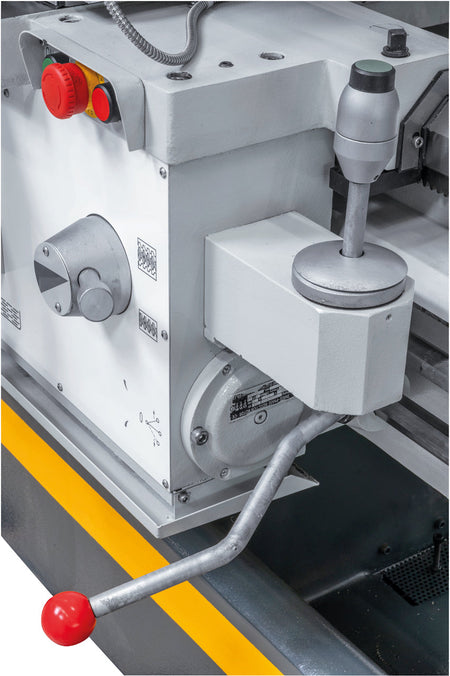

Standard longitudinal and cross rapid traverse for short non-productive times

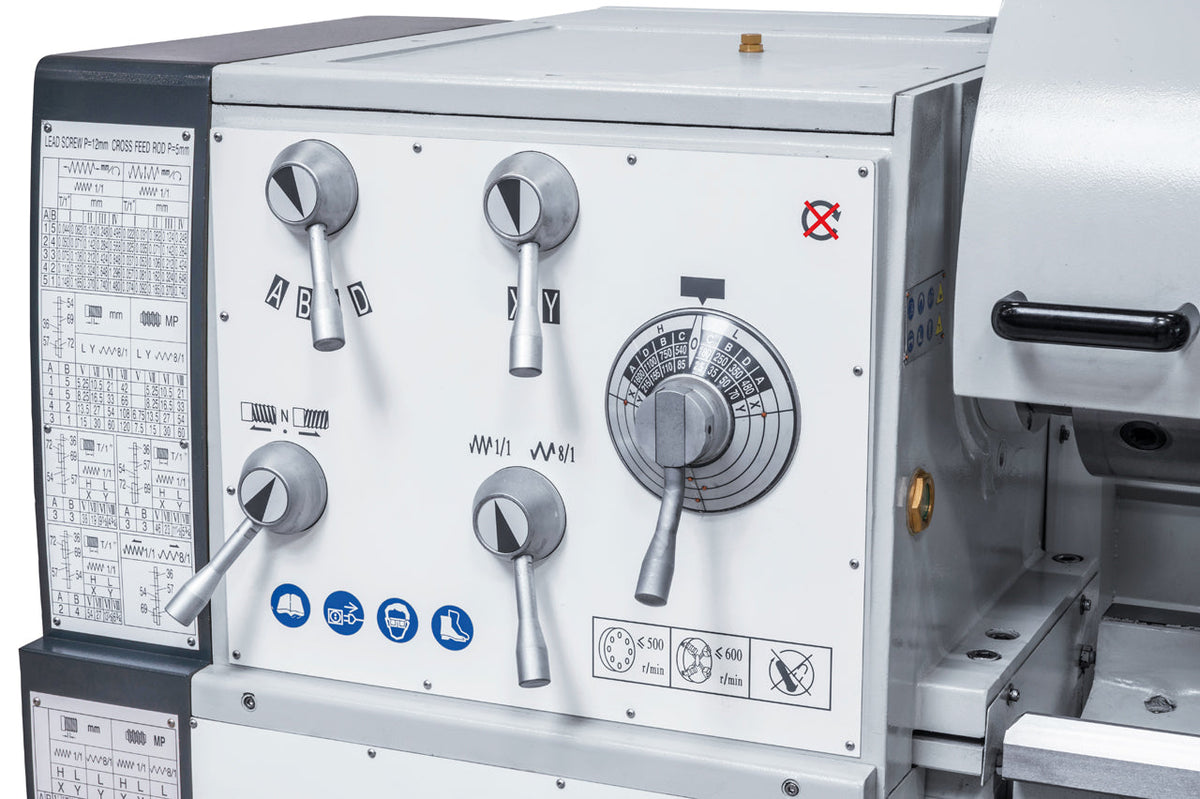

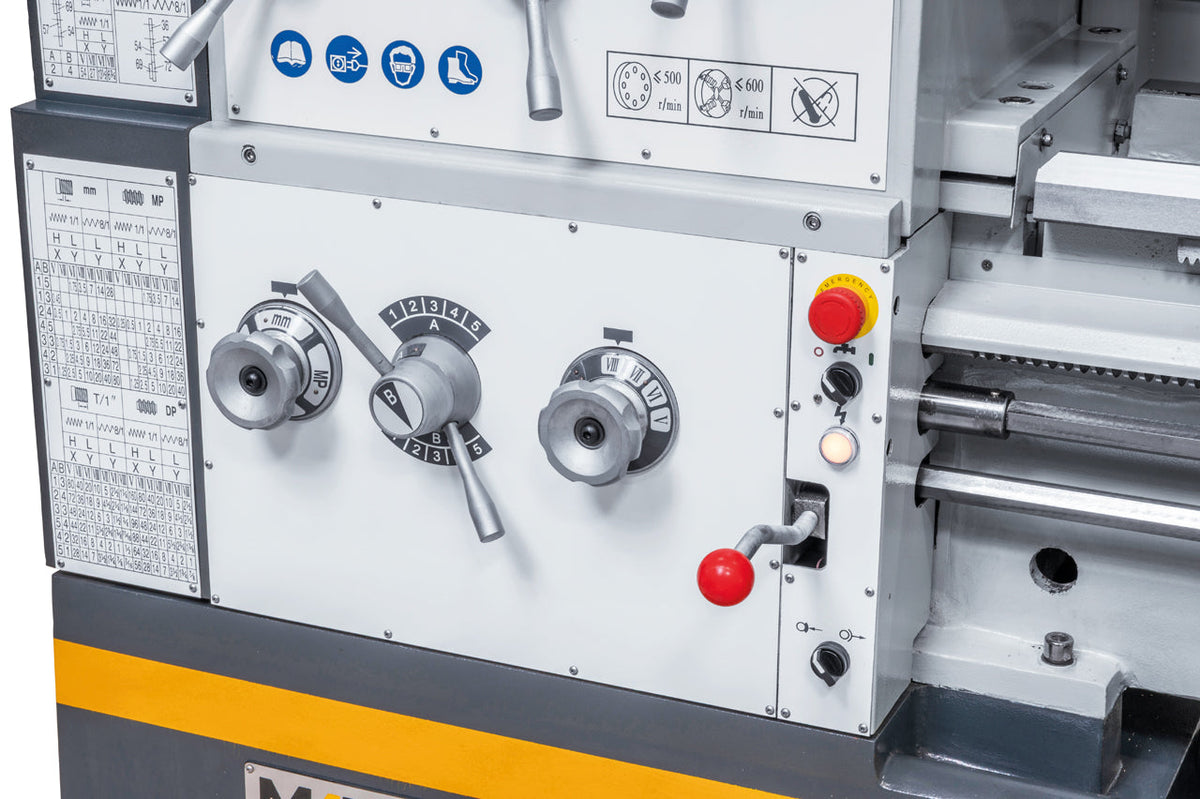

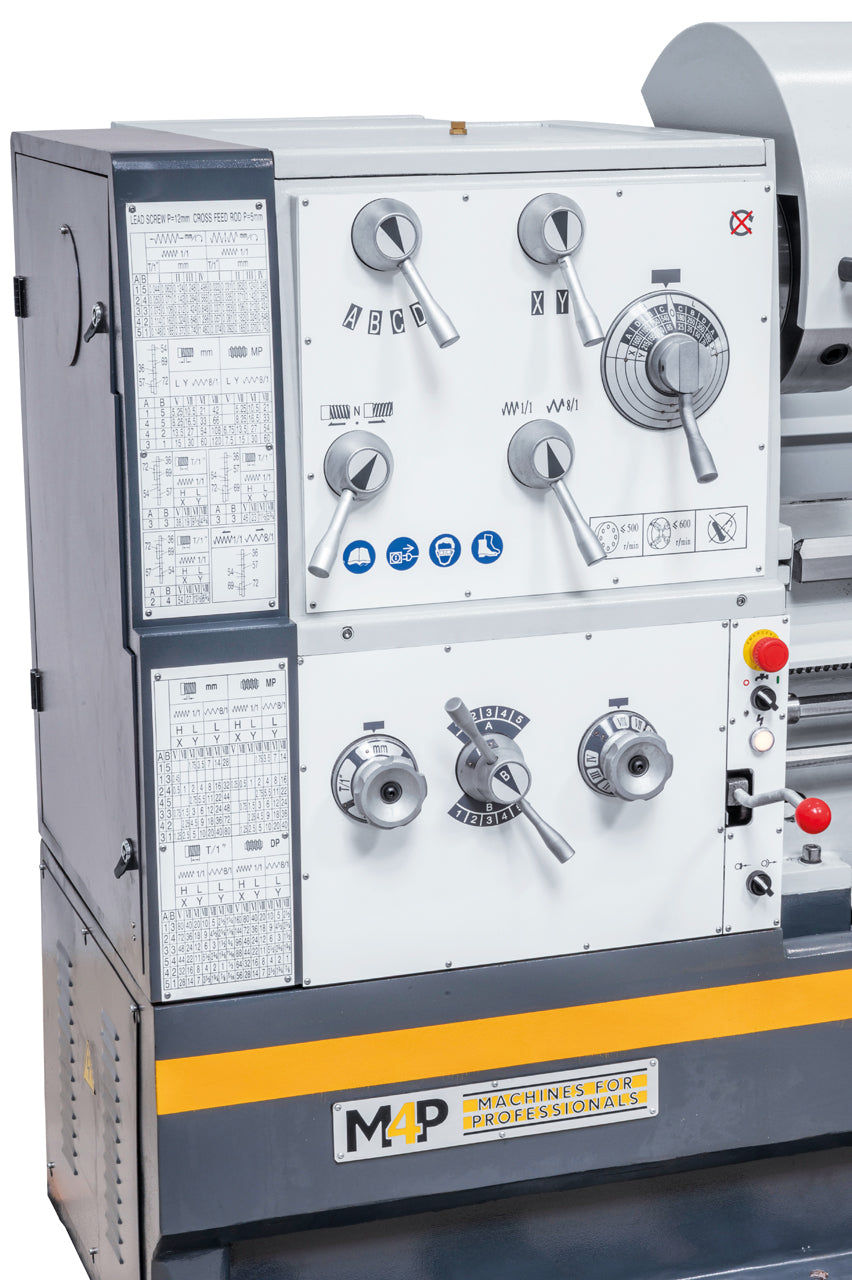

Central gearshift for feeds and threads with lead and feed screw
Precise main spindle bearing with tapered roller bearings
Hardened and ground gears and shafts throughout the entire drivetrain
Large spindle bore Ø 105 mm for workpieces with large diameters

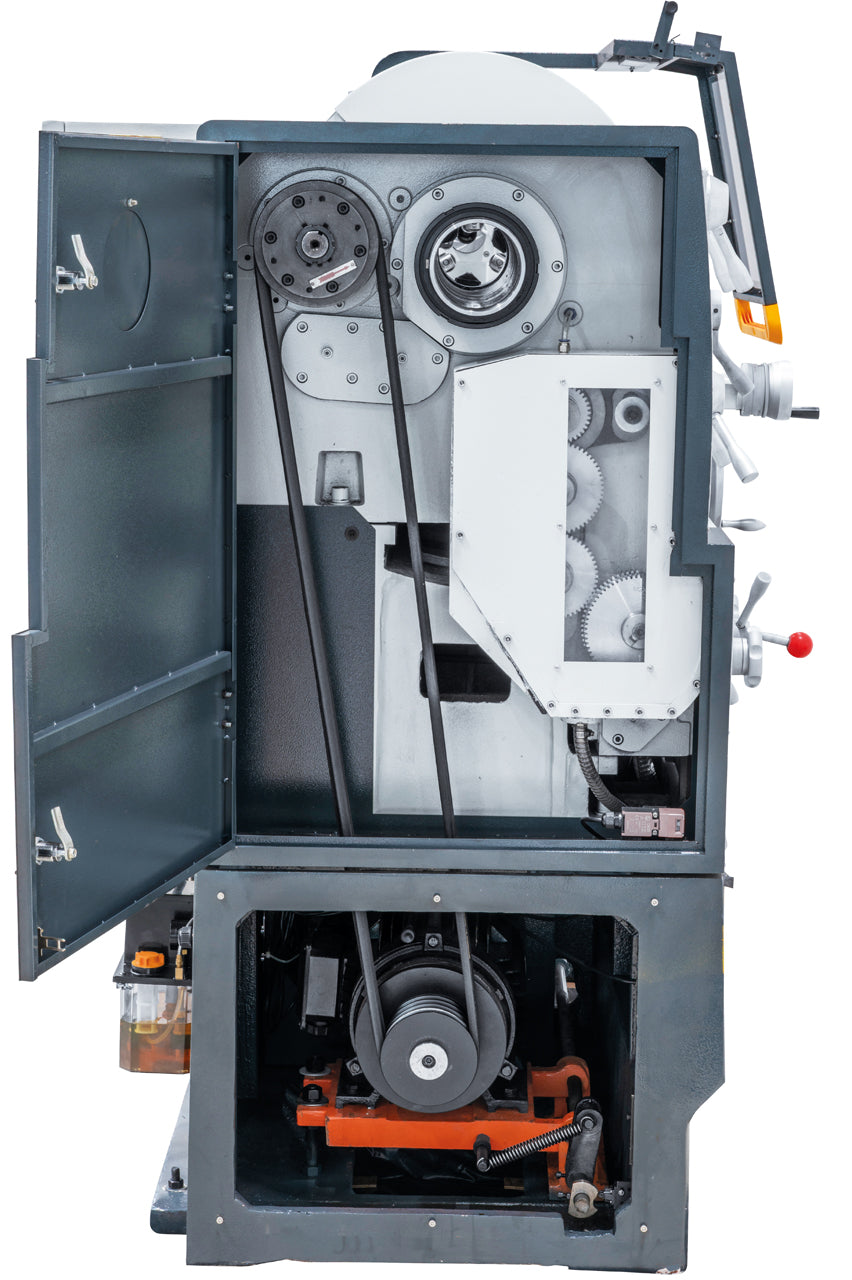

Smooth start-up via mechanical multi-disc clutch
Electromechanical foot brake for efficient work
High metal removal rate, even when face turning
Induction-hardened and precision-ground cast iron prism bed
Cast iron prism bed, induction-hardened and precision-ground
| Spitzenweite | 2000 mm |
| Spitzenhöhe | 330 mm |
| Umlaufdurchmesser über Bett | 660 mm |
| Umlaufdurchmesser über Kröpfung | 900 mm |
| Umlaufdurchmesser über Planschlitten | 440 mm |
| Bettbreite | 400 mm |
| Spindelbohrung | 105 mm |
| Spindelaufnahme | DIN 55029, D1-8 |
| Drehzahlbereich | (16) 25 - 1600 U/min |
| Bereich Längsvorschübe | (25) 0,044 - 1,48 U/min |
| Bereich Planvorschübe | (24) 0,022 - 0,740 mm/U |
| Metrische Gewinde | (38) 0,45 - 80 mm |
| Zollgewinde | (42) 7/16 - 80 Gg/1" |

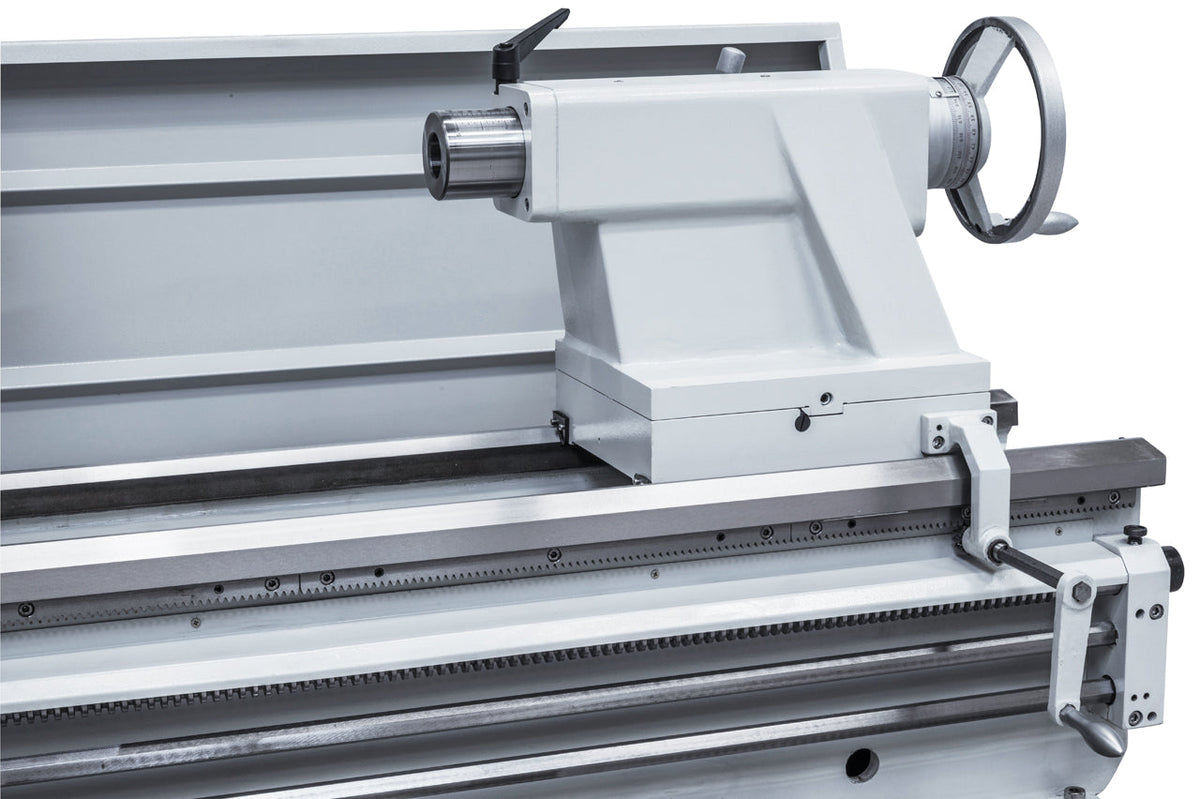

| Pinolendurchmesser | 90 mm |
| Pinolenweg | 235 mm |
| Pinolenaufnahme | MK 5 |
| Motorleistung | 11 kW (15 PS) |
| Maschinenabmessung (B x T x H) | 3670 x 1280 x 1750 mm |
| Gewicht ca. | 3260 kg |
