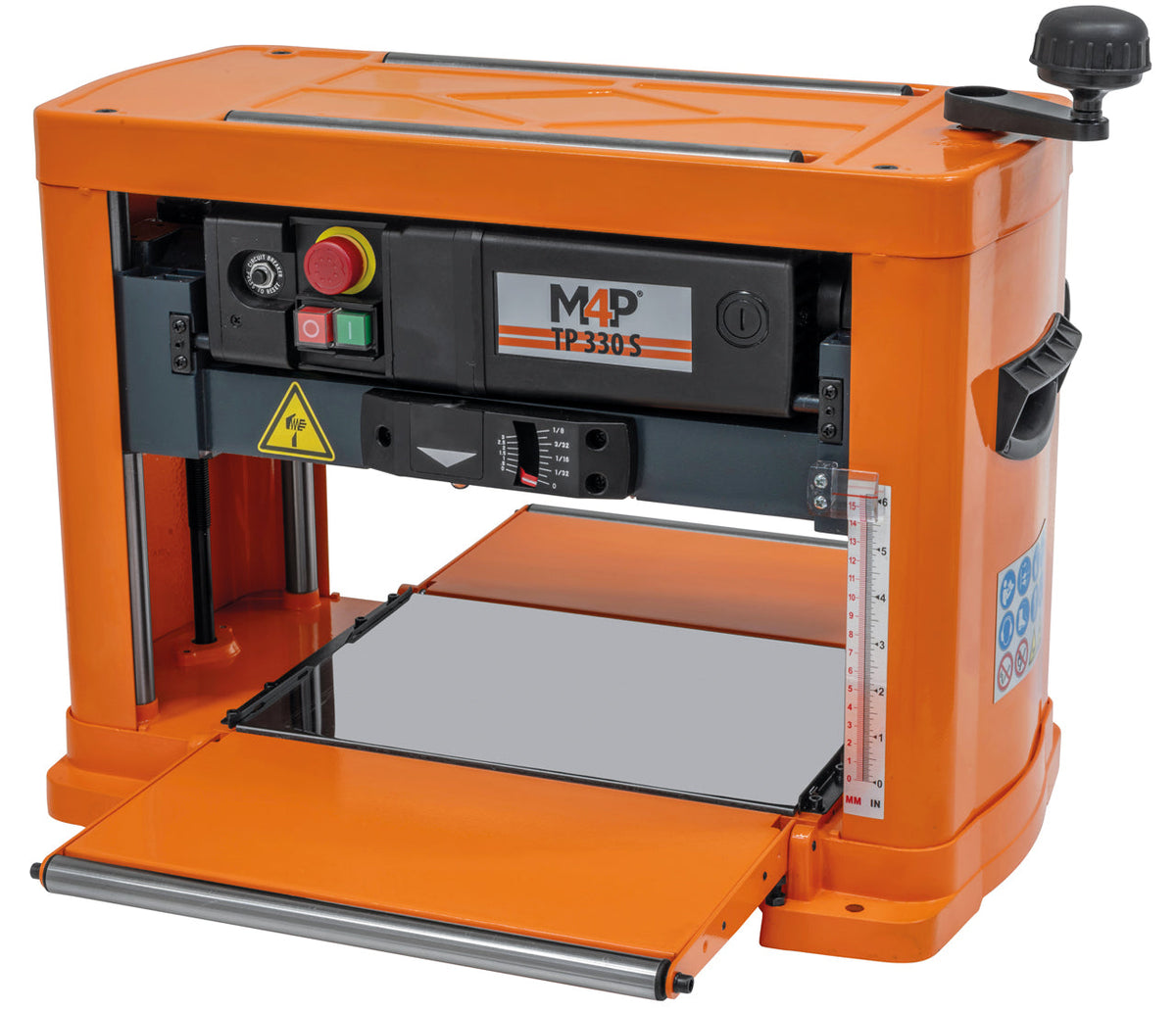

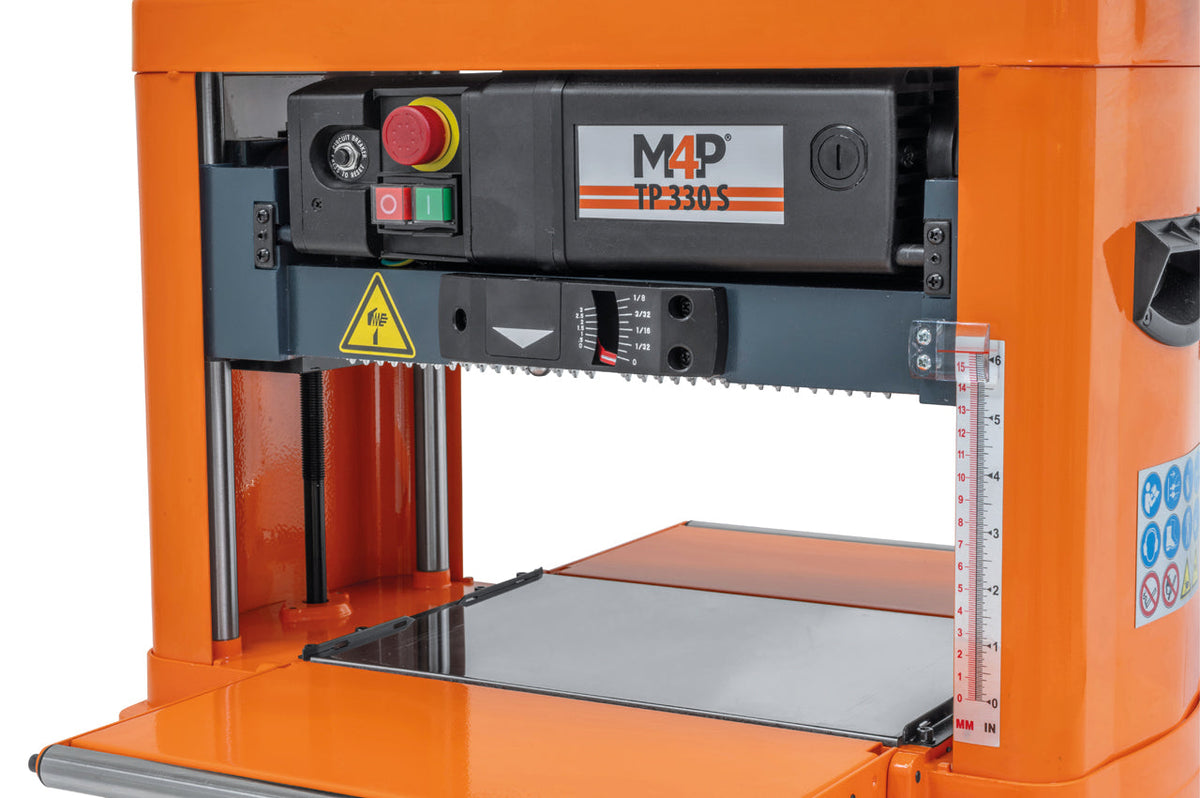

M4P Thickness Planer TP 330 S / 230 V

SKU: 3001101 EAN: 9009468084639
(0)
€594,00 inkl. MwSt
In stock
On backorder
Fast shipping
100% Secure Payment
Certified quality
Personalized advice from a professional

Do you have any questions about the machine, equipment, or the right model? Our team will be happy to advise you personally.

Tel. 037298-177170

Email: info@lgh24.de

The TP 330 thickness planer is easy to transport due to its compact design and is the ideal tool for use on construction sites. Precise planing is guaranteed by the 4-post guided planer unit and the rubberized infeed and outfeed rollers for reliable workpiece feed. The helical cutterhead for reduced noise levels and optimal planing results is another advantage of this machine.

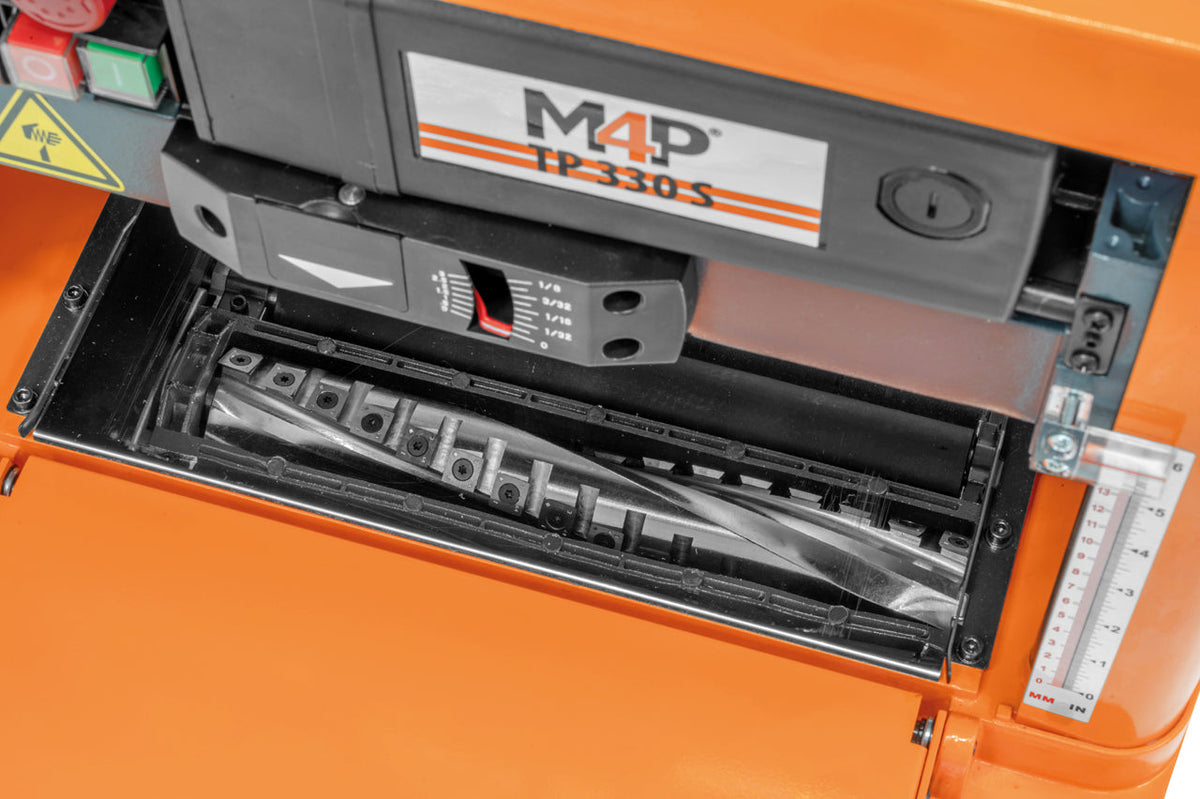

Reduction in noise levels (approx. 50%) due to the standard helical cutterhead and
up to 20 times longer blade life (resulting from four-sided reversible carbide inserts)
Advantage of carbide reversible inserts: In case of damage, individual blades can be replaced or turned
The carbide blades ensure tear-free planing results and optimal surfaces for every type of wood
Rubberized infeed and outfeed rollers for reliable workpiece feed and superior surface quality
Space-saving design thanks to foldable table extensions
Ideally suited for the precise planing of boards, slats, beams, ...
Easy to transport due to side-mounted handles

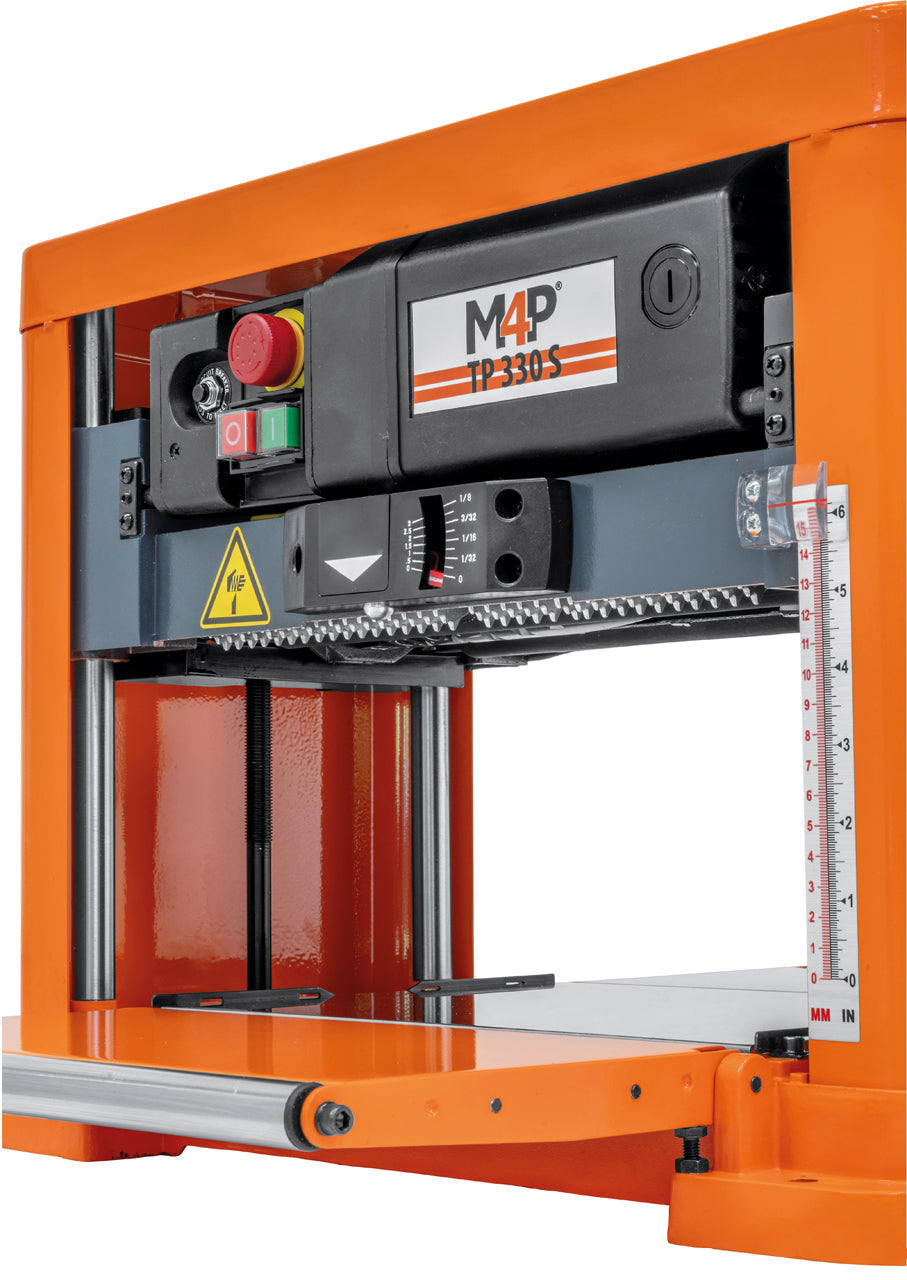

Accurate planing due to 4-post guided planer unit
Automatic workpiece feed (8 m/min)

Technische Daten

Hobelbreite 330 mm
Hobelhöhe min./max. 5 - 155 mm
Dickentischgröße mit Verlängerung 640 x 330 mm
Spanabnahme max. 2,8 mm
Werkstücklänge min. 140 mm
Hobelwellendurchmesser 50 mm
HM-Wendeplatten 30 Stk.
Hobelwellendrehzahl 9500 U/min
Vorschubgeschwindigkeit 8 m/min

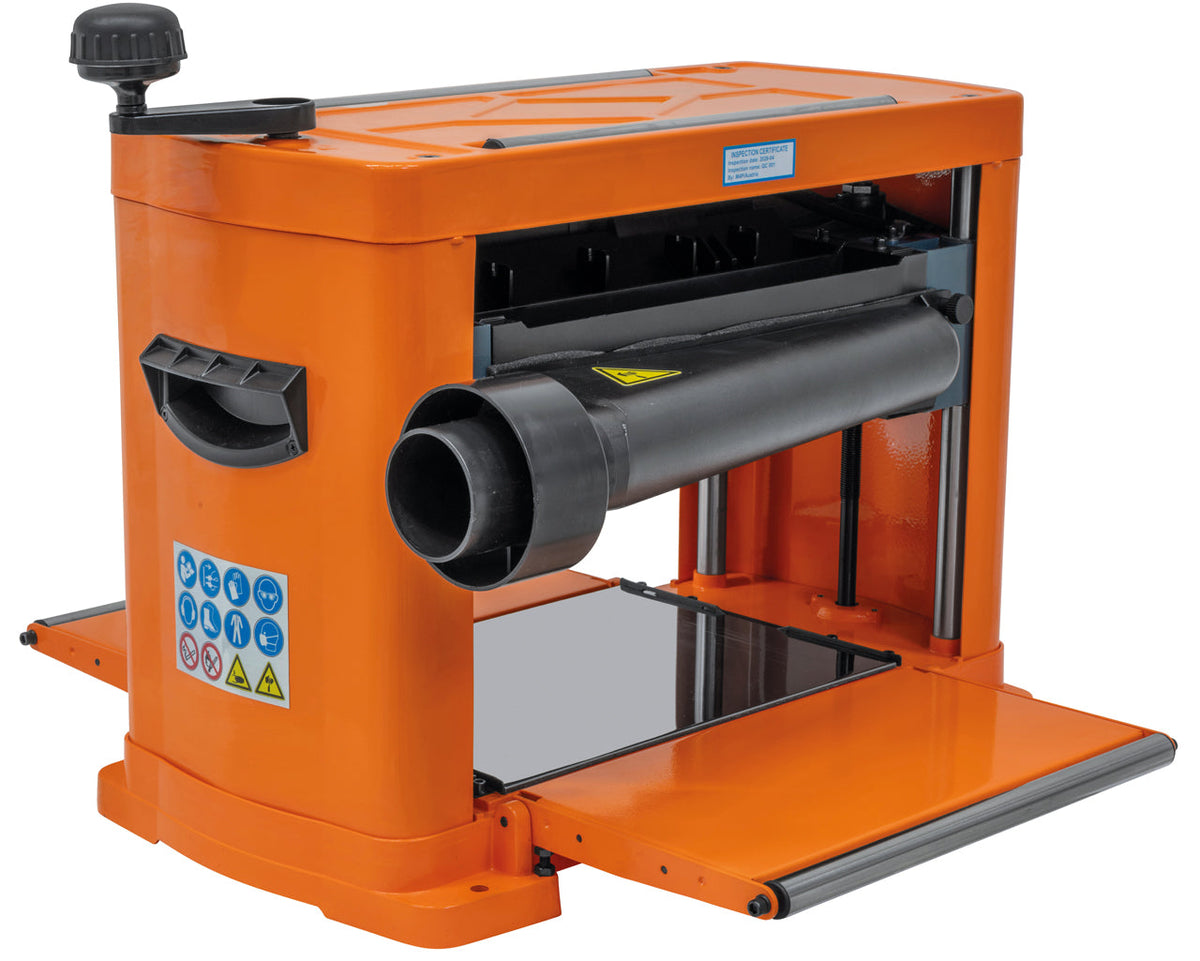

Absauganschluss Ø 50 / 100 mm
Motor-Abgabeleistung S1 100% 1,5 kW (2,0 PS)
Motor-Aufnahmeleistung S6 40% 2,1 kW (2,8 PS)
Spannung 230 V
Maschinenabmessung (L x B x H) 550 x 640 x 475 mm
Gewicht ca. 31 kg
  • Spiralmesser-Hobelwelle mit 30 Stk. HM-Wendeplatten
  • Ersatz-HM-Wendeplatten (5 Stk.)
  • Aufklappbare Tischverlängerung mit Rollen

For order values of €2,000.00 or more, delivery within Germany is free of charge.

The relevant order value is the total after the deduction of any discounts and before the calculation of shipping costs.

Shipping costs for order values under €2,000.00

  • Parcel shipping up to 30 kg: €8.90 incl. statutory VAT.
  • Freight forwarding/truck shipping over 30 kg: €59.00 incl. statutory VAT.

The stated shipping costs include statutory VAT.

Manufacturer & Contact Information

PWA HandelsgesmbH
Nebingerstraße 7a
4020 Linz
Austria

Tel.: +43 (0) 732 / 664015
Email: bernardo@pwa.at

Safety instructions for this product:

Download safety manual

2-year warranty - warranty terms can be found here
