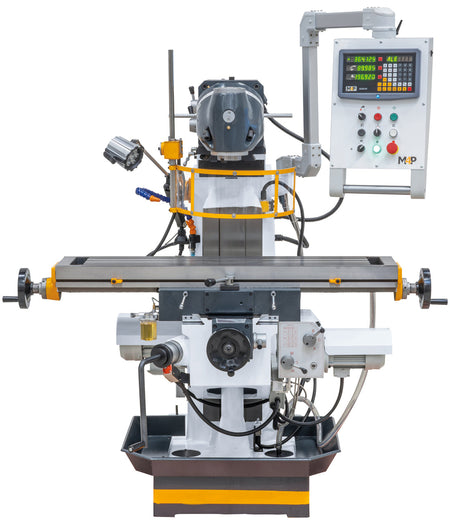

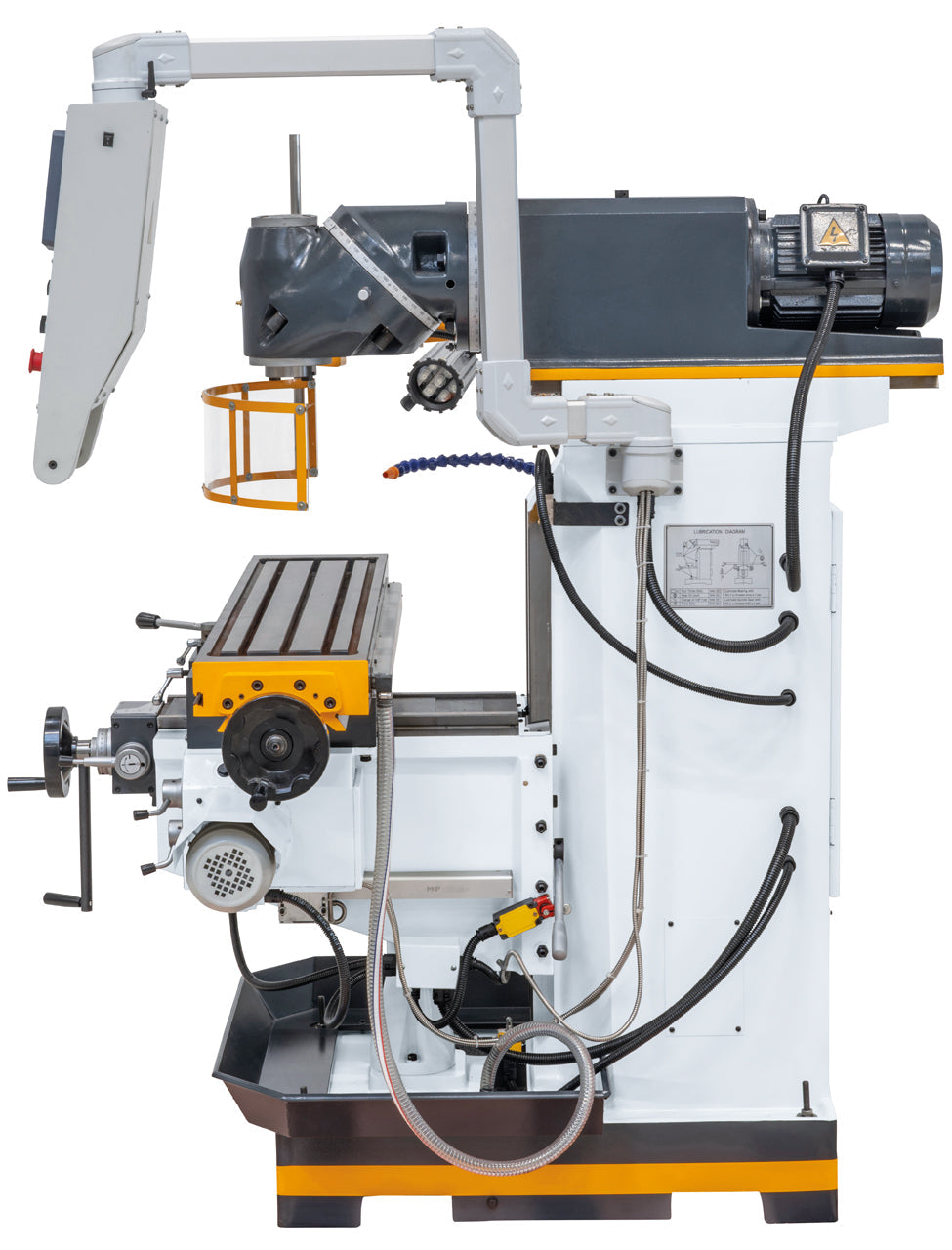

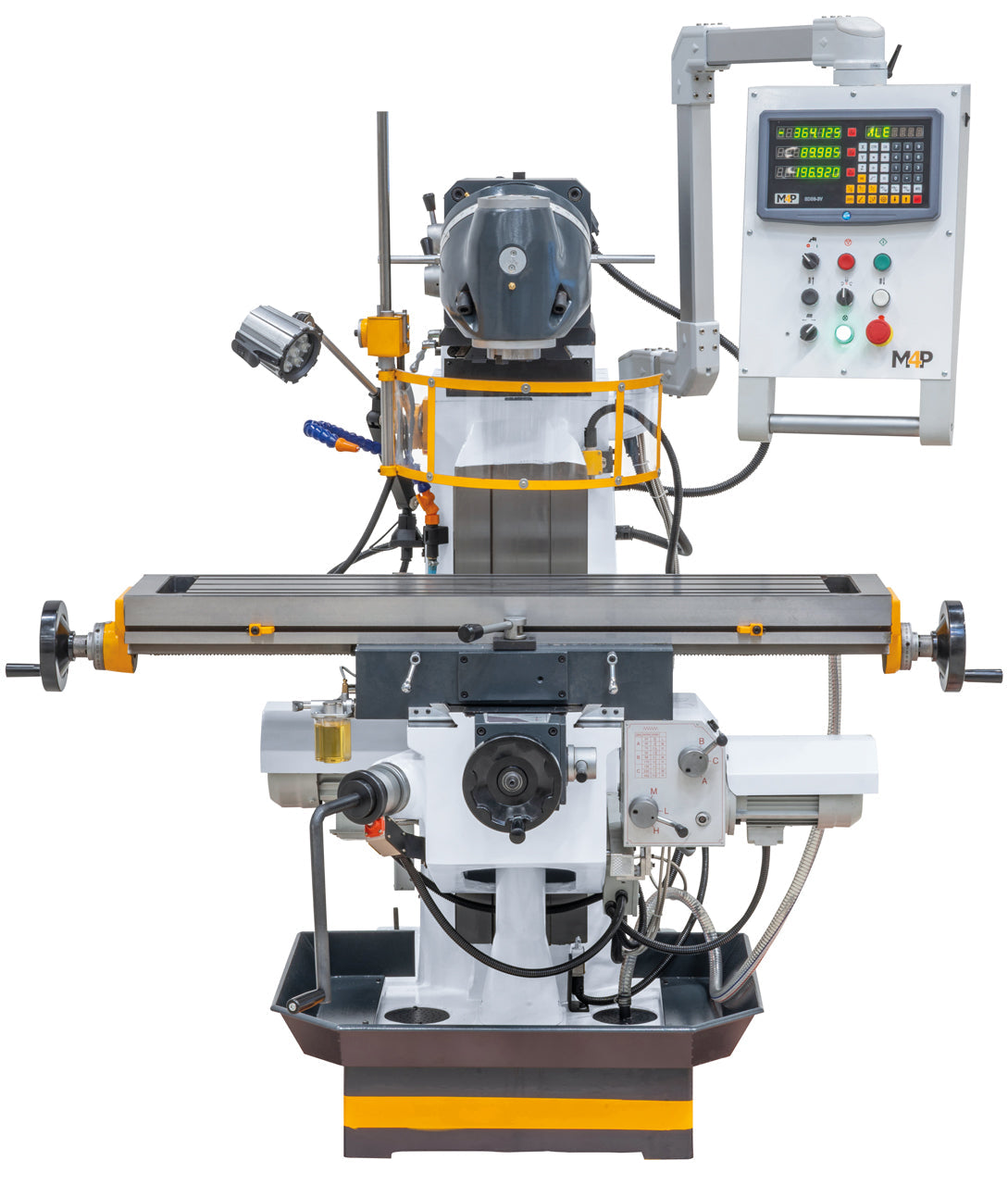

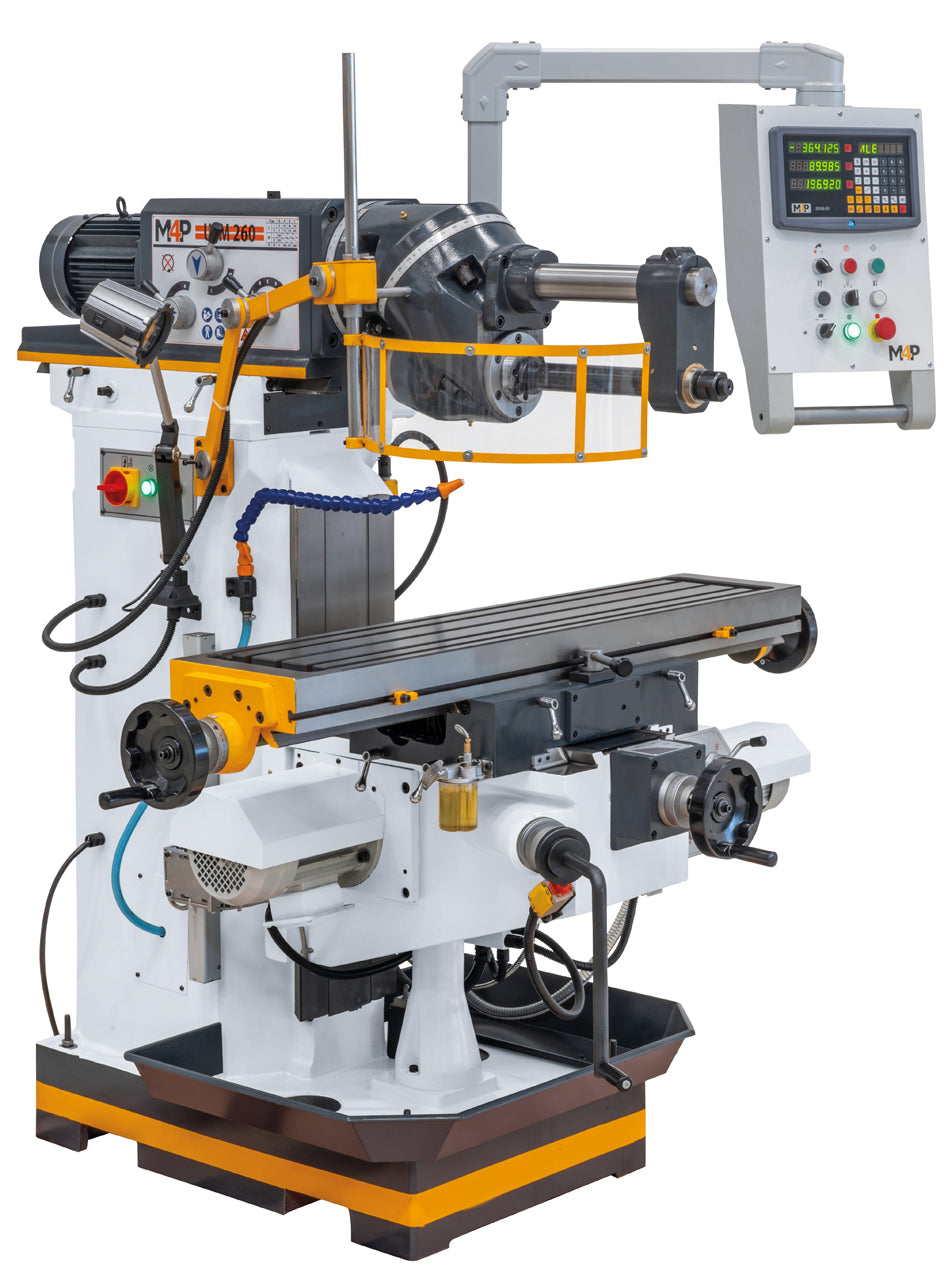

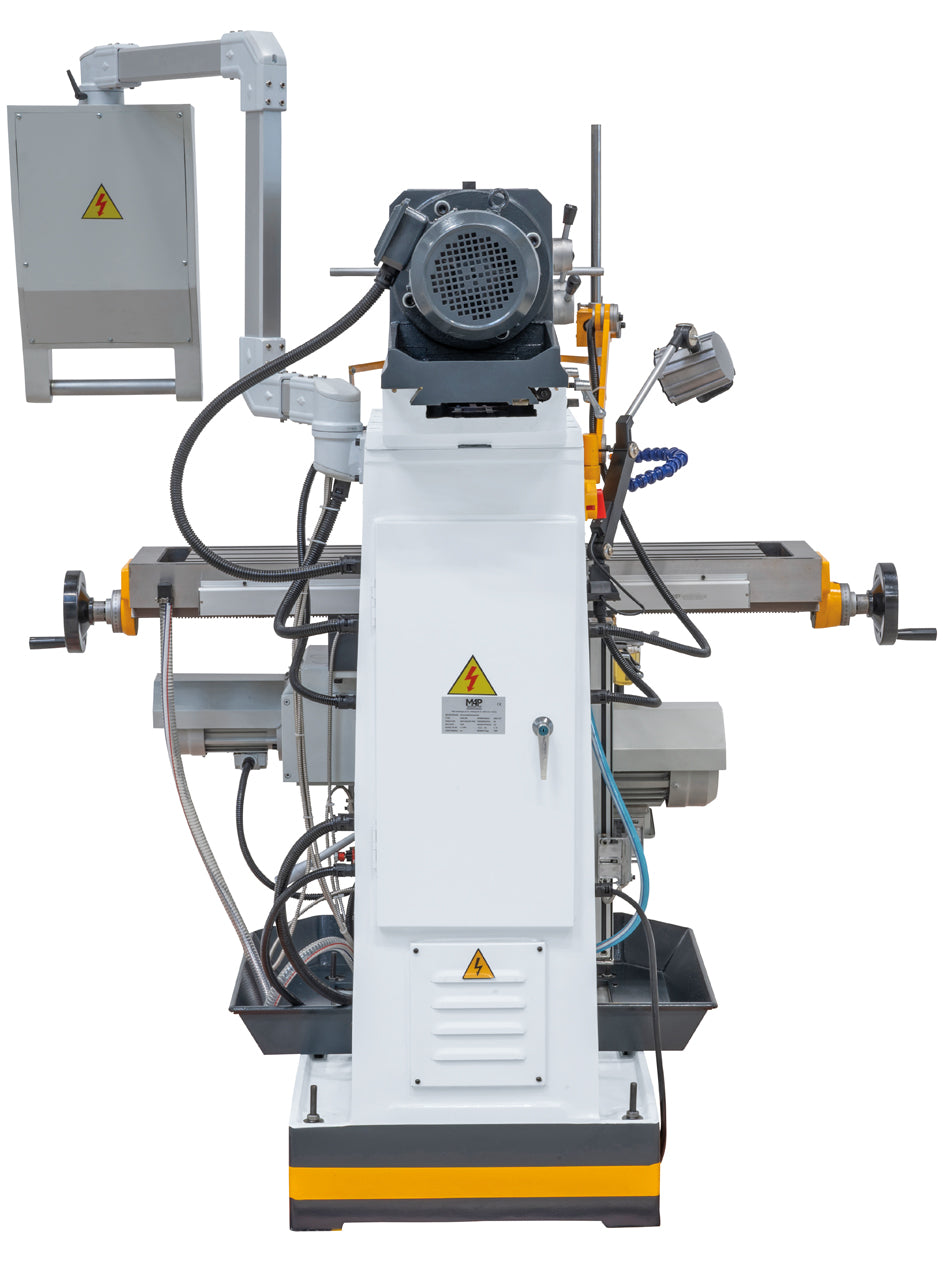

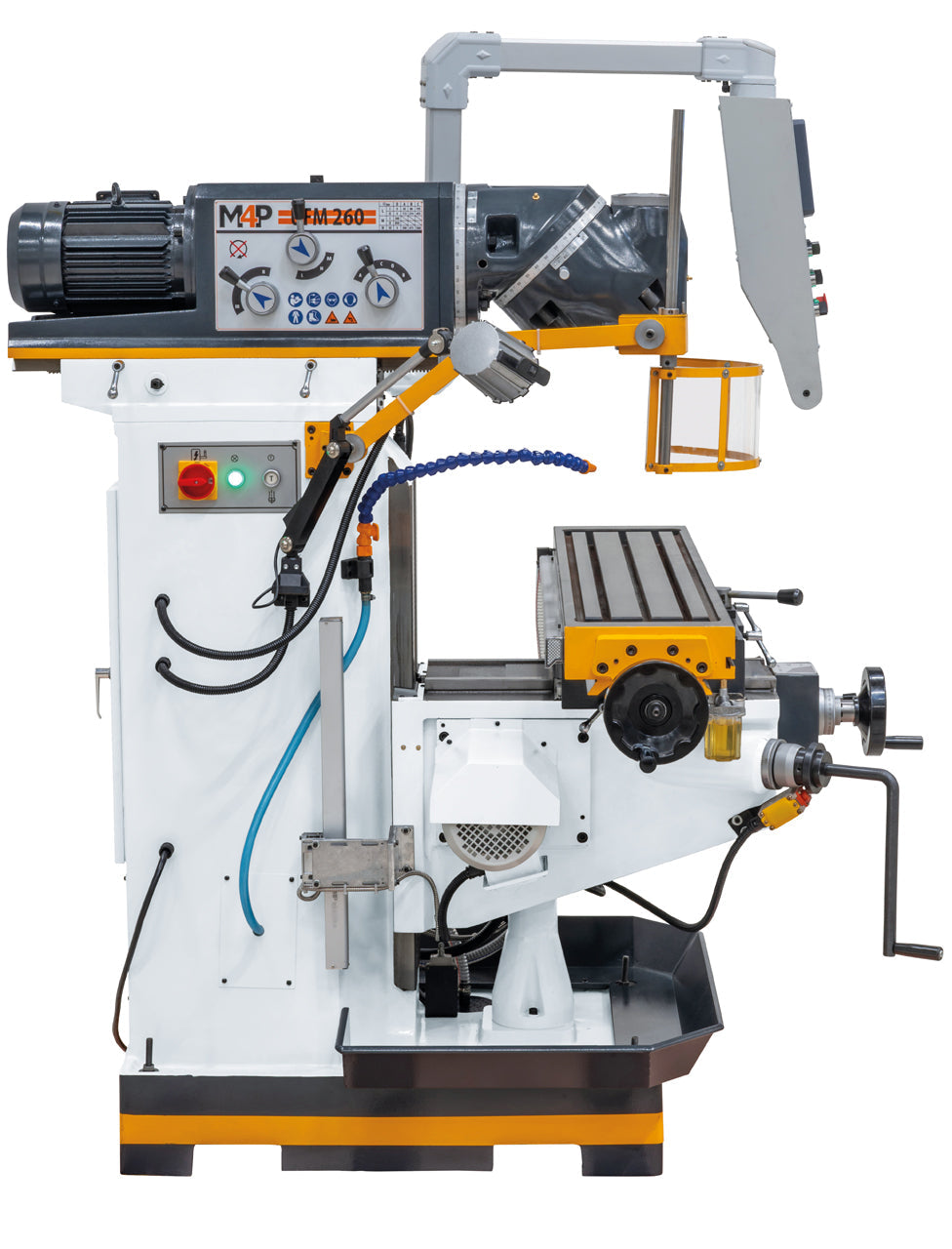

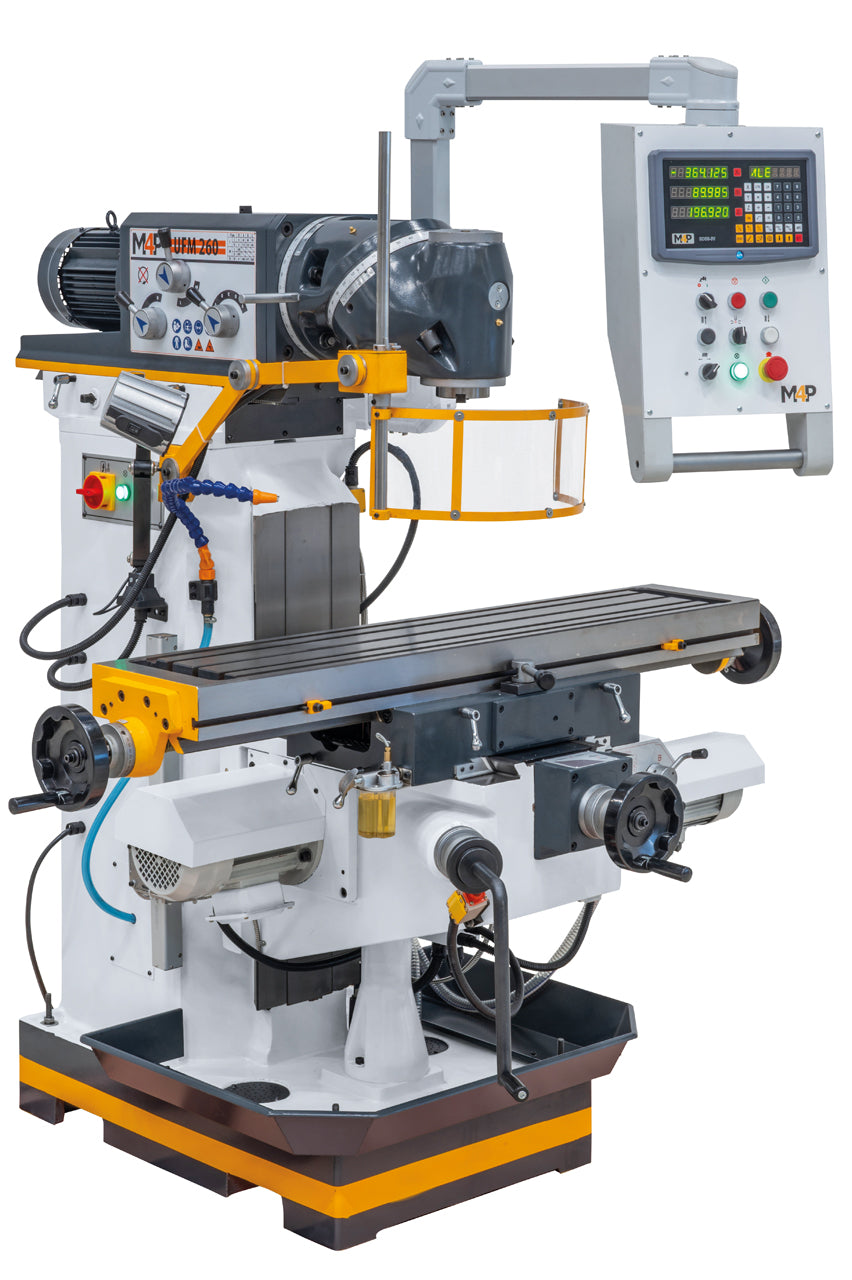

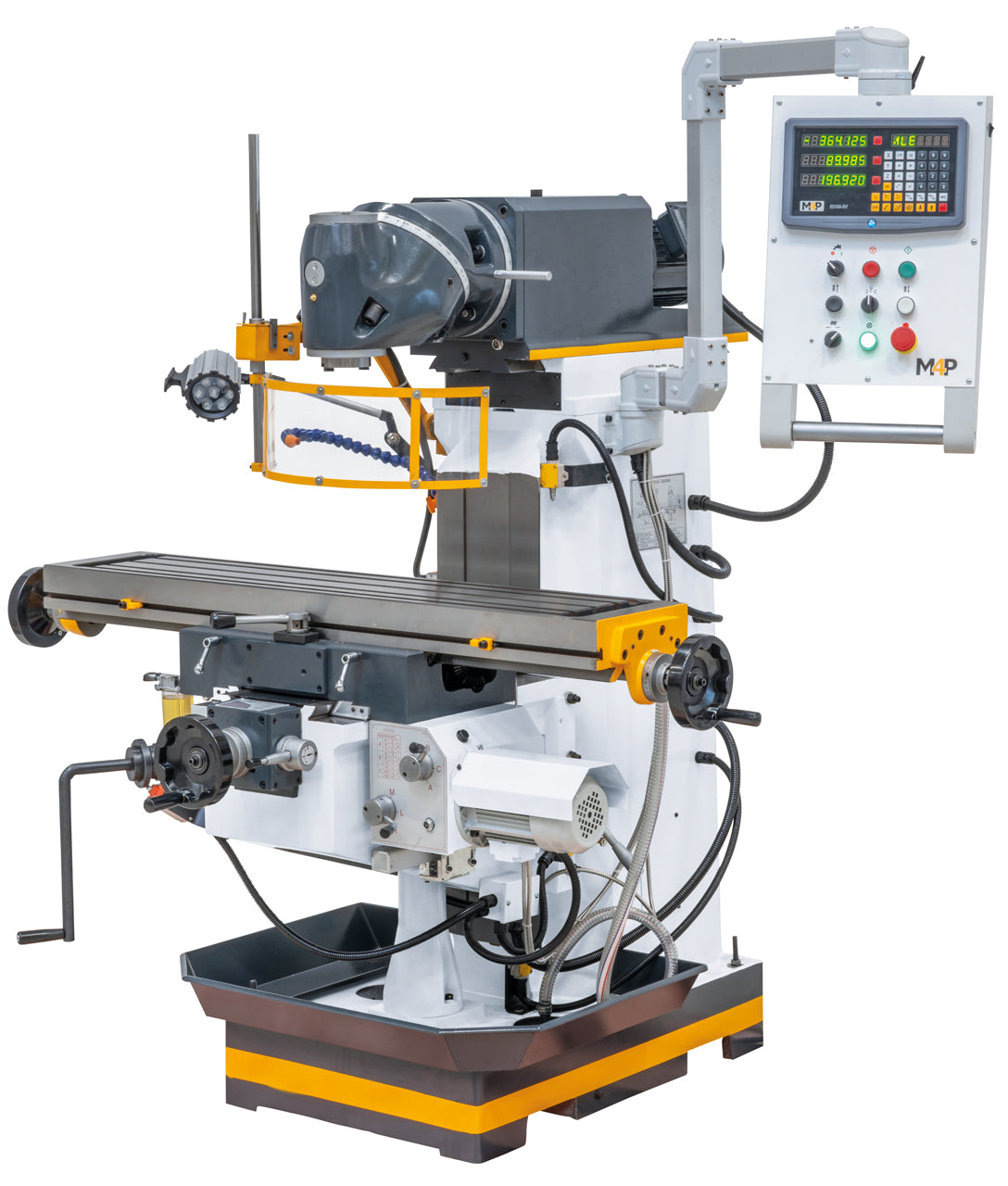

The UFM 260 universal milling machine is suitable for light and medium milling operations. Thanks to its great versatility and simple retooling, it can be successfully used in workshops for processing small and medium-sized series.

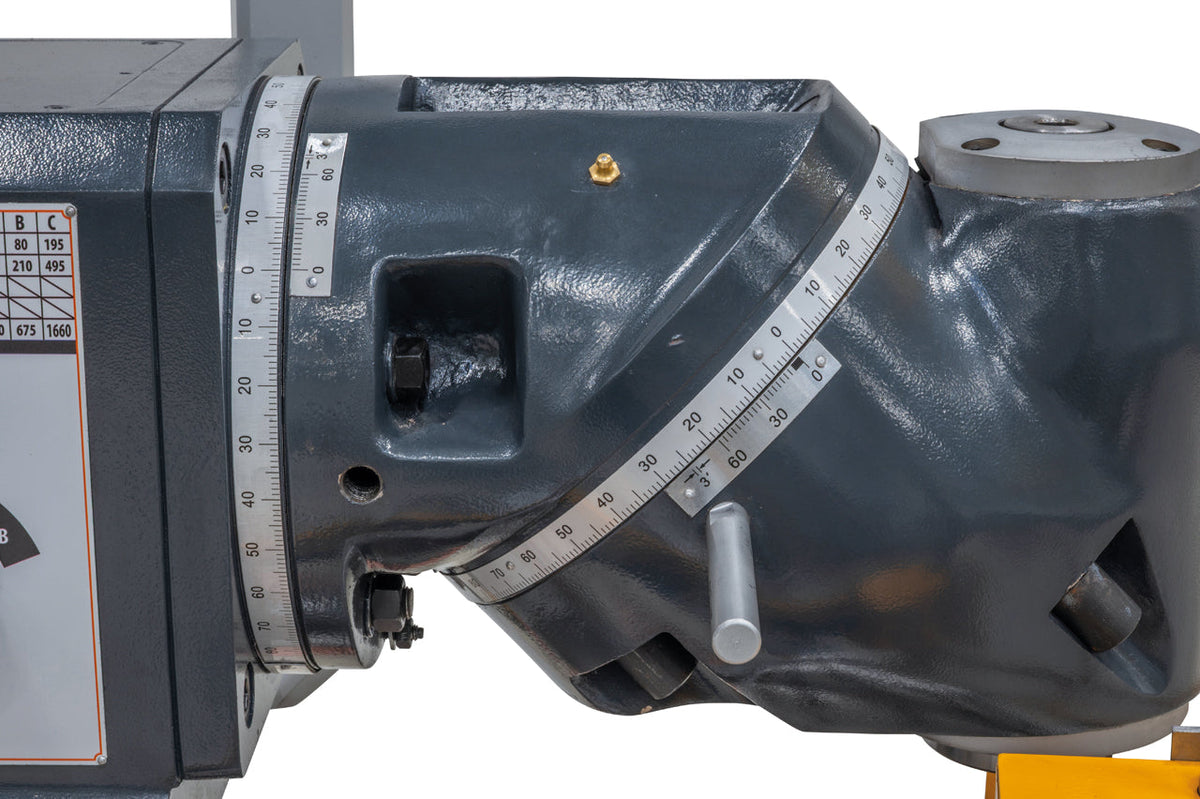

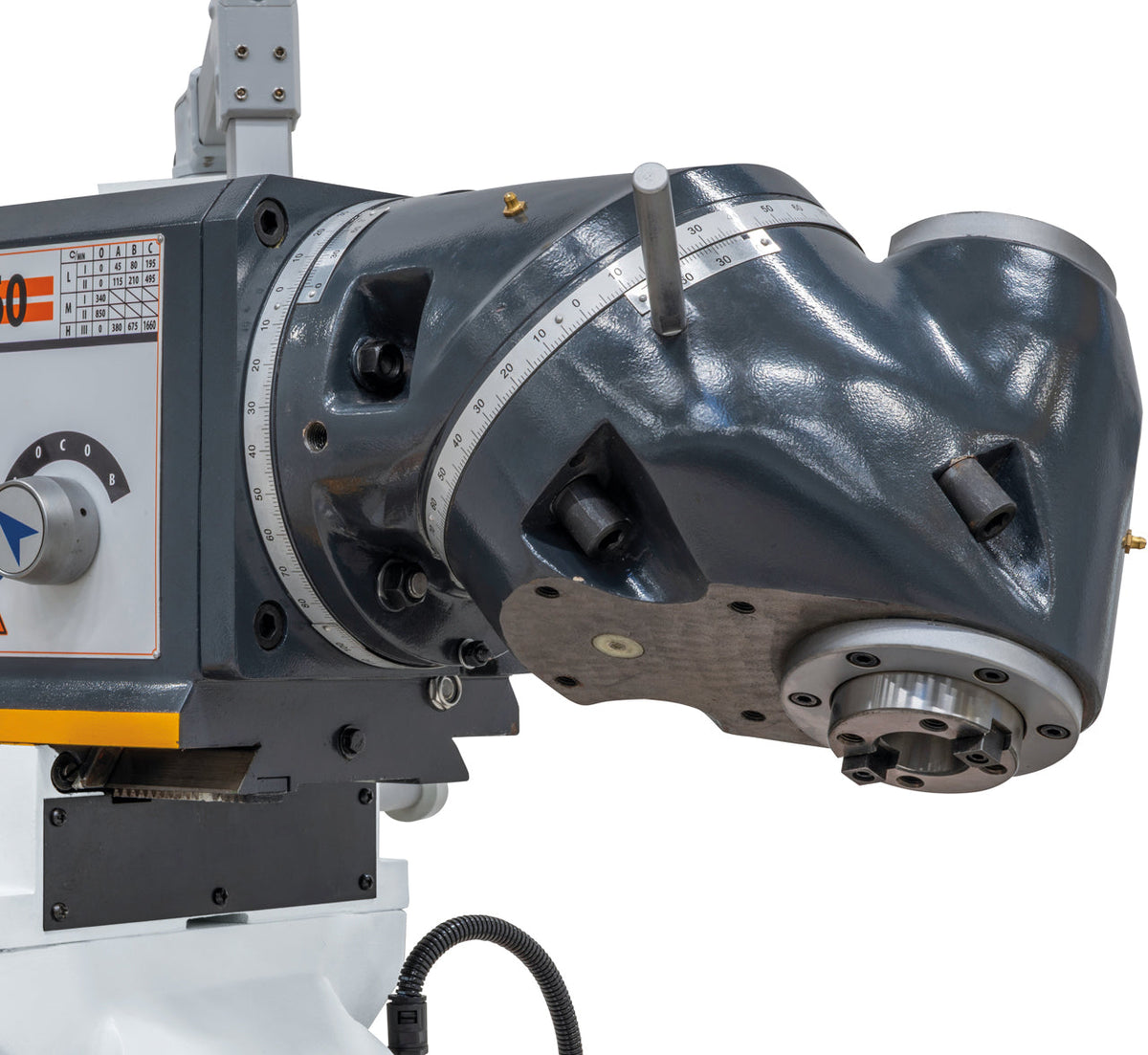

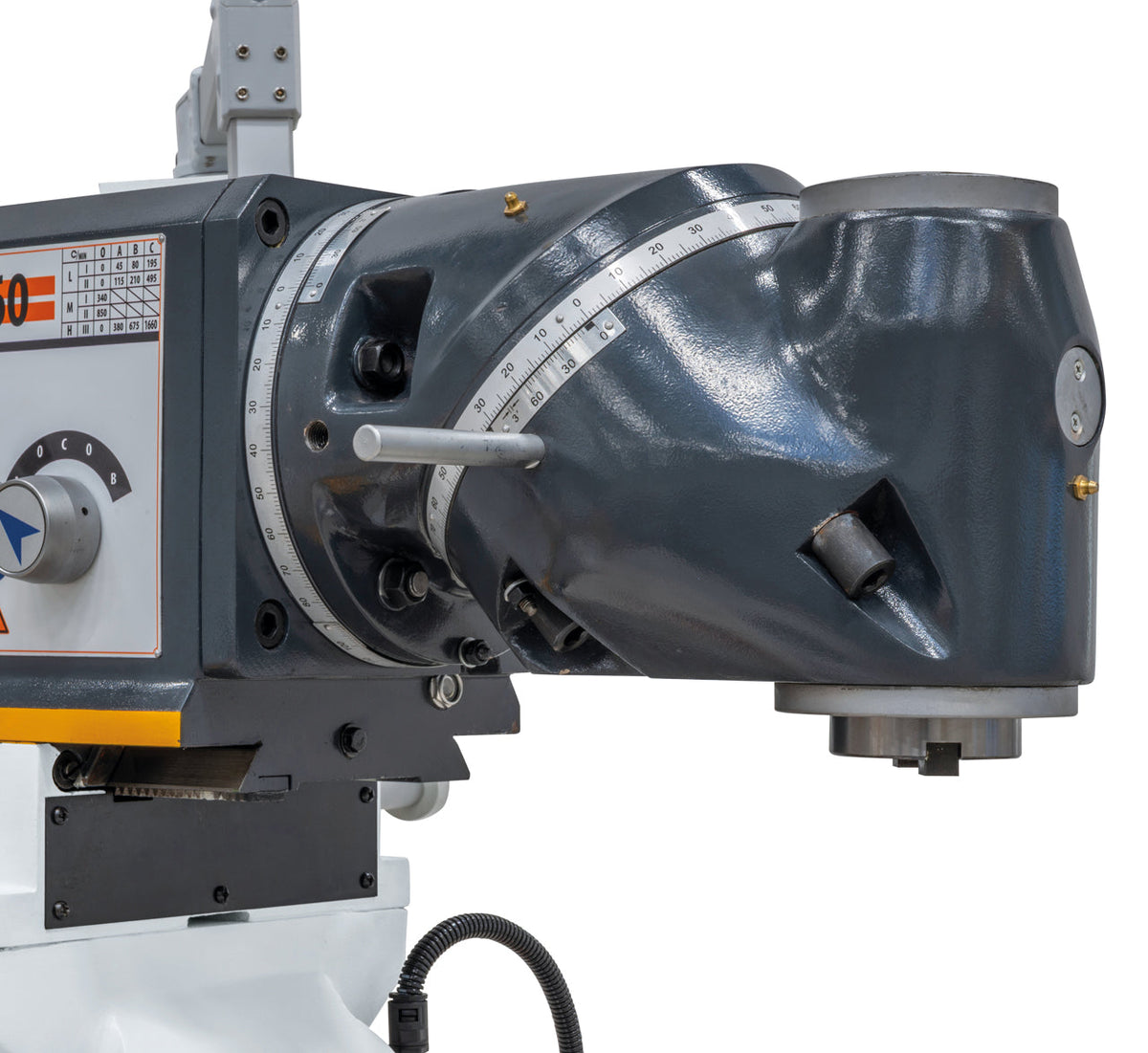

Universal milling head, adjustable to all angular positions

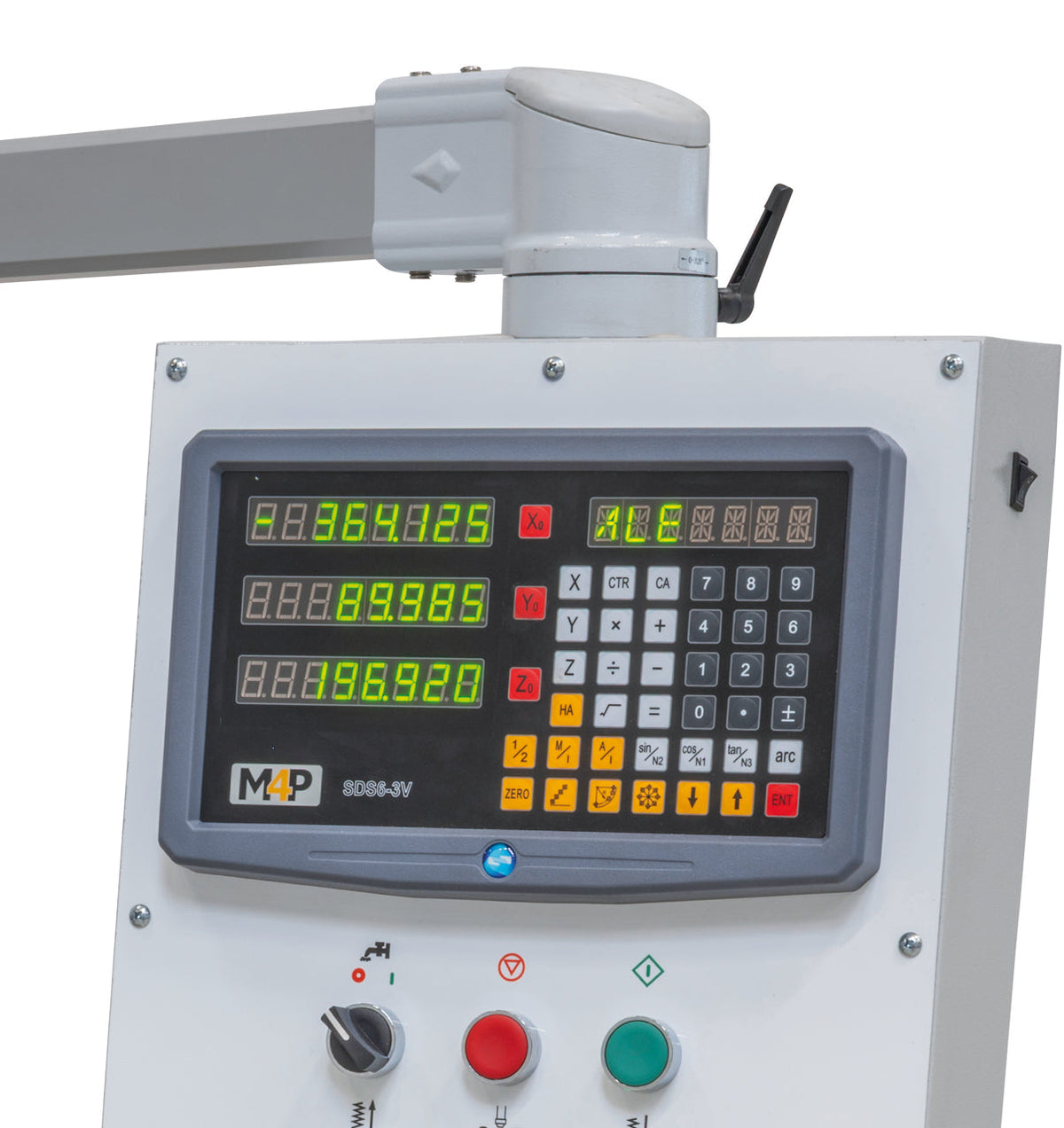

Swivelling control panel with ergonomically arranged switches
Heavy machine base made of cast iron for vibration-free operation
Dovetail guide with adjustable gibs in all 3 axes

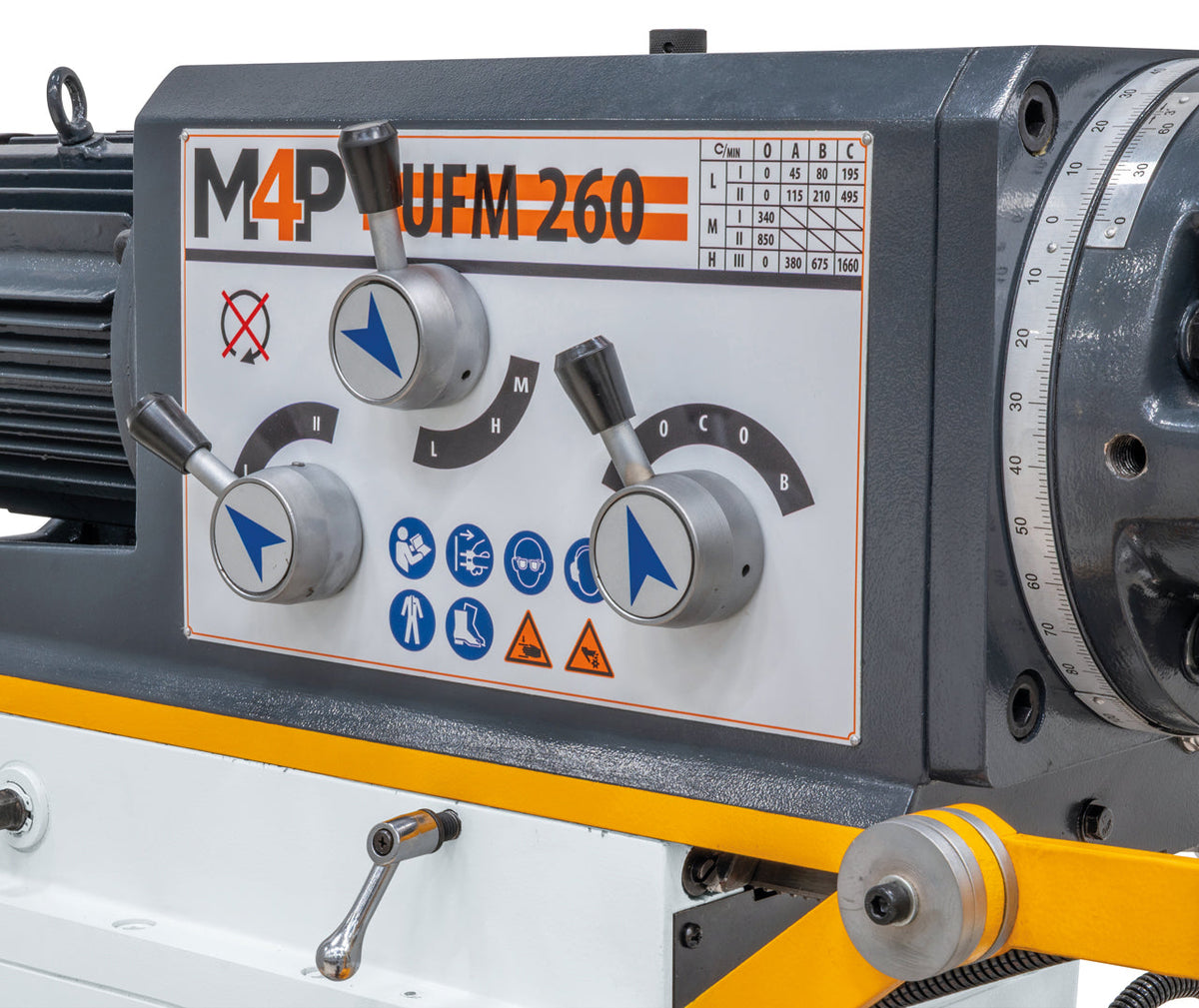

High concentricity due to ground gear wheels running in an oil bath
Positioning motor for z-axis included

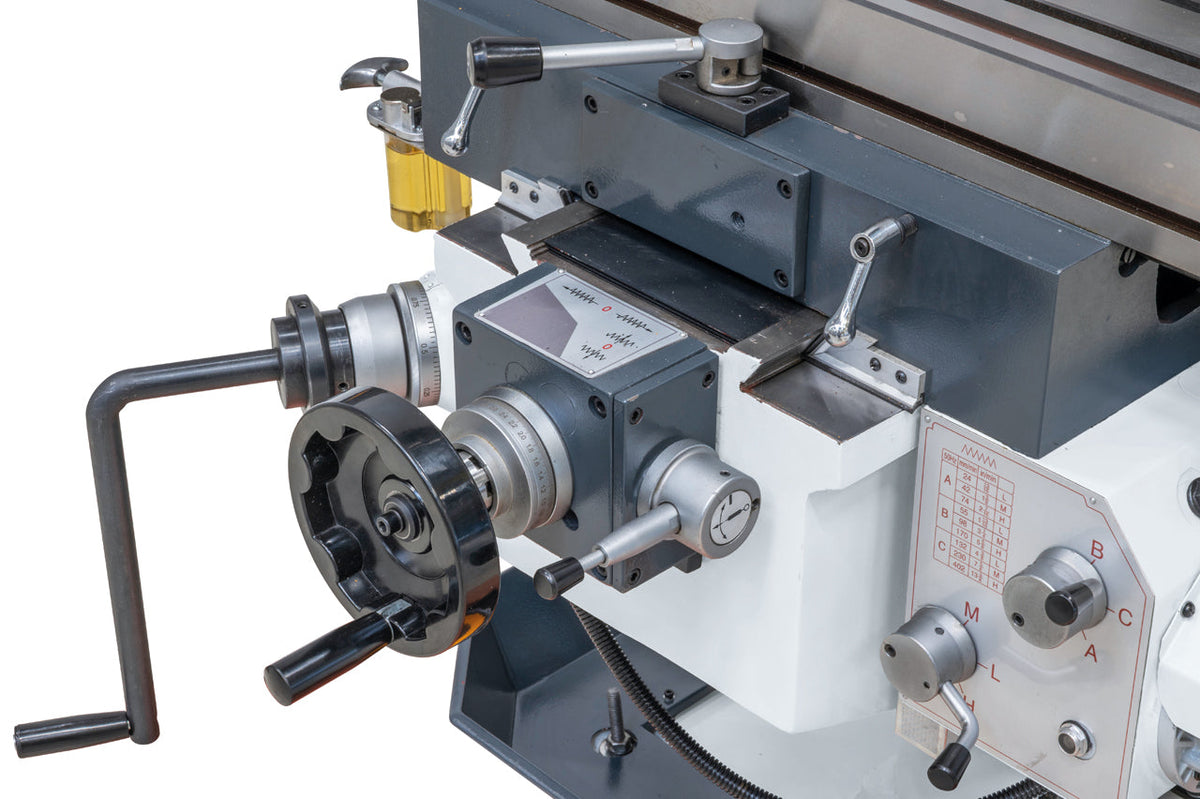

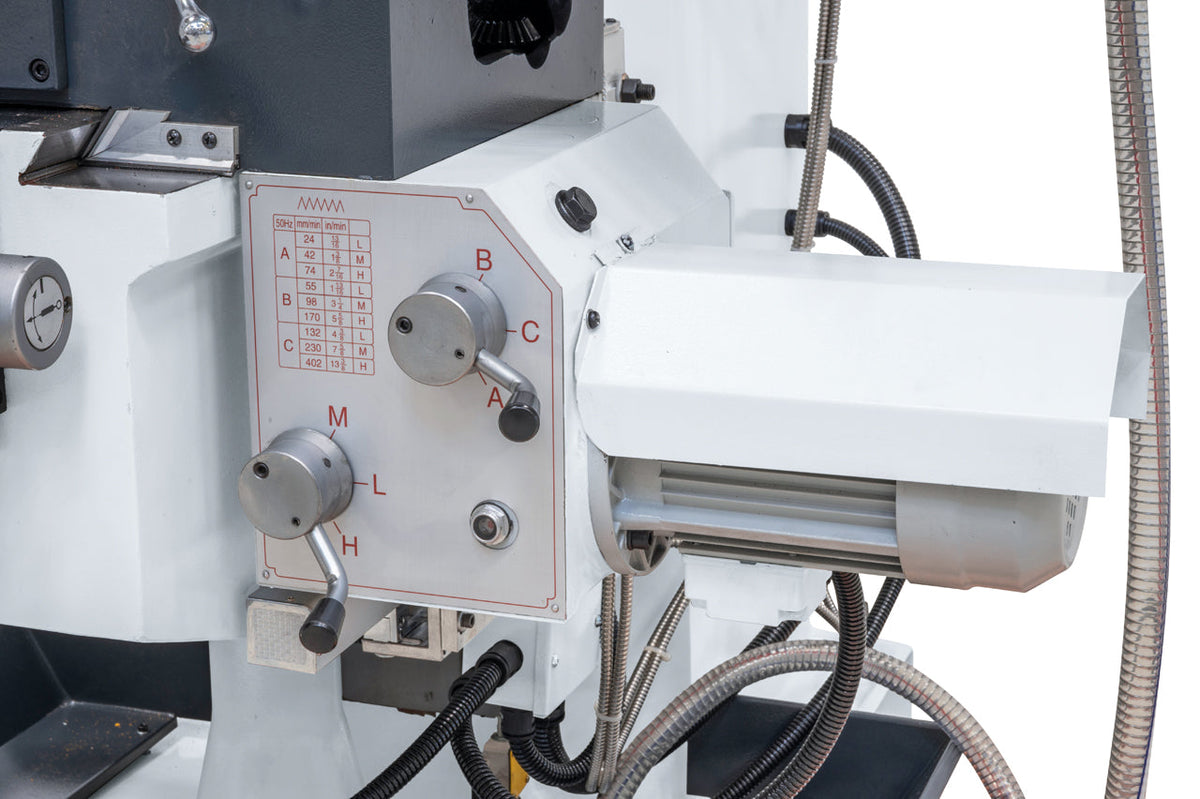

Standard with automatic table feed in x and y axes

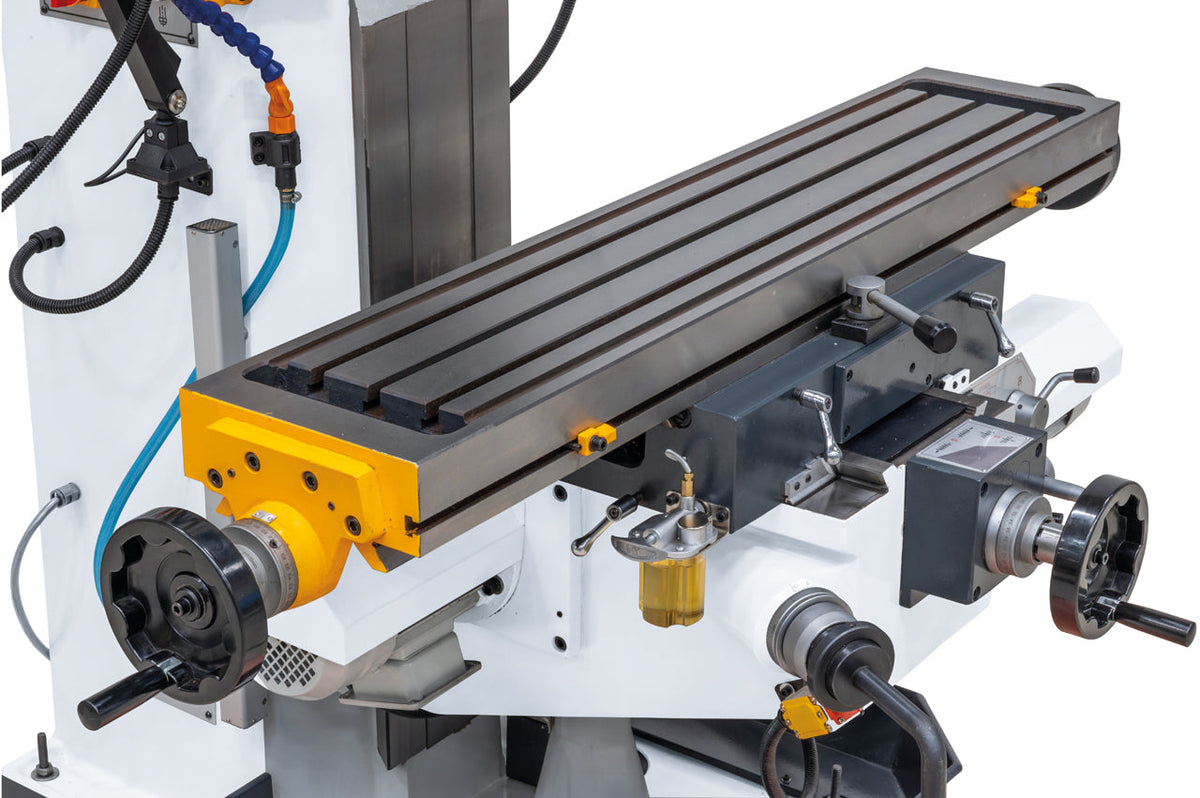

Precisely surface-machined cross table with T-slots
Digital position display for x, y, and z axes included
| Tischgröße | 1270 x 260 mm |
| T-Nutengröße | 14 mm |
| Spindelaufnahme | ISO 40 |
| Spindeldrehzahl | 45 - 1660 U/min |
| Stufenzahl | 11 |
| Schwenkbereich Fräskopf | 360° |
| Verfahrweg längs (x) | 760 mm |
| Verfahrweg quer (y) | 260 mm |
| Verfahrweg vertikal (z) | 460 mm |
| Abstand Spindel / Tisch | 60 - 520 mm |
| Ausladung | 0 - 550 mm |
| Vorschubbereich längs / quer | (9) 24 - 402 mm/min |
| Eilgang x-, y- und z-Achse | 458 / 458 / 764 mm/min |
| Motorleistung | 2,2 kW |
| Maschinenabmessung (B x T x H) | 11720 x 1480 x 1950 mm |
| Gewicht ca. | 1205 kg |
