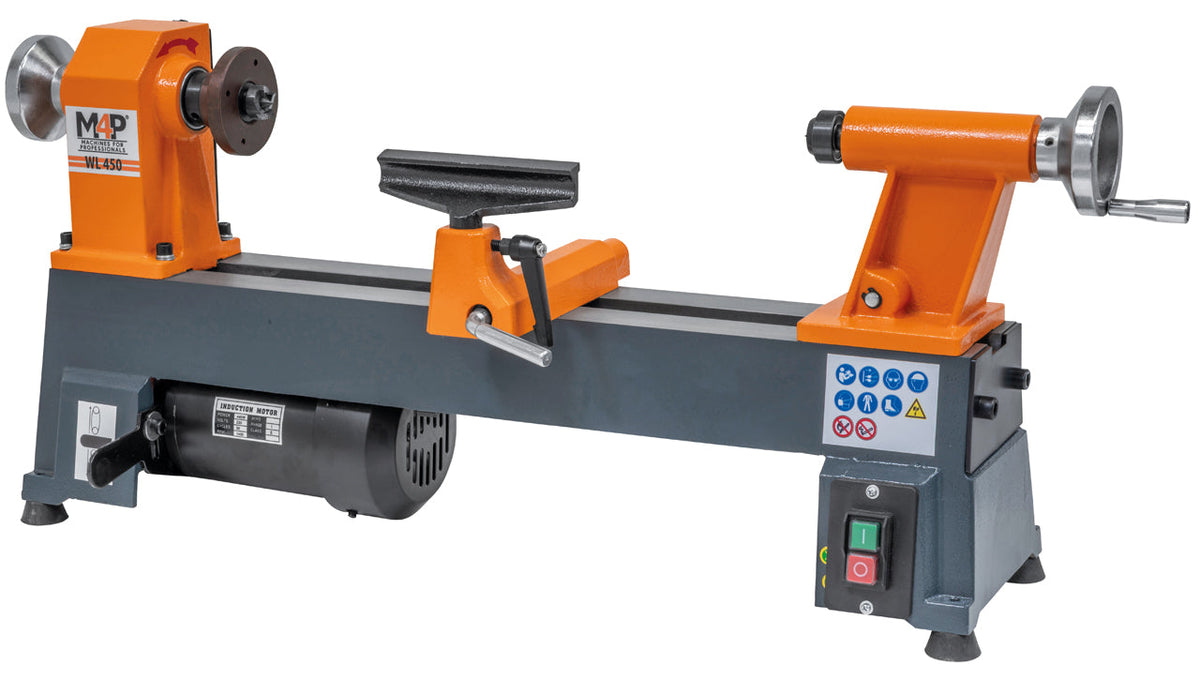

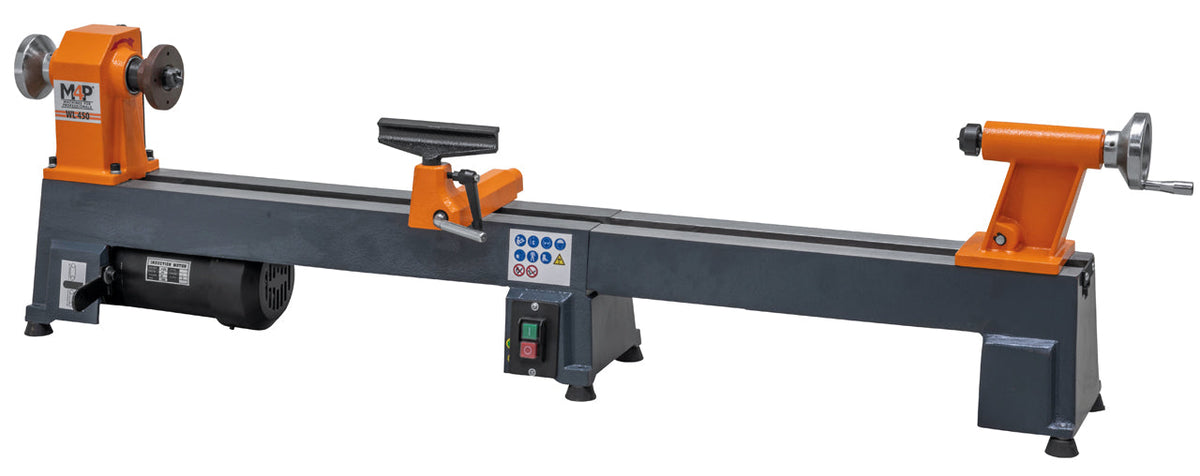

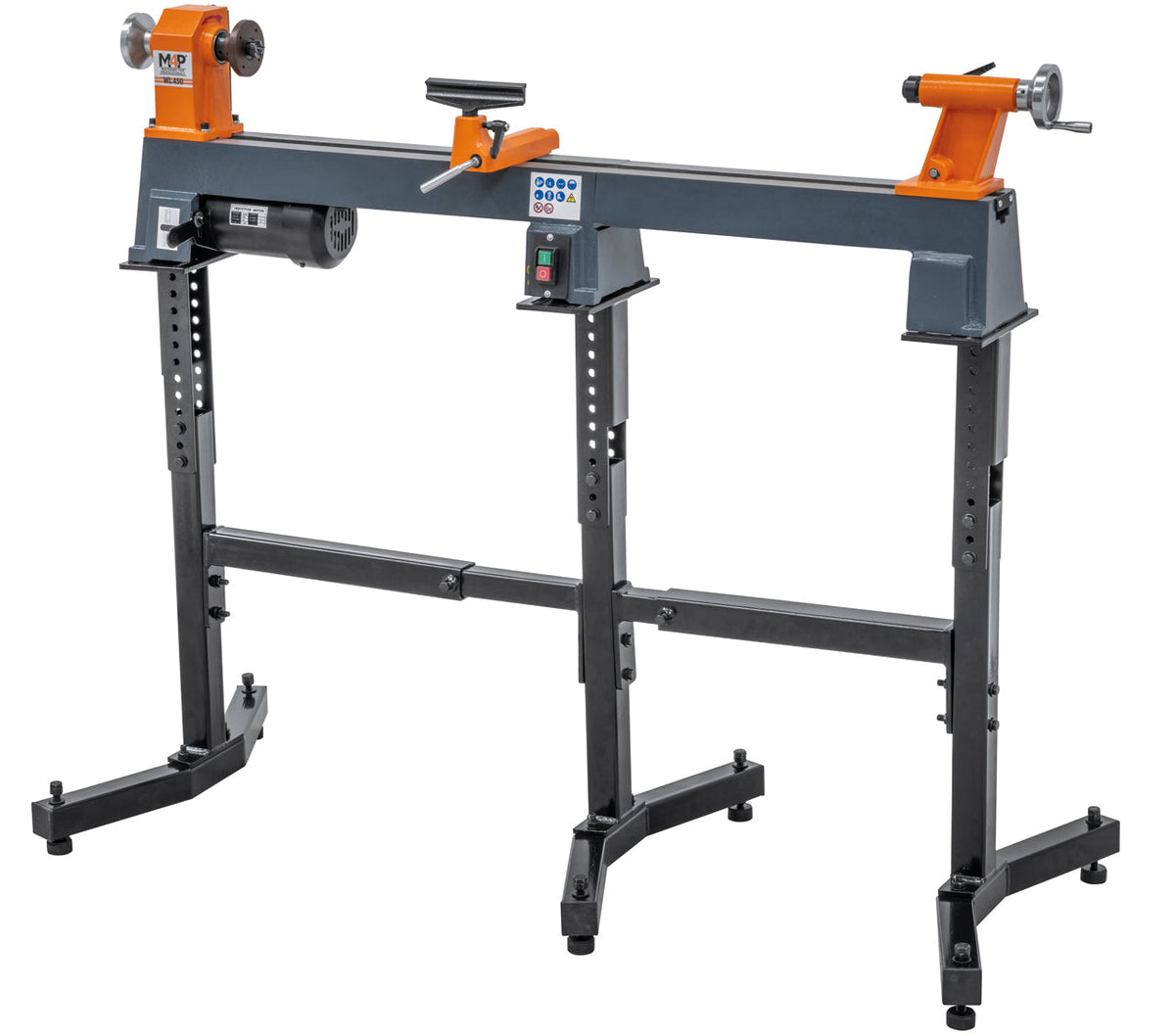

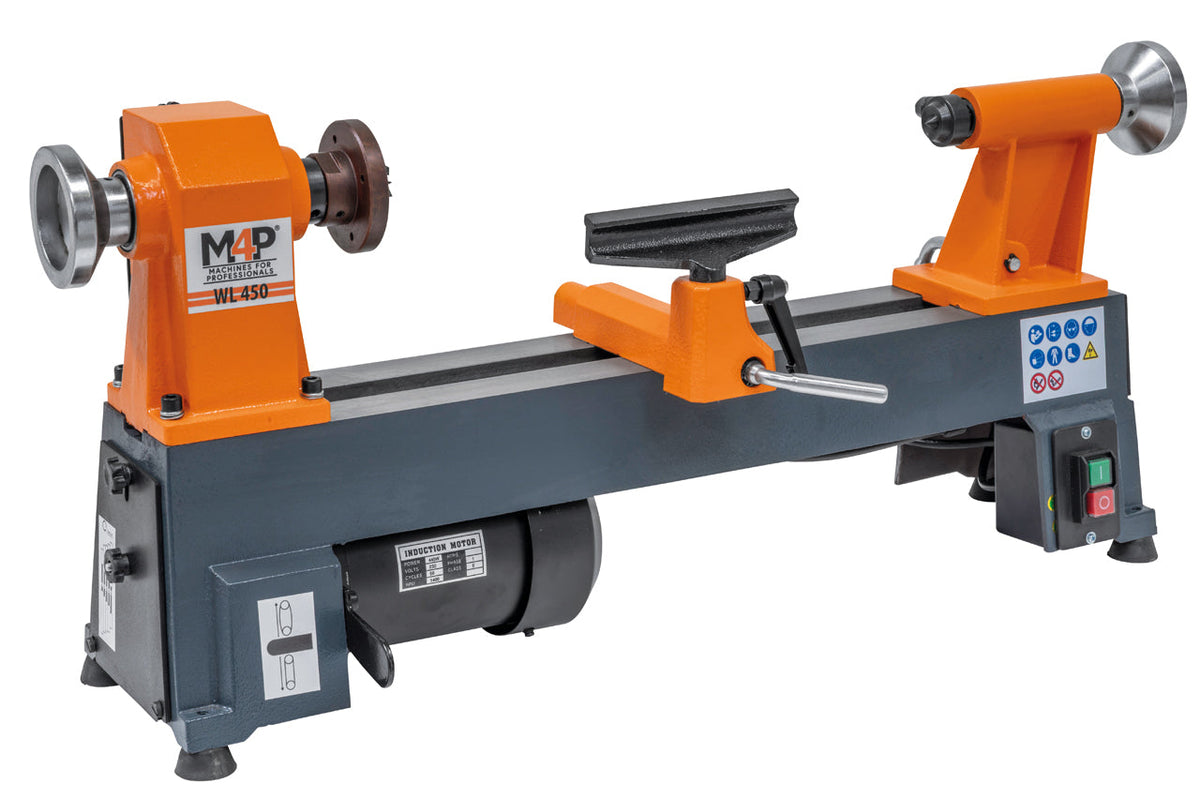

The WL 450 woodturning lathe ensures vibration-free and precise operation thanks to its stable cast-iron construction. The model can be equipped with an optional bed extension, which increases the distance between centers to 980 mm.
Ideal for the ambitious DIY enthusiast

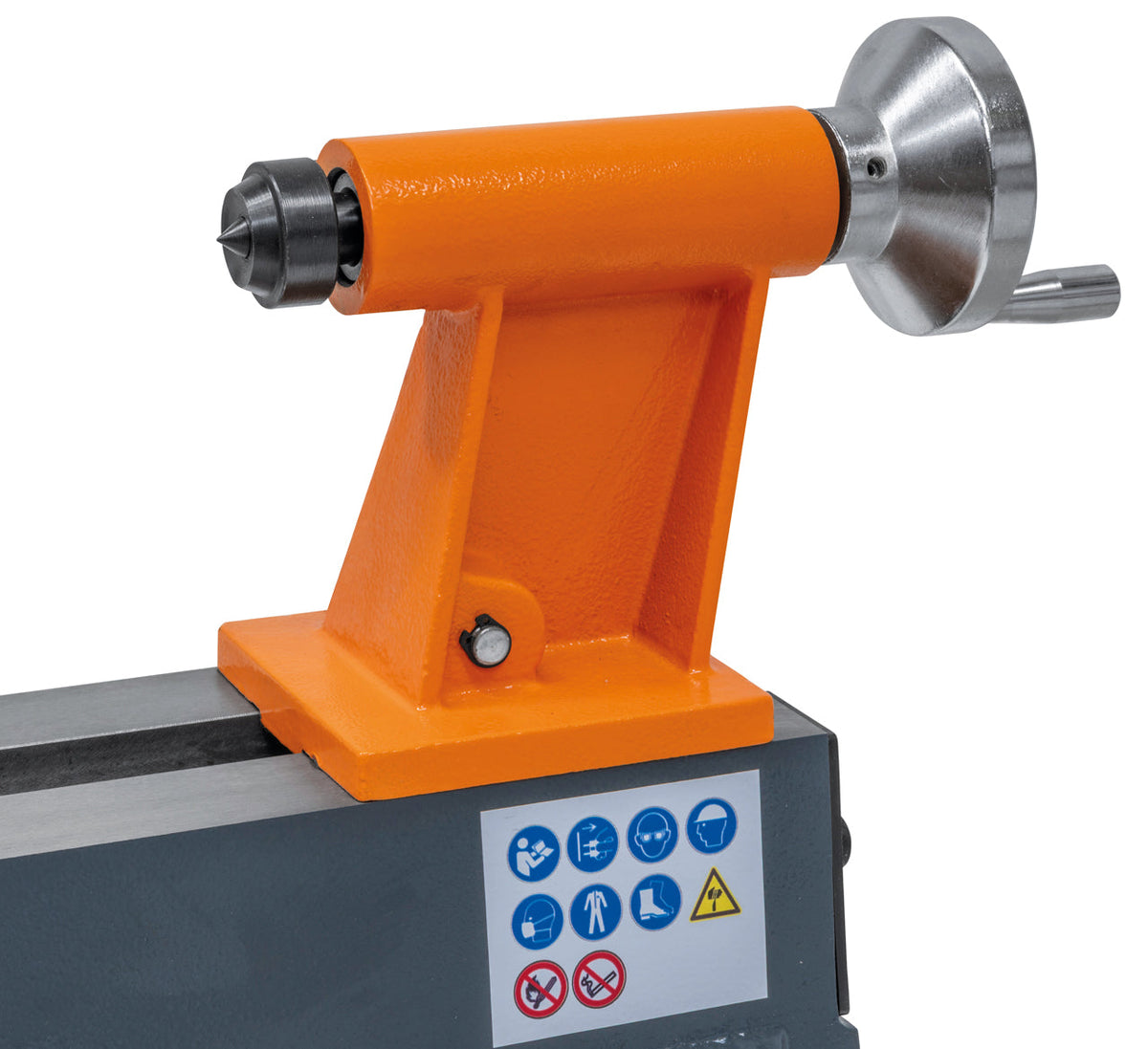

Robust tailstock with MT 2 mount and quick-release lever
Sturdy construction for vibration-free running

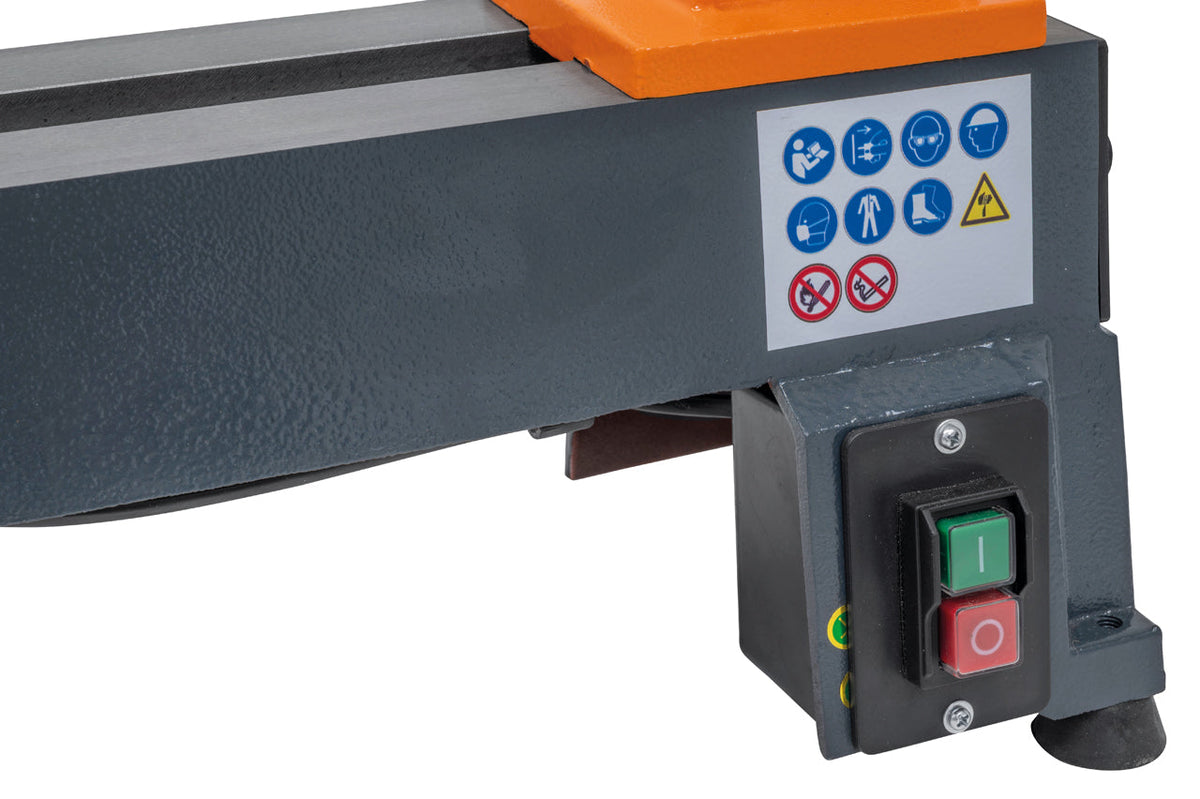

Clearly arranged switches and controls on the front
150 mm tool rest and 75 mm faceplate included in the scope of delivery

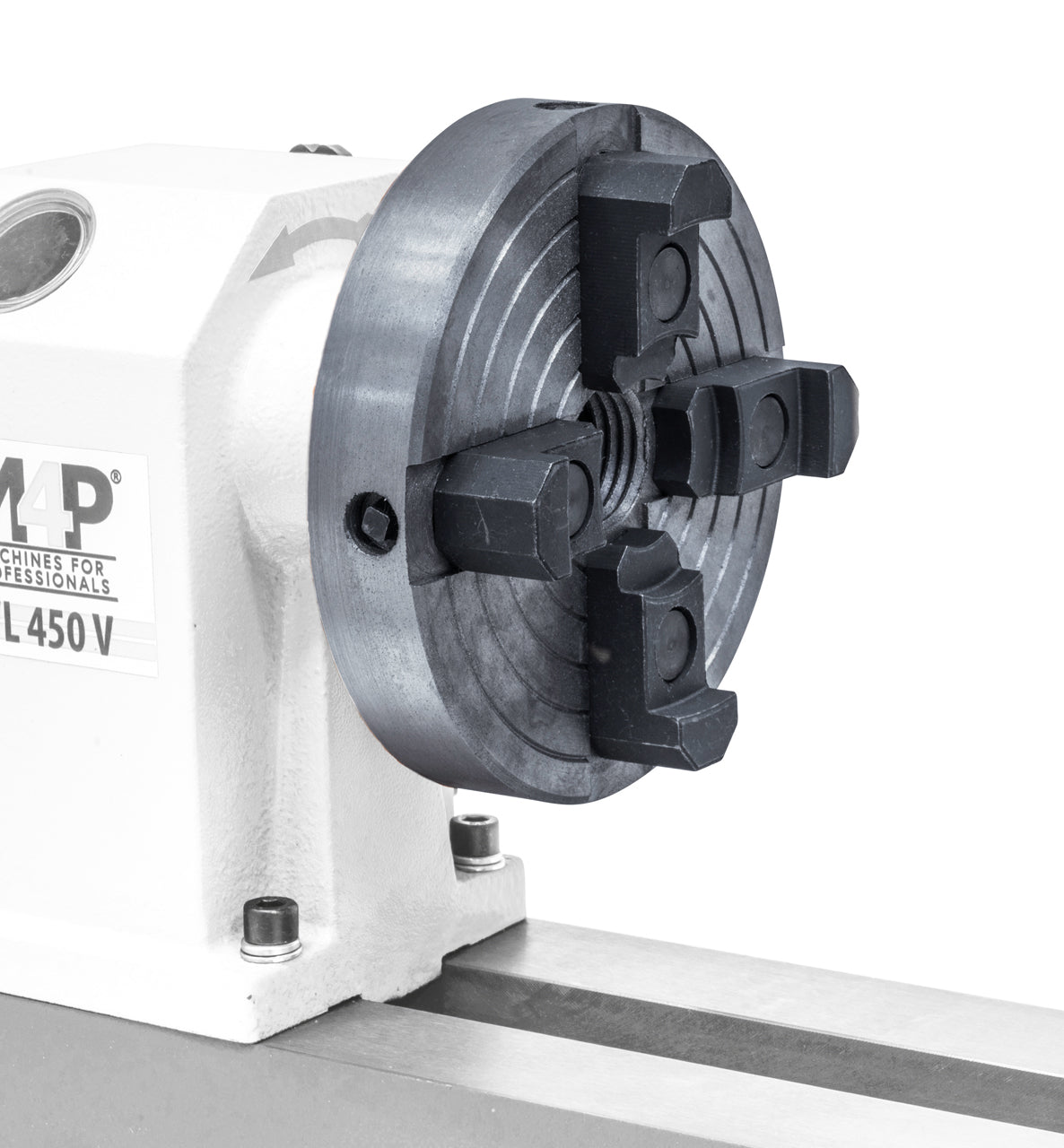

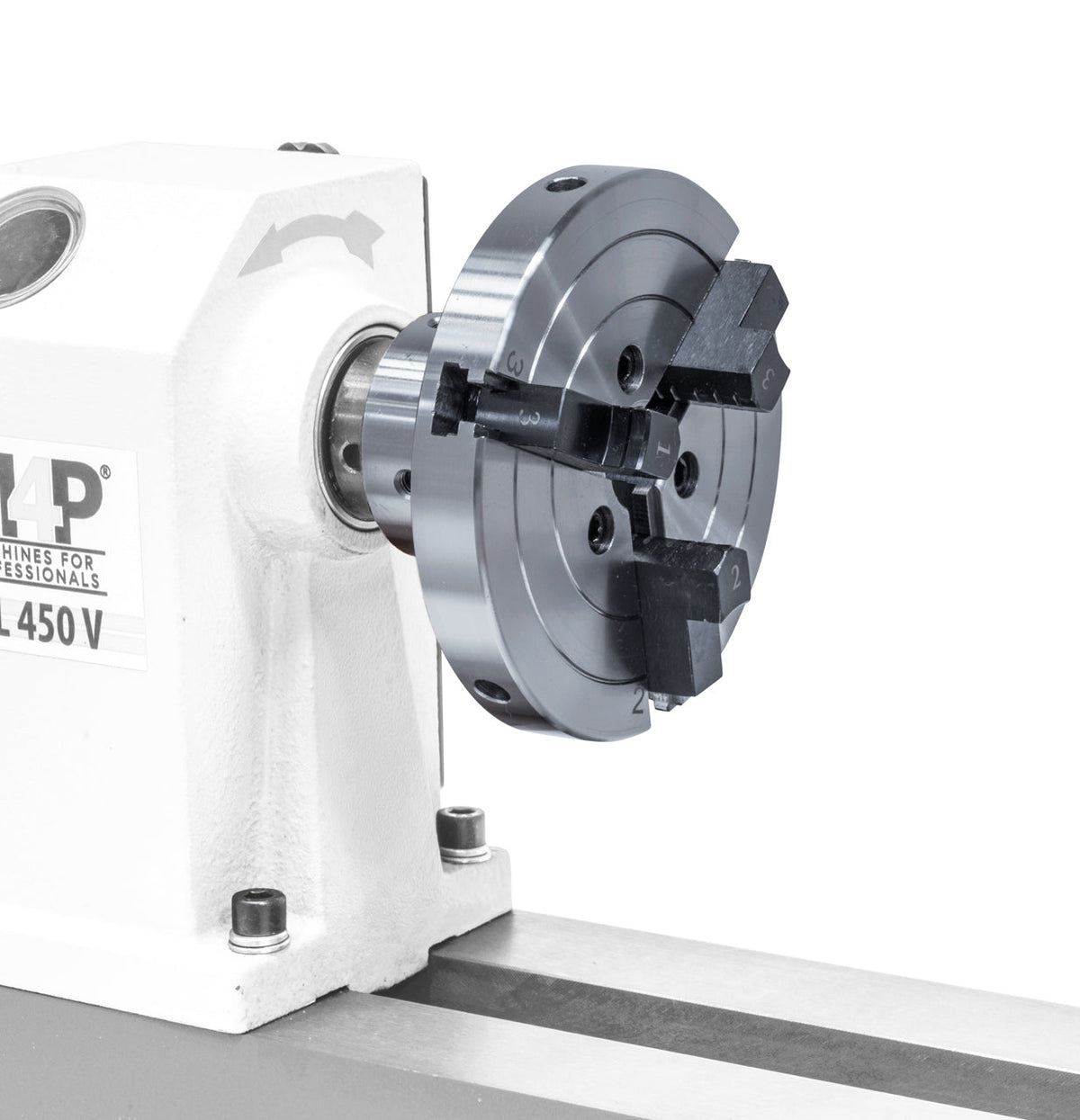

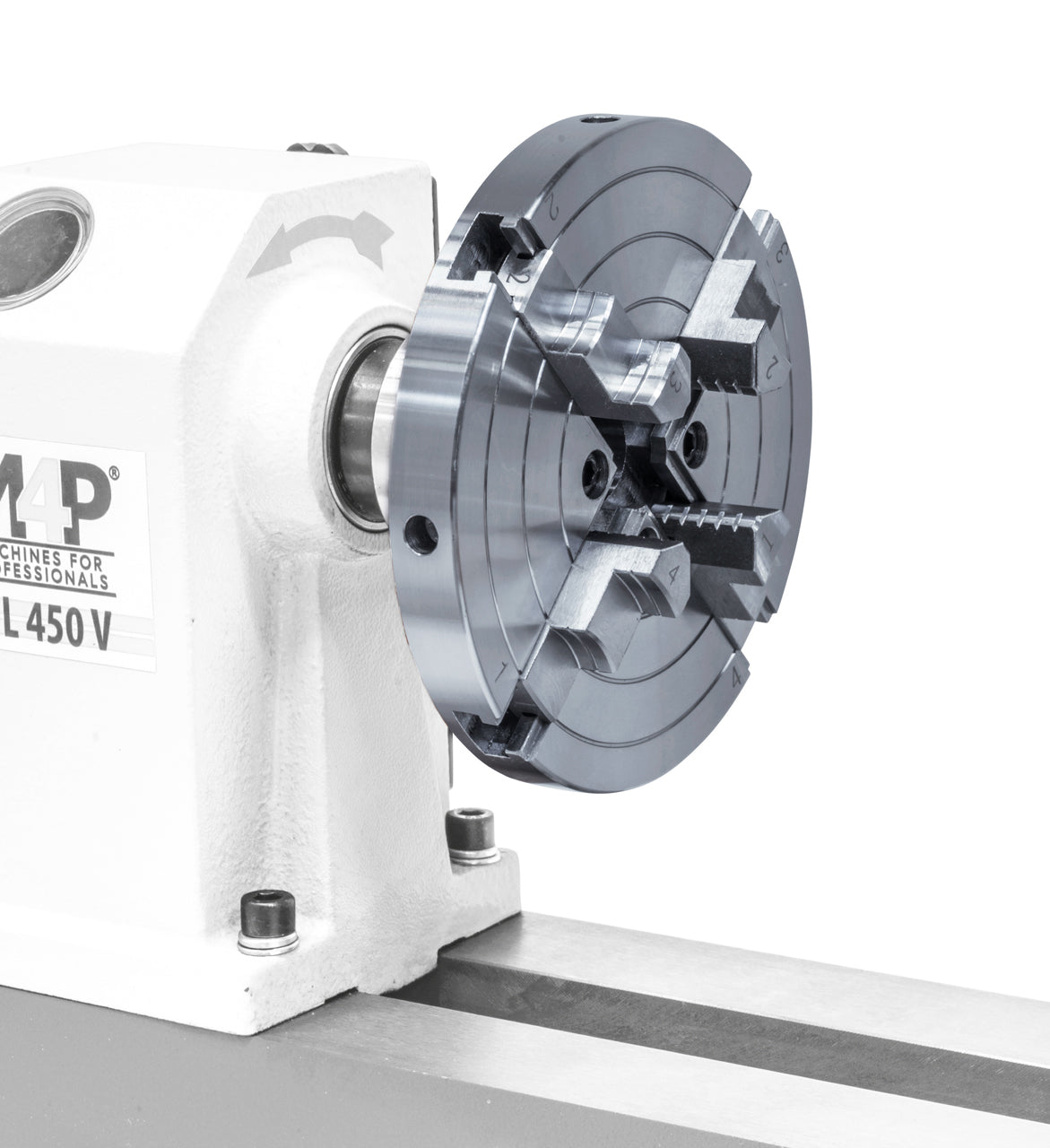

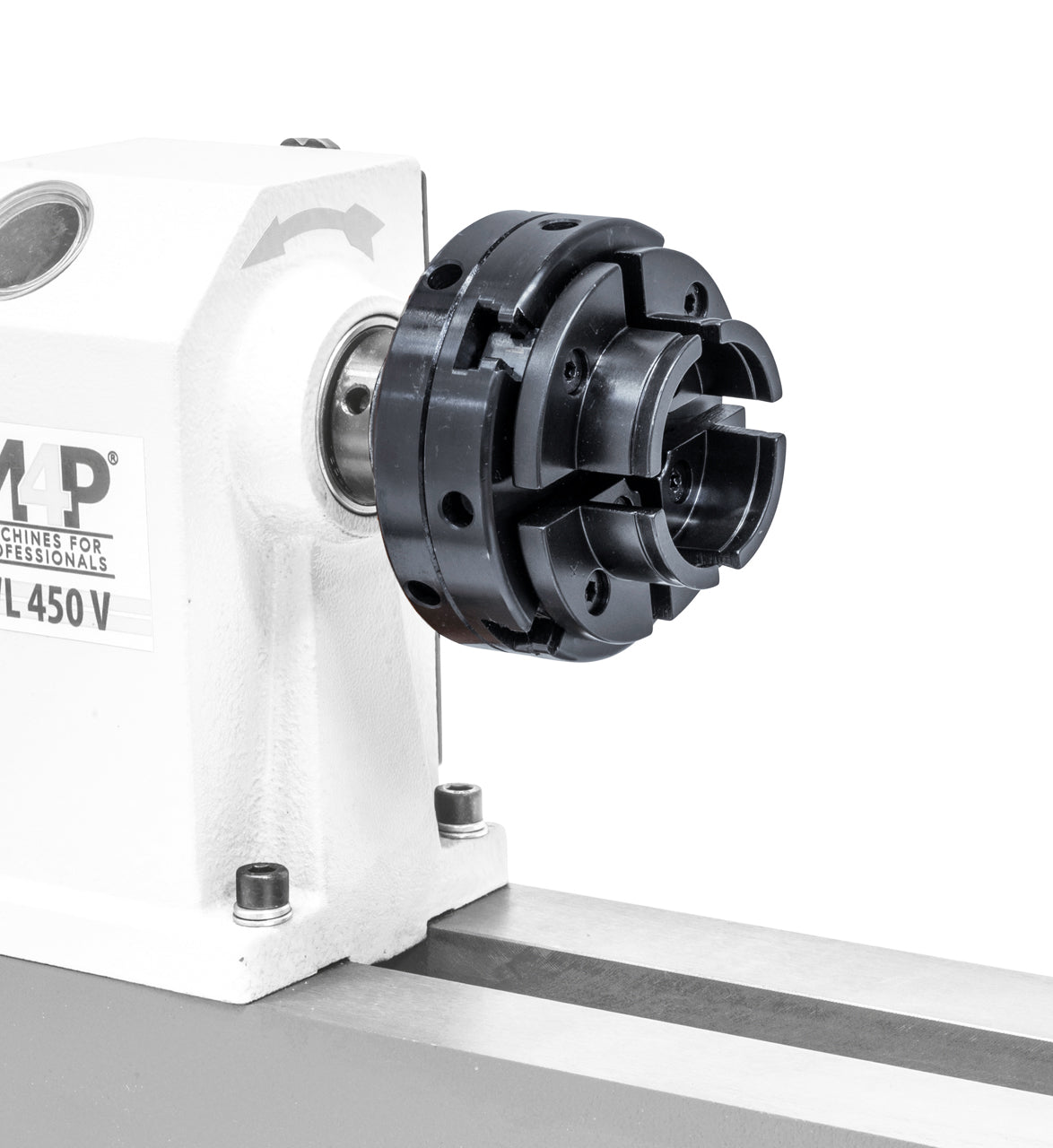

Extensive range of optional accessories for an expanded range of applications

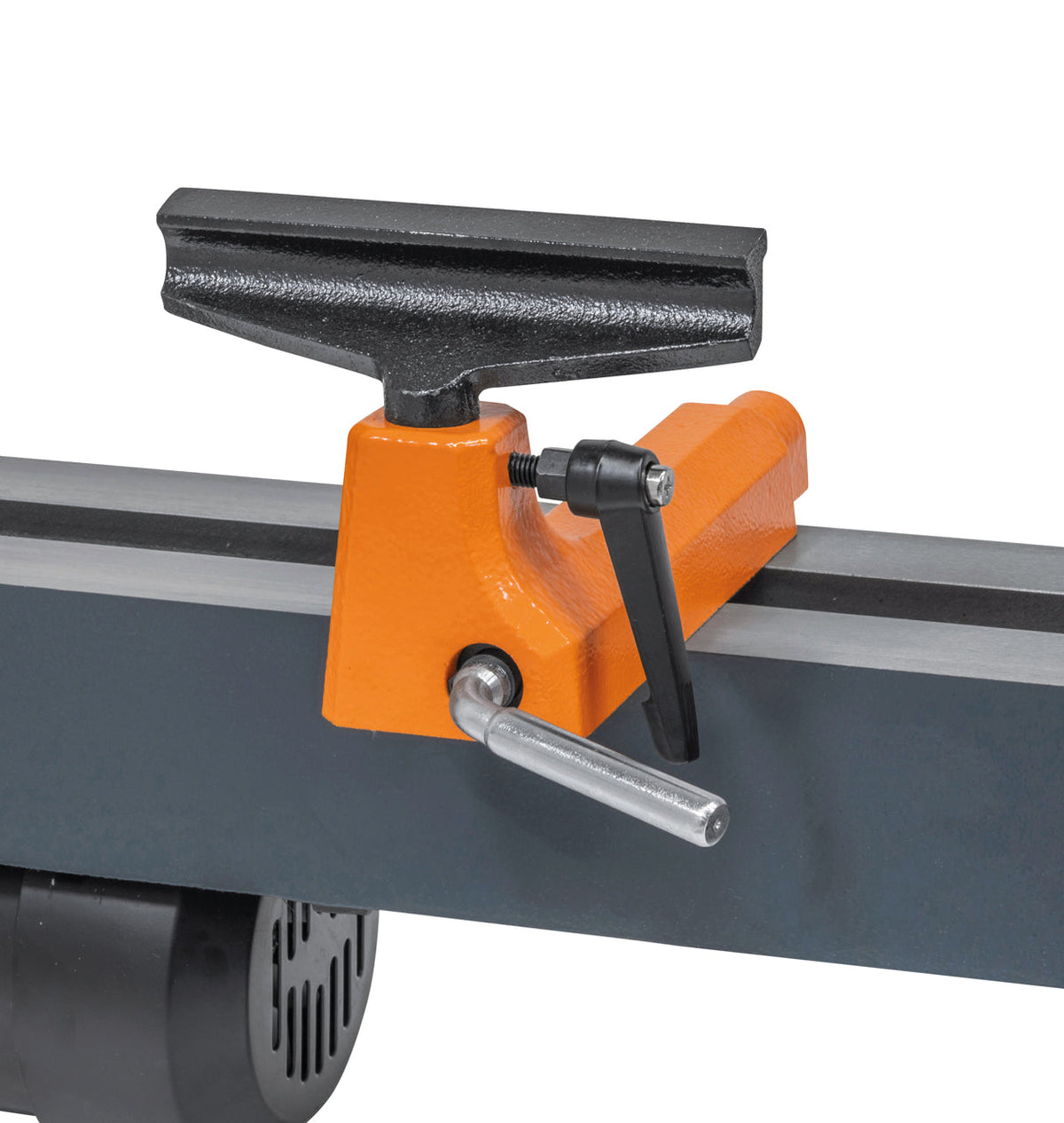

Easy locking of the tool rest via quick-release lever
| Spitzenweite | 420 mm |
| Spitzenweite mit Verlängerung* | 980 mm |
| Bearbeitungsdurchmesser | |
| - über Führungsbahn | 260 mm |
| - über Support | 190 mm |
| Spindeldrehzahlen | 500 - 3200 U/min |
| Drehzahlstufen | 5 |
| Spindelgewinde | M 33 x 3,5 mm |
| Reitstockkonus | MK 2 |
| Pinolenverstellung | 50 mm |
| Motor-Abgabeleistung S₁ 100% | 0,44 kW (0,6 PS) |
| Motor-Aufnahmeleistung S₆ 40% | 0,55 kW (0,75 PS) |
| Spannung | 230 V |
| Maschinenabmessung (B x T x H) | 780 x 260 x 380 mm |
| Gewicht ca. | 32 kg |
| * Option | |
